Supertech Supernova is a mixed-use development in Noida, India consisting of 5 towers ranging from 28-80 floors that contain residential, commercial, retail and office spaces. It has various amenities including clubs, swimming pools, food courts and a multiplex. The structural system uses a raft foundation with piles and M80 grade concrete. Technical drawings show tower plans including typical flats, sky villas and office floors. The design incorporates separate access points and parking for different uses to segregate circulation.

1. CASE STUDY
S U P E R T E C H
S U P E R N O V A
SEMESTER VIII | DESIGN
TEAM:
CHIRAG HAMIGI
PRAVEEN MADHAVAN
SALONI HOSMANI
MELNA MATHEW

2. TABLE OF CONTENTS
About
Location
Climate
Facilities
Design intent
Services
Structural system
Technical drawings
Landscape
Inference
DESIGN VIII

3. Supertech Supernova, designed by Benoy Architects, is situated in
Sector 94, Noida, UP is a Mixed-Use High-Rise community that
features 5 towers, along with a podium blending them seamlessly.
This project was picked since it met research criteria based on
typology of housing Residential, Commercial, Multiplex specifically.
The subsequent towers facilitate for Offices, Shopping mall,
Residential.
ABOUT
DESIGN VIII

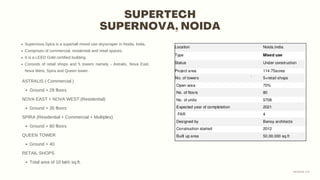

4. SUPERTECH
SUPERNOVA, NOIDA
Supernova Spira is a supertall mixed use skyscraper in Noida, India.
Comprises of commercial, residential and retail spaces.
It is a LEED Gold certified building.
Consists of retail shops and 5 towers namely - Astralis, Nova East,
Nova West, Spira and Queen tower.
Ground + 28 floors
Ground + 35 floors
Ground + 80 floors
Ground + 40
Total area of 10 lakh sq.ft.
ASTRALIS ( Commercial )
NOVA EAST + NOVA WEST (Residential)
SPIRA (Residential + Commercial + Multiplex)
QUEEN TOWER
RETAIL SHOPS
DESIGN VIII

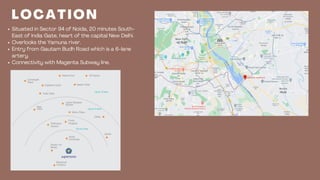

5. Situated in Sector 94 of Noida, 20 minutes South-
East of India Gate, heart of the capital New Delhi.
Overlooks the Yamuna river.
Entry from Gautam Budh Road which is a 6-lane
artery.
Connectivity with Magenta Subway line.
L O C A T I O N
DESIGN VIII

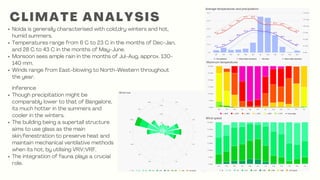

6. C L I M A T E A N A L Y S I S
Noida is generally characterised with cold,dry winters and hot,
humid summers.
Temperatures range from 6 C to 23 C in the months of Dec-Jan,
and 28 C to 43 C in the months of May-June.
Monsoon sees ample rain in the months of Jul-Aug, approx. 130-
140 mm.
Winds range from East-blowing to North-Western throughout
the year.
Though precipitation might be
comparably lower to that of Bangalore,
its much hotter in the summers and
cooler in the winters.
The building being a supertall structure
aims to use glass as the main
skin/fenestration to preserve heat and
maintain mechanical ventilative methods
when its hot, by utilising VRV/VRF.
The integration of fauna plays a crucial
role.
Inference

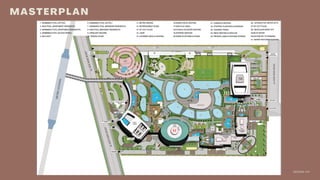

7. M A S T E R P L A N
DESIGN VIII

8. DESIGN VIII
B A S E M E N T

9. DESIGN VIII

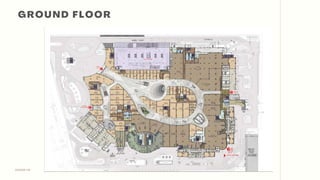

G R O U N D F L O O R

10. DESIGN VIII
R E T A I L - F I R S T F L O O R

11. DESIGN VIII
R E T A I L -S E C O N D F L O O R

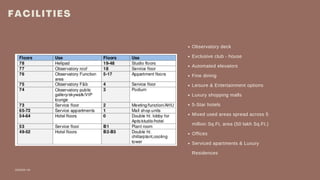

12. F A C I L I T I E S
DESIGN VIII
Observatory deck
Exclusive club - house
Automated elevators
Fine dining
Leisure & Entertainment options
Luxury shopping malls
5-Star hotels
Mixed used areas spread across 5
million Sq.Ft, area (50 lakh Sq.Ft.)
Offices
Serviced apartments & Luxury
Residences

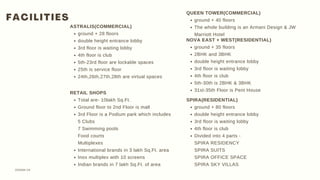

13. ground + 28 floors
double height entrance lobby
3rd floor is waiting lobby
4th floor is club
5th-23rd floor are lockable spaces
25th is service floor
24th,26th,27th,28th are virtual spaces
ASTRALIS(COMMERCIAL)
F A C I L I T I E S
DESIGN VIII
ground + 35 floors
2BHK and 3BHK
double height entrance lobby
3rd floor is waiting lobby
4th floor is club
5th-30th is 2BHK & 3BHK
31st-35th Floor is Pent House
NOVA EAST + WEST(RESIDENTIAL)
ground + 80 floors
double height entrance lobby
3rd floor is waiting lobby
4th floor is club
Divided into 4 parts -
SPIRA(RESIDENTIAL)
SPIRA RESIDENCY
SPIRA SUITS
SPIRA OFFICE SPACE
SPIRA SKY VILLAS
ground + 40 floors
The whole building is an Armani Design & JW
Marriott Hotel
QUEEN TOWER(COMMERCIAL)
Total are- 10lakh Sq.Ft.
Ground floor to 2nd Floor is mall
3rd Floor is a Podium park which includes
International brands in 3 lakh Sq.Ft. area
Inox multiplex with 10 screens
Indian brands in 7 lakh Sq.Ft. of area
RETAIL SHOPS
5 Clubs
7 Swimming pools
Food courts
Multiplexes

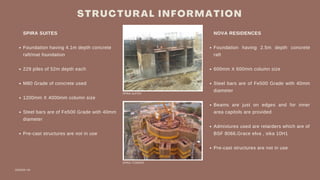

14. S T R U C T U R A L I N F O R M A T I O N
DESIGN VIII
Foundation having 4.1m depth concrete
raft/mat foundation
229 piles of 52m depth each
M80 Grade of concrete used
1200mm X 4000mm column size
Steel bars are of Fe500 Grade with 40mm
Pre-cast structures are not in use
SPIRA SUITES
diameter
Foundation having 2.5m depth concrete
raft
600mm X 600mm column size
Steel bars are of Fe500 Grade with 40mm
diameter
Beams are just on edges and for inner
area capitols are provided
Admixtures used are retarders which are of
Pre-cast structures are not in use
NOVA RESIDENCES
BSF 8066,Grace elva , sika 10H1
SPIRA TOWERS
SPIRA SUITES

15. DESIGN VIII
T E C H N I C A L D R A W I N G S
N O V A E A S T & W E S T

16. DESIGN VIII
T E C H N I C A L D R A W I N G S
N O V A E A S T & W E S T

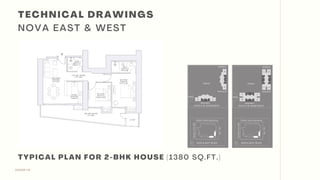

T Y P I C A L P L A N F O R 2-B H K H O U S E (1380 S Q .F T .)

17. DESIGN VIII
T E C H N I C A L D R A W I N G S
N O V A E A S T & W E S T

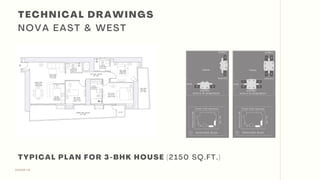

T Y P I C A L P L A N F O R 3-B H K H O U S E (2150 S Q .F T .)

18. DESIGN VIII
T E C H N I C A L D R A W I N G S
S P I R A

19. DESIGN VIII
T E C H N I C A L D R A W I N G S

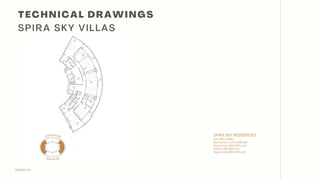

S P I R A S K Y V I L L A S

20. DESIGN VIII
T E C H N I C A L D R A W I N G S
S P I R A S K Y V I L L A S

21. DESIGN VIII

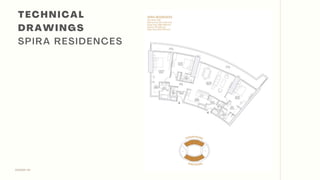

T E C H N I C A L
D R A W I N G S

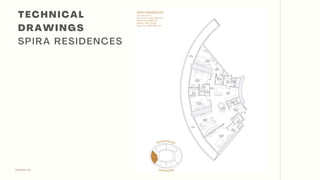

S P I R A R E S I D E N C E S

22. DESIGN VIII
T E C H N I C A L
D R A W I N G S
S P I R A R E S I D E N C E S

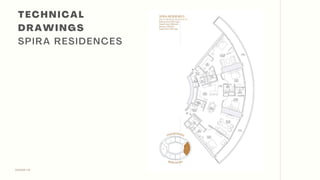

23. DESIGN VIII
T E C H N I C A L
D R A W I N G S
S P I R A R E S I D E N C E S

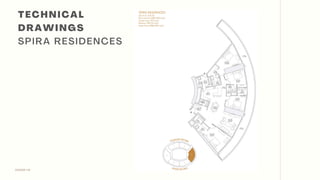

24. DESIGN VIII
T E C H N I C A L
D R A W I N G S
S P I R A R E S I D E N C E S

25. DESIGN VIII

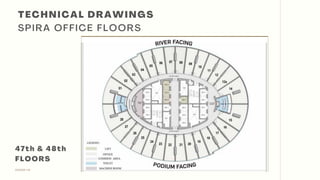

T E C H N I C A L D R A W I N G S
S P I R A O F F I C E F L O O R S
47t h & 48t h
F L O O R S

26. DESIGN VIII
T E C H N I C A L D R A W I N G S
S P I R A O F F I C E F L O O R S

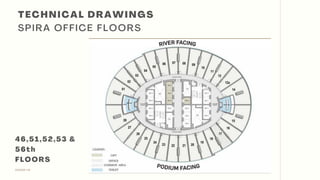

46,51,52,53 &
56t h
F L O O R S

27. DESIGN VIII

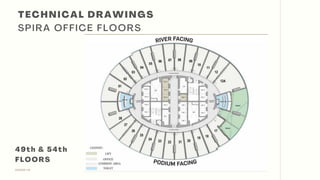

T E C H N I C A L D R A W I N G S
S P I R A O F F I C E F L O O R S
49t h & 54t h
F L O O R S

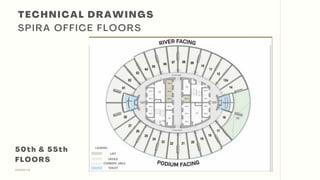

28. DESIGN VIII
T E C H N I C A L D R A W I N G S
S P I R A O F F I C E F L O O R S
50t h & 55t h
F L O O R S

29. DESIGN VIII
T E C H N I C A L D R A W I N G S
S P I R A O F F I C E F L O O R S
57t h & 58t h
F L O O R S

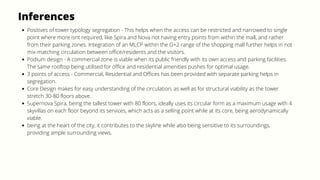

30. Inferences
Positives of tower typology segregation - This helps when the access can be restricted and narrowed to single
point where more isnt required, like Spira and Nova not having entry points from within the mall, and rather
from their parking zones. Integration of an MLCP within the G+2 range of the shopping mall further helps in not
mix-matching circulation between office/residents and the visitors.
Podium design - A commercial zone is viable when its public friendly with its own access and parking facilities.
The same rooftop being utilised for office and residential amenities pushes for optimal usage.
3 points of access - Commercial, Residential and Offices has been provided with separate parking helps in
segregation.
Core Design makes for easy understanding of the circulation, as well as for structural viability as the tower
stretch 30-80 floors above.
Supernova Spira, being the tallest tower with 80 floors, ideally uses its circular form as a maximum usage with 4
skyvillas on each floor beyond its services, which acts as a selling point while at its core, being aerodynamically
viable.
being at the heart of the city, it contributes to the skyline while also being sensitive to its surroundings,
providing ample surrounding views.

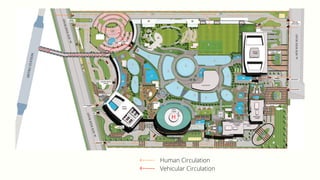

31. Human Circulation
Vehicular Circulation
