1. Roberto Casadei
Aggregate Programming in Scala:
a Core Library and Actor-based Platform
for Distributed Computational Fields

2. Presentation Summary
Part I — Introduction
Part II — Background: Aggregate Programming
• Spatial computing and space-time programming
• Computational fields and field calculus
• Aggregate programming
Part III — Background: Scala for Library Development
• Advanced features
• Advanced techniques
Part IV — Development of scafi
• Project
• Design
• Implementation
Part V — Evaluation
• Evaluation
• Demo
• Conclusion and contributions

3. Context

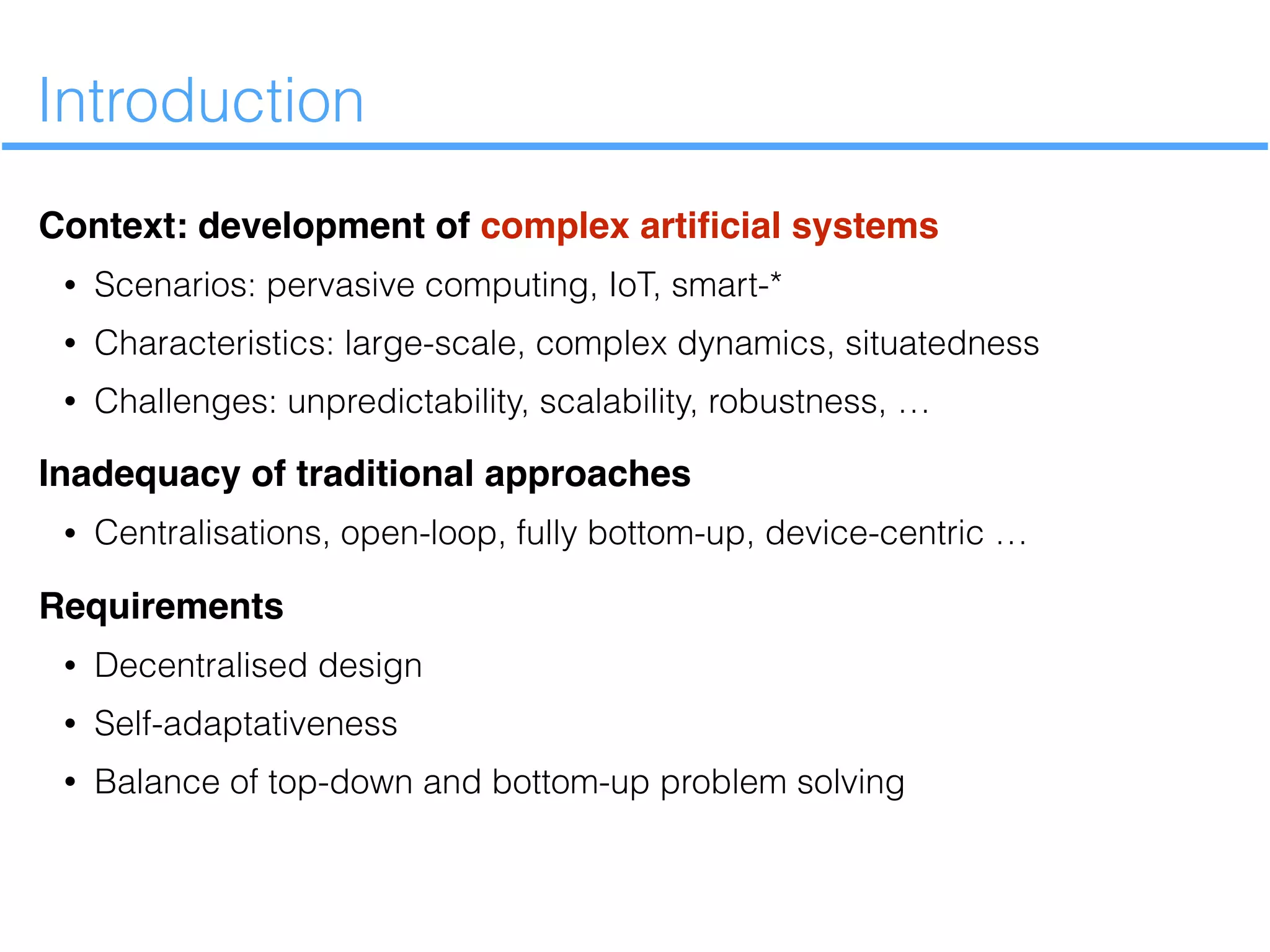

4. Context: development of complex artificial systems
• Scenarios: pervasive computing, IoT, smart-*
• Characteristics: large-scale, complex dynamics, situatedness
• Challenges: unpredictability, scalability, robustness, …
Inadequacy of traditional approaches
• Centralisations, open-loop, fully bottom-up, device-centric …
Requirements
• Decentralised design
• Self-adaptativeness
• Balance of top-down and bottom-up problem solving
Introduction

5. Spatial Computing
Space-oriented computation — Thematic areas:
A. Intensive computing
B. Computation embedded in space
C. Space computation
Computing “somewhere” [Duckham13]
• Location-related information
• Spatial constraints to communication
Space-time programming [PTRSL-15]
• Computation expressed in terms of properties
of the physical time and space in which it occurs
• Spatial abstractions
Discrete system vs. continuous space-time

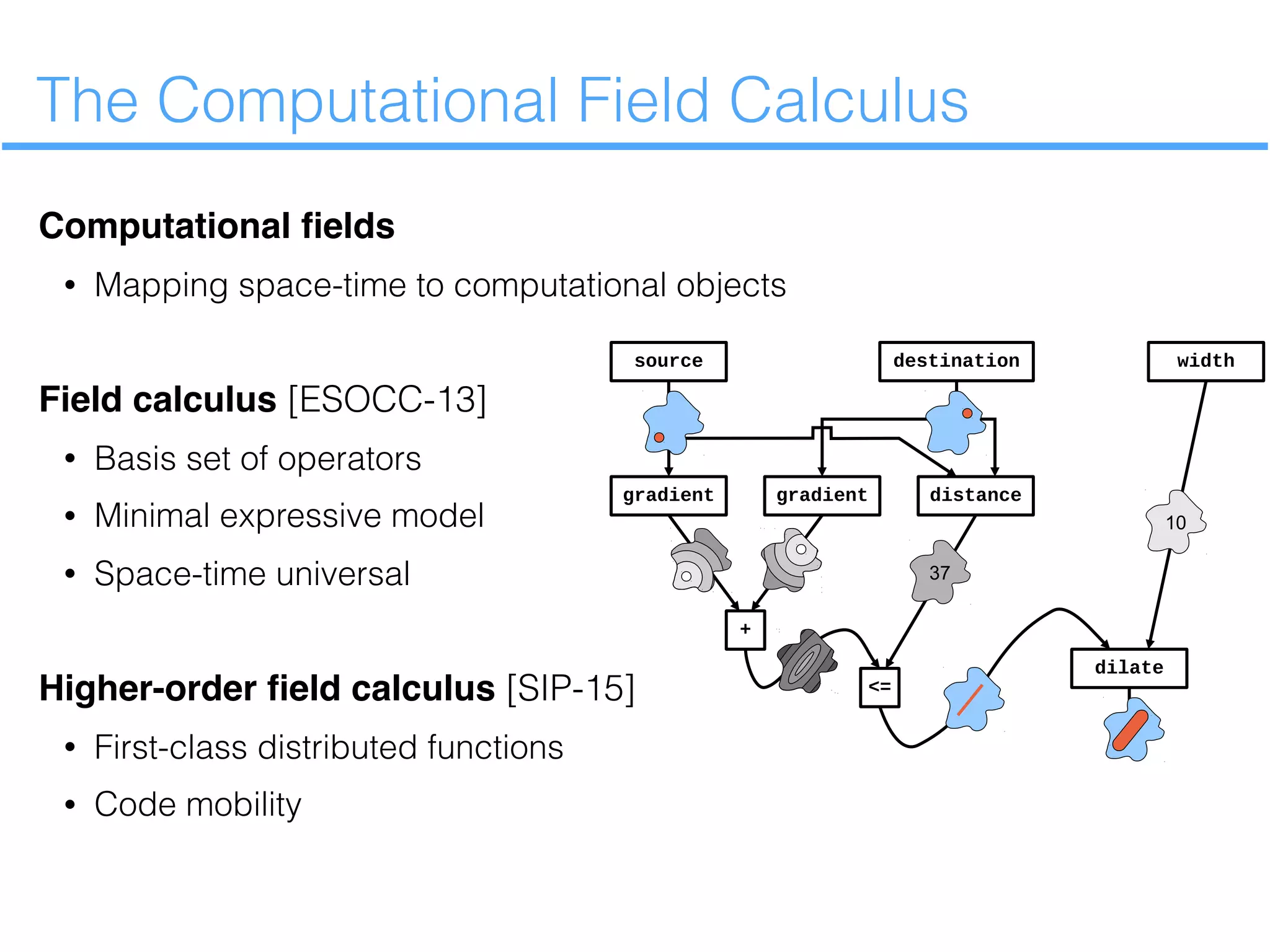

6. The Computational Field CalculusComputing with fields
Local vs Global viewpoint
Globally, input fields are manipulated and produce output
Locally, nodes compute a “program” to globally achieve t
source destination
gradient distancegradient
<=
+
dilate
width
37
10
Mirko Viroli (Universit`a di Bologna) ISAC10 – SpatialComputing a.a.
Computational fields
• Mapping space-time to computational objects
Field calculus [ESOCC-13]
• Basis set of operators
• Minimal expressive model
• Space-time universal
Higher-order field calculus [SIP-15]
• First-class distributed functions
• Code mobility

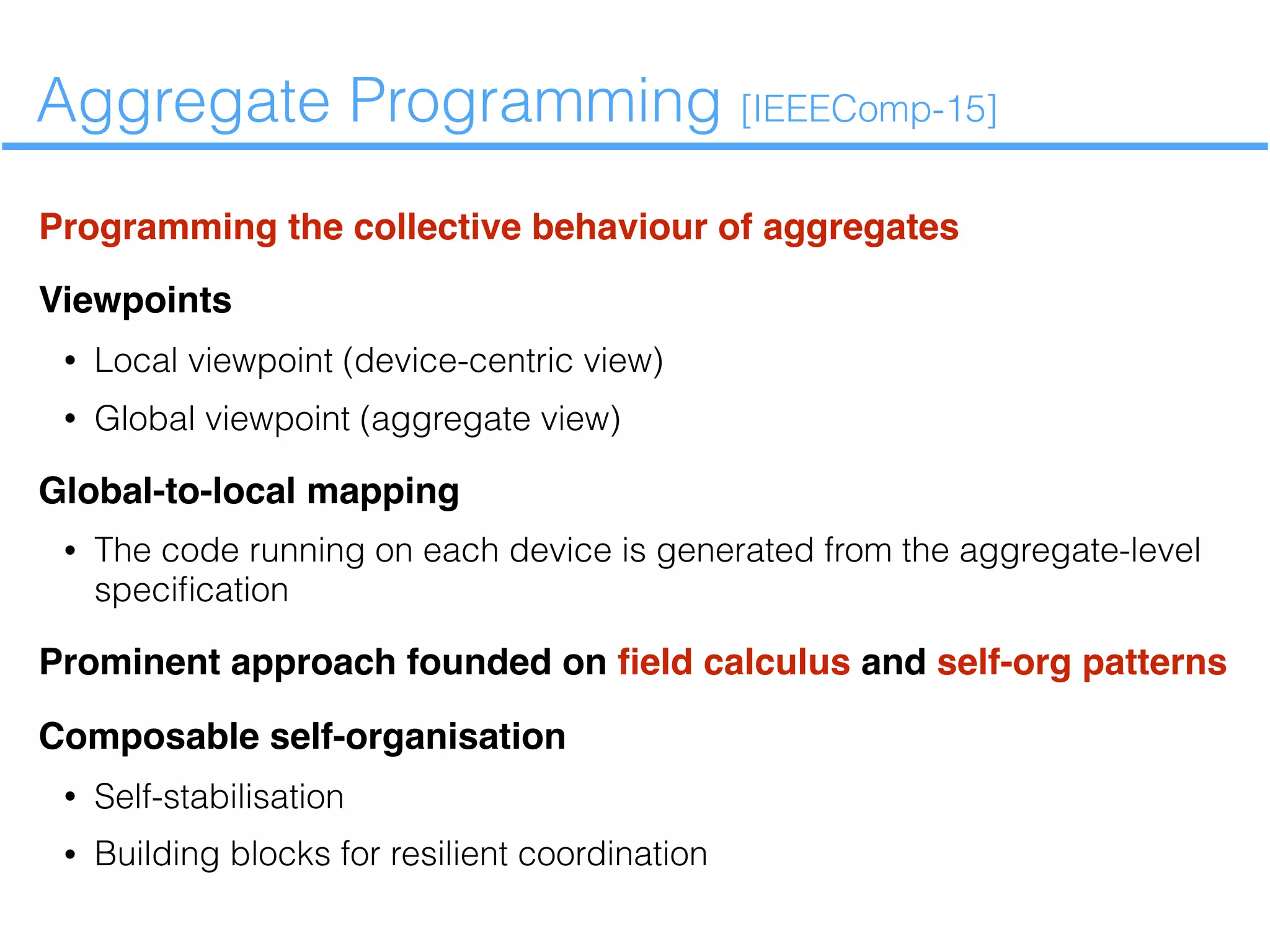

7. Aggregate Programming [IEEEComp-15]
Programming the collective behaviour of aggregates
Viewpoints
• Local viewpoint (device-centric view)
• Global viewpoint (aggregate view)
Global-to-local mapping
• The code running on each device is generated from the aggregate-level
specification
Prominent approach founded on field calculus and self-org patterns
Composable self-organisation
• Self-stabilisation
• Building blocks for resilient coordination

8. Aggregate Programming Stack
from [IEEEComp-15]

9. Aggregate Programming Toolchain
State-of-art: Protelis + Alchemist
• External DSL
• Focus on simulation
Technological gap: there is no aggregate programming framework
aimed at the construction of real-world applications integrated in a
mainstream language
➡ scafi (scala with computational fields)
• Initial design and logic of the field calculus interpreter by prof. Viroli
Towards a tool-chain for aggregate computing
Field Calculus
Protelis
Xtext parsing
Static analysis Interpreter
Alchemist
Platforms
Formal
foundation
Programming
Language
Language
tools
Simulation
Execution
Properties
Proto Lang
Proto Sim
Libraries
Mirko Viroli (UNIBO) Aggregate Programming for VLS Ubicomp VLSUbicomp 2015

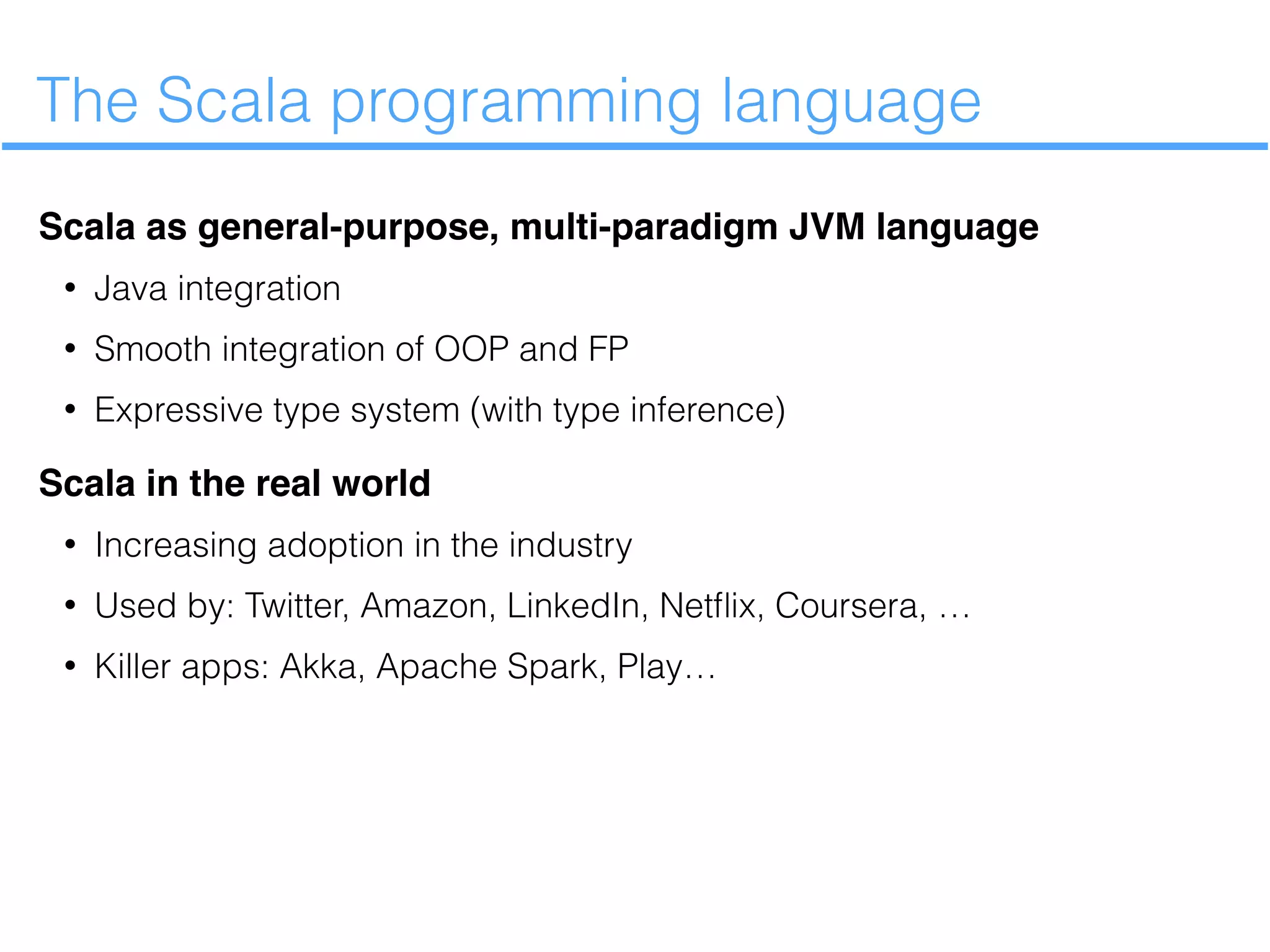

10. The Scala programming language
Scala as general-purpose, multi-paradigm JVM language
• Java integration
• Smooth integration of OOP and FP
• Expressive type system (with type inference)
Scala in the real world
• Increasing adoption in the industry
• Used by: Twitter, Amazon, LinkedIn, Netflix, Coursera, …
• Killer apps: Akka, Apache Spark, Play…

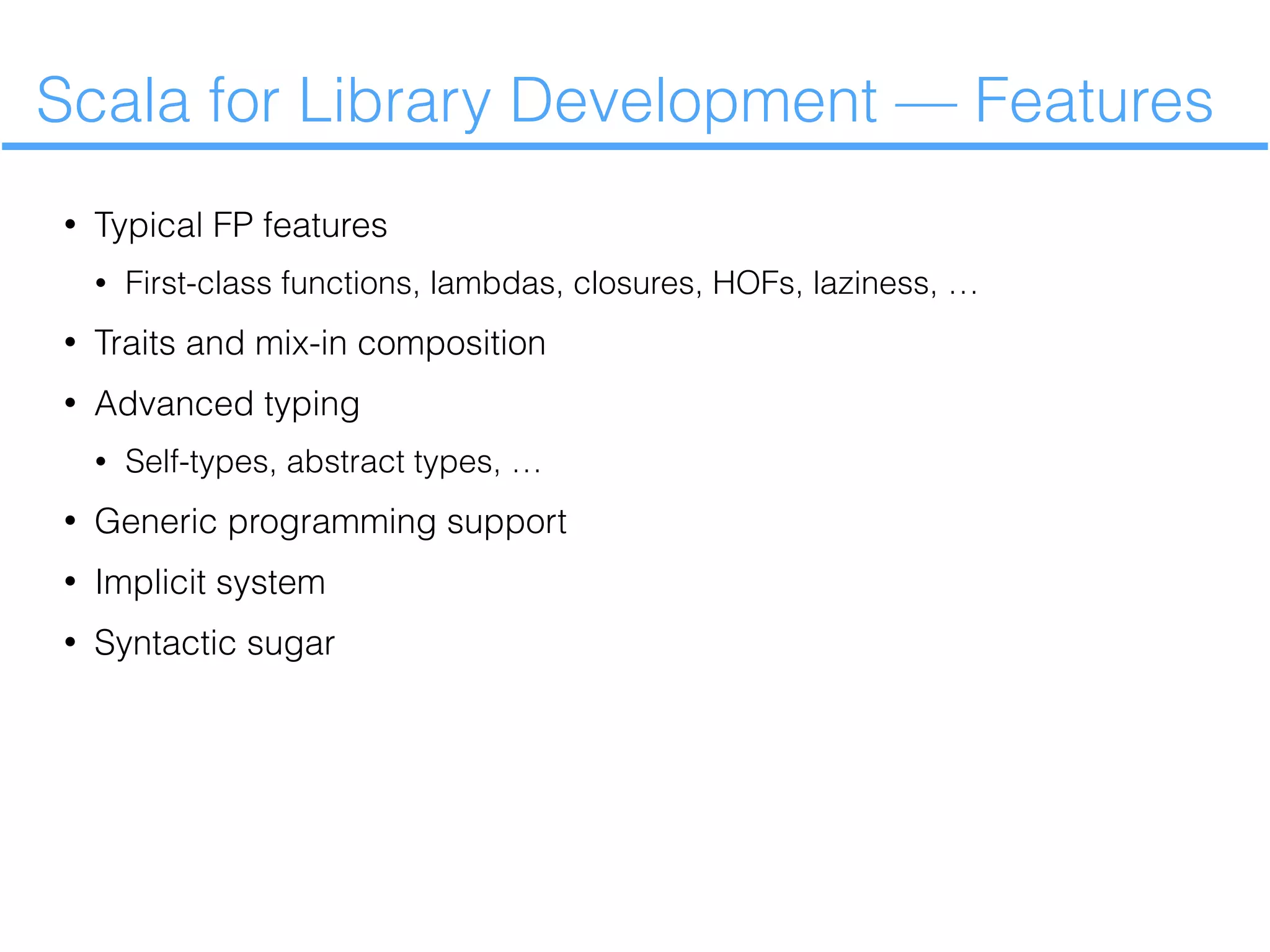

11. Scala for Library Development — Features
• Typical FP features
• First-class functions, lambdas, closures, HOFs, laziness, …
• Traits and mix-in composition
• Advanced typing
• Self-types, abstract types, …
• Generic programming support
• Implicit system
• Syntactic sugar

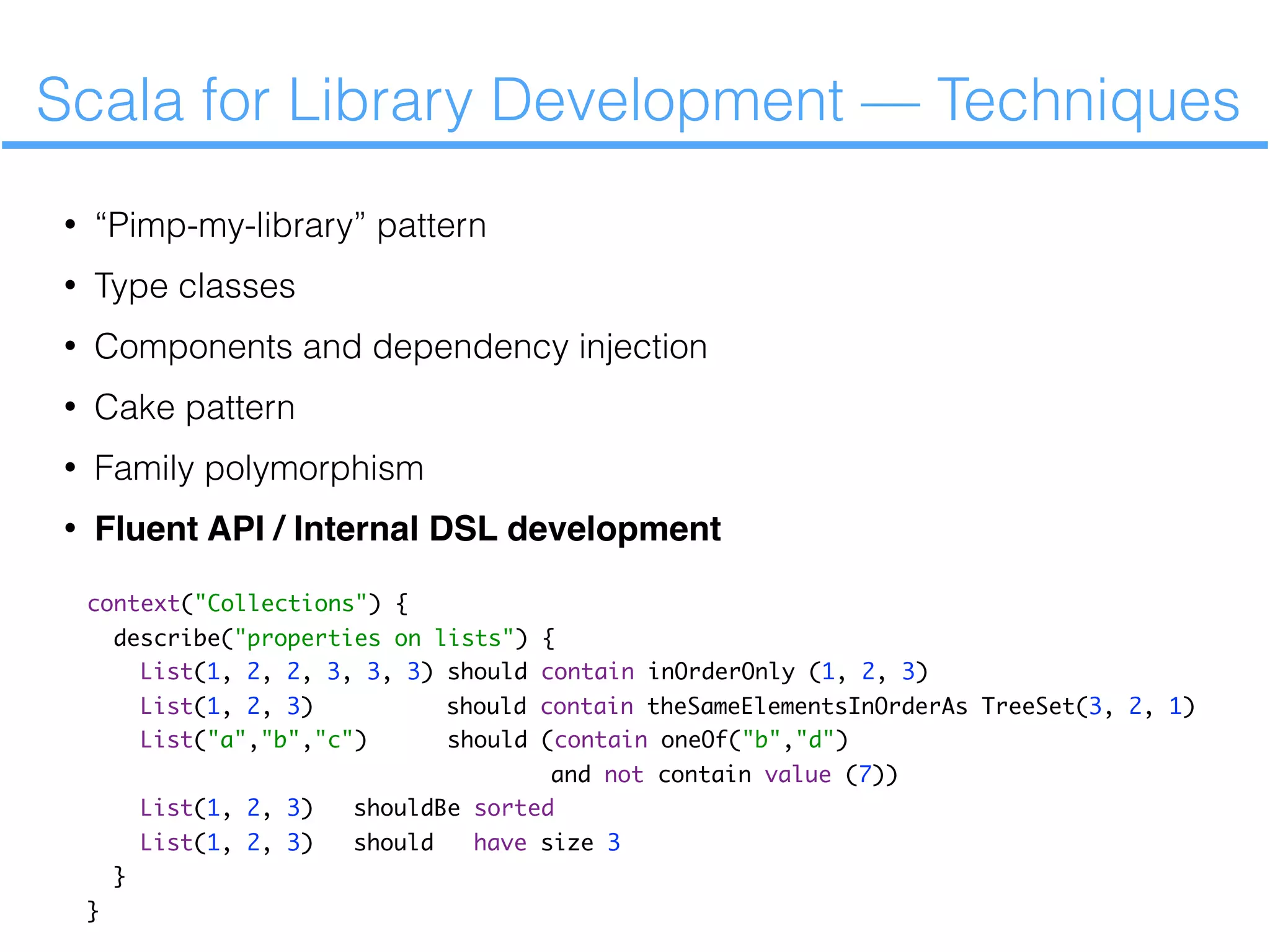

12. Scala for Library Development — Techniques
• “Pimp-my-library” pattern
• Type classes
• Components and dependency injection
• Cake pattern
• Family polymorphism
• Fluent API / Internal DSL development
context("Collections") {
describe("properties on lists") {
List(1, 2, 2, 3, 3, 3) should contain inOrderOnly (1, 2, 3)
List(1, 2, 3) should contain theSameElementsInOrderAs TreeSet(3, 2, 1)
List("a","b","c") should (contain oneOf("b","d")
and not contain value (7))
List(1, 2, 3) shouldBe sorted
List(1, 2, 3) should have size 3
}
}

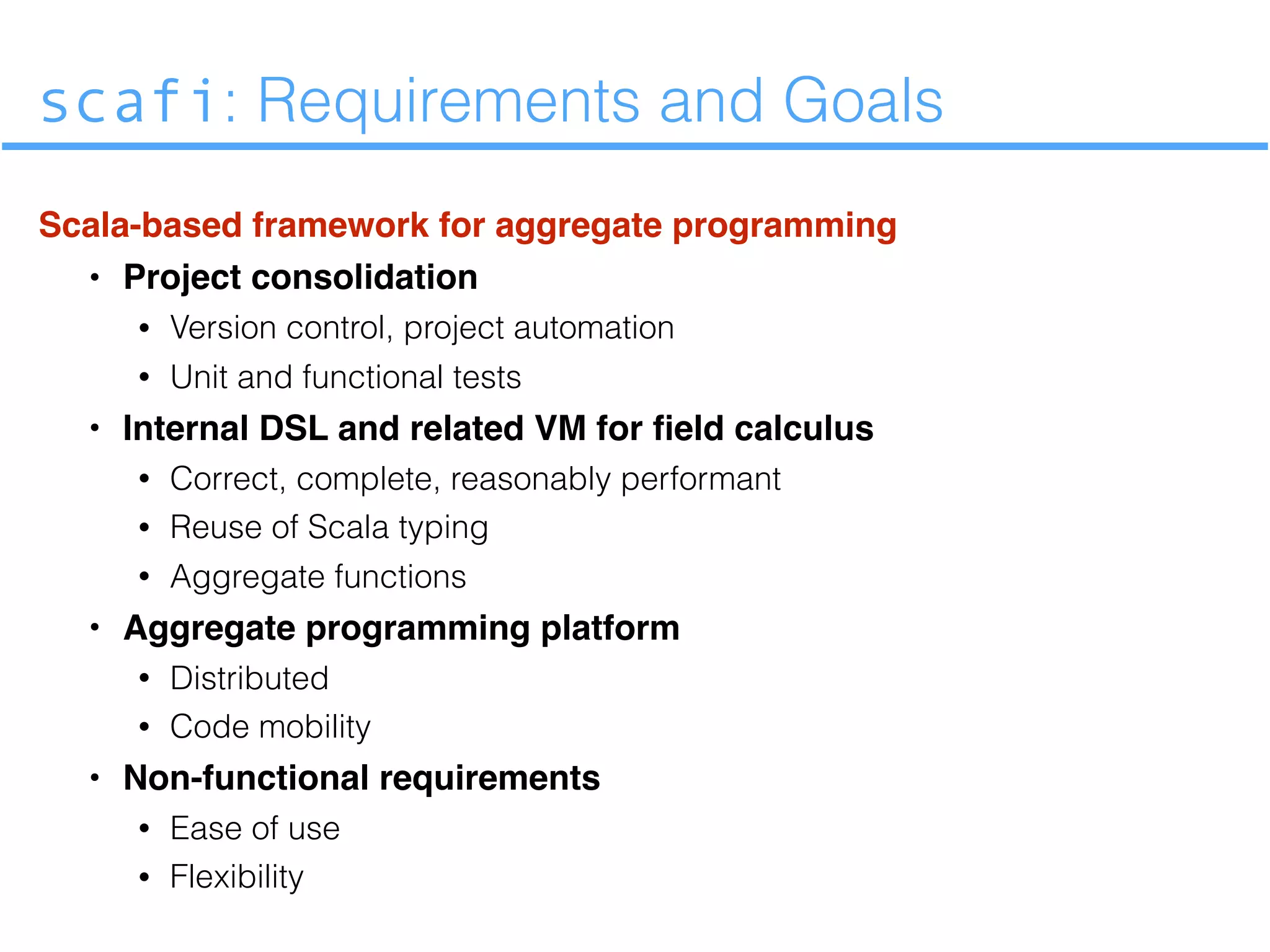

13. scafi: Requirements and Goals
Scala-based framework for aggregate programming
• Project consolidation
• Version control, project automation
• Unit and functional tests
• Internal DSL and related VM for field calculus
• Correct, complete, reasonably performant
• Reuse of Scala typing
• Aggregate functions
• Aggregate programming platform
• Distributed
• Code mobility
• Non-functional requirements
• Ease of use
• Flexibility

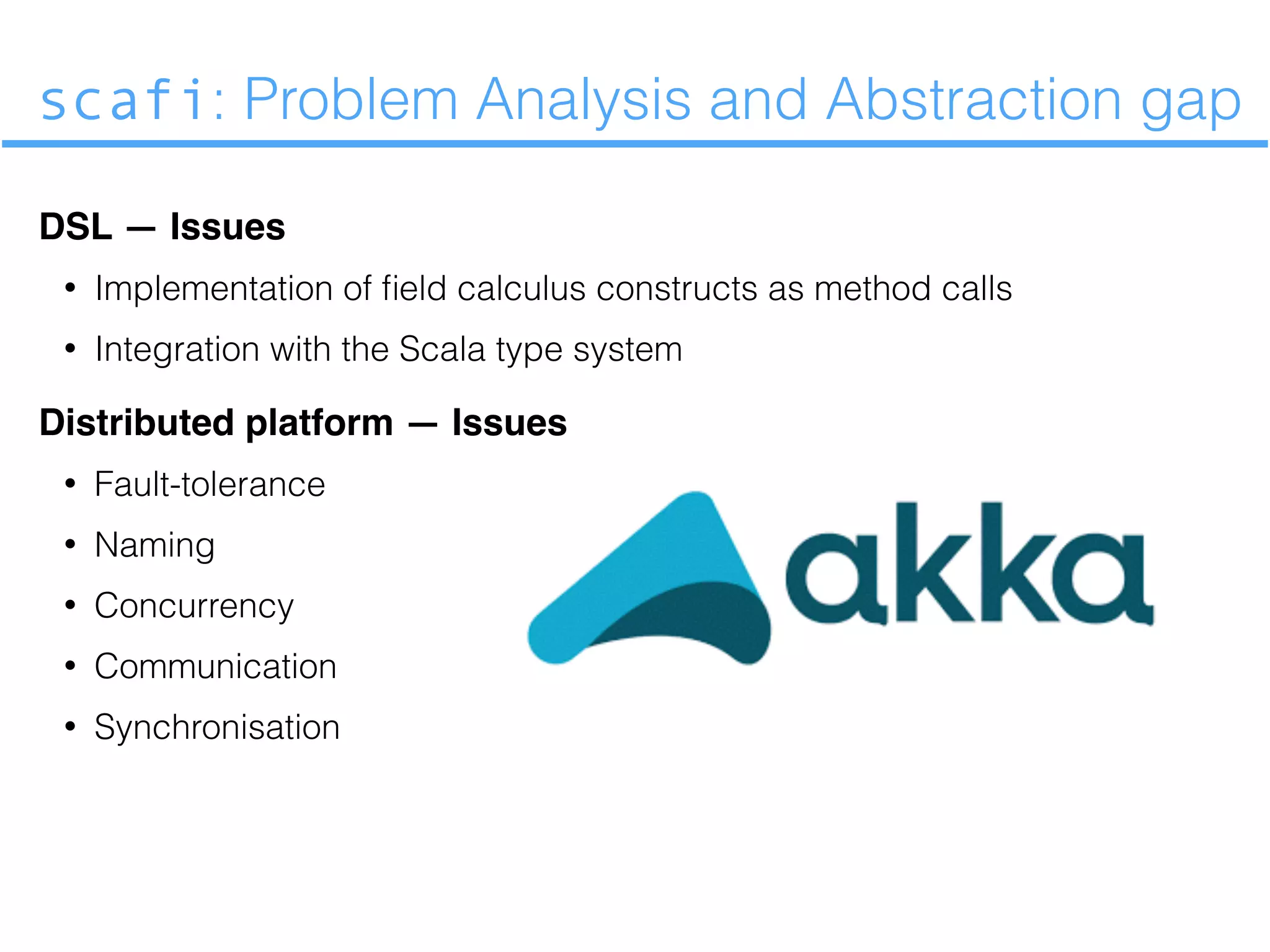

14. scafi: Problem Analysis and Abstraction gap
DSL — Issues
• Implementation of field calculus constructs as method calls
• Integration with the Scala type system
Distributed platform — Issues
• Fault-tolerance
• Naming
• Concurrency
• Communication
• Synchronisation

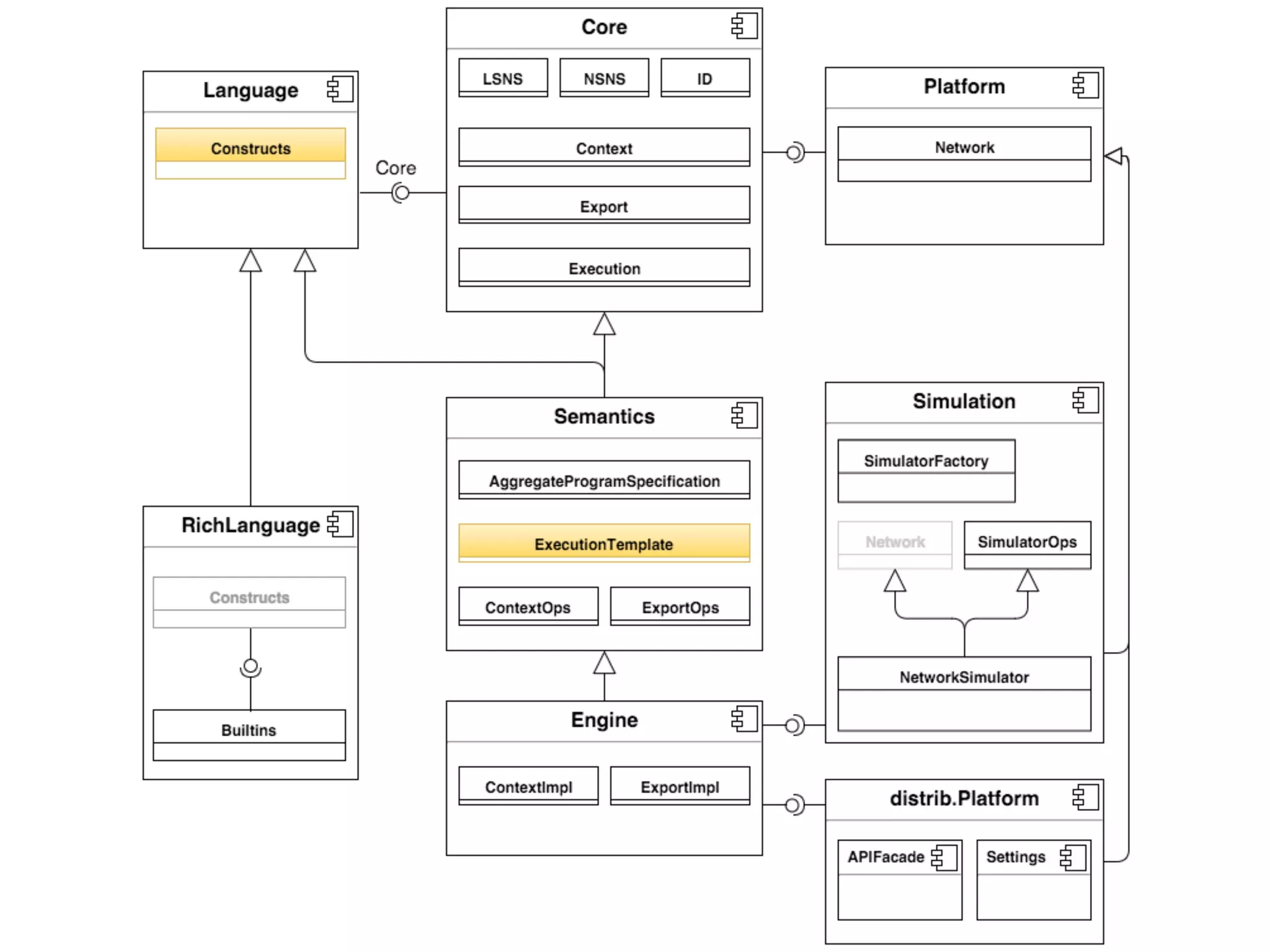

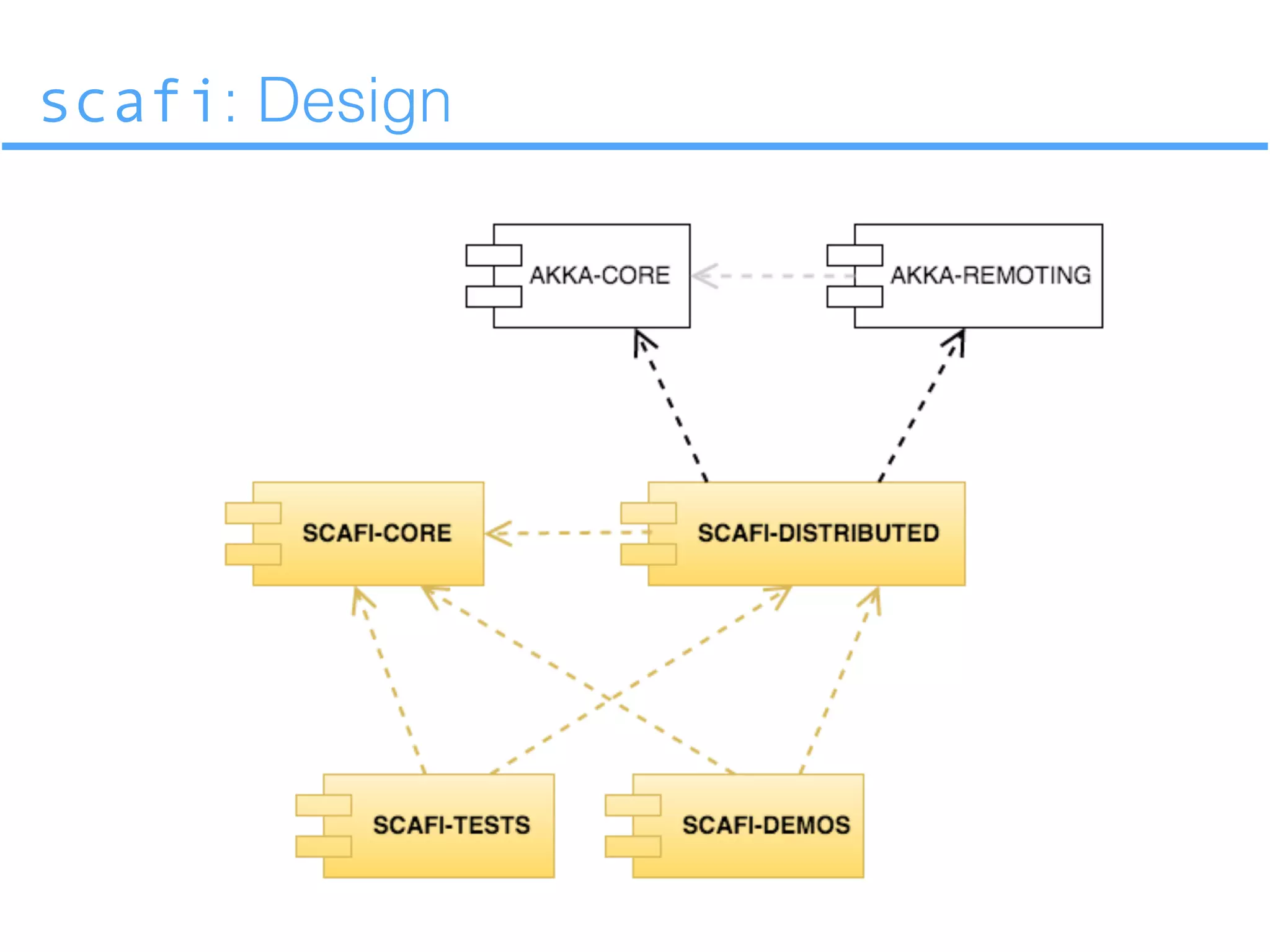

15. scafi: Design

17. Language
trait Language { self: Core =>
trait Constructs {
def nbr[A](expr: => A): A
def rep[A](init: A)
(fun: (A) => A): A
def branch[A](cond: => Boolean)
(th: => A)
(el: => A): A
def foldhood[A](init: => A)
(aggr: (A,A)=>A)
(expr: => A): A
def aggregate[A](f: => A): A
def sense[A](name: LSNS): A
def nbrvar[A](name: NSNS): A
def mid(): ID
def neighbour(): Option[ID]
}
}
trait MyLib { self: Constructs with Builtins =>
def nbrRange: Double = nbrvar[Double](NBR_RANGE_NAME)
def G[V: OrderingFoldable](src: Boolean, field: V,
acc: V => V, metric: => Double): V =
rep( (Double.MaxValue, field) ){
dv => mux(src) { (0.0, field) } {
minHoodPlus {
val (d, v) = nbr { (dv._1, dv._2) }
(d + metric, acc(v)) }
}
}._2
def distTo(source:Boolean): Double =
G[Double](source,0, _ + nbrRange, nbrRange)
def broadcast[V: OrderingFoldable](src:Boolean, field: V): V =
G[V](src,field, x=>x , nbrRange)
def distBetween(src:Boolean, target:Boolean): Double =
broadcast(src, distanceTo(target))
def channel(src:Boolean, target:Boolean, width:Double): Boolean =
distTo(src) + distTo(target) <= distBetween(src,target) + width
}

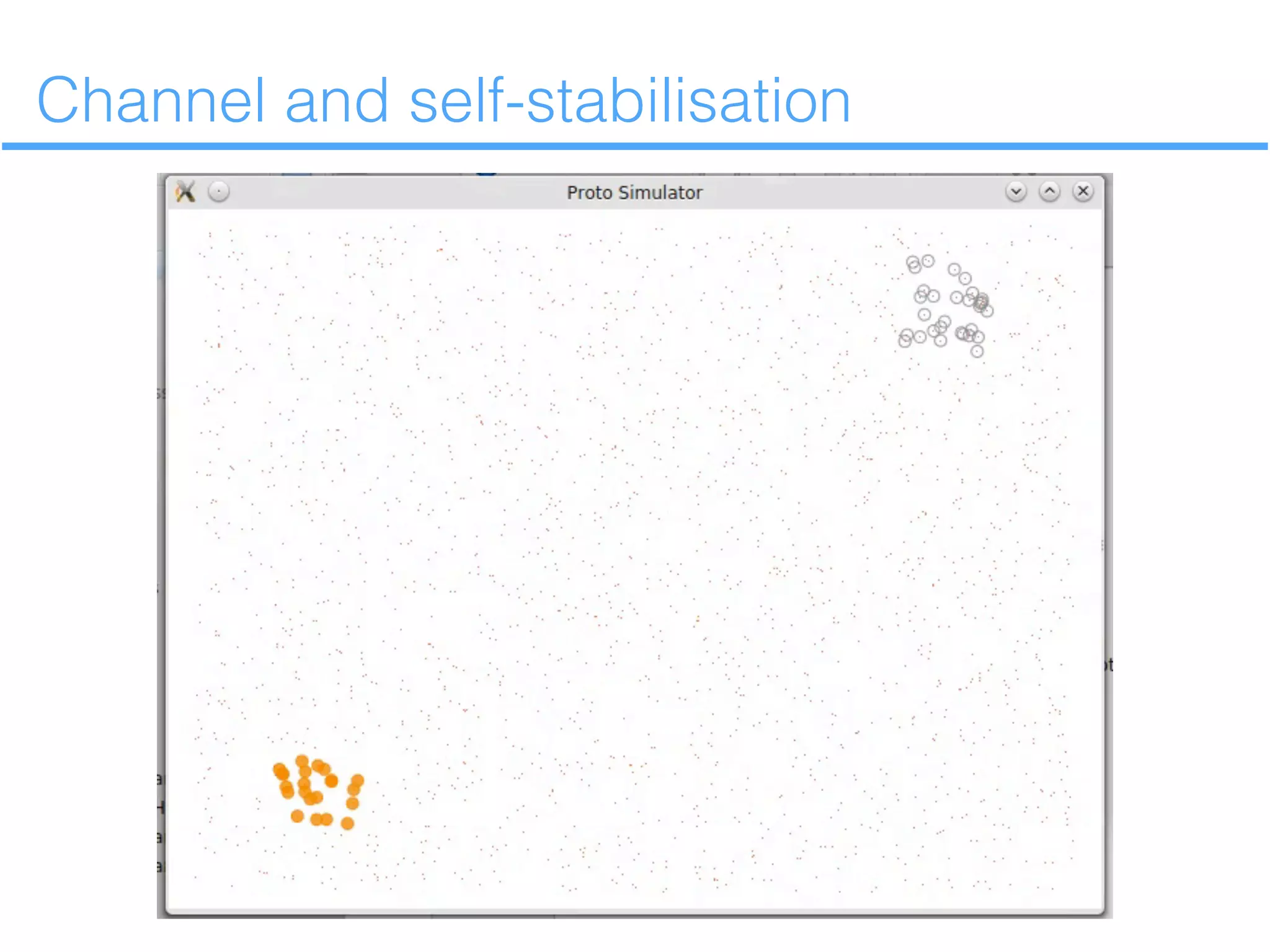

18. Channel and self-stabilisation

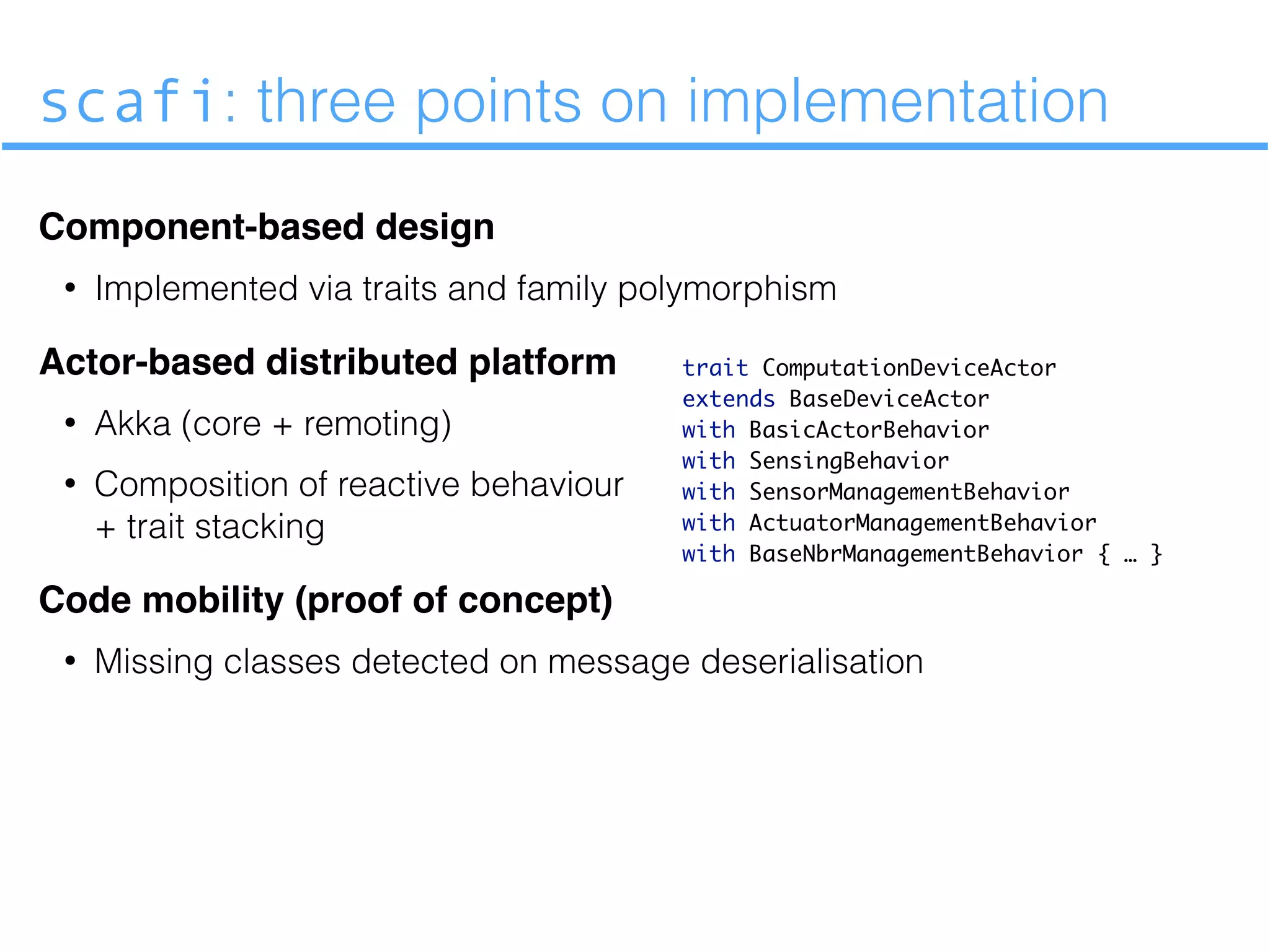

20. scafi: three points on implementation

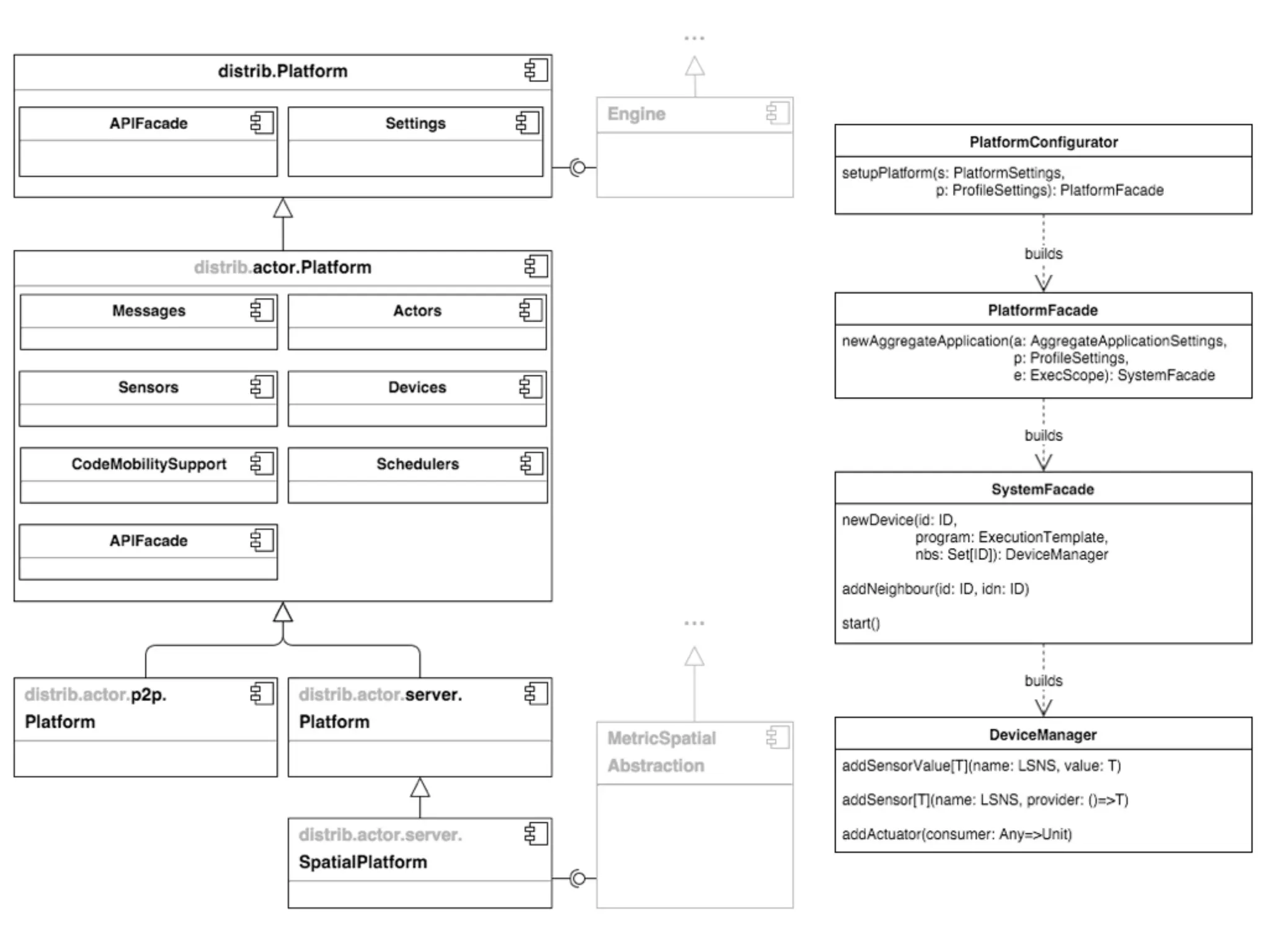

Component-based design
• Implemented via traits and family polymorphism
Actor-based distributed platform
• Akka (core + remoting)
• Composition of reactive behaviour
+ trait stacking
Code mobility (proof of concept)
• Missing classes detected on message deserialisation
trait ComputationDeviceActor
extends BaseDeviceActor
with BasicActorBehavior
with SensingBehavior
with SensorManagementBehavior
with ActuatorManagementBehavior
with BaseNbrManagementBehavior { … }

21. Example: p2p, ad-hoc net
// STEP 1: CHOOSE INCARNATION
import it.unibo.scafi.incarnations.{ BasicActorP2P => Platform }
// STEP 2: DEFINE AGGREGATE PROGRAM SCHEMA
class Demo_AggregateProgram extends Platform.AggregateProgram {
override def main(): Any = foldhood(0){_ + _}(1)
}
// STEP 3: DEFINE MAIN PROGRAM
object Demo_MainProgram extends Platform.CmdLineMain
1) Demo_MainProgram -h 127.0.0.1 -p 9000
-e 1:2,4,5;2;3 --subsystems 127.0.0.1:9500:4:5
--program “demos.Demo_AggregateProgram”
2) Demo_MainProgram -h 127.0.0.1 -p 9500
-e 4;5:4
--program “demos.Demo_AggregateProgram”

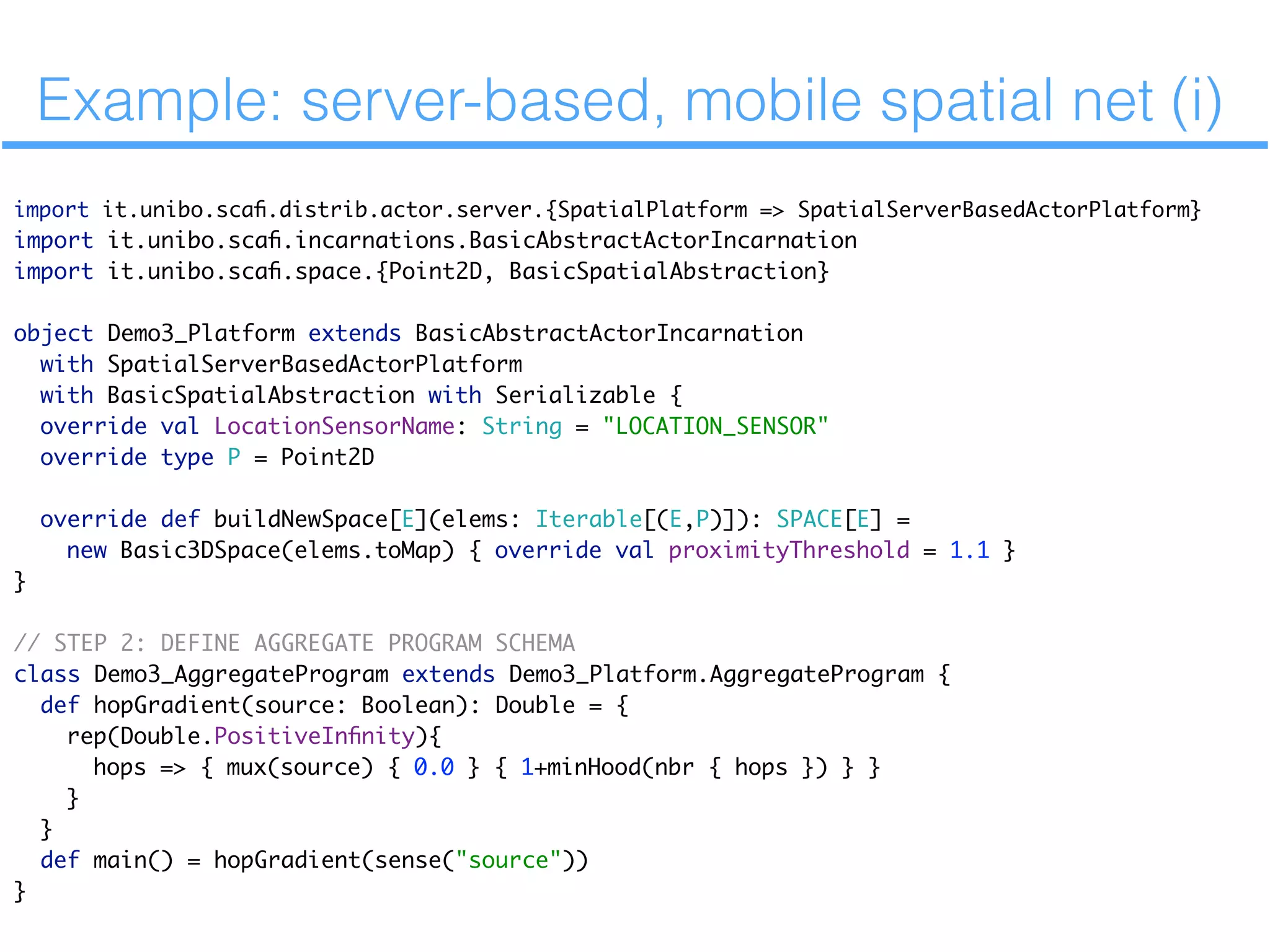

22. Example: server-based, mobile spatial net (i)
import it.unibo.scafi.distrib.actor.server.{SpatialPlatform => SpatialServerBasedActorPlatform}
import it.unibo.scafi.incarnations.BasicAbstractActorIncarnation
import it.unibo.scafi.space.{Point2D, BasicSpatialAbstraction}
object Demo3_Platform extends BasicAbstractActorIncarnation
with SpatialServerBasedActorPlatform
with BasicSpatialAbstraction with Serializable {
override val LocationSensorName: String = "LOCATION_SENSOR"
override type P = Point2D
override def buildNewSpace[E](elems: Iterable[(E,P)]): SPACE[E] =
new Basic3DSpace(elems.toMap) { override val proximityThreshold = 1.1 }
}
// STEP 2: DEFINE AGGREGATE PROGRAM SCHEMA
class Demo3_AggregateProgram extends Demo3_Platform.AggregateProgram {
def hopGradient(source: Boolean): Double = {
rep(Double.PositiveInfinity){
hops => { mux(source) { 0.0 } { 1+minHood(nbr { hops }) } }
}
}
def main() = hopGradient(sense("source"))
}

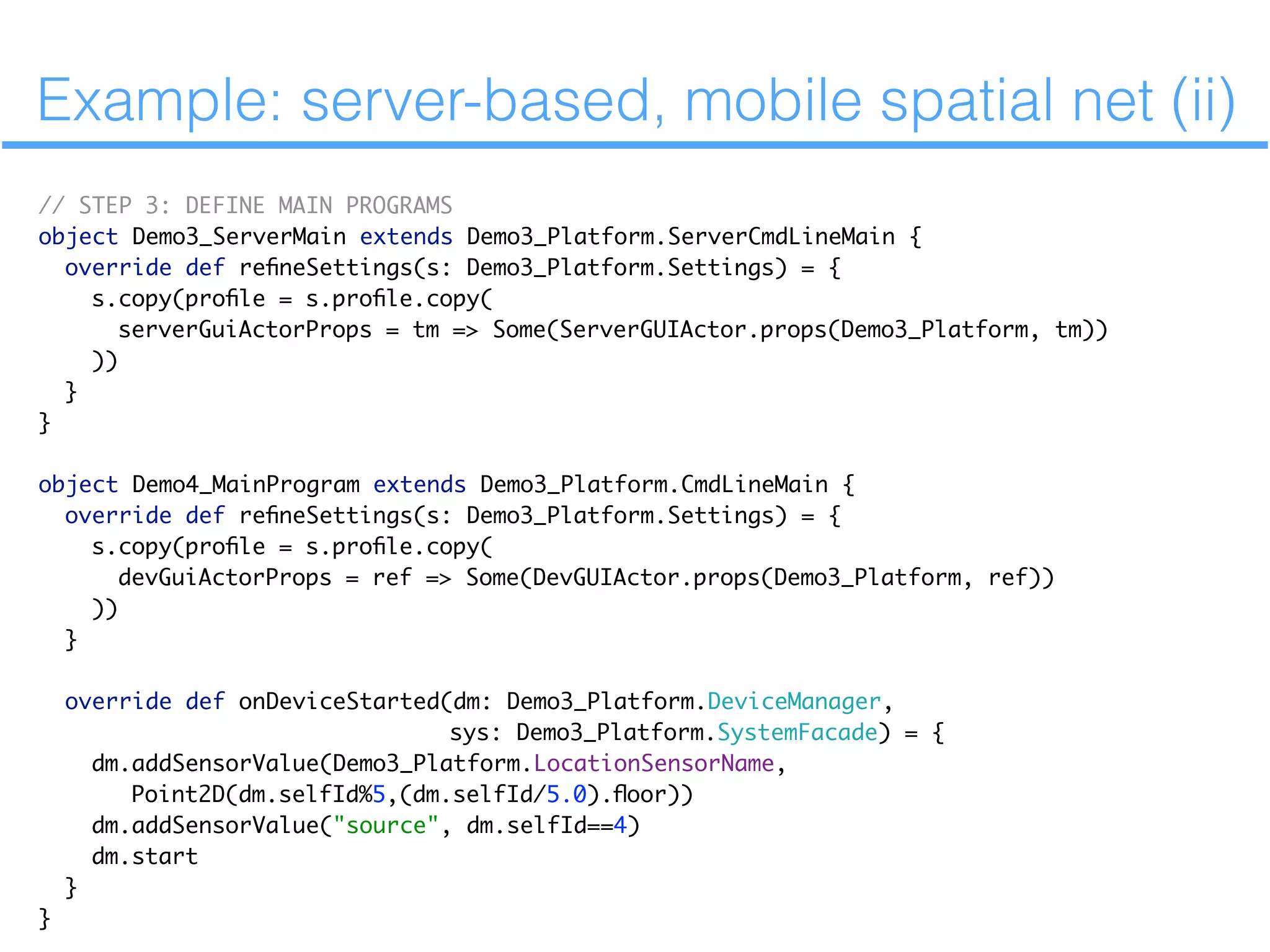

23. Example: server-based, mobile spatial net (ii)
// STEP 3: DEFINE MAIN PROGRAMS
object Demo3_ServerMain extends Demo3_Platform.ServerCmdLineMain {
override def refineSettings(s: Demo3_Platform.Settings) = {
s.copy(profile = s.profile.copy(
serverGuiActorProps = tm => Some(ServerGUIActor.props(Demo3_Platform, tm))
))
}
}
object Demo4_MainProgram extends Demo3_Platform.CmdLineMain {
override def refineSettings(s: Demo3_Platform.Settings) = {
s.copy(profile = s.profile.copy(
devGuiActorProps = ref => Some(DevGUIActor.props(Demo3_Platform, ref))
))
}
override def onDeviceStarted(dm: Demo3_Platform.DeviceManager,
sys: Demo3_Platform.SystemFacade) = {
dm.addSensorValue(Demo3_Platform.LocationSensorName,
Point2D(dm.selfId%5,(dm.selfId/5.0).floor))
dm.addSensorValue("source", dm.selfId==4)
dm.start
}
}

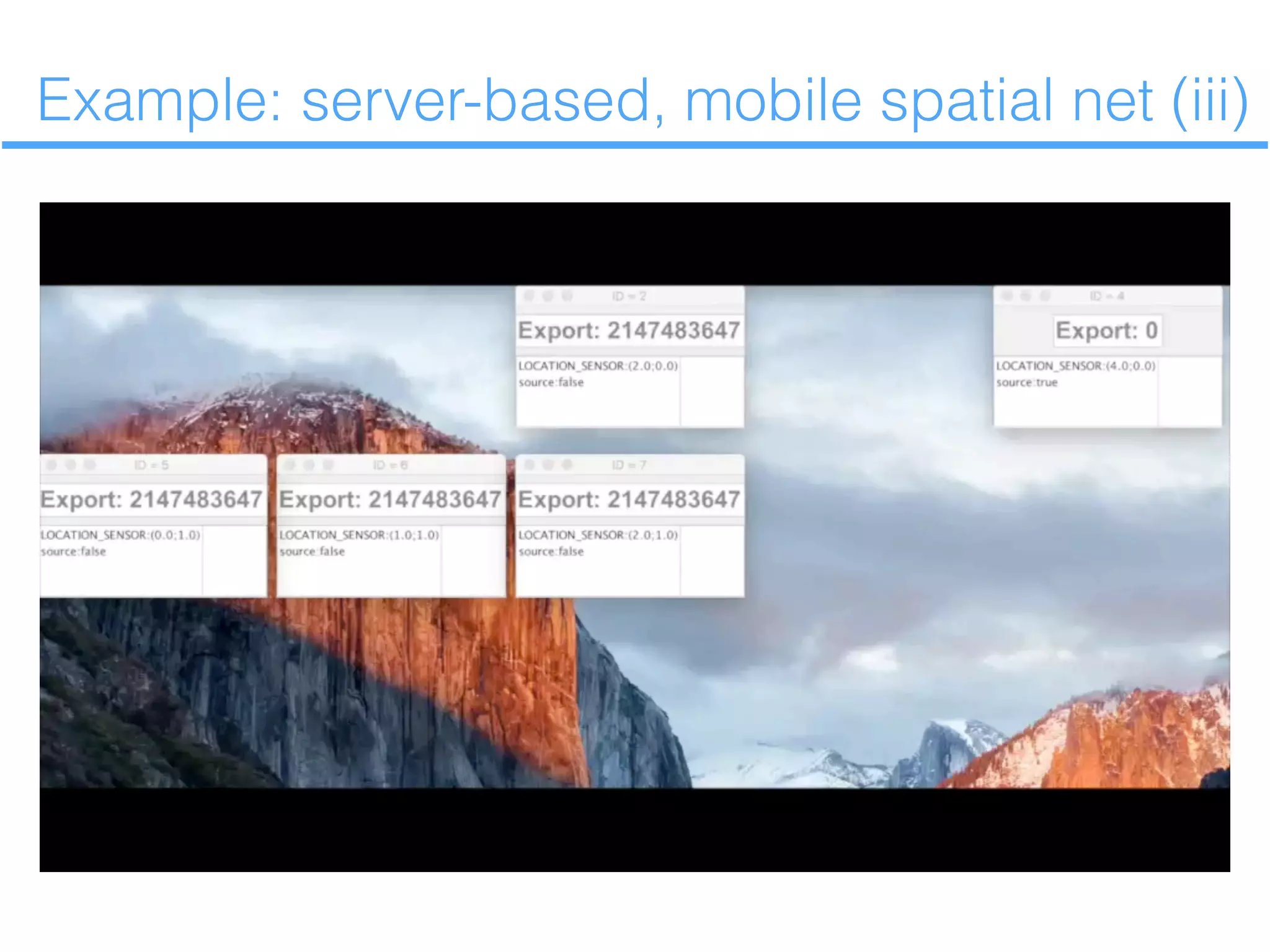

24. Example: server-based, mobile spatial net (iii)

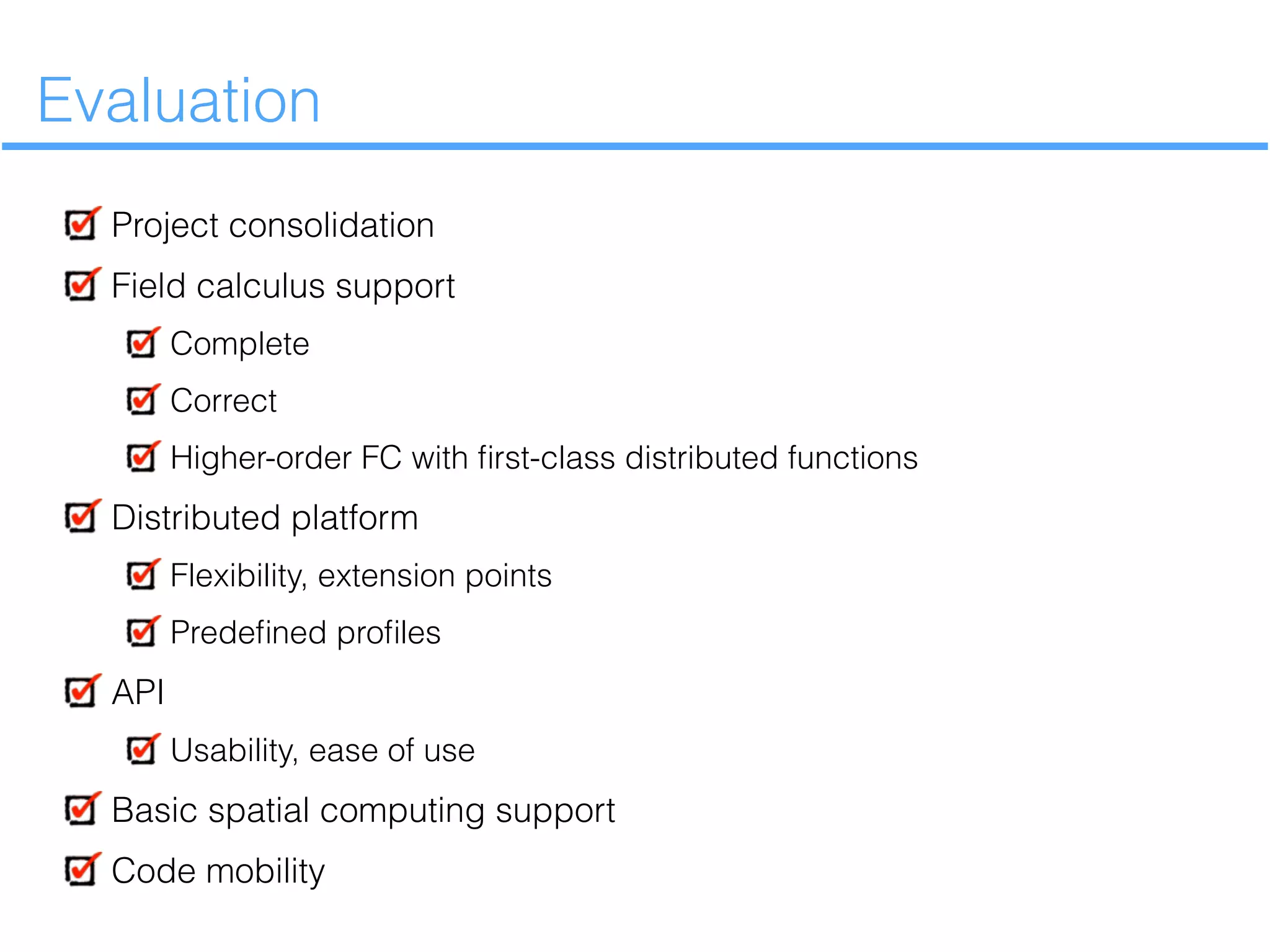

25. Evaluation
Project consolidation
Field calculus support
Complete
Correct
Higher-order FC with first-class distributed functions
Distributed platform
Flexibility, extension points
Predefined profiles
API
Usability, ease of use
Basic spatial computing support
Code mobility

26. Conclusion
Key goals have been achieved
Of course, there is still room for improvement
• General refactoring
• Long-run implications of the component-based design
• Code mobility — from PoC to sound implementation
• Serialisation issues related to inner classes; closure cleaning; …
• Actor-based platform testing
• Documentation
Related activities
• scafi on Alchemist
• scafi on Android
• scafi on the cloud

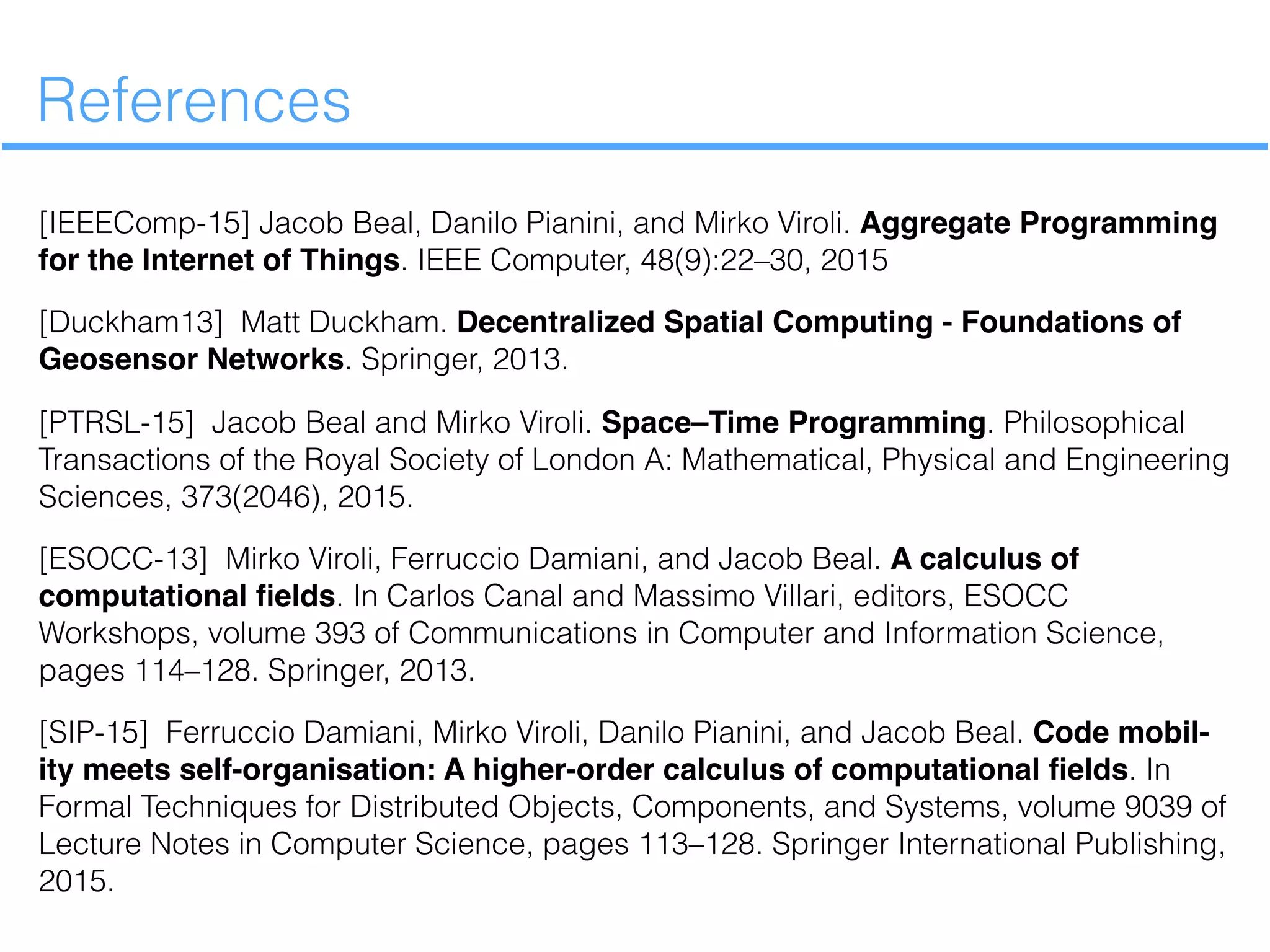

27. References
[IEEEComp-15] Jacob Beal, Danilo Pianini, and Mirko Viroli. Aggregate Programming
for the Internet of Things. IEEE Computer, 48(9):22–30, 2015
[Duckham13] Matt Duckham. Decentralized Spatial Computing - Foundations of
Geosensor Networks. Springer, 2013.
[PTRSL-15] Jacob Beal and Mirko Viroli. Space–Time Programming. Philosophical
Transactions of the Royal Society of London A: Mathematical, Physical and Engineering
Sciences, 373(2046), 2015.
[ESOCC-13] Mirko Viroli, Ferruccio Damiani, and Jacob Beal. A calculus of
computational fields. In Carlos Canal and Massimo Villari, editors, ESOCC
Workshops, volume 393 of Communications in Computer and Information Science,
pages 114–128. Springer, 2013.
[SIP-15] Ferruccio Damiani, Mirko Viroli, Danilo Pianini, and Jacob Beal. Code mobil-
ity meets self-organisation: A higher-order calculus of computational fields. In
Formal Techniques for Distributed Objects, Components, and Systems, volume 9039 of
Lecture Notes in Computer Science, pages 113–128. Springer International Publishing,
2015.
