IREMS is an energy management system that optimally manages generators, loads, and storage units in a microgrid. It works by (1) optimizing energy planning using forecasts and price data to minimize costs, and (2) balancing energy in real-time using measurements. IREMS allows different user types to interact with and control their assets. It offers advantages like automatic real-time control and optimization to reduce costs and emissions. The developer has experience implementing IREMS in labs and real sites.

1. Advanced Energy Management Tools
for Power Systems
Barcelona, April 2015
Manel Sanmarti

2. IREMS
2
INDEX
CA
PART I
Advanced Microgrids Management System
PART II
Commercial Aggregator

3. 3
5 key questions to be answered
What is
IREMS?
How does
IREMS
work?
How can
users interact
with IREMS?
What
advantages
does IREMS
offer?
What is our
experience?
IREMS

4. 4
What is IREMS?
IREMS is an Energy Management System developed by IREC.
IREMS is able to optimally manage several kind of generators, loads
and storage units under a common goal: to make more cost-effective
and efficient your Microgrid.
IREMS is a gateway between a Microgrid and an external agent such as
Commercial Aggregator.

5. 5
How does IREMS work?
Internet
Weather Server Energy Price Server
Demand Forecaster Energy
Planning
Energy
Balance
• Optimization Module
Considering demand and weather
forecast, and energy price
Energy Planning
Energy Balance
Demand Forecaster
• Real Time Module
Energy balance at real time
• Machine Learning module
To improve demand and mobility
forecast
IREMS features
• Data logging and event logging
• Notifications management
• Provide communication
channels
COMMERCIAL
AGGREGATOR

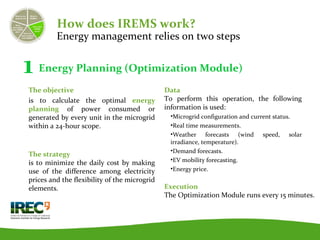

6. How does IREMS work?
The objective
is to calculate the optimal energy
planning of power consumed or
generated by every unit in the microgrid
within a 24-hour scope.
Energy management relies on two steps
1
The strategy
is to minimize the daily cost by making
use of the difference among electricity
prices and the flexibility of the microgrid
elements.
Data
To perform this operation, the following
information is used:
•Microgrid configuration and current status.
•Real time measurements.
•Weather forecasts (wind speed, solar
irradiance, temperature).
•Demand forecasts.
•EV mobility forecasting.
•Energy price.
Energy Planning (Optimization Module)
Execution
The Optimization Module runs every 15 minutes.

7. How does IREMS work?
Energy management relies on two steps
2Energy Balance (Real Time Module)
The objective
is to ensure the power balance for all
elements in the microgrid and to send the
set-point to each controllable component.
The strategy
If there is any deviation, this module
carries out adjustments over the
preliminary set-points calculated by the
Optimization Module until to achieve the
energy equilibrium.
Data
To perform this operation, the following
information is used:
•Microgrid configuration.
•Optimization Module results.
•Real time measurements and status.
Execution
The Real Time Module runs every 3 seconds.
Demand
Generation

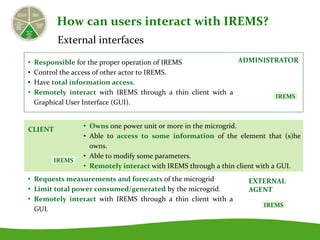

8. External interfaces
• Responsible for the proper operation of IREMS
• Control the access of other actor to IREMS.
• Have total information access.
• Remotely interact with IREMS through a thin client with a
Graphical User Interface (GUI).
• Owns one power unit or more in the microgrid.
• Able to access to some information of the element that (s)he
owns.
• Able to modify some parameters.
• Remotely interact with IREMS through a thin client with a GUI.
• Requests measurements and forecasts of the microgrid
• Limit total power consumed/generated by the microgrid.
• Remotely interact with IREMS through a thin client with a
GUI.
How can users interact with IREMS?
ADMINISTRATOR
CLIENT
EXTERNAL
AGENT
IREMS
IREMS
IREMS

9. 9
What advantages does IREMS offer?
Possibility of operation using the IREMS
user interface fully integrated into the
client system.
IREMS is able to automatically manage
energy supply, demand and storage at real
time.
• It is able to manage the monitored data from
grid-connected systems.
• It is able to decide the optimal behaviour of
the systems at real time based on advanced
optimization algorithms.
•The final user can choose among different
modes of operation:
 cost minimization
 environmental footprint
 peak shaving, among others.
Different types of users with different
levels of permissions and access
Competitive advantages over other products on the
market
Machine Learning

10. 10
What advantages does IREMS offer?
Advantages for the different agents/clients
In case they incorporate the
product to their building
management company, they
will receive a large share of the
benefits.
Energy
companies Power
System
Society
Residential and
tertiary buildings
IREMS
Management of local demand
and supply will enable
renewable sources penetration
as well as the decrease of peaks
in the demand curves.
That will defer investments
required for grid
reinforcements and consequent
grid losses.
Societal and environmental
benefits from energy efficiency
are well-known including GHG
emission abatement.
They will be able to
incorporate this tool to their
existing solutions and
equipment to add the real time
control and optimization layer.

11. 11
What is our experience?
Theoretical and
experimental
development
Registration of
the intellectual
property
Implementation
and validation in
IREC SmartEnergy
Lab
Adaptation and
deployment for two
real demo sites in
client facilities
IREMS

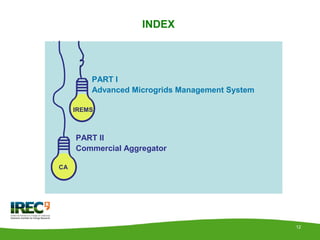

12. IREMS
12
INDEX
PART I
Advanced Microgrids Management System
PART II
Commercial Aggregator
CA

13. 13
The needed of a new
agent
Commercial
Aggregator
Functionalities
Advantages
State of
development
5 key questions to be answered
CA

14. Significant change of energy systems
14
The needed of a new Agent

15. 15
Commercial Aggregator Concept
Main role of the Commercial Aggregator (CA) is
to gather flexibility products from its
prosumers portfolio, who do not have the size
to trade directly into wholesale markets, and to
optimize its trading in electricity markets
aiming to maximize its profits.
This new agent would provide direct revenue to the businesses and
homeowners, besides ensuring higher stability and efficiency in the grid
Commercial Aggregator is the key mediator between the consumers
and the markets and the other electricity system participans
Key enabler of “FLEXIBILITY”

16. 16
Commercial Aggregator Concept
Key enabler of “FLEXIBILITY”
BUY/SELL
ELECTRICITY
BUY/SELL ELECTRICITY
CONTRACTS
Network
access
contract€
SELL
ELECTRICITY
BUYS
ELECTRICITY
ELECTRICITY
CONTRACTS
(BUYS)
FLEXIBILITY
SERVICES
FLEXIBILITY
SERVICES

17. • To simulate the behaviour of the
average consumers under different
price and volume signals.
• To obtain the aggregated response for
the whole clusters.
17
Functionalities
Prosumers portfolio
2 Consumer Segmentation
(Clustering)
1 Consumption Forecasting
Clusters
4 Market forecasting
•To forecast the market price of
sold and purchased electricity.
These methodologies rely on
statistical and financial analyses of
the markets where CAs participate.
Commercial Aggregator
Clients CA Forecasters Markets
3 Flexibility
Forecast Tool
Outputs
5 The Commercial
Optimal Planning
Tool
To calculate the optimal
incentive and bidding
policy in order to maximize
the profits of the
Commercial Aggregator.
RESULTS

18. 18
Responsibility
CA are totally responsible for their own
imbalances, so they will have to deal with their
own energy paybacks when participating in
wholesale markets
Commercial Aggregation is considered as a key innovation on the power system to
face future challenges posed by growing demand and RES integration
Procurement of flexibility products
The DSO can access and procure flexibility
products offered by commercial aggregators to
use them for a number of purposes (e.g.
distribution network reinforcement deferral,
congestion management, etc.).
Applications and advantages of the CA
Easier to
forecast
consumption
and
flexibility
Consumers
deal with
only 1 agent
instead of 2
Less
contracts
and less
connections
Contracts
easier to
handle.
Billing is
easier
More
efficient
solutions
Validation of flexibility Products
To validate flexibility products prior to its
activation, when used by other agents different to
the DSO itself.

19. 19
State of development
IREMSTheoretical and
experimental
development
Registration of the
intellectual
property
Implementation and
validation in IREC
SmartEnergy Lab
Adaptation and
deployment for two
real demo sites in
client facilities
Theoretical and
experimental development
Implementation and validation in
IREC SmartEnergy Lab
COMMERCIALAGGREGATOR
