1. ADAPTIVE WINGS

2. FLUIDIC FLIGHT CONTROL
ADAPTIC COMPLIANT
WING
BOENG X-53
AEROELASTIC WINGS

3. FLUIDICS
• Fluidics, or fluidic logic, is the use of a fluid to perform analog or digital
operations similar to those performed with electronics.
• The physical basis of fluidics is pneumatics and hydraulics, based on the
theoretical foundation of fluid dynamics. The term fluidics is normally
used when devices have no moving parts, so ordinary hydraulic
components such as are not considered or referred to as fluidic devices.
• Uses
• Fluidic injection is being researched for use in aircraftto control
direction, in two ways: circulation control and thrust vectoring. In both,
larger more complex mechanical parts are replaced by fluidic systems,
in which larger forces in fluids are diverted by smaller jets or flows of
fluid intermittently, to change the direction of vehicles
• In such uses, fluidics is desirable for lower: mass, cost (up to 50% less),
drag (up to 15% less during use), inertia(for faster, stronger control
response), complexity (mechanically simpler, fewer or no moving parts
or surfaces, less maintenance), and radar cross section for stealth. This
will likely be used in many unmanned aerial vehicles (UAVs), 6th
generation fighter aircraft, and ships

4. BOEING X-53
Active Aeroelastic Wing
The X-53 Active Aeroelastic Wing (AAW) development program is a
completed research project that was undertaken jointly by the Air Force
Research Laboratory (AFRL), Boeing Phantom Works and NASA's Dryden
Flight Research Center, where the technology was flight tested on a modified
McDonnell Douglas F/A-18 Hornet. Active Aeroelastic Wing Technology is a
technology that integrates wing aerodynamics, controls, and structure to
harness and control wing aeroelastic twist at high speeds and dynamic
pressures. By using multiple leading and trailing edge controls like
"aerodynamic tabs", subtle amounts of aeroelastic twist can be controlled to
provide large amounts of wing control power, while minimizing maneuver air
loads at high wing strain conditions or aerodynamic drag at low wing strain
conditions

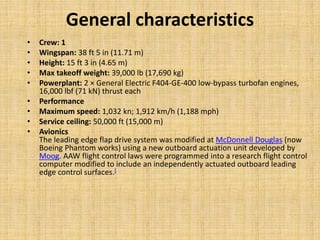

5. General characteristics
• Crew: 1
• Wingspan: 38 ft 5 in (11.71 m)
• Height: 15 ft 3 in (4.65 m)
• Max takeoff weight: 39,000 lb (17,690 kg)
• Powerplant: 2 × General Electric F404-GE-400 low-bypass turbofan engines,
16,000 lbf (71 kN) thrust each
• Performance
• Maximum speed: 1,032 kn; 1,912 km/h (1,188 mph)
• Service ceiling: 50,000 ft (15,000 m)
• Avionics
The leading edge flap drive system was modified at McDonnell Douglas (now
Boeing Phantom works) using a new outboard actuation unit developed by
Moog. AAW flight control laws were programmed into a research flight control
computer modified to include an independently actuated outboard leading
edge control surfaces.[

6. • Design and development
• Active Aeroelastic Wing (AAW) Technology is multidisciplinary in that it
integrates air vehicle aerodynamics, active controls, and structural
aeroelastic behavior to maximize air vehicle performance
• AAW Technology employs wing aeroelastic flexibility for a net benefit
through use of multiple leading and trailing edge control surfaces
activated by a digital flight control system.
• Active controls
• F/A-18A (now X-53) Active Aeroelastic Wing (AAW) flight test, March 2005
• The same problems affect modern aircraft as well, but are engineered to
be less noticeable. To start with, improvements in materials and design
has greatly improved the stiffness of the wing, reducing the magnitude of
the problem.

7. Adaptive compliant wing
• An adaptive compliant wing is a wing which is flexible so that
aspects of its shape can be changed in flight.[1][2]
• An adaptive compliant wing designed by FlexSys Inc. features a
variable-camber trailing edge which can be deflected up to ±10°, so
that it acts like a flap-equipped wing, but without the individual
segments and gaps typical in a flap system. The wing itself can be
twisted up to 1° per foot of span. The wing's shape can be changed
at a rate of 30° per second, which is ideal for gust load alleviation.
The development of the adaptive compliant wing is being
sponsored by the U.S. Air Force Research Laboratory. Initially, the
wing was tested in a wind tunnel, and then a 50-inch section of
wing was flight tested on board the Scaled Composites White
Knight research aircraft in a seven-flight, 20-hour program operated
from the Mojave Spaceport.[3] Control methods are proposed.[4]
