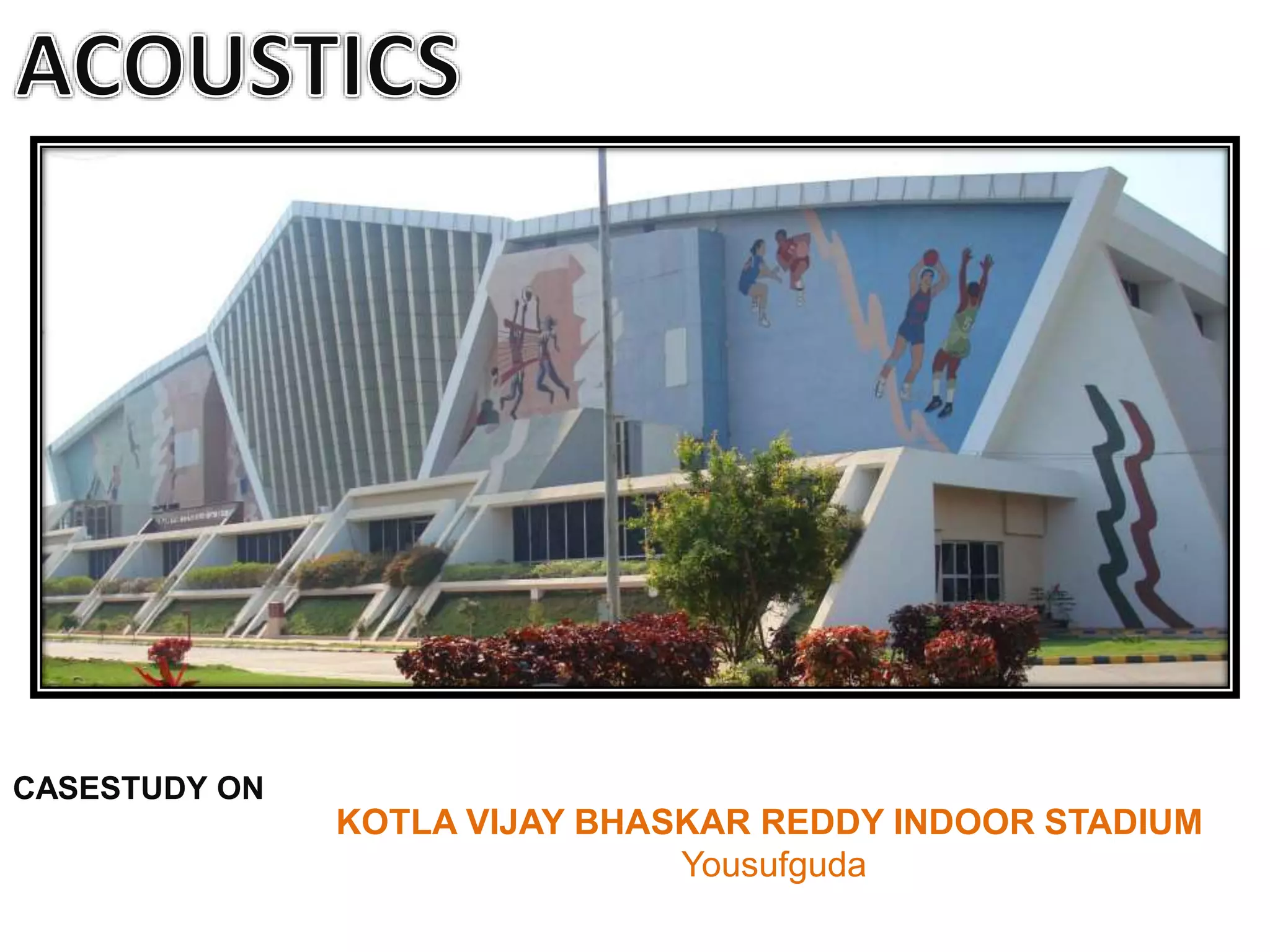

1. KOTLA VIJAY BHASKAR REDDY INDOOR STADIUM
Yousufguda
CASESTUDY ON

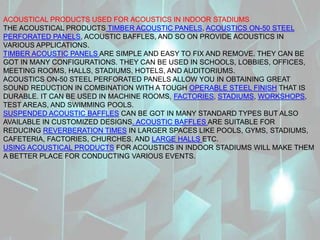

2. ACOUSTICAL PRODUCTS USED FOR ACOUSTICS IN INDOOR STADIUMS
THE ACOUSTICAL PRODUCTS TIMBER ACOUSTIC PANELS, ACOUSTICS ON-50 STEEL
PERFORATED PANELS, ACOUSTIC BAFFLES, AND SO ON PROVIDE ACOUSTICS IN
VARIOUS APPLICATIONS.
TIMBER ACOUSTIC PANELS ARE SIMPLE AND EASY TO FIX AND REMOVE. THEY CAN BE
GOT IN MANY CONFIGURATIONS. THEY CAN BE USED IN SCHOOLS, LOBBIES, OFFICES,
MEETING ROOMS, HALLS, STADIUMS, HOTELS, AND AUDITORIUMS.
ACOUSTICS ON-50 STEEL PERFORATED PANELS ALLOW YOU IN OBTAINING GREAT
SOUND REDUCTION IN COMBINATION WITH A TOUGH OPERABLE STEEL FINISH THAT IS
DURABLE. IT CAN BE USED IN MACHINE ROOMS, FACTORIES, STADIUMS, WORKSHOPS,
TEST AREAS, AND SWIMMING POOLS.
SUSPENDED ACOUSTIC BAFFLES CAN BE GOT IN MANY STANDARD TYPES BUT ALSO
AVAILABLE IN CUSTOMIZED DESIGNS. ACOUSTIC BAFFLES ARE SUITABLE FOR
REDUCING REVERBERATION TIMES IN LARGER SPACES LIKE POOLS, GYMS, STADIUMS,
CAFETERIA, FACTORIES, CHURCHES, AND LARGE HALLS ETC.
USING ACOUSTICAL PRODUCTS FOR ACOUSTICS IN INDOOR STADIUMS WILL MAKE THEM
A BETTER PLACE FOR CONDUCTING VARIOUS EVENTS.

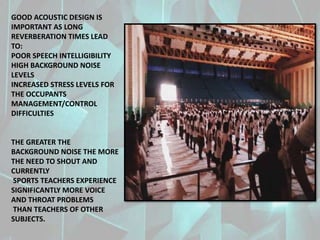

3. GOOD ACOUSTIC DESIGN IS
IMPORTANT AS LONG
REVERBERATION TIMES LEAD
TO:
POOR SPEECH INTELLIGIBILITY
HIGH BACKGROUND NOISE
LEVELS
INCREASED STRESS LEVELS FOR
THE OCCUPANTS
MANAGEMENT/CONTROL
DIFFICULTIES
THE GREATER THE
BACKGROUND NOISE THE MORE
THE NEED TO SHOUT AND
CURRENTLY
SPORTS TEACHERS EXPERIENCE
SIGNIFICANTLY MORE VOICE
AND THROAT PROBLEMS
THAN TEACHERS OF OTHER
SUBJECTS.

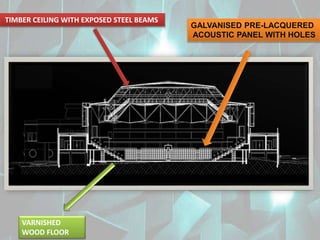

4. GALVANISED PRE-LACQUERED
ACOUSTIC PANEL WITH HOLES
TIMBER CEILING WITH EXPOSED STEEL BEAMS
VARNISHED
WOOD FLOOR

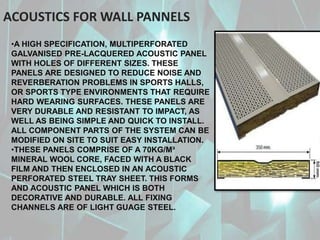

5. •A HIGH SPECIFICATION, MULTIPERFORATED
GALVANISED PRE-LACQUERED ACOUSTIC PANEL
WITH HOLES OF DIFFERENT SIZES. THESE
PANELS ARE DESIGNED TO REDUCE NOISE AND
REVERBERATION PROBLEMS IN SPORTS HALLS,
OR SPORTS TYPE ENVIRONMENTS THAT REQUIRE
HARD WEARING SURFACES. THESE PANELS ARE
VERY DURABLE AND RESISTANT TO IMPACT, AS
WELL AS BEING SIMPLE AND QUICK TO INSTALL.
ALL COMPONENT PARTS OF THE SYSTEM CAN BE
MODIFIED ON SITE TO SUIT EASY INSTALLATION.
•THESE PANELS COMPRISE OF A 70KG/M³
MINERAL WOOL CORE, FACED WITH A BLACK
FILM AND THEN ENCLOSED IN AN ACOUSTIC
PERFORATED STEEL TRAY SHEET. THIS FORMS
AND ACOUSTIC PANEL WHICH IS BOTH
DECORATIVE AND DURABLE. ALL FIXING
CHANNELS ARE OF LIGHT GUAGE STEEL.
ACOUSTICS FOR WALL PANNELS

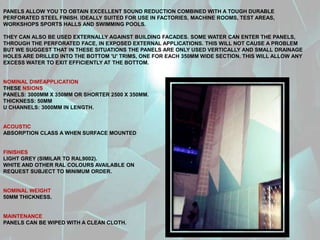

6. PANELS ALLOW YOU TO OBTAIN EXCELLENT SOUND REDUCTION COMBINED WITH A TOUGH DURABLE
PERFORATED STEEL FINISH. IDEALLY SUITED FOR USE IN FACTORIES, MACHINE ROOMS, TEST AREAS,
WORKSHOPS SPORTS HALLS AND SWIMMING POOLS.
THEY CAN ALSO BE USED EXTERNALLY AGAINST BUILDING FACADES. SOME WATER CAN ENTER THE PANELS,
THROUGH THE PERFORATED FACE, IN EXPOSED EXTERNAL APPLICATIONS. THIS WILL NOT CAUSE A PROBLEM
BUT WE SUGGEST THAT IN THESE SITUATIONS THE PANELS ARE ONLY USED VERTICALLY AND SMALL DRAINAGE
HOLES ARE DRILLED INTO THE BOTTOM 'U' TRIMS, ONE FOR EACH 350MM WIDE SECTION. THIS WILL ALLOW ANY
EXCESS WATER TO EXIT EFFICIENTLY AT THE BOTTOM.
NOMINAL DIMEAPPLICATION
THESE NSIONS
PANELS: 3000MM X 350MM OR SHORTER 2500 X 350MM.
THICKNESS: 50MM
U CHANNELS: 3000MM IN LENGTH.
ACOUSTIC
ABSORPTION CLASS A WHEN SURFACE MOUNTED
FINISHES
LIGHT GREY (SIMILAR TO RAL9002).
WHITE AND OTHER RAL COLOURS AVAILABLE ON
REQUEST SUBJECT TO MINIMUM ORDER.
NOMINAL WEIGHT
50MM THICKNESS.
MAINTENANCE
PANELS CAN BE WIPED WITH A CLEAN CLOTH.

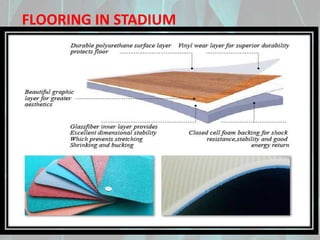

7. FLOORING IN STADIUM

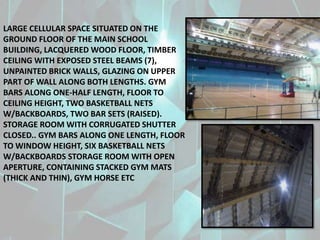

8. LARGE CELLULAR SPACE SITUATED ON THE
GROUND FLOOR OF THE MAIN SCHOOL
BUILDING, LACQUERED WOOD FLOOR, TIMBER
CEILING WITH EXPOSED STEEL BEAMS (7),
UNPAINTED BRICK WALLS, GLAZING ON UPPER
PART OF WALL ALONG BOTH LENGTHS. GYM
BARS ALONG ONE-HALF LENGTH, FLOOR TO
CEILING HEIGHT, TWO BASKETBALL NETS
W/BACKBOARDS, TWO BAR SETS (RAISED).
STORAGE ROOM WITH CORRUGATED SHUTTER
CLOSED.. GYM BARS ALONG ONE LENGTH, FLOOR
TO WINDOW HEIGHT, SIX BASKETBALL NETS
W/BACKBOARDS STORAGE ROOM WITH OPEN
APERTURE, CONTAINING STACKED GYM MATS
(THICK AND THIN), GYM HORSE ETC

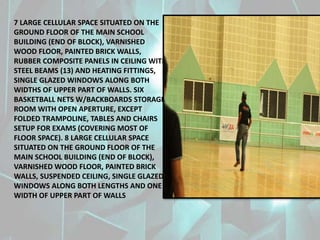

9. 7 LARGE CELLULAR SPACE SITUATED ON THE
GROUND FLOOR OF THE MAIN SCHOOL
BUILDING (END OF BLOCK), VARNISHED
WOOD FLOOR, PAINTED BRICK WALLS,
RUBBER COMPOSITE PANELS IN CEILING WITH
STEEL BEAMS (13) AND HEATING FITTINGS,
SINGLE GLAZED WINDOWS ALONG BOTH
WIDTHS OF UPPER PART OF WALLS. SIX
BASKETBALL NETS W/BACKBOARDS STORAGE
ROOM WITH OPEN APERTURE, EXCEPT
FOLDED TRAMPOLINE, TABLES AND CHAIRS
SETUP FOR EXAMS (COVERING MOST OF
FLOOR SPACE). 8 LARGE CELLULAR SPACE
SITUATED ON THE GROUND FLOOR OF THE
MAIN SCHOOL BUILDING (END OF BLOCK),
VARNISHED WOOD FLOOR, PAINTED BRICK
WALLS, SUSPENDED CEILING, SINGLE GLAZED
WINDOWS ALONG BOTH LENGTHS AND ONE
WIDTH OF UPPER PART OF WALLS

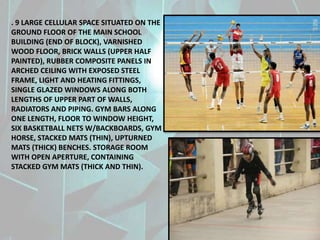

10. . 9 LARGE CELLULAR SPACE SITUATED ON THE
GROUND FLOOR OF THE MAIN SCHOOL
BUILDING (END OF BLOCK), VARNISHED
WOOD FLOOR, BRICK WALLS (UPPER HALF
PAINTED), RUBBER COMPOSITE PANELS IN
ARCHED CEILING WITH EXPOSED STEEL
FRAME, LIGHT AND HEATING FITTINGS,
SINGLE GLAZED WINDOWS ALONG BOTH
LENGTHS OF UPPER PART OF WALLS,
RADIATORS AND PIPING. GYM BARS ALONG
ONE LENGTH, FLOOR TO WINDOW HEIGHT,
SIX BASKETBALL NETS W/BACKBOARDS, GYM
HORSE, STACKED MATS (THIN), UPTURNED
MATS (THICK) BENCHES. STORAGE ROOM
WITH OPEN APERTURE, CONTAINING
STACKED GYM MATS (THICK AND THIN).

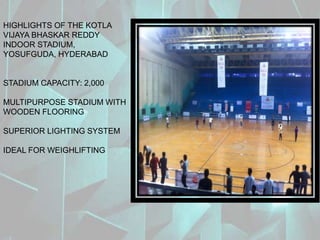

11. HIGHLIGHTS OF THE KOTLA
VIJAYA BHASKAR REDDY
INDOOR STADIUM,
YOSUFGUDA, HYDERABAD
STADIUM CAPACITY: 2,000
MULTIPURPOSE STADIUM WITH
WOODEN FLOORING
SUPERIOR LIGHTING SYSTEM
IDEAL FOR WEIGHLIFTING
