The document describes an auditorium located within Terna College in Nerul, Navi Mumbai. It provides details about the auditorium's capacity, facilities, and features. Key points include that the auditorium has a capacity of 496, contains a stage, seating areas, and amenities like a cafeteria and green rooms. It also notes some areas that could be improved such as expanding the small VIP lounge and adding a service entrance.

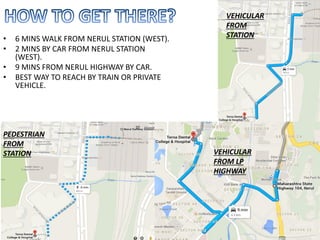

2. • 6 MINS WALK FROM NERUL STATION (WEST).
• 2 MINS BY CAR FROM NERUL STATION
(WEST).
• 9 MINS FROM NERUL HIGHWAY BY CAR.
• BEST WAY TO REACH BY TRAIN OR PRIVATE
VEHICLE.
PEDESTRIAN
FROM
STATION VEHICULAR
FROM LP
HIGHWAY
VEHICULAR
FROM
STATION

3. 1. HOSPITAL
2. CHURCH
3. CHILDREN OF WORLD TRUST
4. TERNA SCHOOL
5. COMMON PLAY GROUND
6. PARK
7. NERUL RAILWAY STATION
TERNA SCHOOL
TERNA HOSPITAL
NERUL RAILWAY STATION
AUDITORIUM
BUILDING

4. • THE AUDITORIUM IS A PART OF TERNA COLLEGE.
• ITS CAPACITY IS 496
• THE AUDITORIUM IS USED FOR:
 SEMINARS.
 LECTURES.
 EXAMINATIONS.
 PERFORMANCES.
• THE AUDITORIUM IS USED BY THE STUDENTS AND
STAFF OF TERNA SAHYADRI.

5. PARKING
REAR ENTRANCE
MAIN ENTRANCE
GENERATOR
SPILL OVER PARKING

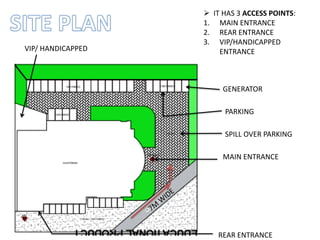

 IT HAS 3 ACCESS POINTS:
1. MAIN ENTRANCE
2. REAR ENTRANCE
3. VIP/HANDICAPPED
ENTRANCEVIP/ HANDICAPPED

6. VIP PARKING
(REAR
ENTRANCE SIDE)

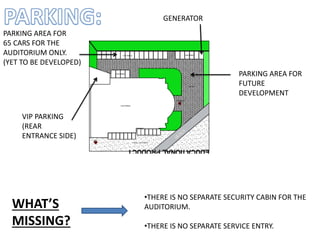

PARKING AREA FOR
65 CARS FOR THE
AUDITORIUM ONLY.
(YET TO BE DEVELOPED)
GENERATOR
•THERE IS NO SEPARATE SECURITY CABIN FOR THE
AUDITORIUM.
•THERE IS NO SEPARATE SERVICE ENTRY.
PARKING AREA FOR
FUTURE
DEVELOPMENT
WHAT’S
MISSING?

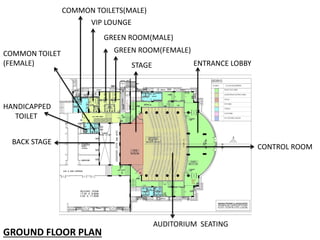

8. AUDITORIUM SEATING
CONTROL ROOM
STAGE
GROUND FLOOR PLAN
BACK STAGE
COMMON TOILETS(MALE)
VIP LOUNGE
GREEN ROOM(MALE)
GREEN ROOM(FEMALE)COMMON TOILET
(FEMALE)
HANDICAPPED
TOILET
ENTRANCE LOBBY

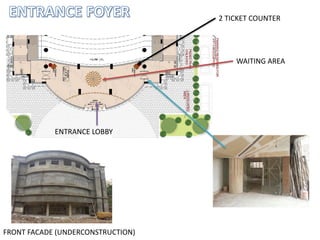

9. WAITING AREA
ENTRANCE LOBBY
2 TICKET COUNTER
FRONT FACADE (UNDERCONSTRUCTION)

10. THE AUDITORIUM HAS 4 ENTRY/EXIT DOORS
MIDLAND
ENTRIES
VIP ENTRY
ENTRY FROM FRONT
ENTRANCE

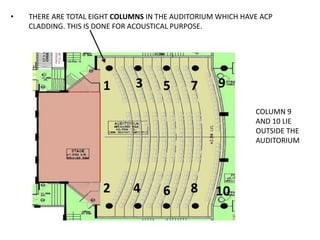

11. • THERE ARE TOTAL EIGHT COLUMNS IN THE AUDITORIUM WHICH HAVE ACP
CLADDING. THIS IS DONE FOR ACOUSTICAL PURPOSE.
1 3 5 7 9
108642
COLUMN 9
AND 10 LIE
OUTSIDE THE
AUDITORIUM

12. • SOUND: THERE ARE 6 SPEAKERS FITTED ON THE COLUMN OF 400 WATT EACH.
1 2 3
654

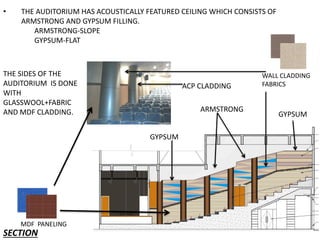

13. THE SIDES OF THE
AUDITORIUM IS DONE
WITH
GLASSWOOL+FABRIC
AND MDF CLADDING.
WALL CLADDING
FABRICS
MDF PANELING
SECTION
ACP CLADDING
ARMSTRONG
GYPSUM
GYPSUM
• THE AUDITORIUM HAS ACOUSTICALLY FEATURED CEILING WHICH CONSISTS OF
ARMSTRONG AND GYPSUM FILLING.
ARMSTRONG-SLOPE
GYPSUM-FLAT

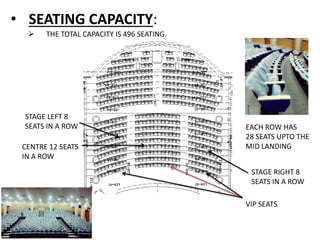

14. • SEATING CAPACITY:
 THE TOTAL CAPACITY IS 496 SEATING.
STAGE LEFT 8
SEATS IN A ROW
STAGE RIGHT 8
SEATS IN A ROW
CENTRE 12 SEATS
IN A ROW
VIP SEATS
EACH ROW HAS
28 SEATS UPTO THE
MID LANDING

15. L=7.146M
STAGE +.45M
MID-
LANDING
+2.10M
+2.9M TOP LEVEL
RISERS=150
AISLE SPACE = 1.2M.
BLUE FABRIC
COVERING
WRITING FLAP

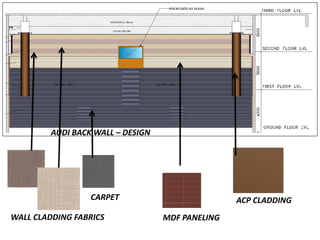

16. AUDI BACK WALL – DESIGN
WALL CLADDING FABRICS
CARPET
MDF PANELING
ACP CLADDING

17. +1.20M
+ 0.75 M

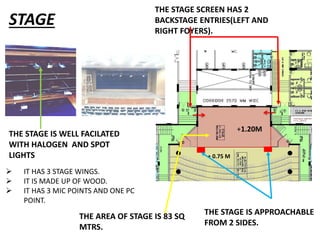

THE STAGE IS APPROACHABLE
FROM 2 SIDES.
THE AREA OF STAGE IS 83 SQ
MTRS.
THE STAGE SCREEN HAS 2
BACKSTAGE ENTRIES(LEFT AND
RIGHT FOYERS).
 IT HAS 3 STAGE WINGS.
 IT IS MADE UP OF WOOD.
 IT HAS 3 MIC POINTS AND ONE PC
POINT.
THE STAGE IS WELL FACILATED
WITH HALOGEN AND SPOT
LIGHTS
STAGE

19. CONTROL ROOM HAS GOT GLASS AT
THE FAÇADE TO AVAIL VISION AND
ALSO AN AV SETUP
COUNTER
AHU
CAFETERIA
CONTROL ROOM IS
LOCATED IN THE
CENTRE WHICH
CONTROLS THE
SOUND AND
LIGHTING SYSTEM OF
THE AUDITORIUM.

20. • THE AUDITORIUM IS
WELL FACILATED
WITH LIGHTS AND IS
AIR -CONDITIONING.
CEILING LIGHTS
CONDITIONED AIR
INLETS
SOLAR LIGHTS
AIR RETURN GRILLS

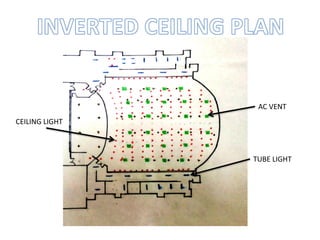

21. AC VENT
TUBE LIGHT
CEILING LIGHT

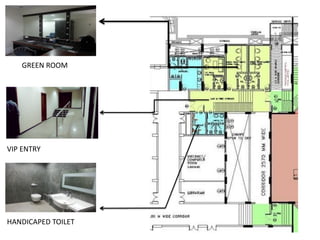

22. GREEN ROOM
HANDICAPED TOILET
VIP ENTRY

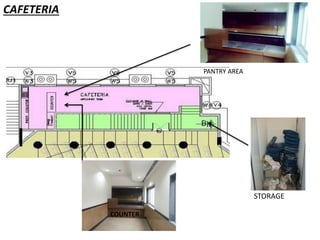

23. CAFETERIA
PANTRY AREA
STORAGE
COUNTER

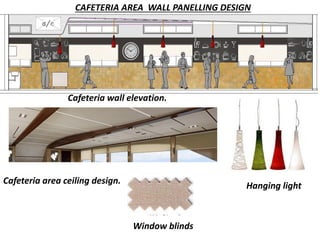

24. Hanging light
Cafeteria wall elevation.
Cafeteria area ceiling design.
CAFETERIA AREA WALL PANELLING DESIGN
Window blinds

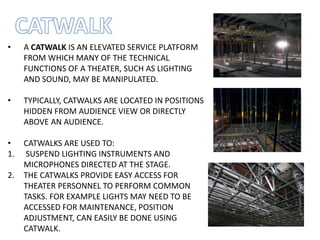

25. • A CATWALK IS AN ELEVATED SERVICE PLATFORM
FROM WHICH MANY OF THE TECHNICAL
FUNCTIONS OF A THEATER, SUCH AS LIGHTING
AND SOUND, MAY BE MANIPULATED.
• TYPICALLY, CATWALKS ARE LOCATED IN POSITIONS
HIDDEN FROM AUDIENCE VIEW OR DIRECTLY
ABOVE AN AUDIENCE.
• CATWALKS ARE USED TO:
1. SUSPEND LIGHTING INSTRUMENTS AND
MICROPHONES DIRECTED AT THE STAGE.
2. THE CATWALKS PROVIDE EASY ACCESS FOR
THEATER PERSONNEL TO PERFORM COMMON
TASKS. FOR EXAMPLE LIGHTS MAY NEED TO BE
ACCESSED FOR MAINTENANCE, POSITION
ADJUSTMENT, CAN EASILY BE DONE USING
CATWALK.

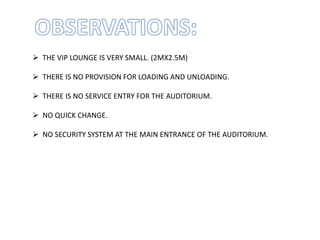

26.  THE VIP LOUNGE IS VERY SMALL. (2MX2.5M)
 THERE IS NO PROVISION FOR LOADING AND UNLOADING.
 THERE IS NO SERVICE ENTRY FOR THE AUDITORIUM.
 NO QUICK CHANGE.
 NO SECURITY SYSTEM AT THE MAIN ENTRANCE OF THE AUDITORIUM.
