Unity 3D is a popular multi-platform game engine that has been used for over 10 years. It uses scenes to organize game levels and objects. Gameplay is created using game objects, components, transforms, lights, cameras, inputs, and triggers. Common tasks for a beginner project include creating a maze with a movable character controller and trigger that removes the floor.

1. Unity 3D
Environment
binary-studio.com

2. Contents
1. Intro
2. IDE
3. Main Windows
4. Creating Gameplay

3. Intro
1. Popular (More than 10 years)
2. Multi-platform (Console, PC, Mac, Web, Mobile)
3. User friendly (Big community, Asset Store)
4. Languages (JS, C#, Boo)

4. IDE

5. IDE
Visual Studio Integration (Express, Professional)
Monodevelop Integration (IOS, Android remote debugging)
Sublime Integration (Unity3D Syntax Highlighting, Unity3D Snippets and Completes)

6. Main Windows

7. Main Windows

8. Creating gameplay
1. Scenes
2. GameObjects
3. Components
4. Transforms
5. Lights
6. Cameras
7. Inputs
8. Triggers

9. Scenes
1. View - container of objects.
2. Level - level of game, menu, individual menu and other.
3. Asset - binary file.

10. GameObjects
1. 3D Objects
2. 2D Object
3. Lights
4. Audio
5. UI
6. Camera

11. Components
1. Mesh
2. Effects
3. Physics / Physics 2D
4. Audio
5. Layout
6. UI
7. Scripts

12. Transforms
Position - X, Y, Z
Rotate - X, Y, Z
Scale - X, Y, Z

13. Lights
1. Point light - sends light out in all directions.
2. Directional light - the sun.
3. Spot light - sends light to one direction.
4. Area light

14. Lights
Light’s properties:
1. Range
2. Color
3. Intensity
4. Shadow

15. Cameras
1. Projection (Perspective, Orthographic)
2. Background
3. Depth

16. Inputs
Axe’s properties:
1. Name
2. Negative/Positive button
3. Gravity
4. Sensitivity
5. Snap
6. Invert
7. Type

17. Triggers
Components -> Physics -> xxx Collider -> IsTrigger
Main events:
1. OnTriggerEnter(Collider coll)
2. OnTriggerStay(Collider coll)
3. OnTriggerExit(Collider coll)
*Needs Rigidbody (Character controller).

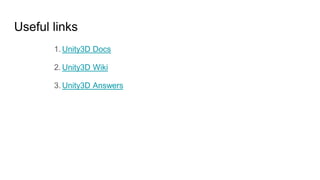

18. Useful links
1. Unity3D Docs
2. Unity3D Wiki
3. Unity3D Answers

19. Home Task
1. Create maze. (Add colors and lights)
2. Create movable controller. (Sphere or capsule)
3. At the end of the way create trigger which removed floor under the controller.
4. (Optional) Add camera to the controller and turn it with A and D keys.

20. Move Character
public class MoveController : MonoBehaviour {
public float speed = 6.0F;
public float jumpSpeed = 8.0F;
public float gravity = 20.0F;
private Vector3 moveDirection = Vector3.zero;
void FixedUpdate()
{
CharacterController controller = GetComponent<CharacterController>();
if (controller.isGrounded)
{
moveDirection = new Vector3(Input.GetAxis("Horizontal"), 0, Input.GetAxis("Vertical"));
moveDirection = transform.TransformDirection(moveDirection);
moveDirection *= speed;
if (Input.GetButton("Jump"))
moveDirection.y = jumpSpeed;
}
moveDirection.y -= gravity * Time.deltaTime;
controller.Move(moveDirection * Time.deltaTime);
}
}
public class MoveRigidbody: MonoBehaviour
{
public float speed;
private Rigidbody rb;
void Start()
{
rb = GetComponent<Rigidbody>();
}
void FixedUpdate()
{
float moveHorizontal = Input.GetAxis("Horizontal");
float moveVertical = Input.GetAxis("Vertical");
Vector3 movement = new Vector3(moveHorizontal, 0.0f, moveVertical);
rb.AddForce(movement * speed);
}
}
