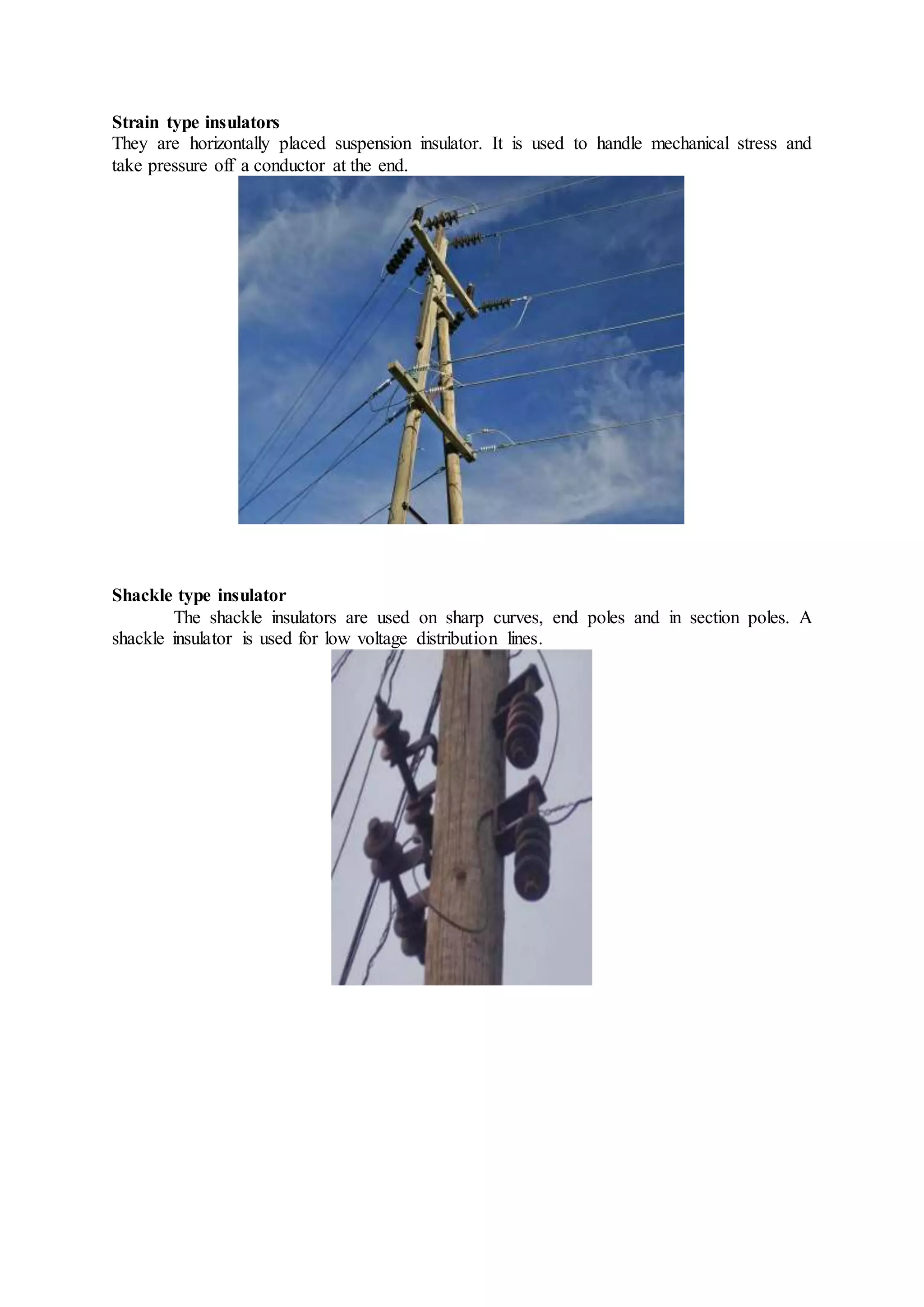

3. Strain insulators are horizontally suspended suspension insulators used to handle mechanical stresses at corners, curves, or long river crossings of high voltage transmission lines.
This is a small ppt made by me to describe about the basics of Insulators in HV , EHV transmission lines.Students who want to go through the basics for clearing the fundamentals they can go through this ppt. Thank you.
This is the simple ppt explaining about the main components of the power systems. especially we are determining the insulators and its types with real time pictures which are attractive,
This document discusses underground cables for electrical power distribution. It covers the construction of cables including conductors, insulation, metallic sheathing, bedding, armouring and serving. Common insulating materials like XLPE are described. Cables are classified based on voltage level. Methods of laying cables underground include direct laying, draw-in systems and solid systems. Potential cable faults include open circuits, short circuits and earth faults. Underground cables have advantages over overhead systems like better appearance, lower maintenance needs and fewer faults, but the installation costs are higher.
Underground cables have several advantages over overhead cables including better appearance, reduced damage from external factors like storms and lighting, lower maintenance costs, and fewer faults. Underground cables consist of one or more insulated conductors surrounded by protective layers. Key components include the conductor, insulation like paper or rubber, a metallic sheath, bedding, armor for protection, and an outer serving. Different types are used for various voltage applications up to extra high voltage cables over 33kV. Selection depends on factors like the number of cores needed, insulation material, and whether solid or pressure cables are required.
The document discusses power insulators used in electricity transmission and distribution. It describes different types of insulators like pin, suspension, strain, stay, and shackle insulators. It also discusses properties, testing, causes of failure, and applications of insulators. Insulators are used to support electrical conductors and provide insulation between conductors and earth to prevent leakage currents. Common insulator materials include glass, porcelain, and plastic.
This document provides information on underground cables, including their construction, classification, insulating materials, and types. It discusses how underground cables consist of conductors covered with insulating material and a protective covering to reduce interference from external disturbances. The general construction of a 3-conductor cable is described, including its cores or conductors, insulation, metallic sheath, bedding, armouring, and serving. Various types of cables are classified based on voltage levels. Key properties and examples of insulating materials used in cables are also outlined, along with the advantages and disadvantages of underground cables compared to overhead systems.
The document discusses different types of electrical insulators used in power transmission and distribution systems. It describes pin insulators, which are used for voltages up to 33kV and secure the conductor to cross-arms on poles. For higher voltages, suspension insulators are used, consisting of multiple porcelain discs connected in series. Strain insulators are used where there are sharp turns or high tension, using assemblies of suspension insulators or shackle insulators for lower voltages. Each type of insulator is designed to support and isolate electrical conductors without allowing current flow.
1. There are several types of insulators used in overhead power lines including pin, suspension, strain, and shackle insulators.
2. Suspension insulators are made of multiple interconnected discs and are used for high voltage transmission above 33kV. They are more economical than pin insulators for higher voltages.
3. Strain insulators are horizontally suspended suspension insulators used to handle mechanical stresses at corners, curves, or long river crossings of high voltage transmission lines.
Pin, Suspension, and Strain insulators are used in medium to high voltage systems. While Stay and Shackle Insulators are mainly used in low voltage applications.
An electric cable is composed of a conductor, usually copper, surrounded by insulation to contain the electric current flow. Cables use color coding and markings like green insulation with yellow stripes for easy wire identification and safety. Different cable types exist for various applications - coaxial cable has a copper conductor surrounded by insulation and shielding for uses like TV, while shielded and unshielded twisted pair cables are used in networks with twisted wire pairs providing interference cancellation. Materials like copper, aluminum, and alloys are commonly used for cable conductors.
Cables have three main sections - a conducting core, insulating material, and protective cover. The core carries current using copper or aluminum wires. Insulation prevents current leakage and is made of rubber, paper, PVC, or other materials. The cover protects the insulation from damage.
Cables are classified by voltage, conductor material, insulation type, and number of cores. Low voltage cables operate at 250/440V while high voltage cables are 650/1100V. Cables have two, three, or more cores to carry current to different phases and the neutral. Three-and-a-half and four core cables have strands of different sizes to reduce costs when the neutral carries less current.
This document provides information on underground power cables. It discusses the construction of underground cables including conductors, insulation materials like rubber, paper and PVC. It classifies cables based on voltage level and describes common cable types used for different voltages like screened and pressure cables. It also discusses cable insulation materials, laying of cables, types of cable faults and compares underground and overhead power systems.
The document discusses different types of wires and cables. It describes common wire types like PVC wires, weatherproof wires, and flexible wires. It also covers different cable types such as coaxial cable, twisted pair cable, ribbon cable, and directly buried cable. The document provides details on the construction and uses of these various wires and cables.
In this section, we will discuss
1. Breakdown of Insulators
2. Uses
3. Insulation in electrical apparatus
3.1 Class I and Class II insulation
3.2power transmission insulators
4.1 Material
4.2 Design
4.3 Types of insulators
4.4 Sheath insulator
4.5 Suspension insulators
The document discusses electrical insulators. It defines an insulator as a material that does not allow electric charges to flow through it easily. Insulators have high resistivity. Some common insulator materials are glass, paper, and Teflon. Insulators are used in electrical equipment to support conductors without allowing current to pass through. The document then discusses characteristics insulators should have such as mechanical strength, high dielectric strength, and resistance to impurities. It also discusses common insulator types like porcelain, glass, and polymer insulators as well as insulator components like pin, suspension, strain, and shackle insulators. Finally, it lists some common causes of insulator failure such as cracking, defects, porosity
This document discusses earthing systems and the hazards of a broken neutral connection for a power transformer. It defines system earthing and equipment earthing, and explains that a broken neutral connection can cause overvoltage issues for the transformer and prevent protective relays from operating during a fault. The document also discusses the objectives and importance of proper earthing, including providing an alternative path for fault currents, ensuring safety from electric shocks, and maintaining system voltages. It provides examples of what can occur when a transformer's neutral connection to earth is broken.
Vacuum circuit breakers use vacuum to extinguish the arc when opening contacts. They have fixed contacts, moving contacts, and an arc shield mounted inside a vacuum chamber. When a fault is detected, the contacts separate and the arc is quickly extinguished in the vacuum. This allows vacuum circuit breakers to reliably interrupt high fault currents. They have advantages over other circuit breakers like being compact, reliable, and able to interrupt heavy fault currents without fire hazards.
Electrical wiring is used to carry current and power buildings and structures. There are different types of wiring for domestic, commercial, and industrial use. The choice of wiring depends on factors like durability, safety, appearance, cost, accessibility, and maintenance costs. Common types of wiring include cleat wiring, CTS/batten wiring, metal sheathed wiring, casing and capping, and conduit wiring. Each type has advantages and disadvantages for use depending on the situation. The document also discusses wire specifications and switch types.
Circuit breakers are used to protect electrical circuits from damage caused by overloads or short circuits. They operate automatically to detect faults and interrupt current flow. Modern high power AC circuit breakers use either sulfur hexafluoride gas or a vacuum as insulating mediums to rapidly extinguish arcs when contacts open through cooling and rapidly increasing dielectric strength between contacts. Vacuum circuit breakers provide the fastest interruption and are most compact and reliable due to the superior arc quenching properties of a vacuum.
star delta auto starter with forward reverse and motor protectionBHUPATI PRADHAN
It is a project on pure electrical engineering. Here three phase motor is starting from star to delta automatically by using some components.In other hand it also provide protection to the motor.
Distribution boards and Protection devices pptZuhairQadri
This document discusses distribution boards and protection devices for electrical installations. It provides information on 3-phase power systems, distribution boards, protection and location of distribution boards, overcurrent protection including fuses and circuit breakers, and characteristics of fuses and miniature circuit breakers. Distribution boards contain circuit breakers and fuses to distribute power to circuits while protecting against overloads and faults. Proper location and enclosure is important for safety. Fuses and circuit breakers each have specific current and time ratings to provide discrimination of protection.
The document discusses underground power cables. It describes the components of underground cables including conductors, insulation, metallic sheathing, bedding, armoring and serving. The main types of underground cables are discussed - solid cables like belted and screened cables used up to 66kV, and pressurized oil and gas cables used at higher voltages. Methods of laying cables underground include direct burying, draw-in systems using ducts, and solid systems within troughs. Underground cables have advantages over overhead lines like better appearance and reliability, but also challenges like higher installation costs and fault localization difficulties.
it is a ppt on the subject of engineering study. ELECTRICAL POWER SYSTEM. cables type witch is use for the high voltage transmission. in this ppt only under ground cables types are present.
This document provides an overview of transformers, including their structure, working principle, construction, losses, and applications. Transformers are devices that change AC electric power at one voltage level to another through magnetic coupling of two coils. They allow interchange of electric energy between circuits without a direct connection. The transformer consists of a primary coil, secondary coil, and magnetic core. When an alternating current flows through the primary, it induces a changing magnetic flux that is transferred to the secondary coil to induce voltage. Transformers experience losses from copper, hysteresis, and eddy currents. They are used widely in power transmission and applications like televisions and cameras.
This document discusses electrical grounding and earthing systems. It begins by introducing grounding and earthing, and distinguishing between ground and neutral conductors. It then describes different types of earthing systems according to the IEC standard, including TN, TT, and IT networks. The document also covers different types of grounding used in radio communications, AC power installations, and lightning protection. It discusses the concept of virtual ground and multipoint grounding. Overall, the document provides an overview of electrical grounding and earthing systems, their uses, and important concepts.
Circuit breakers are switching devices that can make, carry, and break electric currents under both normal and abnormal circuit conditions. They contain fixed and moving contacts that remain closed during normal operation but open automatically during faults to interrupt the fault current. When contacts open under fault conditions, an arc is produced that must be quickly extinguished. Different circuit breakers use various mediums like oil, air, vacuum, or SF6 gas to rapidly quench the arc through cooling and increasing dielectric strength between contacts. Common types of circuit breakers include oil, vacuum, air blast, and SF6 breakers that vary based on voltage level, switching speed, maintenance needs, and arc quenching method.
This document discusses different types of fuses and miniature circuit breakers used in power systems. It provides definitions of key terms like fuse and fuse wire. It describes how fuses and MCBs are constructed and how they work to interrupt circuits during overloads or faults. The document outlines different types of low voltage and high voltage fuses, and compares the advantages and disadvantages of fuses.
This document discusses power cables. It begins with an introduction and overview of general cable construction, including cores, insulation, metallic sheaths, bedding, armoring, and serving. It then covers the classification, properties of insulating materials, common material types used for insulation, and types of cable faults that can occur in oil impregnated paper insulated cables and extruded cables. Faults discussed include conductor-conductor, flashing, conductor-shield, serial, earth, and humid/wet faults.
Pin, Suspension, and Strain insulators are used in medium to high voltage systems. While Stay and Shackle Insulators are mainly used in low voltage applications.
An electric cable is composed of a conductor, usually copper, surrounded by insulation to contain the electric current flow. Cables use color coding and markings like green insulation with yellow stripes for easy wire identification and safety. Different cable types exist for various applications - coaxial cable has a copper conductor surrounded by insulation and shielding for uses like TV, while shielded and unshielded twisted pair cables are used in networks with twisted wire pairs providing interference cancellation. Materials like copper, aluminum, and alloys are commonly used for cable conductors.
Cables have three main sections - a conducting core, insulating material, and protective cover. The core carries current using copper or aluminum wires. Insulation prevents current leakage and is made of rubber, paper, PVC, or other materials. The cover protects the insulation from damage.
Cables are classified by voltage, conductor material, insulation type, and number of cores. Low voltage cables operate at 250/440V while high voltage cables are 650/1100V. Cables have two, three, or more cores to carry current to different phases and the neutral. Three-and-a-half and four core cables have strands of different sizes to reduce costs when the neutral carries less current.
This document provides information on underground power cables. It discusses the construction of underground cables including conductors, insulation materials like rubber, paper and PVC. It classifies cables based on voltage level and describes common cable types used for different voltages like screened and pressure cables. It also discusses cable insulation materials, laying of cables, types of cable faults and compares underground and overhead power systems.
The document discusses different types of wires and cables. It describes common wire types like PVC wires, weatherproof wires, and flexible wires. It also covers different cable types such as coaxial cable, twisted pair cable, ribbon cable, and directly buried cable. The document provides details on the construction and uses of these various wires and cables.
In this section, we will discuss
1. Breakdown of Insulators
2. Uses
3. Insulation in electrical apparatus
3.1 Class I and Class II insulation
3.2power transmission insulators
4.1 Material
4.2 Design
4.3 Types of insulators
4.4 Sheath insulator
4.5 Suspension insulators
The document discusses electrical insulators. It defines an insulator as a material that does not allow electric charges to flow through it easily. Insulators have high resistivity. Some common insulator materials are glass, paper, and Teflon. Insulators are used in electrical equipment to support conductors without allowing current to pass through. The document then discusses characteristics insulators should have such as mechanical strength, high dielectric strength, and resistance to impurities. It also discusses common insulator types like porcelain, glass, and polymer insulators as well as insulator components like pin, suspension, strain, and shackle insulators. Finally, it lists some common causes of insulator failure such as cracking, defects, porosity
This document discusses earthing systems and the hazards of a broken neutral connection for a power transformer. It defines system earthing and equipment earthing, and explains that a broken neutral connection can cause overvoltage issues for the transformer and prevent protective relays from operating during a fault. The document also discusses the objectives and importance of proper earthing, including providing an alternative path for fault currents, ensuring safety from electric shocks, and maintaining system voltages. It provides examples of what can occur when a transformer's neutral connection to earth is broken.
Vacuum circuit breakers use vacuum to extinguish the arc when opening contacts. They have fixed contacts, moving contacts, and an arc shield mounted inside a vacuum chamber. When a fault is detected, the contacts separate and the arc is quickly extinguished in the vacuum. This allows vacuum circuit breakers to reliably interrupt high fault currents. They have advantages over other circuit breakers like being compact, reliable, and able to interrupt heavy fault currents without fire hazards.
Electrical wiring is used to carry current and power buildings and structures. There are different types of wiring for domestic, commercial, and industrial use. The choice of wiring depends on factors like durability, safety, appearance, cost, accessibility, and maintenance costs. Common types of wiring include cleat wiring, CTS/batten wiring, metal sheathed wiring, casing and capping, and conduit wiring. Each type has advantages and disadvantages for use depending on the situation. The document also discusses wire specifications and switch types.
Circuit breakers are used to protect electrical circuits from damage caused by overloads or short circuits. They operate automatically to detect faults and interrupt current flow. Modern high power AC circuit breakers use either sulfur hexafluoride gas or a vacuum as insulating mediums to rapidly extinguish arcs when contacts open through cooling and rapidly increasing dielectric strength between contacts. Vacuum circuit breakers provide the fastest interruption and are most compact and reliable due to the superior arc quenching properties of a vacuum.
star delta auto starter with forward reverse and motor protectionBHUPATI PRADHAN
It is a project on pure electrical engineering. Here three phase motor is starting from star to delta automatically by using some components.In other hand it also provide protection to the motor.
Distribution boards and Protection devices pptZuhairQadri
This document discusses distribution boards and protection devices for electrical installations. It provides information on 3-phase power systems, distribution boards, protection and location of distribution boards, overcurrent protection including fuses and circuit breakers, and characteristics of fuses and miniature circuit breakers. Distribution boards contain circuit breakers and fuses to distribute power to circuits while protecting against overloads and faults. Proper location and enclosure is important for safety. Fuses and circuit breakers each have specific current and time ratings to provide discrimination of protection.
The document discusses underground power cables. It describes the components of underground cables including conductors, insulation, metallic sheathing, bedding, armoring and serving. The main types of underground cables are discussed - solid cables like belted and screened cables used up to 66kV, and pressurized oil and gas cables used at higher voltages. Methods of laying cables underground include direct burying, draw-in systems using ducts, and solid systems within troughs. Underground cables have advantages over overhead lines like better appearance and reliability, but also challenges like higher installation costs and fault localization difficulties.
it is a ppt on the subject of engineering study. ELECTRICAL POWER SYSTEM. cables type witch is use for the high voltage transmission. in this ppt only under ground cables types are present.
This document provides an overview of transformers, including their structure, working principle, construction, losses, and applications. Transformers are devices that change AC electric power at one voltage level to another through magnetic coupling of two coils. They allow interchange of electric energy between circuits without a direct connection. The transformer consists of a primary coil, secondary coil, and magnetic core. When an alternating current flows through the primary, it induces a changing magnetic flux that is transferred to the secondary coil to induce voltage. Transformers experience losses from copper, hysteresis, and eddy currents. They are used widely in power transmission and applications like televisions and cameras.
This document discusses electrical grounding and earthing systems. It begins by introducing grounding and earthing, and distinguishing between ground and neutral conductors. It then describes different types of earthing systems according to the IEC standard, including TN, TT, and IT networks. The document also covers different types of grounding used in radio communications, AC power installations, and lightning protection. It discusses the concept of virtual ground and multipoint grounding. Overall, the document provides an overview of electrical grounding and earthing systems, their uses, and important concepts.
Circuit breakers are switching devices that can make, carry, and break electric currents under both normal and abnormal circuit conditions. They contain fixed and moving contacts that remain closed during normal operation but open automatically during faults to interrupt the fault current. When contacts open under fault conditions, an arc is produced that must be quickly extinguished. Different circuit breakers use various mediums like oil, air, vacuum, or SF6 gas to rapidly quench the arc through cooling and increasing dielectric strength between contacts. Common types of circuit breakers include oil, vacuum, air blast, and SF6 breakers that vary based on voltage level, switching speed, maintenance needs, and arc quenching method.
This document discusses different types of fuses and miniature circuit breakers used in power systems. It provides definitions of key terms like fuse and fuse wire. It describes how fuses and MCBs are constructed and how they work to interrupt circuits during overloads or faults. The document outlines different types of low voltage and high voltage fuses, and compares the advantages and disadvantages of fuses.
This document discusses power cables. It begins with an introduction and overview of general cable construction, including cores, insulation, metallic sheaths, bedding, armoring, and serving. It then covers the classification, properties of insulating materials, common material types used for insulation, and types of cable faults that can occur in oil impregnated paper insulated cables and extruded cables. Faults discussed include conductor-conductor, flashing, conductor-shield, serial, earth, and humid/wet faults.
This document discusses different types of insulators and insulating materials used in overhead and underground power transmission lines. It describes what insulators are and the key properties insulating materials should have like high resistivity and dielectric strength. The main types of insulators for overhead lines are pin, suspension, strain and shackle insulators. Early overhead lines used wood and glass insulators, then ceramic materials like porcelain were developed to withstand higher voltages. Now polymer and long rod insulators are common. Underground lines use insulating materials like rubber, impregnated paper, varnished cambric and PVC that can withstand moisture and mechanical stresses. Thicker cables are needed for underground transmission due to requirements for insulation and strength.
This document summarizes the typical construction of low, medium, and high voltage cables. It describes the main components of a cable including the conductor, insulation, screens, armor, and outer sheath. Common materials for each component are also outlined, such as copper or aluminum for conductors, and PVC, EPR, or XLPE for insulation. The purpose of each part is explained, such as using insulation to isolate the conductor and armor for mechanical protection.
Underground cables have several advantages over overhead lines like lower maintenance costs and reduced damage risks. However, they also have higher installation costs. Underground cables are used where overhead lines are impractical, such as in dense urban areas. Underground cables consist of conductors, insulation, metallic sheathing for protection, and armor. Common insulation materials include paper, rubber, and PVC plastic, with each having advantages for different voltage levels and environmental conditions.
1. The document discusses power cables, including their construction, types, insulating materials, and classifications. It describes the main components of cables as the conductor, insulation, sheath, bedding, armoring, and serving.
2. Common insulating materials mentioned are impregnated paper, PVC, and XLPE, with their characteristics and drawbacks discussed.
3. Cables are classified based on voltage as low, high, super, and extra high tension cables. Low tension cables are described as having an insulated copper or aluminum conductor surrounded by lead sheath and serving.
This document summarizes a seminar presentation on underground cables. It discusses the construction of underground cables, including their core conductors, insulation, sheathing, bedding, armour, and serving. It also classifies cables based on voltage into low, high, super, and extra high tension cables. The key insulating materials discussed are rubber, XLPE, vulcanized rubber, impregnated paper, varnished cambric, and PVC. Examples of cable types include 3-core belted, 3-core, and 3-core SL type cables. Underground cables provide advantages like better appearance, protection from external disturbances, and lower maintenance costs, but their installation costs are higher than overhead systems.
The document discusses different types of insulating materials including thermal, electrical, and sound insulation. For thermal insulation, it outlines common materials like asbestos, cork, aluminum foil and their properties and uses. Electrical insulation materials include mica, asbestos, rubber and porcelain. Their requisite qualities and uses are also noted. Sound insulation aims to reduce sound transmission and lists reasons for its use including noisy neighbors and audio recording studios. Common sound insulating materials and their applications are also provided.
This document discusses different types of dielectric materials including solids, liquids, and gases. Some key solid dielectrics mentioned are mica, glass, rubber, and ceramics. The main liquid dielectrics described are mineral oils, synthetic oils, and miscellaneous oils. Gaseous dielectrics include air, nitrogen, sulfur hexafluoride, and inert gases. The document also discusses specific dielectric materials like mica, glass, asbestos, and rubber. It describes the composition and properties of each and their applications, particularly in capacitors and transformers.
Project on Cable and its classificationSOMNATH DAS
This document provides an overview of different types of power cables including their classifications, constructions, essential requirements, and testing procedures. The key types discussed are:
1) Thermoplastic cables like PVC and PE which are inexpensive but have limitations on operating temperature.
2) Thermosetting cables like XLPE and EPR which can operate at higher temperatures but are more expensive.
3) Paper or oil-filled cables which are reliable but heavy, costly, and difficult to repair.
Proper handling, storage, laying, and testing of cables is important to ensure safety and performance.
The document discusses electrical insulators. It defines an insulator as a material that does not allow electric charges to flow through it easily. Insulators have high resistivity. Some common insulator materials are glass, paper, and Teflon. Insulators are used in electrical equipment to support conductors without allowing current to pass through. The document then discusses characteristics insulators should have such as mechanical strength, high dielectric strength, and resistance to impurities. It also discusses common insulator types like porcelain, glass, and polymer insulators as well as insulator components like pin, suspension, strain, and shackle insulators. Finally, it lists some common causes of insulator failure such as cracking, defective materials, por
The document discusses electrical insulators and provides information on their characteristics and common materials used. It defines an electrical insulator as a material that does not allow electric charges to flow freely and therefore does not easily conduct electric current. Common insulator materials include porcelain, glass, and polymers. The document describes different types of insulators like pin insulators, suspension insulators, strain insulators, and shackle insulators. It also discusses causes of insulator failure and various tests performed on insulators to ensure quality, including flashover tests, performance tests, and routine tests.
This document provides information about electrical insulators. It discusses the materials used for insulators like porcelain, glass, and composite polymers. It also describes the design considerations for insulators to withstand high voltages without breakdown. The types of insulators for overhead power lines are identified as pin, post, suspension, and strain insulators. Class 1 and Class 2 insulation standards are explained. Finally, applications of insulators in high voltage systems, circuit boards and electric wires are mentioned.
Modern underground power cables are sophisticated assemblies of insulators, conductors and protective materials. Within these components are sensors, which enable cable operators to monitor conditions along the cable in real time.
The condition of the cable insulation is usually monitored through the following two main methods:
Loss tangent measurements
Partial discharge (PD) measurements
This document provides an overview of coaxial cable construction. It discusses the various materials that make up a coaxial cable, including the conductor, dielectric, shielding, and jacket. For the conductor, it describes the different material options of copper, tinned copper, and copper-covered steel. It also discusses solid versus stranded conductors. For the dielectric, it explains solid versus foamed dielectric constructions and common dielectric materials like polyethylene and teflon. It details the different shielding options of foil, braid, and combination shielding. Finally, it briefly discusses common jacket materials and factors to consider for the cable jacket.
The document discusses various types of materials used as dielectric insulators in electrical engineering. It describes organic materials like paper and pressboard, inorganic materials like glass and ceramics, and synthetic polymers like polyethylene, PTFE, and nylon. These materials are used as solid insulators in electrical equipment due to their high resistivity, low dielectric losses, and ability to withstand varying environmental conditions. The document provides details on the electrical and mechanical properties of different insulating materials.
A Presentation based on Underground Cables Used In the Transmission And Distribution System.It is a topic covered in the syllabus of B.E. in Electrical Engineering in 5th semester Subject named "Electrical Power System" For more detail you can check the book "Electrical Power System" by Author V.K.Mehta and S.Chand Publication.
Construction of cables
Parts of a cable
Properties of cable insulators
Properties of conductors
Types of cables
Underground cables
Methods of laying underground cables
Types of cable faults
Comparison between overhead and underground cables
This document discusses different types of insulating materials used in building construction and engineering. It defines insulating materials as those that retard or stop the flow of heat, electricity, or sound. There are three main types of insulators: thermal insulators, electrical insulators, and sound insulators. Some common thermal insulators mentioned include magnesium plastic, aluminum foils, asbestos, cork, cellular rubber, and mineral wool. Common electrical insulators include mica, asbestos, rubber, paper, synthetic resins like Bakelite, porcelain, glass, and cotton. Sound insulators discussed are cellular concrete and acoustic plaster and boards.
2- OHL components - Part 4 - Insulators.pdfssuserbf792e1
Insulators are used to prevent current leakage from conductors to earth. Common insulator materials include porcelain, glass, steatite, and polymers. Porcelain and glass are commonly used up to 25kV, while polymers are used for higher voltages due to their strength. There are several types of insulators including pin, suspension, tension, and spool/shackle insulators. Pin insulators are used below 33kV while suspension insulators are used above 33kV due to their reduced mechanical stress. Insulator failures can occur due to cracking, porosity, flashover, mechanical stresses, short circuits, or dust deposition.
Low Voltage Switchgear involves switches like power circuits, relays etc. It is important that a periodic inspection and test carried out at least every 1-2 years and 2-6 months when new equipment is installed. In this section we discuss about some guidelines for inspection and maintenance of low voltage switch gear
It is important to make sure that the electrical installation in your property is well maintained. In this section there are number of simple, visual checks that you can carry out yourself
The document provides specifications for proper earthing, including that the earthing electrode must be at least 1.5 meters from the building, be made of the same material as the earth wire with a cross-sectional area between 0.02 and 0.1 square inches, and be a galvanized iron pipe of at least 12mm diameter and 32cm length buried in a mixture of coal and salt. It also specifies that all earth wires must terminate securely at the main circuit board and ensure low enough resistance for protective relays and fuses to operate.
To prevent electric fires, check wiring every 10 years, sockets regularly for burn marks or heat, and turn off unused electrical equipment. Also check appliance cables for fraying before plugging in, be careful with handheld equipment and don't overload adapters or sockets, especially with high-current appliances like kettles or heaters. Place heaters away from flammable items and don't block air vents on storage or fan heaters.
A study of Transformer - e world, electrical basics, electrical world, hazards in transformer, ilektech, transformer, transformer parts, transformer protection
A DC generator converts mechanical energy into electrical energy through electromagnetic induction. It produces direct current using a commutator to convert the alternating current induced in the armature coils into pulsating direct current. The key parts of a DC generator are the yoke/frame, armature including coils and commutator, pole cores with field coils, and brushes. The armature rotates in a magnetic field created by the field coils, inducing an electromotive force in the armature coils based on Faraday's law of induction.
This document summarizes a study on using supercapacitors for energy storage in magnetic resonance imaging (MRI) systems. MRI relies on magnetic fields and radio waves to generate images but requires significant power. Supercapacitors offer higher power densities and longer lifecycles than conventional batteries, making them suitable for powering the gradient coils in MRI systems. The study models the power requirements of MRI sequences, sizes supercapacitor modules to meet the energy needs, and confirms through testing that supercapacitors can successfully power the MRI system while reducing costs compared to traditional power supplies. In conclusion, supercapacitors are a viable option for energy storage in MRI to enable mobile units and reduce capital costs of stationary systems.
This document presents a smart energy meter project developed under the guidance of Mr. Mathew T. Mathews. The project aims to record electric energy consumption in intervals of an hour or less using a PLC and communicate that data daily to the utility for monitoring and billing purposes. It allows reading a customer's meter and generating bills without the utility having to physically visit each property. The system detects energy consumed using CT and PT sensors, records the data using a PLC, transmits it via Zigbee to the utility, and displays the information on a SCADA screen for monitoring.
The document describes an automatic irrigation system that uses a soil moisture sensor and microcontroller to minimize water waste and manual labor in agriculture. The system monitors soil moisture levels and automatically turns a motor on to start irrigation when the soil is dry and off when the soil is wet. An owner can also control the motor remotely via text messages to a GSM modem. The system aims to save water, energy, and labor costs while precisely meeting crops' watering needs. It could help farmers in India where seasonal rainfall means manual pumping is currently required.
Introduction to AI for Nonprofits with Tapp NetworkTechSoup
Dive into the world of AI! Experts Jon Hill and Tareq Monaur will guide you through AI's role in enhancing nonprofit websites and basic marketing strategies, making it easy to understand and apply.
This slide is special for master students (MIBS & MIFB) in UUM. Also useful for readers who are interested in the topic of contemporary Islamic banking.
Main Java[All of the Base Concepts}.docxadhitya5119
This is part 1 of my Java Learning Journey. This Contains Custom methods, classes, constructors, packages, multithreading , try- catch block, finally block and more.
A workshop hosted by the South African Journal of Science aimed at postgraduate students and early career researchers with little or no experience in writing and publishing journal articles.
Physiology and chemistry of skin and pigmentation, hairs, scalp, lips and nail, Cleansing cream, Lotions, Face powders, Face packs, Lipsticks, Bath products, soaps and baby product,
Preparation and standardization of the following : Tonic, Bleaches, Dentifrices and Mouth washes & Tooth Pastes, Cosmetics for Nails.
Executive Directors Chat Leveraging AI for Diversity, Equity, and InclusionTechSoup
Let’s explore the intersection of technology and equity in the final session of our DEI series. Discover how AI tools, like ChatGPT, can be used to support and enhance your nonprofit's DEI initiatives. Participants will gain insights into practical AI applications and get tips for leveraging technology to advance their DEI goals.
हिंदी वर्णमाला पीपीटी, hindi alphabet PPT presentation, hindi varnamala PPT, Hindi Varnamala pdf, हिंदी स्वर, हिंदी व्यंजन, sikhiye hindi varnmala, dr. mulla adam ali, hindi language and literature, hindi alphabet with drawing, hindi alphabet pdf, hindi varnamala for childrens, hindi language, hindi varnamala practice for kids, https://www.drmullaadamali.com
How to Manage Your Lost Opportunities in Odoo 17 CRMCeline George
Odoo 17 CRM allows us to track why we lose sales opportunities with "Lost Reasons." This helps analyze our sales process and identify areas for improvement. Here's how to configure lost reasons in Odoo 17 CRM
How to Add Chatter in the odoo 17 ERP ModuleCeline George
In Odoo, the chatter is like a chat tool that helps you work together on records. You can leave notes and track things, making it easier to talk with your team and partners. Inside chatter, all communication history, activity, and changes will be displayed.
A Strategic Approach: GenAI in EducationPeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
This presentation includes basic of PCOS their pathology and treatment and also Ayurveda correlation of PCOS and Ayurvedic line of treatment mentioned in classics.
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...PECB
Denis is a dynamic and results-driven Chief Information Officer (CIO) with a distinguished career spanning information systems analysis and technical project management. With a proven track record of spearheading the design and delivery of cutting-edge Information Management solutions, he has consistently elevated business operations, streamlined reporting functions, and maximized process efficiency.
Certified as an ISO/IEC 27001: Information Security Management Systems (ISMS) Lead Implementer, Data Protection Officer, and Cyber Risks Analyst, Denis brings a heightened focus on data security, privacy, and cyber resilience to every endeavor.
His expertise extends across a diverse spectrum of reporting, database, and web development applications, underpinned by an exceptional grasp of data storage and virtualization technologies. His proficiency in application testing, database administration, and data cleansing ensures seamless execution of complex projects.
What sets Denis apart is his comprehensive understanding of Business and Systems Analysis technologies, honed through involvement in all phases of the Software Development Lifecycle (SDLC). From meticulous requirements gathering to precise analysis, innovative design, rigorous development, thorough testing, and successful implementation, he has consistently delivered exceptional results.
Throughout his career, he has taken on multifaceted roles, from leading technical project management teams to owning solutions that drive operational excellence. His conscientious and proactive approach is unwavering, whether he is working independently or collaboratively within a team. His ability to connect with colleagues on a personal level underscores his commitment to fostering a harmonious and productive workplace environment.
Date: May 29, 2024
Tags: Information Security, ISO/IEC 27001, ISO/IEC 42001, Artificial Intelligence, GDPR
-------------------------------------------------------------------------------
Find out more about ISO training and certification services
Training: ISO/IEC 27001 Information Security Management System - EN | PECB
ISO/IEC 42001 Artificial Intelligence Management System - EN | PECB
General Data Protection Regulation (GDPR) - Training Courses - EN | PECB
Webinars: https://pecb.com/webinars
Article: https://pecb.com/article
-------------------------------------------------------------------------------
For more information about PECB:
Website: https://pecb.com/
LinkedIn: https://www.linkedin.com/company/pecb/
Facebook: https://www.facebook.com/PECBInternational/
Slideshare: http://www.slideshare.net/PECBCERTIFICATION
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
A Study of Insulators
1. INSULATORS
Insulators are substance which does not readily conduct electricity or Insulators are those
substances which offer such a huge resistance. Di-electric strength is the term used for
comparing insulation property of an insulator.
Properties
An ideal insulator has the following properties
a) High Resistivity
Insulators are those substances which offer such a huge resistance, that they
allow practically no electricity.
b) Di-electric strength
All insulator conduct electricity if subjected to apply extreme voltage. The
voltage at which the material lost his insulating property is known as di-
electric strength or breakdown voltage.
c) Mechanical strength
The insulating material must be mechanically strong enough to carry tension
and weight of conductor
d) Ability to withstand moisture
Their must not be any entrance on the surface of electrical insulator so that the
moisture or gases can enter it.
e) Withstand at high temperature
There physical as well as electrical properties must be less affected by
changing temperature.
f) Low Permittivity
2. Commonly Used insulation Materials
Cotton
Cotton is used very largely for low voltage insulations. Cotton is much easier to
handle and also serves mechanical support for other insulating materials
Silk
Silk is an excellent insulator. It is quite expensive and it is used in very small
instruments.
Paper
Electrical insulation paper is paper type that is used for electrical insulations. The
paper is made from manila fibres, wood pulp and cotton range.
Rubber
Rubber is a good insulator; it is used outside of wires that are used to conduct
electricity. Rubber provides protection from the dangers of electrical charges being carried
through the metal conductor. The mechanical properties of rubber can improved by addition
of sulphur (vulcanizing).
Mica
Mica is a mineral consisting chiefly of a double silicate of aluminium and potassium.
It is extremely stable when exposed to moisture and extreme temperature while maintaining
superior electrical properties as an insulator.
3. Insulating Oil
Mineral oil obtained from refining petroleum possesses good insulating properties.
This oil has dielectric strength of 200KV/cm. It is used in oil as transformer, some types of
high voltage capacitors, fluorescent lamps ballast, switch gears, etc.
Varnish
Varnish is an insulating material used to give protection against moisture and
chemical corrosion environment
Enamel
Enamel is applied to the wires and strips, which are smaller in the cross-section. Thin
enamel can give dielectric strength 600 KV/cm.

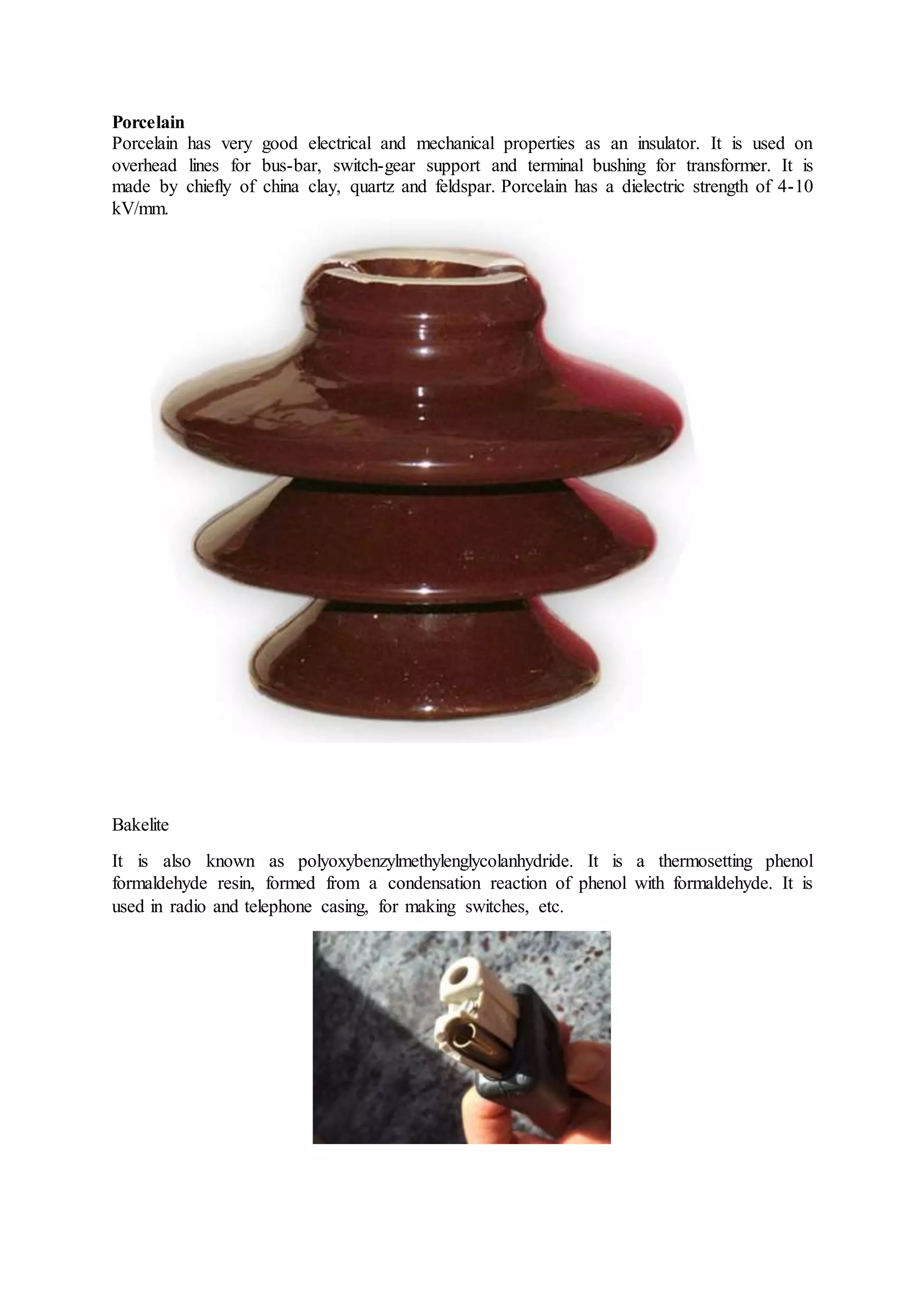

4. Porcelain
Porcelain has very good electrical and mechanical properties as an insulator. It is used on
overhead lines for bus-bar, switch-gear support and terminal bushing for transformer. It is
made by chiefly of china clay, quartz and feldspar. Porcelain has a dielectric strength of 4-10
kV/mm.
Bakelite
It is also known as polyoxybenzylmethylenglycolanhydride. It is a thermosetting phenol
formaldehyde resin, formed from a condensation reaction of phenol with formaldehyde. It is
used in radio and telephone casing, for making switches, etc.

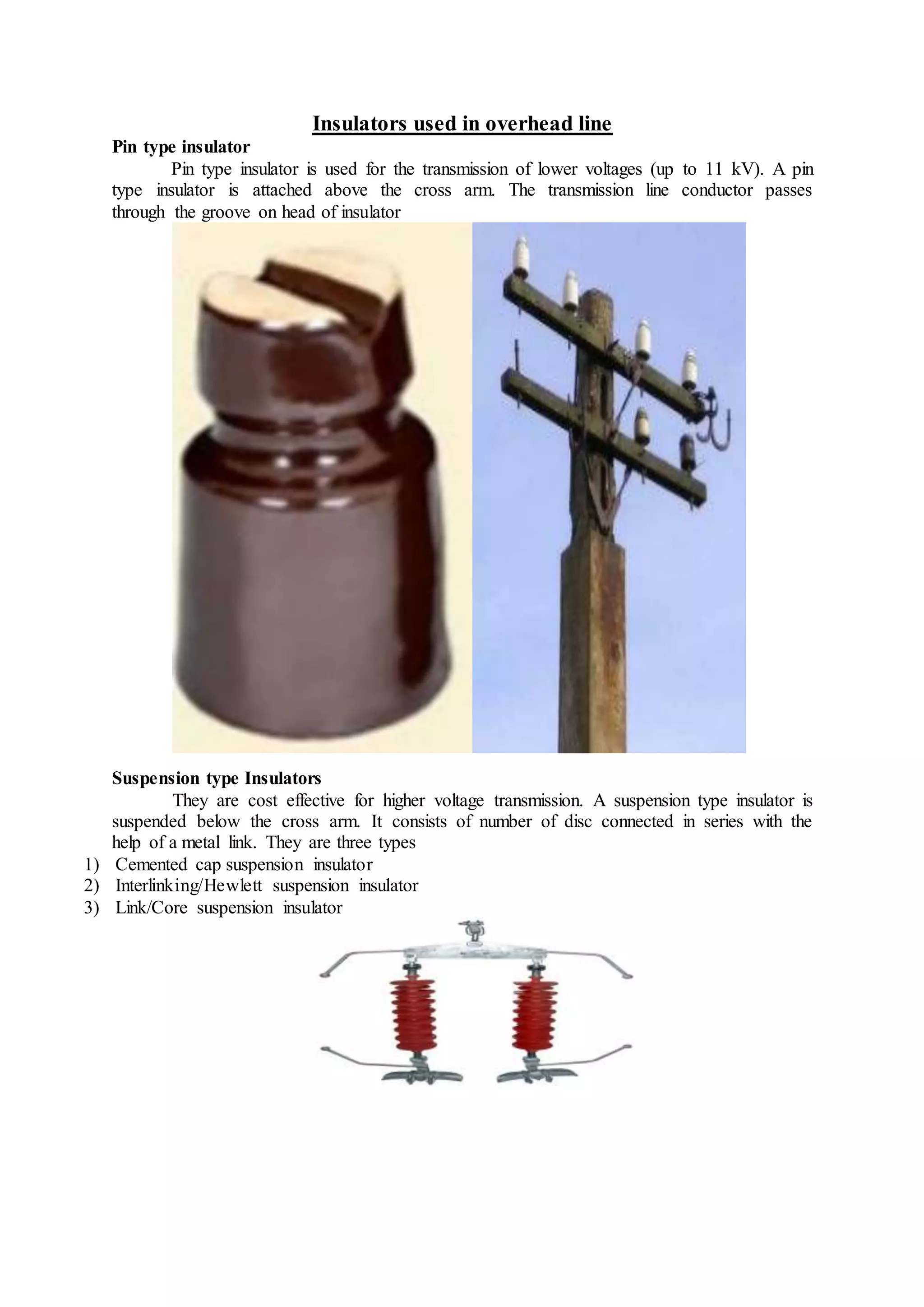

5. Insulators used in overhead line
Pin type insulator
Pin type insulator is used for the transmission of lower voltages (up to 11 kV). A pin
type insulator is attached above the cross arm. The transmission line conductor passes
through the groove on head of insulator
Suspension type Insulators
They are cost effective for higher voltage transmission. A suspension type insulator is
suspended below the cross arm. It consists of number of disc connected in series with the
help of a metal link. They are three types
1) Cemented cap suspension insulator
2) Interlinking/Hewlett suspension insulator
3) Link/Core suspension insulator
6. Strain type insulators
They are horizontally placed suspension insulator. It is used to handle mechanical stress and
take pressure off a conductor at the end.
Shackle type insulator
The shackle insulators are used on sharp curves, end poles and in section poles. A
shackle insulator is used for low voltage distribution lines.
