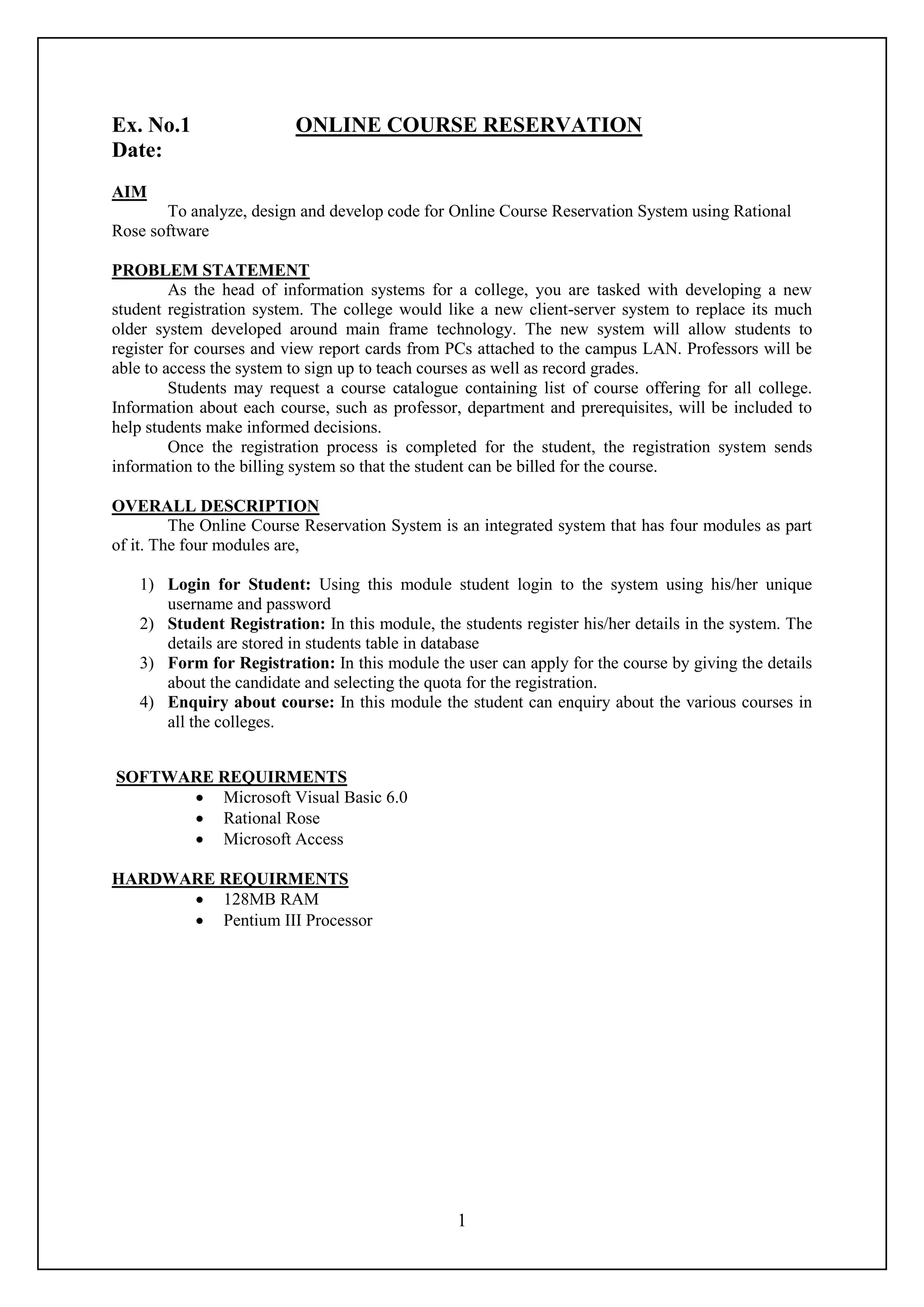

1. Ex. No.1 ONLINE COURSE RESERVATION
Date:
AIM
To analyze, design and develop code for Online Course Reservation System using Rational
Rose software
PROBLEM STATEMENT
As the head of information systems for a college, you are tasked with developing a new
student registration system. The college would like a new client-server system to replace its much
older system developed around main frame technology. The new system will allow students to
register for courses and view report cards from PCs attached to the campus LAN. Professors will be
able to access the system to sign up to teach courses as well as record grades.
Students may request a course catalogue containing list of course offering for all college.
Information about each course, such as professor, department and prerequisites, will be included to
help students make informed decisions.
Once the registration process is completed for the student, the registration system sends
information to the billing system so that the student can be billed for the course.
OVERALL DESCRIPTION
The Online Course Reservation System is an integrated system that has four modules as part
of it. The four modules are,
1) Login for Student: Using this module student login to the system using his/her unique
username and password
2) Student Registration: In this module, the students register his/her details in the system. The
details are stored in students table in database
3) Form for Registration: In this module the user can apply for the course by giving the details
about the candidate and selecting the quota for the registration.
4) Enquiry about course: In this module the student can enquiry about the various courses in
all the colleges.
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
1

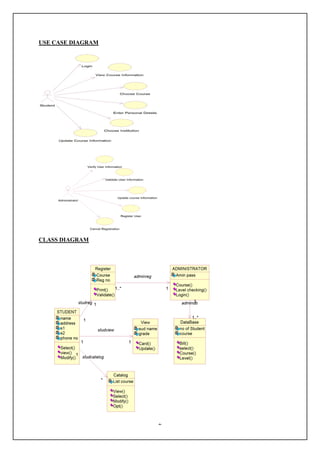

2. USE CASE DIAGRAM
CLASS DIAGRAM
2

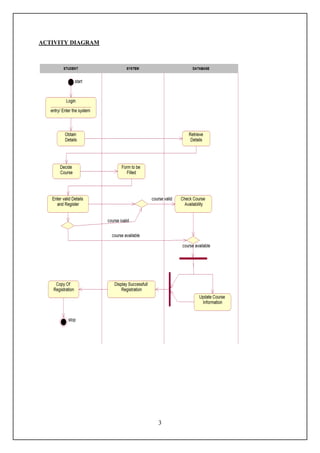

3. ACTIVITY DIAGRAM
3

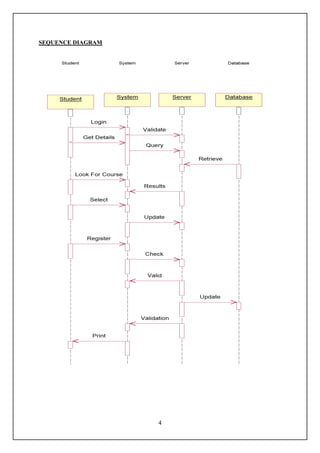

4. SEQUENCE DIAGRAM
4

5. COLLABRATION DIAGRAM
1: Login
3: Getdetail
6: Look for course
8: Select
10: Register
Student System
15: Print
7: Resut
12: Validate
14: Validation
2: validate
4: Query
9: Update
11: Check
5: Retrive
13: Update
Server Database
COMPONENT DIAGRAM
Register
Student View Administ
rator
Catalog Databas
e
DEPLOYMENT DIAGRAM
Access
Database
Course
Reserv...
Adminis Student
trator
5

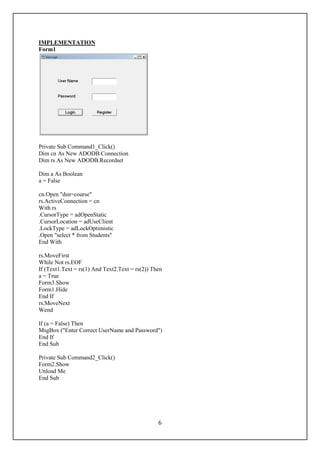

6. IMPLEMENTATION
Form1
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=course"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
rs.MoveFirst
While Not rs.EOF
If (Text1.Text = rs(1) And Text2.Text = rs(2)) Then
a = True
Form3.Show
Form1.Hide
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter Correct UserName and Password")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
6

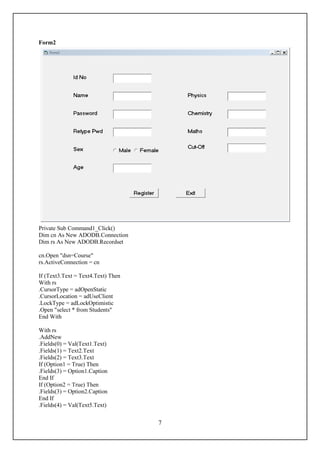

7. Form2
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Course"
rs.ActiveConnection = cn
If (Text3.Text = Text4.Text) Then
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
.Fields(2) = Text3.Text
If (Option1 = True) Then
.Fields(3) = Option1.Caption
End If
If (Option2 = True) Then
.Fields(3) = Option2.Caption
End If
.Fields(4) = Val(Text5.Text)
7

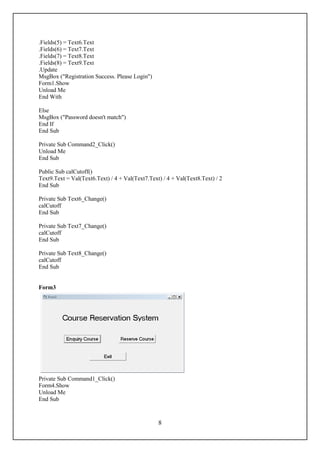

8. .Fields(5) = Text6.Text
.Fields(6) = Text7.Text
.Fields(7) = Text8.Text
.Fields(8) = Text9.Text
.Update
MsgBox ("Registration Success. Please Login")
Form1.Show
Unload Me
End With
Else
MsgBox ("Password doesn't match")
End If
End Sub
Private Sub Command2_Click()
Unload Me
End Sub
Public Sub calCutoff()
Text9.Text = Val(Text6.Text) / 4 + Val(Text7.Text) / 4 + Val(Text8.Text) / 2
End Sub
Private Sub Text6_Change()
calCutoff
End Sub
Private Sub Text7_Change()
calCutoff
End Sub
Private Sub Text8_Change()
calCutoff
End Sub
Form3
Private Sub Command1_Click()
Form4.Show
Unload Me
End Sub
8

9. Private Sub Command2_Click()
Form5.Show
Unload Me
End Sub
Form4
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
Private Sub Text1_Change()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=course"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Colleges"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(2)
Text4.Text = rs(3)
Text5.Text = rs(4)
9

10. Text6.Text = rs(5)
End If
rs.MoveNext
Wend
End Sub

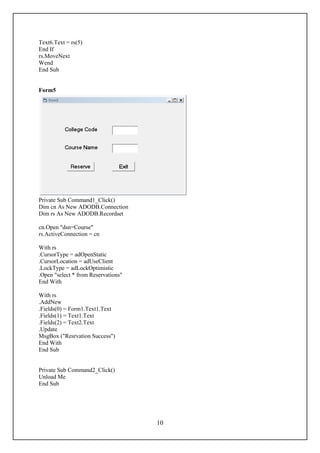

Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Course"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Reservations"
End With
With rs
.AddNew
.Fields(0) = Form1.Text1.Text
.Fields(1) = Text1.Text
.Fields(2) = Text2.Text
.Update
MsgBox ("Resrvation Success")
End With
End Sub
Private Sub Command2_Click()
Unload Me
End Sub
10

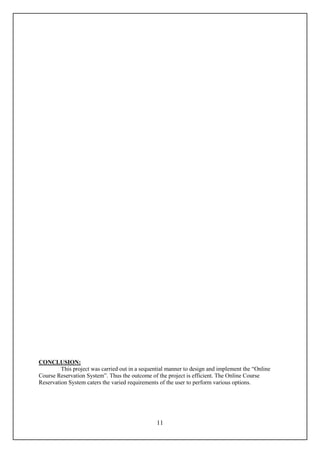

11. CONCLUSION:
This project was carried out in a sequential manner to design and implement the “Online
Course Reservation System”. Thus the outcome of the project is efficient. The Online Course
Reservation System caters the varied requirements of the user to perform various options.
11

12. Ex. No. 2 E- TICKETING
Date:
AIM
To analyze, design and develop code E-Ticketing using Rational Rose software.
Problem Statement
Our project is carried out to develop software for online Railway Reservation System. The
software is coded in VB, which is the front end, and it has Back end, which contains information
about the reservation and the availability of seats in trains. It has various options like reservation,
cancellation and to view details about available seats. Our project mainly simulates the role of a
Railway ticket booking officer, in a computerized way.
The reservation option enables a person to reserve for a ticket at their home itself. All he/ she
has to do is to just login and enter the required details. After this the reservation database is updated
with the person details, train name and also the source and destination place.
The cancellation option enables the passenger to cancel the tickets that has been already
booked by him/her.
The availability option prompts the person to enter train number, train name and date of
travel. After this the availability database is accessed and available positions are produced.
OVERALL DESCRIPTION:
The E-Ticketing System is an integrated system that has four modules as part of it. The four modules
are,
1) Viewing Train Details: To view the train details. Details can be viewed by giving the train
number or Source and Destination
2) Checking Availability of Tickets: To view number of tickets available in the train
3) Reservation of Tickets: To enable the users to reserve the tickets easily
4) Cancellation of Tickets: To enable the users to cancel the tickets by giving PNR No
USE CASE DIAGRAM :-
12

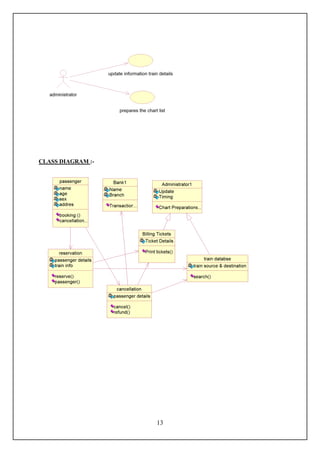

13. CLASS DIAGRAM :-
13

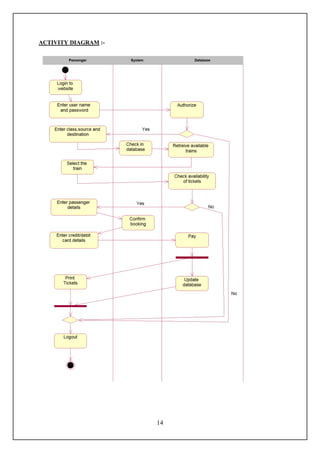

14. ACTIVITY DIAGRAM :-
14

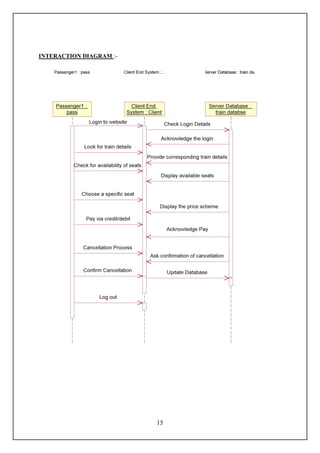

15. INTERACTION DIAGRAM :-
15

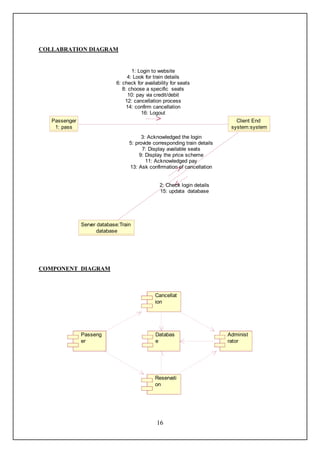

16. COLLABRATION DIAGRAM
1: Login to website
4: Look for train details
6: check for availability for seats
8: choose a specific seats
10: pay via credit/debit
12: cancellation process
14: confirm cancellation
16: Logout
Passenger Client End
1: pass system:system
3: Acknowledged the login
5: provide corresponding train details
7: Display available seats
9: Display the price scheme
11: Acknowledged pay
13: Ask confirmation of cancellation
2: Check login details
15: updata database
Server database:Train
database
COMPONENT DIAGRAM
Cancellat
ion
Passeng Databas Administ
er e rator
Reservati
on
16

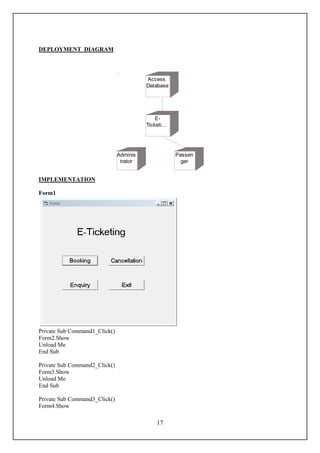

17. DEPLOYMENT DIAGRAM
Access
Database
E-
Ticketi...
Adminis Passen
trator ger
IMPLEMENTATION
Form1
Private Sub Command1_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form3.Show
Unload Me
End Sub
Private Sub Command3_Click()
Form4.Show
17

18. Unload Me
End Sub
Private Sub Command4_Click()
Unload Me
End Sub
Form2
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Ticket"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Reservations"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Val(Text2.Text)
.Fields(2) = Text3.Text
.Fields(3) = Val(Text4.Text)
.Update
MsgBox ("Reservation Success.")
Text1.Text = ""
Text2.Text = ""
Text3.Text = ""
Text4.Text = ""
End With
18

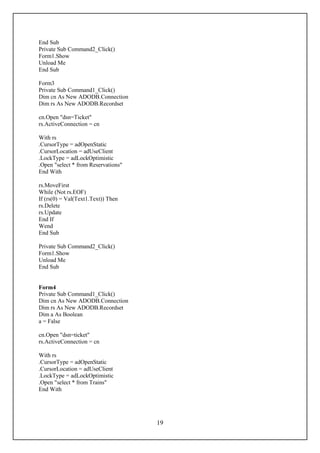

19. End Sub
Private Sub Command2_Click()
Form1.Show
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Ticket"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Reservations"
End With
rs.MoveFirst
While (Not rs.EOF)
If (rs(0) = Val(Text1.Text)) Then
rs.Delete
rs.Update
End If
Wend
End Sub
Private Sub Command2_Click()
Form1.Show
Unload Me
End Sub
Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=ticket"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Trains"
End With
19

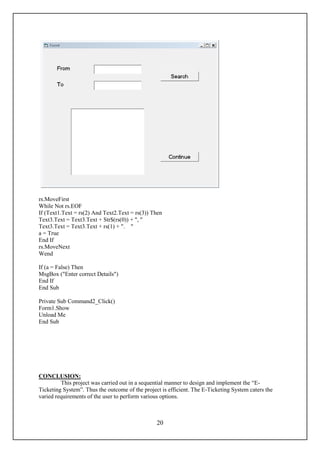

20. rs.MoveFirst
While Not rs.EOF
If (Text1.Text = rs(2) And Text2.Text = rs(3)) Then
Text3.Text = Text3.Text + Str$(rs(0)) + ", "
Text3.Text = Text3.Text + rs(1) + ". "
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Details")
End If
End Sub
Private Sub Command2_Click()
Form1.Show
Unload Me
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the “E-
Ticketing System”. Thus the outcome of the project is efficient. The E-Ticketing System caters the
varied requirements of the user to perform various options.
20

21. Ex No: 3 CREDIT CARD PROCESSING
Date:
AIM
To analyze, design and develop code for Credit Card Processing System using Rational Rose
software
PROBLEM STATEMENT
We envision a banking system that provides the customer holing a bank credit card can make
deposits, withdraws, check balances and perform transfer to and from their accounts. Credit card
processing will be attractive to banking customer because they allow access to their accounts outside
of regular business hours.
Participating Banks want to make sure the access to their customer account information is
safe and secure transaction information is accurate and reliable. Bank Customer-Want easy, low-cost,
remote access to their accounts, but want to be assured that their accounts are secure and not
accessible to hackers or other their parties.
Bank must be able to handle multiple simultaneous transactions (and possible
simultaneous transaction to the same joint account).Bank owning a credit card must be able to
determine the cash on hand in the creditcard. The cash in the creditcard must be secure.
OVERALL DESCRIPTION
The Credit Card Processing System is an integrated system that has four modules as part of
it. The four modules are,
1) User Login: Using this module user login to the system using his/her unique username and
password
2) Withdraw: The purpose of this module to withdraw money from the account
3) Deposit: The purpose of this module to deposit money to the account
4) Balance Enquiry: Using this module the user can check his/her account balance and the loan
amount to pay if any.
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
21

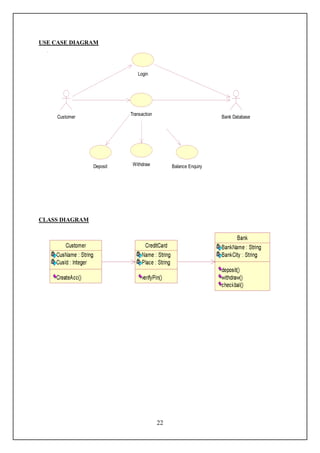

22. USE CASE DIAGRAM
Login
Transaction
Customer Bank Database
Deposit Withdraw Balance Enquiry
CLASS DIAGRAM
22

23. ACTIVITY DIAGRAM
Login
Withdraw Deposit Balnce Enquiry
Logout
23

24. SEQUENCE DIAGRAM
Customer Credit System Bank Database
Login
Validate Details
Validation Success
Login Success
Transaction
Validate Transaction
Transaction Validated
Transaction Success
Pin Change
Update Details
Details Updated
Pin Change Success
24

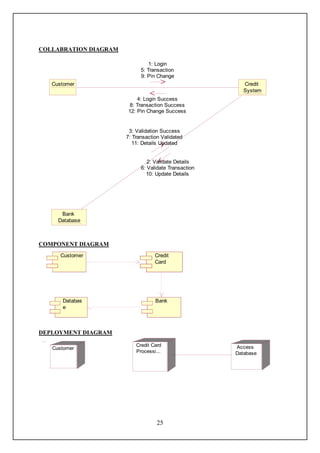

25. COLLABRATION DIAGRAM
1: Login
5: Transaction
9: Pin Change
Customer Credit
System
4: Login Success
8: Transaction Success
12: Pin Change Success
3: Validation Success
7: Transaction Validated
11: Details Updated
2: Validate Details
6: Validate Transaction
10: Update Details
Bank
Database
COMPONENT DIAGRAM
Customer Credit
Card
Databas Bank
e
DEPLOYMENT DIAGRAM
Credit Card Access
Customer
Processi... Database
25

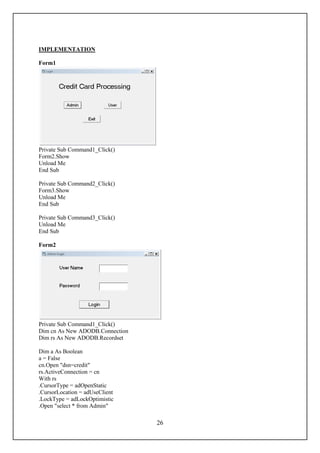

26. IMPLEMENTATION
Form1
Private Sub Command1_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form3.Show
Unload Me
End Sub
Private Sub Command3_Click()
Unload Me
End Sub
Form2
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=credit"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Admin"
26

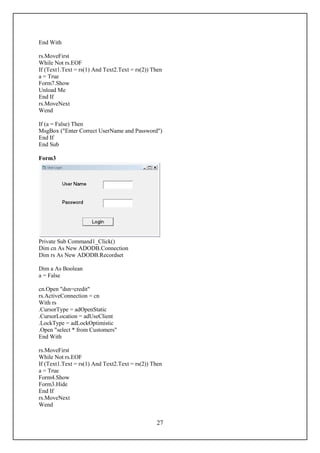

27. End With
rs.MoveFirst
While Not rs.EOF
If (Text1.Text = rs(1) And Text2.Text = rs(2)) Then
a = True
Form7.Show
Unload Me
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter Correct UserName and Password")
End If
End Sub
Form3
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=credit"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Customers"
End With
rs.MoveFirst
While Not rs.EOF
If (Text1.Text = rs(1) And Text2.Text = rs(2)) Then
a = True
Form4.Show
Form3.Hide
End If
rs.MoveNext
Wend
27

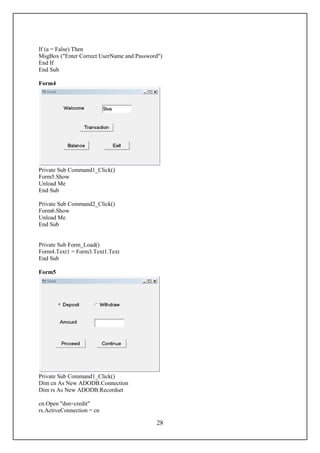

28. If (a = False) Then
MsgBox ("Enter Correct UserName and Password")
End If
End Sub
Form4
Private Sub Command1_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form6.Show
Unload Me
End Sub
Private Sub Form_Load()
Form4.Text1 = Form3.Text1.Text
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=credit"
rs.ActiveConnection = cn
28

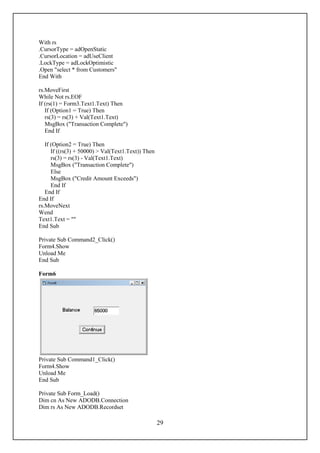

29. With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Customers"
End With
rs.MoveFirst
While Not rs.EOF
If (rs(1) = Form3.Text1.Text) Then
If (Option1 = True) Then
rs(3) = rs(3) + Val(Text1.Text)
MsgBox ("Transaction Complete")
End If
If (Option2 = True) Then
If ((rs(3) + 50000) > Val(Text1.Text)) Then
rs(3) = rs(3) - Val(Text1.Text)
MsgBox ("Transaction Complete")
Else
MsgBox ("Credit Amount Exceeds")
End If
End If
End If
rs.MoveNext
Wend
Text1.Text = ""
End Sub
Private Sub Command2_Click()
Form4.Show
Unload Me
End Sub
Form6
Private Sub Command1_Click()
Form4.Show
Unload Me
End Sub
Private Sub Form_Load()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
29

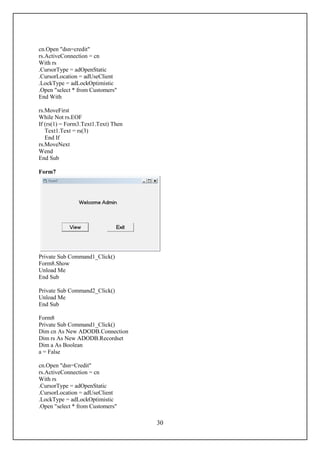

30. cn.Open "dsn=credit"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Customers"
End With
rs.MoveFirst
While Not rs.EOF
If (rs(1) = Form3.Text1.Text) Then
Text1.Text = rs(3)
End If
rs.MoveNext
Wend
End Sub
Form7
Private Sub Command1_Click()
Form8.Show
Unload Me
End Sub
Private Sub Command2_Click()
Unload Me
End Sub
Form8
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=Credit"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Customers"
30

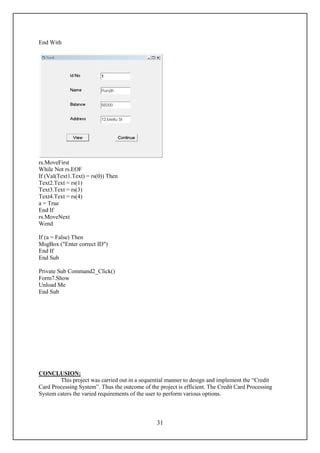

31. End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(3)
Text4.Text = rs(4)
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct ID")
End If
End Sub
Private Sub Command2_Click()
Form7.Show
Unload Me
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the “Credit
Card Processing System”. Thus the outcome of the project is efficient. The Credit Card Processing
System caters the varied requirements of the user to perform various options.
31

32. Ex No:4 SOFTWARE PERSONNEL MANAGEMENT SYSTEM
Date:
AIM
To analyze, design and develop code for Software Personnel Management System using
Rational Rose software
PROBLEM STATEMENT
To create Software Personnel Management System and processes the intersection between
human resource management (HRM) and information technology. The system should merges HRM
as a discipline and in particular its basic HR activities and processes with the information technology
field.
OVERALL DESCRIPTION
The Software Personnel Management System is an integrated system that has four modules as
part of it. The four modules are,
1) Login: To implement security and only the HR is allowed to access the system using is
username and password
2) Adding an Entry: This module is used to insert a new personnel details
3) Search an Entry: This module is used to search the database with reference to Id or
Designation
4) View an Entry: This module is used to get the detailed information about an personnel
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
USECASE DIAGRAM
Login
Add New Entry
Database
HR
Search an Entry
View an Entry
32

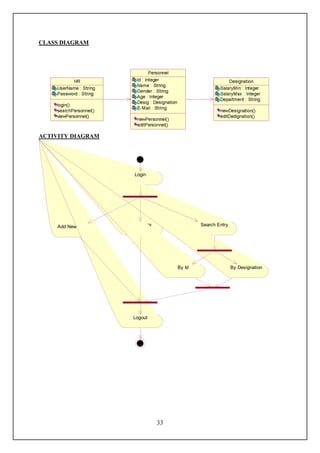

33. CLASS DIAGRAM
ACTIVITY DIAGRAM
Login
Add New Entry View Entry Search Entry
By Id By Designation
Logout
33

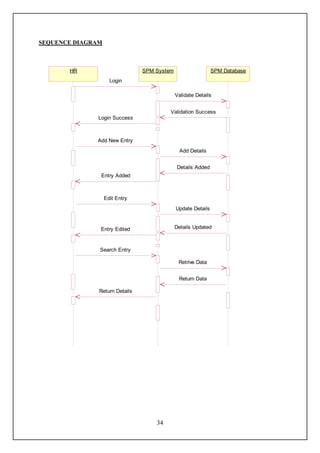

34. SEQUENCE DIAGRAM
HR SPM System SPM Database
Login
Validate Details
Validation Success
Login Success
Add New Entry
Add Details
Details Added
Entry Added
Edit Entry
Update Details
Entry Edited Details Updated
Search Entry
Retrive Data
Return Data
Return Details
34

35. COLLABRATION DIAGRAM
1: Login
5: Add New Entry
9: Edit Entry
13: Search Entry
HR SPM
System
4: Login Success
8: Entry Added
12: Entry Edited
16: Return Details
3: Validation Success
7: Details Added
11: Details Updated
15: Return Data
2: Validate Details
6: Add Details
10: Update Details
14: Retrive Data
SPM
Database
COMPONENT DIAGRAM
HR Personnel Designation
DEPLOYMENT DIAGRAM
HR SPM Access
System Database
35

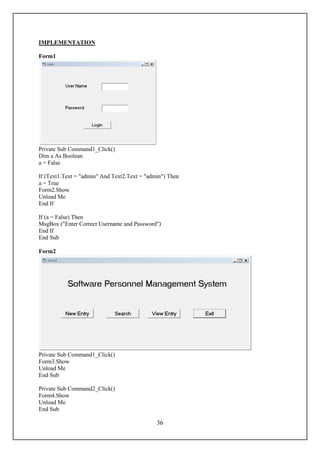

36. IMPLEMENTATION
Form1
Private Sub Command1_Click()
Dim a As Boolean
a = False
If (Text1.Text = "admin" And Text2.Text = "admin") Then
a = True
Form2.Show
Unload Me
End If
If (a = False) Then
MsgBox ("Enter Correct Username and Password")
End If
End Sub
Form2
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form4.Show
Unload Me
End Sub
36

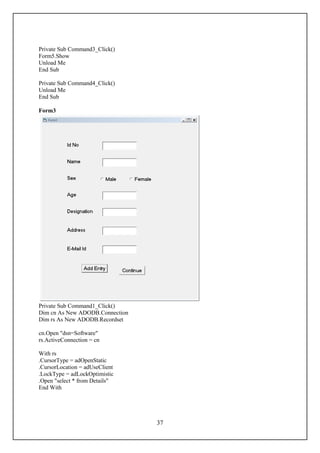

37. Private Sub Command3_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command4_Click()
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Software"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
37

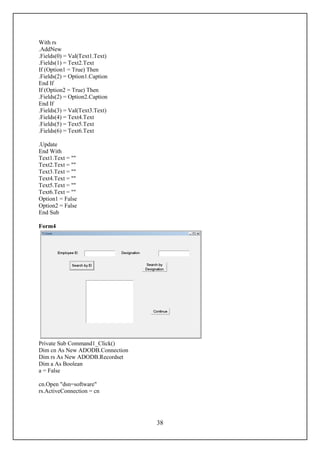

38. With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
If (Option1 = True) Then
.Fields(2) = Option1.Caption
End If
If (Option2 = True) Then
.Fields(2) = Option2.Caption
End If
.Fields(3) = Val(Text3.Text)
.Fields(4) = Text4.Text
.Fields(5) = Text5.Text
.Fields(6) = Text6.Text
.Update
End With
Text1.Text = ""
Text2.Text = ""
Text3.Text = ""
Text4.Text = ""
Text5.Text = ""
Text6.Text = ""
Option1 = False
Option2 = False
End Sub
Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=software"
rs.ActiveConnection = cn
38

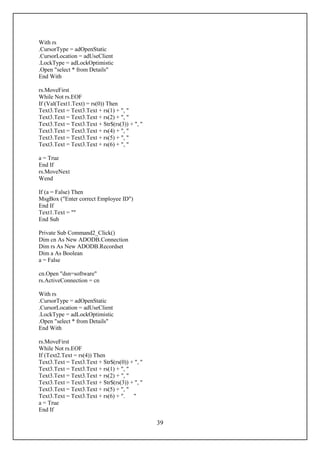

39. With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text3.Text = Text3.Text + rs(1) + ", "
Text3.Text = Text3.Text + rs(2) + ", "
Text3.Text = Text3.Text + Str$(rs(3)) + ", "
Text3.Text = Text3.Text + rs(4) + ", "
Text3.Text = Text3.Text + rs(5) + ", "
Text3.Text = Text3.Text + rs(6) + ", "
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Employee ID")
End If
Text1.Text = ""
End Sub
Private Sub Command2_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=software"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
If (Text2.Text = rs(4)) Then
Text3.Text = Text3.Text + Str$(rs(0)) + ", "
Text3.Text = Text3.Text + rs(1) + ", "
Text3.Text = Text3.Text + rs(2) + ", "
Text3.Text = Text3.Text + Str$(rs(3)) + ", "
Text3.Text = Text3.Text + rs(5) + ", "
Text3.Text = Text3.Text + rs(6) + ". "
a = True
End If
39

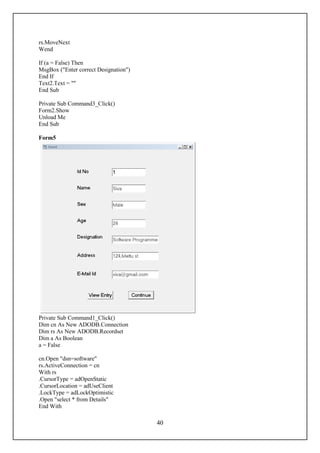

40. rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Designation")
End If
Text2.Text = ""
End Sub
Private Sub Command3_Click()
Form2.Show
Unload Me
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=software"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
40

41. rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(2)
Text4.Text = rs(3)
Text5.Text = rs(4)
Text6.Text = rs(5)
Text7.Text = rs(6)
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct ID")
End If
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the “Software
Personnel Management System”. Thus the outcome of the project is efficient. The Software Personnel
Management System caters the varied requirements of the user to perform various options.
41

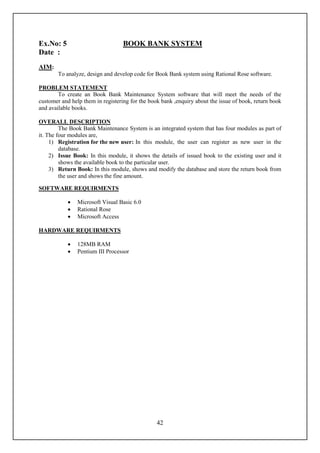

42. Ex.No: 5 BOOK BANK SYSTEM
Date :
AIM:
To analyze, design and develop code for Book Bank system using Rational Rose software.
PROBLEM STATEMENT
To create an Book Bank Maintenance System software that will meet the needs of the
customer and help them in registering for the book bank ,enquiry about the issue of book, return book
and available books.
OVERALL DESCRIPTION
The Book Bank Maintenance System is an integrated system that has four modules as part of
it. The four modules are,
1) Registration for the new user: In this module, the user can register as new user in the
database.
2) Issue Book: In this module, it shows the details of issued book to the existing user and it
shows the available book to the particular user.
3) Return Book: In this module, shows and modify the database and store the return book from
the user and shows the fine amount.
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
42

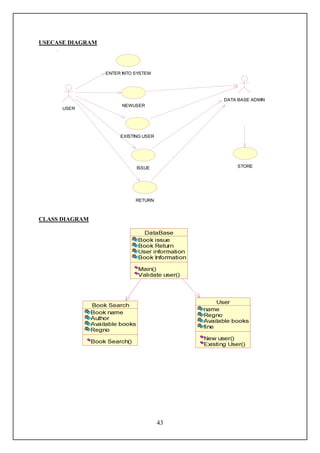

43. USECASE DIAGRAM
ENTER INTO SYSTEM
DATA BASE ADMIN
NEWUSER
USER
EXISTING USER
ISSUE STORE
RETURN
CLASS DIAGRAM
43

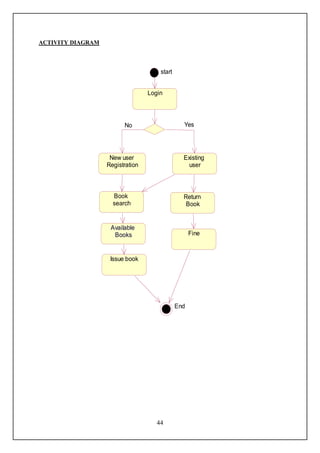

44. ACTIVITY DIAGRAM
start
Login
No Yes
New user Existing
Registration user
Book Return
search Book
Available
Books Fine
Issue book
End
44

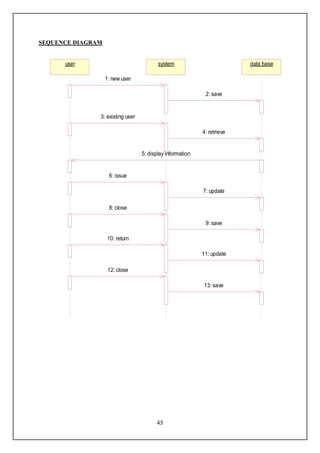

45. SEQUENCE DIAGRAM
user system data base
1: new user
2: save
3: existing user
4: retrieve
5: display information
6: issue
7: update
8: close
9: save
10: return
11: update
12: close
13: save
45

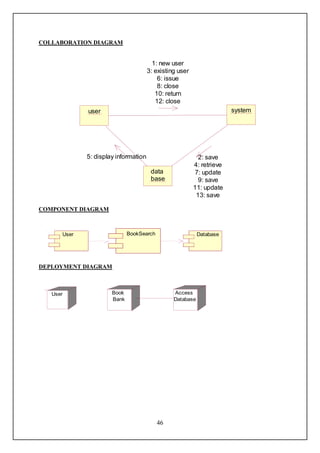

46. COLLABORATION DIAGRAM
1: new user
3: existing user
6: issue
8: close
10: return
12: close
user system
5: display information 2: save
4: retrieve
data 7: update
base 9: save
11: update
13: save
COMPONENT DIAGRAM
User BookSearch Database
DEPLOYMENT DIAGRAM
User Book Access
Bank Database
46

47. IMPLEMENTATION
Form1
Private Sub Command1_Click()
Dim a As Boolean
a = False
If (Text1.Text = "admin" And Text2.Text = "admin") Then
a = True
Form2.Show
Unload Me
End If
If (a = False) Then
MsgBox ("Enter Correct Username and Password")
End If
End Sub
Form2
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form4.Show
Unload Me
End Sub
47

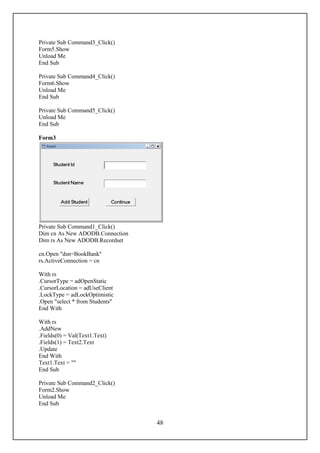

48. Private Sub Command3_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command4_Click()
Form6.Show
Unload Me
End Sub
Private Sub Command5_Click()
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=BookBank"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
.Update
End With
Text1.Text = ""
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
48

49. Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=BookBank"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Books"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
.Fields(2) = Val(Text3.Text)
.Update
End With
Text1.Text = ""
Text2.Text = ""
Text3.Text = ""
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
49

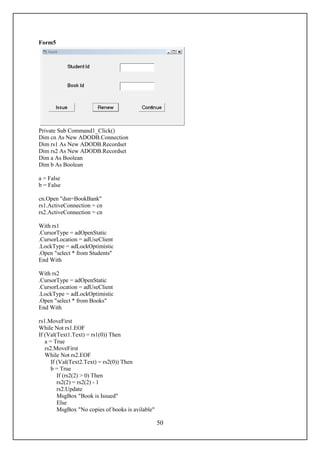

50. Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs1 As New ADODB.Recordset
Dim rs2 As New ADODB.Recordset
Dim a As Boolean
Dim b As Boolean
a = False
b = False
cn.Open "dsn=BookBank"
rs1.ActiveConnection = cn
rs2.ActiveConnection = cn
With rs1
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
With rs2
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Books"
End With
rs1.MoveFirst
While Not rs1.EOF
If (Val(Text1.Text) = rs1(0)) Then
a = True
rs2.MoveFirst
While Not rs2.EOF
If (Val(Text2.Text) = rs2(0)) Then
b = True
If (rs2(2) > 0) Then
rs2(2) = rs2(2) - 1
rs2.Update
MsgBox "Book is Issued"
Else
MsgBox "No copies of books is avilable"
50

51. End If
End If
rs2.MoveNext
Wend
End If
rs1.MoveNext
Wend
Text1.Text = ""
Text2.Text = ""
If (a = False) Then
MsgBox ("Enter correct Student ID")
End If
If (a = True And b = False) Then
MsgBox ("Enter correct Book ID")
End If
End Sub
Private Sub Command2_Click()
Dim cn As New ADODB.Connection
Dim rs1 As New ADODB.Recordset
Dim rs2 As New ADODB.Recordset
Dim a As Boolean
Dim b As Boolean
a = False
b = False
cn.Open "dsn=BookBank"
rs1.ActiveConnection = cn
rs2.ActiveConnection = cn
With rs1
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
With rs2
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Books"
End With
rs1.MoveFirst
While Not rs1.EOF
If (Val(Text1.Text) = rs1(0)) Then
a = True
rs2.MoveFirst
While Not rs2.EOF
If (Val(Text2.Text) = rs2(0)) Then
51

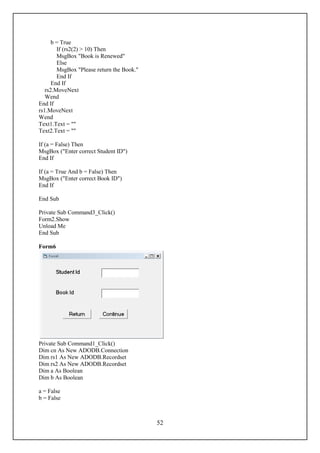

52. b = True
If (rs2(2) > 10) Then
MsgBox "Book is Renewed"
Else
MsgBox "Please return the Book."
End If
End If
rs2.MoveNext
Wend
End If
rs1.MoveNext
Wend
Text1.Text = ""
Text2.Text = ""
If (a = False) Then
MsgBox ("Enter correct Student ID")
End If
If (a = True And b = False) Then
MsgBox ("Enter correct Book ID")
End If
End Sub
Private Sub Command3_Click()
Form2.Show
Unload Me
End Sub
Form6
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs1 As New ADODB.Recordset
Dim rs2 As New ADODB.Recordset
Dim a As Boolean
Dim b As Boolean
a = False
b = False
52

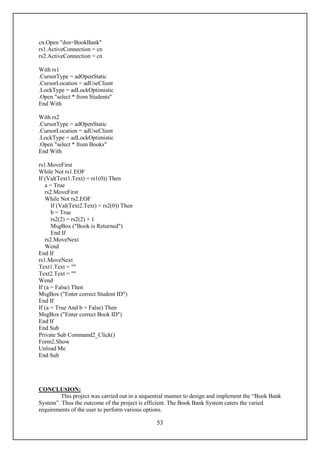

53. cn.Open "dsn=BookBank"
rs1.ActiveConnection = cn
rs2.ActiveConnection = cn
With rs1
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
With rs2
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Books"
End With
rs1.MoveFirst
While Not rs1.EOF
If (Val(Text1.Text) = rs1(0)) Then
a = True
rs2.MoveFirst
While Not rs2.EOF
If (Val(Text2.Text) = rs2(0)) Then
b = True
rs2(2) = rs2(2) + 1
MsgBox ("Book is Returned")
End If
rs2.MoveNext
Wend
End If
rs1.MoveNext
Text1.Text = ""
Text2.Text = ""
Wend
If (a = False) Then
MsgBox ("Enter correct Student ID")
End If
If (a = True And b = False) Then
MsgBox ("Enter correct Book ID")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the “Book Bank
System”. Thus the outcome of the project is efficient. The Book Bank System caters the varied
requirements of the user to perform various options.
53

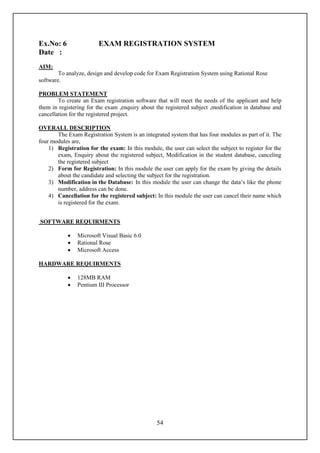

54. Ex.No: 6 EXAM REGISTRATION SYSTEM
Date :
AIM:
To analyze, design and develop code for Exam Registration System using Rational Rose
software.
PROBLEM STATEMENT
To create an Exam registration software that will meet the needs of the applicant and help
them in registering for the exam ,enquiry about the registered subject ,modification in database and
cancellation for the registered project.
OVERALL DESCRIPTION
The Exam Registration System is an integrated system that has four modules as part of it. The
four modules are,
1) Registration for the exam: In this module, the user can select the subject to register for the
exam, Enquiry about the registered subject, Modification in the student database, canceling
the registered subject
2) Form for Registration: In this module the user can apply for the exam by giving the details
about the candidate and selecting the subject for the registration.
3) Modification in the Database: In this module the user can change the data’s like the phone
number, address can be done.
4) Cancellation for the registered subject: In this module the user can cancel their name which
is registered for the exam.
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
54

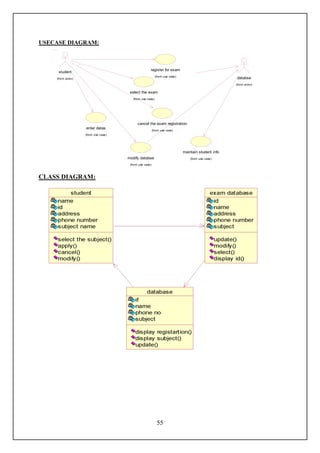

55. USECASE DIAGRAM:
register for exam
student
(from use case)
(from actor) databse
(from actor)
select the exam
(from use case)
cancel the exam registration
enter datas
(from use case)
(from use case)
maintain student info
modify databse (from use case)
(from use case)
CLASS DIAGRAM:
55

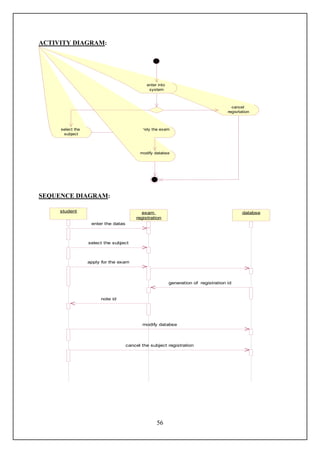

56. ACTIVITY DIAGRAM:
enter into
system
cancel
regisrtation
select the apply the exam
subject
modify databse
SEQUENCE DIAGRAM:
student exam databse
registration
enter the datas
select the subject
apply for the exam
generation of registration id
note id
modify databse
cancel the subject registration
56

57. COLLABRATION DIAGRAM:
1: enter the datas
student
2: select the subject
3: apply for the exam
6: note id
exam
registration
7: modify databse
8: cancel the subject registration
5: generation of registration id
4:
databse
COMPONENT DIAGRAM:
DEPLOYMENT DIAGRAM:
exam
student registration
Databse
57

58. IMPLEMENTATION
Form1
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=exam"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
rs.MoveFirst
While Not rs.EOF
If (Text1.Text = rs(1) And Text2.Text = rs(2)) Then
a = True
Form3.Show
Form1.Hide
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter Correct UserName and Password")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
58

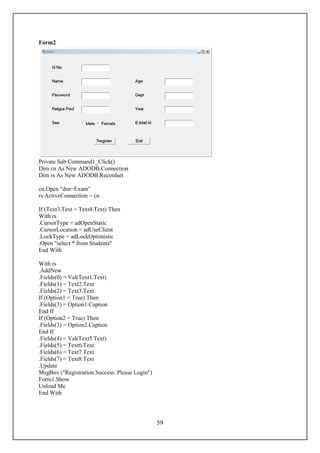

59. Form2
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Exam"
rs.ActiveConnection = cn
If (Text3.Text = Text4.Text) Then
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Students"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
.Fields(2) = Text3.Text
If (Option1 = True) Then
.Fields(3) = Option1.Caption
End If
If (Option2 = True) Then
.Fields(3) = Option2.Caption
End If
.Fields(4) = Val(Text5.Text)
.Fields(5) = Text6.Text
.Fields(6) = Text7.Text
.Fields(7) = Text8.Text
.Update
MsgBox ("Registration Success. Please Login")
Form1.Show
Unload Me
End With
59

60. Else
MsgBox ("Password doesn't match")
End If
End Sub
Private Sub Command2_Click()
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Form4.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command3_Click()
Unload Me
End Sub
Form4
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
Private Sub Text1_Change()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=exam"
rs.ActiveConnection = cn
60

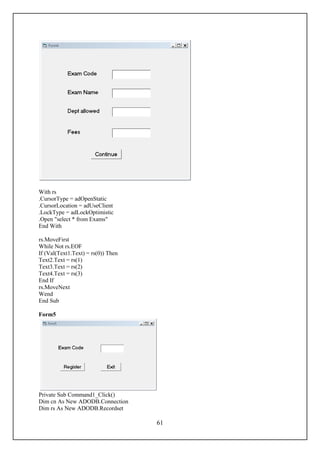

61. With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Exams"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(2)
Text4.Text = rs(3)
End If
rs.MoveNext
Wend
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset

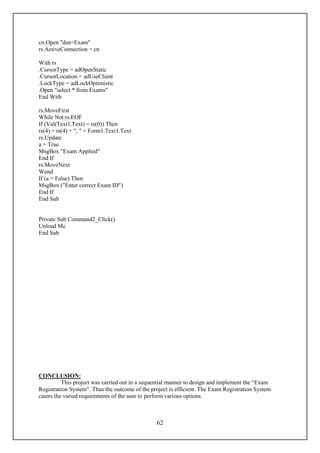

61

62. cn.Open "dsn=Exam"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Exams"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
rs(4) = rs(4) + ", " + Form1.Text1.Text
rs.Update
a = True
MsgBox "Exam Applied"
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Exam ID")
End If
End Sub
Private Sub Command2_Click()
Unload Me
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the “Exam
Registration System”. Thus the outcome of the project is efficient. The Exam Registration System
caters the varied requirements of the user to perform various options.
62

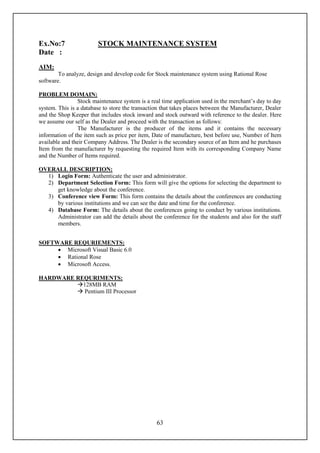

63. Ex.No:7 STOCK MAINTENANCE SYSTEM
Date :
AIM:
To analyze, design and develop code for Stock maintenance system using Rational Rose
software.
PROBLEM DOMAIN:
Stock maintenance system is a real time application used in the merchant’s day to day
system. This is a database to store the transaction that takes places between the Manufacturer, Dealer
and the Shop Keeper that includes stock inward and stock outward with reference to the dealer. Here
we assume our self as the Dealer and proceed with the transaction as follows:
The Manufacturer is the producer of the items and it contains the necessary
information of the item such as price per item, Date of manufacture, best before use, Number of Item
available and their Company Address. The Dealer is the secondary source of an Item and he purchases
Item from the manufacturer by requesting the required Item with its corresponding Company Name
and the Number of Items required.
OVERALL DESCRIPTION:
1) Login Form: Authenticate the user and administrator.
2) Department Selection Form: This form will give the options for selecting the department to
get knowledge about the conference.
3) Conference view Form: This form contains the details about the conferences are conducting
by various institutions and we can see the date and time for the conference.
4) Database Form: The details about the conferences going to conduct by various institutions.
Administrator can add the details about the conference for the students and also for the staff
members.
SOFTWARE REQURIEMENTS:
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access.
HARDWARE REQURIMENTS:
128MB RAM
 Pentium III Processor
63

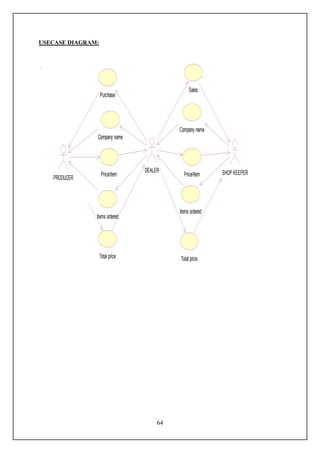

64. USECASE DIAGRAM:
Sales
Purchase
Company name
Company name
DEALER SHOP KEEPER
Price/item Price/Item
PRODUCER
Items ordered
Items ordered
Total price Total price
64

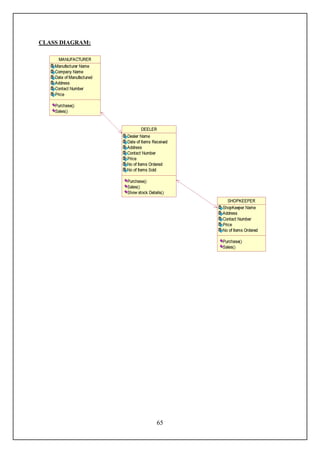

65. CLASS DIAGRAM:
65

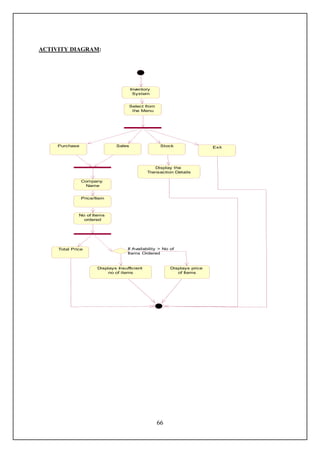

66. ACTIVITY DIAGRAM:
Inventory
System
Select from
the Menu
Purchase Sales Stock Exit
Display the
Transaction Details
Company
Name
Price/Item
No of Items
ordered
Total Price If Availability > No of
Items Ordered
Displays Insufficient Displays price
no of items of Items
66

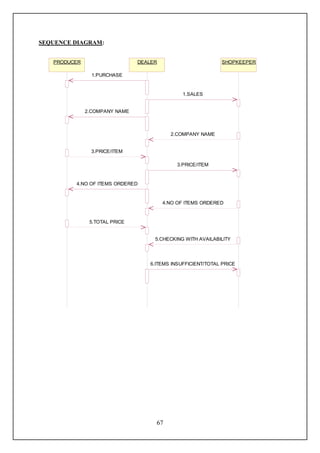

67. SEQUENCE DIAGRAM:
PRODUCER DEALER SHOPKEEPER
1.PURCHASE
1.SALES
2.COMPANY NAME
2.COMPANY NAME
3.PRICE/ITEM
3.PRICE/ITEM
4.NO OF ITEMS ORDERED
4.NO OF ITEMS ORDERED
5.TOTAL PRICE
5.CHECKING WITH AVAILABILITY
6.ITEMS INSUFFICIENT/TOTAL PRICE
67

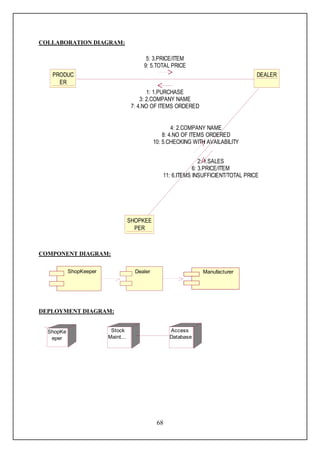

68. COLLABORATION DIAGRAM:
5: 3.PRICE/ITEM
9: 5.TOTAL PRICE
PRODUC DEALER
ER
1: 1.PURCHASE
3: 2.COMPANY NAME
7: 4.NO OF ITEMS ORDERED
4: 2.COMPANY NAME
8: 4.NO OF ITEMS ORDERED
10: 5.CHECKING WITH AVAILABILITY
2: 1.SALES
6: 3.PRICE/ITEM
11: 6.ITEMS INSUFFICIENT/TOTAL PRICE
SHOPKEE
PER
COMPONENT DIAGRAM:
ShopKeeper Dealer Manufacturer
DEPLOYMENT DIAGRAM:
ShopKe Stock Access
eper Maint... Database
68

69. IMPLEMENTATION:
Form1
Private Sub Command1_Click()
Dim a As Boolean
a = False
If (Text1.Text = "admin" And Text2.Text = "admin") Then
a = True
Form2.Show
Unload Me
End If
If (a = False) Then
MsgBox ("Enter Correct Username and Password")
End If
End Sub
Form2
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form4.Show
Unload Me
End Sub
69

70. Private Sub Command3_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command4_Click()
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Stock"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Stock"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
.Fields(2) = Text3.Text
.Fields(3) = Val(Text4.Text)
.Update
End With
MsgBox ("New Record Added")
Text1.Text = ""
Text2.Text = ""
70

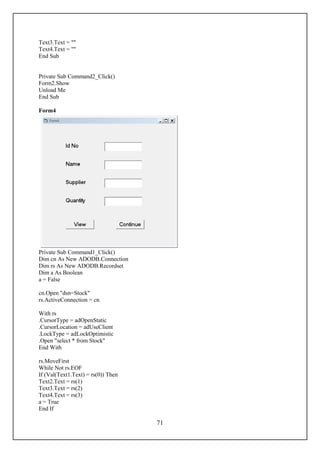

71. Text3.Text = ""
Text4.Text = ""
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=Stock"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Stock"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(2)
Text4.Text = rs(3)
a = True
End If
71

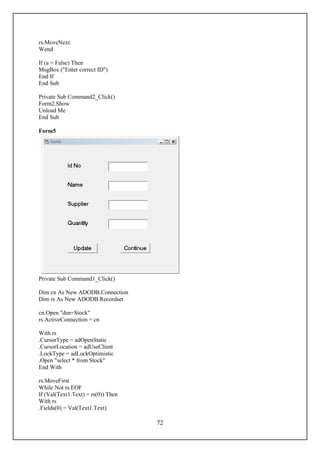

72. rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct ID")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Stock"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Stock"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
With rs
.Fields(0) = Val(Text1.Text)
72

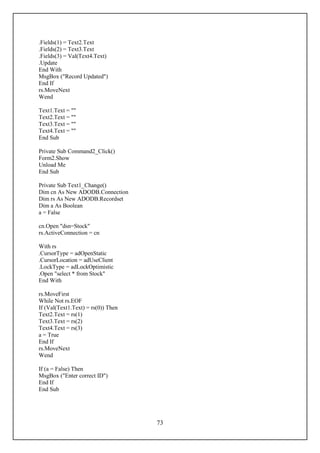

73. .Fields(1) = Text2.Text
.Fields(2) = Text3.Text
.Fields(3) = Val(Text4.Text)
.Update
End With
MsgBox ("Record Updated")
End If
rs.MoveNext
Wend
Text1.Text = ""
Text2.Text = ""
Text3.Text = ""
Text4.Text = ""
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Private Sub Text1_Change()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=Stock"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Stock"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(2)
Text4.Text = rs(3)
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct ID")
End If
End Sub
73

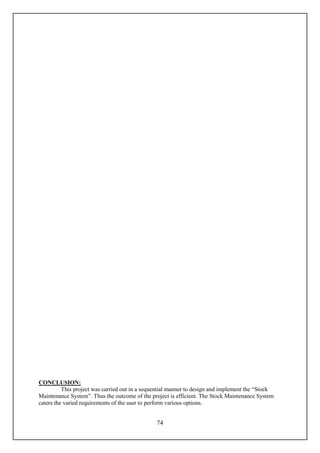

74. CONCLUSION:
This project was carried out in a sequential manner to design and implement the “Stock
Maintenance System”. Thus the outcome of the project is efficient. The Stock Maintenance System
caters the varied requirements of the user to perform various options.
74

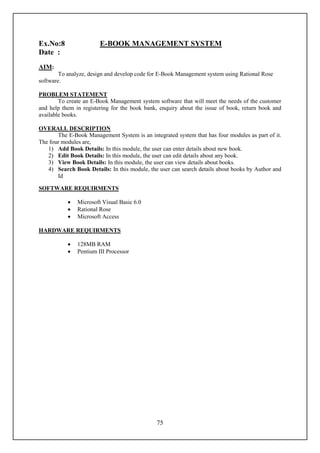

75. Ex.No:8 E-BOOK MANAGEMENT SYSTEM
Date :
AIM:
To analyze, design and develop code for E-Book Management system using Rational Rose
software.
PROBLEM STATEMENT
To create an E-Book Management system software that will meet the needs of the customer
and help them in registering for the book bank, enquiry about the issue of book, return book and
available books.
OVERALL DESCRIPTION
The E-Book Management System is an integrated system that has four modules as part of it.
The four modules are,
1) Add Book Details: In this module, the user can enter details about new book.
2) Edit Book Details: In this module, the user can edit details about any book.
3) View Book Details: In this module, the user can view details about books.
4) Search Book Details: In this module, the user can search details about books by Author and
Id
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
75

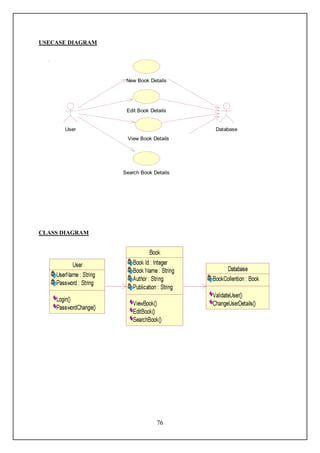

76. USECASE DIAGRAM
New Book Details
Edit Book Details
User Database
View Book Details
Search Book Details
CLASS DIAGRAM
76

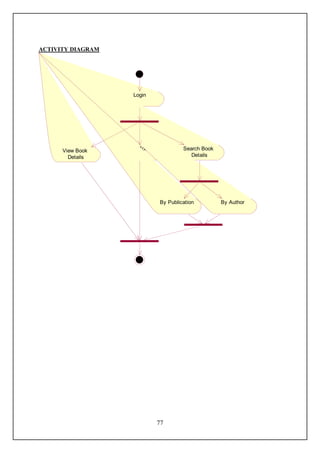

77. ACTIVITY DIAGRAM
Login
View Book Edit Book Search Book
Details Details Details
By Publication By Author
77

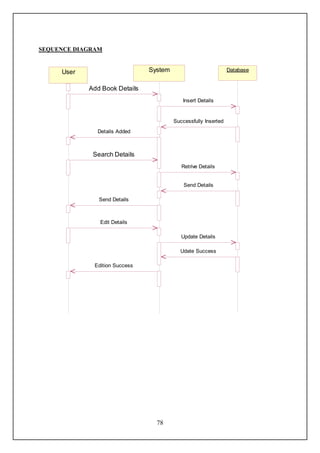

78. SEQUENCE DIAGRAM
User System Database
Add Book Details
Insert Details
Successfully Inserted
Details Added
Search Details
Retrive Details
Send Details
Send Details
Edit Details
Update Details
Udate Success
Edition Success
78

79. COLLABORATION DIAGRAM
1: Add Book Details
5: Search Details
9: Edit Details
User System
4: Details Added
8: Send Details
12: Edition Success
3: Successfully Inserted
7: Send Details
11: Udate Success
2: Insert Details
6: Retrive Details
10: Update Details
Database
COMPONENT DIAGRAM
User Book Database
DEPLOYMENT DIAGRAM
User E-Book Access
Manageme... Database
79

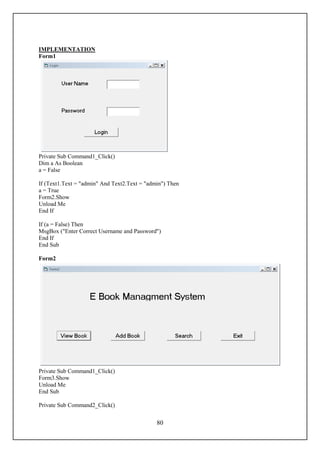

80. IMPLEMENTATION
Form1
Private Sub Command1_Click()
Dim a As Boolean
a = False
If (Text1.Text = "admin" And Text2.Text = "admin") Then
a = True
Form2.Show
Unload Me
End If
If (a = False) Then
MsgBox ("Enter Correct Username and Password")
End If
End Sub
Form2
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
Private Sub Command2_Click()
80

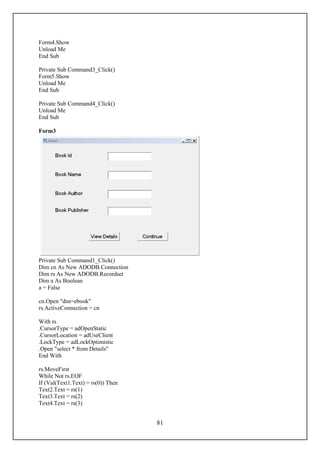

81. Form4.Show
Unload Me
End Sub
Private Sub Command3_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command4_Click()
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=ebook"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(2)
Text4.Text = rs(3)
81

82. a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct ID")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=EBook"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
82

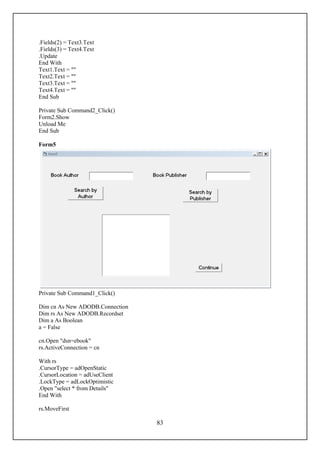

83. .Fields(2) = Text3.Text
.Fields(3) = Text4.Text
.Update
End With
Text1.Text = ""
Text2.Text = ""
Text3.Text = ""
Text4.Text = ""
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=ebook"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
83

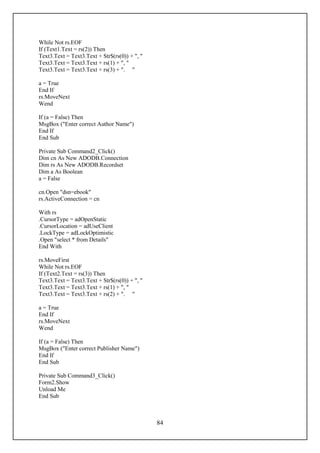

84. While Not rs.EOF
If (Text1.Text = rs(2)) Then
Text3.Text = Text3.Text + Str$(rs(0)) + ", "
Text3.Text = Text3.Text + rs(1) + ", "
Text3.Text = Text3.Text + rs(3) + ". "
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Author Name")
End If
End Sub
Private Sub Command2_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=ebook"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
If (Text2.Text = rs(3)) Then
Text3.Text = Text3.Text + Str$(rs(0)) + ", "
Text3.Text = Text3.Text + rs(1) + ", "
Text3.Text = Text3.Text + rs(2) + ". "
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Publisher Name")
End If
End Sub
Private Sub Command3_Click()
Form2.Show
Unload Me
End Sub
84

85. CONCLUSION:
This project was carried out in a sequential manner to design and implement the “E-Book
System”. Thus the outcome of the project is efficient. The E-Book System caters the varied
requirements of the user to perform various options.
85

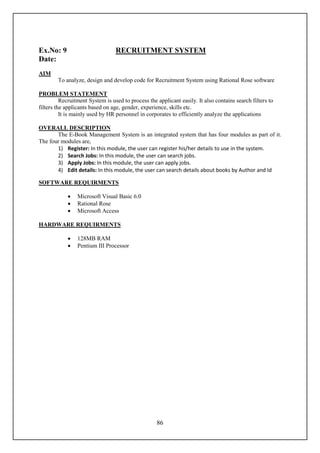

86. Ex.No: 9 RECRUITMENT SYSTEM
Date:
AIM
To analyze, design and develop code for Recruitment System using Rational Rose software
PROBLEM STATEMENT
Recruitment System is used to process the applicant easily. It also contains search filters to
filters the applicants based on age, gender, experience, skills etc.
It is mainly used by HR personnel in corporates to efficiently analyze the applications
OVERALL DESCRIPTION
The E-Book Management System is an integrated system that has four modules as part of it.
The four modules are,
1) Register: In this module, the user can register his/her details to use in the system.
2) Search Jobs: In this module, the user can search jobs.
3) Apply Jobs: In this module, the user can apply jobs.
4) Edit details: In this module, the user can search details about books by Author and Id
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
86

87. USECASE DIAGRAM:
Login
Register
Employee Database
Search Jobs
Apply Jobs
CLASS DIAGRAM:
87

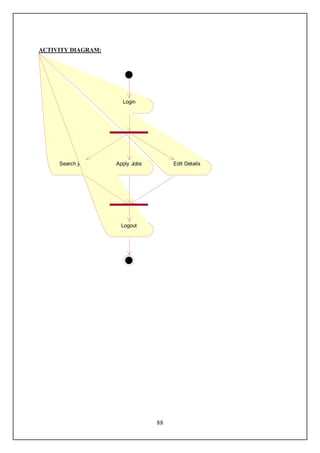

88. ACTIVITY DIAGRAM:
Login
Search jobs Apply Jobs Edit Details
Logout
88

89. SEQUENCE DIAGRAM
User Recruitment Database
Syste
Login
Validate details
Valid user
Login sucess
Search Jobs
Retrive Details
Send Details
Show Details
Apply Jobs
Make Entry
Entry Successful
Job Applied
Edit Details
Update Details
Updation Success
Details Edited
89

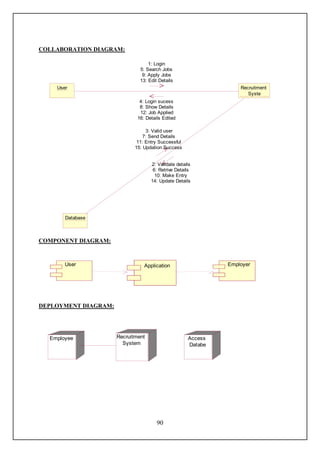

90. COLLABORATION DIAGRAM:
1: Login
5: Search Jobs
9: Apply Jobs
13: Edit Details
User Recruitment
Syste
4: Login sucess
8: Show Details
12: Job Applied
16: Details Edited
3: Valid user
7: Send Details
11: Entry Successful
15: Updation Success
2: Validate details
6: Retrive Details
10: Make Entry
14: Update Details
Database
COMPONENT DIAGRAM:
User Application Employer
DEPLOYMENT DIAGRAM:
Employee Recruitment Access
System Databe
90

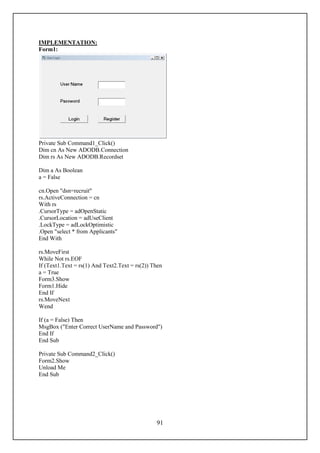

91. IMPLEMENTATION:
Form1:
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=recruit"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Applicants"
End With
rs.MoveFirst
While Not rs.EOF
If (Text1.Text = rs(1) And Text2.Text = rs(2)) Then
a = True
Form3.Show
Form1.Hide
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter Correct UserName and Password")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
91

92. Form2
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=Recruit"
rs.ActiveConnection = cn
If (Text3.Text = Text4.Text) Then
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Applicants"
End With
With rs
.AddNew
.Fields(0) = Val(Text1.Text)
.Fields(1) = Text2.Text
.Fields(2) = Text3.Text
If (Option1 = True) Then
.Fields(3) = Option1.Caption
End If
If (Option2 = True) Then
.Fields(3) = Option2.Caption
92

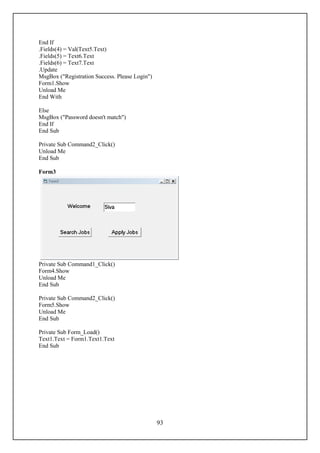

93. End If
.Fields(4) = Val(Text5.Text)
.Fields(5) = Text6.Text
.Fields(6) = Text7.Text
.Update
MsgBox ("Registration Success. Please Login")
Form1.Show
Unload Me
End With
Else
MsgBox ("Password doesn't match")
End If
End Sub
Private Sub Command2_Click()
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Form4.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form5.Show
Unload Me
End Sub
Private Sub Form_Load()
Text1.Text = Form1.Text1.Text
End Sub
93

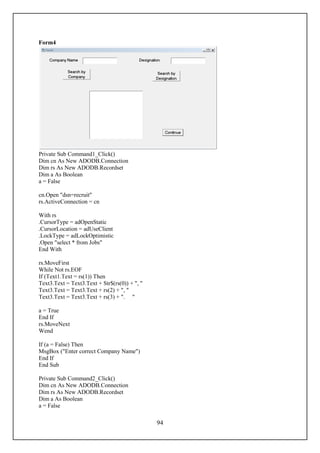

94. Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=recruit"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Jobs"
End With
rs.MoveFirst
While Not rs.EOF
If (Text1.Text = rs(1)) Then
Text3.Text = Text3.Text + Str$(rs(0)) + ", "
Text3.Text = Text3.Text + rs(2) + ", "
Text3.Text = Text3.Text + rs(3) + ". "
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Company Name")
End If
End Sub
Private Sub Command2_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
94

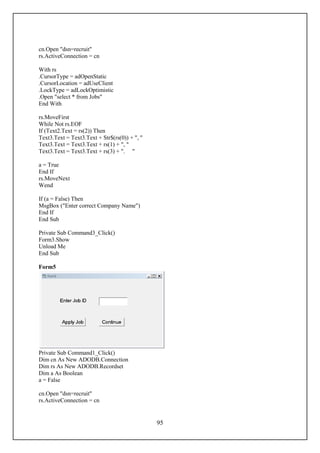

95. cn.Open "dsn=recruit"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Jobs"
End With
rs.MoveFirst
While Not rs.EOF
If (Text2.Text = rs(2)) Then
Text3.Text = Text3.Text + Str$(rs(0)) + ", "
Text3.Text = Text3.Text + rs(1) + ", "
Text3.Text = Text3.Text + rs(3) + ". "
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Company Name")
End If
End Sub
Private Sub Command3_Click()
Form3.Show
Unload Me
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=recruit"
rs.ActiveConnection = cn
95

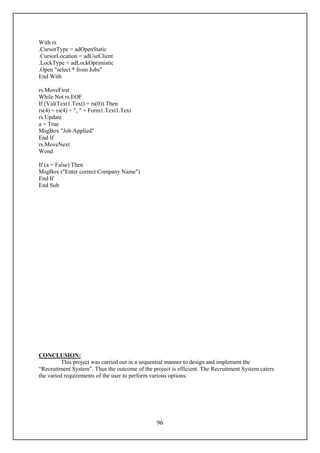

96. With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Jobs"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
rs(4) = rs(4) + ", " + Form1.Text1.Text
rs.Update
a = True
MsgBox "Job Applied"
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct Company Name")
End If
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the
“Recruitment System”. Thus the outcome of the project is efficient. The Recruitment System caters
the varied requirements of the user to perform various options.
96

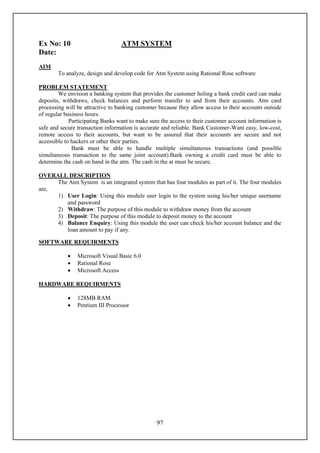

97. Ex No: 10 ATM SYSTEM
Date:
AIM
To analyze, design and develop code for Atm System using Rational Rose software
PROBLEM STATEMENT
We envision a banking system that provides the customer holing a bank credit card can make
deposits, withdraws, check balances and perform transfer to and from their accounts. Atm card
processing will be attractive to banking customer because they allow access to their accounts outside
of regular business hours.
Participating Banks want to make sure the access to their customer account information is
safe and secure transaction information is accurate and reliable. Bank Customer-Want easy, low-cost,
remote access to their accounts, but want to be assured that their accounts are secure and not
accessible to hackers or other their parties.
Bank must be able to handle multiple simultaneous transactions (and possible
simultaneous transaction to the same joint account).Bank owning a credit card must be able to
determine the cash on hand in the atm. The cash in the at must be secure.
OVERALL DESCRIPTION
The Atm System is an integrated system that has four modules as part of it. The four modules
are,
1) User Login: Using this module user login to the system using his/her unique username
and password
2) Withdraw: The purpose of this module to withdraw money from the account
3) Deposit: The purpose of this module to deposit money to the account
4) Balance Enquiry: Using this module the user can check his/her account balance and the
loan amount to pay if any.
SOFTWARE REQUIRMENTS
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access
HARDWARE REQUIRMENTS
 128MB RAM
 Pentium III Processor
97

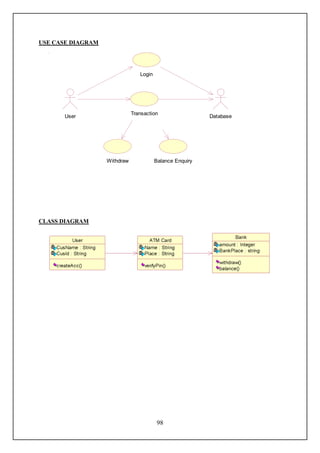

98. USE CASE DIAGRAM
Login
Transaction
User Database
Withdraw Balance Enquiry
CLASS DIAGRAM
98

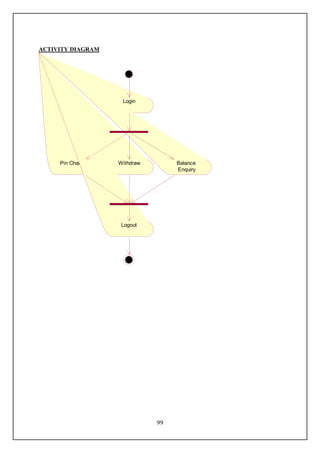

99. ACTIVITY DIAGRAM
Login
Pin Change Withdraw Balance
Enquiry
Logout
99

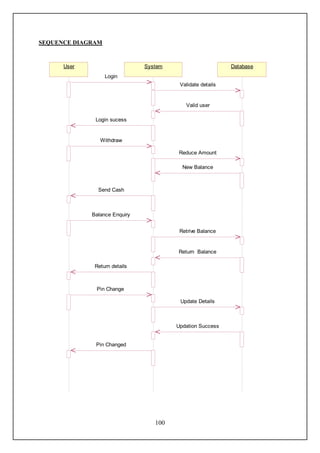

100. SEQUENCE DIAGRAM
User System Database
Login
Validate details
Valid user
Login sucess
Withdraw
Reduce Amount
New Balance
Send Cash
Balance Enquiry
Retrive Balance
Return Balance
Return details
Pin Change
Update Details
Updation Success
Pin Changed
100

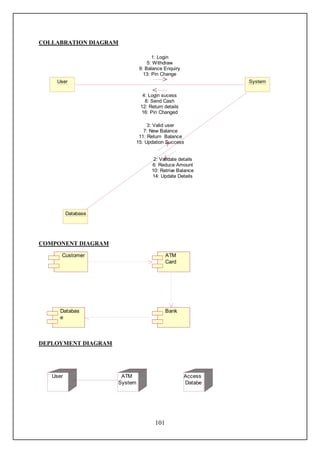

101. COLLABRATION DIAGRAM
1: Login
5: Withdraw
9: Balance Enquiry
13: Pin Change
User System
4: Login sucess
8: Send Cash
12: Return details
16: Pin Changed
3: Valid user
7: New Balance
11: Return Balance
15: Updation Success
2: Validate details
6: Reduce Amount
10: Retrive Balance
14: Update Details
Database
COMPONENT DIAGRAM
Customer ATM
Card
Databas Bank
e
DEPLOYMENT DIAGRAM
User ATM Access
System Databe
101

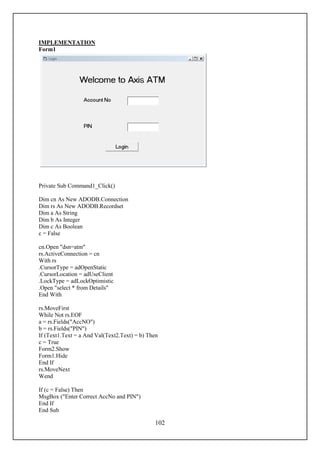

102. IMPLEMENTATION
Form1
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As String
Dim b As Integer
Dim c As Boolean
c = False
cn.Open "dsn=atm"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
a = rs.Fields("AccNO")
b = rs.Fields("PIN")
If (Text1.Text = a And Val(Text2.Text) = b) Then
c = True
Form2.Show
Form1.Hide
End If
rs.MoveNext
Wend
If (c = False) Then
MsgBox ("Enter Correct AccNo and PIN")
End If
End Sub
102

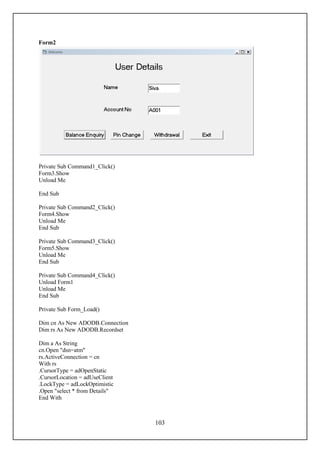

103. Form2
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
Private Sub Command2_Click()
Form4.Show
Unload Me
End Sub
Private Sub Command3_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command4_Click()
Unload Form1
Unload Me
End Sub
Private Sub Form_Load()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As String
cn.Open "dsn=atm"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
103

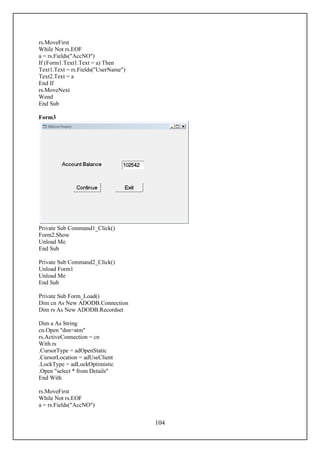

104. rs.MoveFirst
While Not rs.EOF
a = rs.Fields("AccNO")
If (Form1.Text1.Text = a) Then
Text1.Text = rs.Fields("UserName")
Text2.Text = a
End If
rs.MoveNext
Wend
End Sub
Form3
Private Sub Command1_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command2_Click()
Unload Form1
Unload Me
End Sub
Private Sub Form_Load()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As String
cn.Open "dsn=atm"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
a = rs.Fields("AccNO")
104

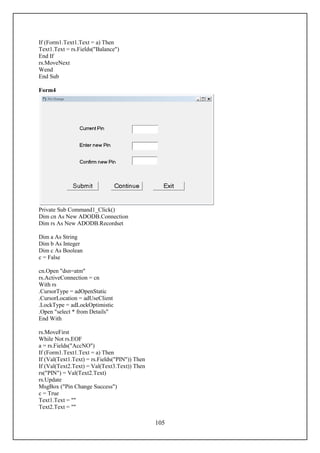

105. If (Form1.Text1.Text = a) Then
Text1.Text = rs.Fields("Balance")
End If
rs.MoveNext
Wend
End Sub
Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As String
Dim b As Integer
Dim c As Boolean
c = False
cn.Open "dsn=atm"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
a = rs.Fields("AccNO")
If (Form1.Text1.Text = a) Then
If (Val(Text1.Text) = rs.Fields("PIN")) Then
If (Val(Text2.Text) = Val(Text3.Text)) Then
rs("PIN") = Val(Text2.Text)
rs.Update
MsgBox ("Pin Change Success")
c = True
Text1.Text = ""
Text2.Text = ""
105

106. Text3.Text = ""
End If
End If
End If
rs.MoveNext
Wend
If (c = False) Then
MsgBox ("Pin Change not Success")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command3_Click()
Unload Form1
Unload Me
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As String
Dim b As Long
Dim c As Boolean
c = False
cn.Open "dsn=atm"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
106

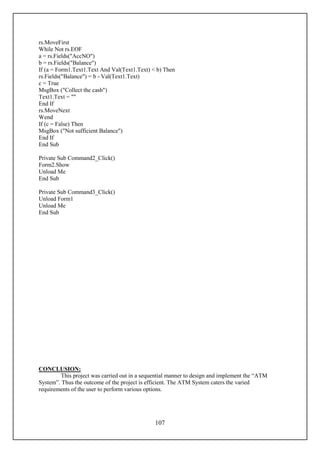

107. rs.MoveFirst
While Not rs.EOF
a = rs.Fields("AccNO")
b = rs.Fields("Balance")
If (a = Form1.Text1.Text And Val(Text1.Text) < b) Then
rs.Fields("Balance") = b - Val(Text1.Text)
c = True
MsgBox ("Collect the cash")
Text1.Text = ""
End If
rs.MoveNext
Wend
If (c = False) Then
MsgBox ("Not sufficient Balance")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command3_Click()
Unload Form1
Unload Me
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the “ATM
System”. Thus the outcome of the project is efficient. The ATM System caters the varied
requirements of the user to perform various options.
107

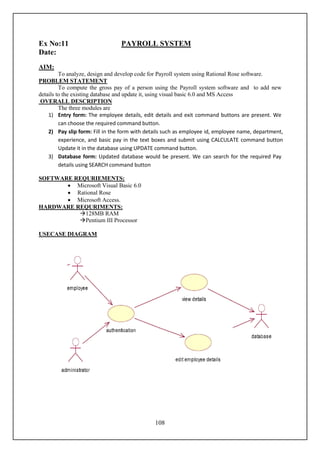

108. Ex No:11 PAYROLL SYSTEM
Date:
AIM:
To analyze, design and develop code for Payroll system using Rational Rose software.
PROBLEM STATEMENT
To compute the gross pay of a person using the Payroll system software and to add new
details to the existing database and update it, using visual basic 6.0 and MS Access
OVERALL DESCRIPTION
The three modules are
1) Entry form: The employee details, edit details and exit command buttons are present. We
can choose the required command button.
2) Pay slip form: Fill in the form with details such as employee id, employee name, department,
experience, and basic pay in the text boxes and submit using CALCULATE command button
Update it in the database using UPDATE command button.
3) Database form: Updated database would be present. We can search for the required Pay
details using SEARCH command button
SOFTWARE REQURIEMENTS:
 Microsoft Visual Basic 6.0
 Rational Rose
 Microsoft Access.
HARDWARE REQURIMENTS:
128MB RAM
Pentium III Processor
USECASE DIAGRAM
108

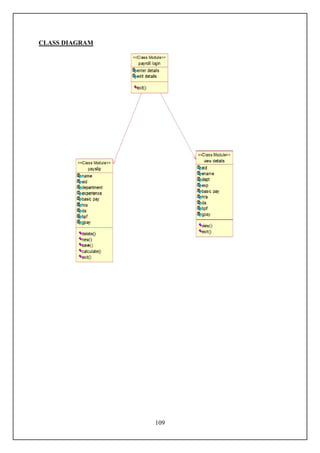

109. CLASS DIAGRAM
109

110. ACTIVITY DIAGRAM
Payroll
Employee Salary
Detail
Emp payroll Official detail Basic PF Other
110

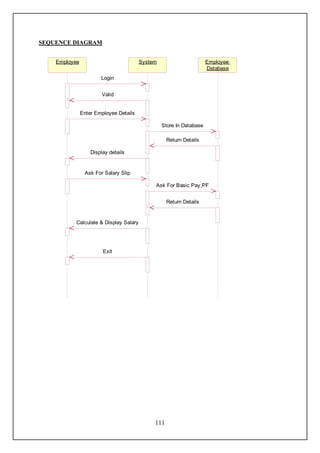

111. SEQUENCE DIAGRAM
Employee System Employee
Database
Login
Valid
Enter Employee Details
Store In Database
Return Details
Display details
Ask For Salary Slip
Ask For Basic Pay,PF
Return Details
Calculate & Display Salary
Exit
111

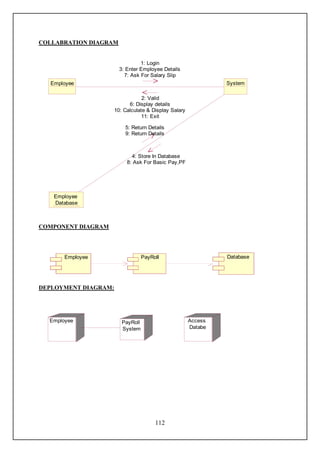

112. COLLABRATION DIAGRAM
1: Login
3: Enter Employee Details
7: Ask For Salary Slip
Employee System
2: Valid
6: Display details
10: Calculate & Display Salary
11: Exit
5: Return Details
9: Return Details
4: Store In Database
8: Ask For Basic Pay,PF
Employee
Database
COMPONENT DIAGRAM
Employee PayRoll Database
DEPLOYMENT DIAGRAM:
Employee PayRoll Access
System Databe
112

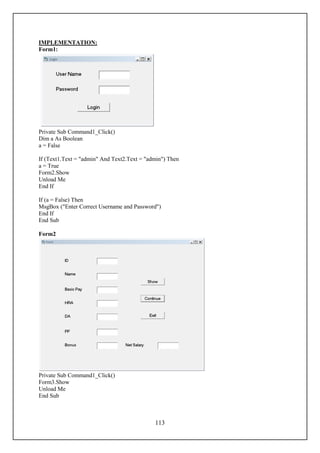

113. IMPLEMENTATION:
Form1:
Private Sub Command1_Click()
Dim a As Boolean
a = False
If (Text1.Text = "admin" And Text2.Text = "admin") Then
a = True
Form2.Show
Unload Me
End If
If (a = False) Then
MsgBox ("Enter Correct Username and Password")
End If
End Sub
Form2
Private Sub Command1_Click()
Form3.Show
Unload Me
End Sub
113

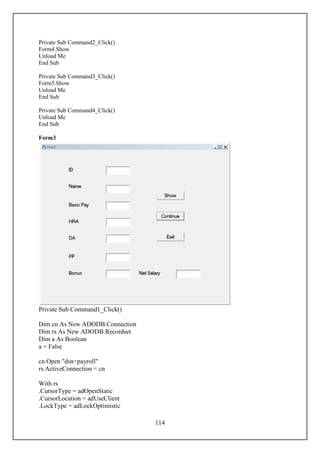

114. Private Sub Command2_Click()
Form4.Show
Unload Me
End Sub
Private Sub Command3_Click()
Form5.Show
Unload Me
End Sub
Private Sub Command4_Click()
Unload Me
End Sub
Form3
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=payroll"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
114

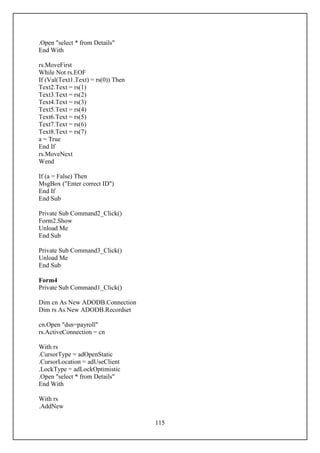

115. .Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
Text2.Text = rs(1)
Text3.Text = rs(2)
Text4.Text = rs(3)
Text5.Text = rs(4)
Text6.Text = rs(5)
Text7.Text = rs(6)
Text8.Text = rs(7)
a = True
End If
rs.MoveNext
Wend
If (a = False) Then
MsgBox ("Enter correct ID")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command3_Click()
Unload Me
End Sub
Form4
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
cn.Open "dsn=payroll"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
With rs
.AddNew
115

116. .Fields(0) = Text1.Text
.Fields(1) = Text2.Text
.Fields(2) = Text3.Text
.Fields(3) = Val(Text4.Text)
.Fields(4) = Val(Text5.Text)
.Fields(5) = Val(Text6.Text)
.Fields(6) = Val(Text7.Text)
.Fields(7) = Val(Text8.Text)
.Update
End With
Text1.Text = ""
Text2.Text = ""
Text3.Text = ""
Text4.Text = ""
Text5.Text = ""
Text6.Text = ""
Text7.Text = ""
Text8.Text = ""
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command3_Click()
Unload Me
End Sub
116

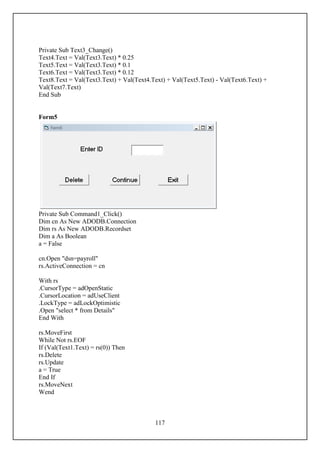

117. Private Sub Text3_Change()
Text4.Text = Val(Text3.Text) * 0.25
Text5.Text = Val(Text3.Text) * 0.1
Text6.Text = Val(Text3.Text) * 0.12
Text8.Text = Val(Text3.Text) + Val(Text4.Text) + Val(Text5.Text) - Val(Text6.Text) +
Val(Text7.Text)
End Sub
Form5
Private Sub Command1_Click()
Dim cn As New ADODB.Connection
Dim rs As New ADODB.Recordset
Dim a As Boolean
a = False
cn.Open "dsn=payroll"
rs.ActiveConnection = cn
With rs
.CursorType = adOpenStatic
.CursorLocation = adUseClient
.LockType = adLockOptimistic
.Open "select * from Details"
End With
rs.MoveFirst
While Not rs.EOF
If (Val(Text1.Text) = rs(0)) Then
rs.Delete
rs.Update
a = True
End If
rs.MoveNext
Wend
117

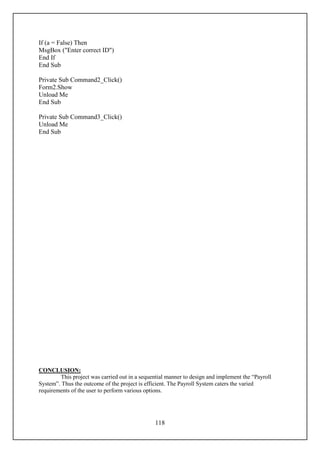

118. If (a = False) Then
MsgBox ("Enter correct ID")
End If
End Sub
Private Sub Command2_Click()
Form2.Show
Unload Me
End Sub
Private Sub Command3_Click()
Unload Me
End Sub
CONCLUSION:
This project was carried out in a sequential manner to design and implement the “Payroll
System”. Thus the outcome of the project is efficient. The Payroll System caters the varied
requirements of the user to perform various options.
118
