8.1.6example2
•
1 like•377 views

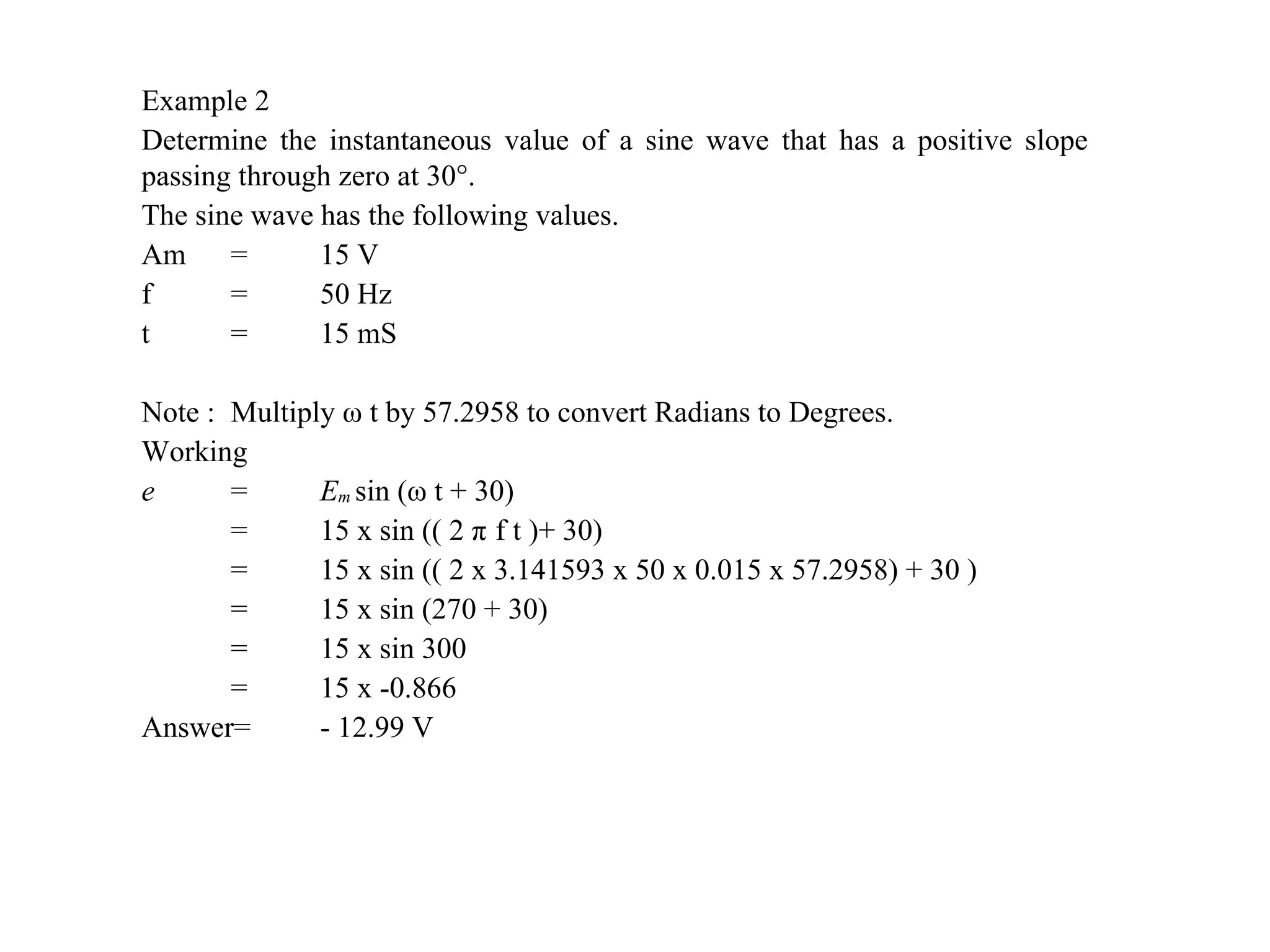

The document provides an example of calculating the instantaneous value of a sine wave passing through zero at 30 degrees. It gives the amplitude as 15V, frequency as 50Hz, and time as 15ms. Through the calculations, it finds the instantaneous value to be -12.99V.
