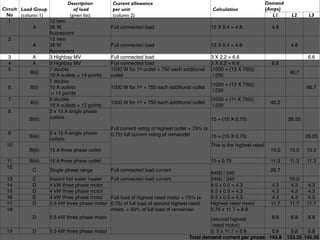

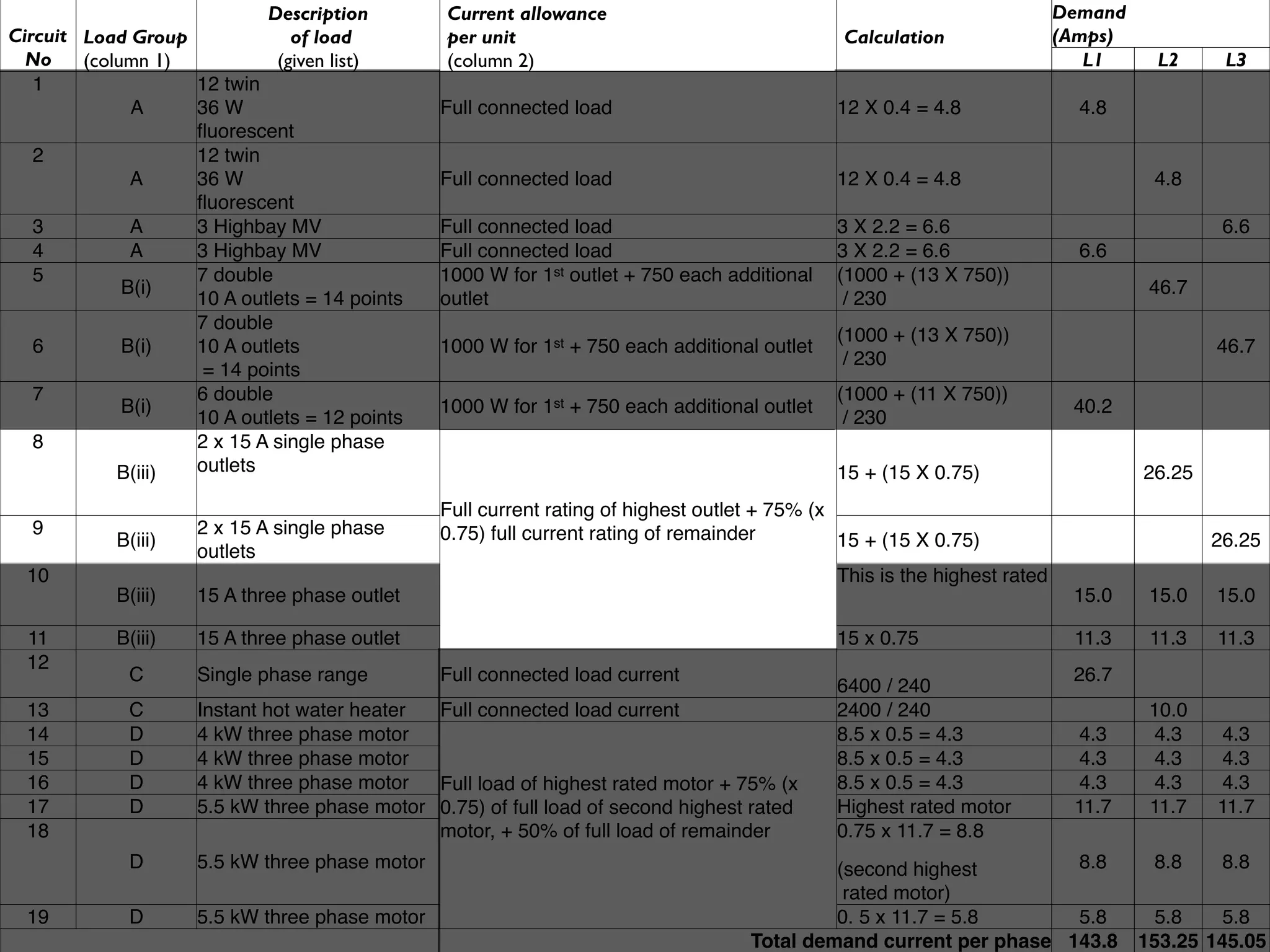

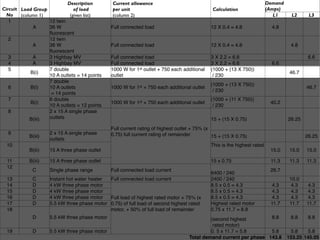

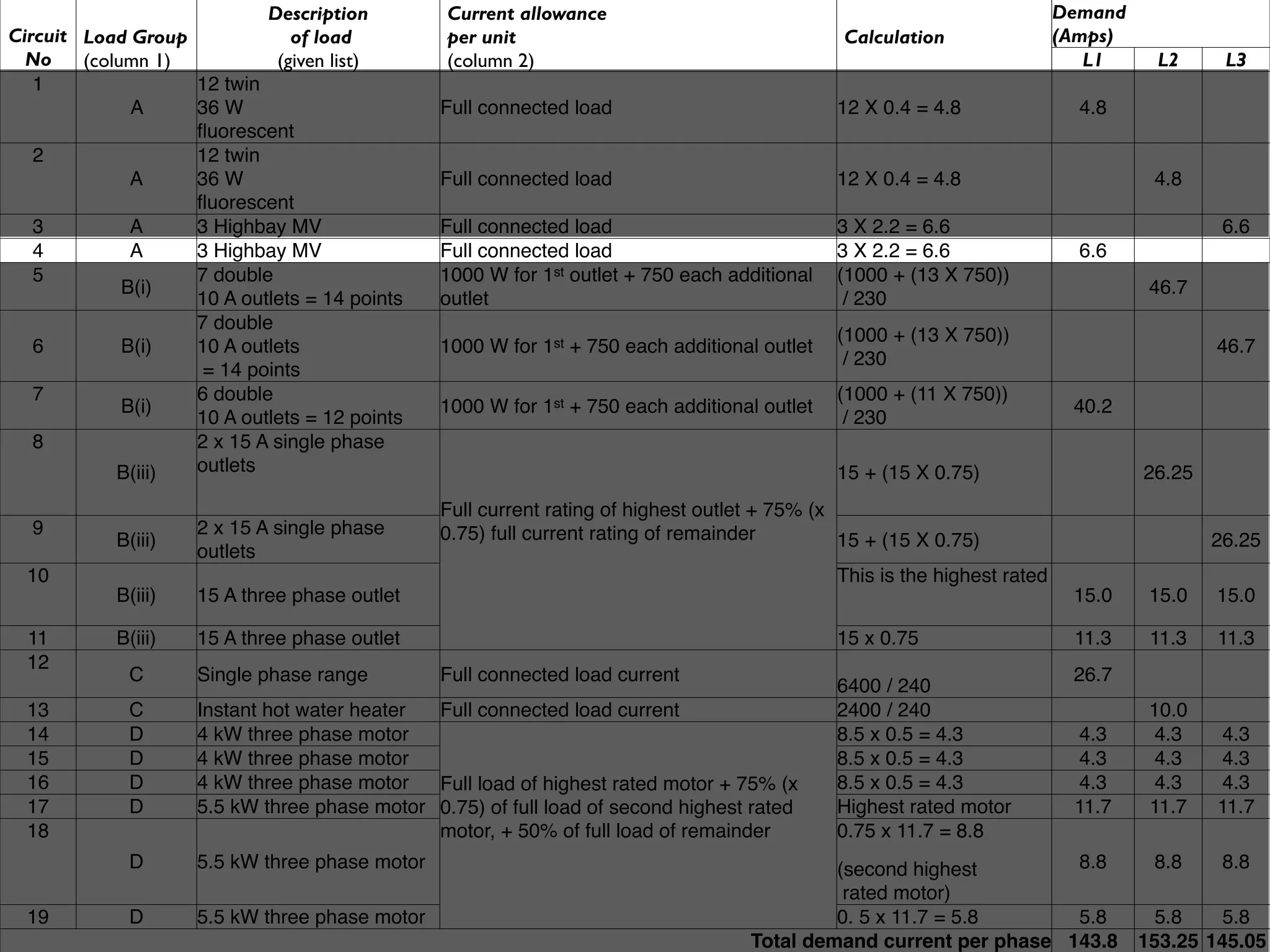

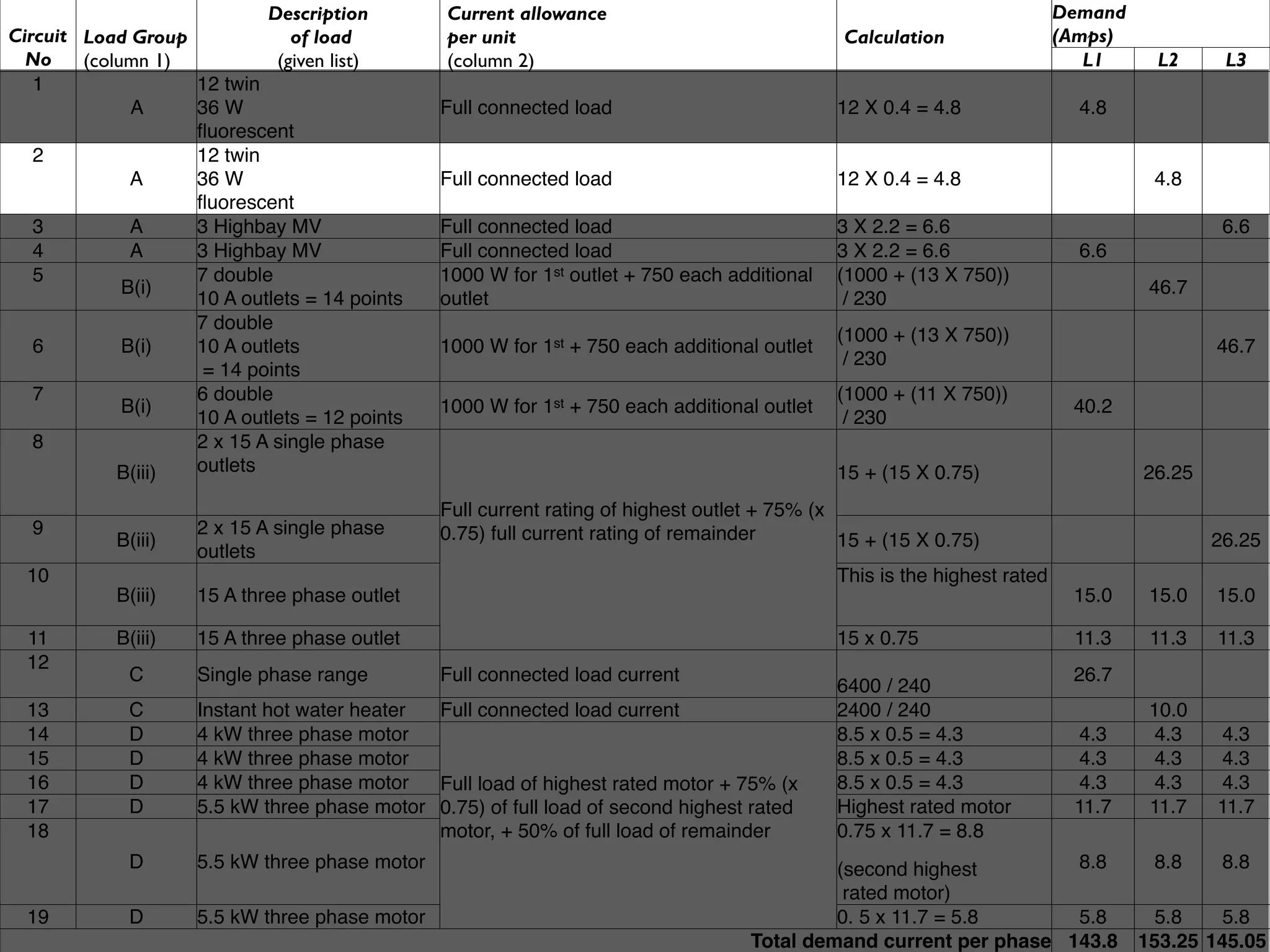

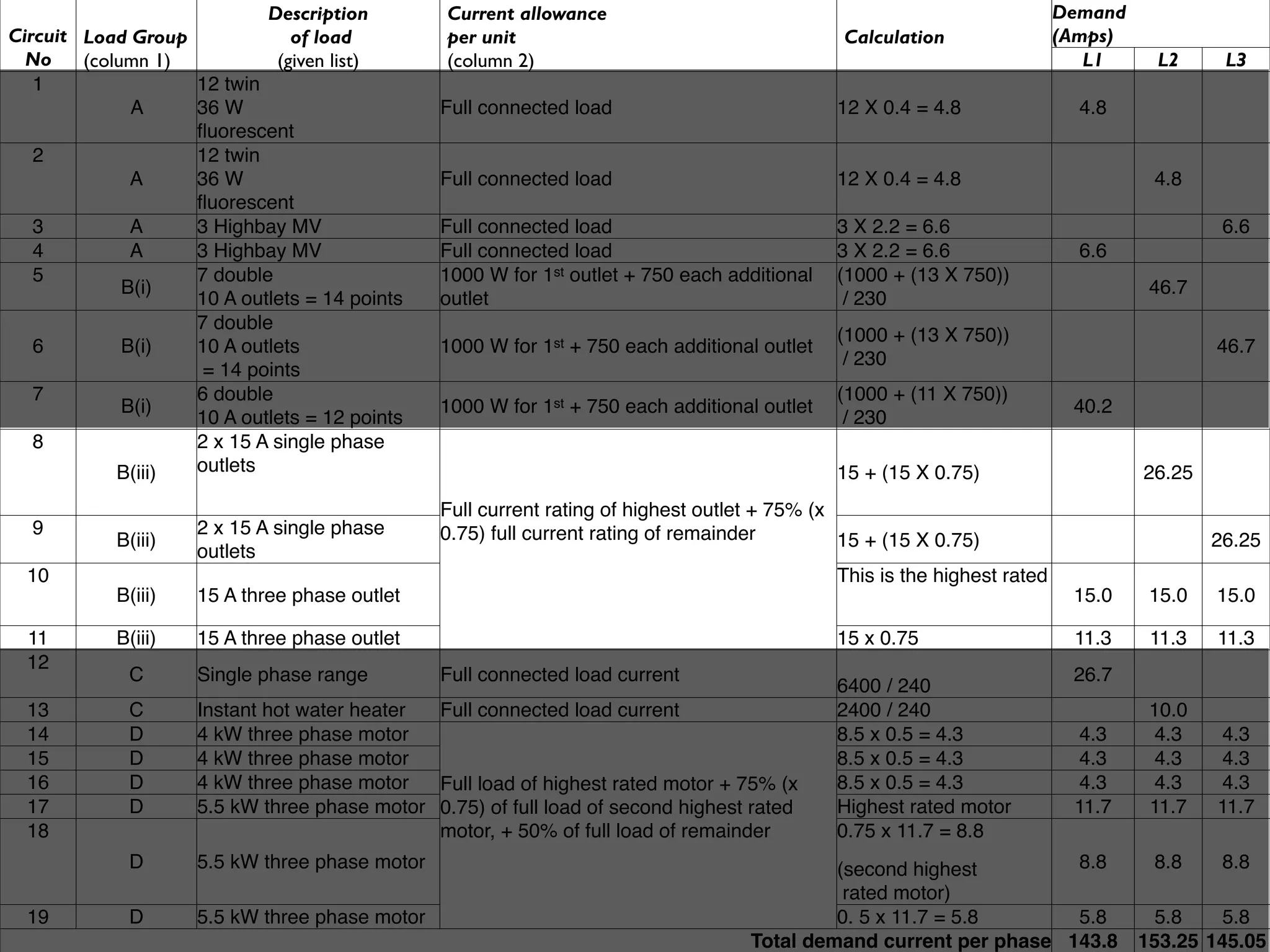

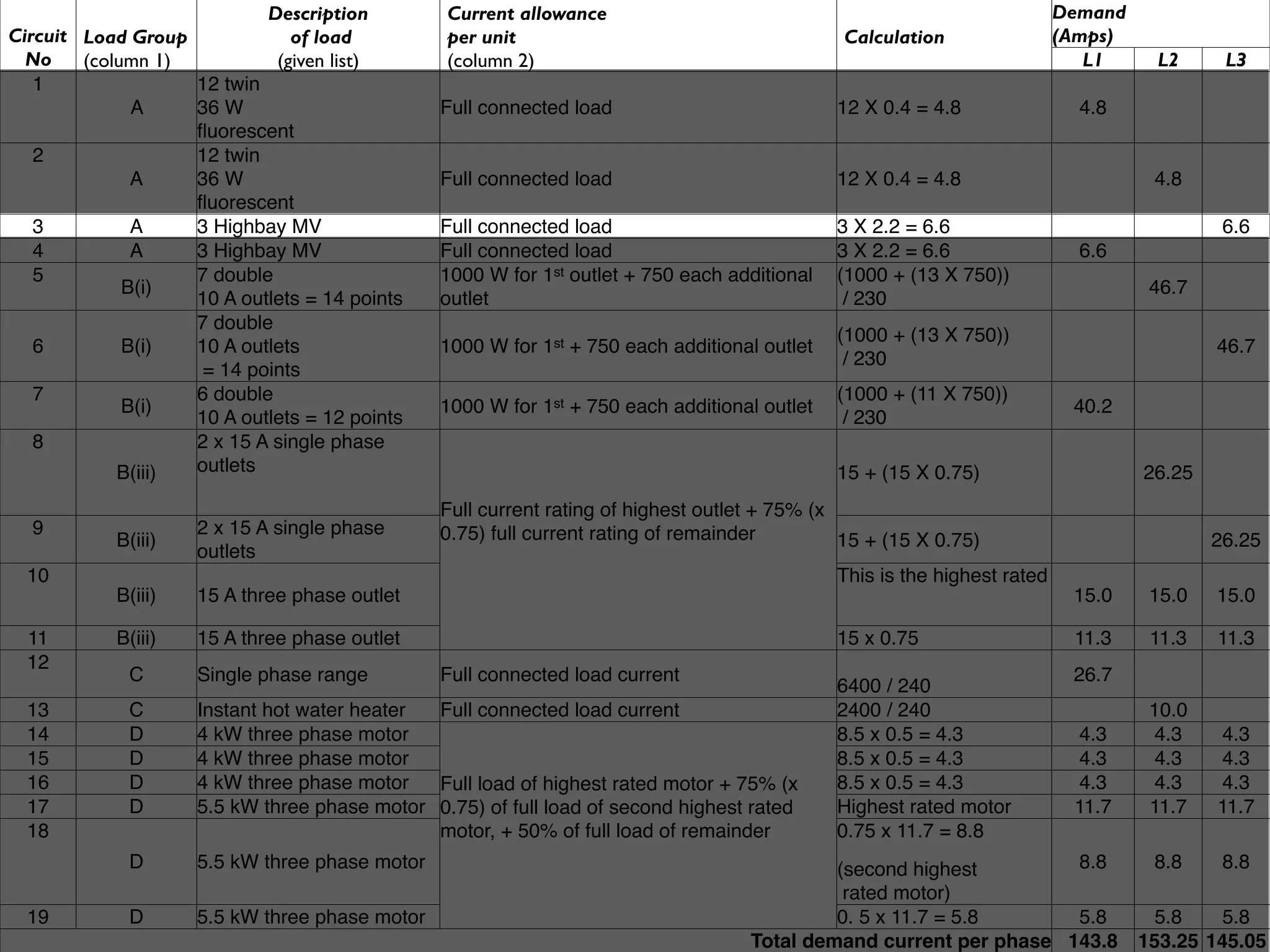

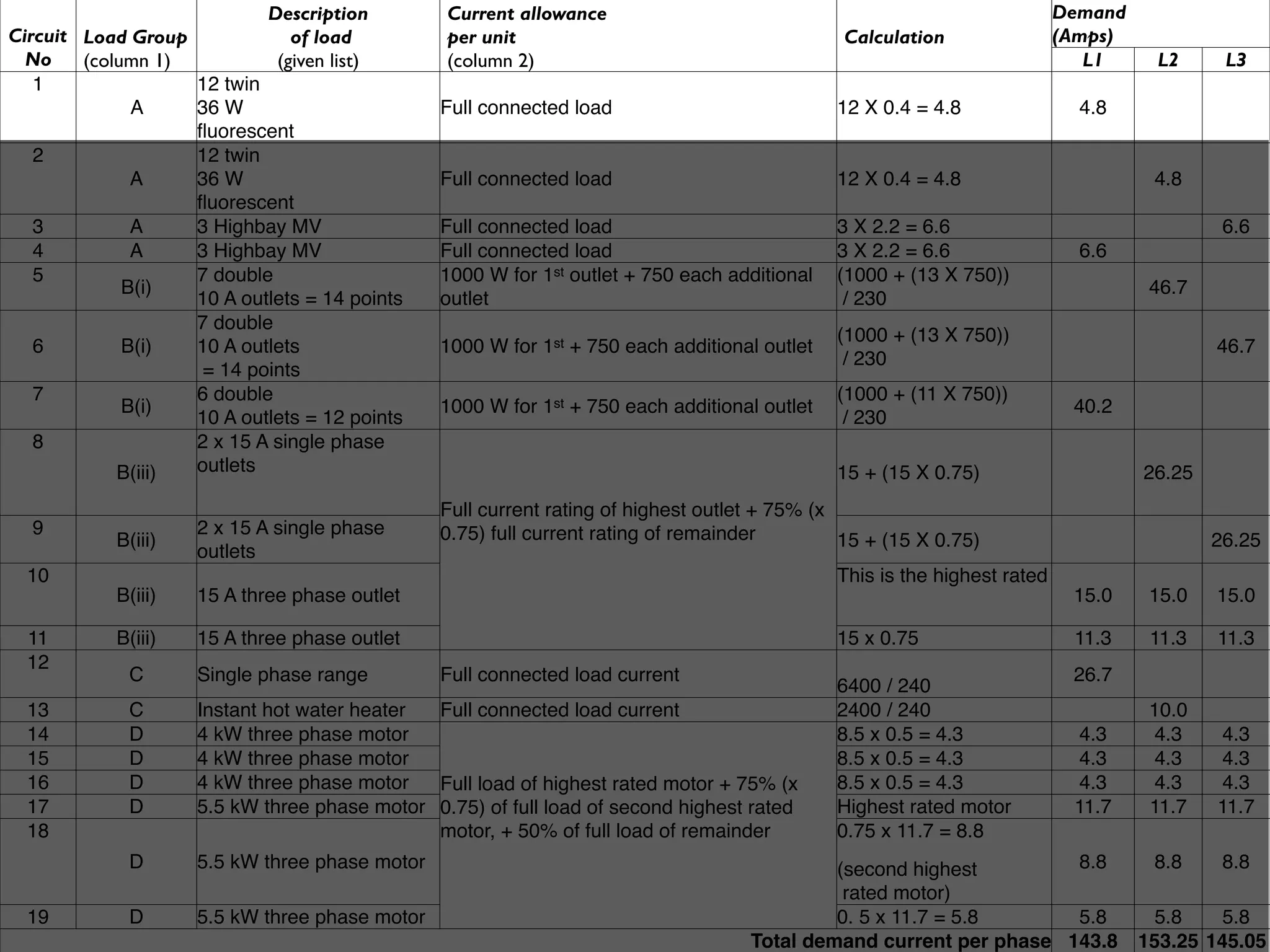

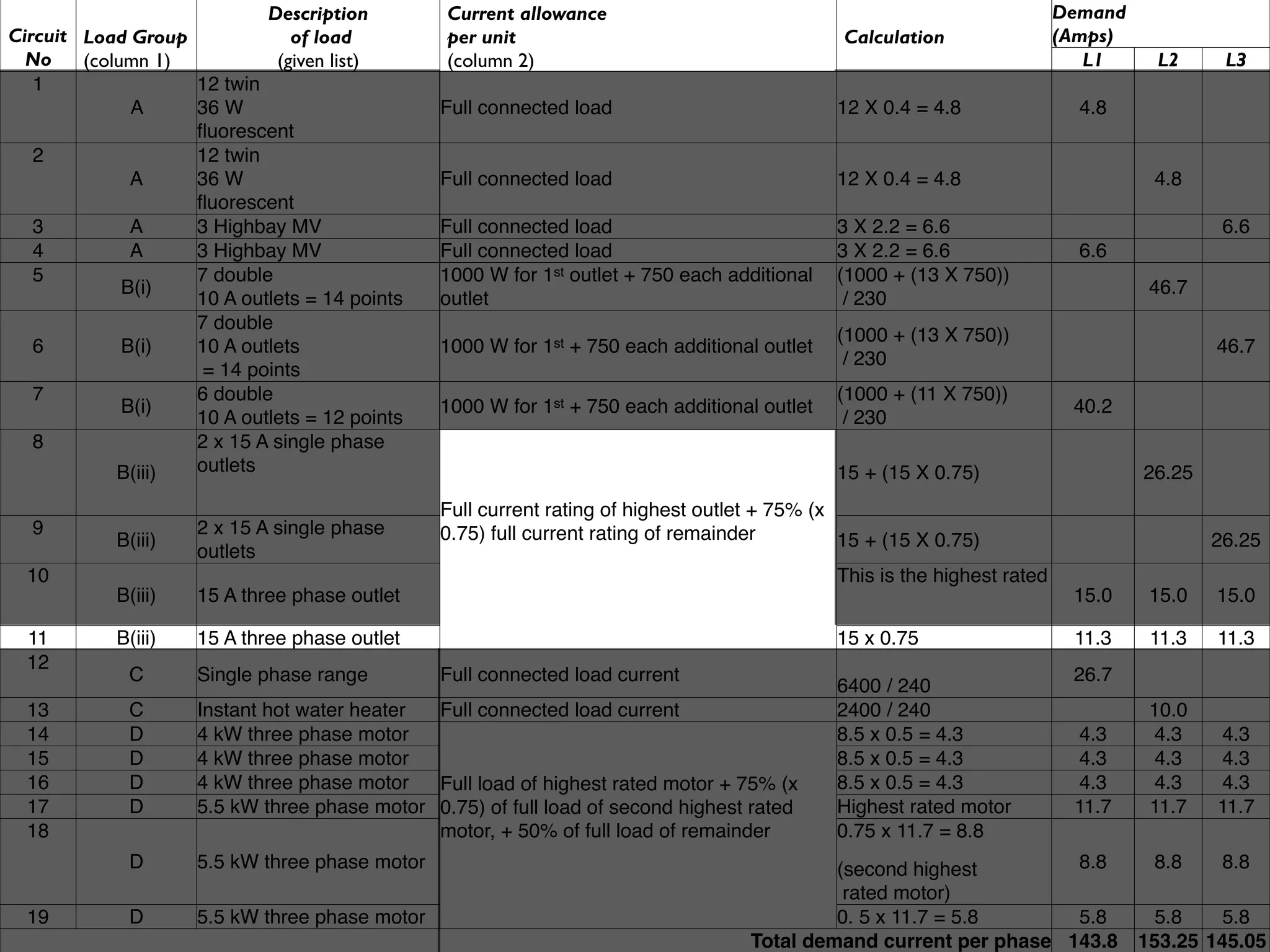

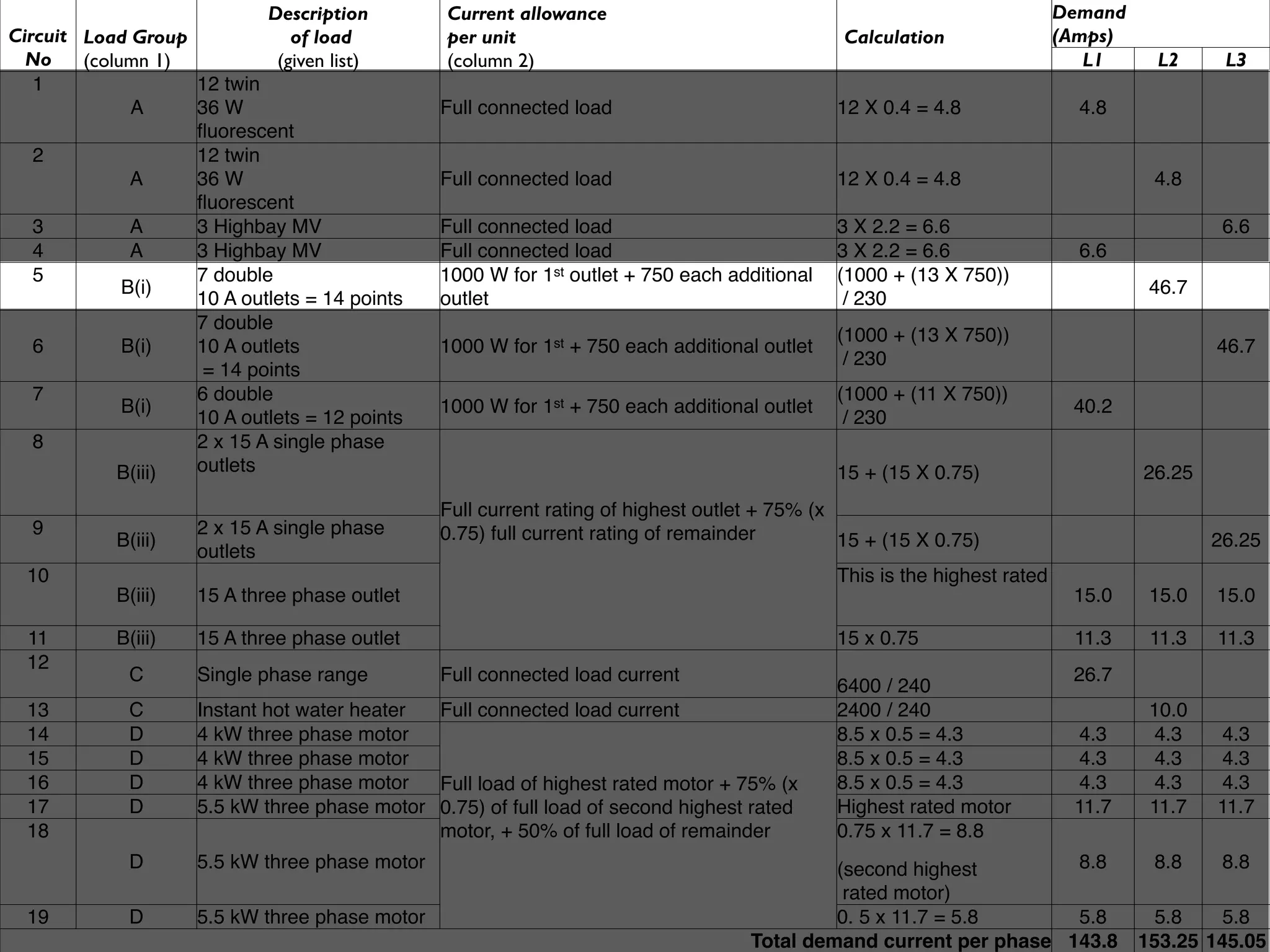

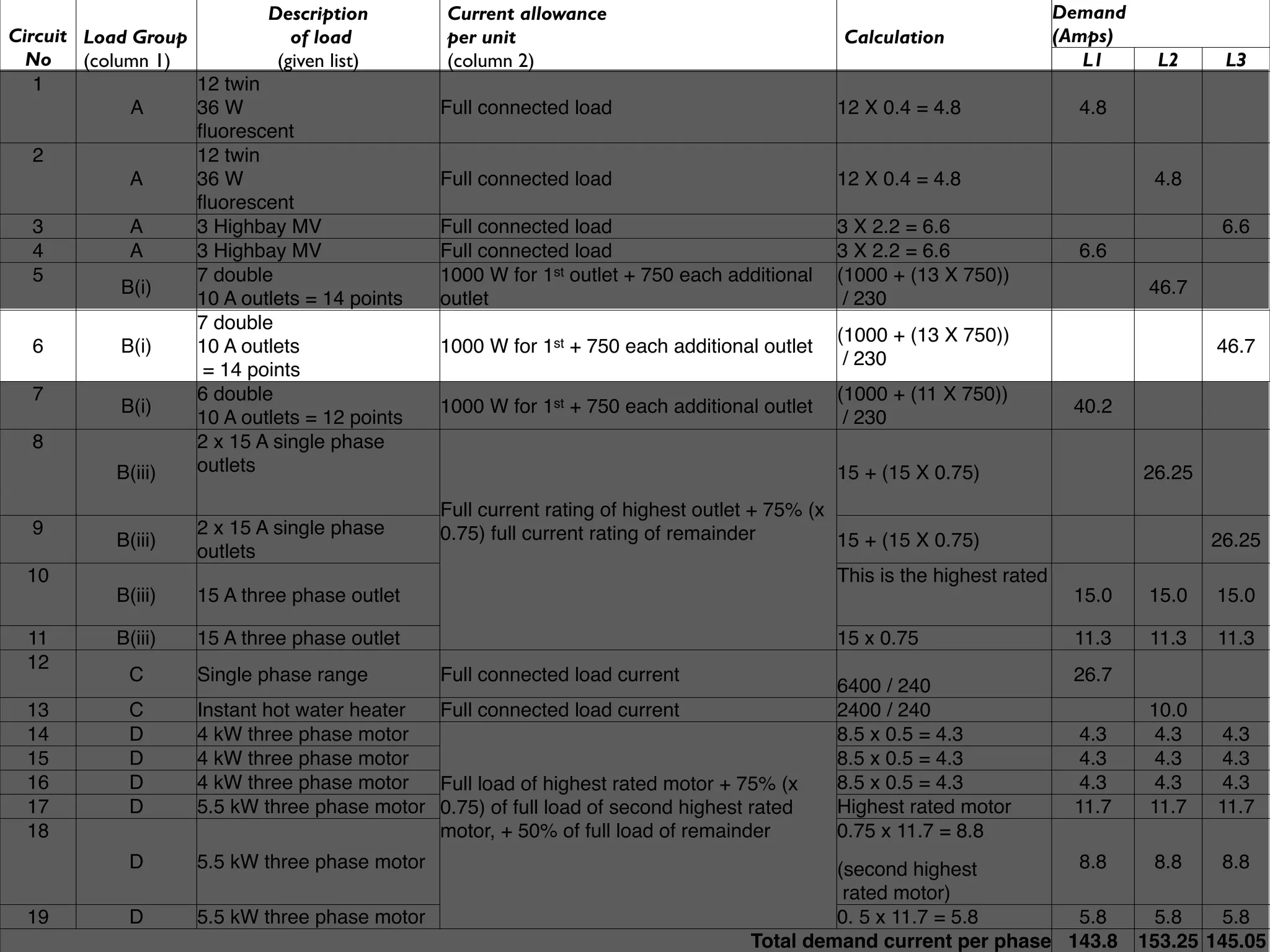

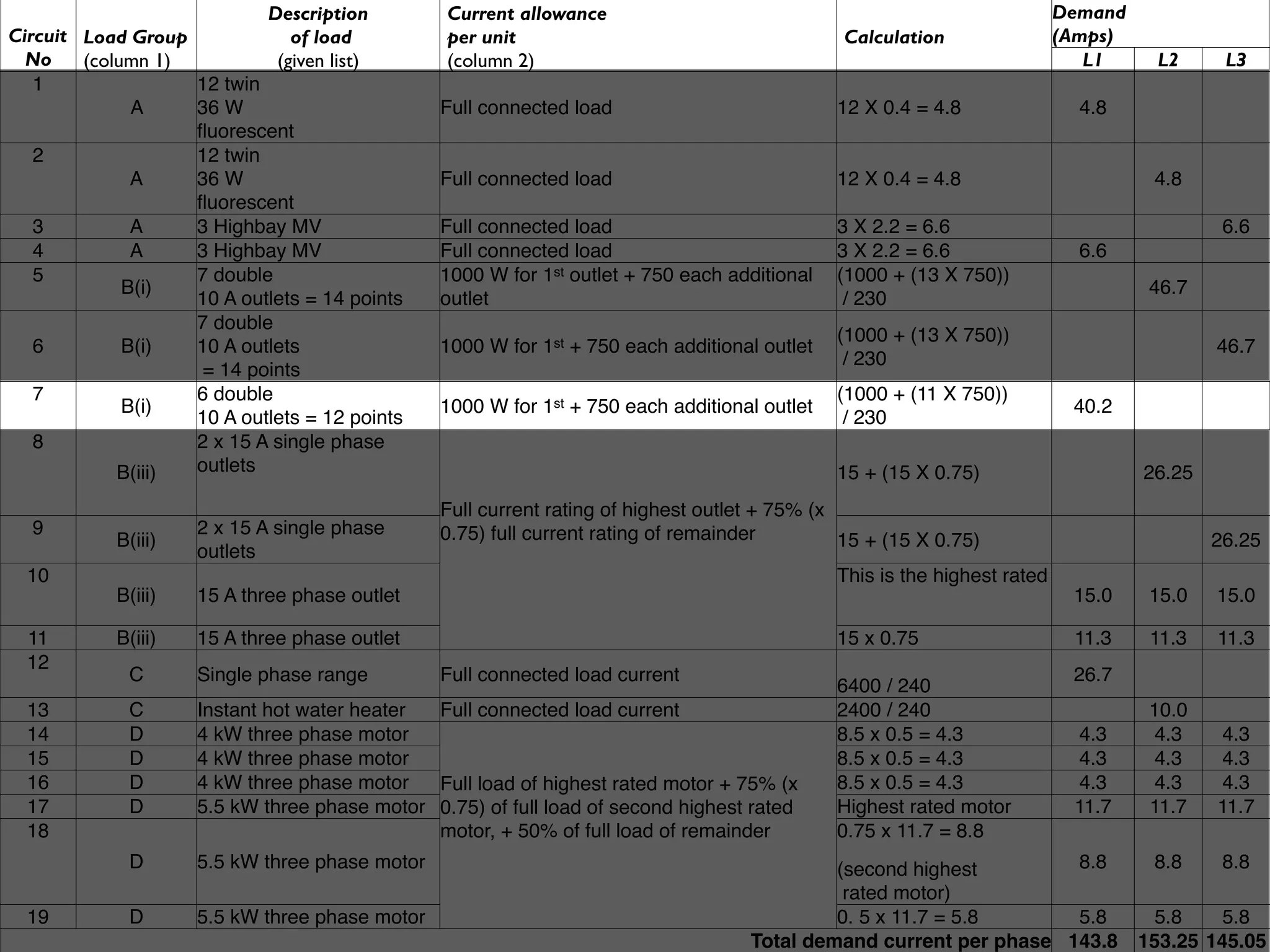

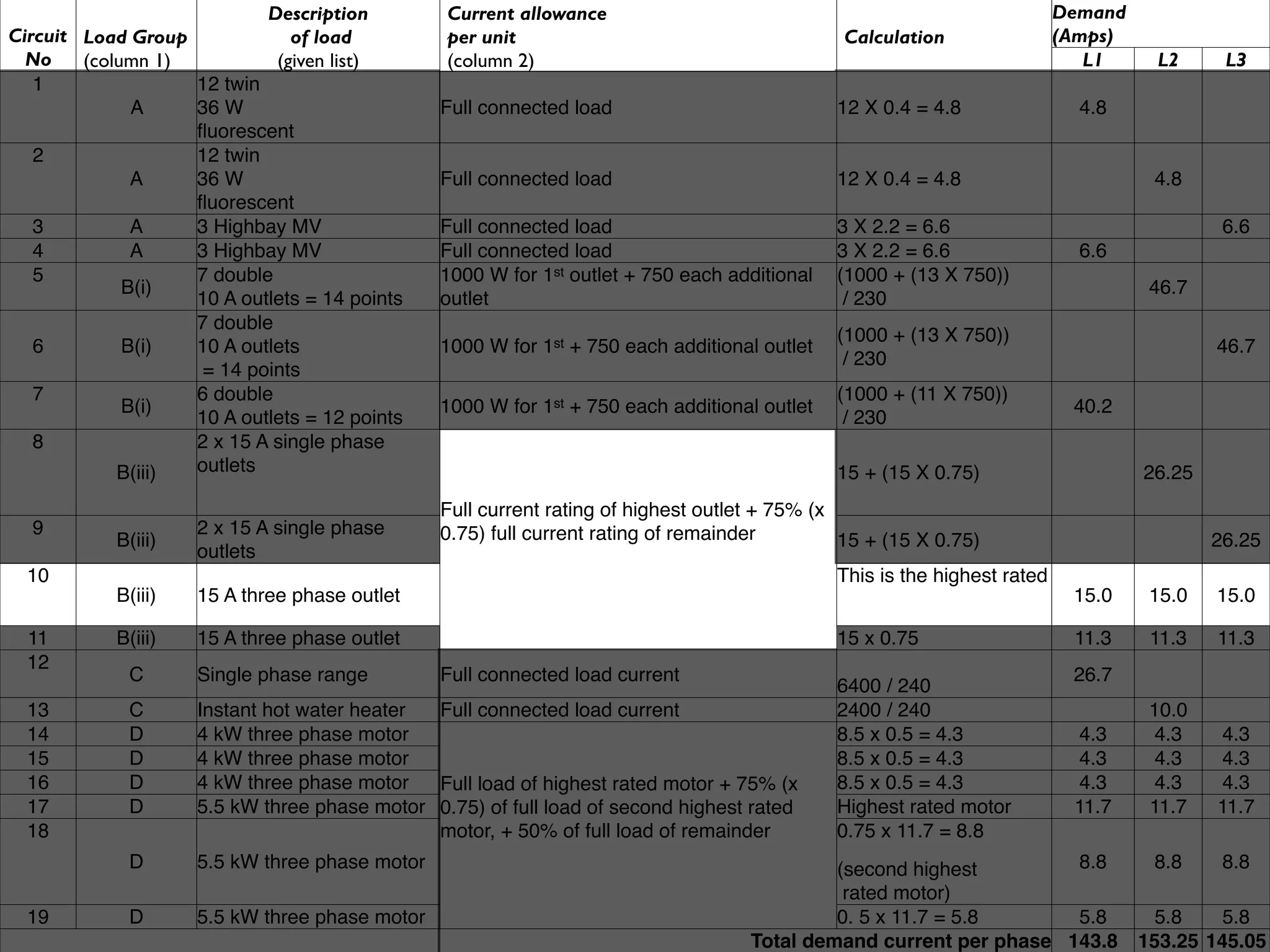

The document contains a table that calculates the current demand per phase for various circuit load groups in an electrical system. It lists 19 load groups categorized by letters A through D, describing each load. It shows the current allowance calculation method and resulting demand in amps for each phase. The total demand current calculated per phase is 143.8 amps for L1, 153.25 amps for L2, and 145.05 amps for L3.

1. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

2. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

3. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

4. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

5. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

6. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

7. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

8. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

9. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

10. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

11. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12
C Single phase range Full connected load current 26.7
6400 / 240
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05
