4.1.7 Example Domestic 3

•

0 likes•414 views

The document calculates the electrical load of communal services in an apartment building. It shows that 24 lighting points will draw 240 watts and 6 10A sockets will draw up to 12A, for a total demand of 18A per phase. The total demand current per phase for communal services is 18A.

Technology Business

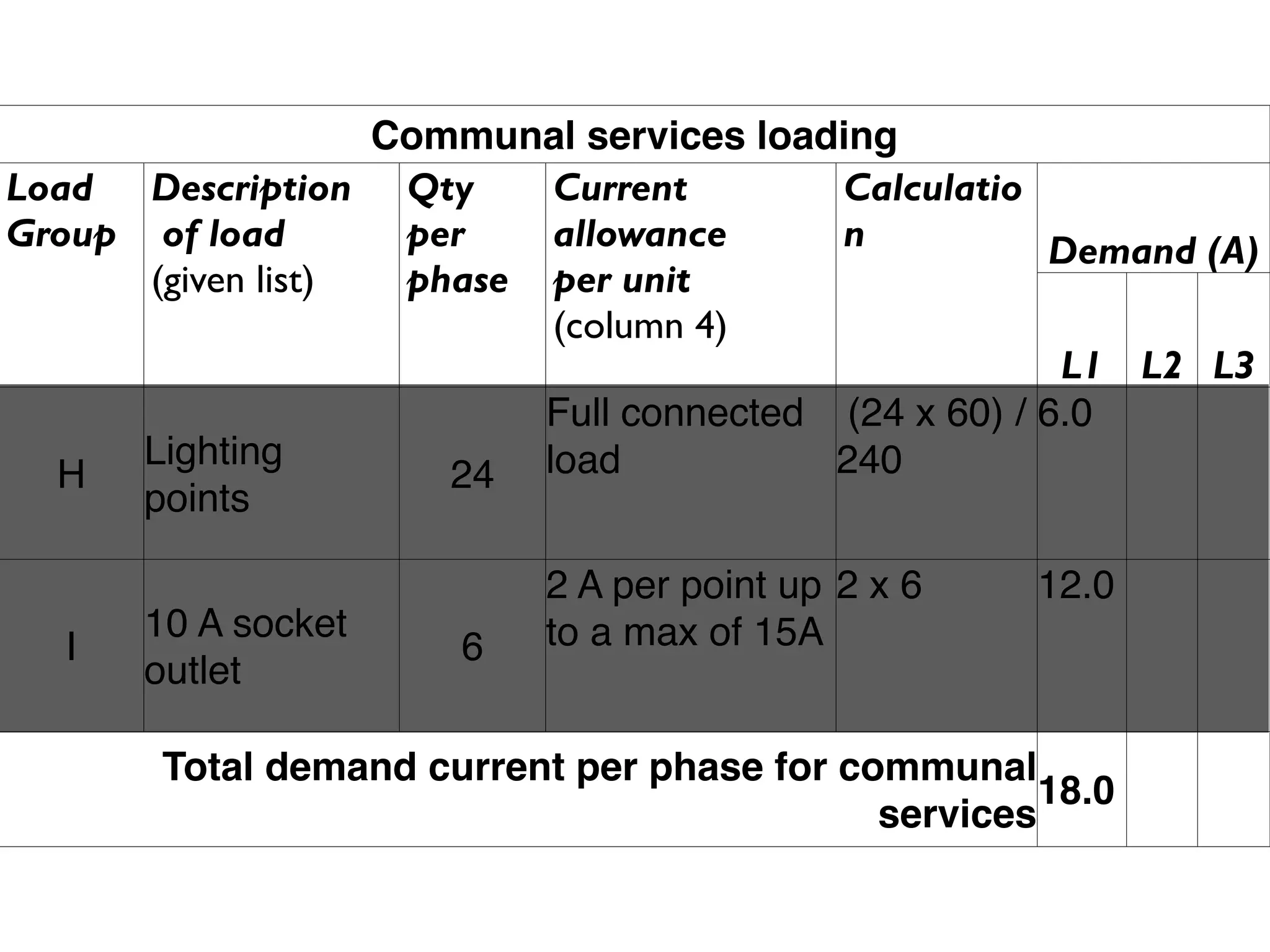

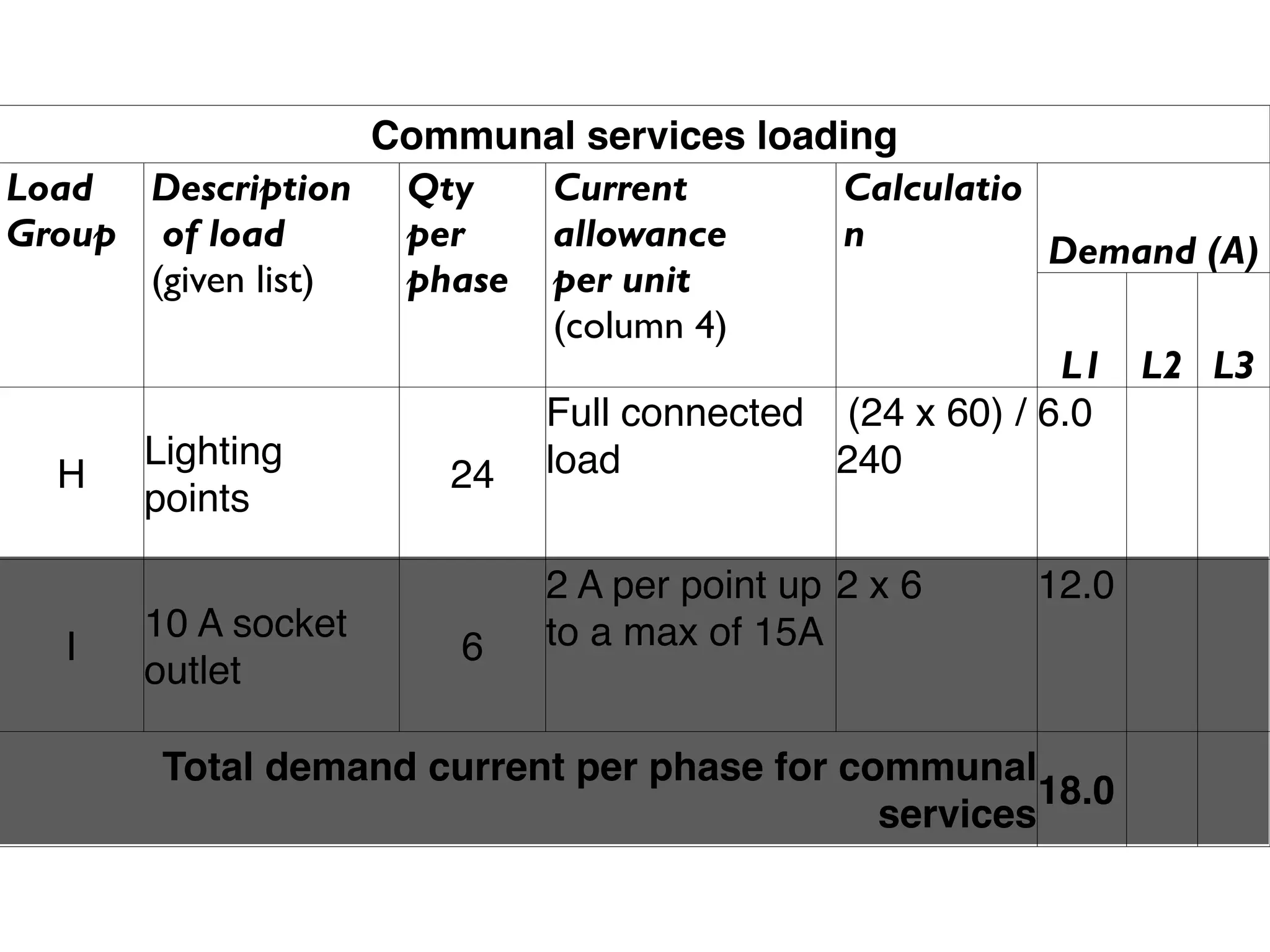

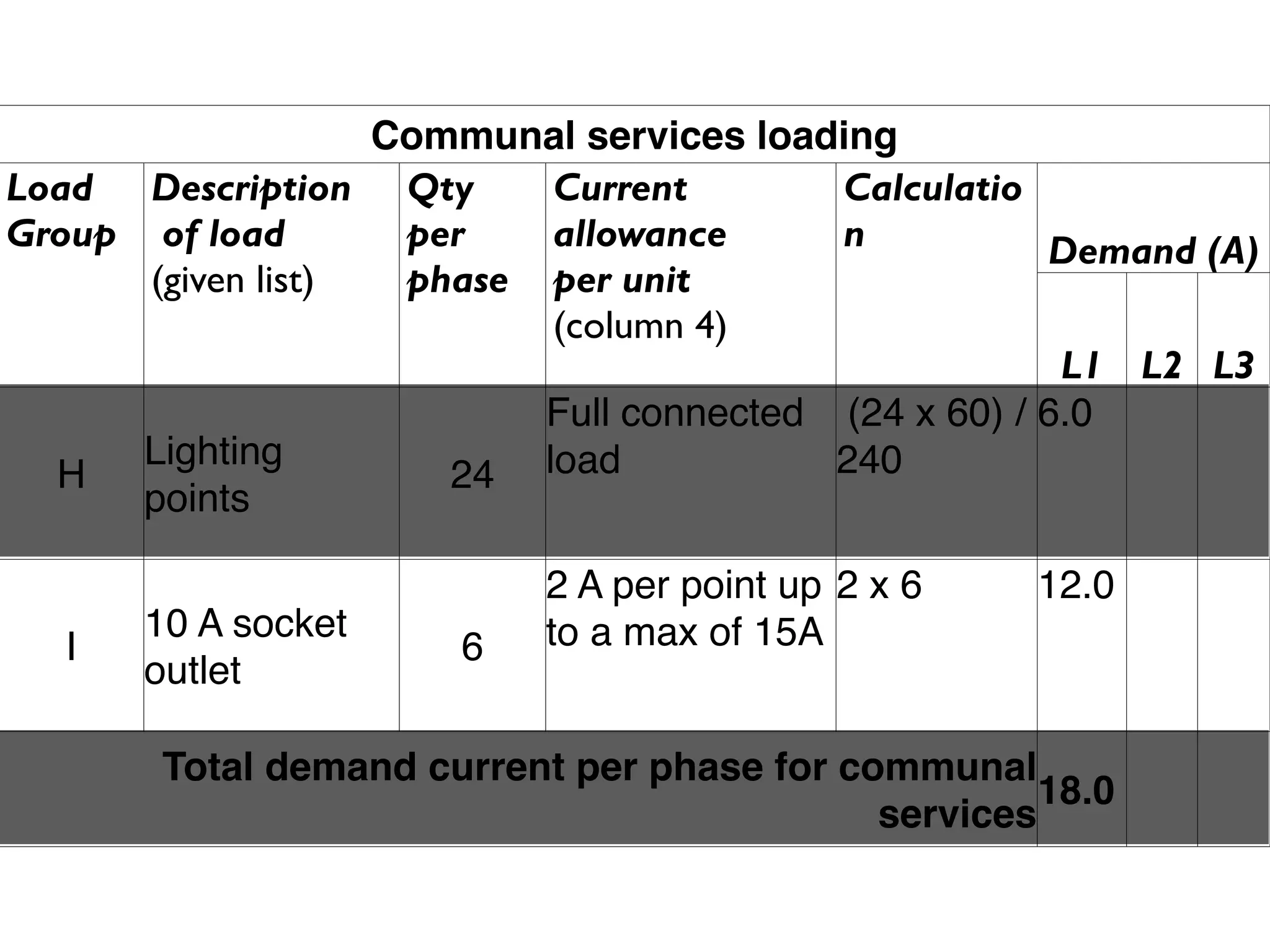

Communal services loading
Load Description Qty Current Calculatio
Group of load per allowance n Demand (A)
(given list) phase per unit
(column 4)
L1 L2 L3
Full connected (24 x 60) / 6.0
Lighting
H 24 load 240
points

2 A per point up 2 x 6 12.0
10 A socket to a max of 15A
I 6
outlet

Total demand current per phase for communal
18.0
services

The following
explanation is not in
the workbook

Viewers also liked

11.4.1 DC Motor ReversalTalia Carbis

163 Lo1Talia Carbis

13.1.6Talia Carbis

163 Lo3.1Talia Carbis

4.1.3 Example Solution ThreeTalia Carbis

3magneticTalia Carbis

Less2.3Talia Carbis

Less1.4Talia Carbis

13.5.1Talia Carbis

5.1.5principlesTalia Carbis

14.3.6Talia Carbis

10.6.1Talia Carbis

Viewers also liked (12)

11.4.1 DC Motor Reversal

163 Lo1

13.1.6

163 Lo3.1

4.1.3 Example Solution Three

3magnetic

Less2.3

Less1.4

13.5.1

5.1.5principles

14.3.6

10.6.1

Recently uploaded

ODC, Data Fabric and Architecture User Group

CatarinaPereira64715

FIDO Alliance Osaka Seminar: Overview.pdf

FIDO Alliance

To Graph or Not to Graph Knowledge Graph Architectures and LLMs

Paul Groth

From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...

Product School

DevOps and Testing slides at DASA Connect

Kari Kakkonen

Software Delivery At the Speed of AI: Inflectra Invests In AI-Powered Quality

Inflectra

In this insightful webinar, Inflectra explores how artificial intelligence (AI) is transforming software development and testing. Discover how AI-powered tools are revolutionizing every stage of the software development lifecycle (SDLC), from design and prototyping to testing, deployment, and monitoring. Learn about: • The Future of Testing: How AI is shifting testing towards verification, analysis, and higher-level skills, while reducing repetitive tasks. • Test Automation: How AI-powered test case generation, optimization, and self-healing tests are making testing more efficient and effective. • Visual Testing: Explore the emerging capabilities of AI in visual testing and how it's set to revolutionize UI verification. • Inflectra's AI Solutions: See demonstrations of Inflectra's cutting-edge AI tools like the ChatGPT plugin and Azure Open AI platform, designed to streamline your testing process. Whether you're a developer, tester, or QA professional, this webinar will give you valuable insights into how AI is shaping the future of software delivery.

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf

91mobiles

AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...

Product School

Builder.ai Founder Sachin Dev Duggal's Strategic Approach to Create an Innova...

Ramesh Iyer

In today's fast-changing business world, Companies that adapt and embrace new ideas often need help to keep up with the competition. However, fostering a culture of innovation takes much work. It takes vision, leadership and willingness to take risks in the right proportion. Sachin Dev Duggal, co-founder of Builder.ai, has perfected the art of this balance, creating a company culture where creativity and growth are nurtured at each stage.

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...

DanBrown980551

Do you want to learn how to model and simulate an electrical network from scratch in under an hour? Then welcome to this PowSyBl workshop, hosted by Rte, the French Transmission System Operator (TSO)! During the webinar, you will discover the PowSyBl ecosystem as well as handle and study an electrical network through an interactive Python notebook. PowSyBl is an open source project hosted by LF Energy, which offers a comprehensive set of features for electrical grid modelling and simulation. Among other advanced features, PowSyBl provides: - A fully editable and extendable library for grid component modelling; - Visualization tools to display your network; - Grid simulation tools, such as power flows, security analyses (with or without remedial actions) and sensitivity analyses; The framework is mostly written in Java, with a Python binding so that Python developers can access PowSyBl functionalities as well. What you will learn during the webinar: - For beginners: discover PowSyBl's functionalities through a quick general presentation and the notebook, without needing any expert coding skills; - For advanced developers: master the skills to efficiently apply PowSyBl functionalities to your real-world scenarios.

IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptx

Abida Shariff

Key Trends Shaping the Future of Infrastructure.pdf

Cheryl Hung

Leading Change strategies and insights for effective change management pdf 1.pdf

OnBoard

Mission to Decommission: Importance of Decommissioning Products to Increase E...

Product School

GraphRAG is All You need? LLM & Knowledge Graph

Guy Korland

Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs. 1. Unifying Large Language Models and Knowledge Graphs: A Roadmap. https://arxiv.org/abs/2306.08302 2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs: https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024

Tobias Schneck

As AI technology is pushing into IT I was wondering myself, as an “infrastructure container kubernetes guy”, how get this fancy AI technology get managed from an infrastructure operational view? Is it possible to apply our lovely cloud native principals as well? What benefit’s both technologies could bring to each other? Let me take this questions and provide you a short journey through existing deployment models and use cases for AI software. On practical examples, we discuss what cloud/on-premise strategy we may need for applying it to our own infrastructure to get it to work from an enterprise perspective. I want to give an overview about infrastructure requirements and technologies, what could be beneficial or limiting your AI use cases in an enterprise environment. An interactive Demo will give you some insides, what approaches I got already working for real.

Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...

UiPathCommunity

💥 Speed, accuracy, and scaling – discover the superpowers of GenAI in action with UiPath Document Understanding and Communications Mining™: See how to accelerate model training and optimize model performance with active learning Learn about the latest enhancements to out-of-the-box document processing – with little to no training required Get an exclusive demo of the new family of UiPath LLMs – GenAI models specialized for processing different types of documents and messages This is a hands-on session specifically designed for automation developers and AI enthusiasts seeking to enhance their knowledge in leveraging the latest intelligent document processing capabilities offered by UiPath. Speakers: 👨‍🏫 Andras Palfi, Senior Product Manager, UiPath 👩‍🏫 Lenka Dulovicova, Product Program Manager, UiPath

JMeter webinar - integration with InfluxDB and Grafana

RTTS

Watch this recorded webinar about real-time monitoring of application performance. See how to integrate Apache JMeter, the open-source leader in performance testing, with InfluxDB, the open-source time-series database, and Grafana, the open-source analytics and visualization application. In this webinar, we will review the benefits of leveraging InfluxDB and Grafana when executing load tests and demonstrate how these tools are used to visualize performance metrics. Length: 30 minutes Session Overview ------------------------------------------- During this webinar, we will cover the following topics while demonstrating the integrations of JMeter, InfluxDB and Grafana: - What out-of-the-box solutions are available for real-time monitoring JMeter tests? - What are the benefits of integrating InfluxDB and Grafana into the load testing stack? - Which features are provided by Grafana? - Demonstration of InfluxDB and Grafana using a practice web application To view the webinar recording, go to: https://www.rttsweb.com/jmeter-integration-webinar

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

FIDO Alliance

UiPath Test Automation using UiPath Test Suite series, part 3

DianaGray10

Recently uploaded (20)

ODC, Data Fabric and Architecture User Group

FIDO Alliance Osaka Seminar: Overview.pdf

To Graph or Not to Graph Knowledge Graph Architectures and LLMs

From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...

DevOps and Testing slides at DASA Connect

Software Delivery At the Speed of AI: Inflectra Invests In AI-Powered Quality

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf

AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...

Builder.ai Founder Sachin Dev Duggal's Strategic Approach to Create an Innova...

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...

IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptx

Key Trends Shaping the Future of Infrastructure.pdf

Leading Change strategies and insights for effective change management pdf 1.pdf

Mission to Decommission: Importance of Decommissioning Products to Increase E...

GraphRAG is All You need? LLM & Knowledge Graph

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024

Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...

JMeter webinar - integration with InfluxDB and Grafana

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

UiPath Test Automation using UiPath Test Suite series, part 3

4.1.7 Example Domestic 3

1. Communal services loading Load Description Qty Current Calculatio Group of load per allowance n Demand (A) (given list) phase per unit (column 4) L1 L2 L3 Full connected (24 x 60) / 6.0 Lighting H 24 load 240 points 2 A per point up 2 x 6 12.0 10 A socket to a max of 15A I 6 outlet Total demand current per phase for communal 18.0 services

2. Communal services loading Load Description Qty Current Calculatio Group of load per allowance n Demand (A) (given list) phase per unit (column 4) L1 L2 L3 Full connected (24 x 60) / 6.0 Lighting H 24 load 240 points 2 A per point up 2 x 6 12.0 10 A socket to a max of 15A I 6 outlet Total demand current per phase for communal 18.0 services

3. Communal services loading Load Description Qty Current Calculatio Group of load per allowance n Demand (A) (given list) phase per unit (column 4) L1 L2 L3 Full connected (24 x 60) / 6.0 Lighting H 24 load 240 points 2 A per point up 2 x 6 12.0 10 A socket to a max of 15A I 6 outlet Total demand current per phase for communal 18.0 services

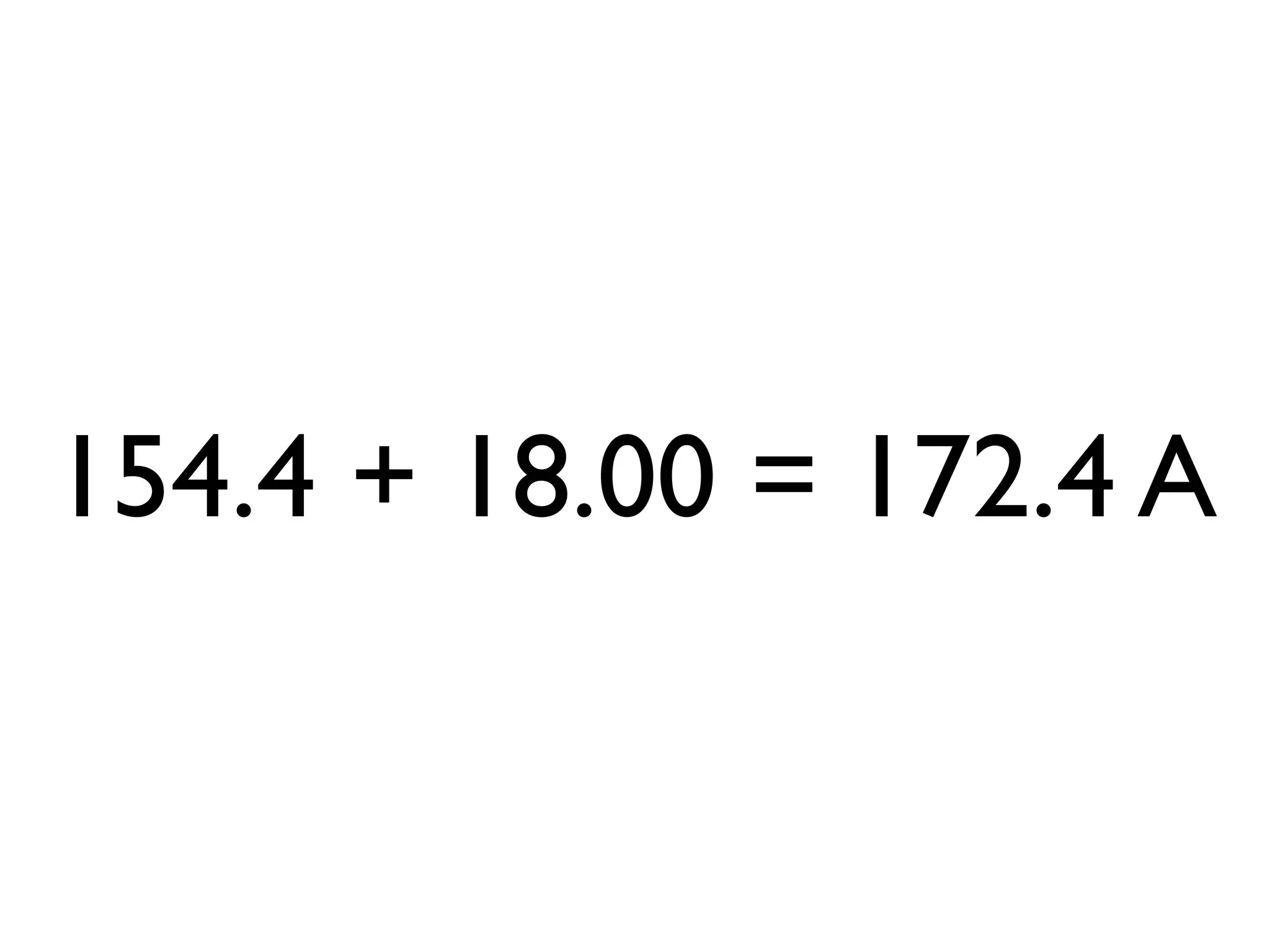

4. 154.4 + 18.00 = 172.4 A
