14.5.8 Example 1 Part 5

•

0 likes•335 views

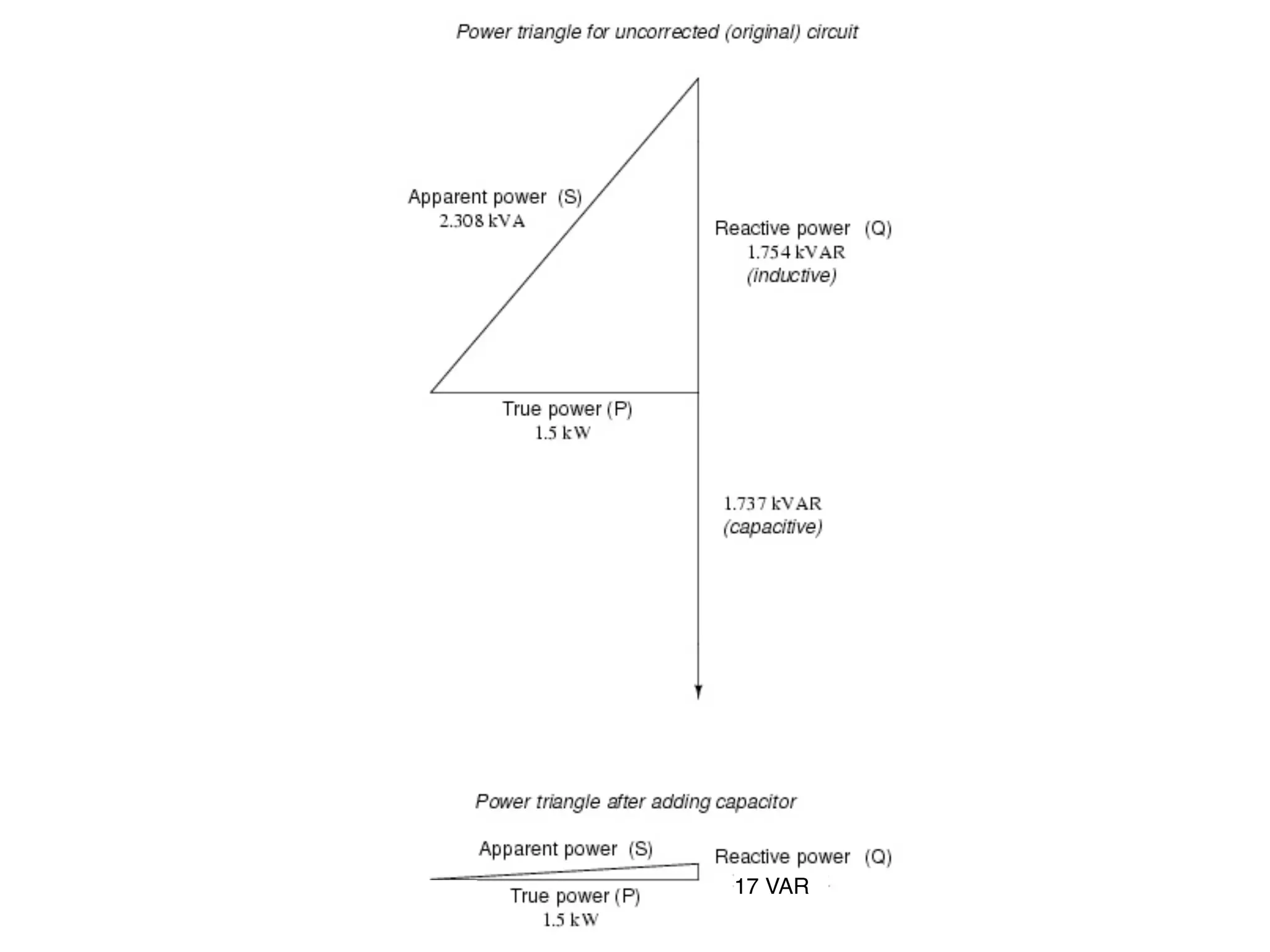

This document calculates the true power, apparent power, and total current for a circuit. It determines that the true power is 1.5 kW, the apparent power is 1.5009 kVA, and the power factor is 0.99994. It then calculates that with an apparent power of 1.5009 kVA at 240 Volts, the total current would be 6.25 amps.

Technology Business

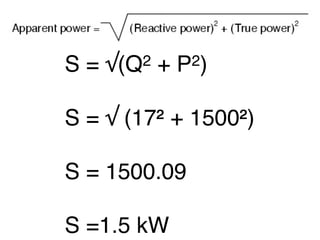

S= √(Q2 + P2)

S = √ (17² + 1500²)

S = 1500.09

S =1.5 kW

true power

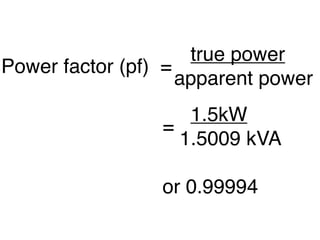

Power factor (pf) =

apparent power

1.5kW
=

1.5009 kVA

or 0.99994

1.50009 kVA

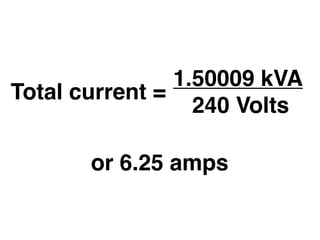

Total current =
240 Volts

or 6.25 amps

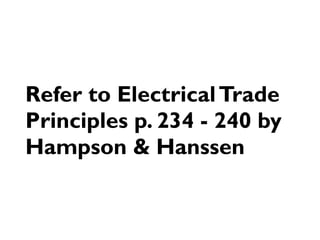

Refer to Electrical Trade
Principles p. 234 - 240 by
Hampson & Hanssen
