The document calculates the electrical load and demand for 6 living units per phase. It lists the types of loads in each unit, the quantity and allowance per unit, and uses this to calculate the total demand current for phases L1, L2 and L3, which is 154.4 amps for each phase. The key loads included are lighting, power outlets, cooking ranges, air conditioners and hot water systems.

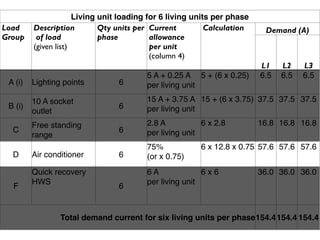

1. Living unit loading for 6 living units per phase
Load Description Qty units per Current Calculation Demand (A)
Group of load phase allowance
(given list) per unit
(column 4)
L1 L2 L3
5 A + 0.25 A 5 + (6 x 0.25) 6.5 6.5 6.5
A (i) Lighting points 6 per living unit
10 A socket 15 A + 3.75 A 15 + (6 x 3.75) 37.5 37.5 37.5
B (i) 6 per living unit
outlet
Free standing 2.8 A 6 x 2.8 16.8 16.8 16.8
C 6 per living unit
range
75% 6 x 12.8 x 0.75 57.6 57.6 57.6
D Air conditioner 6 (or x 0.75)
Quick recovery 6A 6x6 36.0 36.0 36.0
HWS per living unit
F 6
Total demand current for six living units per phase
phase154.4154.4 154.4

2. Living unit loading for 6 living units per phase
Load Description Qty units per Current Calculation Demand (A)
Group of load phase allowance
(given list) per unit
(column 4)
L1 L2 L3
5 A + 0.25 A 5 + (6 x 0.25) 6.5 6.5 6.5
A (i) Lighting points 6 per living unit
10 A socket 15 A + 3.75 A 15 + (6 x 3.75) 37.5 37.5 37.5
B (i) 6 per living unit
outlet
Free standing 2.8 A 6 x 2.8 16.8 16.8 16.8
C 6 per living unit
range
75% 6 x 12.8 x 0.75 57.6 57.6 57.6
D Air conditioner 6 (or x 0.75)
Quick recovery 6A 6x6 36.0 36.0 36.0
HWS per living unit
F 6
Total demand current for six living units per phase
phase154.4154.4 154.4

3. Living unit loading for 6 living units per phase
Load Description Qty units per Current Calculation Demand (A)
Group of load phase allowance
(given list) per unit
(column 4)
L1 L2 L3
5 A + 0.25 A 5 + (6 x 0.25) 6.5 6.5 6.5
A (i) Lighting points 6 per living unit
10 A socket 15 A + 3.75 A 15 + (6 x 3.75) 37.5 37.5 37.5
B (i) 6 per living unit
outlet
Free standing 2.8 A 6 x 2.8 16.8 16.8 16.8
C 6 per living unit
range
75% 6 x 12.8 x 0.75 57.6 57.6 57.6
D Air conditioner 6 (or x 0.75)
Quick recovery 6A 6x6 36.0 36.0 36.0
HWS per living unit
F 6
Total demand current for six living units per phase
phase154.4154.4 154.4

4. Living unit loading for 6 living units per phase
Load Description Qty units per Current Calculation Demand (A)
Group of load phase allowance
(given list) per unit
(column 4)
L1 L2 L3
5 A + 0.25 A 5 + (6 x 0.25) 6.5 6.5 6.5
A (i) Lighting points 6 per living unit
10 A socket 15 A + 3.75 A 15 + (6 x 3.75) 37.5 37.5 37.5
B (i) 6 per living unit
outlet
Free standing 2.8 A 6 x 2.8 16.8 16.8 16.8
C 6 per living unit
range
75% 6 x 12.8 x 0.75 57.6 57.6 57.6
D Air conditioner 6 (or x 0.75)
Quick recovery 6A 6x6 36.0 36.0 36.0
HWS per living unit
F 6
Total demand current for six living units per phase
phase154.4154.4 154.4

5. Living unit loading for 6 living units per phase
Load Description Qty units per Current Calculation Demand (A)
Group of load phase allowance
(given list) per unit
(column 4)
L1 L2 L3
5 A + 0.25 A 5 + (6 x 0.25) 6.5 6.5 6.5
A (i) Lighting points 6 per living unit
10 A socket 15 A + 3.75 A 15 + (6 x 3.75) 37.5 37.5 37.5
B (i) 6 per living unit
outlet
Free standing 2.8 A 6 x 2.8 16.8 16.8 16.8
C 6 per living unit
range
75% 6 x 12.8 x 0.75 57.6 57.6 57.6
D Air conditioner 6 (or x 0.75)
Quick recovery 6A 6x6 36.0 36.0 36.0
HWS per living unit
F 6
Total demand current for six living units per phase
phase154.4154.4 154.4

6. Living unit loading for 6 living units per phase
Load Description Qty units per Current Calculation Demand (A)
Group of load phase allowance
(given list) per unit
(column 4)
L1 L2 L3
5 A + 0.25 A 5 + (6 x 0.25) 6.5 6.5 6.5
A (i) Lighting points 6 per living unit
10 A socket 15 A + 3.75 A 15 + (6 x 3.75) 37.5 37.5 37.5
B (i) 6 per living unit
outlet
Free standing 2.8 A 6 x 2.8 16.8 16.8 16.8
C 6 per living unit
range
75% 6 x 12.8 x 0.75 57.6 57.6 57.6
D Air conditioner 6 (or x 0.75)
Quick recovery 6A 6x6 36.0 36.0 36.0
HWS per living unit
F 6
Total demand current for six living units per phase
phase154.4154.4 154.4
