The document outlines the demand calculations for 19 different circuit load groups across 3 phases. It lists the load description, current allowance calculation method, and resulting demand current for each phase. The total demand current per phase is calculated at the bottom, with values of 143.8 amps for phase 1, 153.25 amps for phase 2, and 145.05 amps for phase 3.

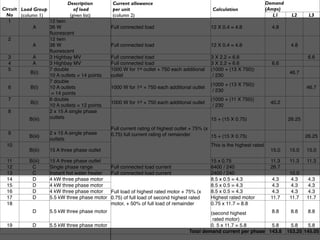

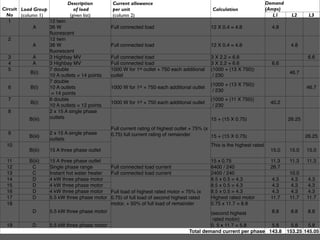

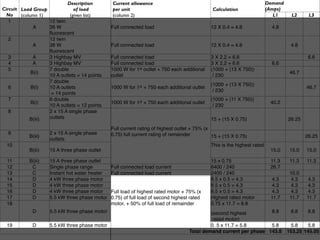

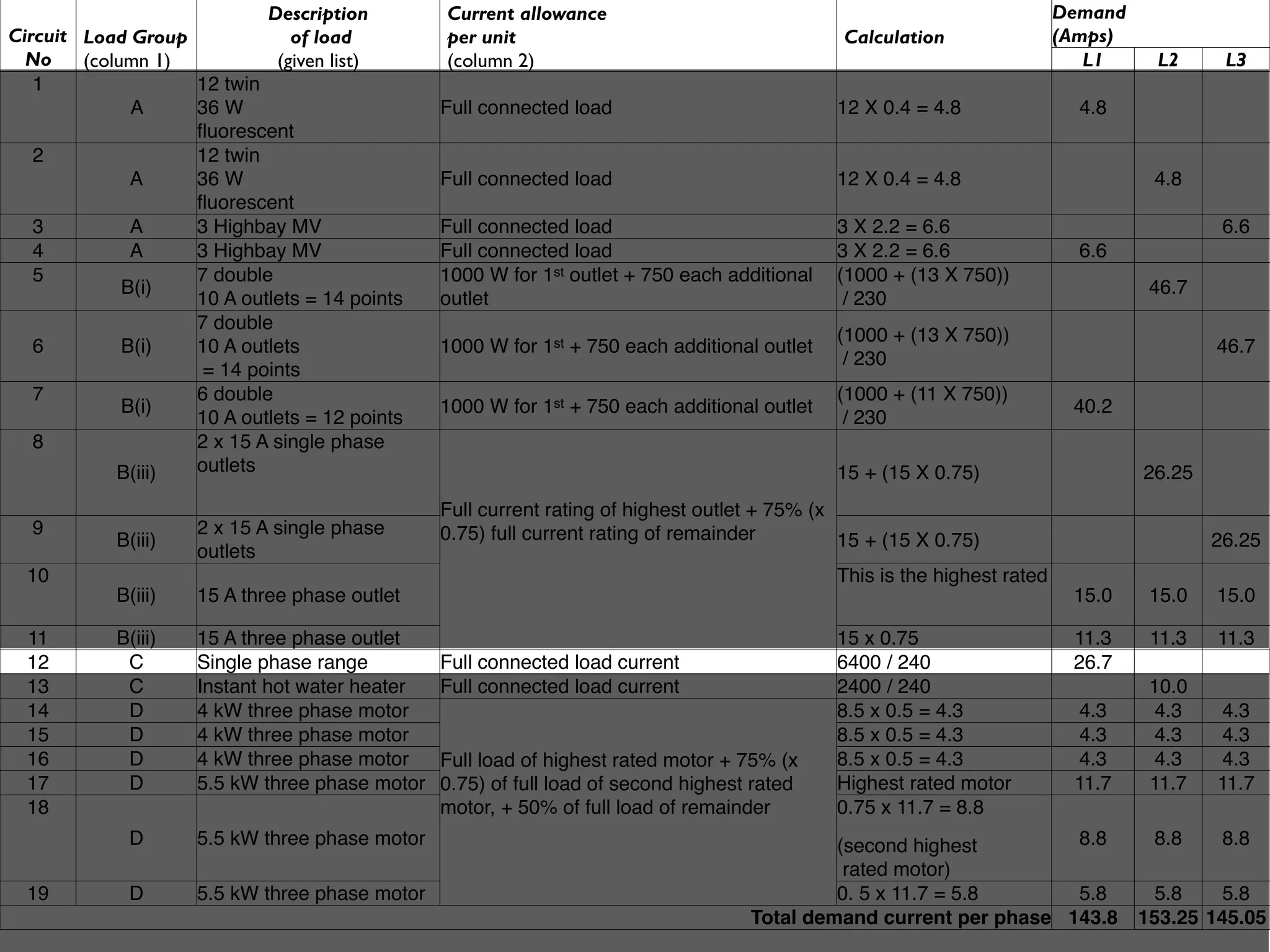

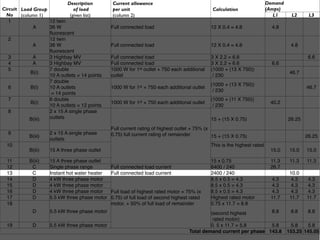

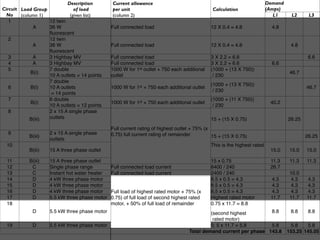

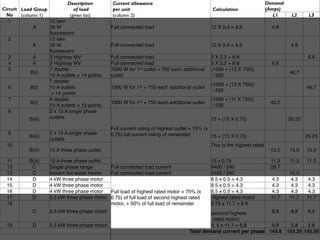

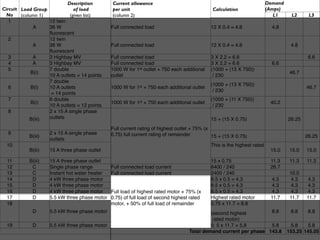

1. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

2. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

3. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

4. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

5. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

6. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

7. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

8. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

9. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

10. Description Current allowance Demand
Circuit Load Group of load per unit Calculation (Amps)
No (column 1) (given list) (column 2) L1 L2 L3
1 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
2 12 twin
A 36 W Full connected load 12 X 0.4 = 4.8 4.8
fluorescent
3 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
4 A 3 Highbay MV Full connected load 3 X 2.2 = 6.6 6.6
5 7 double 1000 W for 1st outlet + 750 each additional (1000 + (13 X 750))
B(i) 46.7
10 A outlets = 14 points outlet / 230
7 double
(1000 + (13 X 750))
6 B(i) 10 A outlets 1000 W for 1st + 750 each additional outlet 46.7
/ 230
= 14 points
7 6 double (1000 + (11 X 750))
B(i) 1000 W for 1st + 750 each additional outlet 40.2
10 A outlets = 12 points / 230
8 2 x 15 A single phase
B(iii) outlets 15 + (15 X 0.75) 26.25
Full current rating of highest outlet + 75% (x
9 2 x 15 A single phase 0.75) full current rating of remainder
B(iii) 15 + (15 X 0.75) 26.25
outlets
10 This is the highest rated
B(iii) 15 A three phase outlet 15.0 15.0 15.0
11 B(iii) 15 A three phase outlet 15 x 0.75 11.3 11.3 11.3
12 C Single phase range Full connected load current 6400 / 240 26.7
13 C Instant hot water heater Full connected load current 2400 / 240 10.0
14 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
15 D 4 kW three phase motor 8.5 x 0.5 = 4.3 4.3 4.3 4.3
16 D 4 kW three phase motor Full load of highest rated motor + 75% (x 8.5 x 0.5 = 4.3 4.3 4.3 4.3
17 D 5.5 kW three phase motor 0.75) of full load of second highest rated Highest rated motor 11.7 11.7 11.7
18 motor, + 50% of full load of remainder 0.75 x 11.7 = 8.8
D 5.5 kW three phase motor (second highest 8.8 8.8 8.8
rated motor)
19 D 5.5 kW three phase motor 0. 5 x 11.7 = 5.8 5.8 5.8 5.8
Total demand current per phase 143.8 153.25 145.05

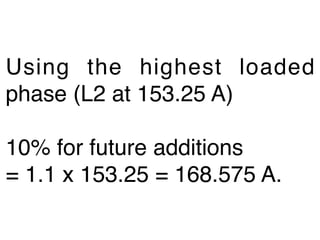

12. Using the highest loaded
phase (L2 at 153.25 A)
10% for future additions
= 1.1 x 153.25 = 168.575 A.
