5G aims to enhance mobile broadband capabilities by 2020 to support a connected society with speeds over 5Gbps and latency below 1ms. The document outlines the vision for 5G and enabling technologies being researched, such as mmWave spectrum above 10GHz, massive MIMO, beamforming, advanced modulation schemes, and a cloud-based network architecture. Key research groups around the world are exploring how these technologies can deliver 10-100x increased data rates while improving coverage, capacity, security and energy efficiency.

1. 5G: FROM VISION
TO ENABLING
TECHNOLOGY
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |

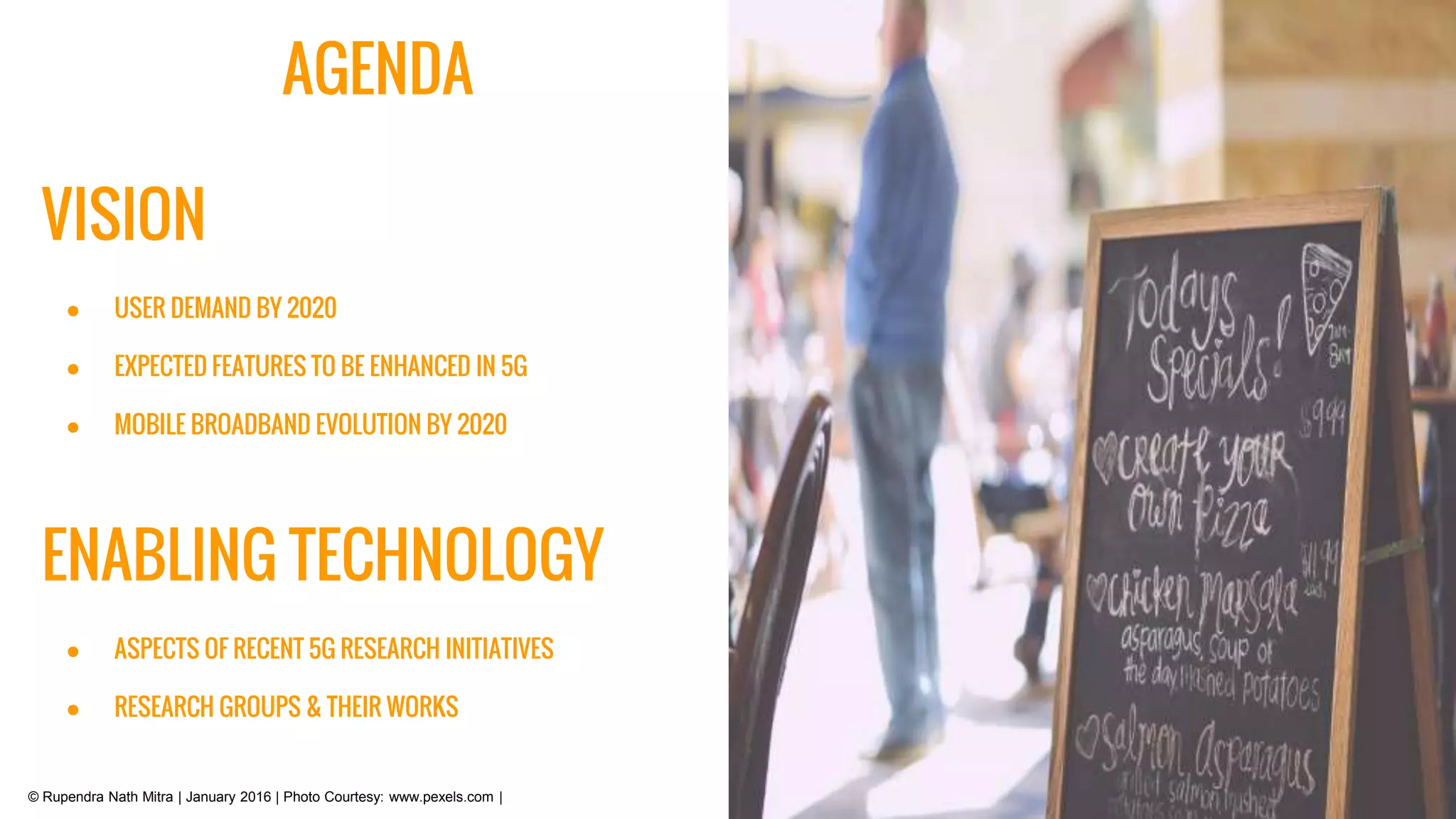

2. AGENDA
VISION
● USER DEMAND BY 2020
● EXPECTED FEATURES TO BE ENHANCED IN 5G
● MOBILE BROADBAND EVOLUTION BY 2020
ENABLING TECHNOLOGY
● ASPECTS OF RECENT 5G RESEARCH INITIATIVES
● RESEARCH GROUPS & THEIR WORKS
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |

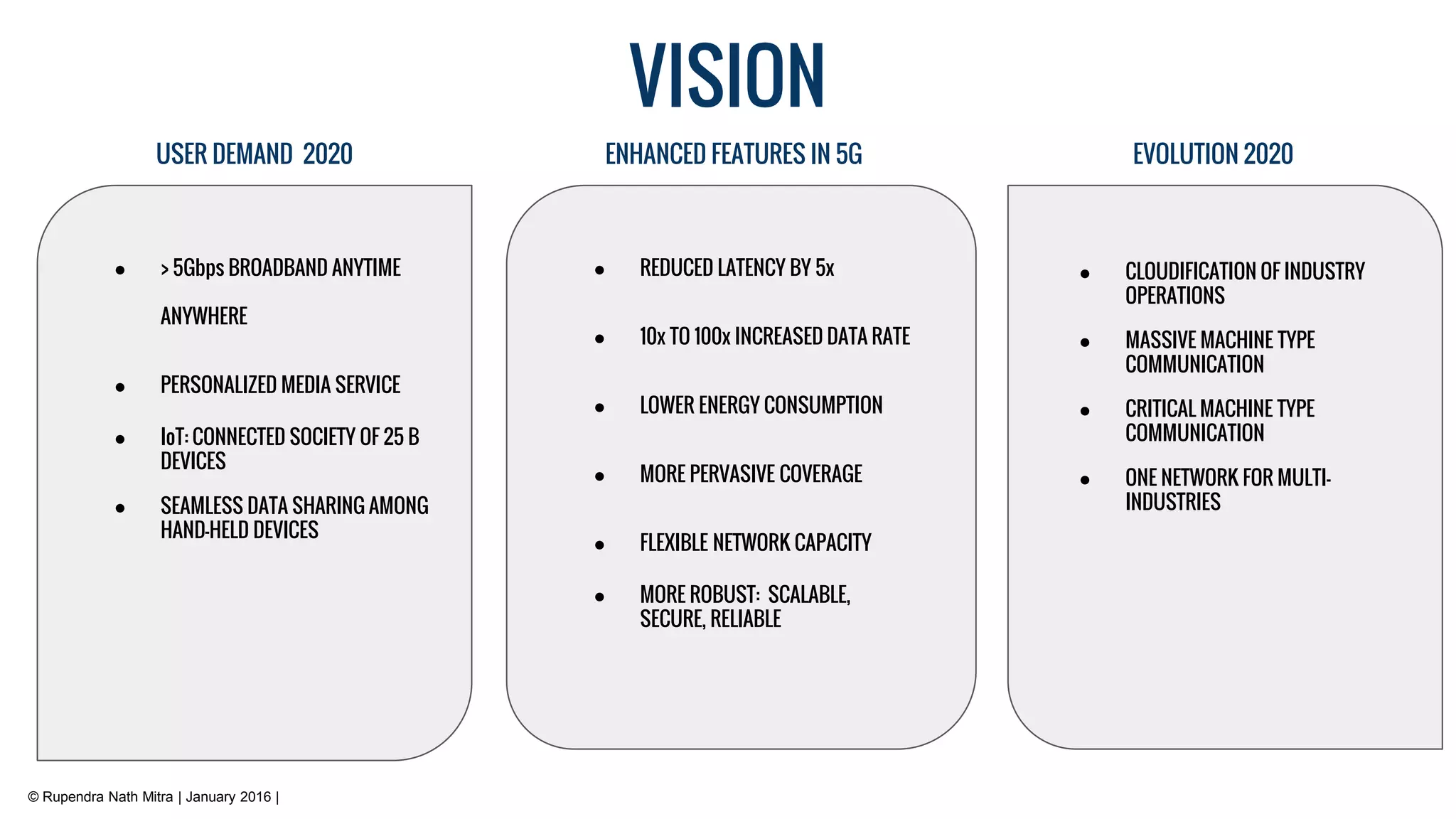

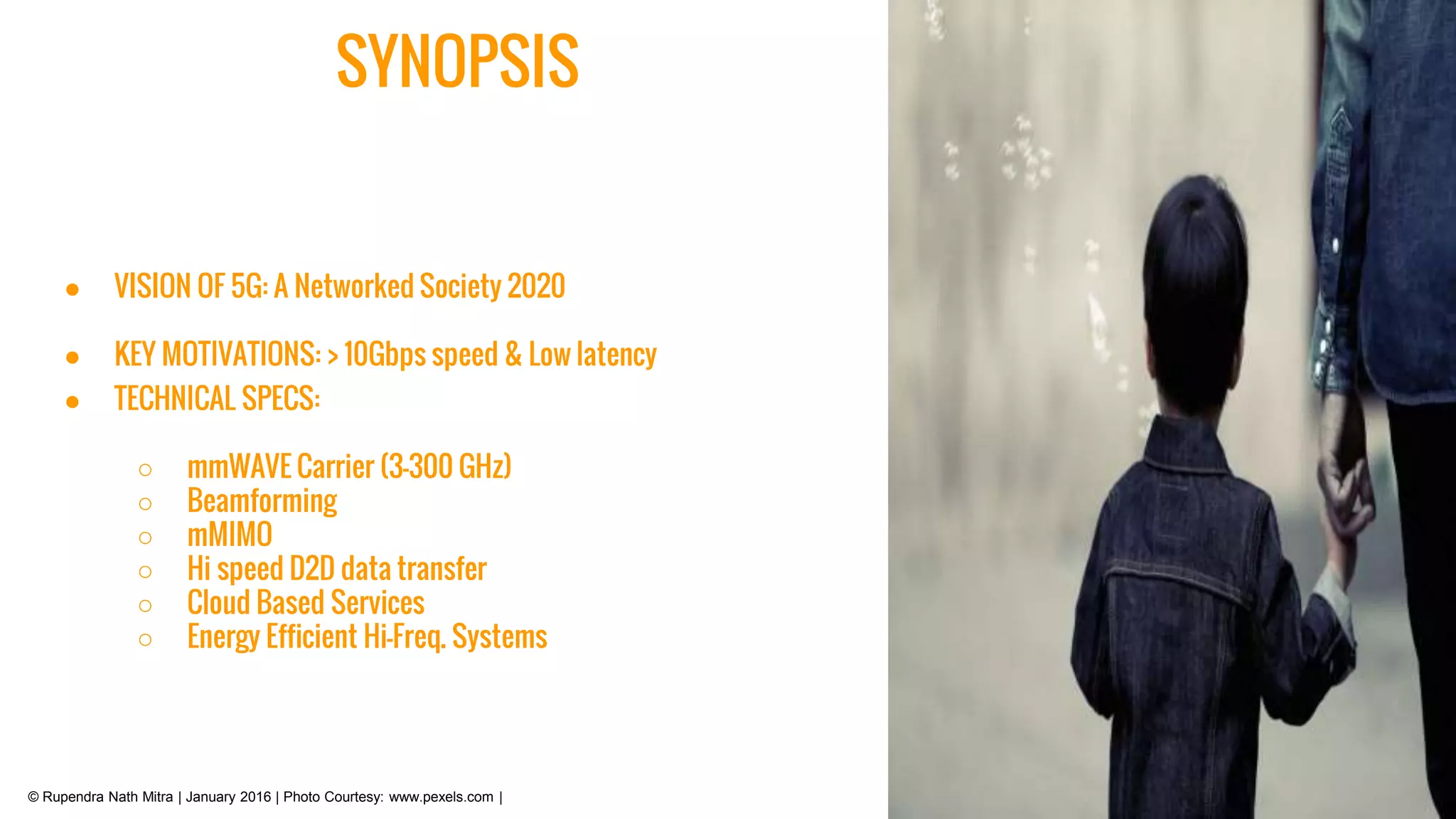

3. VISION
USER DEMAND 2020 ENHANCED FEATURES IN 5G EVOLUTION 2020
● CLOUDIFICATION OF INDUSTRY
OPERATIONS
● MASSIVE MACHINE TYPE
COMMUNICATION
● CRITICAL MACHINE TYPE
COMMUNICATION
● ONE NETWORK FOR MULTI-
INDUSTRIES
● REDUCED LATENCY BY 5x
● 10x TO 100x INCREASED DATA RATE
● LOWER ENERGY CONSUMPTION
● MORE PERVASIVE COVERAGE
● FLEXIBLE NETWORK CAPACITY
● MORE ROBUST: SCALABLE,
SECURE, RELIABLE
● BROADBAND● > 5Gbps BROADBAND ANYTIME
ANYWHERE
● PERSONALIZED MEDIA SERVICE
● IoT: CONNECTED SOCIETY OF 25 B
DEVICES
● SEAMLESS DATA SHARING AMONG
HAND-HELD DEVICES
© Rupendra Nath Mitra | January 2016 |

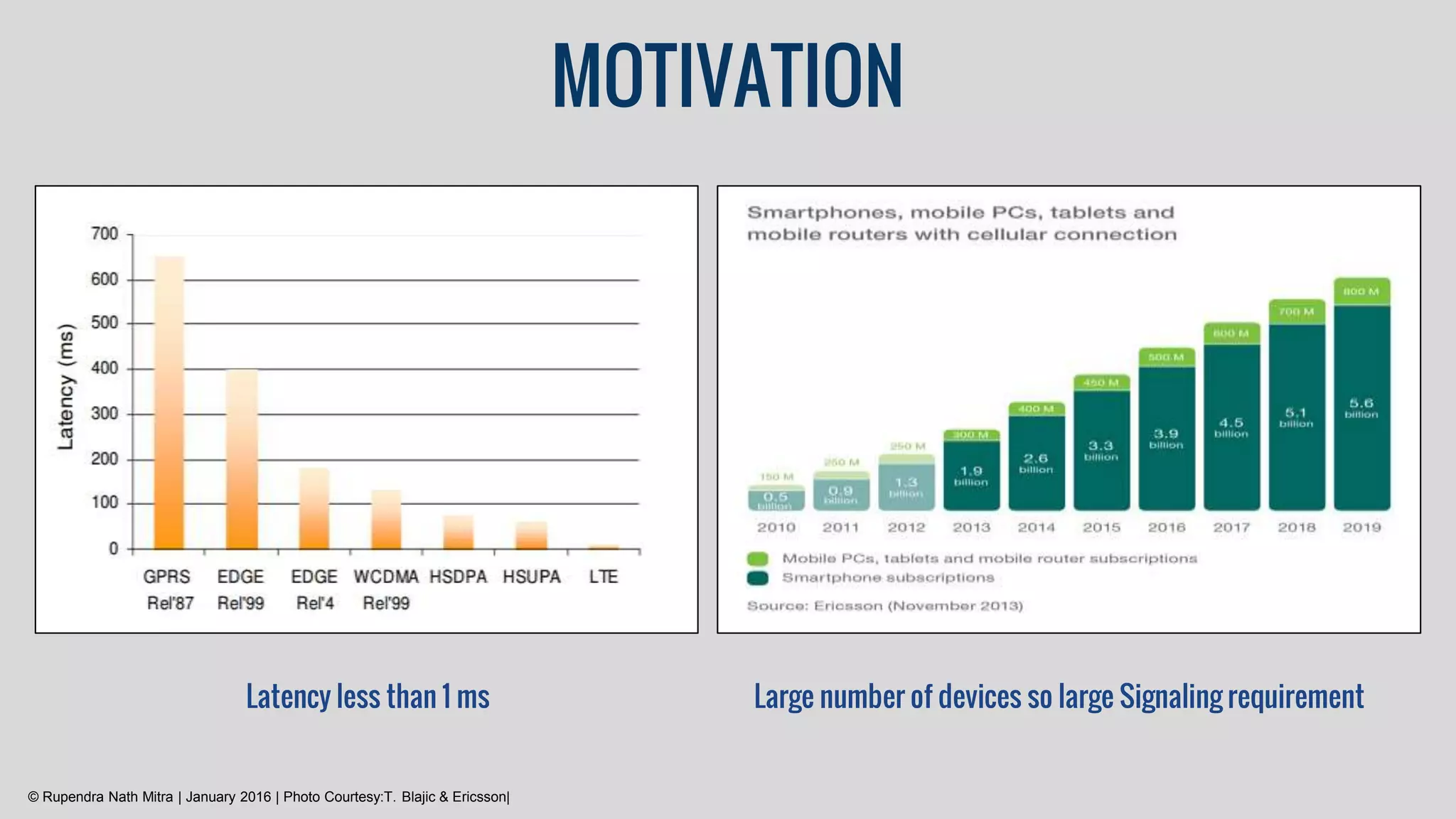

4. MOTIVATION
© Rupendra Nath Mitra | January 2016 | Photo Courtesy:T. Blajic & Ericsson|
Latency less than 1 ms Large number of devices so large Signaling requirement

5. ENABLING TECHNOLOGY
© Rupendra Nath Mitra | January 2016 |

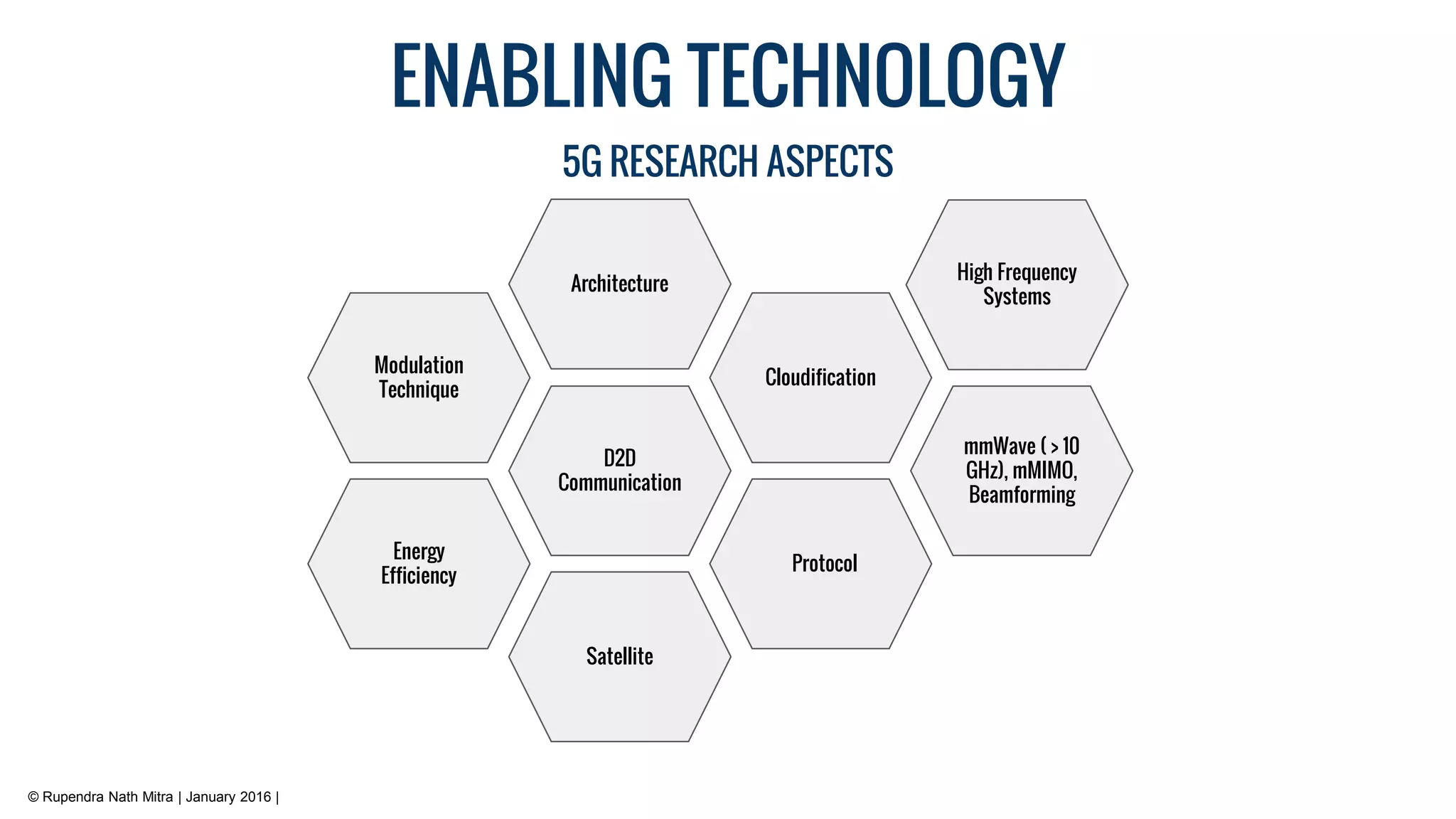

5G RESEARCH ASPECTS
mmWave ( > 10
GHz), mMIMO,
Beamforming
Architecture
D2D
Communication
Modulation
Technique
Cloudification
Protocol
Satellite
Energy
Efficiency
High Frequency
Systems

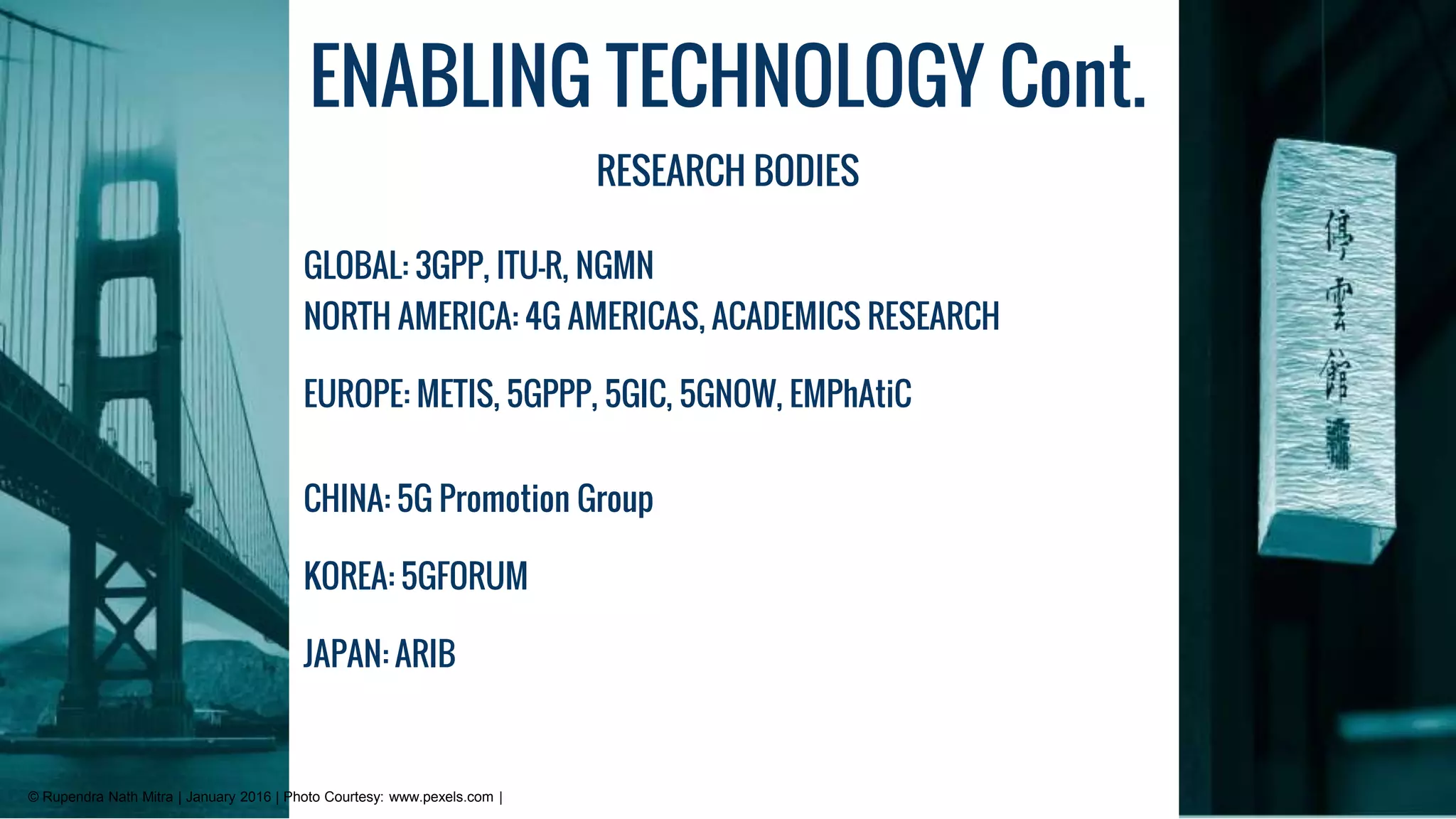

6. ENABLING TECHNOLOGY Cont.
RESEARCH BODIES
GLOBAL: 3GPP, ITU-R, NGMN
NORTH AMERICA: 4G AMERICAS, ACADEMICS RESEARCH
EUROPE: METIS, 5GPPP, 5GIC, 5GNOW, EMPhAtiC
CHINA: 5G Promotion Group
KOREA: 5GFORUM
JAPAN: ARIB
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |

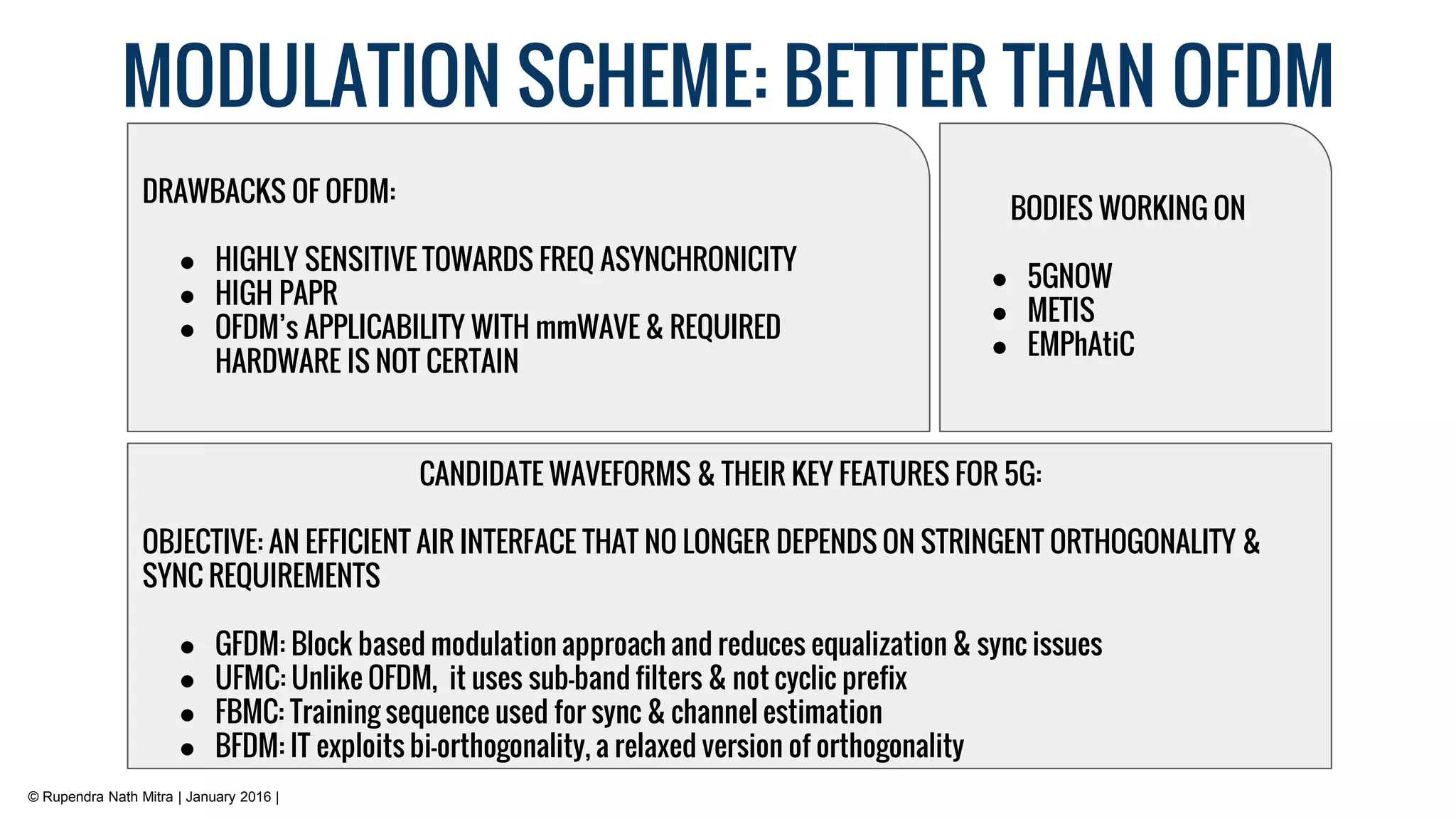

7. CANDIDATE WAVEFORMS & THEIR KEY FEATURES FOR 5G:
OBJECTIVE: AN EFFICIENT AIR INTERFACE THAT NO LONGER DEPENDS ON STRINGENT ORTHOGONALITY &
SYNC REQUIREMENTS
● GFDM: Block based modulation approach and reduces equalization & sync issues
● UFMC: Unlike OFDM, it uses sub-band filters & not cyclic prefix
● FBMC: Training sequence used for sync & channel estimation
● BFDM: IT exploits bi-orthogonality, a relaxed version of orthogonality
MODULATION SCHEME: BETTER THAN OFDM
© Rupendra Nath Mitra | January 2016 |
DRAWBACKS OF OFDM:
● HIGHLY SENSITIVE TOWARDS FREQ ASYNCHRONICITY
● HIGH PAPR
● OFDM’s APPLICABILITY WITH mmWAVE & REQUIRED
HARDWARE IS NOT CERTAIN
BODIES WORKING ON
● 5GNOW
● METIS
● EMPhAtiC

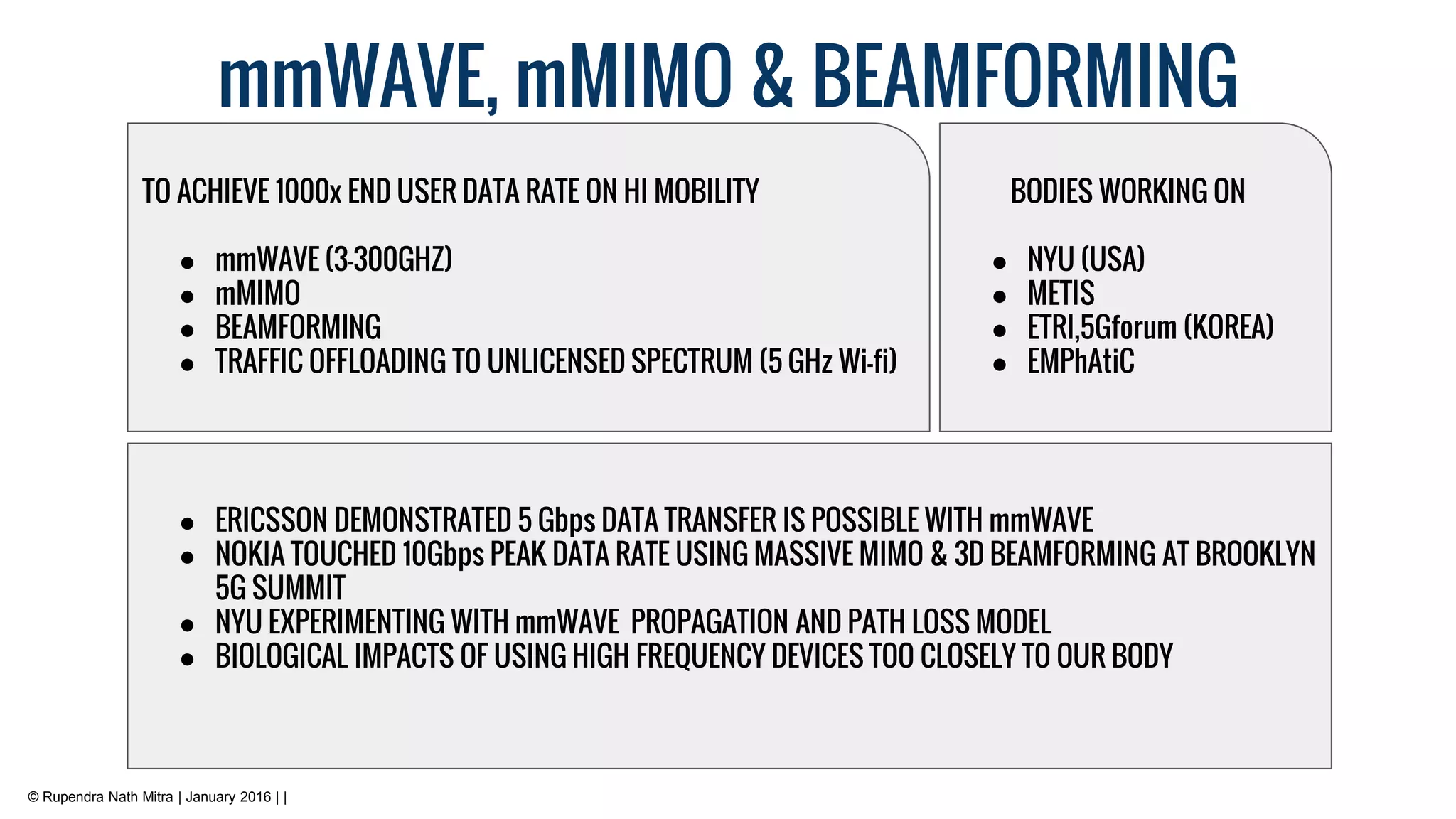

8. mmWAVE, mMIMO & BEAMFORMING
© Rupendra Nath Mitra | January 2016 | |
● ERICSSON DEMONSTRATED 5 Gbps DATA TRANSFER IS POSSIBLE WITH mmWAVE
● NOKIA TOUCHED 10Gbps PEAK DATA RATE USING MASSIVE MIMO & 3D BEAMFORMING AT BROOKLYN
5G SUMMIT
● NYU EXPERIMENTING WITH mmWAVE PROPAGATION AND PATH LOSS MODEL
● BIOLOGICAL IMPACTS OF USING HIGH FREQUENCY DEVICES TOO CLOSELY TO OUR BODY
TO ACHIEVE 1000x END USER DATA RATE ON HI MOBILITY
● mmWAVE (3-300GHZ)
● mMIMO
● BEAMFORMING
● TRAFFIC OFFLOADING TO UNLICENSED SPECTRUM (5 GHz Wi-fi)
BODIES WORKING ON
● NYU (USA)
● METIS
● ETRI,5Gforum (KOREA)
● EMPhAtiC

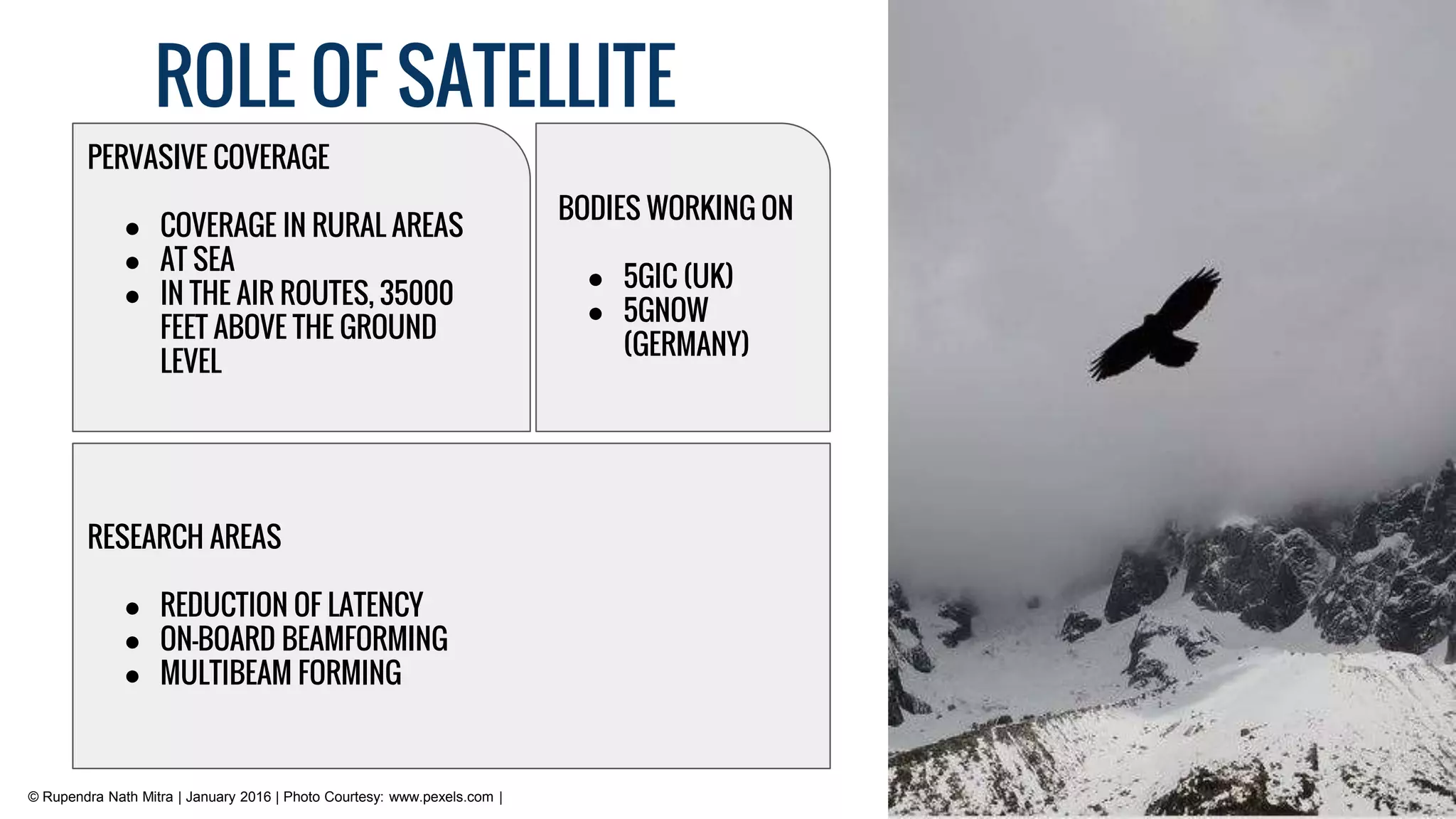

9. ROLE OF SATELLITE
RESEARCH AREAS
● REDUCTION OF LATENCY
● ON-BOARD BEAMFORMING
● MULTIBEAM FORMING
PERVASIVE COVERAGE
● COVERAGE IN RURAL AREAS
● AT SEA
● IN THE AIR ROUTES, 35000
FEET ABOVE THE GROUND
LEVEL
BODIES WORKING ON
● 5GIC (UK)
● 5GNOW
(GERMANY)
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |

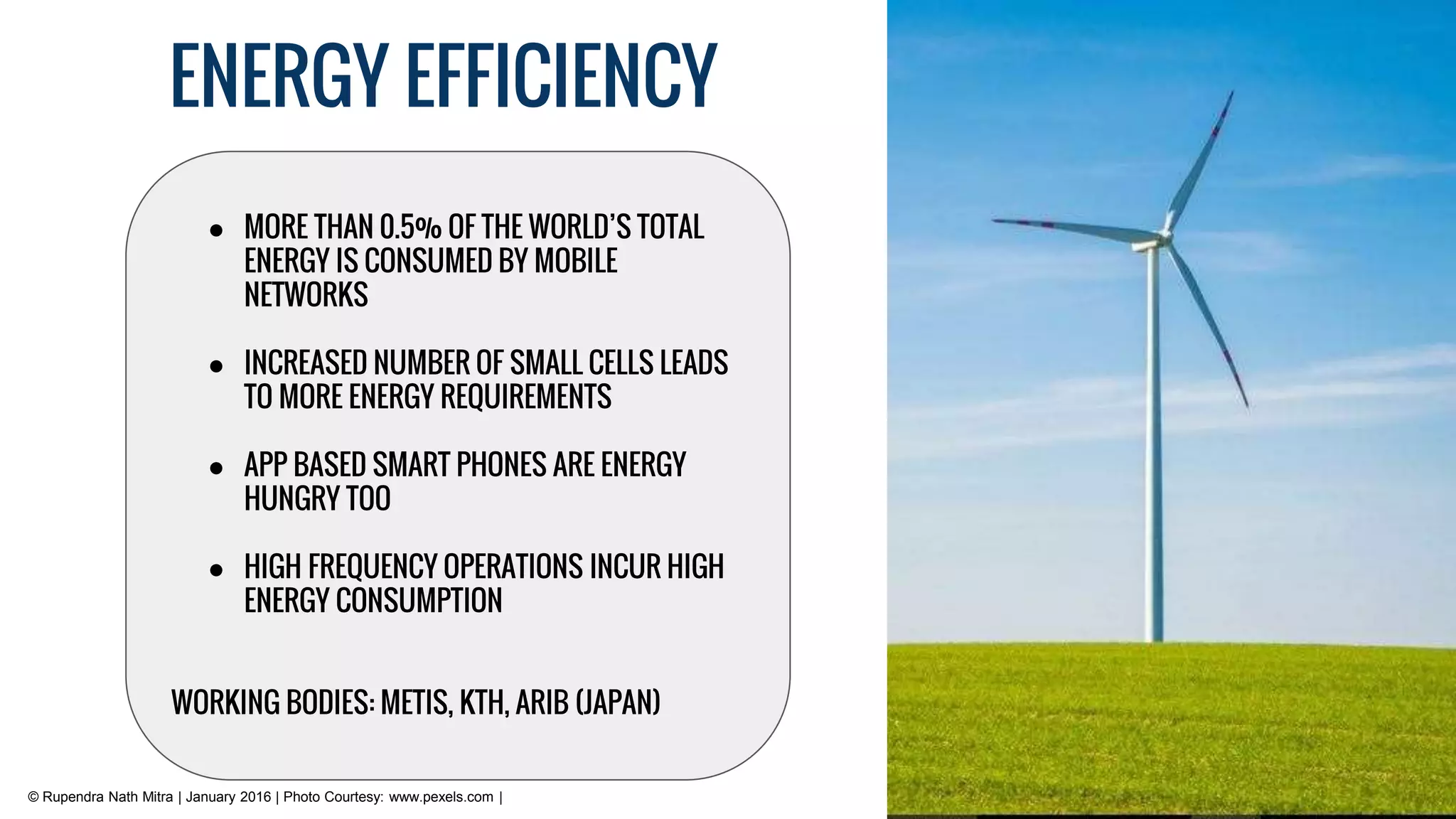

10. ENERGY EFFICIENCY
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |
● MORE THAN 0.5% OF THE WORLD’S TOTAL
ENERGY IS CONSUMED BY MOBILE
NETWORKS
● INCREASED NUMBER OF SMALL CELLS LEADS
TO MORE ENERGY REQUIREMENTS
● APP BASED SMART PHONES ARE ENERGY
HUNGRY TOO
● HIGH FREQUENCY OPERATIONS INCUR HIGH
ENERGY CONSUMPTION
WORKING BODIES: METIS, KTH, ARIB (JAPAN)

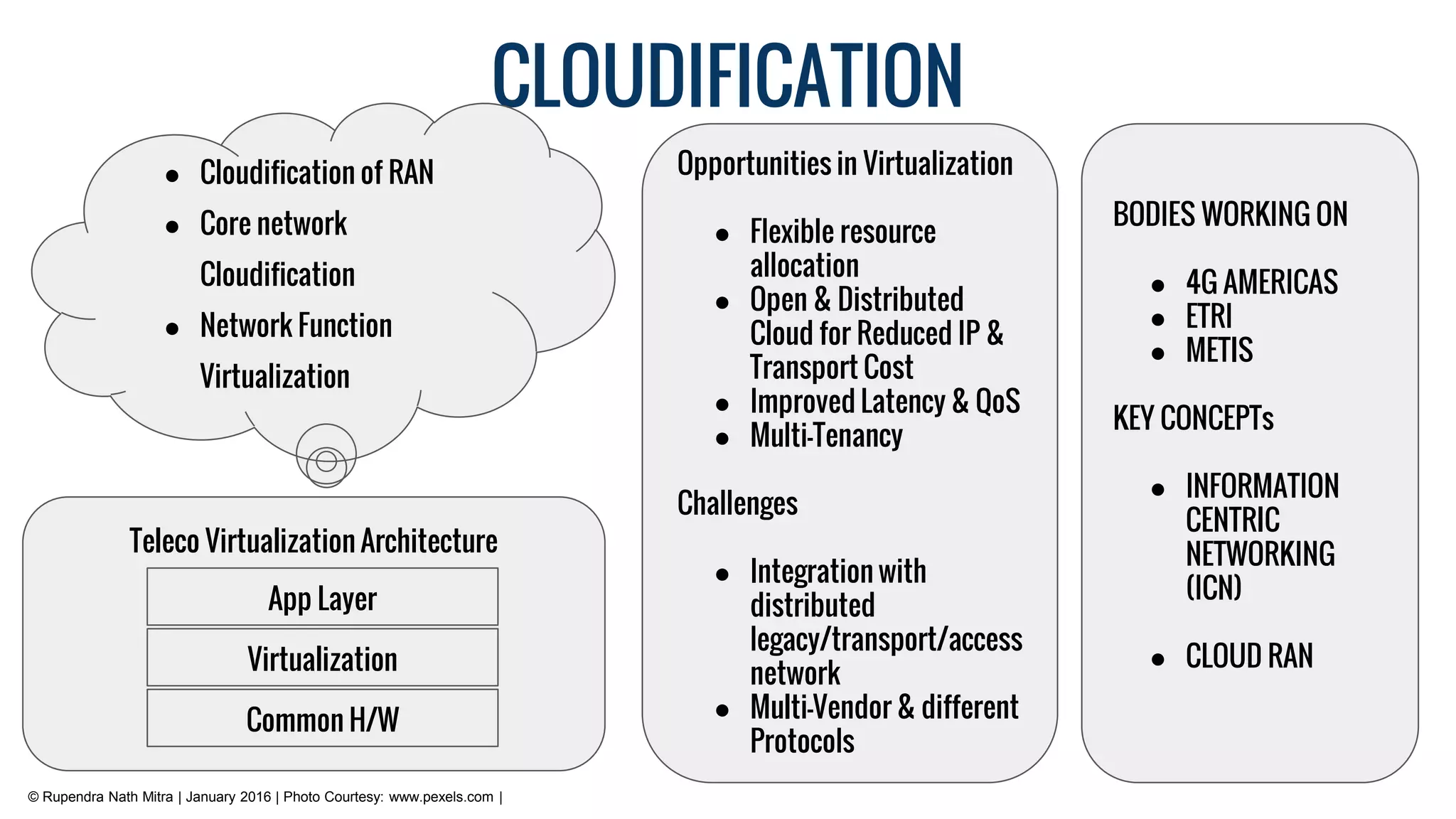

11. CLOUDIFICATION
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |
Opportunities in Virtualization
● Flexible resource
allocation
● Open & Distributed
Cloud for Reduced IP &
Transport Cost
● Improved Latency & QoS
● Multi-Tenancy
Challenges
● Integration with
distributed
legacy/transport/access
network
● Multi-Vendor & different
Protocols
Teleco Virtualization Architecture
App Layer
Virtualization
Common H/W
● Cloudification of RAN
● Core network
Cloudification
● Network Function
Virtualization
BODIES WORKING ON
● 4G AMERICAS
● ETRI
● METIS
KEY CONCEPTs
● INFORMATION
CENTRIC
NETWORKING
(ICN)
● CLOUD RAN

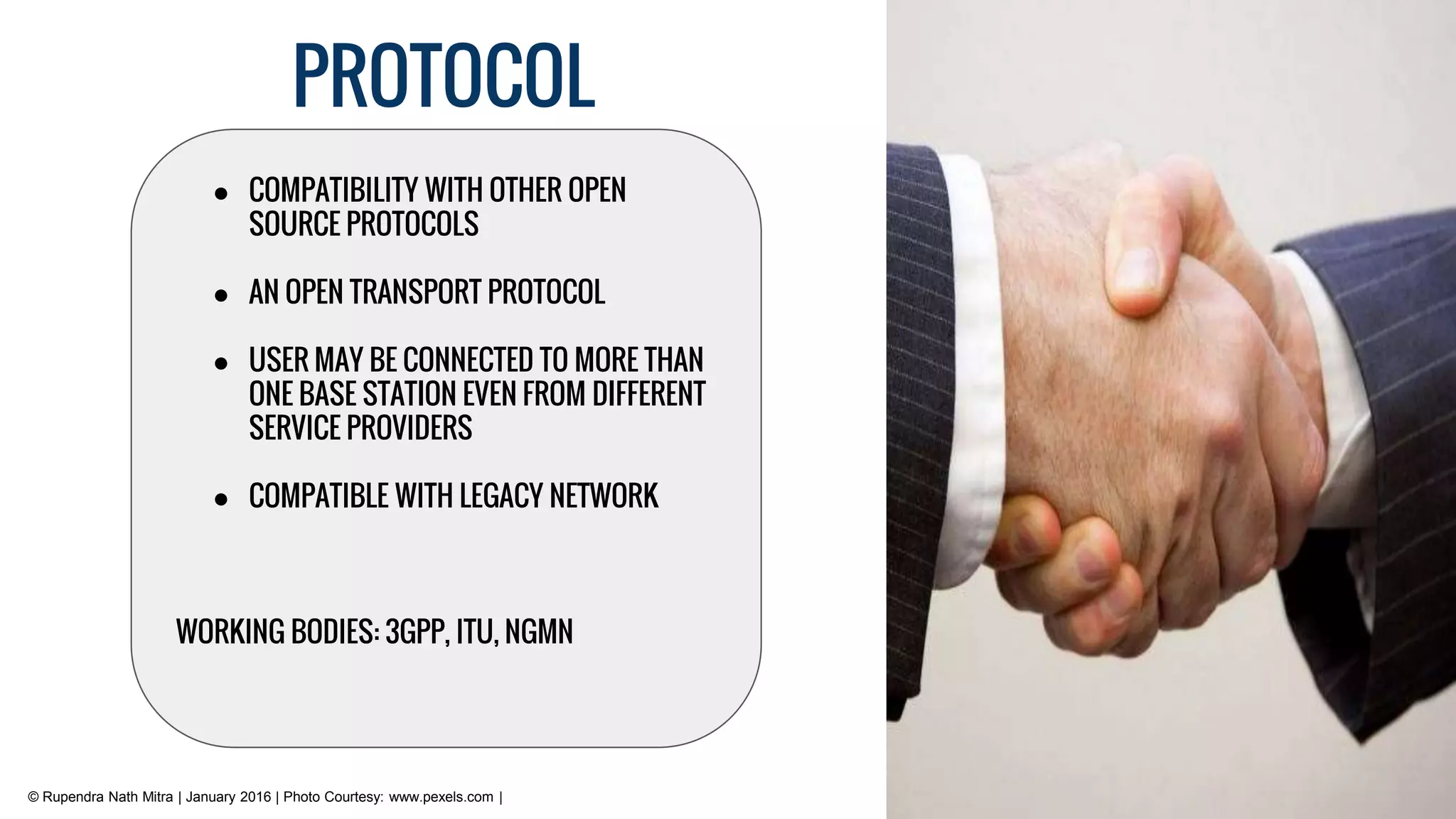

12. PROTOCOL
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |
● COMPATIBILITY WITH OTHER OPEN
SOURCE PROTOCOLS
● AN OPEN TRANSPORT PROTOCOL
● USER MAY BE CONNECTED TO MORE THAN
ONE BASE STATION EVEN FROM DIFFERENT
SERVICE PROVIDERS
● COMPATIBLE WITH LEGACY NETWORK
WORKING BODIES: 3GPP, ITU, NGMN

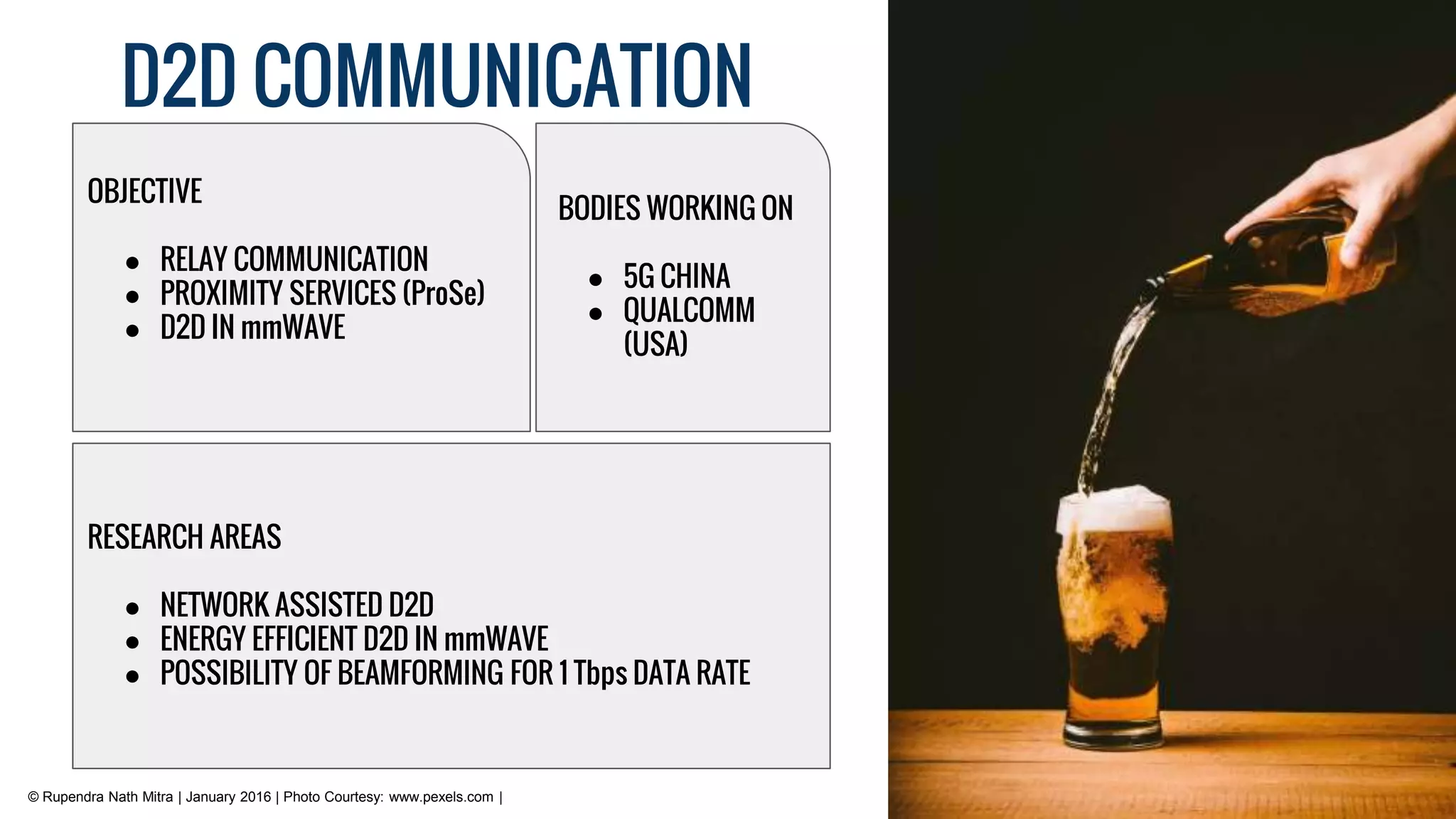

13. D2D COMMUNICATION
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |
RESEARCH AREAS
● NETWORK ASSISTED D2D
● ENERGY EFFICIENT D2D IN mmWAVE
● POSSIBILITY OF BEAMFORMING FOR 1 Tbps DATA RATE
OBJECTIVE
● RELAY COMMUNICATION
● PROXIMITY SERVICES (ProSe)
● D2D IN mmWAVE
BODIES WORKING ON
● 5G CHINA
● QUALCOMM
(USA)

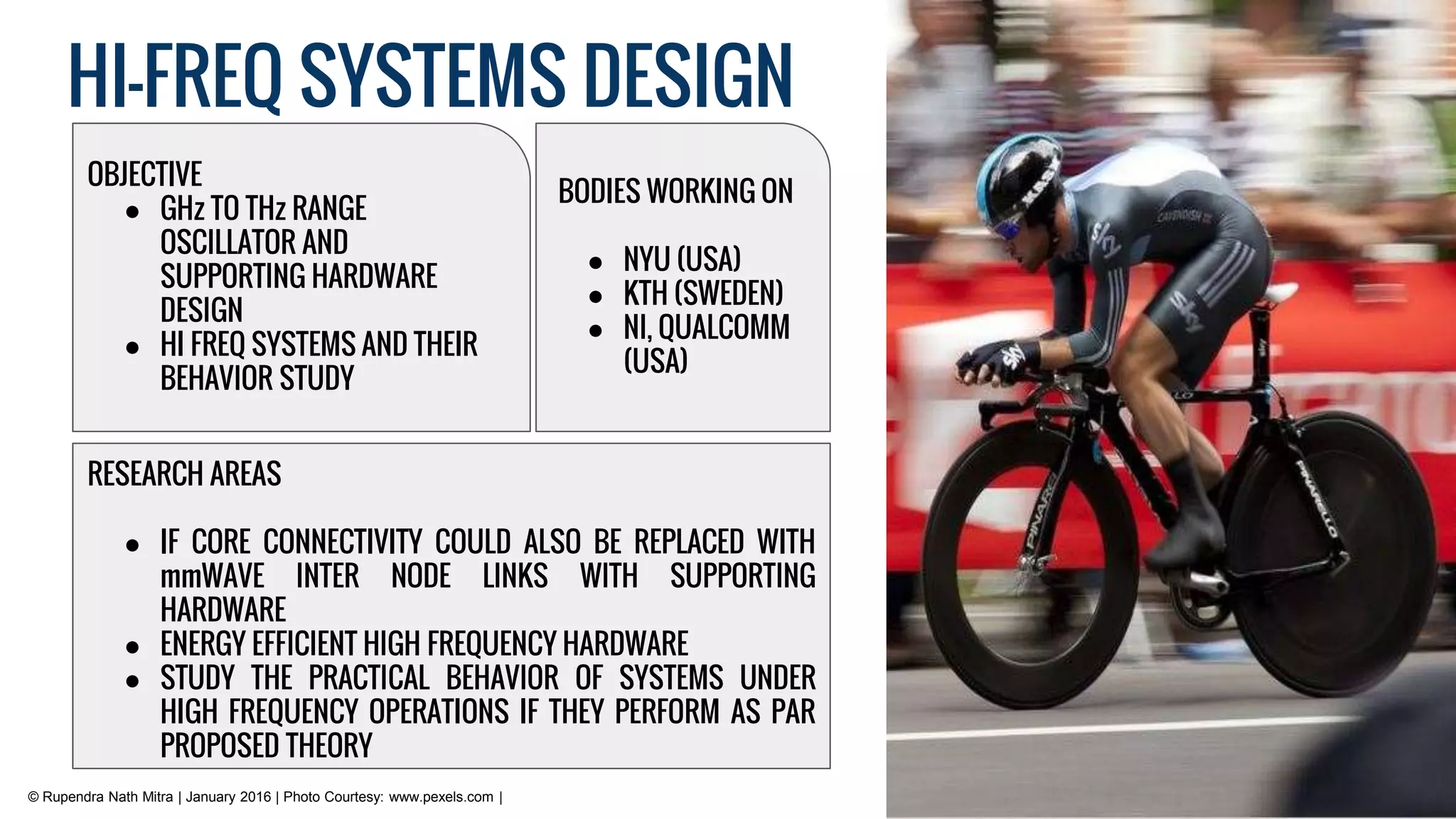

14. HI-FREQ SYSTEMS DESIGN
RESEARCH AREAS
● IF CORE CONNECTIVITY COULD ALSO BE REPLACED WITH
mmWAVE INTER NODE LINKS WITH SUPPORTING
HARDWARE
● ENERGY EFFICIENT HIGH FREQUENCY HARDWARE
● STUDY THE PRACTICAL BEHAVIOR OF SYSTEMS UNDER
HIGH FREQUENCY OPERATIONS IF THEY PERFORM AS PAR
PROPOSED THEORY
OBJECTIVE
● GHz TO THz RANGE
OSCILLATOR AND
SUPPORTING HARDWARE
DESIGN
● HI FREQ SYSTEMS AND THEIR
BEHAVIOR STUDY
BODIES WORKING ON
● NYU (USA)
● KTH (SWEDEN)
● NI, QUALCOMM
(USA)
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |

15. © Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |
SYNOPSIS
● VISION OF 5G: A Networked Society 2020
● KEY MOTIVATIONS: > 10Gbps speed & Low latency
● TECHNICAL SPECS:
○ mmWAVE Carrier (3-300 GHz)
○ Beamforming
○ mMIMO
○ Hi speed D2D data transfer
○ Cloud Based Services
○ Energy Efficient Hi-Freq. Systems

16. BY
RUPEN MITRA
© Rupendra Nath Mitra | January 2016 | Photo Courtesy: www.pexels.com |
