© 3GPP 2012
© 3GPP 2019 1
5G Standards:
3GPP Release 15, 16, and beyond
Sasha Sirotkin – Vice Chairman of 3GPP RAN3
© 3GPP 2012
© 3GPP 2019 2
Agenda
3GPP - home of cellular standards
5G vision - 5G NR
Release 15 - the advent of 5G
Release 16 - towards the full 5G vision
IMT-2020 submission
Release 17 - outlook
© 3GPP 2012
© 3GPP 2019 3
3GPP -
home of cellular standards
© 3GPP 2012
© 3GPP 2019 4

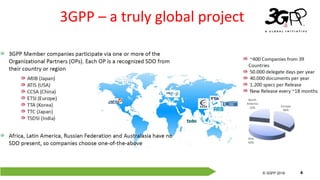

3GPP – a truly global project
© 3GPP 2012
© 3GPP 2019 5
3GPP structure
Project Co-ordination Group (PCG)
TSG RAN
Radio Access Network
TSG SA
Service & Systems Aspects
TSG CT
Core Network & Terminals
RAN WG1
Radio Layer 1 spec
SA WG1
Services CT WG1
MM/CC/SM (lu)
RAN WG2
Radio Layer 2 spec
Radio Layer 3 RR spec
SA WG2
Architecture
CT WG3
Interworking with external networks
RAN WG3
lub spec, lur spec, lu spec
UTRAN O&M requirements
SA WG3
Security
CT WG4
MAP/GTP/BCH/SS
RAN WG4
Radio Performance
Protocol aspects
SA WG4
Codec
CT WG6
Smart Card Application Aspects
RAN WG5
Mobile Terminal
Conformance Testing
SA WG5
Telecom Management
RAN WG6
Legacy RAN radio and protocol
SA WG6
Mission-critical applications
© 3GPP 2012
© 3GPP 2019 6
5G vision → 5G NR
© 3GPP 2012
© 3GPP 2019 7

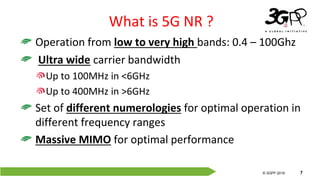

What is 5G NR ?
Operation from low to very high bands: 0.4 – 100Ghz
Ultra wide carrier bandwidth
Up to 100MHz in <6GHz
Up to 400MHz in >6GHz
Set of different numerologies for optimal operation in
different frequency ranges
Massive MIMO for optimal performance
© 3GPP 2012
© 3GPP 2019 8
What is 5G NR ?
Native forward compatibility mechanisms
Advanced channel coding
LDPC for data channel, Polar coding for control channel
Native support for Low Latency and Ultra Reliability
Flexible and modular RAN architecture: split fronthaul,
split control- and user-plane
Native end-to-end support for Network Slicing
Designed for Virtualization
© 3GPP 2012
© 3GPP 2019 9
Release 15 – the advent of 5G
© 3GPP 2012
© 3GPP 2019 10

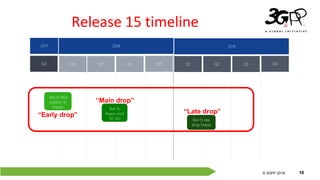

Release 15 timeline
Q2 Q3 Q4
2019
Q2 Q3 Q4Q1
Rel-15
freeze (incl
5G SA) Rel-15 late
drop freeze
2018
Q1
2017
Q4
Rel-15 NSA
(option-3)
freeze
“Early drop”
“Main drop”
“Late drop”
© 3GPP 2012
© 3GPP 2018 11

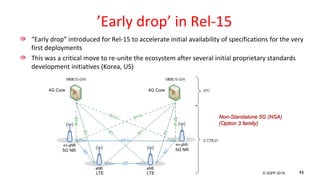

’Early drop’ in Rel-15
“Early drop” introduced for Rel-15 to accelerate initial availability of specifications for the very
first deployments
This was a critical move to re-unite the ecosystem after several initial proprietary standards
development initiatives (Korea, US)
Non-Standalone 5G (NSA)
(Option 3 family)
4G Core 4G Core
5G NR 5G NR
LTELTE
© 3GPP 2012
© 3GPP 2018 12

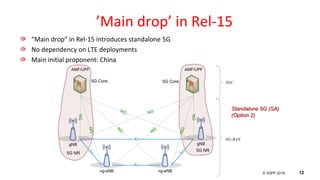

’Main drop’ in Rel-15
“Main drop” in Rel-15 introduces standalone 5G
No dependency on LTE deployments
Main initial proponent: China
Standalone 5G (SA)
(Option 2)
gNB
ng-eNB
NG
NG
NG
Xn
NG-RAN
5GC
AMF/UPF
gNB
ng-eNB
NG
NG
NGXn
AMF/UPF
Xn
Xn
NG NG
5G Core 5G Core
5G NR
5G NR
© 3GPP 2012
© 3GPP 2018 13

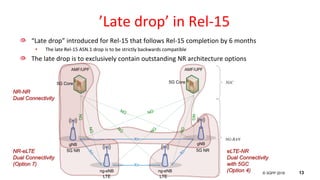

’Late drop’ in Rel-15
“Late drop” introduced for Rel-15 that follows Rel-15 completion by 6 months
• The late Rel-15 ASN.1 drop is to be strictly backwards compatible
The late drop is to exclusively contain outstanding NR architecture options
gNB
ng-eNB
NG
NG
NG
Xn
NG-RAN
5GC
AMF/UPF
gNB
ng-eNB
NG
NG
NGXn
AMF/UPF
Xn
Xn
NG NG
NR-NR
Dual Connectivity
NR-eLTE
Dual Connectivity
(Option 7)
eLTE-NR
Dual Connectivity
with 5GC
(Option 4)
5G Core 5G Core
5G NR 5G NR
LTELTE
© 3GPP 2012
© 3GPP 2019 14
Release 16 -
towards the full 5G vision
© 3GPP 2012
© 3GPP 2019 15

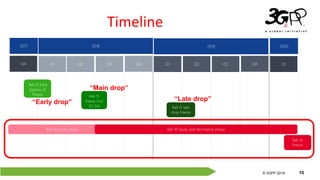

Timeline
Rel-16 Study phase
Q2 Q3 Q4
2019
Q2 Q3 Q4Q1
2020
Q1
Rel-16 Study and Normative phase
Rel-16
freeze
Rel-15
freeze (incl
5G SA) Rel-15 late
drop freeze
2018
Q1
2017
Q4
Rel-15 NSA
(option-3)
freeze
“Early drop”
“Main drop”
“Late drop”
© 3GPP 2012
© 3GPP 2019 16

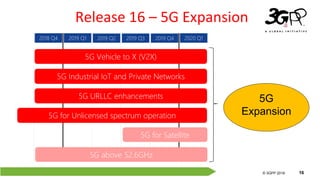

2018 Q4 2019 Q1 2019 Q3 2019 Q4 2020 Q12019 Q2
5G Vehicle to X (V2X)
5G URLLC enhancements
5G for Unlicensed spectrum operation
5G for Satellite
Release 16 – 5G Expansion
5G
Expansion
5G Industrial IoT and Private Networks
5G above 52.6GHz
© 3GPP 2012
© 3GPP 2019 17

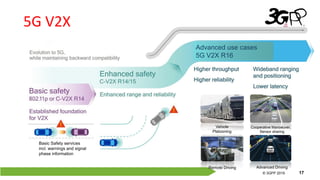

5G V2X
Vehicle
Platooning
Cooperative Manoeuver,
Sensor sharing
Remote Driving Advanced Driving
Basic Safety services
incl. warnings and signal
phase information
Advanced use cases
5G V2X R16
© 3GPP 2012
© 3GPP 2019 18
Industrial IoT and URLLC
Focus on both commercial and industry use
AR/VR, Factory automation, Transport Industry (incl Automotive),
Electrical Power Distribution
Time Sensitive Networking (TSN)
Accurate reference timing, wireless Ethernet, etc…
Reliability and latency enhancements
Intra-UE prioritization and multiplexing
© 3GPP 2012
© 3GPP 2019 19

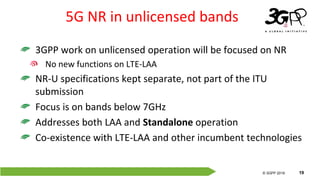

5G NR in unlicensed bands
3GPP work on unlicensed operation will be focused on NR
No new functions on LTE-LAA
NR-U specifications kept separate, not part of the ITU
submission
Focus is on bands below 7GHz
Addresses both LAA and Standalone operation
Co-existence with LTE-LAA and other incumbent technologies
© 3GPP 2012
© 3GPP 2019 20
2018 Q4 2019 Q1 2019 Q3 2019 Q4 2020 Q12019 Q2
5G MIMO enhancements
5G Location and positioning

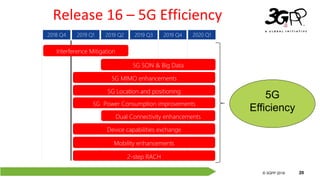

Release 16 – 5G Efficiency
2-step RACH
5G Power Consumption improvements
Interference Mitigation
Dual Connectivity enhancements
5G
Efficiency
5G SON & Big Data
Device capabilities exchange
Mobility enhancements
© 3GPP 2012
© 3GPP 2019 21

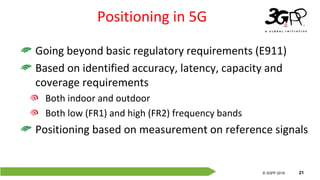

Positioning in 5G
Going beyond basic regulatory requirements (E911)
Based on identified accuracy, latency, capacity and
coverage requirements
Both indoor and outdoor
Both low (FR1) and high (FR2) frequency bands
Positioning based on measurement on reference signals
© 3GPP 2012
© 3GPP 2019 22

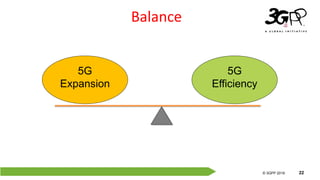

Balance
5G
Efficiency
5G
Expansion
© 3GPP 2012
© 3GPP 2019 23
IMT-2020 submission
© 3GPP 2012
© 3GPP 2019 24

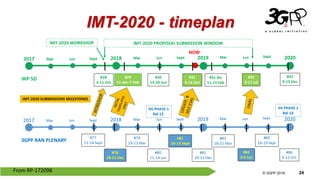

IMT-2020 - timeplan
From RP-172098
NOW
© 3GPP 2012
© 3GPP 2019 25

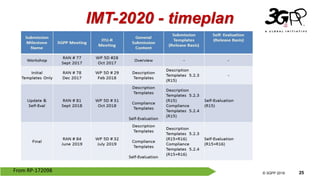

IMT-2020 - timeplan
From RP-172098
© 3GPP 2012
© 3GPP 2019 26

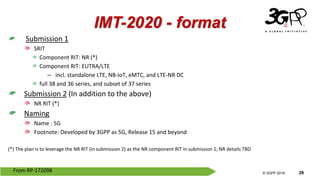

IMT-2020 - format
Submission 1
SRIT
Component RIT: NR (*)
Component RIT: EUTRA/LTE
– incl. standalone LTE, NB-IoT, eMTC, and LTE-NR DC
full 38 and 36 series, and subset of 37 series
Submission 2 (In addition to the above)
NR RIT (*)
Naming
Name : 5G
Footnote: Developed by 3GPP as 5G, Release 15 and beyond
(*) The plan is to leverage the NR RIT (in submission 2) as the NR component RIT in submission 1; NR details TBD
From RP-172098
© 3GPP 2012
© 3GPP 2019 27
Release 17 - outlook
© 3GPP 2012
© 3GPP 2019 28

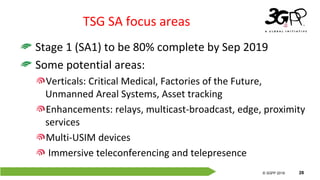

TSG SA focus areas
Stage 1 (SA1) to be 80% complete by Sep 2019
Some potential areas:
Verticals: Critical Medical, Factories of the Future,
Unmanned Areal Systems, Asset tracking
Enhancements: relays, multicast-broadcast, edge, proximity
services
Multi-USIM devices
Immersive teleconferencing and telepresence
© 3GPP 2012
© 3GPP 2019 29
TSG RAN focus areas
RAN Release-17 scope has not been agreed yet
Potential areas:
NR evolution
NR-lite
Beyond 52.6 GHz
Enhancements for: IoT, MIMO, NR-U, sidelink, coverage, DC and CA
New features
Non-terrestrial networks (NTN)
Integrated Access and Backhaul (IAB)
© 3GPP 2012
© 3GPP 2019 30
Sasha Sirotkin
Vice Chairman of 3GPP RAN3
Sasha.Sirotkin@intel.com
+972 50 7288473
Thank you!

More Related Content

What's hot

5G NR: Key features and enhancements
5G NR: Key features and enhancements5G NR: Key features and enhancements
5G NR: Key features and enhancements3G4G

Nokia 5G Workshop Taiwan Oct 2016
Nokia 5G Workshop Taiwan Oct 2016Nokia 5G Workshop Taiwan Oct 2016
Nokia 5G Workshop Taiwan Oct 2016Eiko Seidel

Opinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G SpeedsOpinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G Speeds3G4G

【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...Ryuichi Yasunaga

Lte system signaling procedures
Lte system signaling proceduresLte system signaling procedures
Lte system signaling procedurestharinduwije

Best practices-lte-call-flow-guide
Best practices-lte-call-flow-guideBest practices-lte-call-flow-guide
Best practices-lte-call-flow-guideMorg

5 g ran architcture
5 g ran architcture5 g ran architcture
5 g ran architctureHemraj Kumar

5g architecture, Industrial Training
5g architecture, Industrial Training5g architecture, Industrial Training
5g architecture, Industrial TrainingSumanPramanik7

Intermediate: 5G Network Architecture Options (Updated)
Intermediate: 5G Network Architecture Options (Updated)Intermediate: 5G Network Architecture Options (Updated)
Intermediate: 5G Network Architecture Options (Updated)3G4G

5G RAN fundamentals
5G RAN fundamentals5G RAN fundamentals
5G RAN fundamentalsRavi Sharma

5G massive mimo & planning.pdf
5G massive mimo & planning.pdf5G massive mimo & planning.pdf
5G massive mimo & planning.pdfbagusmardani1

5G physical layer
5G physical layer 5G physical layer
5G physical layer Ali Nikfal

Ericsson 5G learning portfolio 2018
Ericsson 5G learning portfolio 2018Ericsson 5G learning portfolio 2018
Ericsson 5G learning portfolio 2018Ericsson

Physical layer of 5 g
Physical layer of 5 gPhysical layer of 5 g
Physical layer of 5 gPeriyanayagiS

NSA Mobility Managment.pptx
NSA Mobility Managment.pptxNSA Mobility Managment.pptx
NSA Mobility Managment.pptxErayUyanik

Beginners: Introduction to 5G Reduced Capability (RedCap) Devices
Beginners: Introduction to 5G Reduced Capability (RedCap) DevicesBeginners: Introduction to 5G Reduced Capability (RedCap) Devices
Beginners: Introduction to 5G Reduced Capability (RedCap) Devices3G4G

Beginners: 5G Spectrum - Long Version
Beginners: 5G Spectrum - Long VersionBeginners: 5G Spectrum - Long Version
Beginners: 5G Spectrum - Long Version3G4G


What's hot (20)

5G NR: Key features and enhancements
5G NR: Key features and enhancements5G NR: Key features and enhancements
5G NR: Key features and enhancements

Nokia 5G Workshop Taiwan Oct 2016
Nokia 5G Workshop Taiwan Oct 2016Nokia 5G Workshop Taiwan Oct 2016
Nokia 5G Workshop Taiwan Oct 2016

Opinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G SpeedsOpinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G Speeds

【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...
【English version】3GPP 5G Standalone Access Registration Call flow_Rev3.00_202...

What is 5G?
What is 5G?What is 5G?
What is 5G?

5gc call flow
5gc call flow5gc call flow
5gc call flow

Lte system signaling procedures
Lte system signaling proceduresLte system signaling procedures
Lte system signaling procedures

Best practices-lte-call-flow-guide
Best practices-lte-call-flow-guideBest practices-lte-call-flow-guide
Best practices-lte-call-flow-guide

5 g ran architcture
5 g ran architcture5 g ran architcture
5 g ran architcture

5g architecture, Industrial Training
5g architecture, Industrial Training5g architecture, Industrial Training
5g architecture, Industrial Training

Intermediate: 5G Network Architecture Options (Updated)
Intermediate: 5G Network Architecture Options (Updated)Intermediate: 5G Network Architecture Options (Updated)
Intermediate: 5G Network Architecture Options (Updated)

5G RAN fundamentals
5G RAN fundamentals5G RAN fundamentals
5G RAN fundamentals

5G massive mimo & planning.pdf
5G massive mimo & planning.pdf5G massive mimo & planning.pdf
5G massive mimo & planning.pdf

5G physical layer
5G physical layer 5G physical layer
5G physical layer

5 g core overview
5 g core overview5 g core overview
5 g core overview

Ericsson 5G learning portfolio 2018
Ericsson 5G learning portfolio 2018Ericsson 5G learning portfolio 2018
Ericsson 5G learning portfolio 2018

Physical layer of 5 g
Physical layer of 5 gPhysical layer of 5 g
Physical layer of 5 g

NSA Mobility Managment.pptx
NSA Mobility Managment.pptxNSA Mobility Managment.pptx
NSA Mobility Managment.pptx

Beginners: Introduction to 5G Reduced Capability (RedCap) Devices
Beginners: Introduction to 5G Reduced Capability (RedCap) DevicesBeginners: Introduction to 5G Reduced Capability (RedCap) Devices
Beginners: Introduction to 5G Reduced Capability (RedCap) Devices

Beginners: 5G Spectrum - Long Version
Beginners: 5G Spectrum - Long VersionBeginners: 5G Spectrum - Long Version
Beginners: 5G Spectrum - Long Version


Similar to 5G Standards: 3GPP Release 15, 16, and beyond

3GPP Webinar: 5G Standardization update
3GPP Webinar: 5G Standardization update3GPP Webinar: 5G Standardization update
3GPP Webinar: 5G Standardization update3G4G

Update on progress: SA#87 e meeting
Update on progress: SA#87 e meetingUpdate on progress: SA#87 e meeting
Update on progress: SA#87 e meeting3G4G

3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...
3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...
3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...Eiko Seidel

Beginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPPBeginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPP3G4G

3GPP RAN progress on “5G”
3GPP RAN progress on “5G”3GPP RAN progress on “5G”
3GPP RAN progress on “5G”Nitin Gupta

2018-04-17_GA-booth__3gppNR_compressed.ppt
2018-04-17_GA-booth__3gppNR_compressed.ppt2018-04-17_GA-booth__3gppNR_compressed.ppt
2018-04-17_GA-booth__3gppNR_compressed.pptssuser38e5dc1

SCF Partners' Day: Standards and Interoperability
SCF Partners' Day: Standards and InteroperabilitySCF Partners' Day: Standards and Interoperability
SCF Partners' Day: Standards and InteroperabilitySmall Cell Forum

Keynote Address: Critical communications standards supporting a multi-vendor ...
Keynote Address: Critical communications standards supporting a multi-vendor ...Keynote Address: Critical communications standards supporting a multi-vendor ...
Keynote Address: Critical communications standards supporting a multi-vendor ...3G4G

Part 7: 3GPP Roadmap - 5G for Absolute Beginners
Part 7: 3GPP Roadmap - 5G for Absolute BeginnersPart 7: 3GPP Roadmap - 5G for Absolute Beginners
Part 7: 3GPP Roadmap - 5G for Absolute Beginners3G4G

Update on progress made at CT#87-e meeting
Update on progress made at CT#87-e meetingUpdate on progress made at CT#87-e meeting
Update on progress made at CT#87-e meeting3G4G

Td Scdma Evolution
Td Scdma EvolutionTd Scdma Evolution
Td Scdma Evolutionyanyuelong

Soldani the path_to_5_g_vtc_spring_2017_final
Soldani the path_to_5_g_vtc_spring_2017_finalSoldani the path_to_5_g_vtc_spring_2017_final
Soldani the path_to_5_g_vtc_spring_2017_finalDr. David Soldani

Summary from 3GPP RAN #86
Summary from 3GPP RAN #86Summary from 3GPP RAN #86
Summary from 3GPP RAN #863G4G

Opinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: SpeedsOpinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: Speeds3G4G

Nb iot (naik hetvi)
Nb iot (naik hetvi)Nb iot (naik hetvi)
Nb iot (naik hetvi)hetvi naik

Samir's whitepaper5g
Samir's whitepaper5gSamir's whitepaper5g
Samir's whitepaper5gSamir Mohanty

5G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 20165G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 2016Daniel Sproats

5G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 2016 5G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 2016 ADVA

Experience of IPv6 Introduction in Japan
Experience of IPv6 Introduction in JapanExperience of IPv6 Introduction in Japan
Experience of IPv6 Introduction in JapanKoji Yasukagawa


Similar to 5G Standards: 3GPP Release 15, 16, and beyond (20)

3GPP Webinar: 5G Standardization update
3GPP Webinar: 5G Standardization update3GPP Webinar: 5G Standardization update
3GPP Webinar: 5G Standardization update

Update on progress: SA#87 e meeting
Update on progress: SA#87 e meetingUpdate on progress: SA#87 e meeting
Update on progress: SA#87 e meeting

3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...
3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...
3GPP Activity towards IMT-2020, G. Romano, TIM, Workshop on IMT-2020 Munich o...

Beginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPPBeginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPP

3GPP RAN progress on “5G”
3GPP RAN progress on “5G”3GPP RAN progress on “5G”
3GPP RAN progress on “5G”

2018-04-17_GA-booth__3gppNR_compressed.ppt
2018-04-17_GA-booth__3gppNR_compressed.ppt2018-04-17_GA-booth__3gppNR_compressed.ppt
2018-04-17_GA-booth__3gppNR_compressed.ppt

SCF Partners' Day: Standards and Interoperability
SCF Partners' Day: Standards and InteroperabilitySCF Partners' Day: Standards and Interoperability
SCF Partners' Day: Standards and Interoperability

Keynote Address: Critical communications standards supporting a multi-vendor ...
Keynote Address: Critical communications standards supporting a multi-vendor ...Keynote Address: Critical communications standards supporting a multi-vendor ...
Keynote Address: Critical communications standards supporting a multi-vendor ...

Part 7: 3GPP Roadmap - 5G for Absolute Beginners
Part 7: 3GPP Roadmap - 5G for Absolute BeginnersPart 7: 3GPP Roadmap - 5G for Absolute Beginners
Part 7: 3GPP Roadmap - 5G for Absolute Beginners

Update on progress made at CT#87-e meeting
Update on progress made at CT#87-e meetingUpdate on progress made at CT#87-e meeting
Update on progress made at CT#87-e meeting

Td Scdma Evolution
Td Scdma EvolutionTd Scdma Evolution
Td Scdma Evolution

Soldani the path_to_5_g_vtc_spring_2017_final
Soldani the path_to_5_g_vtc_spring_2017_finalSoldani the path_to_5_g_vtc_spring_2017_final
Soldani the path_to_5_g_vtc_spring_2017_final

5G vision
5G vision5G vision
5G vision

Summary from 3GPP RAN #86
Summary from 3GPP RAN #86Summary from 3GPP RAN #86
Summary from 3GPP RAN #86

Opinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: SpeedsOpinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: Speeds

Nb iot (naik hetvi)
Nb iot (naik hetvi)Nb iot (naik hetvi)
Nb iot (naik hetvi)

Samir's whitepaper5g
Samir's whitepaper5gSamir's whitepaper5g
Samir's whitepaper5g

5G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 20165G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 2016

5G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 2016 5G: Why Wait? - 5G Observatory 2016
5G: Why Wait? - 5G Observatory 2016

Experience of IPv6 Introduction in Japan
Experience of IPv6 Introduction in JapanExperience of IPv6 Introduction in Japan
Experience of IPv6 Introduction in Japan


More from 3G4G

TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...3G4G

Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?3G4G

TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…3G4G

TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…3G4G

Misc: Mobile Technology and Healthcare
Misc: Mobile Technology and HealthcareMisc: Mobile Technology and Healthcare
Misc: Mobile Technology and Healthcare3G4G

Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??3G4G

Technology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdfTechnology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdf3G4G

6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies3G4G

3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3G4G

3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3G4G

3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3G4G

3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3G4G

3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3G4G

3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3G4G

3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3G4G

3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3G4G

3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3G4G

Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving SchemesBeginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes3G4G

Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...3G4G

Beginners: Connecting Underground Railway Network
Beginners: Connecting Underground Railway NetworkBeginners: Connecting Underground Railway Network
Beginners: Connecting Underground Railway Network3G4G


More from 3G4G (20)

TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...

Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?

TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…

TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…

Misc: Mobile Technology and Healthcare
Misc: Mobile Technology and HealthcareMisc: Mobile Technology and Healthcare
Misc: Mobile Technology and Healthcare

Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??

Technology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdfTechnology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdf

6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies

3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)

3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)

3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)

3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)

3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)

3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing

3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization

3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)

3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization

Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving SchemesBeginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes

Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...
Beginners: Different Types of RAN Architectures - Distributed, Centralized & ...

Beginners: Connecting Underground Railway Network
Beginners: Connecting Underground Railway NetworkBeginners: Connecting Underground Railway Network
Beginners: Connecting Underground Railway Network


Recently uploaded

Advanced Test Driven-Development @ php[tek] 2024
Advanced Test Driven-Development @ php[tek] 2024Advanced Test Driven-Development @ php[tek] 2024
Advanced Test Driven-Development @ php[tek] 2024Scott Keck-Warren

Beyond Boundaries: Leveraging No-Code Solutions for Industry Innovation
Beyond Boundaries: Leveraging No-Code Solutions for Industry InnovationBeyond Boundaries: Leveraging No-Code Solutions for Industry Innovation
Beyond Boundaries: Leveraging No-Code Solutions for Industry InnovationSafe Software

Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your BudgetHyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your BudgetEnjoy Anytime

Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 365
Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 365Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 365
Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 3652toLead Limited

Integration and Automation in Practice: CI/CD in Mule Integration and Automat...
Integration and Automation in Practice: CI/CD in Mule Integration and Automat...Integration and Automation in Practice: CI/CD in Mule Integration and Automat...
Integration and Automation in Practice: CI/CD in Mule Integration and Automat...Patryk Bandurski

Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Swan(sea) Song – personal research during my six years at Swansea ... and bey...Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Swan(sea) Song – personal research during my six years at Swansea ... and bey...Alan Dix

SQL Database Design For Developers at php[tek] 2024
SQL Database Design For Developers at php[tek] 2024SQL Database Design For Developers at php[tek] 2024
SQL Database Design For Developers at php[tek] 2024Scott Keck-Warren

Slack Application Development 101 Slides
Slack Application Development 101 SlidesSlack Application Development 101 Slides
Slack Application Development 101 Slidespraypatel2

Snow Chain-Integrated Tire for a Safe Drive on Winter Roads
Snow Chain-Integrated Tire for a Safe Drive on Winter RoadsSnow Chain-Integrated Tire for a Safe Drive on Winter Roads
Snow Chain-Integrated Tire for a Safe Drive on Winter RoadsHyundai Motor Group

SIEMENS: RAPUNZEL – A Tale About Knowledge Graph
SIEMENS: RAPUNZEL – A Tale About Knowledge GraphSIEMENS: RAPUNZEL – A Tale About Knowledge Graph
SIEMENS: RAPUNZEL – A Tale About Knowledge GraphNeo4j

CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):comworks

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsMark Billinghurst

Next-generation AAM aircraft unveiled by Supernal, S-A2
Next-generation AAM aircraft unveiled by Supernal, S-A2Next-generation AAM aircraft unveiled by Supernal, S-A2
Next-generation AAM aircraft unveiled by Supernal, S-A2Hyundai Motor Group

Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...Neo4j

Install Stable Diffusion in windows machine
Install Stable Diffusion in windows machineInstall Stable Diffusion in windows machine
Install Stable Diffusion in windows machinePadma Pradeep

Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...HostedbyConfluent

Pigging Solutions Piggable Sweeping Elbows
Pigging Solutions Piggable Sweeping ElbowsPigging Solutions Piggable Sweeping Elbows
Pigging Solutions Piggable Sweeping ElbowsPigging Solutions

08448380779 Call Girls In Friends Colony Women Seeking Men
08448380779 Call Girls In Friends Colony Women Seeking Men08448380779 Call Girls In Friends Colony Women Seeking Men
08448380779 Call Girls In Friends Colony Women Seeking MenDelhi Call girls

Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptxMaking_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptxnull - The Open Security Community


Recently uploaded (20)

Advanced Test Driven-Development @ php[tek] 2024
Advanced Test Driven-Development @ php[tek] 2024Advanced Test Driven-Development @ php[tek] 2024
Advanced Test Driven-Development @ php[tek] 2024

Beyond Boundaries: Leveraging No-Code Solutions for Industry Innovation
Beyond Boundaries: Leveraging No-Code Solutions for Industry InnovationBeyond Boundaries: Leveraging No-Code Solutions for Industry Innovation
Beyond Boundaries: Leveraging No-Code Solutions for Industry Innovation

Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your BudgetHyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget

Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 365
Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 365Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 365
Tech-Forward - Achieving Business Readiness For Copilot in Microsoft 365

Integration and Automation in Practice: CI/CD in Mule Integration and Automat...
Integration and Automation in Practice: CI/CD in Mule Integration and Automat...Integration and Automation in Practice: CI/CD in Mule Integration and Automat...
Integration and Automation in Practice: CI/CD in Mule Integration and Automat...

Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Swan(sea) Song – personal research during my six years at Swansea ... and bey...Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Swan(sea) Song – personal research during my six years at Swansea ... and bey...

SQL Database Design For Developers at php[tek] 2024
SQL Database Design For Developers at php[tek] 2024SQL Database Design For Developers at php[tek] 2024
SQL Database Design For Developers at php[tek] 2024

Slack Application Development 101 Slides
Slack Application Development 101 SlidesSlack Application Development 101 Slides
Slack Application Development 101 Slides

Snow Chain-Integrated Tire for a Safe Drive on Winter Roads
Snow Chain-Integrated Tire for a Safe Drive on Winter RoadsSnow Chain-Integrated Tire for a Safe Drive on Winter Roads
Snow Chain-Integrated Tire for a Safe Drive on Winter Roads

SIEMENS: RAPUNZEL – A Tale About Knowledge Graph
SIEMENS: RAPUNZEL – A Tale About Knowledge GraphSIEMENS: RAPUNZEL – A Tale About Knowledge Graph
SIEMENS: RAPUNZEL – A Tale About Knowledge Graph

CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems

Next-generation AAM aircraft unveiled by Supernal, S-A2
Next-generation AAM aircraft unveiled by Supernal, S-A2Next-generation AAM aircraft unveiled by Supernal, S-A2
Next-generation AAM aircraft unveiled by Supernal, S-A2

Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...

E-Vehicle_Hacking_by_Parul Sharma_null_owasp.pptx
E-Vehicle_Hacking_by_Parul Sharma_null_owasp.pptxE-Vehicle_Hacking_by_Parul Sharma_null_owasp.pptx
E-Vehicle_Hacking_by_Parul Sharma_null_owasp.pptx

Install Stable Diffusion in windows machine
Install Stable Diffusion in windows machineInstall Stable Diffusion in windows machine
Install Stable Diffusion in windows machine

Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...
Transforming Data Streams with Kafka Connect: An Introduction to Single Messa...

Pigging Solutions Piggable Sweeping Elbows
Pigging Solutions Piggable Sweeping ElbowsPigging Solutions Piggable Sweeping Elbows
Pigging Solutions Piggable Sweeping Elbows

08448380779 Call Girls In Friends Colony Women Seeking Men
08448380779 Call Girls In Friends Colony Women Seeking Men08448380779 Call Girls In Friends Colony Women Seeking Men
08448380779 Call Girls In Friends Colony Women Seeking Men

Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptxMaking_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx


5G Standards: 3GPP Release 15, 16, and beyond

  • 1. © 3GPP 2012 © 3GPP 2019 1 5G Standards: 3GPP Release 15, 16, and beyond Sasha Sirotkin – Vice Chairman of 3GPP RAN3
  • 2. © 3GPP 2012 © 3GPP 2019 2 Agenda 3GPP - home of cellular standards 5G vision - 5G NR Release 15 - the advent of 5G Release 16 - towards the full 5G vision IMT-2020 submission Release 17 - outlook
  • 3. © 3GPP 2012 © 3GPP 2019 3 3GPP - home of cellular standards
  • 4. © 3GPP 2012 © 3GPP 2019 4 3GPP – a truly global project
  • 5. © 3GPP 2012 © 3GPP 2019 5 3GPP structure Project Co-ordination Group (PCG) TSG RAN Radio Access Network TSG SA Service & Systems Aspects TSG CT Core Network & Terminals RAN WG1 Radio Layer 1 spec SA WG1 Services CT WG1 MM/CC/SM (lu) RAN WG2 Radio Layer 2 spec Radio Layer 3 RR spec SA WG2 Architecture CT WG3 Interworking with external networks RAN WG3 lub spec, lur spec, lu spec UTRAN O&M requirements SA WG3 Security CT WG4 MAP/GTP/BCH/SS RAN WG4 Radio Performance Protocol aspects SA WG4 Codec CT WG6 Smart Card Application Aspects RAN WG5 Mobile Terminal Conformance Testing SA WG5 Telecom Management RAN WG6 Legacy RAN radio and protocol SA WG6 Mission-critical applications
  • 6. © 3GPP 2012 © 3GPP 2019 6 5G vision → 5G NR
  • 7. © 3GPP 2012 © 3GPP 2019 7 What is 5G NR ? Operation from low to very high bands: 0.4 – 100Ghz Ultra wide carrier bandwidth Up to 100MHz in <6GHz Up to 400MHz in >6GHz Set of different numerologies for optimal operation in different frequency ranges Massive MIMO for optimal performance
  • 8. © 3GPP 2012 © 3GPP 2019 8 What is 5G NR ? Native forward compatibility mechanisms Advanced channel coding LDPC for data channel, Polar coding for control channel Native support for Low Latency and Ultra Reliability Flexible and modular RAN architecture: split fronthaul, split control- and user-plane Native end-to-end support for Network Slicing Designed for Virtualization
  • 9. © 3GPP 2012 © 3GPP 2019 9 Release 15 – the advent of 5G
  • 10. © 3GPP 2012 © 3GPP 2019 10 Release 15 timeline Q2 Q3 Q4 2019 Q2 Q3 Q4Q1 Rel-15 freeze (incl 5G SA) Rel-15 late drop freeze 2018 Q1 2017 Q4 Rel-15 NSA (option-3) freeze “Early drop” “Main drop” “Late drop”
  • 11. © 3GPP 2012 © 3GPP 2018 11 ’Early drop’ in Rel-15 “Early drop” introduced for Rel-15 to accelerate initial availability of specifications for the very first deployments This was a critical move to re-unite the ecosystem after several initial proprietary standards development initiatives (Korea, US) Non-Standalone 5G (NSA) (Option 3 family) 4G Core 4G Core 5G NR 5G NR LTELTE
  • 12. © 3GPP 2012 © 3GPP 2018 12 ’Main drop’ in Rel-15 “Main drop” in Rel-15 introduces standalone 5G No dependency on LTE deployments Main initial proponent: China Standalone 5G (SA) (Option 2) gNB ng-eNB NG NG NG Xn NG-RAN 5GC AMF/UPF gNB ng-eNB NG NG NGXn AMF/UPF Xn Xn NG NG 5G Core 5G Core 5G NR 5G NR
  • 13. © 3GPP 2012 © 3GPP 2018 13 ’Late drop’ in Rel-15 “Late drop” introduced for Rel-15 that follows Rel-15 completion by 6 months • The late Rel-15 ASN.1 drop is to be strictly backwards compatible The late drop is to exclusively contain outstanding NR architecture options gNB ng-eNB NG NG NG Xn NG-RAN 5GC AMF/UPF gNB ng-eNB NG NG NGXn AMF/UPF Xn Xn NG NG NR-NR Dual Connectivity NR-eLTE Dual Connectivity (Option 7) eLTE-NR Dual Connectivity with 5GC (Option 4) 5G Core 5G Core 5G NR 5G NR LTELTE
  • 14. © 3GPP 2012 © 3GPP 2019 14 Release 16 - towards the full 5G vision
  • 15. © 3GPP 2012 © 3GPP 2019 15 Timeline Rel-16 Study phase Q2 Q3 Q4 2019 Q2 Q3 Q4Q1 2020 Q1 Rel-16 Study and Normative phase Rel-16 freeze Rel-15 freeze (incl 5G SA) Rel-15 late drop freeze 2018 Q1 2017 Q4 Rel-15 NSA (option-3) freeze “Early drop” “Main drop” “Late drop”
  • 16. © 3GPP 2012 © 3GPP 2019 16 2018 Q4 2019 Q1 2019 Q3 2019 Q4 2020 Q12019 Q2 5G Vehicle to X (V2X) 5G URLLC enhancements 5G for Unlicensed spectrum operation 5G for Satellite Release 16 – 5G Expansion 5G Expansion 5G Industrial IoT and Private Networks 5G above 52.6GHz
  • 17. © 3GPP 2012 © 3GPP 2019 17 5G V2X Vehicle Platooning Cooperative Manoeuver, Sensor sharing Remote Driving Advanced Driving Basic Safety services incl. warnings and signal phase information Advanced use cases 5G V2X R16
  • 18. © 3GPP 2012 © 3GPP 2019 18 Industrial IoT and URLLC Focus on both commercial and industry use AR/VR, Factory automation, Transport Industry (incl Automotive), Electrical Power Distribution Time Sensitive Networking (TSN) Accurate reference timing, wireless Ethernet, etc… Reliability and latency enhancements Intra-UE prioritization and multiplexing
  • 19. © 3GPP 2012 © 3GPP 2019 19 5G NR in unlicensed bands 3GPP work on unlicensed operation will be focused on NR No new functions on LTE-LAA NR-U specifications kept separate, not part of the ITU submission Focus is on bands below 7GHz Addresses both LAA and Standalone operation Co-existence with LTE-LAA and other incumbent technologies
  • 20. © 3GPP 2012 © 3GPP 2019 20 2018 Q4 2019 Q1 2019 Q3 2019 Q4 2020 Q12019 Q2 5G MIMO enhancements 5G Location and positioning Release 16 – 5G Efficiency 2-step RACH 5G Power Consumption improvements Interference Mitigation Dual Connectivity enhancements 5G Efficiency 5G SON & Big Data Device capabilities exchange Mobility enhancements
  • 21. © 3GPP 2012 © 3GPP 2019 21 Positioning in 5G Going beyond basic regulatory requirements (E911) Based on identified accuracy, latency, capacity and coverage requirements Both indoor and outdoor Both low (FR1) and high (FR2) frequency bands Positioning based on measurement on reference signals
  • 22. © 3GPP 2012 © 3GPP 2019 22 Balance 5G Efficiency 5G Expansion
  • 23. © 3GPP 2012 © 3GPP 2019 23 IMT-2020 submission
  • 24. © 3GPP 2012 © 3GPP 2019 24 IMT-2020 - timeplan From RP-172098 NOW
  • 25. © 3GPP 2012 © 3GPP 2019 25 IMT-2020 - timeplan From RP-172098
  • 26. © 3GPP 2012 © 3GPP 2019 26 IMT-2020 - format Submission 1 SRIT Component RIT: NR (*) Component RIT: EUTRA/LTE – incl. standalone LTE, NB-IoT, eMTC, and LTE-NR DC full 38 and 36 series, and subset of 37 series Submission 2 (In addition to the above) NR RIT (*) Naming Name : 5G Footnote: Developed by 3GPP as 5G, Release 15 and beyond (*) The plan is to leverage the NR RIT (in submission 2) as the NR component RIT in submission 1; NR details TBD From RP-172098
  • 27. © 3GPP 2012 © 3GPP 2019 27 Release 17 - outlook
  • 28. © 3GPP 2012 © 3GPP 2019 28 TSG SA focus areas Stage 1 (SA1) to be 80% complete by Sep 2019 Some potential areas: Verticals: Critical Medical, Factories of the Future, Unmanned Areal Systems, Asset tracking Enhancements: relays, multicast-broadcast, edge, proximity services Multi-USIM devices Immersive teleconferencing and telepresence
  • 29. © 3GPP 2012 © 3GPP 2019 29 TSG RAN focus areas RAN Release-17 scope has not been agreed yet Potential areas: NR evolution NR-lite Beyond 52.6 GHz Enhancements for: IoT, MIMO, NR-U, sidelink, coverage, DC and CA New features Non-terrestrial networks (NTN) Integrated Access and Backhaul (IAB)
  • 30. © 3GPP 2012 © 3GPP 2019 30 Sasha Sirotkin Vice Chairman of 3GPP RAN3 Sasha.Sirotkin@intel.com +972 50 7288473 Thank you!
