1. Open RAN, White Box
RAN & vRAN
@3g4gUK

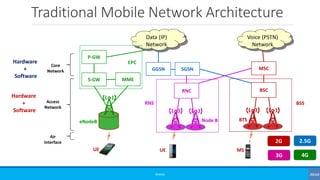

2. Traditional Mobile Network Architecture
©3G4G
BSC
BTS
MSC
Voice (PSTN)
Network
SGSN
Data (IP)
Network
RNC
Node BeNodeB
MME
GGSN
Access
Network
Core
Network
Air
Interface
MSUEUE
BSSRNS
S-GW
P-GW
2G 2.5G
3G 4G
EPCHardware
+
Software
Hardware
+
Software

3. Virtualization: The ‘Core Network’ Story
©3G4G
Commercial off-the-shelf (COTS) Hardware

4. Virtualization: The ‘Core Network’ Story
©3G4G
NFV (Network
Functions
Virtualization) has
enabled moving of
hardware into software

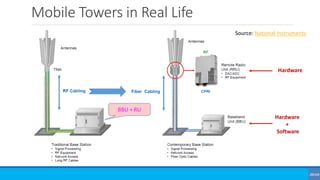

5. Mobile Towers in Real Life
BBU + RU
Source: National Instruments
Hardware
Hardware
+
Software

6. Contemporary RAN
©3G4G
Proprietary Hardware
Proprietary Hardware
+
Proprietary Software
Proprietary Interfaces

7. Virtualized RAN (vRAN) Approach
©3G4G
Proprietary Hardware
COTS Server
+
Proprietary Software
With Virtualized Functions
Proprietary Interfaces
vRAN is not Open RAN

8. Open RAN: Disaggregating Hardware and Software
©3G4G
Picture Source: David del
Val Latorre, CEO, Telefonica
R&D at TIP Summit 2018

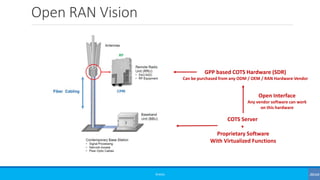

9. Open RAN Vision
©3G4G
GPP based COTS Hardware (SDR)
Can be purchased from any ODM / OEM / RAN Hardware Vendor
COTS Server
+
Proprietary Software
With Virtualized Functions
Open Interface
Any vendor software can work
on this hardware

10. Basics: GPP vs SPP
©3G4G
• A general purpose processor (GPP) is
generally called a Central Processing
Unit (CPU). It performs all of the
general work of the computer.
• Intel x86, ARM, MIPS, SPARC, RISC-V
are examples of GPP
• True hardware / software
disaggregation possible
• The main advantage of GPP is that:
• Due to large volumes, economy
of scale is achievable
• Costs are lower in high volumes
• Faster pace of innovation due to
software-driven development.
• A single purpose processor (SPP) has
a limited number of functions and
would be optimized for a specific
area.
• An example might be a MAC
processor from DSP, you might built
and FPGA or ASIC using several of
these to create a digital filter for
some specific application.
• It would run much faster than
running the same algorithm on a
general CPU, probably would use a
lot less power.

11. Open RAN: Enabling White Box RAN
©3G4G

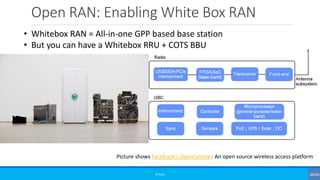

• Whitebox RAN = All-in-one GPP based base station
• But you can have a Whitebox RRU + COTS BBU
Picture shows Facebook’s OpenCellular: An open source wireless access platform

12. Will OpenRAN work in practice?
©3G4G

13. Vodafone & Telefonica at TIP Summit 2018
©3G4G
Announced the Joint OpenRAN RFI Results
Picture Source: Caroline
Chan on Twitter

14. ©3G4G

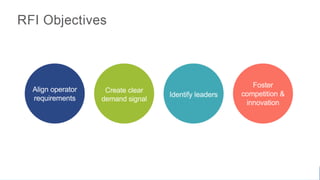

15. ©3G4G

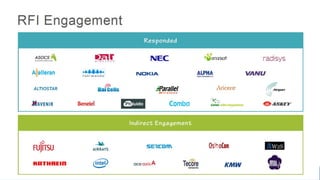

16. ©3G4G

17. ©3G4G

18. ©3G4G

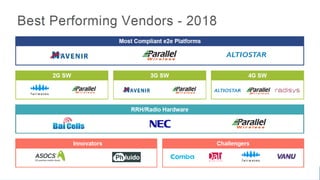

19. ©3G4G

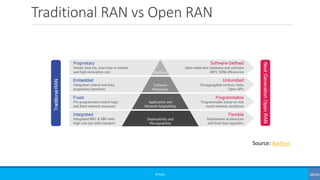

20. Traditional RAN vs Open RAN
©3G4G
Source: Radisys

21. So why is Open RAN so interesting?
©3G4G
• Lets take an example scenario of an operator (MNO) or service
provider (SP)
Core
A A AV1 V1 V1

22. So why is Open RAN so interesting?
©3G4G
• When the MNO / SP is looking to expand the network, they may decide
to introduce vendor V2
Core
A A AV1 V1 V1 AV2 AV2

23. So why is Open RAN so interesting?
©3G4G
• If the hardware from ODM / OEM vendor A is not performing well, the
MNO / SP may start replacing the RAN while keeping same software
vendor
Core
V1 V1 V1 V2 V2 CC C BB
