1. TESTING OF TRANSFORMER
BY
MANISH N PANDYA
Director, MECPL - VADODARA

2. LIST OF TEST PERFORMED IN
TRANSFORMER
• INSULATION RESISTANCE AND POLARIZATION INDEX
• OPEN CIRCUIT TEST
• SHORT CIRCUIT TEST
• VECTOR GROUP CONFIRMATION
• MAGNETIC BALANCE TEST
• WINDING RESISTANCE
• TAN DELTA TEST
• SFRA TEST

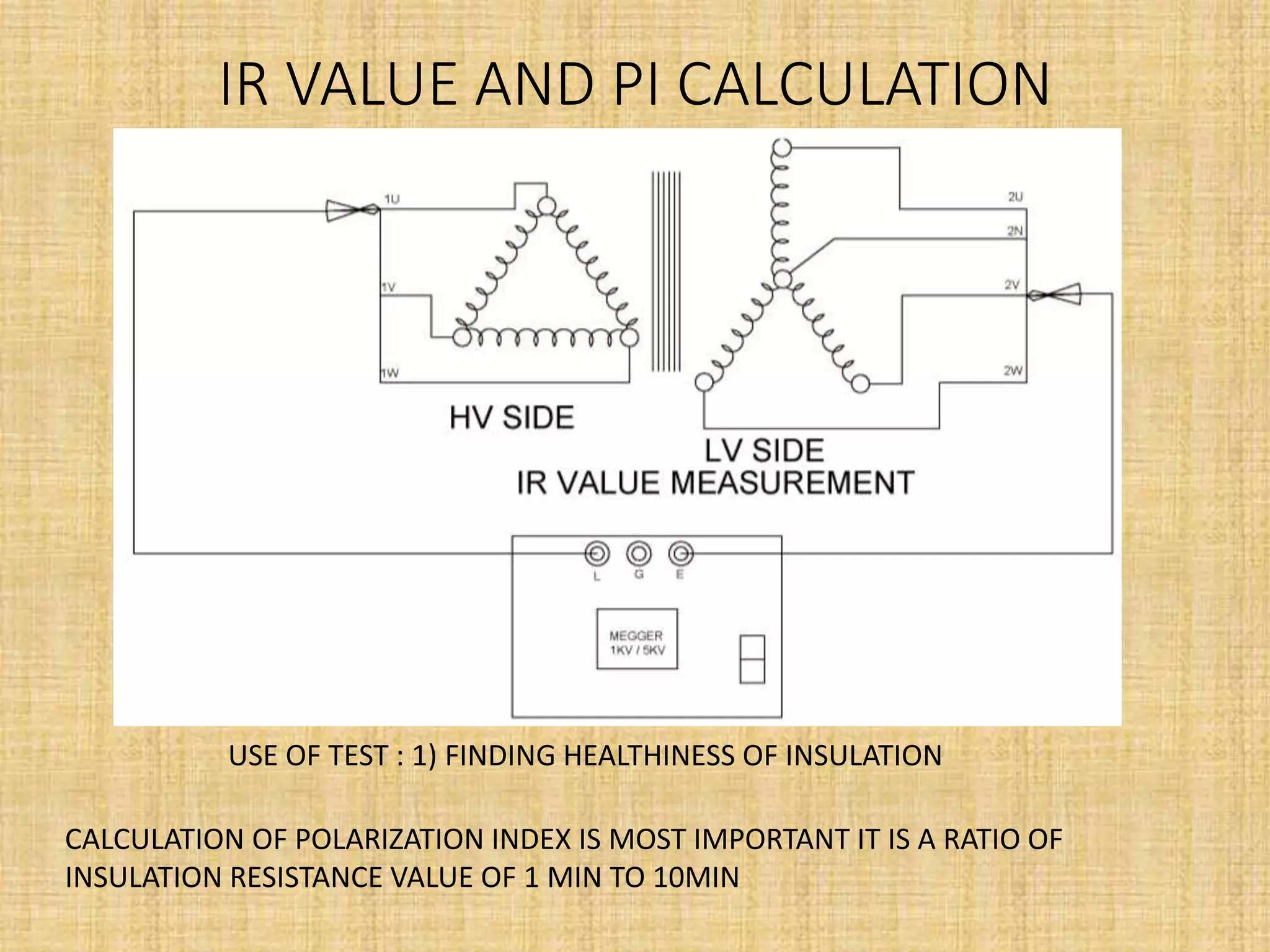

3. IR VALUE AND PI CALCULATION
USE OF TEST : 1) FINDING HEALTHINESS OF INSULATION
CALCULATION OF POLARIZATION INDEX IS MOST IMPORTANT IT IS A RATIO OF
INSULATION RESISTANCE VALUE OF 1 MIN TO 10MIN

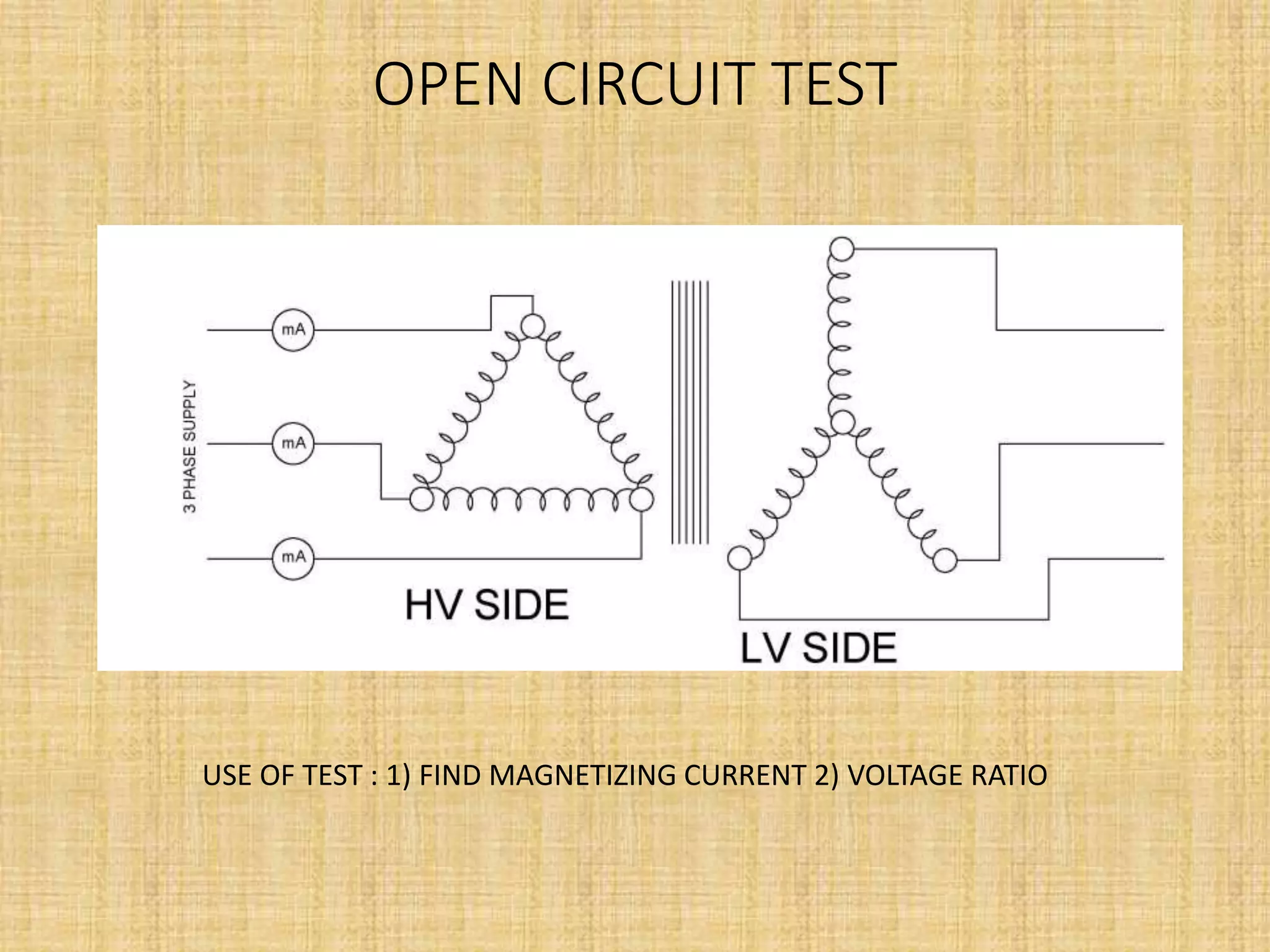

4. OPEN CIRCUIT TEST
USE OF TEST : 1) FIND MAGNETIZING CURRENT 2) VOLTAGE RATIO

5. SHORT CIRCUIT TEST
USE OF TEST : 1) FIND SHORT CIRCUIT IMPEDANCE 2) CURRENT RATIO
% Z =
𝑀𝐸𝐴𝑆𝑈𝑅𝐸𝐷 𝑉𝑂𝐿𝑇𝐴𝐺𝐸 𝑋 𝑅𝐴𝑇𝐸𝐷 𝐶𝑈𝑅𝑅𝐸𝑁𝑇 𝑋 𝐹𝑅𝐸𝑄 𝑅𝐴𝑇𝐸𝐷
𝑅𝐴𝑇𝐸𝐷 𝑉𝑂𝐿𝑇𝐴𝐺𝐸 𝑋 𝑀𝐸𝐴𝑆𝑈𝑅𝐸𝐷 𝐶𝑈𝑅𝑅𝐸𝑁𝑇 𝑋 𝐹𝑅𝐸𝑄 𝑀𝐸𝐴𝑆𝑈𝑅𝐸𝐷

6. VECTOR GROUP TEST
USE OF TEST : VERIFICATION OF VECTOR GROUP

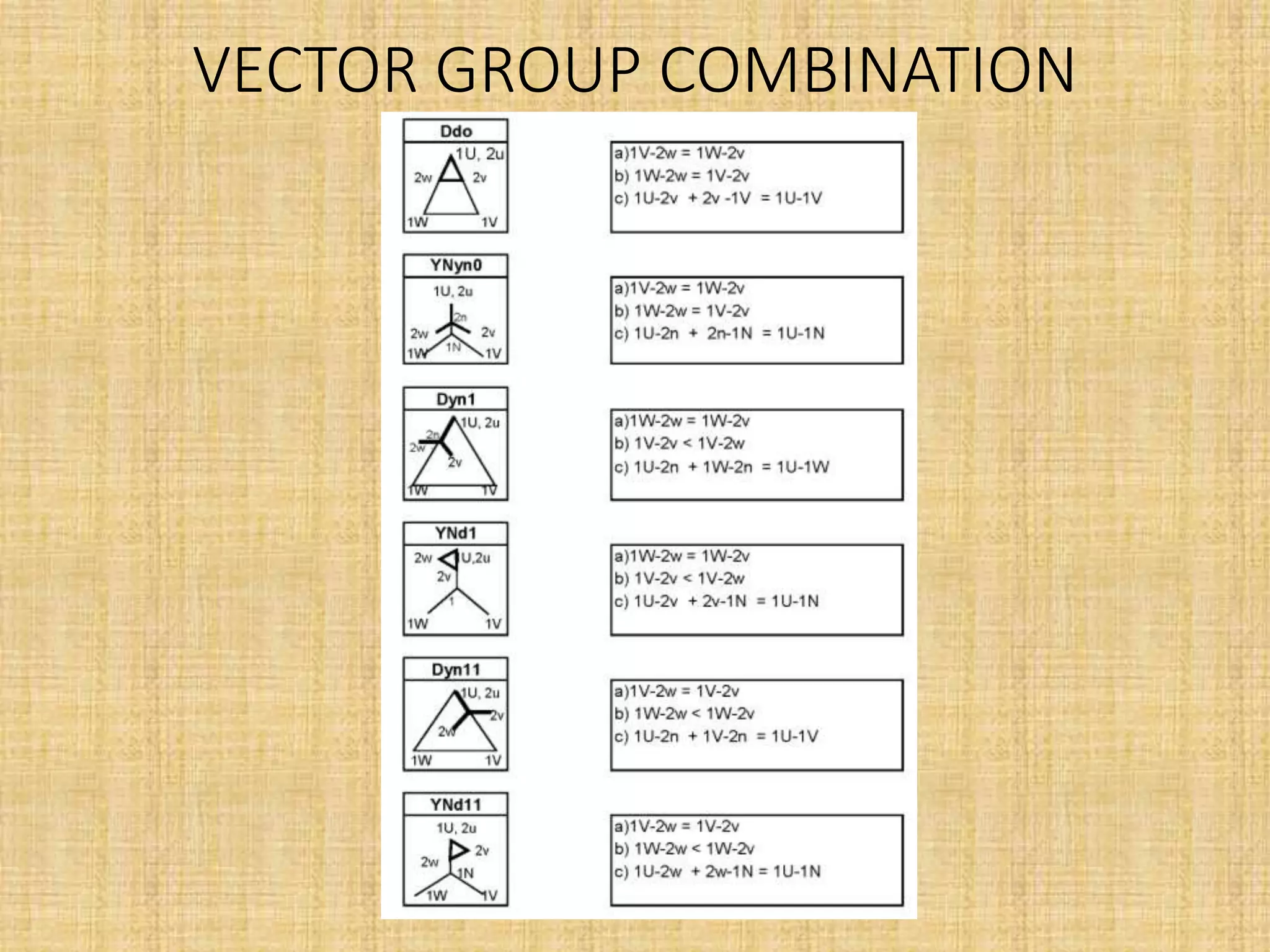

7. VECTOR GROUP COMBINATION

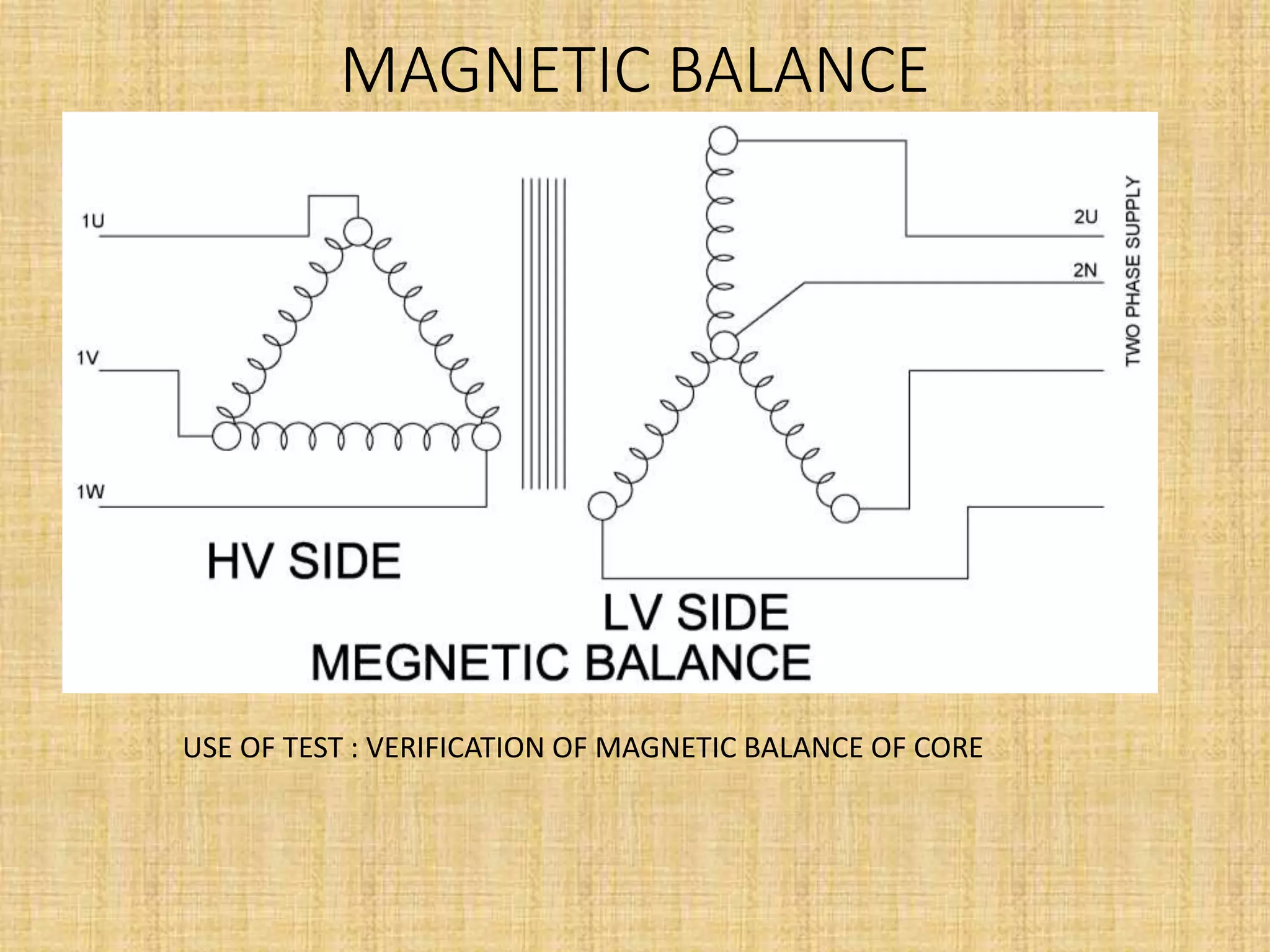

8. MAGNETIC BALANCE
USE OF TEST : VERIFICATION OF MAGNETIC BALANCE OF CORE

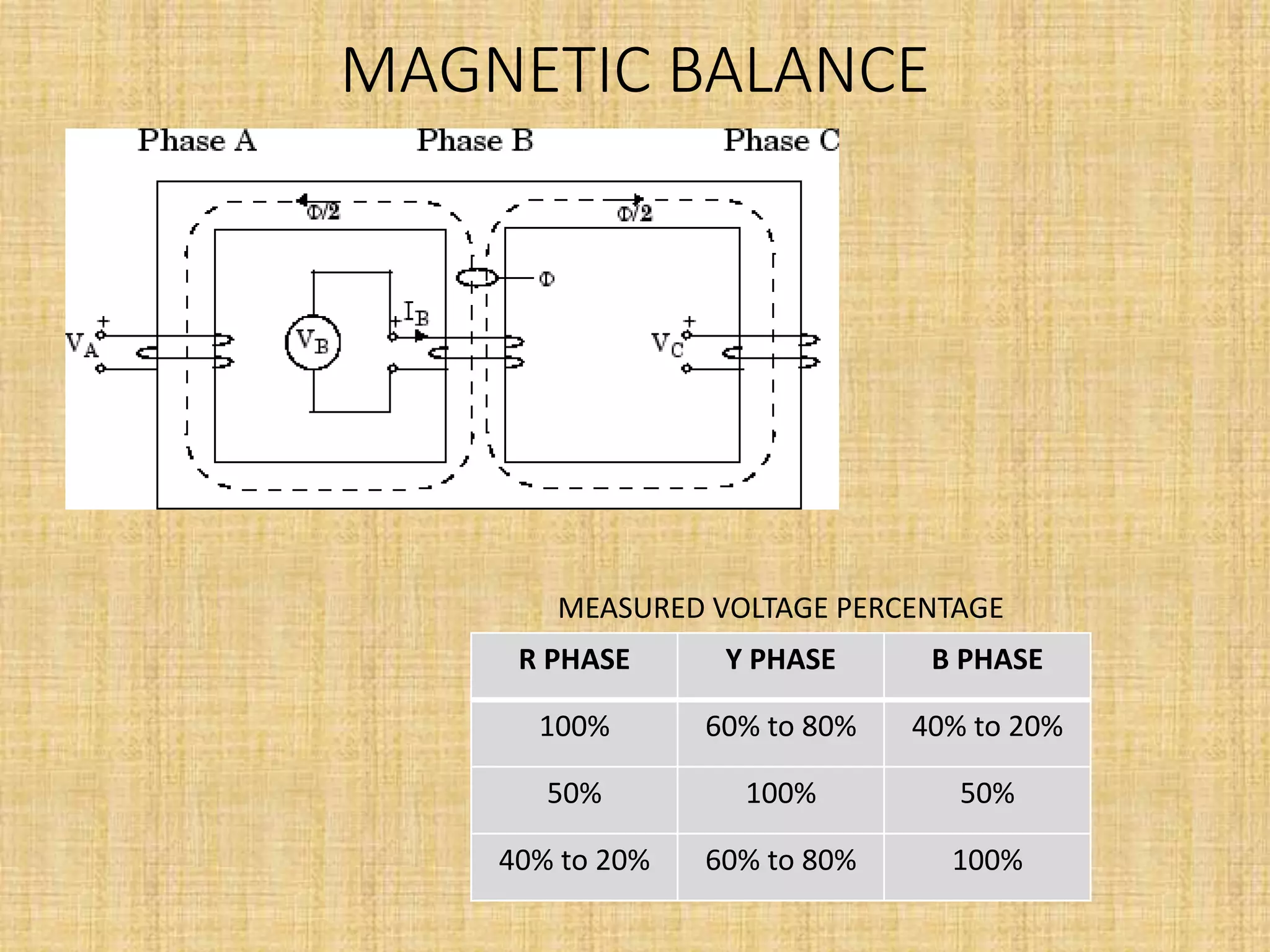

9. MAGNETIC BALANCE
R PHASE Y PHASE B PHASE
100% 60% to 80% 40% to 20%
50% 100% 50%
40% to 20% 60% to 80% 100%
MEASURED VOLTAGE PERCENTAGE

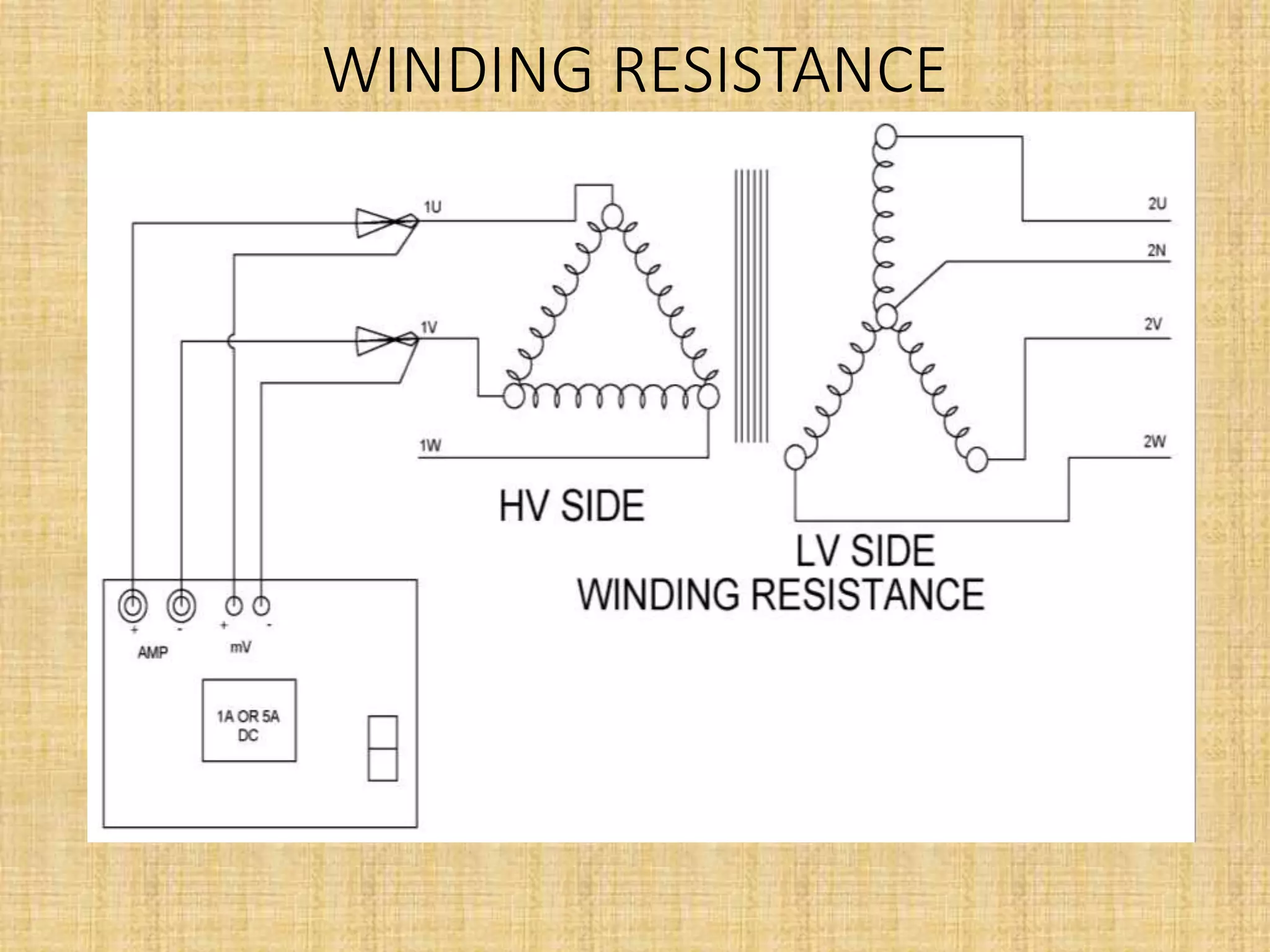

10. WINDING RESISTANCE

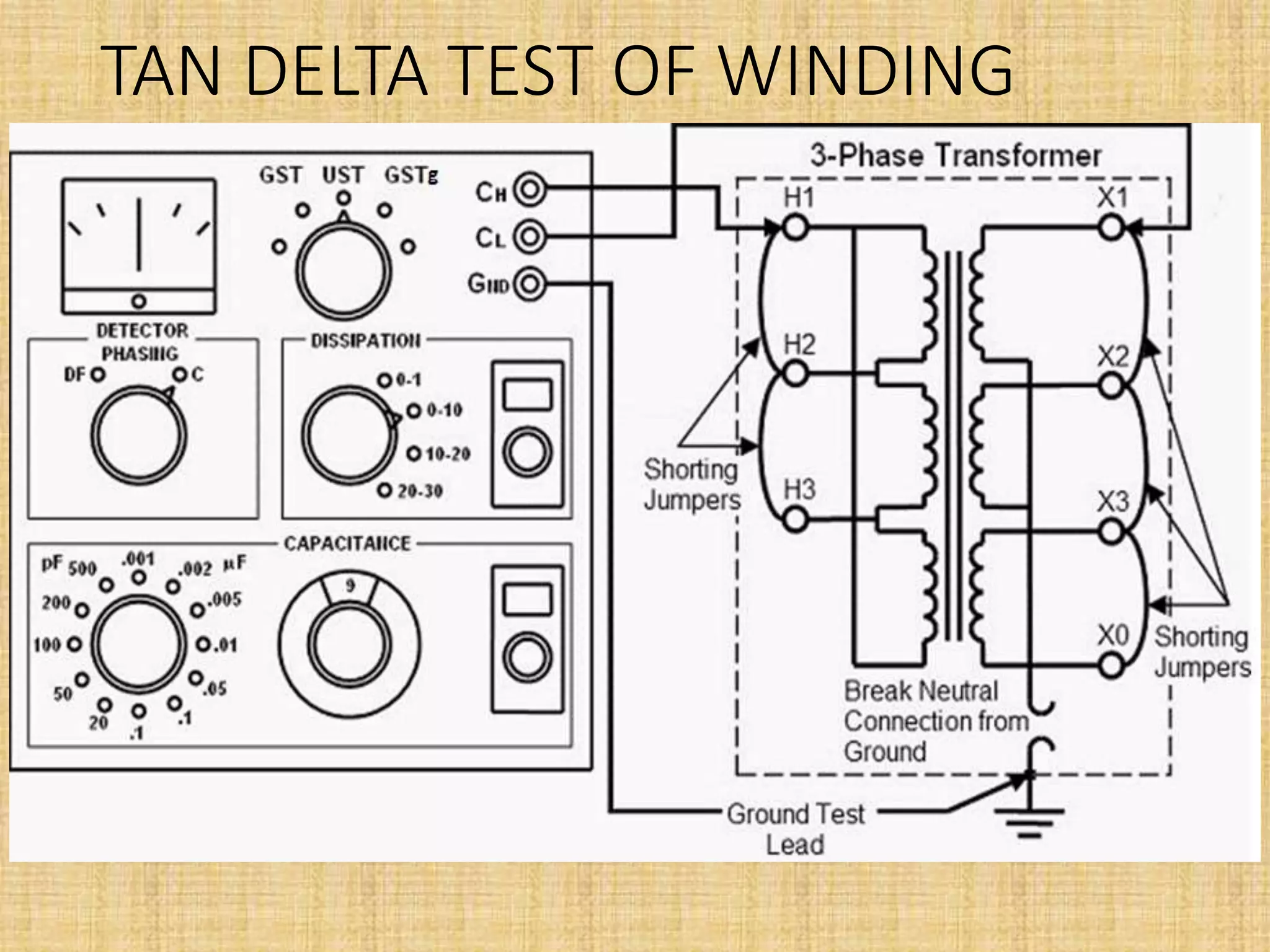

11. TAN DELTA TEST OF WINDING

12. TAN DELTA TEST OF BUSHING
SHORT LINK

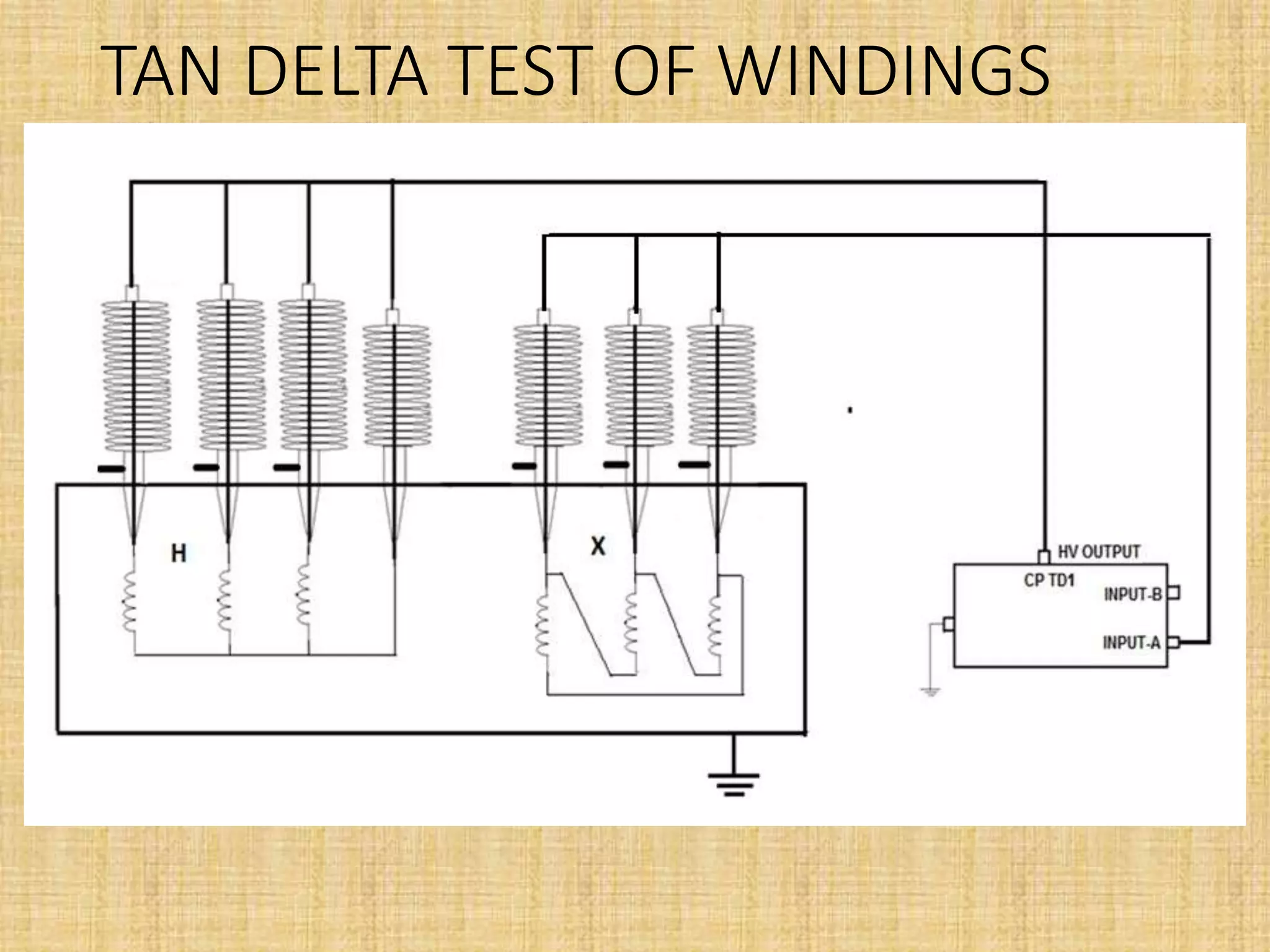

13. TAN DELTA TEST OF WINDINGS

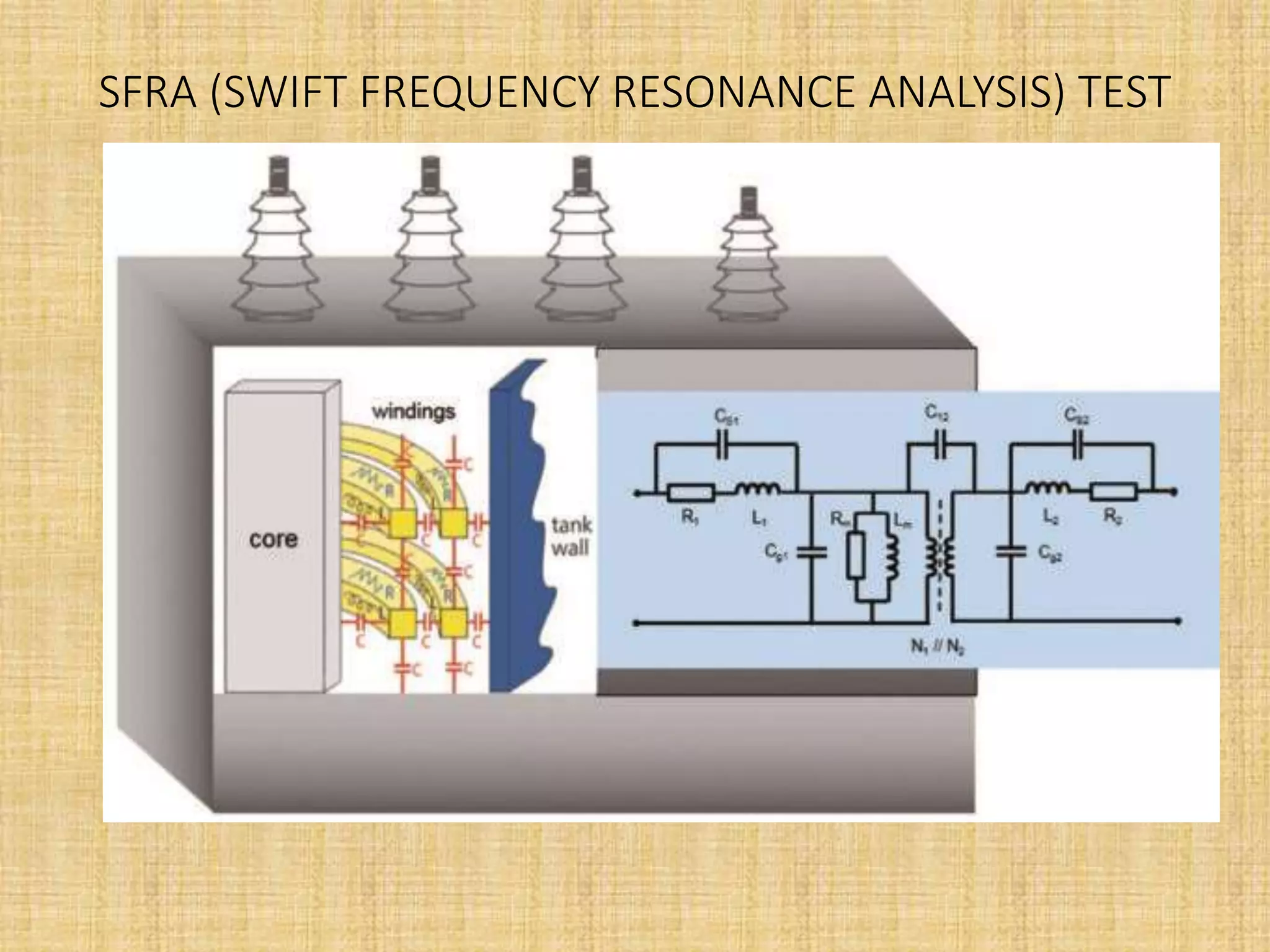

14. SFRA (SWIFT FREQUENCY RESONANCE ANALYSIS) TEST

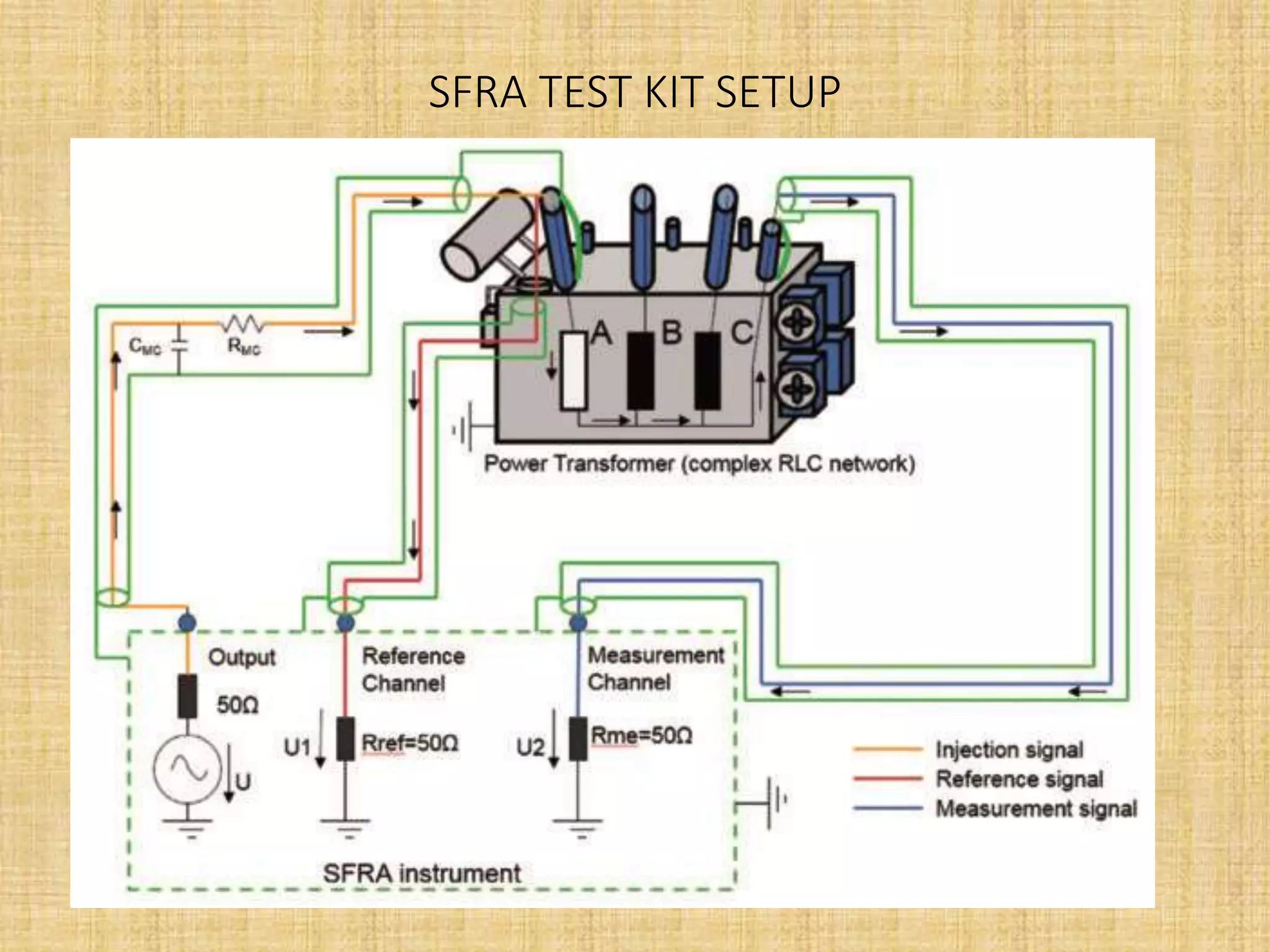

15. SFRA TEST KIT SETUP

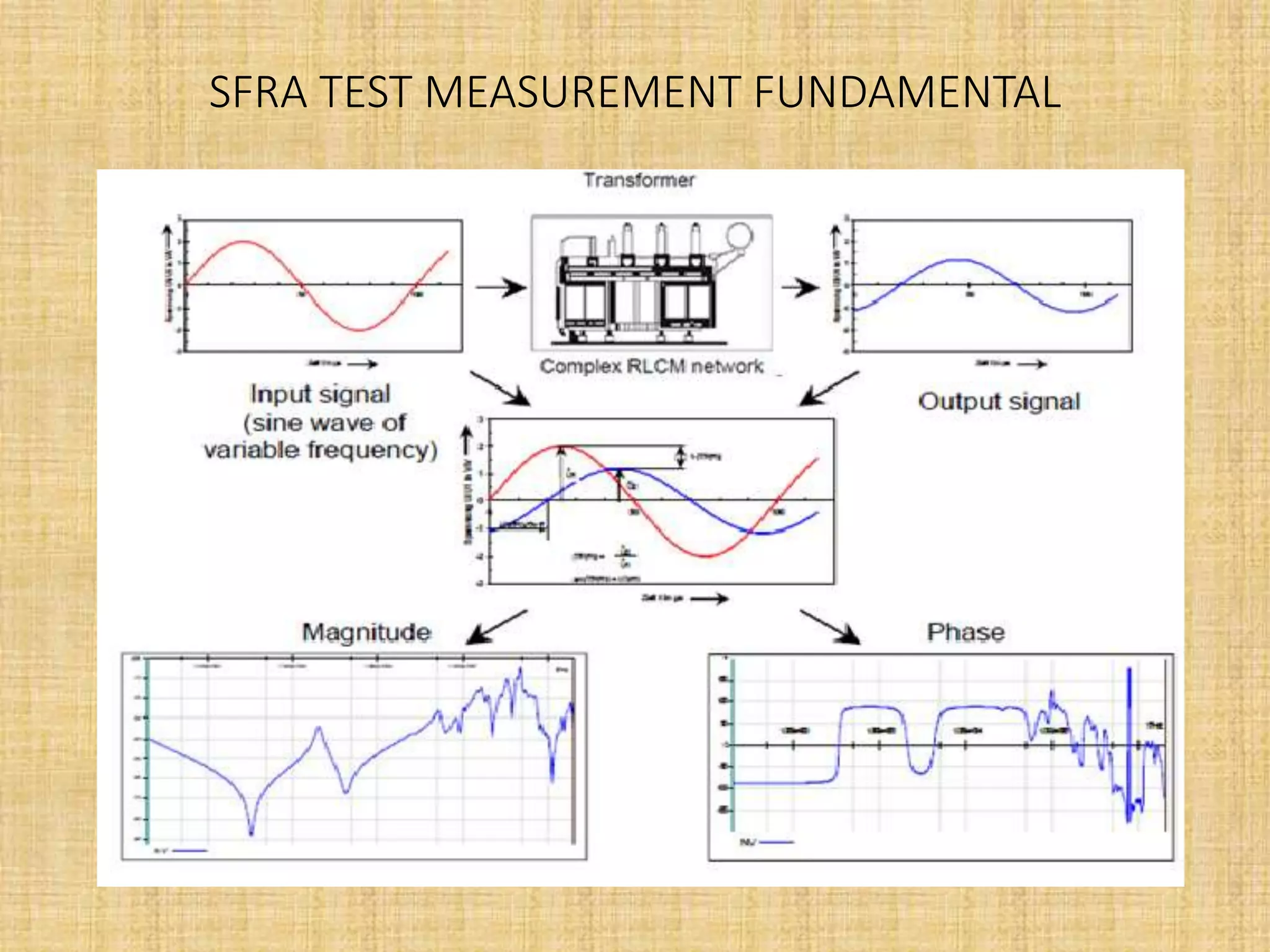

16. SFRA TEST MEASUREMENT FUNDAMENTAL

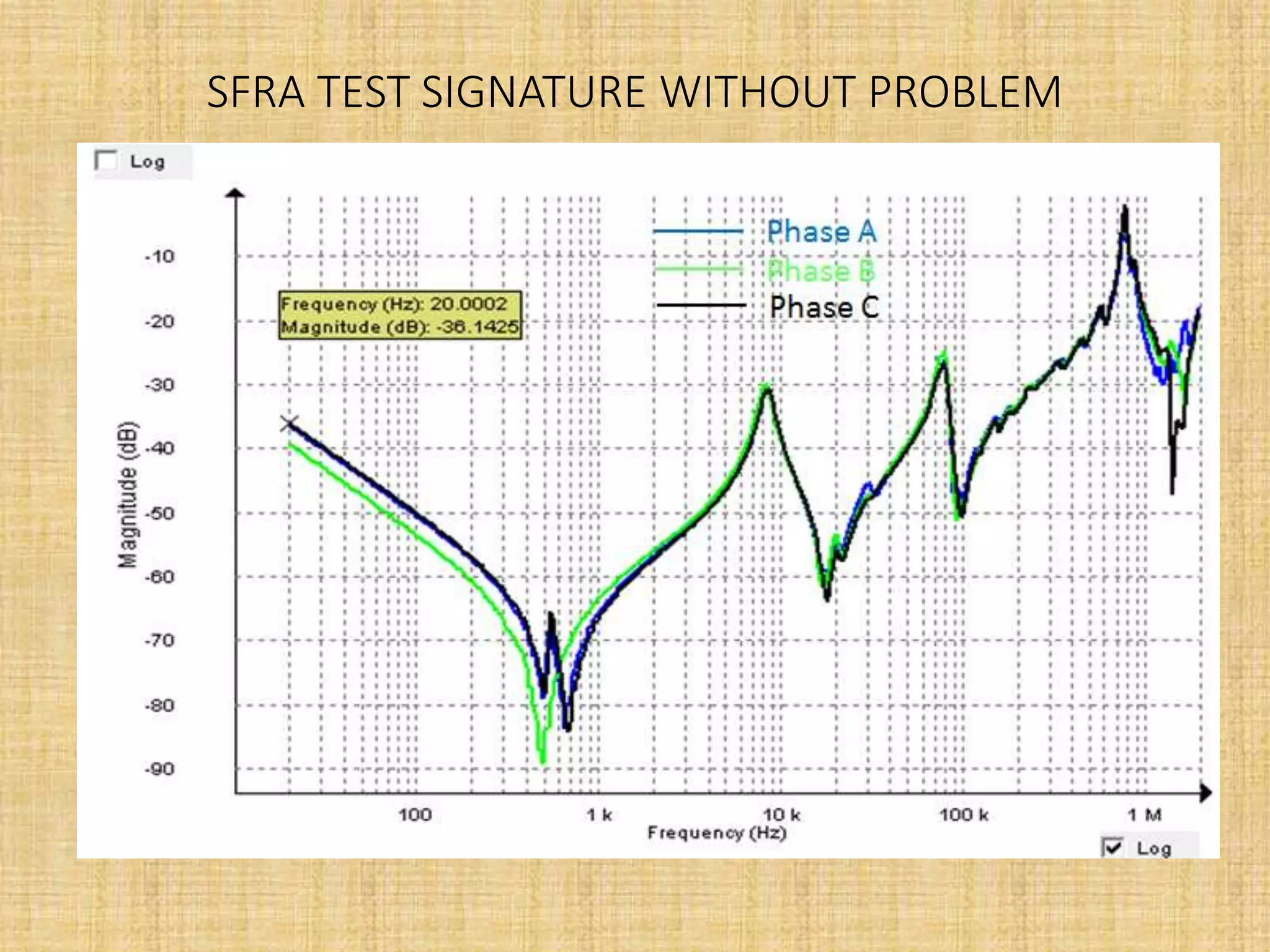

17. SFRA TEST SIGNATURE WITHOUT PROBLEM

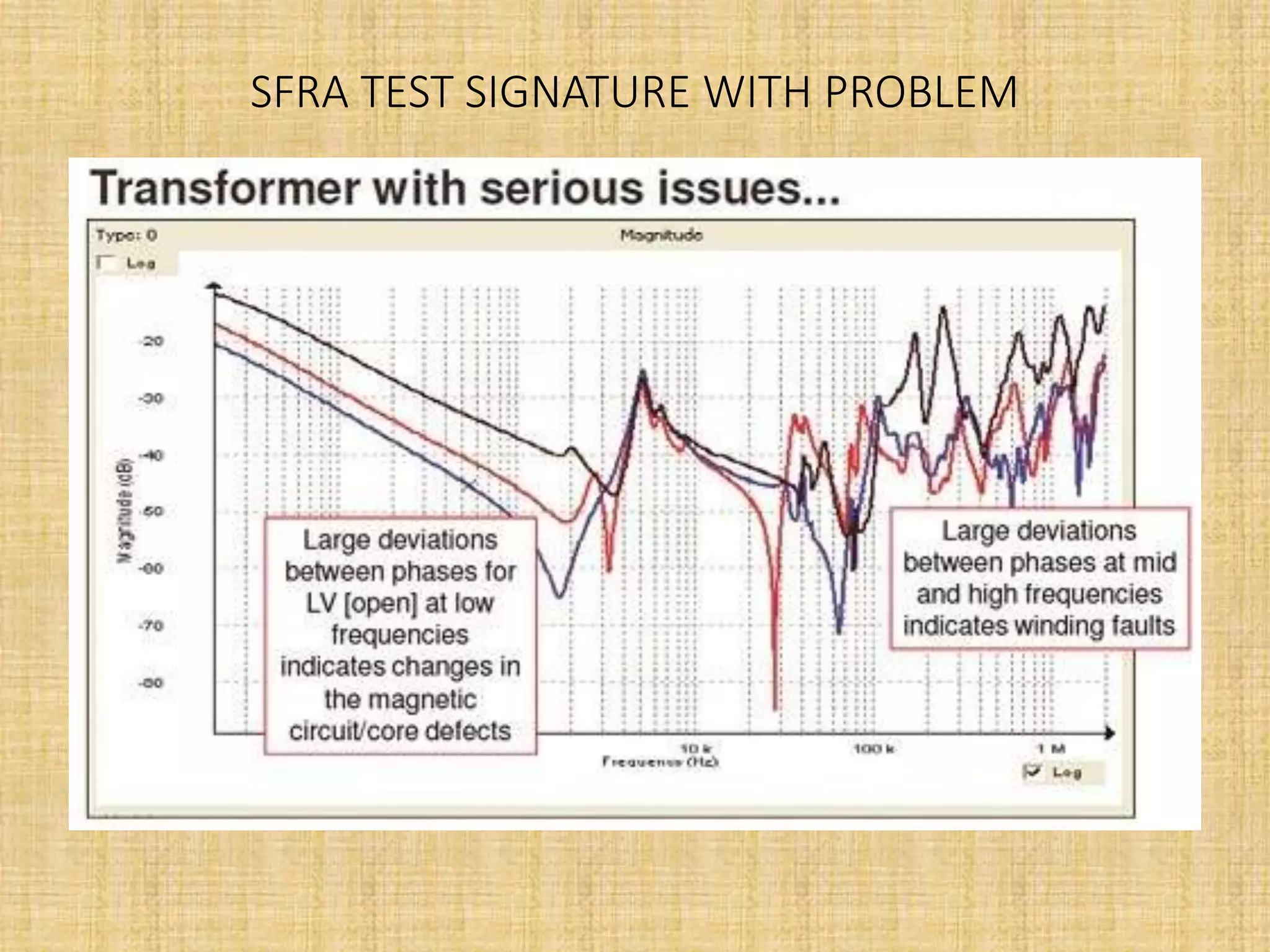

18. SFRA TEST SIGNATURE WITH PROBLEM
