1) MongoDB databases can grow very large due to flexible document schemas that allow large and denormalized data. This leads to increased storage requirements. 2) MongoDB replication can introduce lag on secondary nodes as they process write operations. This limits the ability to use secondary nodes for scaling reads. 3) MongoDB performance declines dramatically when indexes do not fit in memory, requiring more RAM, sharding, or reduced write performance. 4) MongoDB implements database-level locking, limiting write concurrency and the ability to run multiple shards on a single server. 5) MongoDB does not support ACID transactions, multi-version concurrency control, or consistent reads in the presence of concurrent writes. Workarounds

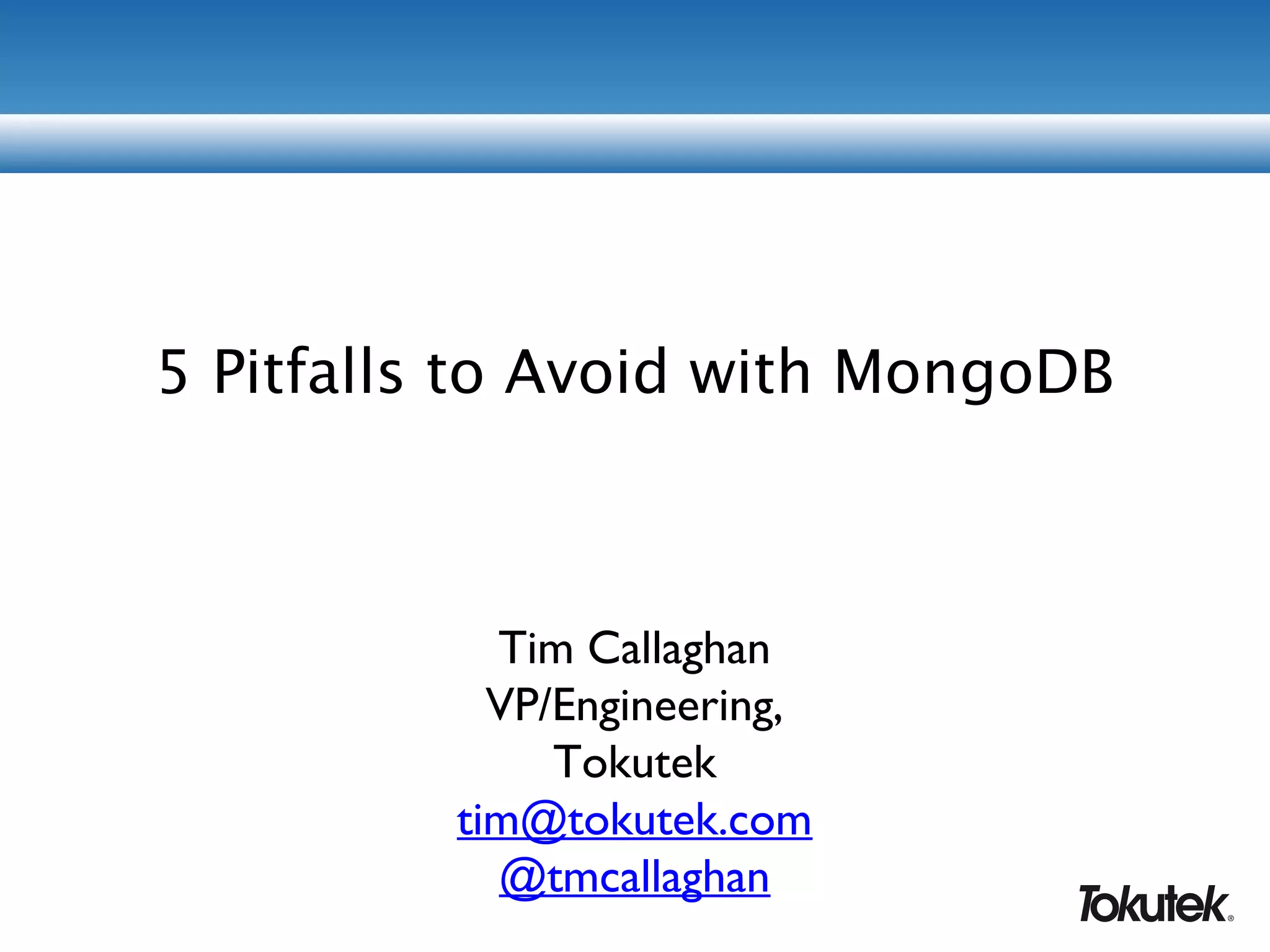

1. 5 Pitfalls to Avoid with MongoDB
Tim Callaghan
VP/Engineering,
Tokutek
tim@tokutek.com
@tmcallaghan

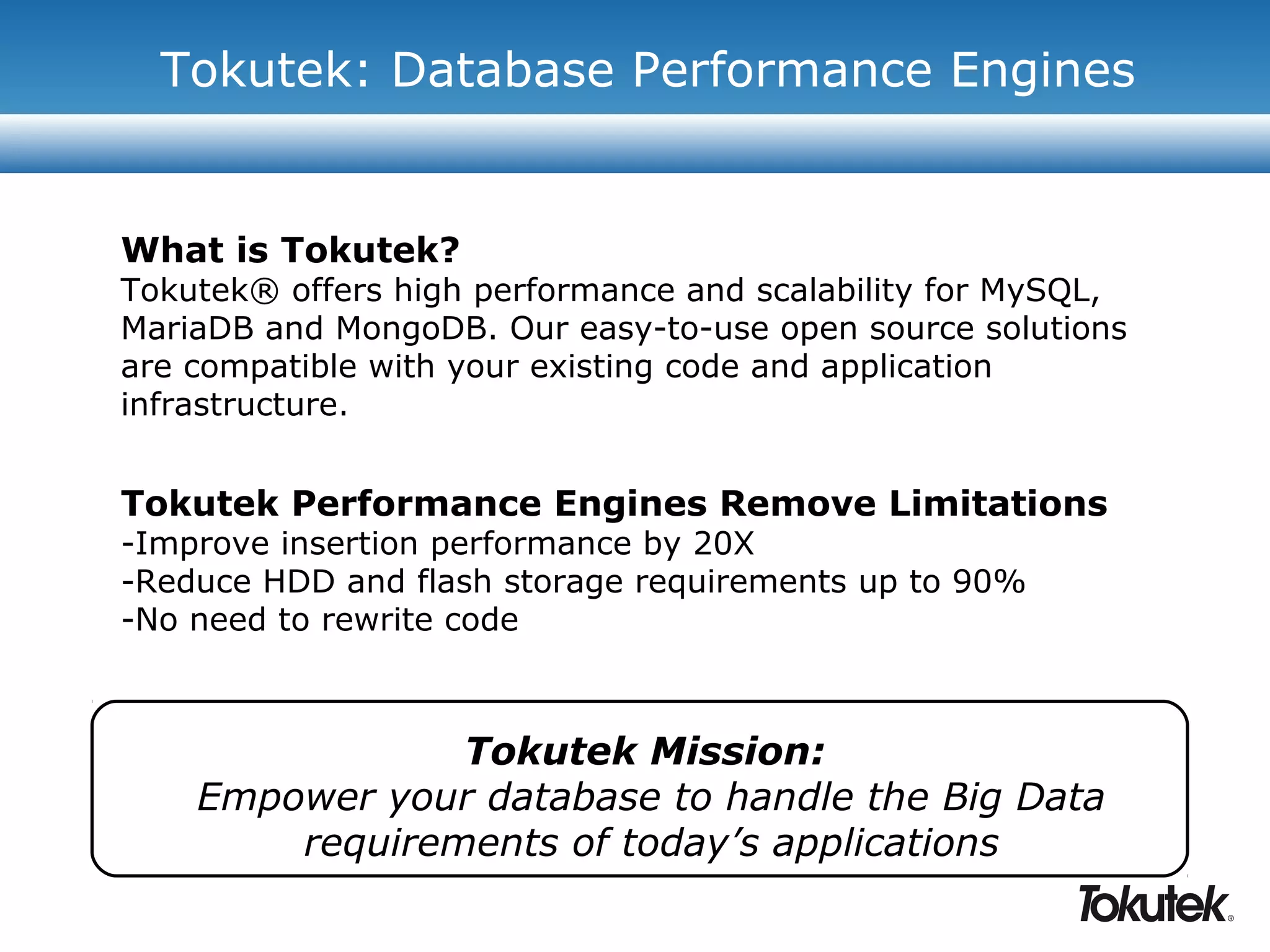

2. Tokutek: Database Performance Engines
What is Tokutek?
Tokutek® offers high performance and scalability for MySQL,
MariaDB and MongoDB. Our easy-to-use open source solutions
are compatible with your existing code and application
infrastructure.
Tokutek Performance Engines Remove Limitations
-Improve insertion performance by 20X
-Reduce HDD and flash storage requirements up to 90%
-No need to rewrite code
Tokutek Mission:
Empower your database to handle the Big Data
requirements of today’s applications

3. 3
A Global Customer Base

4. Housekeeping
• This presentation will be available for replay following
the event
• We welcome your questions; please use the console
on the right of your screen and we will answer
following the presentation
• A copy of the presentation is available upon request

5. Agenda
• Describe use-cases that lead to well known pitfalls
• How can they be avoided?
• Test, Measure, and Analyze (benchmark)

6. 6
Pitfalls - 1982

7. Pitfalls - 2013

8. What is TokuMX?
• TokuMX = MongoDB with improved storage
• Drop in replacement for MongoDB v2.4 applications
• Including replication and sharding
• Same data model
• Same query language
• Drivers just work
• No Full Text or Geospatial
• Open Source
– http://github.com/Tokutek/mongo

9. 9
Pitfall 1 : Space

10. 1a : Space
• MongoDB databases often grow quite large
• it easily allows users to...
• store large documents
• keep them around for a long time
• de-normalized data needs more space
• Operational challenges
• Big disks are cheap, but not fast
• Cloud storage is even slower
• Fast disks (flash) are expensive
• Backups are large as well
• Unfortunately, MongoDB does not offer compression
• goal = use less disk/flash

11. 1a : Space : Avoidance
• TokuMX offers built-in compression
• 3 compression algorithms
• quicklz, zlib, lzma, (none)
• Everything is compressed
• Field names and values
• Secondary indexes too

12. • BitTorrent Peer Snapshot Data (~31 million documents)
• 3 Indexes : peer_id + created, torrent_snapshot_id + created, created
{ id: 1,
peer_id: 9222,
torrent_snapshot_id: 4,
upload_speed: 0.0000,
download_speed: 0.0000,
payload_upload_speed: 0.0000,
payload_download_speed: 0.0000,
total_upload: 0,
total_download: 0,
fail_count: 0,
hashfail_count: 0,
progress: 0.0000,
created: "2008-10-28 01:57:35" }
http://cs.brown.edu/~pavlo/torrent/
12
1a : Space : Test

13. 13
1a : Space : Analyze
size on disk, ~31 million inserts (lower is better)

14. 14
1a : Space : Analyze
size on disk, ~31 million inserts (lower is better)
TokuMX achieved
11.6:1 compression

15. 1b : Space
• MongoDB stores field names in each document
• Lots of redundant data
• When field names are long, documents may
contain more field name data than actual values
• Google “mongodb long field names”
• Lots of blogs and advice
• ... but descriptive schemas are useful!

16. 1b : Space : Avoidance
• Again, TokuMX offers built-in compression
• Field names are compressed along with values
• Compression algorithms love redundant data
• Be descriptive and toss that data dictionary!
• Who knows what is in field “zq”, not me?

17. 1b : Space : Test
schema 1 - long field names (10/20/20)
{ first_name : “Tim”,
last_name : “Callaghan”,
email_address : “tim@tokutek.com” }
schema 2 - short field names (26 less bytes per doc)
{ fn : “Tim”,
ln : “Callaghan”,
ea : “tim@tokutek.com” }

18. 1b : Space : Analyze
size on disk, 100 million inserts (lower is better)

19. 1b : Space : Analyze
size on disk, 100 million inserts (lower is better)
TokuMX is substantially
smaller, even without
compression

20. 1b : Space : Analyze
size on disk, 100 million inserts (lower is better)
In TokuMX, field name length
has almost no impact on size due
to compression
MongoDB was ~10%
smaller

21. 21
Pitfall 2 : Replication

22. 2 : Replication
• MongoDB natively supports replication
• High availability
• Read scaling
• Shortcomings
• lag, resource consumption on secondaries
• Recommended reading
• http://blog.mongolab.com/2013/03/replication-
lag-the-facts-of-life/

23. 2 : Replication : Avoidance
• TokuMX replication allows secondary servers to process
replication without IO
• Simply injecting messages into the Fractal Tree
Indexes on the secondary server
• The “Hard Work” was done on the primary
• Read-before-write
• Uniqueness checking
• Elimination of replication lag
• Your secondaries are fully available for read scaling!
• Run multiple secondaries on a single server
23

24. 2 : Replication : Test
• Sysbench
• Workload
• point + range queries, update, delete, insert
• 16 collections, 10mm rows, 16GB RAM
• Setup
• loaded data on single server
• shutdown and copied data folder
• created secondary
• Ran benchmark
24

25. 25
2 : Replication : Analyze
Note: TokuMX @ 32 TPS, MongoDB @ 12TPS

26. 26
Pitfall 3 : Declining Performance

27. 3 : Declining Performance
• MongoDB insert/update/delete performance drops
dramatically when the indexes do not fit in memory
• Operations are limited by IOPs
• Generally 1 operation per available IO
• Less if secondary index maintenance, 1 IO for each
• Solution: Add RAM or Shard.

28. 3 : Declining Performance : Avoidance
28
• TokuMX runs on Tokutek’s Fractal Tree indexes
• Message buffers delay IO and reduce cache disruption
• Perform many operations per IO
• Many workloads don’t need additional memory or
sharding, they just need better indexing
• RAM = $$$
• Sharding = $$$ + Complexity

29. 29
• indexed insertion workload (iibench)
• http://github.com/tmcallaghan/iibench-mongodb
{ dateandtime: <date-time>,
cashregisterid: 1..1000,
customerid: 1..100000,
productid: 1..10000,
price: <double> }
• insert only, 1000 documents per insert, 100 million inserts
• indexes
• price + customerid
• cashregister + price + customerid
• price + dateandtime + customerid
3 : Declining Performance : Test

30. • 100mm inserts into a collection with 3 secondary indexes
30
3 : Declining Performance : Analyze

31. 31
3 : Declining Performance : Analyze
• 100mm inserts into a collection with 3 secondary indexes

32. • Array Index Insertion (100 values per document)
32
3 : Declining Performance : Analyze

33. 33
Pitfall 4 : Concurrency

34. 4 : Concurrency
• MongoDB originally implemented a global write lock
• 1 writer at a time
• MongoDB v2.2 moved this lock to the database level
• 1 writer at a time in each database
• This severely limits the write performance of servers
• 36 shards on 1 server example
• Allows for more concurrency
• High operational complexity
• Google “mongodb multiple shards same server”

35. • TokuMX performs locking at the document level
• Extreme concurrency!
35
4 : Concurrency : Avoidance
instance
database database
collection collection collection collection
document
document
document
document
document
document document
document
document
document
MongoDB v2.2
MongoDB v2.0
TokuM
X

36. • Sysbench read-write workload
• point and range queries, update, delete, insert
• http://github.com/tmcallaghan/sysbench-mongodb
{ _id: 1..10000000,
k: 1..10000000,
c: <120 char random string ###-###-###>,
pad: <60 char random string ###-###-###>}
36
4 : Concurrency : Test

37. 37
4 : Concurrency : Analyze

38. 38
4 : Concurrency : Analyze

39. 39
Pitfall 5 : Transactions

40. 5 : Got Transactions?
• MongoDB does not support “transactions”
• Each operation is visible to everyone
• There are work-arounds, Google “mongodb transactions”
• http://docs.mongodb.org/manual/tutorial/perform-two-
phase-commits/
This document provides a pattern for doing multi-document
updates or “transactions” using a two-phase commit
approach for writing data to multiple documents.
Additionally, you can extend this process to provide a
rollback like functionality.
(the document is 8 web pages long)
• MongoDB does not support multi-version concurrency control
(MVCC)
• Readers do not get a consistent view of the data, as they can be
interrupted by writers
• People try, Google “mongodb mvcc”

41. • ACID
• In MongoDB, multi-insertion operations allow for
partial success
• Asked to store 5 documents, 3 succeeded
• TokuMX offers “all or nothing” behavior
• Document level locking
• MVCC
• In MongoDB, queries can be interrupted by writers.
• The effect of these writers are visible to the reader
• TokuMX offers MVCC
• Reads are consistent as of the operation start
41
5 : Transactions : Avoidance

42. • Transactions in TokuMX
• db.runCommand({“beginTransaction”})
• ... perform 1 or more operations
• db.runCommand(“rollbackTransaction”) |
db.runCommand(“commitTransaction”)
• Note: not available in sharded environments
• For more information
• http://www.tokutek.com/2013/04/mongodb-transactions-yes/
• http://www.tokutek.com/2013/04/mongodb-multi-statement-
transactions-yes-we-can/
42
5 : Transactions : Avoidance

43. Tokutek: Database Performance Engines
43
Any Questions?
Download TokuMX at www.tokutek.com/download
Register for product updates, access to premium
content, and invitations at www.tokutek.com
Join the Conversation
