5. Addressing Modes.pptx

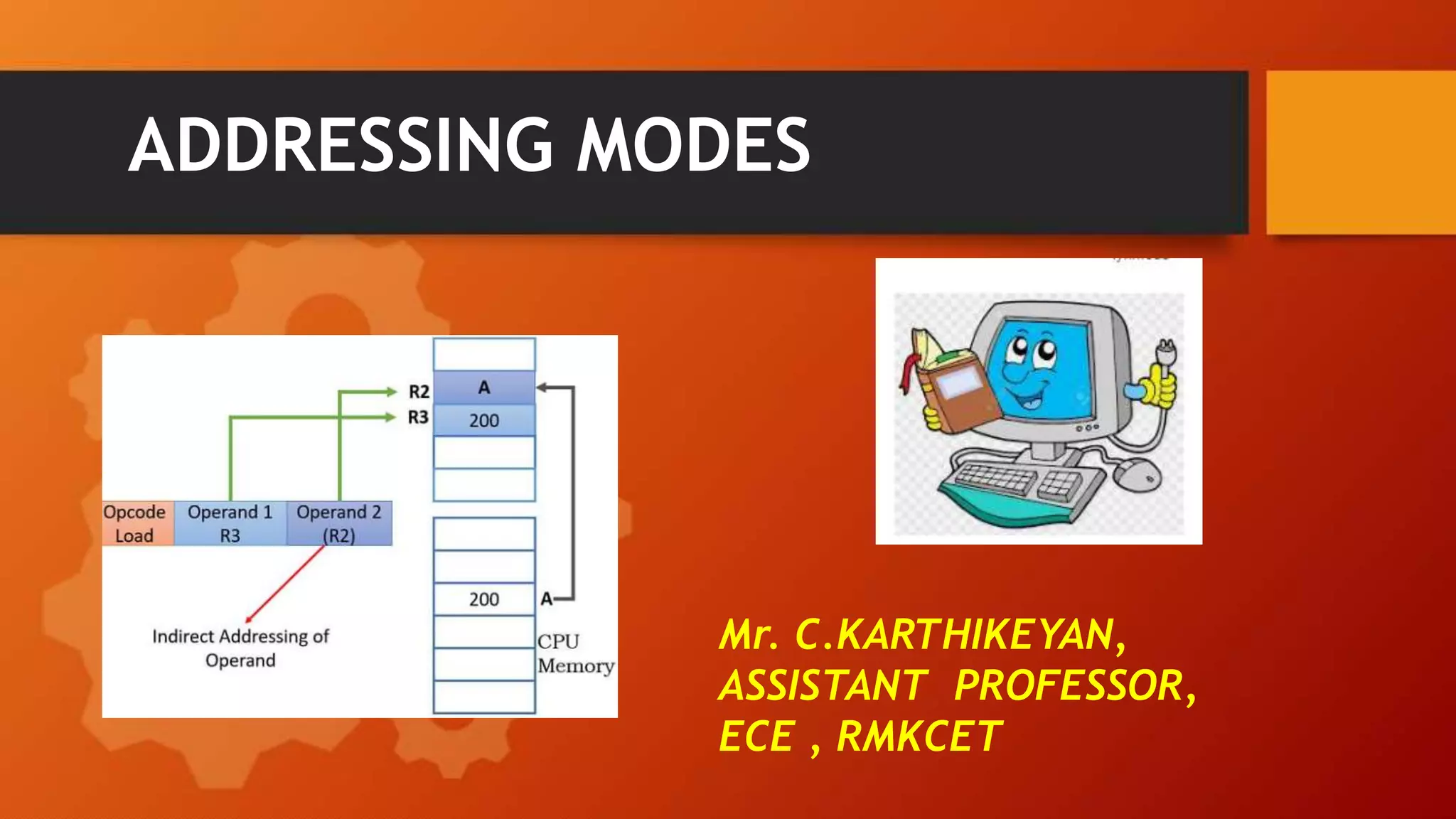

- 1. ADDRESSING MODES Mr. C.KARTHIKEYAN, ASSISTANT PROFESSOR, ECE , RMKCET
- 2. MIPS ADDRESSING MODES Immediate Addressing Mode Register Addressing Mode Base or Displacement Addressing Mode PC-Relative Addressing Mode Pseudo Direct Addressing Mode
- 3. Immediate Addressing Mode Eg:1. addi $s0, $zero,7 Eg:4. ori $t0,$t1,8 $s0 = 0 + 7 $t0 = $t1 | 8
- 4. Register Addressing Mode Eg:1. add $s1,$s2,$s3 Eg:2. or $t0,$t1,$t2 Eg:3. srl $s7,$s0,4 $s1 = $s2 + $s3 $t0 = $t1 | $t2 $s7 = $s0 >> 4
- 5. Base / Displacement Addressing Mode Eg:1. lw $s1, 4($s2) Eg:2. sw $s0, 8($s4) $s1 = Mem [$s2+4] Mem [$s4+8] = $s0
- 6. PC – Relative Addressing Mode Eg:1. beq $s1, $s2, 25 Eg:2. bne $s0, $s1, 20 if($s1==$s2) goto PC+4+100 if($s0!=$s1) goto PC+4+80
- 7. Pseudo Direct Addressing Mode Eg:1. j 2500 Eg:2. jr $ra Eg:3. jal 2500 go to 10000 goto $ra $ra=PC+4 goto 10000
- 8. EXAMPLE Loop: add $t1,$s3,$s3 add $t1,$t1,$t1 add $t1,$t1,$s6 lw $t0,0($t1) bne $t0,$s5,Exit add $s3,$s3,$s4 j loop Exit: 35 9 8 0 0 19 19 9 0 32 5 8 21 2 2 2000 8000 8004 8008 0 9 9 9 0 32 0 9 22 9 0 32 0 19 20 19 0 32 8012 8016 8020 8024 8028 Starting address 8000
- 9. 0000 0000 0001 0000 0101 0001 0000 0000 0000 0000 0001 0000 0101 0001 0000 0000 00000000000100000101000100000000 000000 00000100000101000100000000 R - Type 000000 00000100000101000100 000000 sll 000000 00000 10000 01010 00100 000000 sll $t2, op rs rt rd Shift amt fn $s0, 4 0x00105100 00105100 hex
