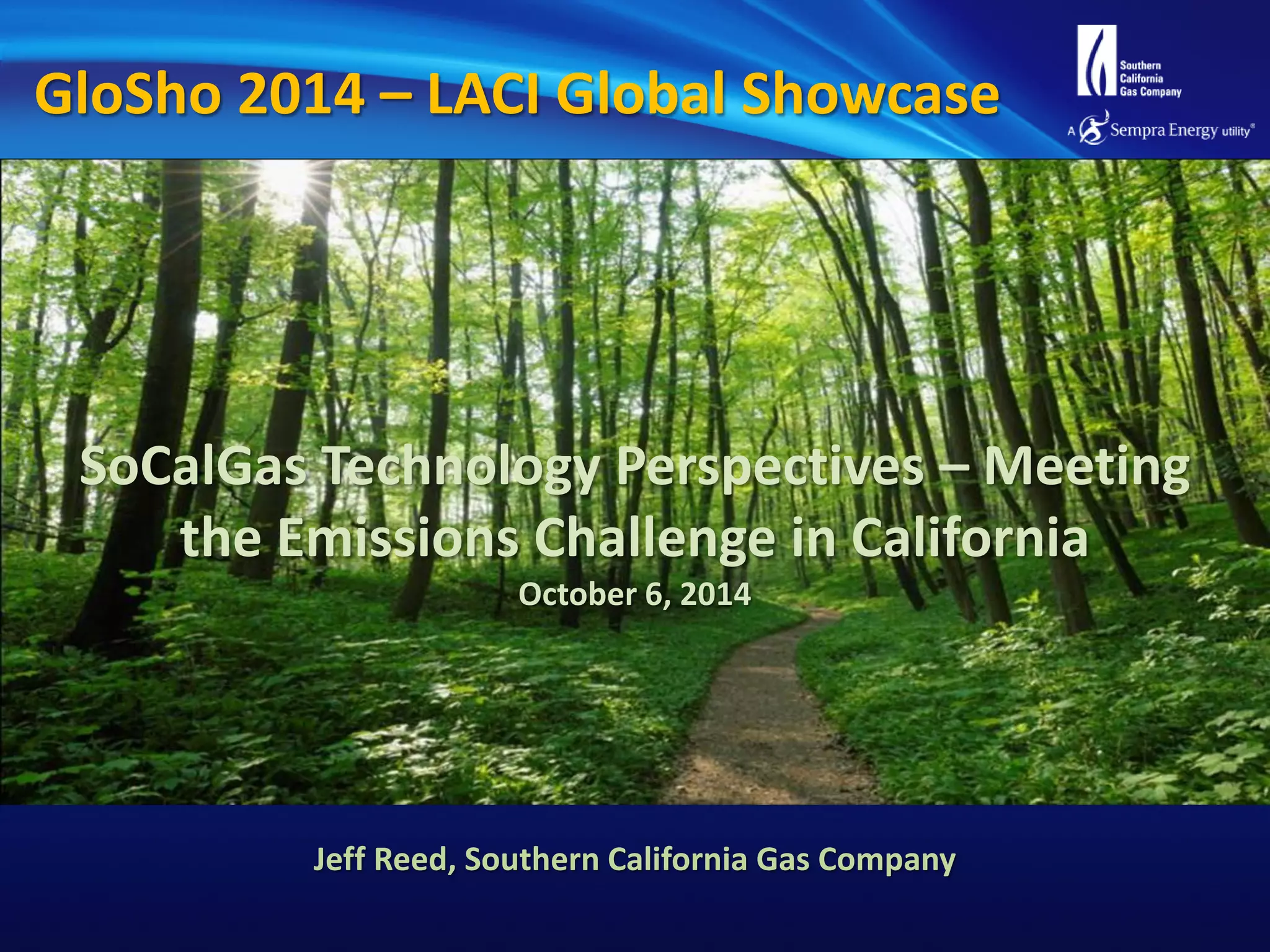

1. Jeff Reed, Southern California Gas Company
SoCalGas Technology Perspectives – Meeting the Emissions Challenge in California October 6, 2014
GloSho 2014 – LACI Global Showcase

2. 2
Southern California Gas Company
•
The nation’s largest natural gas distribution utility
–
20.9 million consumers
–
5.8 million meters
–
500 communities
•
Subsidiary of Sempra Energy (SRE)
•
Industry leader in customer satisfaction, safety and cost- effectiveness 2

3. California’s Dual Emissions Challenge – 80% Reduction in NOx and GHG
Federal Clean Air Act (CAA) - requirements to meet ozone standards in Central and Southern California air basins will require a 75% to 90% reduction in combustion emissions over the next 20 years.
California Climate Change Initiatives - Assembly Bill 32 “Global Warming Solutions Act” (AB32) and Governor’s Executive Order 2050 – set goals of reducing greenhouse gas emission by over 80% by 2050. 3

4. Technology Advances Key to Meeting the Emissions Challenge
•
Continuing progress on increased efficiency for all end-uses addresses both NOx and GHG
•
Optimized combustion / oxidation and after- treatment systems will meet the NOx challenge
•
Carbon-neutral gaseous fuels (such as biogas and Power-to-Gas) and carbon capture will meet the GHG challenge
•
High-potential emerging applications: Transportation, Distributed Gen, Power-to-Gas 4

5. Natural Gas Vehicle Technology – 80% NOx and 50% GHG Reductions 5
ADVANCED
AFTER-TREATMENT
Low-Pressure
Conformable Fuel Tanks
•
Growing activity in off-road applications – marine, rail, equipment
Pressure swirl atomization

6. 6
Engines with Advanced Controls and After Treatment
Turbines with low Nox Technology
Fuel Cells
(Virtually Emission Free)
Natural Gas Distributed Gen – Near-zero NOx and 20% to 50% GHG Reduction*
* Relative to GTCC

7. A Variety of Renewable Gas Pathways Are Under Development 7
WWTP Biogas Collection
Organic Matter
Landfill Biogas Collection
Gasification
Anaerobic Digester
Compression, Odorization, Quality Control & Injection
Biogas Clean-up
Methanation
Renewable Power-to-Gas
Solar H2 Production
CO2
Dry / Woody
Wet
Current cost range
$10 - $40/ MMBtu
+ transportation
Carbon-neutral methane
(Renewable Natural Gas)
H2
Hydrogen Blending
(Commercial)
(Commercial)
(Early Commercial)
(Early Commercial)
(R&D Stage)

8. Existing Infrastructure Can Serve Multiple H2 and CH4 Pathways 8
Pipeline
Reformation
Transportation
Generation /
End Use
Renewable H2
Renewable NG
Hydrogen
Natural Gas
Methanation
Separation
Blending
Gas Grid
Compress or Liquefy
Storage
CCUS

9. Gaseous Fuels Have Great Potential for Bulk Energy Storage 9

10. Power-to-Gas Demonstration Projects in Europe Turning Excess Green Electricity into Hydrogen and Synthetic Methane
Audi’s Plant (Werlte, Germany)
Mainova AG (Frankfurt, Germany)
2% H2 Injection
Synthetic Methane
10

11. Thank you.
