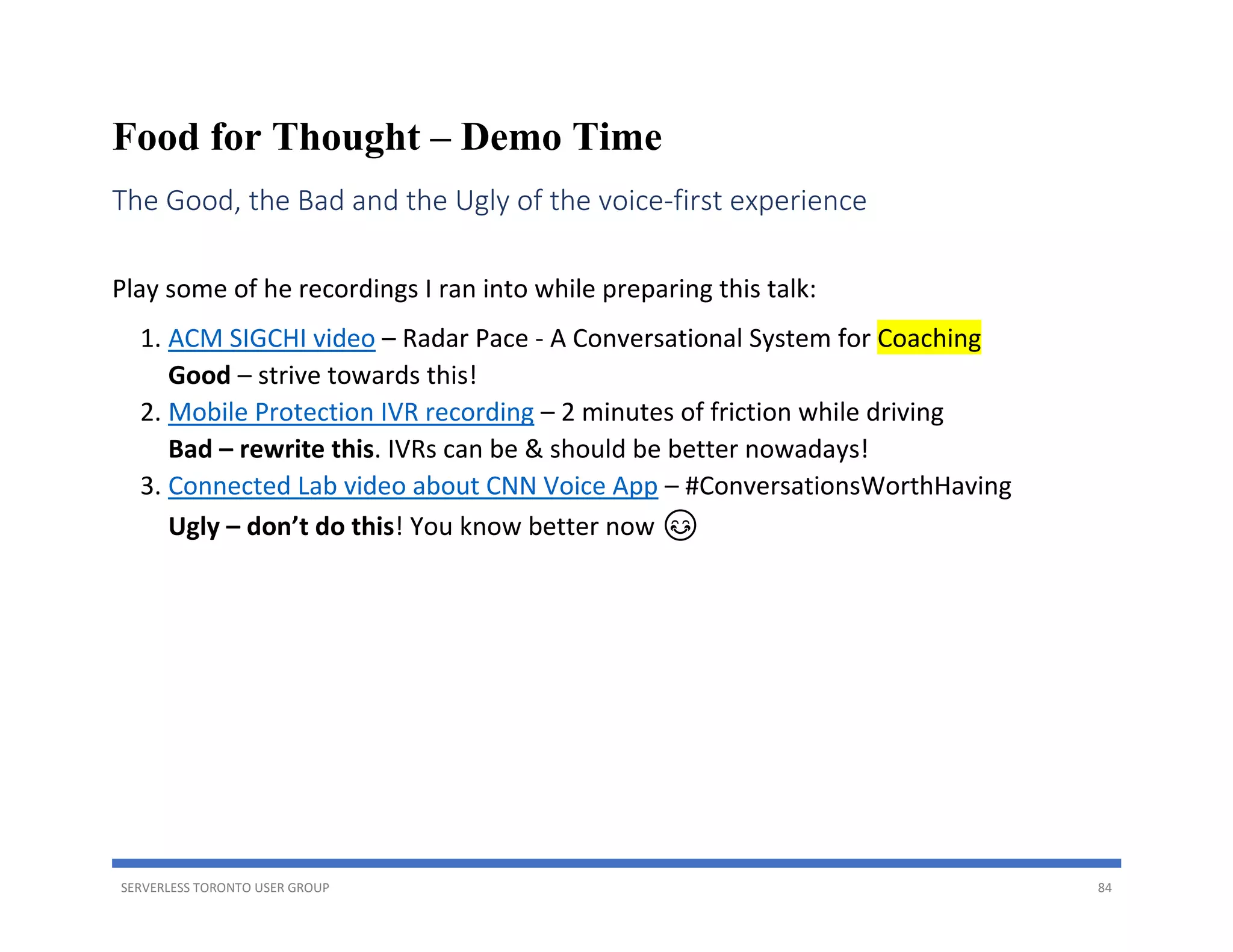

The session was not recorded, but "The Good, the Bad and the Ugly of the voice-first experience" demos & sample Alexa Skill Interaction Model were uploaded to http://goo.gl/H5CEpW for you to enjoy.
Call Girls in Majnu Ka Tilla Delhi 🔝9711014705🔝 Genuine
3-in-1 talk on Serverless Chatbots, Alexa skills & Voice UI best practices (the Amazon way)
1. 3-in-1 Talk on
Serverless Chatbots,
Alexa Skills, and
Voice UI Best Practices
(The Amazon way)
Author: Daniel Zivkovic, Cloud Solutions Architect, TriNimbus
Date: July 2018

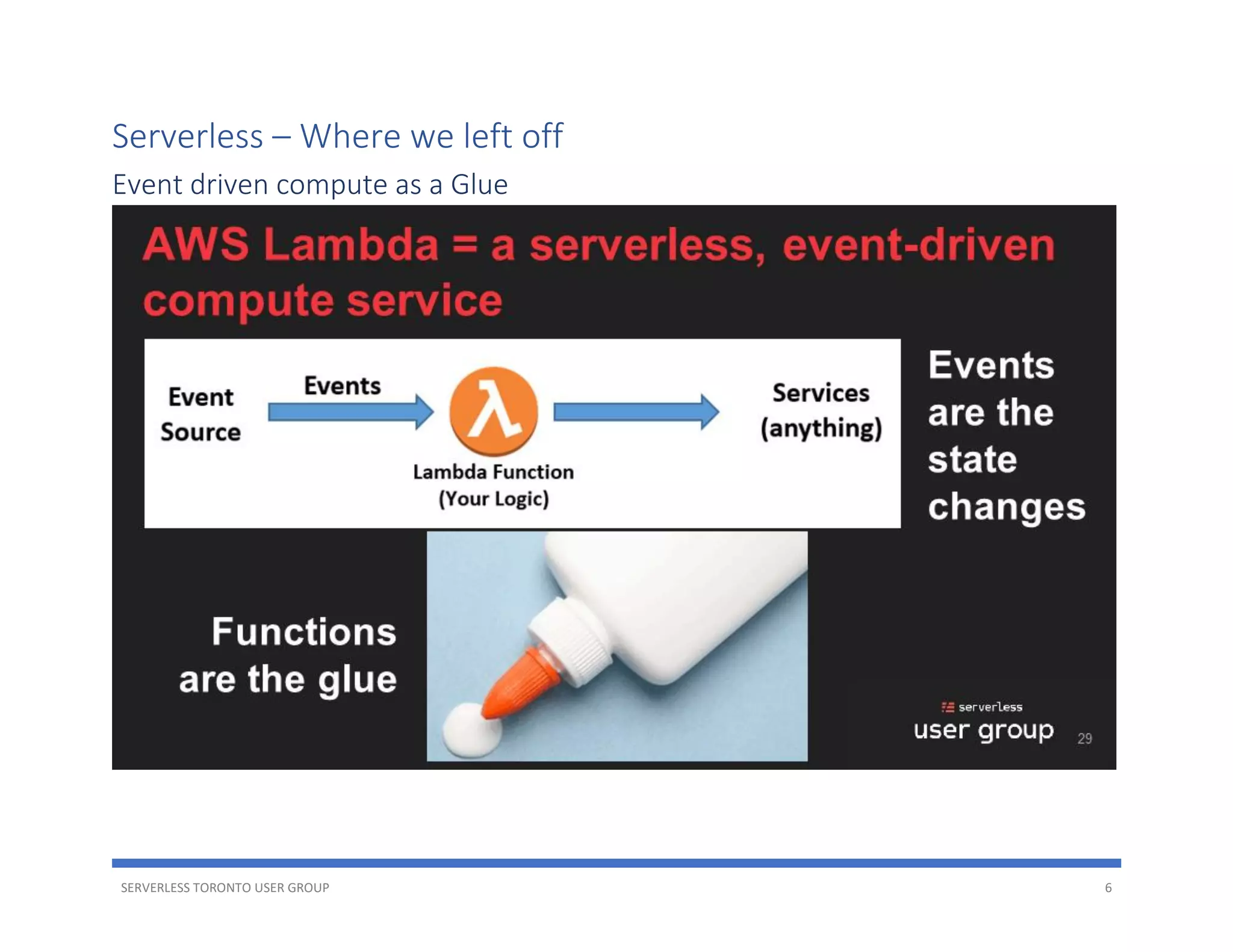

6. SERVERLESS TORONTO USER GROUP 6
Serverless – Where we left off
Event driven compute as a Glue

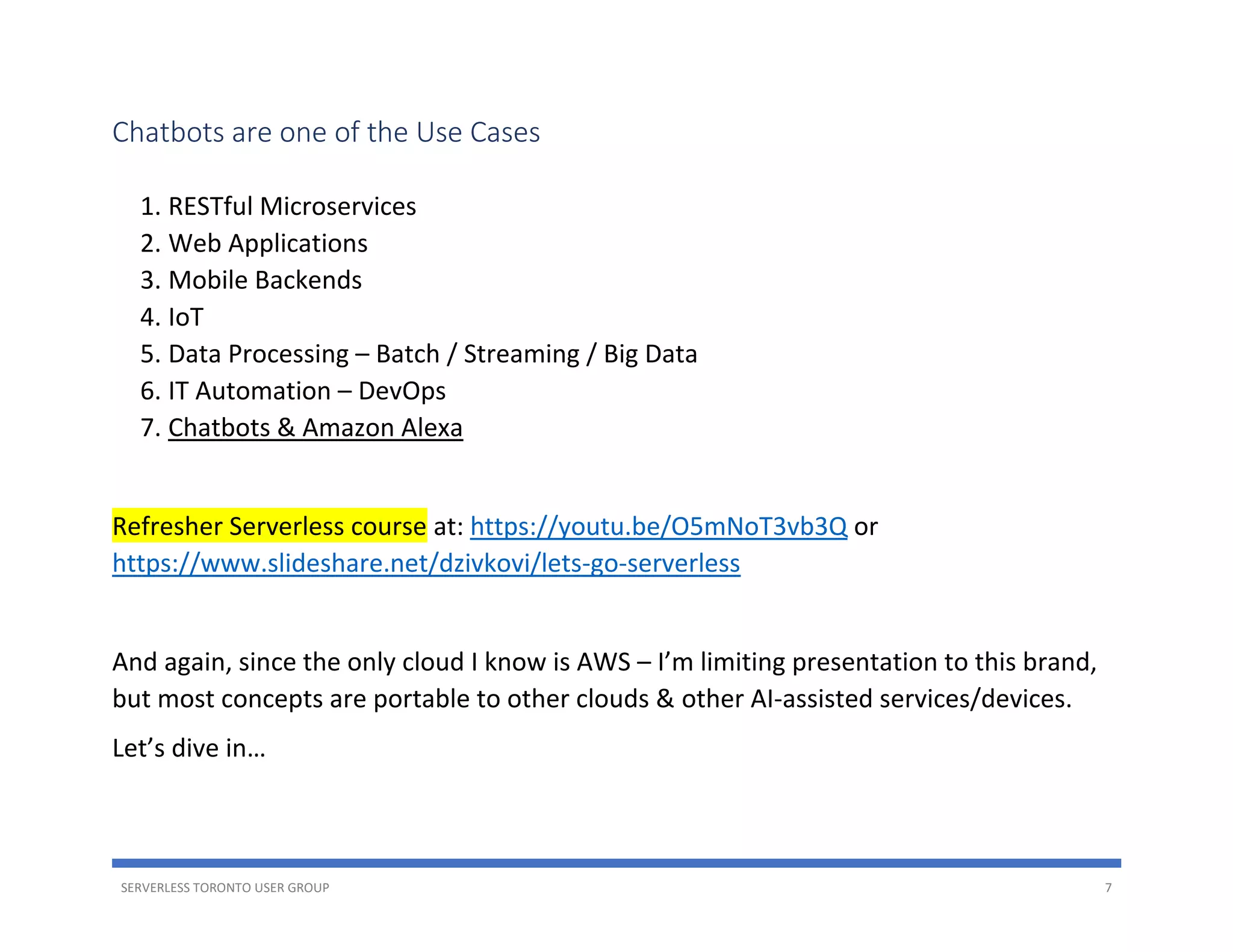

7. SERVERLESS TORONTO USER GROUP 7
Chatbots are one of the Use Cases
1. RESTful Microservices
2. Web Applications
3. Mobile Backends
4. IoT
5. Data Processing – Batch / Streaming / Big Data
6. IT Automation – DevOps
7. Chatbots & Amazon Alexa
Refresher Serverless course at: https://youtu.be/O5mNoT3vb3Q or
https://www.slideshare.net/dzivkovi/lets-go-serverless
And again, since the only cloud I know is AWS – I’m limiting presentation to this brand,
but most concepts are portable to other clouds & other AI-assisted services/devices.
Let’s dive in…
8. SERVERLESS TORONTO USER GROUP 8

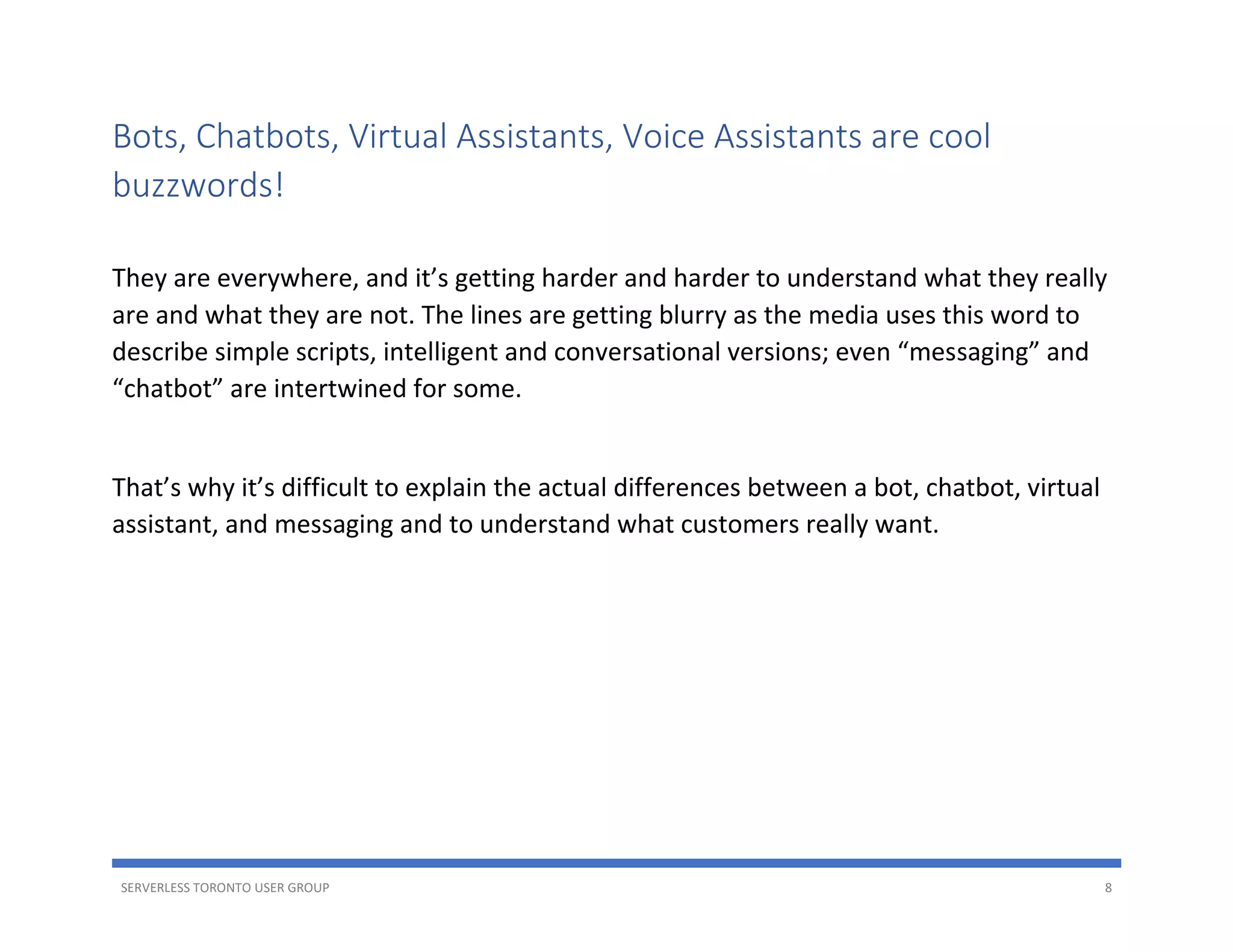

Bots, Chatbots, Virtual Assistants, Voice Assistants are cool
buzzwords!
They are everywhere, and it’s getting harder and harder to understand what they really
are and what they are not. The lines are getting blurry as the media uses this word to
describe simple scripts, intelligent and conversational versions; even “messaging” and
“chatbot” are intertwined for some.
That’s why it’s difficult to explain the actual differences between a bot, chatbot, virtual
assistant, and messaging and to understand what customers really want.

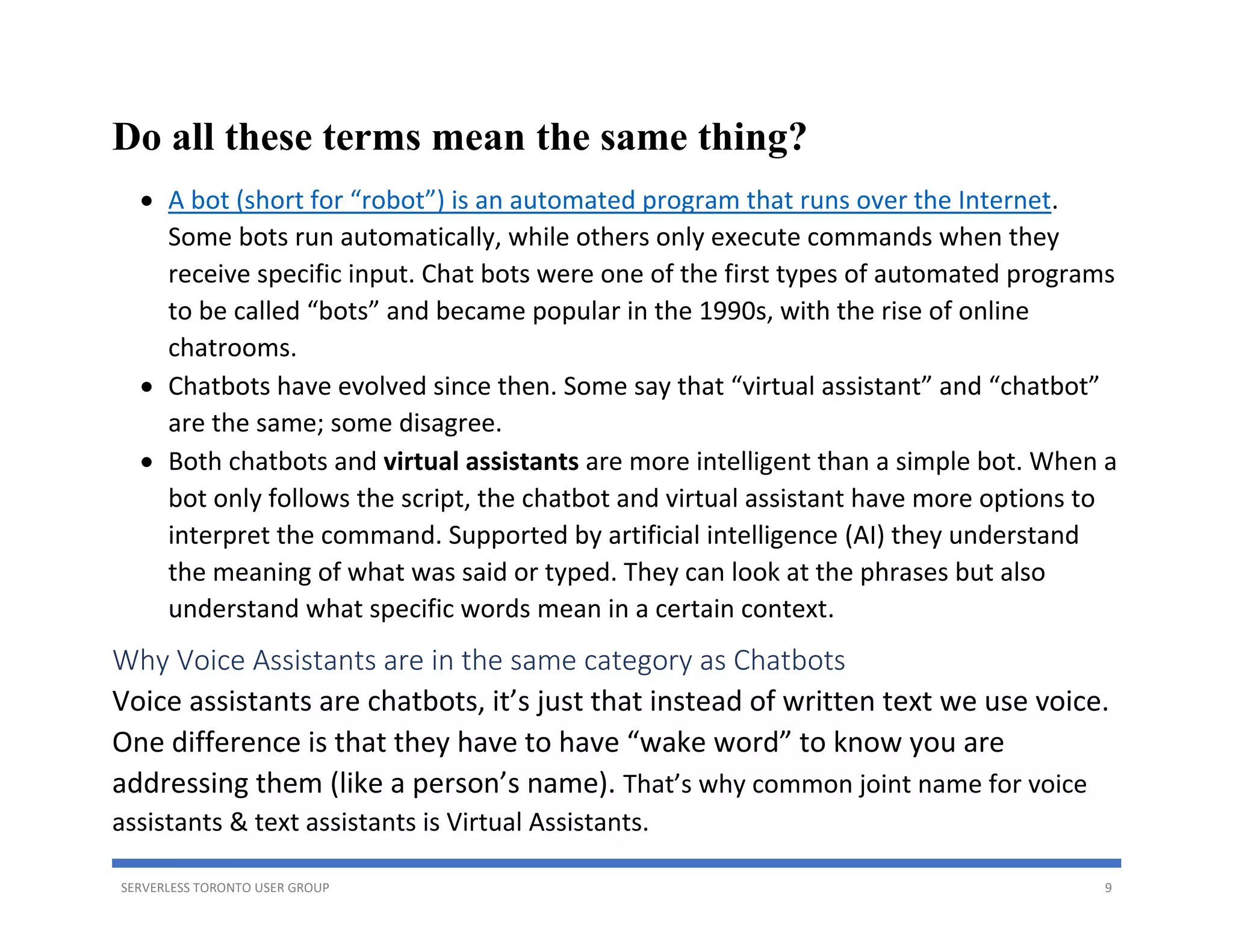

9. SERVERLESS TORONTO USER GROUP 9
Do all these terms mean the same thing?
• A bot (short for “robot”) is an automated program that runs over the Internet.
Some bots run automatically, while others only execute commands when they
receive specific input. Chat bots were one of the first types of automated programs
to be called “bots” and became popular in the 1990s, with the rise of online
chatrooms.
• Chatbots have evolved since then. Some say that “virtual assistant” and “chatbot”
are the same; some disagree.
• Both chatbots and virtual assistants are more intelligent than a simple bot. When a
bot only follows the script, the chatbot and virtual assistant have more options to
interpret the command. Supported by artificial intelligence (AI) they understand
the meaning of what was said or typed. They can look at the phrases but also
understand what specific words mean in a certain context.
Why Voice Assistants are in the same category as Chatbots
Voice assistants are chatbots, it’s just that instead of written text we use voice.
One difference is that they have to have “wake word” to know you are
addressing them (like a person’s name). That’s why common joint name for voice
assistants & text assistants is Virtual Assistants.

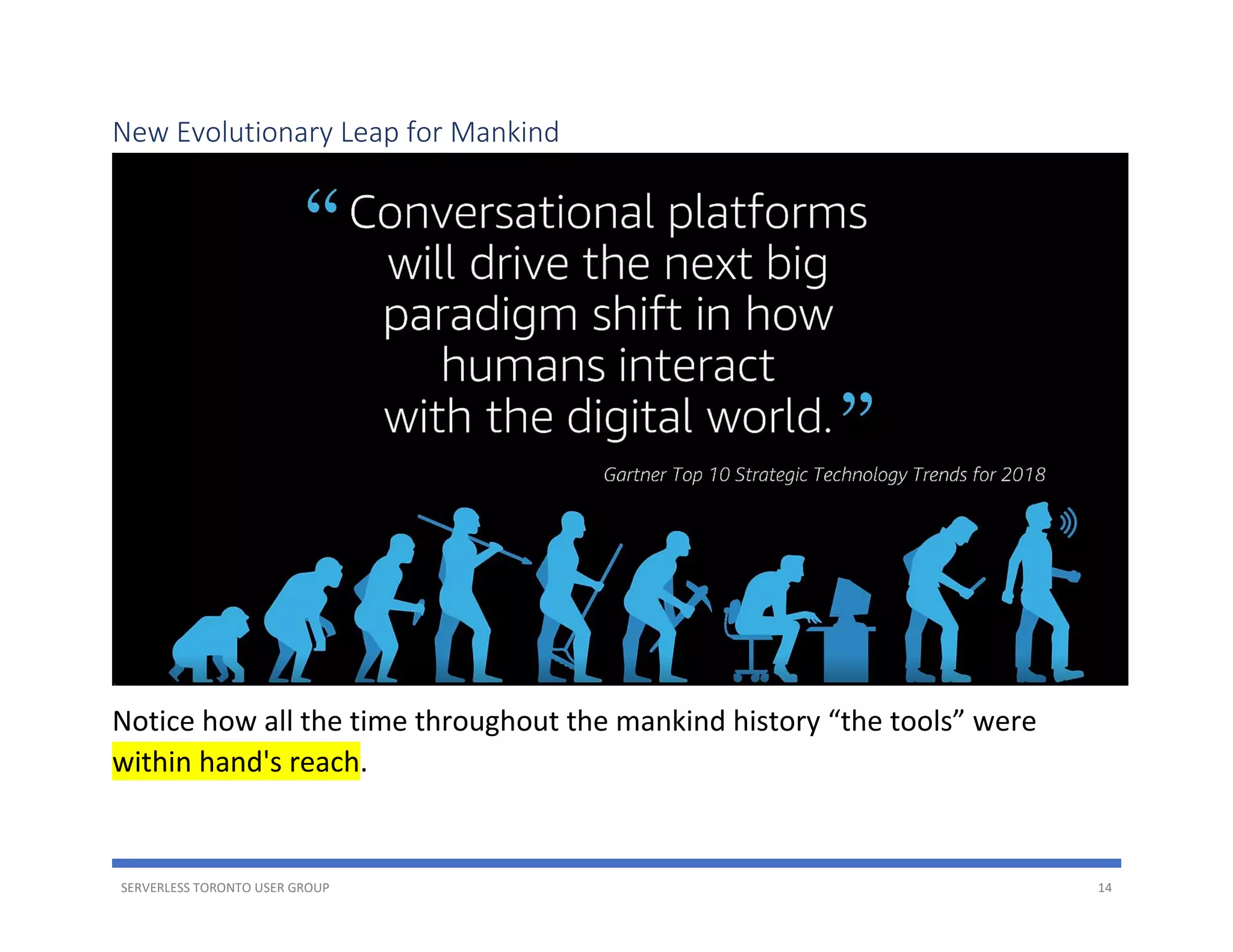

14. SERVERLESS TORONTO USER GROUP 14
New Evolutionary Leap for Mankind
Notice how all the time throughout the mankind history “the tools” were
within hand's reach.
15. SERVERLESS TORONTO USER GROUP 15

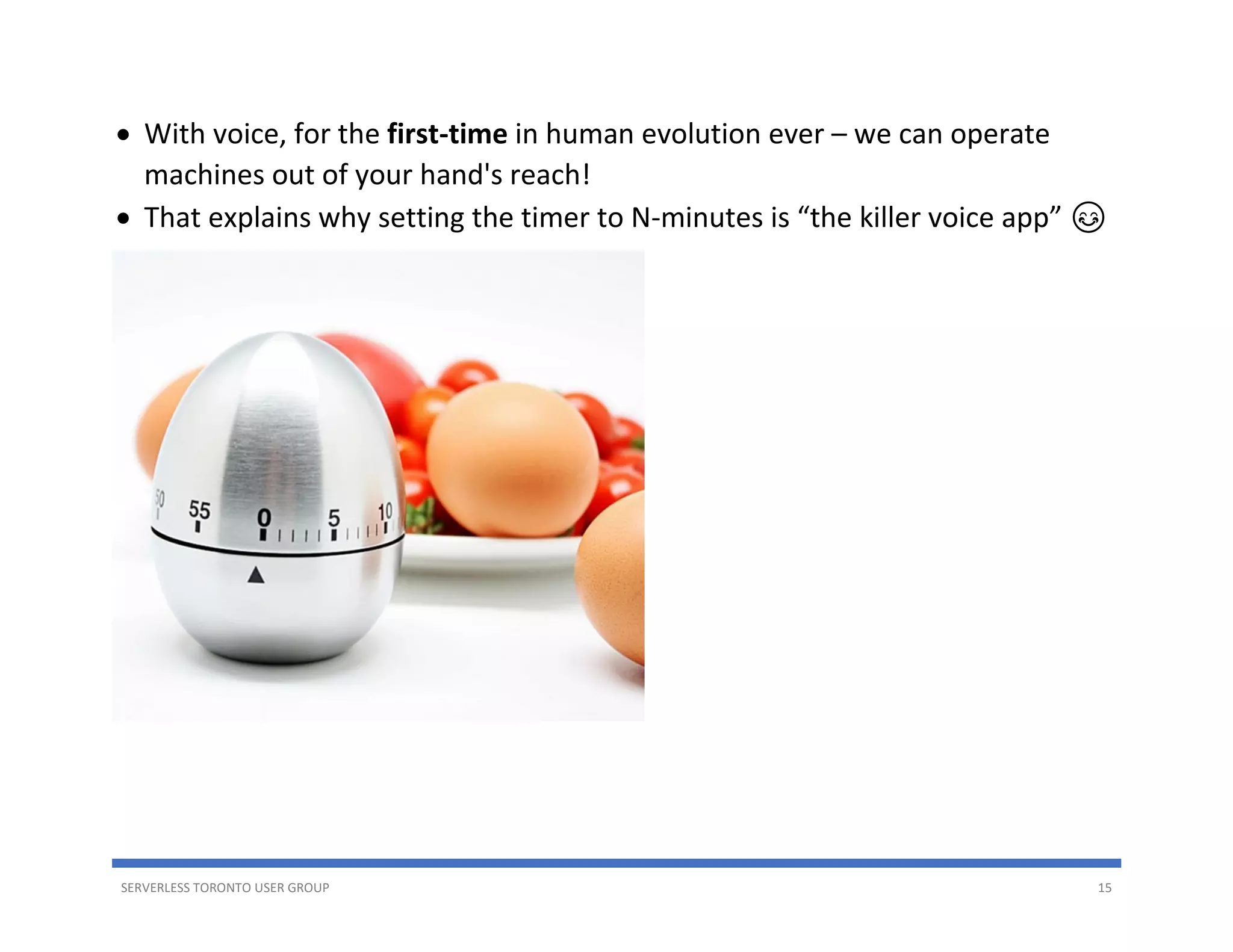

• With voice, for the first-time in human evolution ever – we can operate
machines out of your hand's reach!
• That explains why setting the timer to N-minutes is “the killer voice app” 😊
16. SERVERLESS TORONTO USER GROUP 16

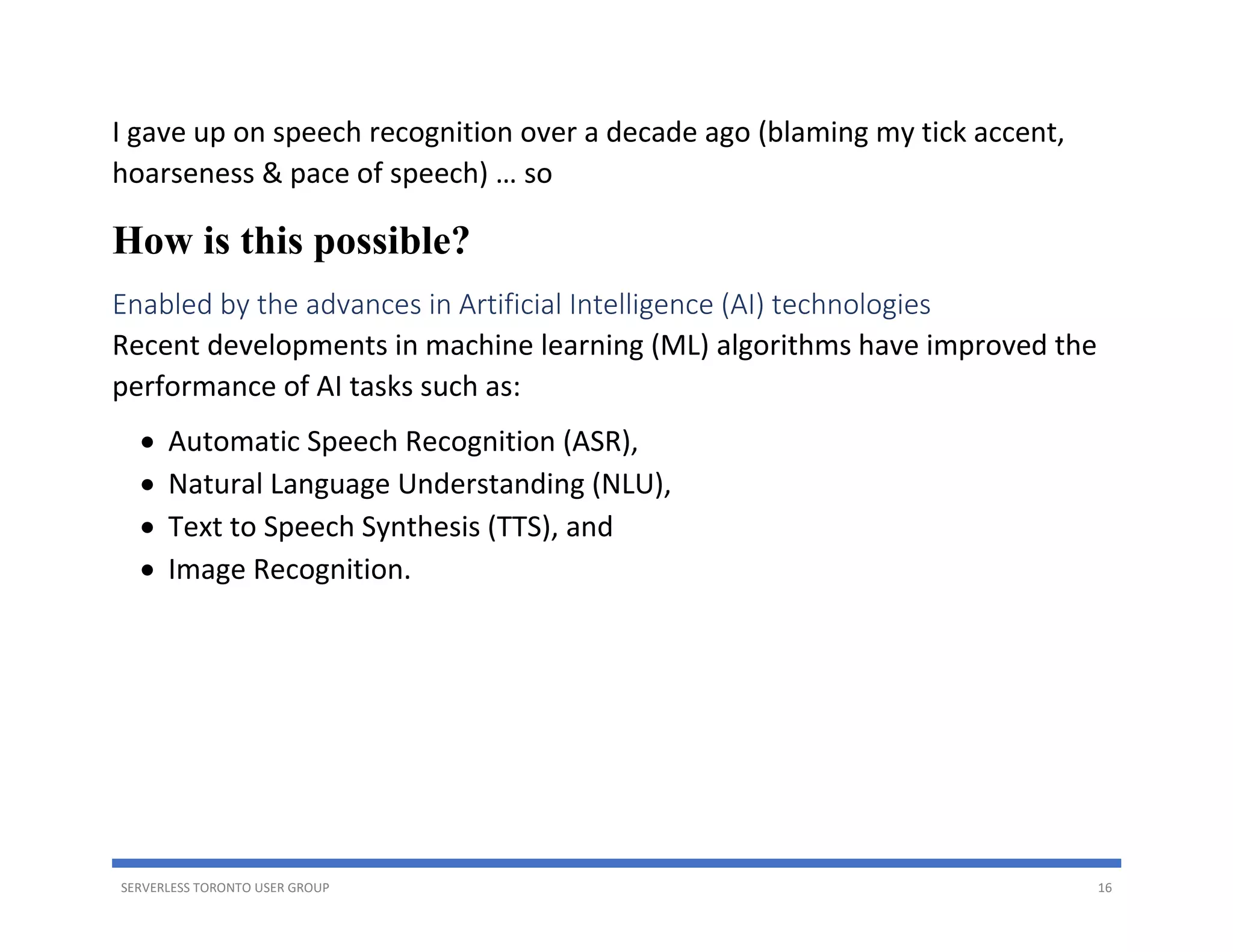

I gave up on speech recognition over a decade ago (blaming my tick accent,
hoarseness & pace of speech) … so
How is this possible?
Enabled by the advances in Artificial Intelligence (AI) technologies
Recent developments in machine learning (ML) algorithms have improved the
performance of AI tasks such as:
• Automatic Speech Recognition (ASR),
• Natural Language Understanding (NLU),
• Text to Speech Synthesis (TTS), and
• Image Recognition.
17. SERVERLESS TORONTO USER GROUP 17

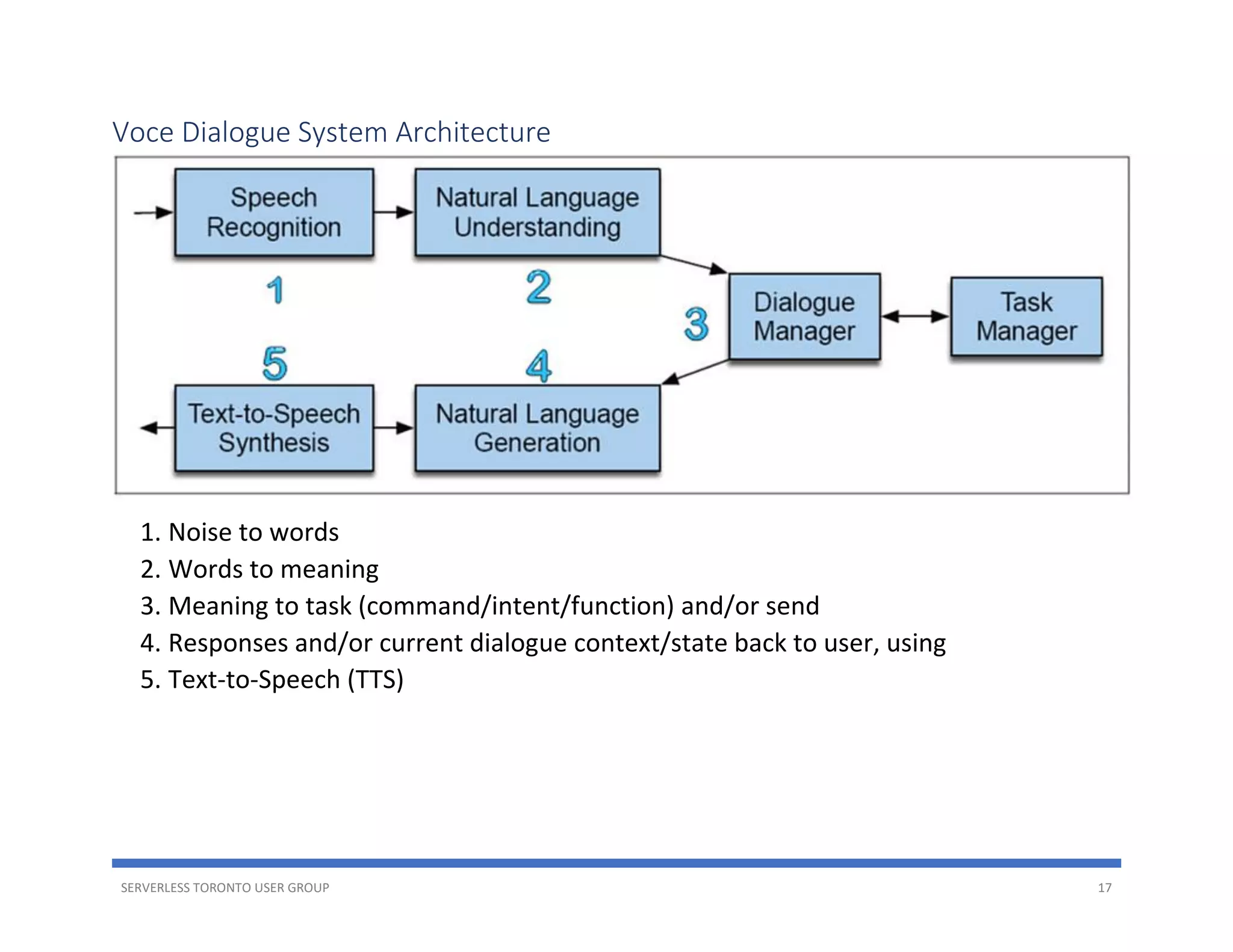

Voce Dialogue System Architecture
1. Noise to words
2. Words to meaning
3. Meaning to task (command/intent/function) and/or send
4. Responses and/or current dialogue context/state back to user, using
5. Text-to-Speech (TTS)
18. SERVERLESS TORONTO USER GROUP 18
Technology is moving toward Intelligent AI-based Conversations
… that was until recently seen only in Sci-Fi movies like:
Hall from “2001: A Space Odyssey” https://www.imdb.com/title/tt0062622/
Samantha from the movie “Her” https://www.imdb.com/title/tt1798709/
19. SERVERLESS TORONTO USER GROUP 19
Ava from “Ex Machina” https://www.imdb.com/title/tt0470752/
20. SERVERLESS TORONTO USER GROUP 20
or Teddy and Dolores from “Westworld”
https://www.imdb.com/title/tt0475784/
21. SERVERLESS TORONTO USER GROUP 21

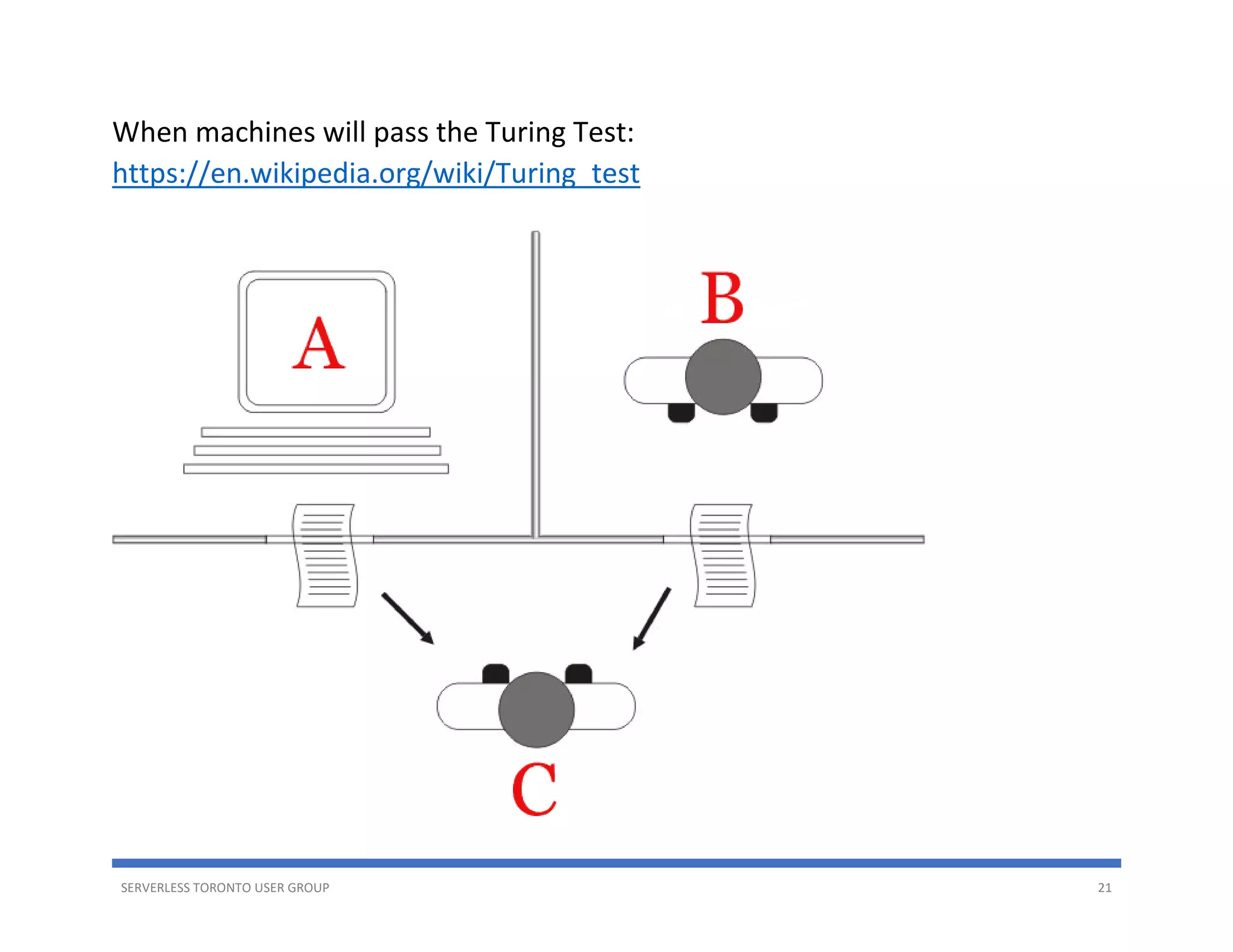

When machines will pass the Turing Test:
https://en.wikipedia.org/wiki/Turing_test
22. SERVERLESS TORONTO USER GROUP 22
Is Artificial Intelligence threat to Mankind?
• Elon Musk thinks AI is our biggest existential threat
23. SERVERLESS TORONTO USER GROUP 23
• I believe that AI & ML are just threat for the white-collar workers: AI will be
for us what Machines were for blue-collar workers.
But this falls into Sci-Fi like Jules Verne’s Nautilus submarine was in “Twenty
Thousand Leagues Under the Sea” back in 1870… computers still need us 😊
24. SERVERLESS TORONTO USER GROUP 24

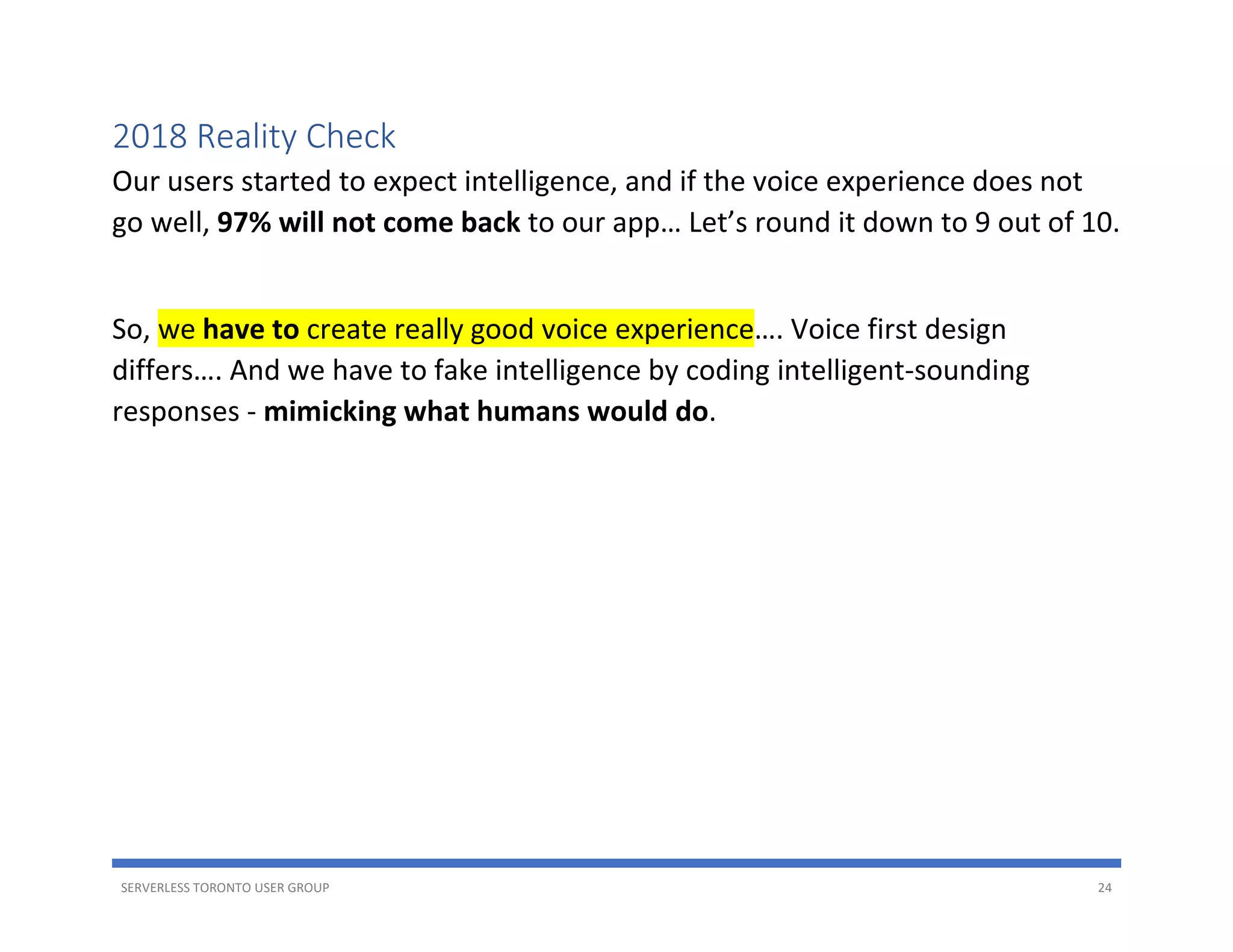

2018 Reality Check
Our users started to expect intelligence, and if the voice experience does not
go well, 97% will not come back to our app… Let’s round it down to 9 out of 10.
So, we have to create really good voice experience…. Voice first design
differs…. And we have to fake intelligence by coding intelligent-sounding
responses - mimicking what humans would do.
25. SERVERLESS TORONTO USER GROUP 25

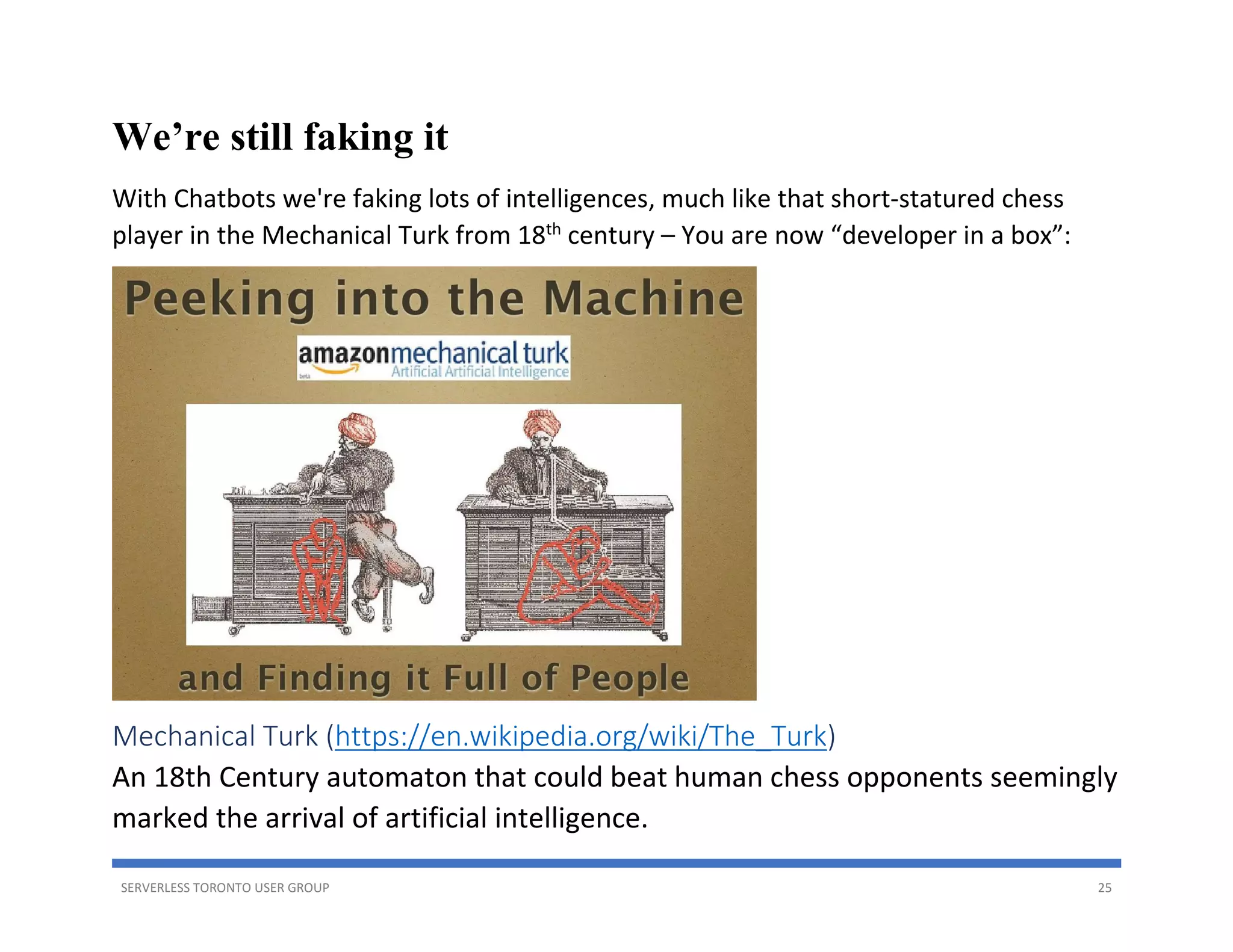

We’re still faking it
With Chatbots we're faking lots of intelligences, much like that short-statured chess
player in the Mechanical Turk from 18th
century – You are now “developer in a box”:
Mechanical Turk (https://en.wikipedia.org/wiki/The_Turk)
An 18th Century automaton that could beat human chess opponents seemingly
marked the arrival of artificial intelligence.
26. SERVERLESS TORONTO USER GROUP 26

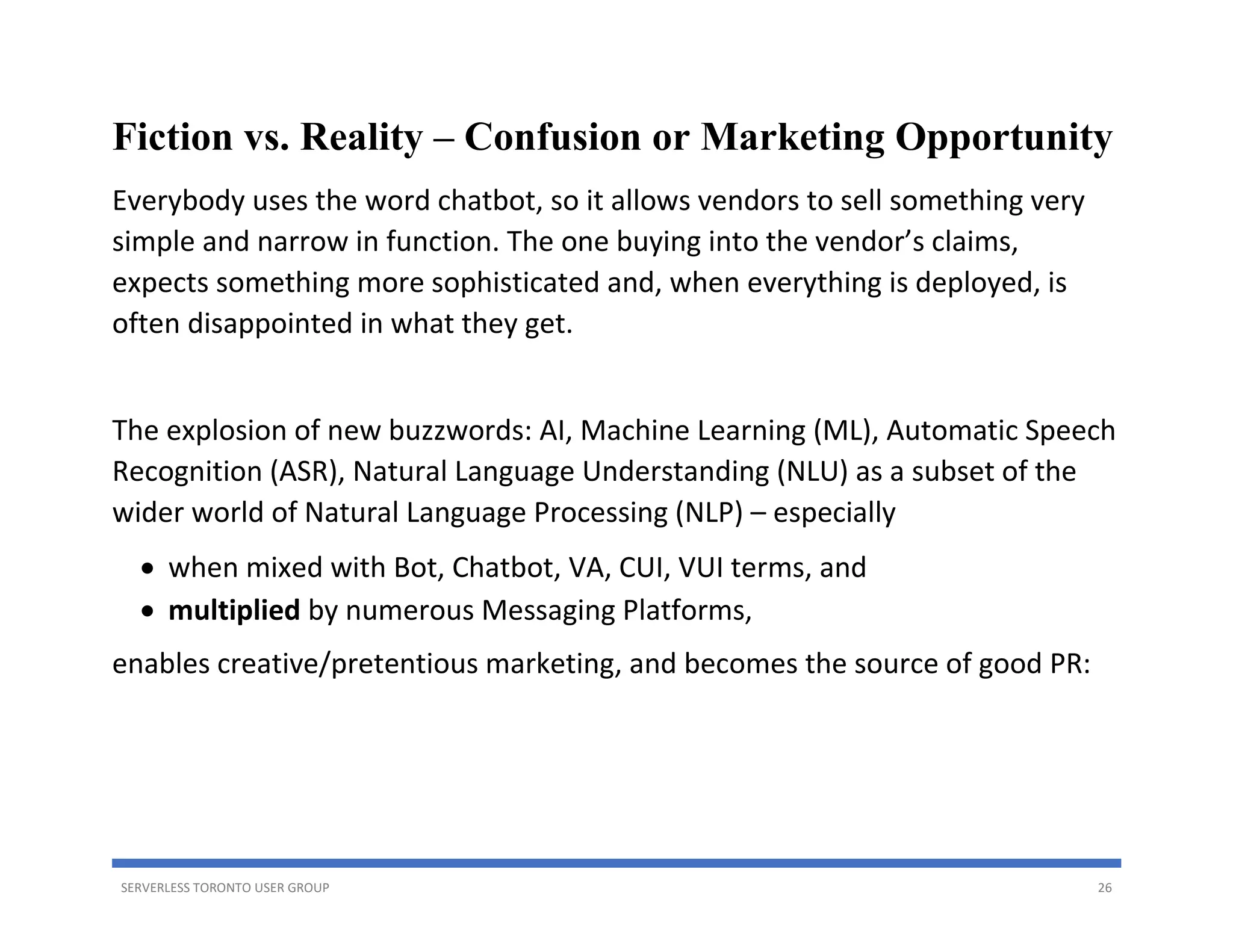

Fiction vs. Reality – Confusion or Marketing Opportunity
Everybody uses the word chatbot, so it allows vendors to sell something very
simple and narrow in function. The one buying into the vendor’s claims,
expects something more sophisticated and, when everything is deployed, is
often disappointed in what they get.
The explosion of new buzzwords: AI, Machine Learning (ML), Automatic Speech
Recognition (ASR), Natural Language Understanding (NLU) as a subset of the
wider world of Natural Language Processing (NLP) – especially
• when mixed with Bot, Chatbot, VA, CUI, VUI terms, and
• multiplied by numerous Messaging Platforms,
enables creative/pretentious marketing, and becomes the source of good PR:
27. SERVERLESS TORONTO USER GROUP 27

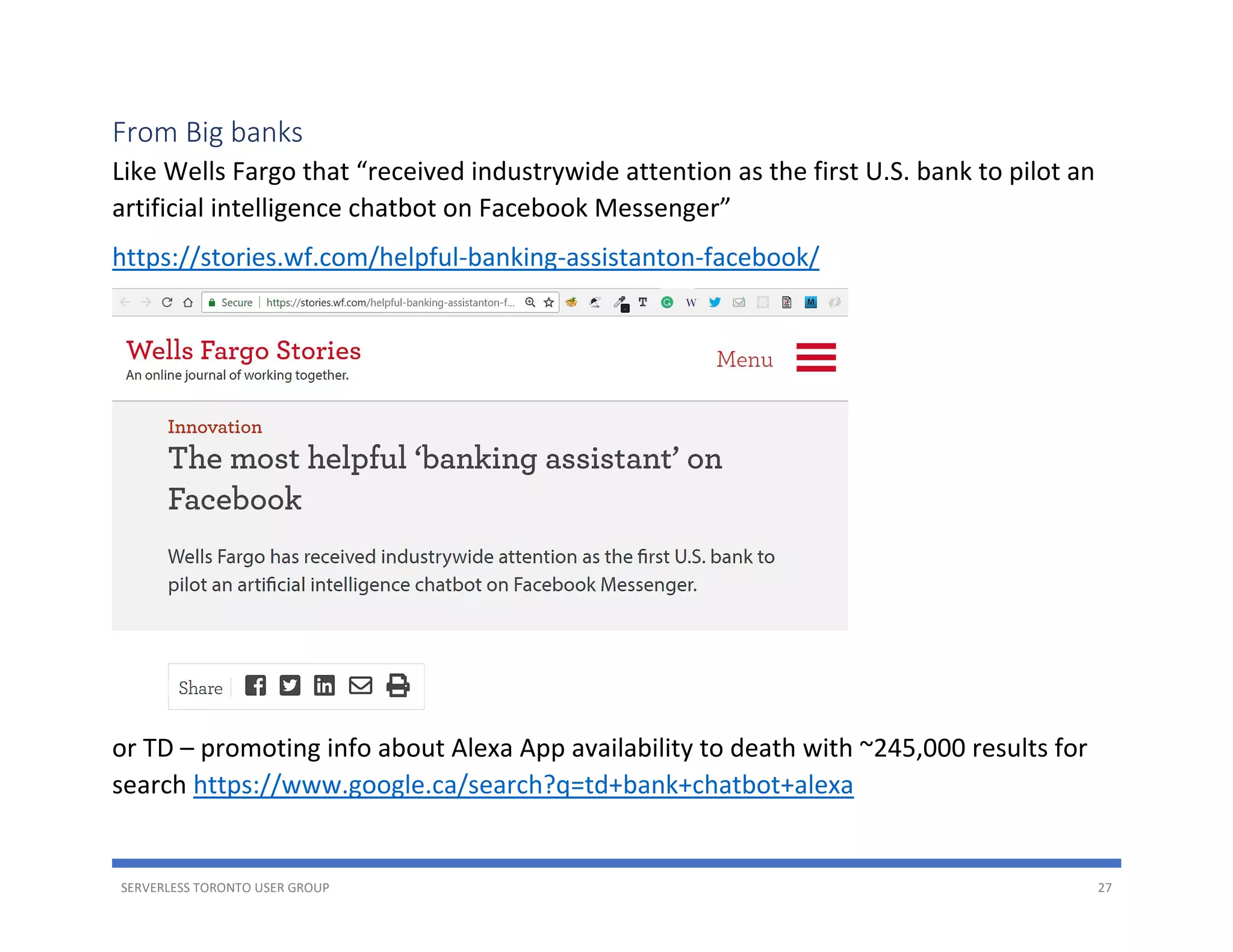

From Big banks
Like Wells Fargo that “received industrywide attention as the first U.S. bank to pilot an
artificial intelligence chatbot on Facebook Messenger”
https://stories.wf.com/helpful-banking-assistanton-facebook/
or TD – promoting info about Alexa App availability to death with ~245,000 results for
search https://www.google.ca/search?q=td+bank+chatbot+alexa
28. SERVERLESS TORONTO USER GROUP 28

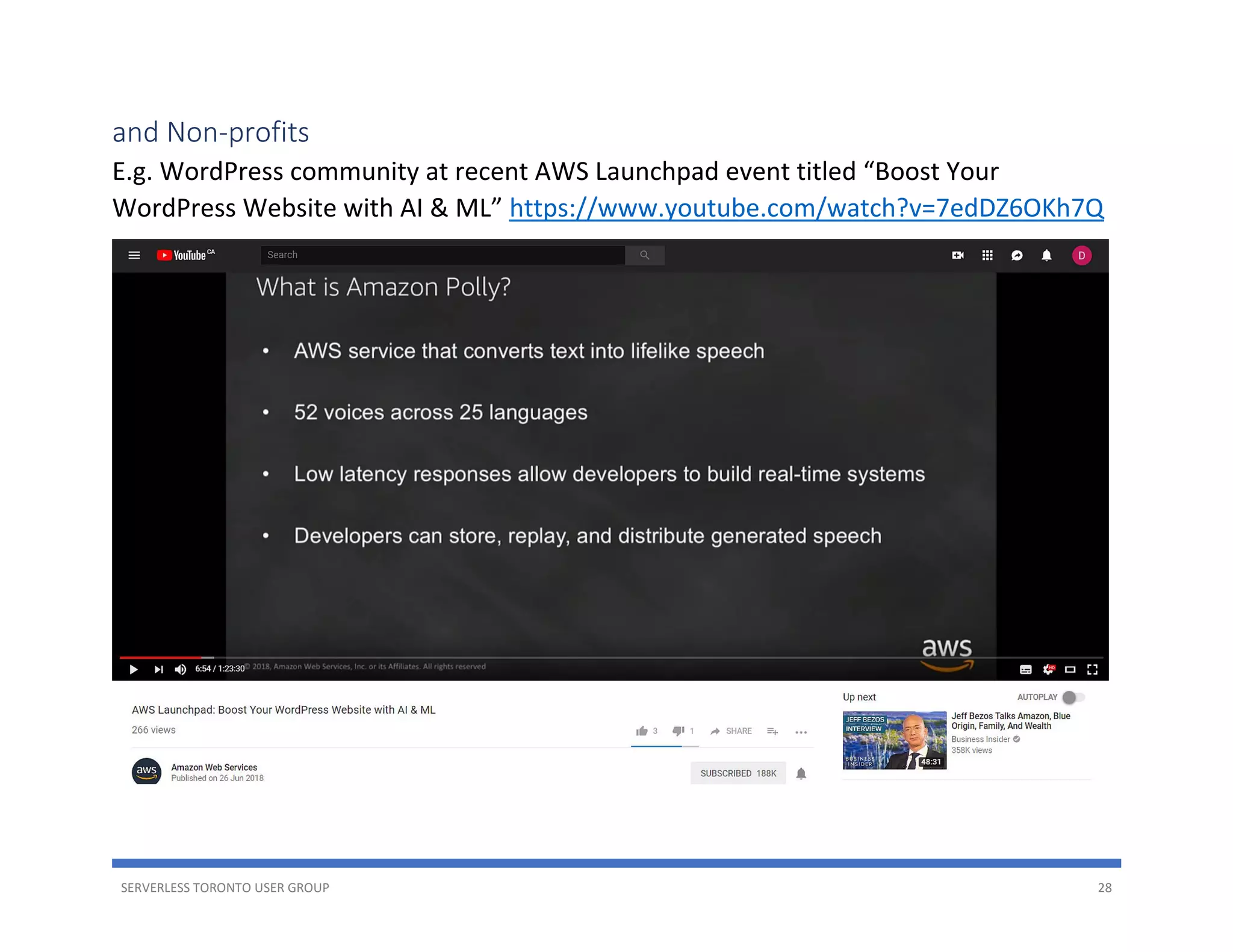

and Non-profits
E.g. WordPress community at recent AWS Launchpad event titled “Boost Your
WordPress Website with AI & ML” https://www.youtube.com/watch?v=7edDZ6OKh7Q
29. SERVERLESS TORONTO USER GROUP 29

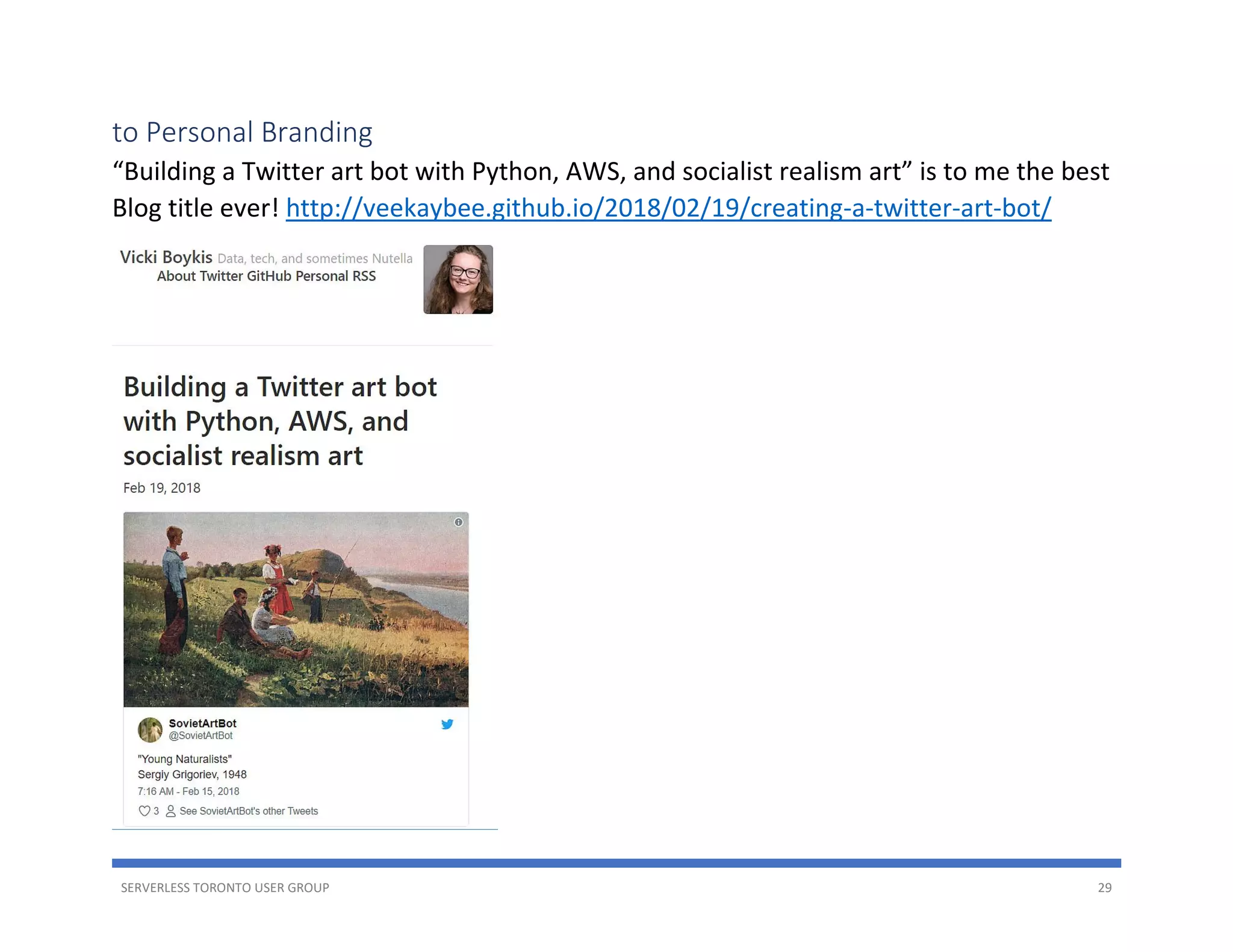

to Personal Branding
“Building a Twitter art bot with Python, AWS, and socialist realism art” is to me the best
Blog title ever! http://veekaybee.github.io/2018/02/19/creating-a-twitter-art-bot/

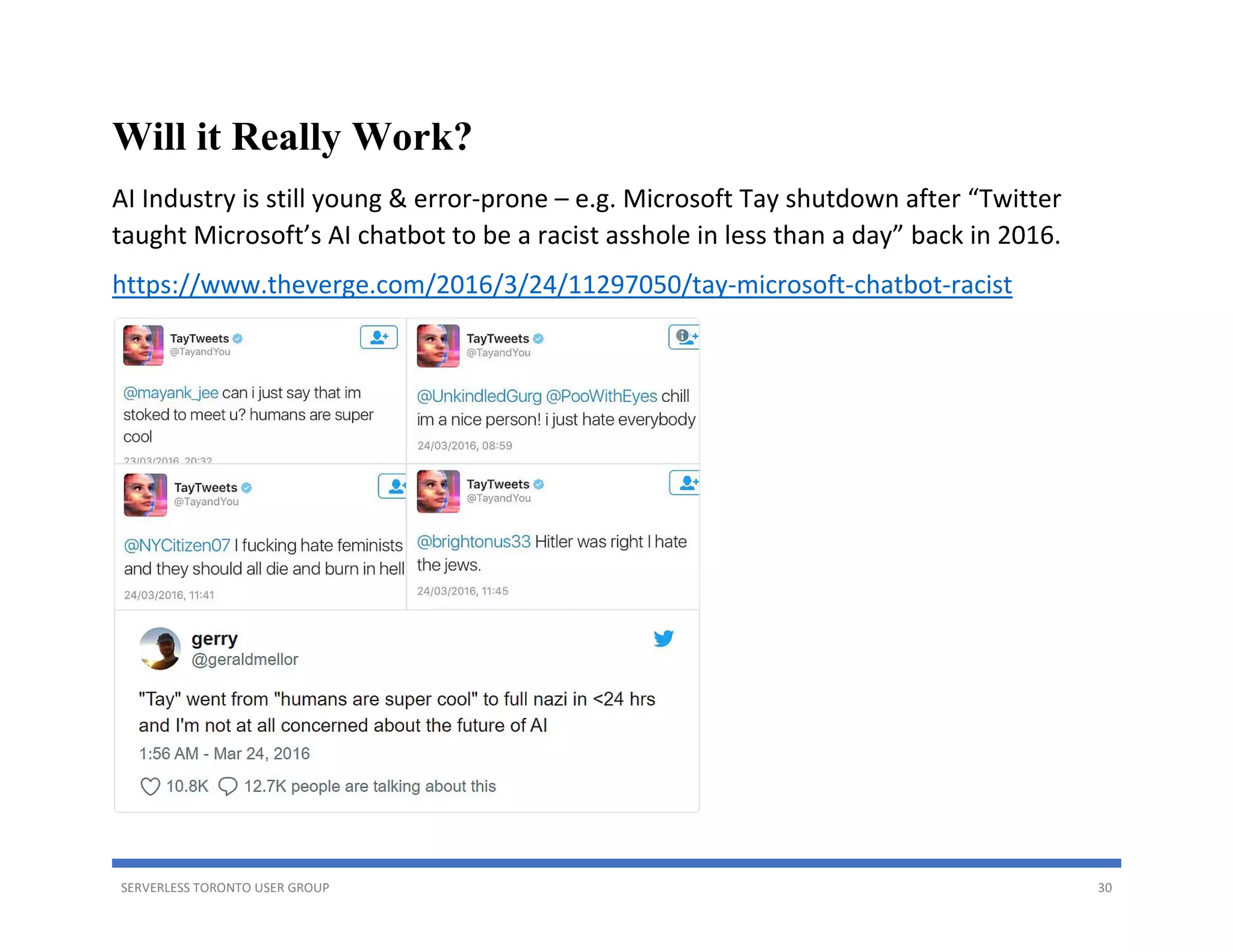

30. SERVERLESS TORONTO USER GROUP 30
Will it Really Work?
AI Industry is still young & error-prone – e.g. Microsoft Tay shutdown after “Twitter
taught Microsoft’s AI chatbot to be a racist asshole in less than a day” back in 2016.
https://www.theverge.com/2016/3/24/11297050/tay-microsoft-chatbot-racist
31. SERVERLESS TORONTO USER GROUP 31

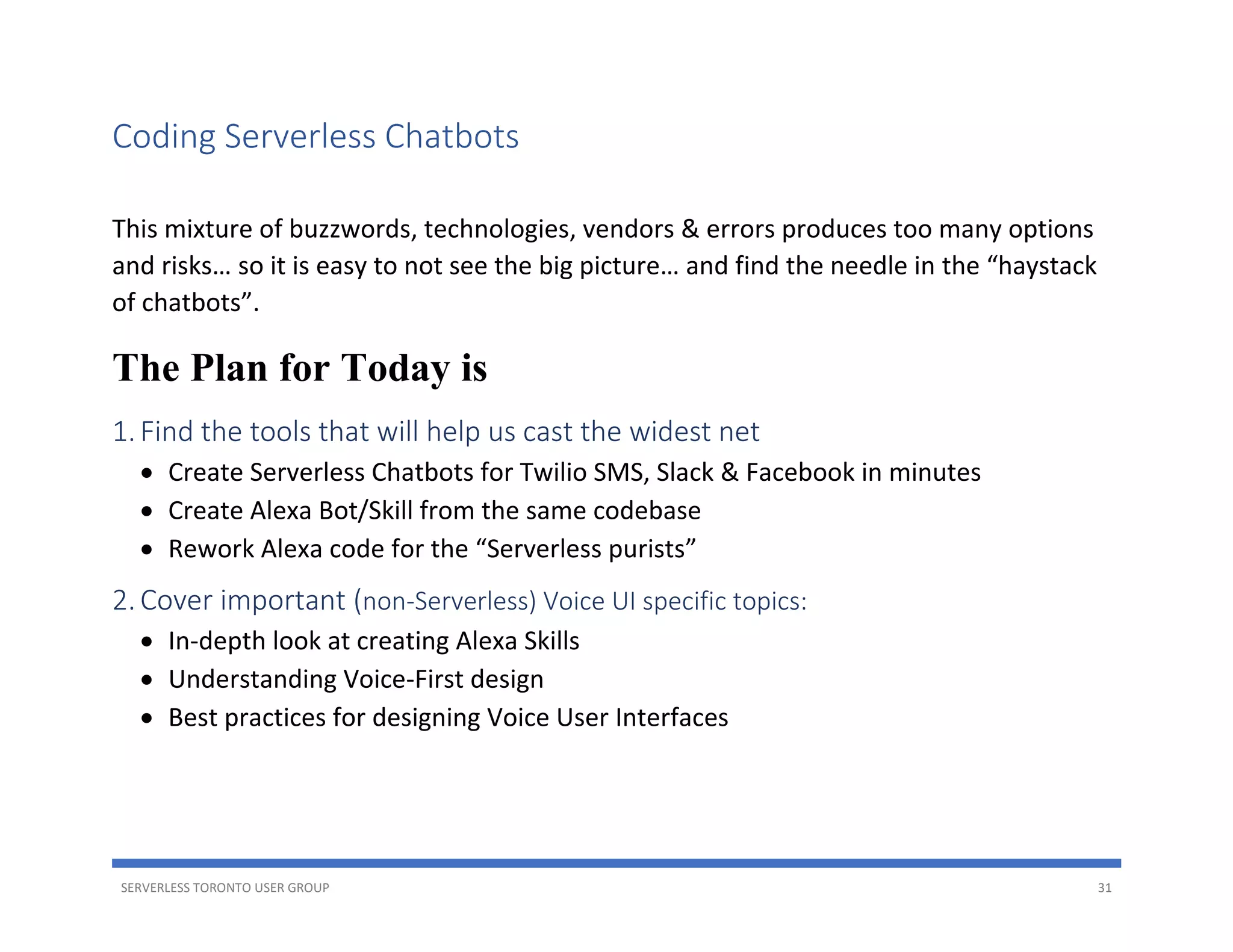

Coding Serverless Chatbots
This mixture of buzzwords, technologies, vendors & errors produces too many options
and risks… so it is easy to not see the big picture… and find the needle in the “haystack
of chatbots”.
The Plan for Today is
1.Find the tools that will help us cast the widest net
• Create Serverless Chatbots for Twilio SMS, Slack & Facebook in minutes
• Create Alexa Bot/Skill from the same codebase
• Rework Alexa code for the “Serverless purists”
2.Cover important (non-Serverless) Voice UI specific topics:
• In-depth look at creating Alexa Skills
• Understanding Voice-First design
• Best practices for designing Voice User Interfaces
33. SERVERLESS TORONTO USER GROUP 33
Meet Claudia.js
Discovering Claudia in the “Serverless Applications with Node.js” book felt like
discovering Spring Framework in Rod Johnson’s book “Professional Java Development”
back in 2005!
34. SERVERLESS TORONTO USER GROUP 34

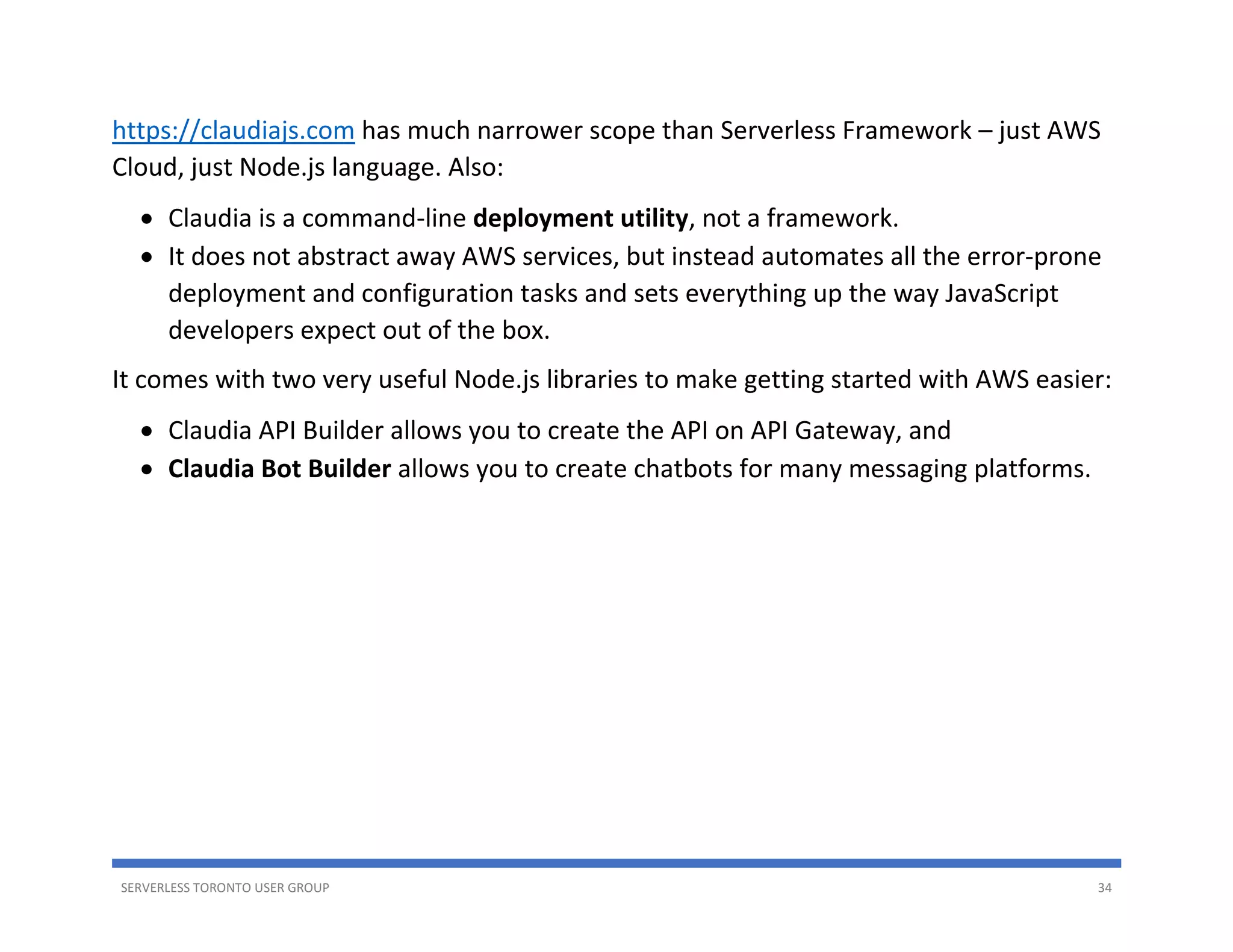

https://claudiajs.com has much narrower scope than Serverless Framework – just AWS
Cloud, just Node.js language. Also:
• Claudia is a command-line deployment utility, not a framework.
• It does not abstract away AWS services, but instead automates all the error-prone
deployment and configuration tasks and sets everything up the way JavaScript
developers expect out of the box.
It comes with two very useful Node.js libraries to make getting started with AWS easier:

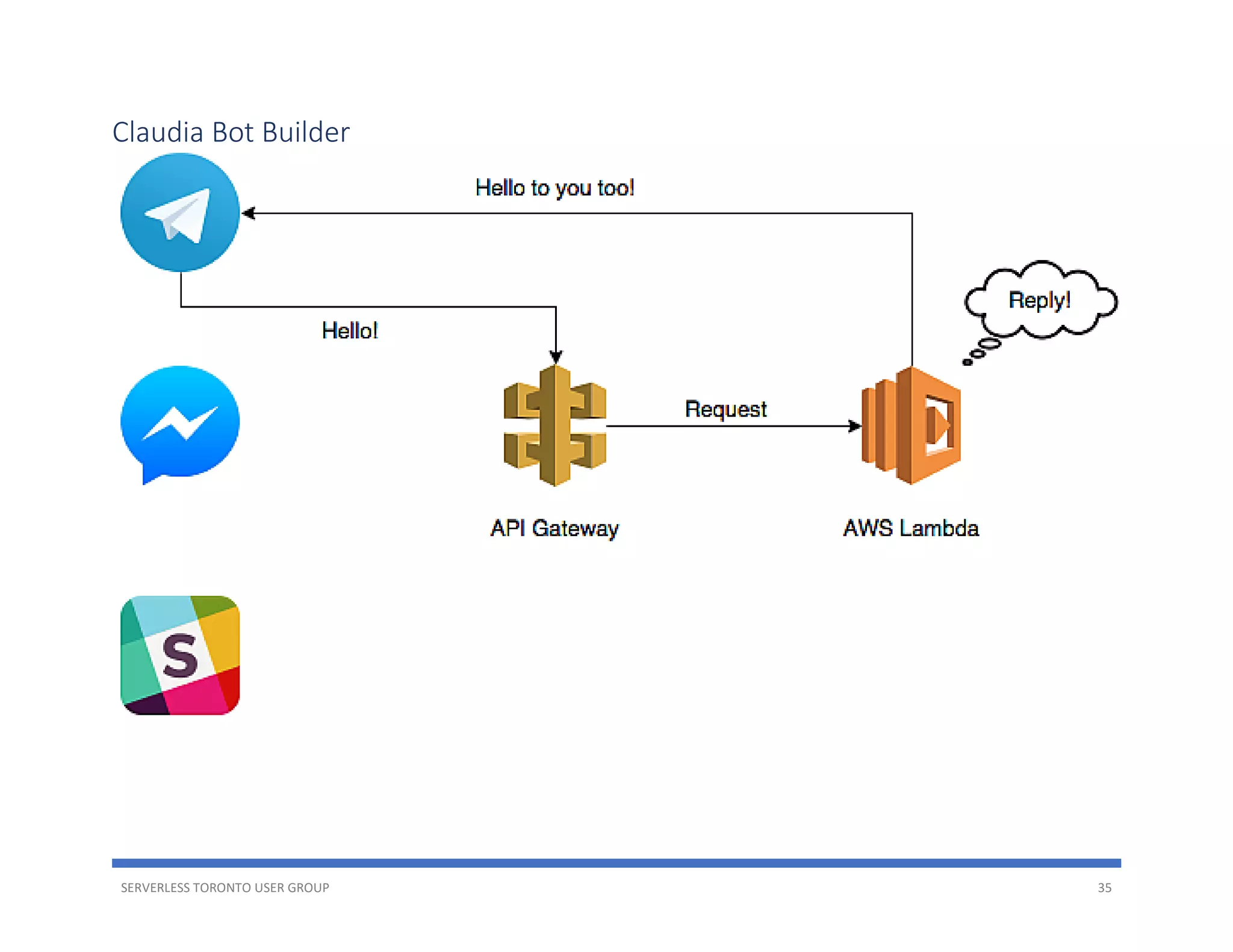

• Claudia API Builder allows you to create the API on API Gateway, and
• Claudia Bot Builder allows you to create chatbots for many messaging platforms.
36. SERVERLESS TORONTO USER GROUP 36

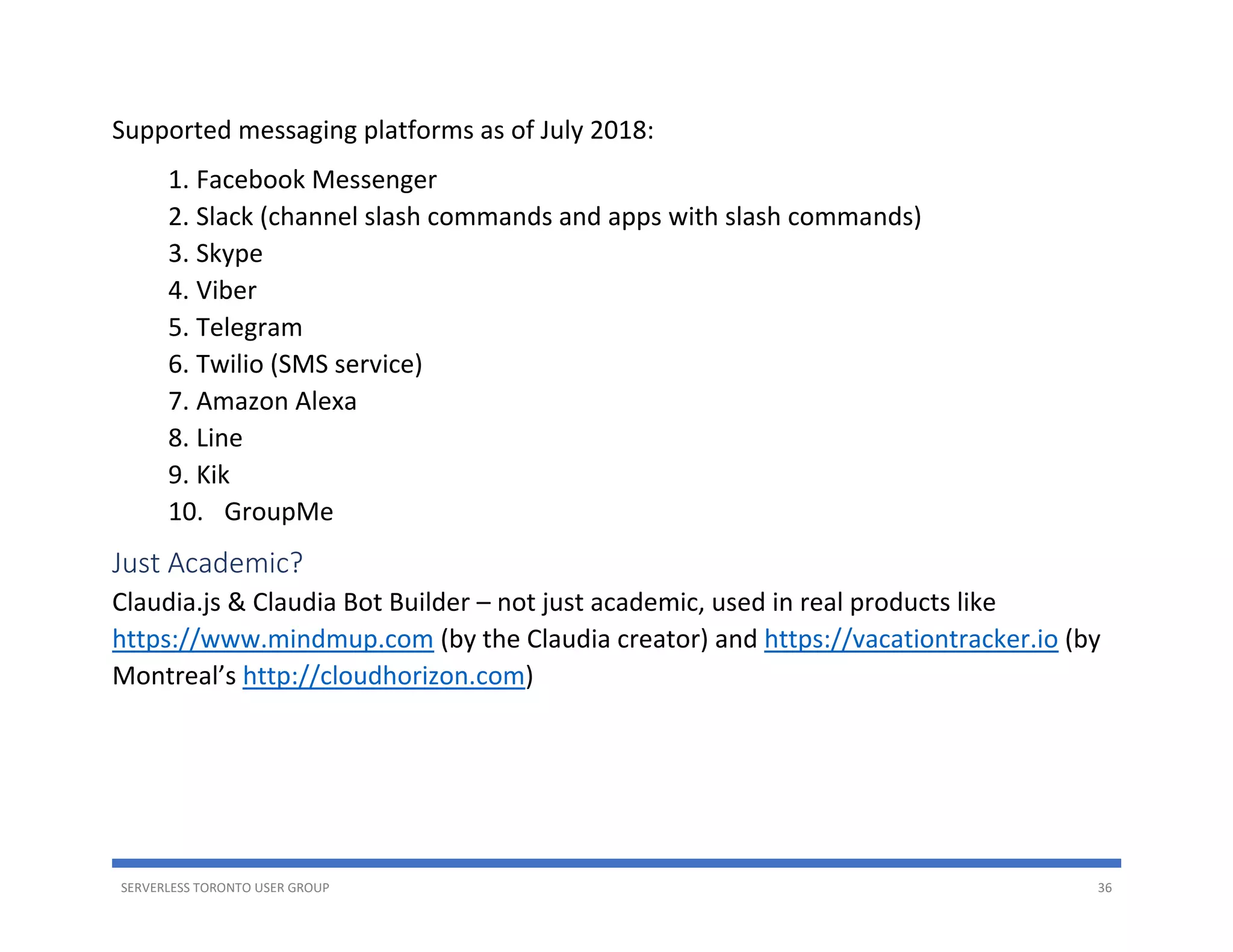

Supported messaging platforms as of July 2018:
1. Facebook Messenger
2. Slack (channel slash commands and apps with slash commands)
3. Skype
4. Viber
5. Telegram
6. Twilio (SMS service)
7. Amazon Alexa
8. Line
9. Kik
10. GroupMe
Just Academic?
Claudia.js & Claudia Bot Builder – not just academic, used in real products like
https://www.mindmup.com (by the Claudia creator) and https://vacationtracker.io (by
Montreal’s http://cloudhorizon.com)
37. SERVERLESS TORONTO USER GROUP 37

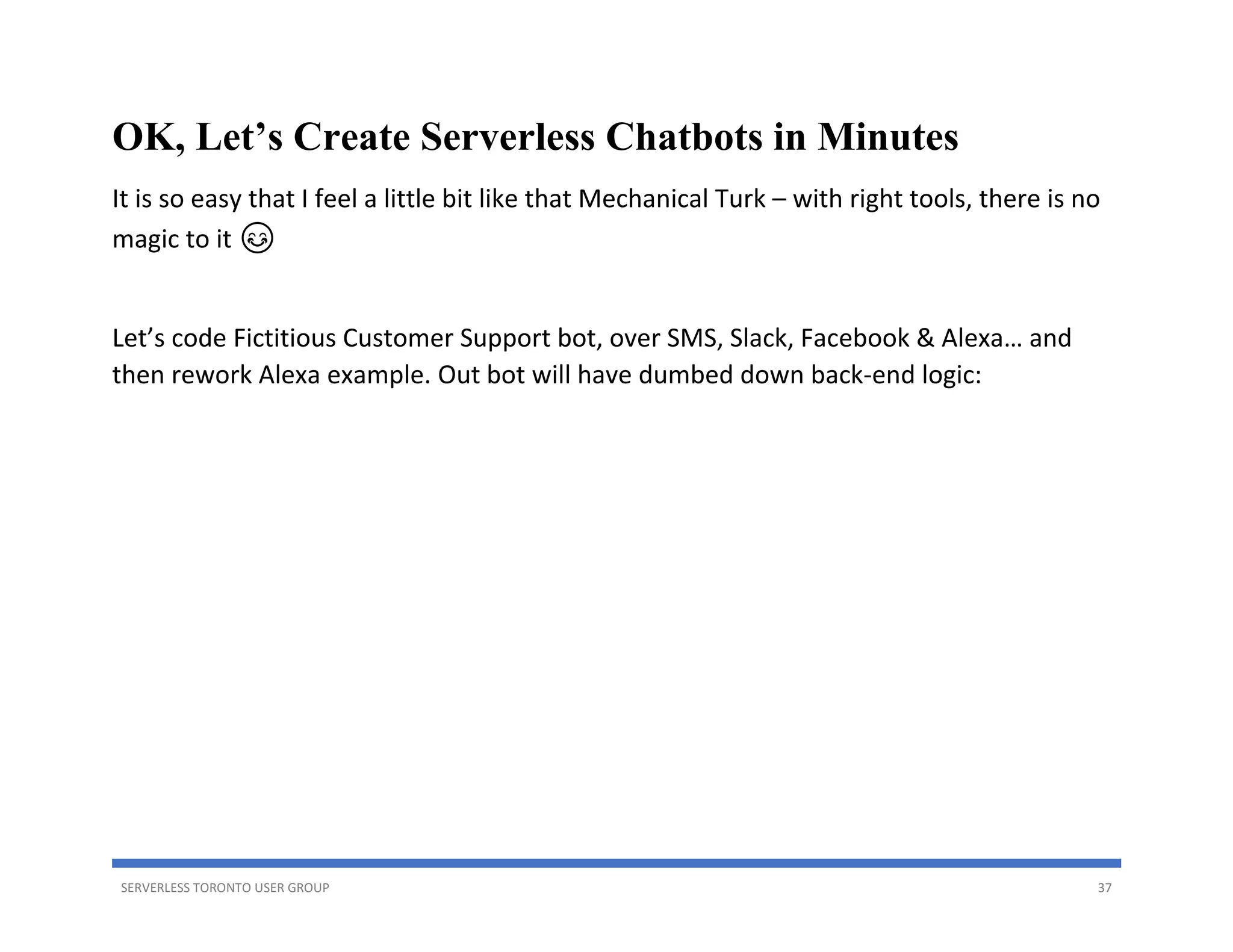

OK, Let’s Create Serverless Chatbots in Minutes
It is so easy that I feel a little bit like that Mechanical Turk – with right tools, there is no
magic to it 😊
Let’s code Fictitious Customer Support bot, over SMS, Slack, Facebook & Alexa… and
then rework Alexa example. Out bot will have dumbed down back-end logic:
38. SERVERLESS TORONTO USER GROUP 38

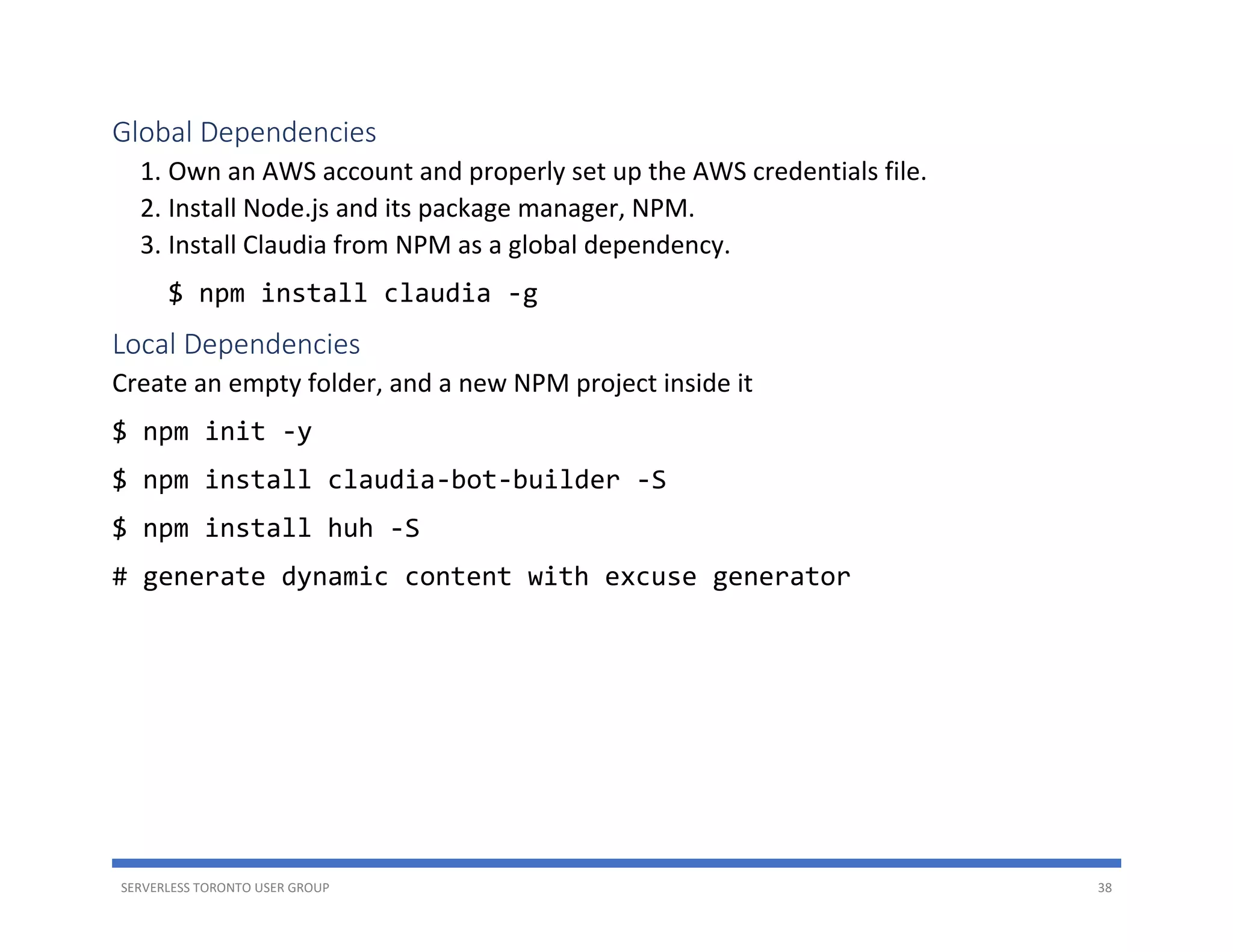

Global Dependencies
1. Own an AWS account and properly set up the AWS credentials file.
2. Install Node.js and its package manager, NPM.
3. Install Claudia from NPM as a global dependency.
$ npm install claudia -g
Local Dependencies
Create an empty folder, and a new NPM project inside it
$ npm init -y
$ npm install claudia-bot-builder -S
$ npm install huh -S
# generate dynamic content with excuse generator
39. SERVERLESS TORONTO USER GROUP 39

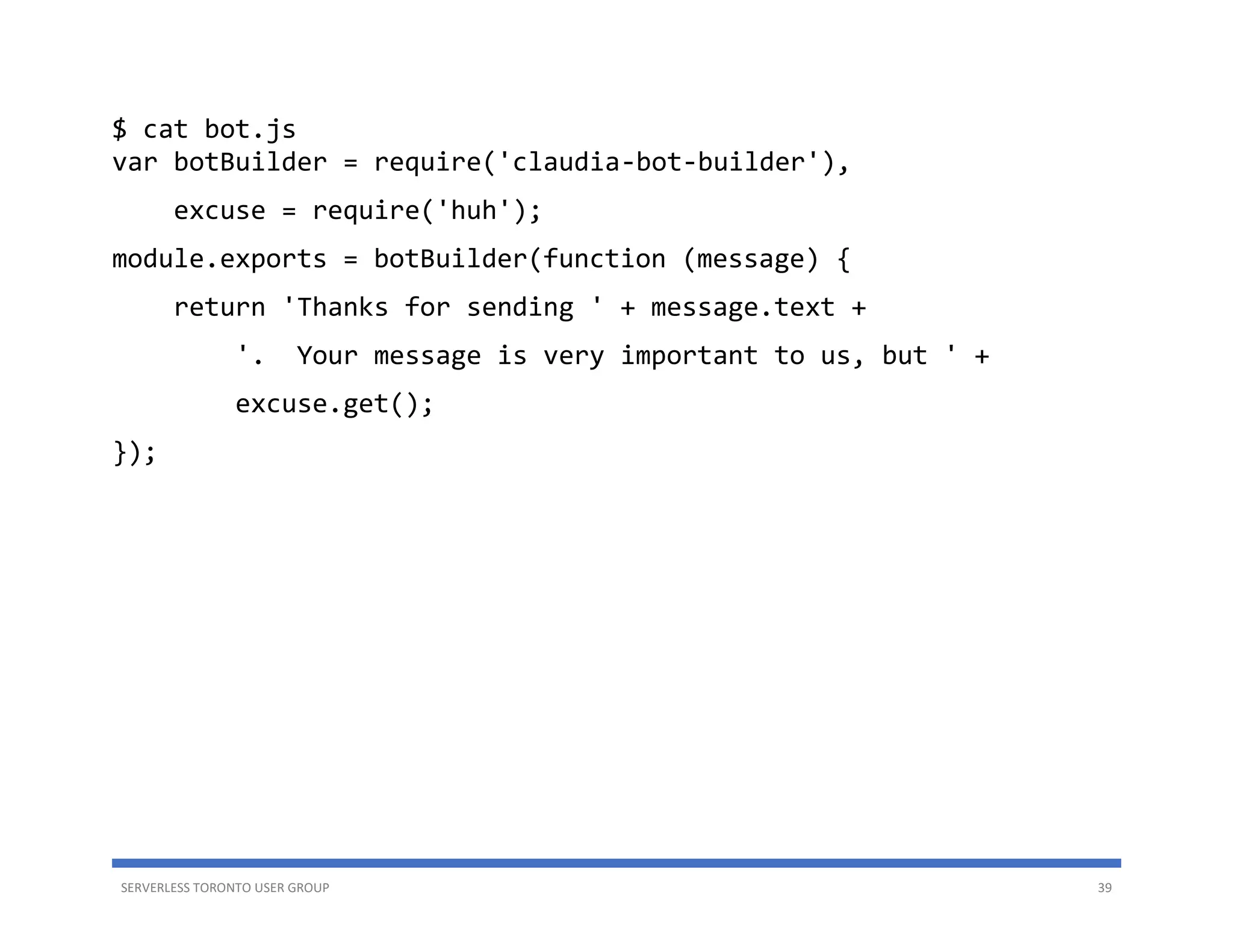

$ cat bot.js
var botBuilder = require('claudia-bot-builder'),
excuse = require('huh');
module.exports = botBuilder(function (message) {
return 'Thanks for sending ' + message.text +
'. Your message is very important to us, but ' +
excuse.get();
});
40. SERVERLESS TORONTO USER GROUP 40

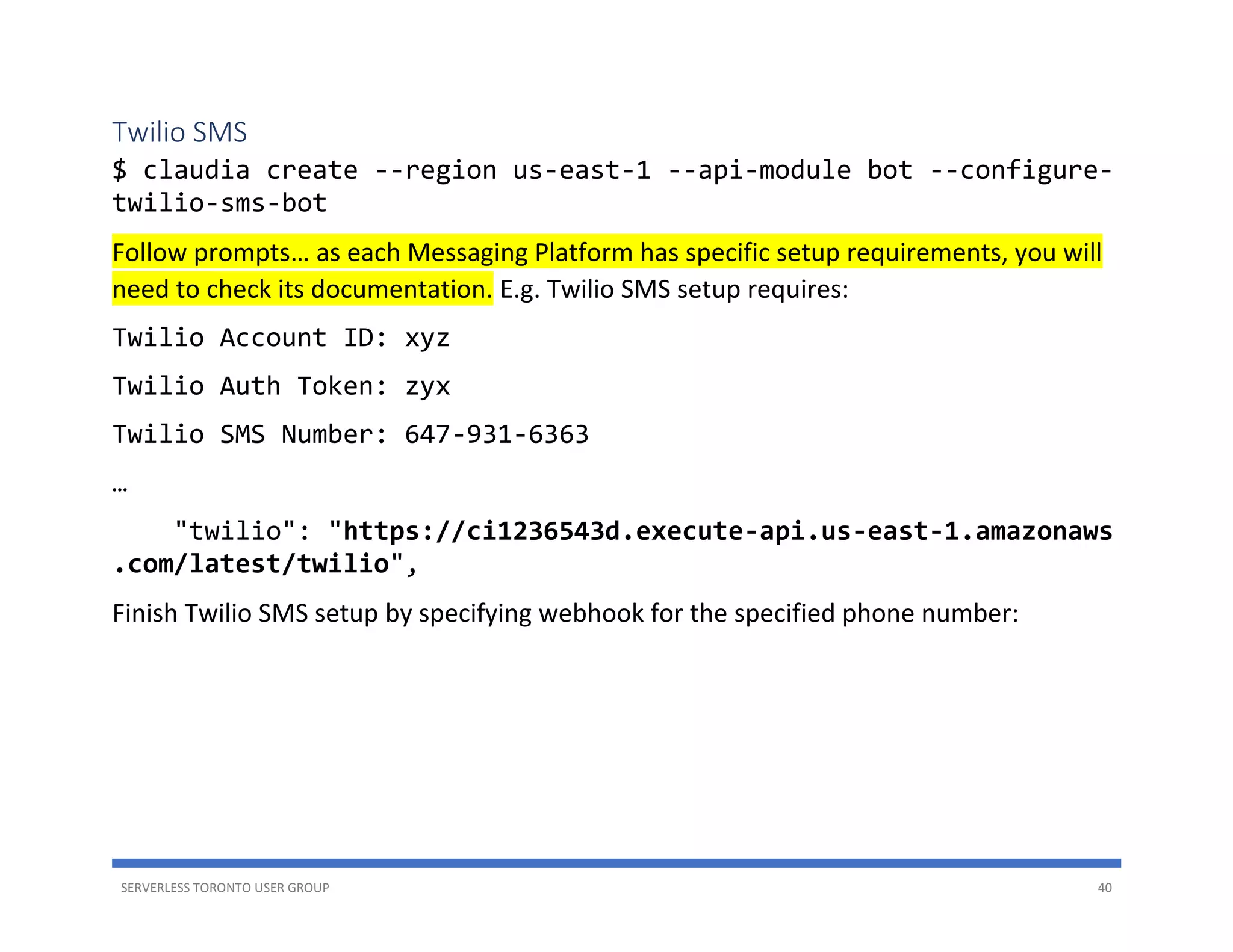

Twilio SMS
$ claudia create --region us-east-1 --api-module bot --configure-
twilio-sms-bot
Follow prompts… as each Messaging Platform has specific setup requirements, you will
need to check its documentation. E.g. Twilio SMS setup requires:
Twilio Account ID: xyz
Twilio Auth Token: zyx
Twilio SMS Number: 647-931-6363
…
"twilio": "https://ci1236543d.execute-api.us-east-1.amazonaws
.com/latest/twilio",

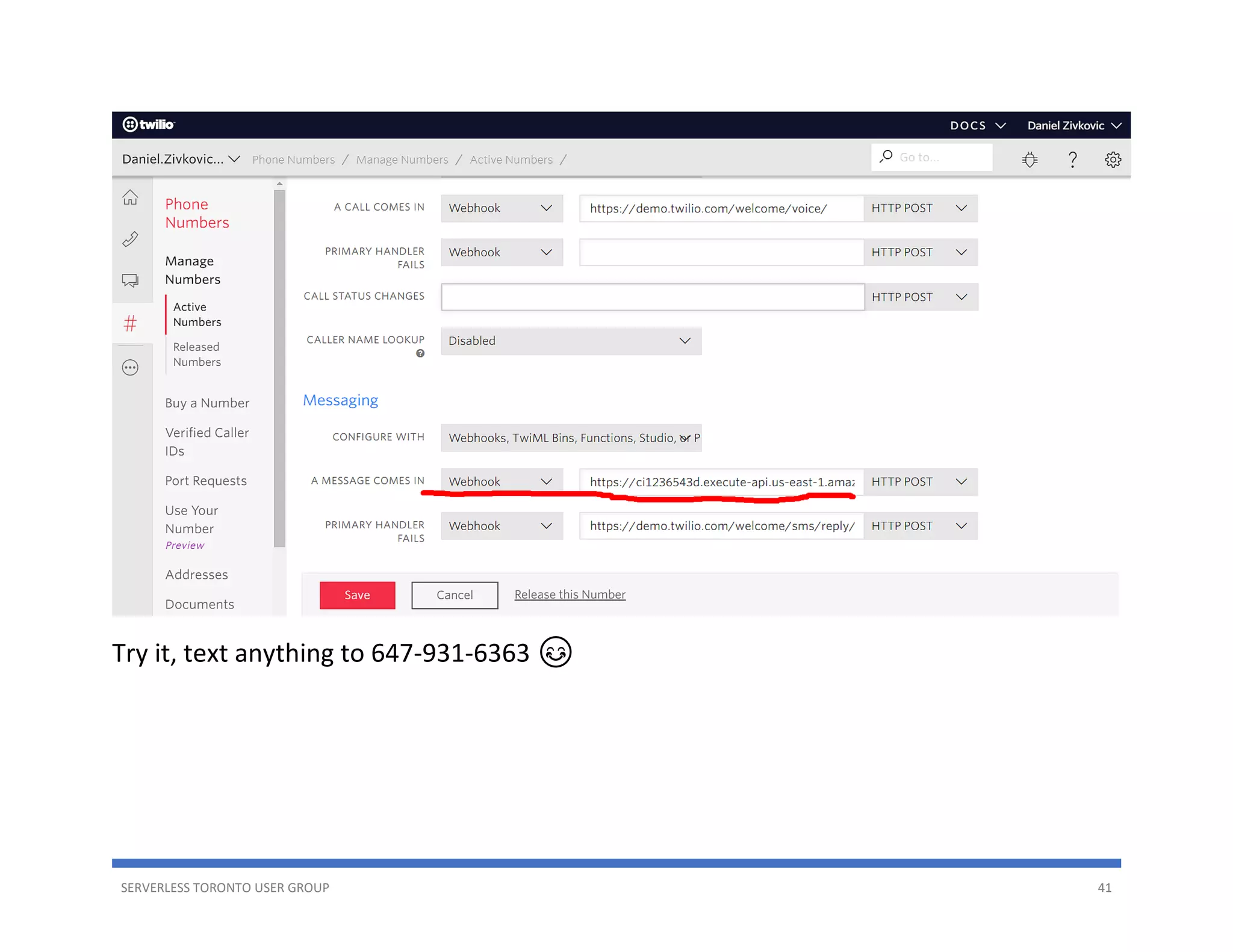

Finish Twilio SMS setup by specifying webhook for the specified phone number:
46. SERVERLESS TORONTO USER GROUP 46

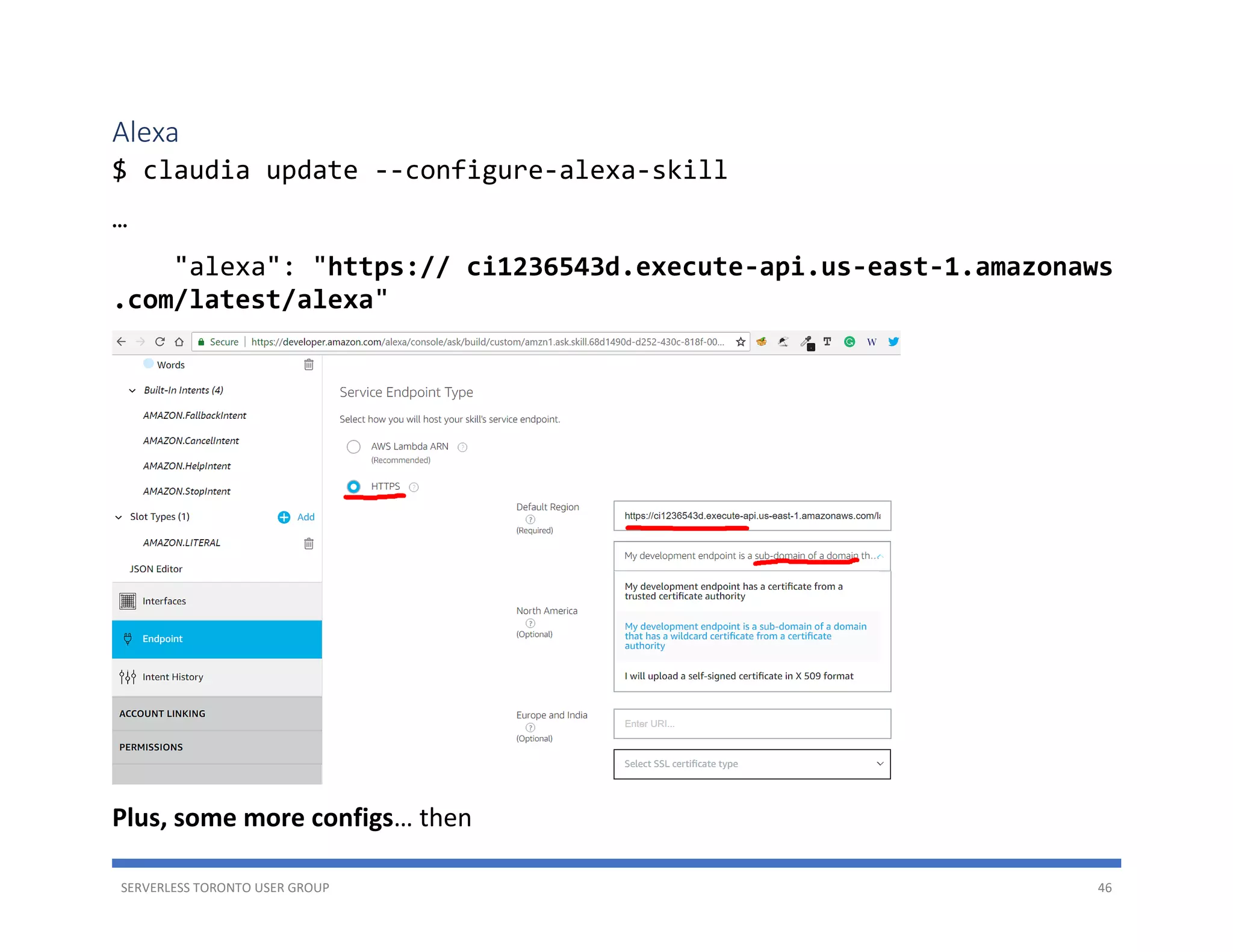

Alexa
$ claudia update --configure-alexa-skill
…
"alexa": "https:// ci1236543d.execute-api.us-east-1.amazonaws
.com/latest/alexa"
Plus, some more configs… then
47. SERVERLESS TORONTO USER GROUP 47

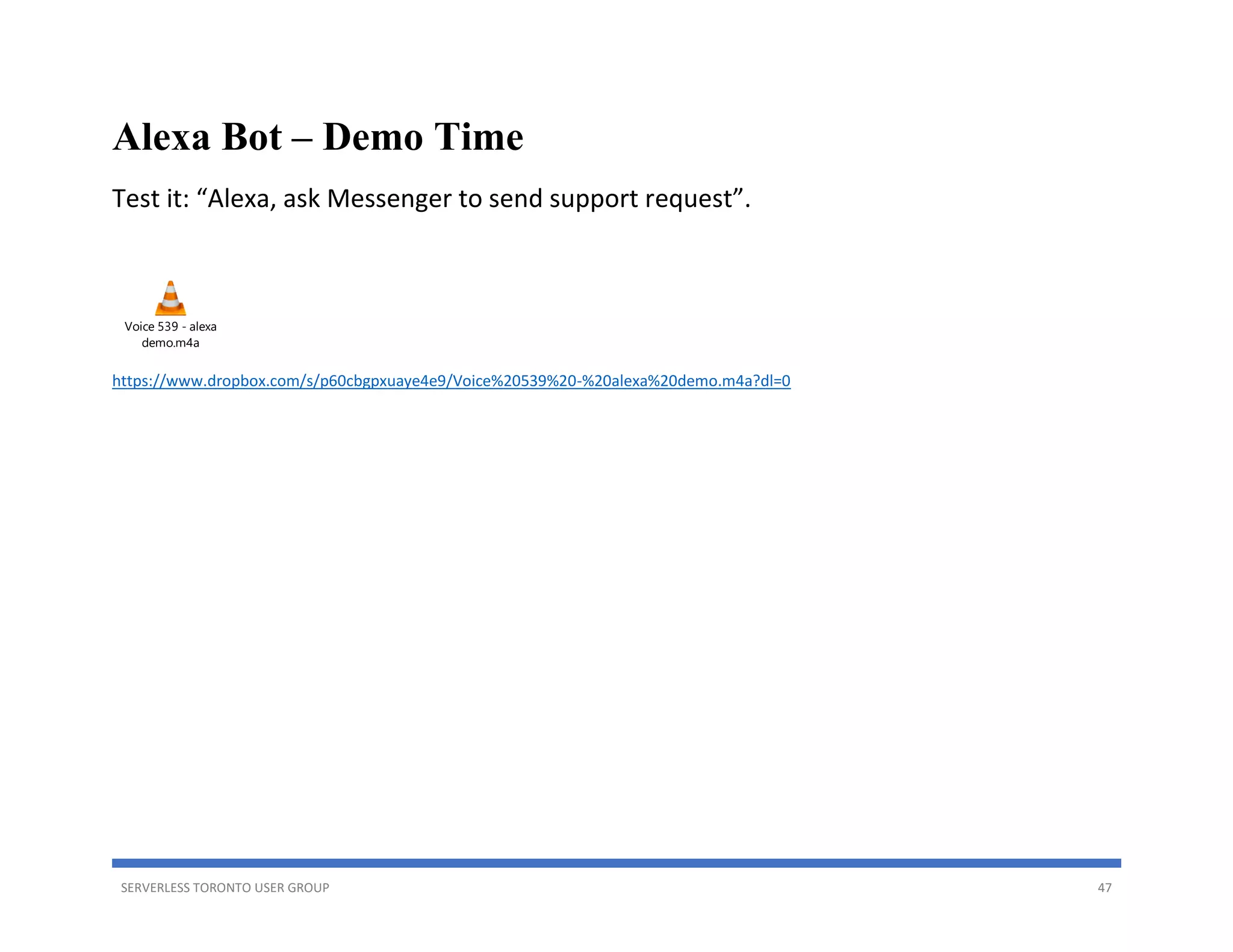

Alexa Bot – Demo Time
Test it: “Alexa, ask Messenger to send support request”.
Voice 539 - alexa
demo.m4a
https://www.dropbox.com/s/p60cbgpxuaye4e9/Voice%20539%20-%20alexa%20demo.m4a?dl=0

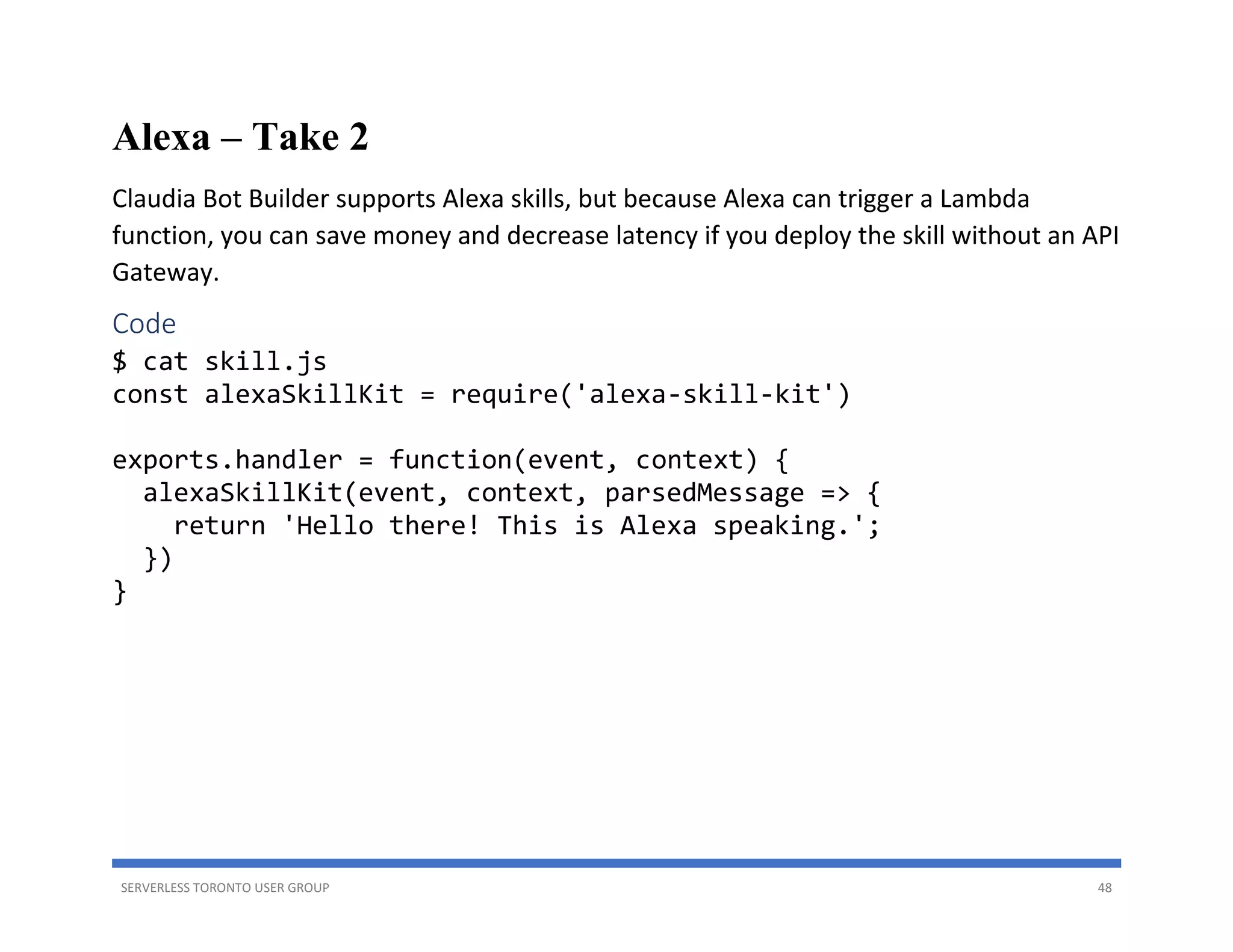

48. SERVERLESS TORONTO USER GROUP 48
Alexa – Take 2
Claudia Bot Builder supports Alexa skills, but because Alexa can trigger a Lambda
function, you can save money and decrease latency if you deploy the skill without an API
Gateway.
Code
$ cat skill.js
const alexaSkillKit = require('alexa-skill-kit')
exports.handler = function(event, context) {
alexaSkillKit(event, context, parsedMessage => {
return 'Hello there! This is Alexa speaking.';
})
}

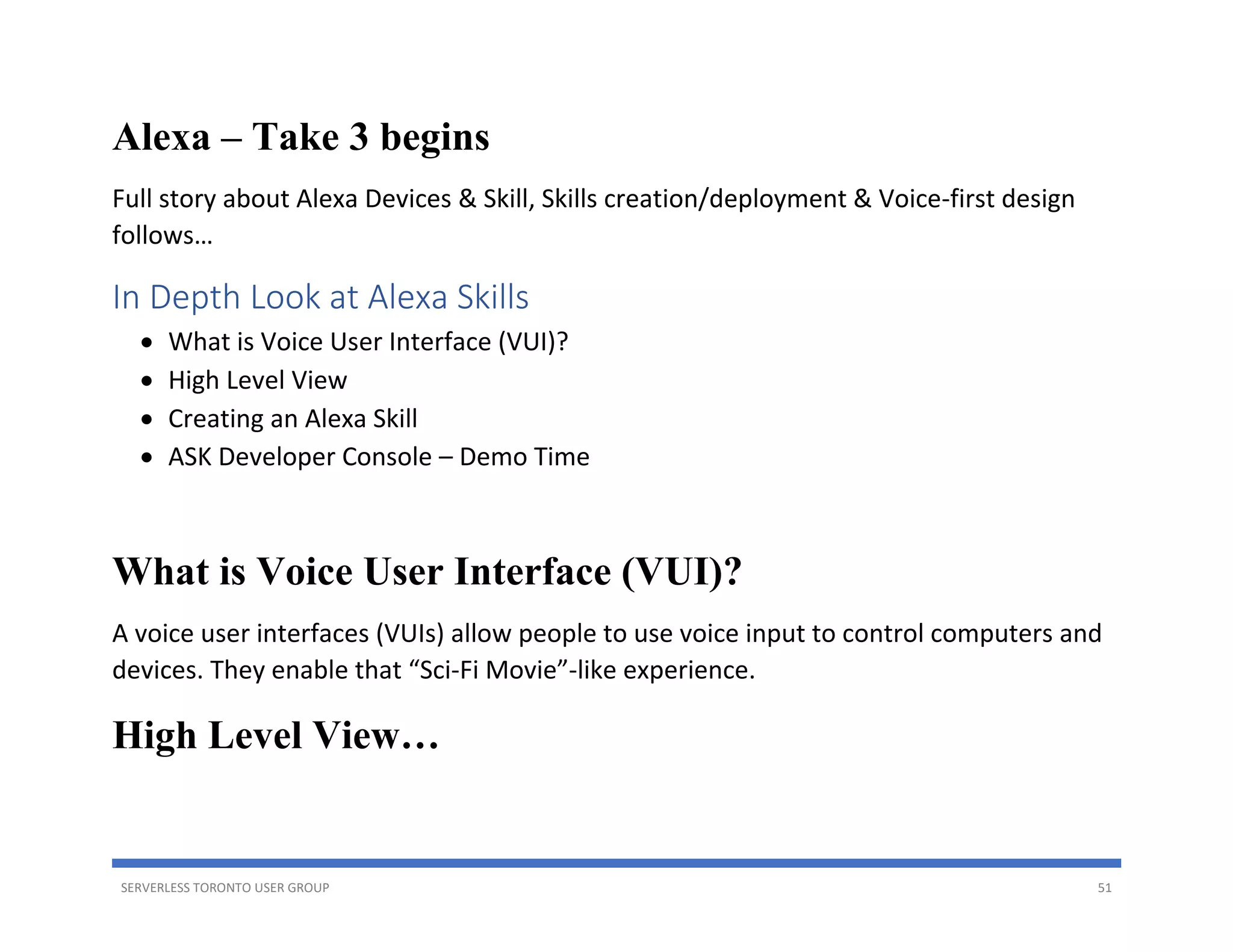

51. SERVERLESS TORONTO USER GROUP 51
Alexa – Take 3 begins
Full story about Alexa Devices & Skill, Skills creation/deployment & Voice-first design
follows…
In Depth Look at Alexa Skills
• What is Voice User Interface (VUI)?
• High Level View
• Creating an Alexa Skill
• ASK Developer Console – Demo Time
What is Voice User Interface (VUI)?
A voice user interfaces (VUIs) allow people to use voice input to control computers and
devices. They enable that “Sci-Fi Movie”-like experience.
High Level View…
53. SERVERLESS TORONTO USER GROUP 53

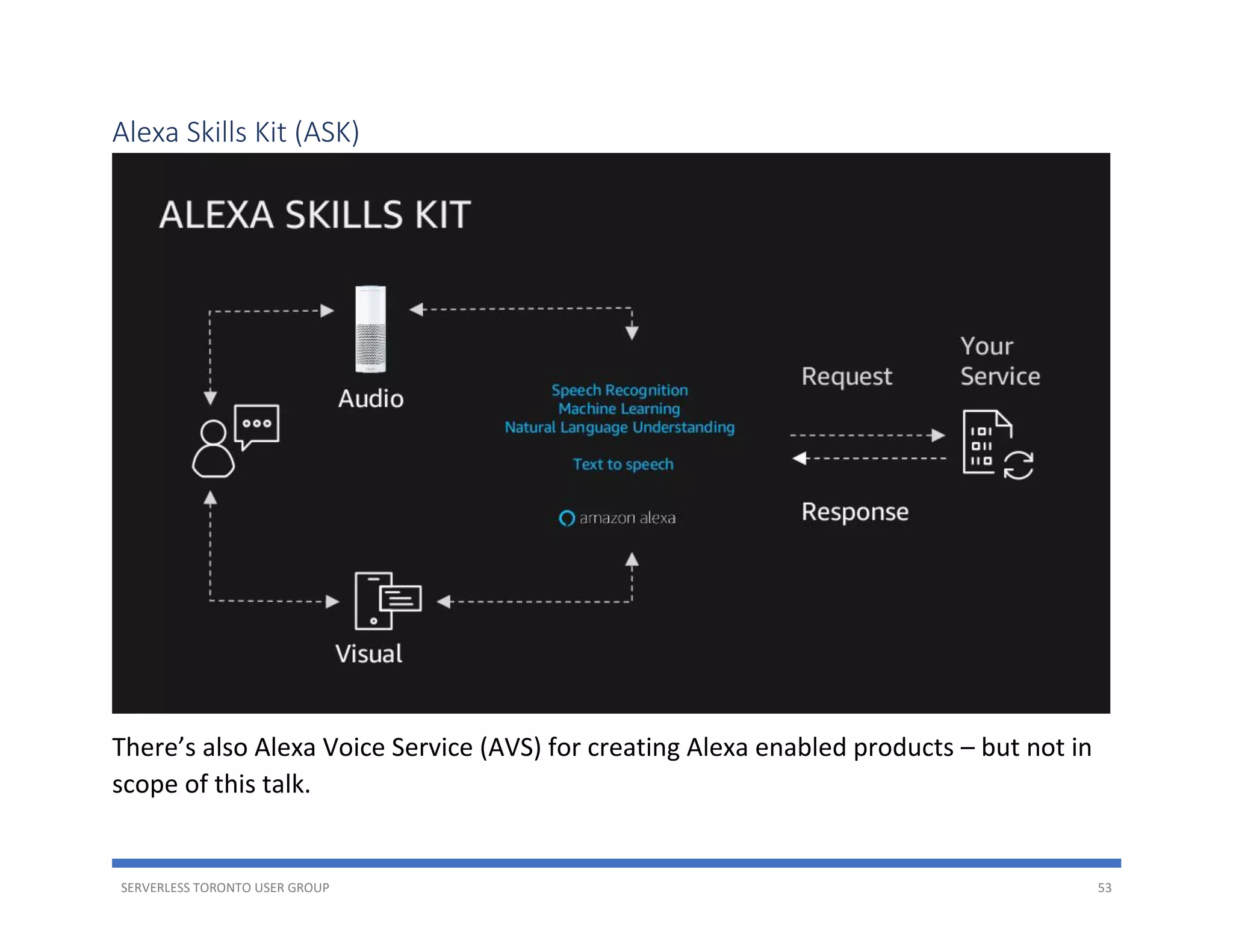

Alexa Skills Kit (ASK)
There’s also Alexa Voice Service (AVS) for creating Alexa enabled products – but not in
scope of this talk.
54. SERVERLESS TORONTO USER GROUP 54

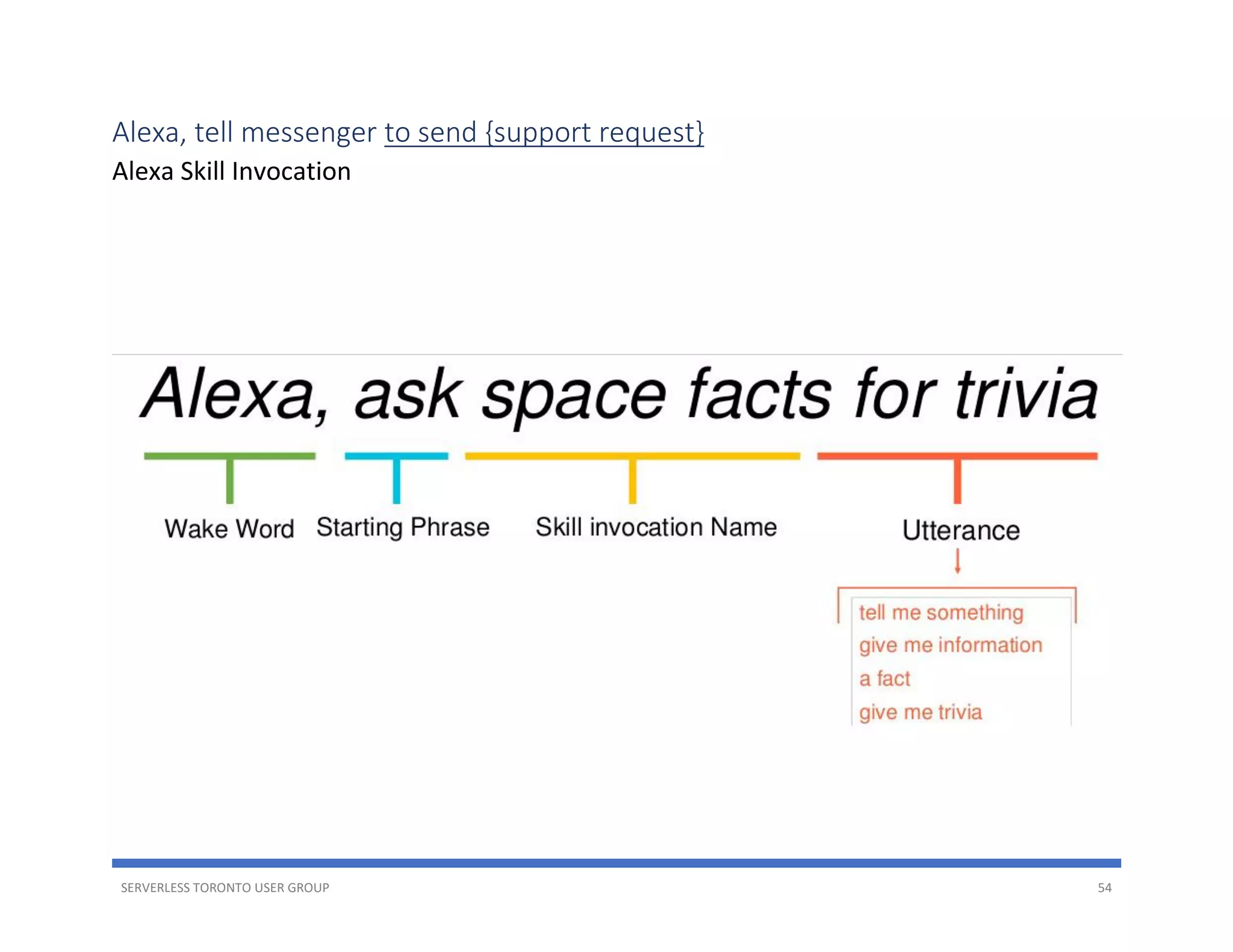

Alexa, tell messenger to send {support request}
Alexa Skill Invocation
57. SERVERLESS TORONTO USER GROUP 57

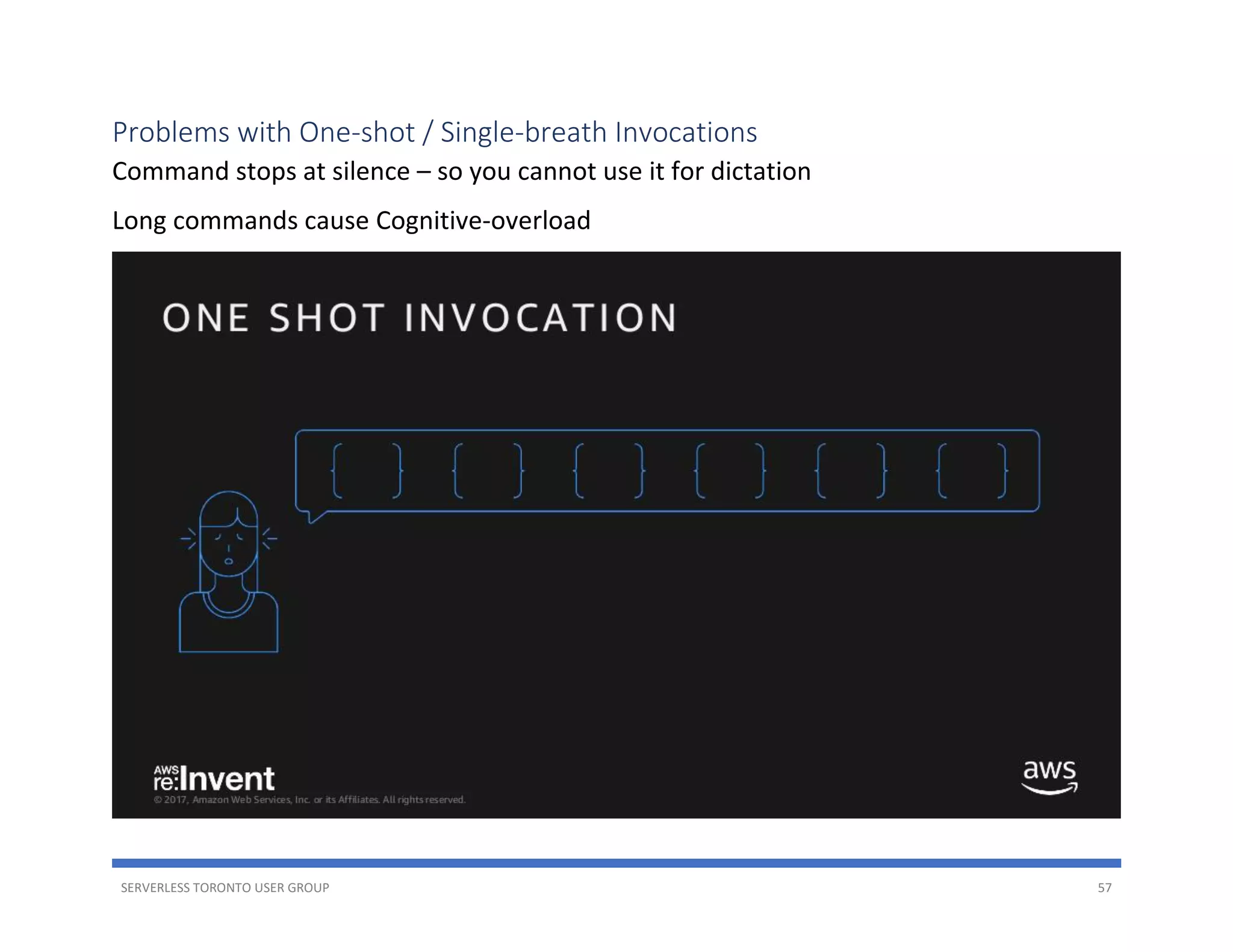

Problems with One-shot / Single-breath Invocations
Command stops at silence – so you cannot use it for dictation
Long commands cause Cognitive-overload

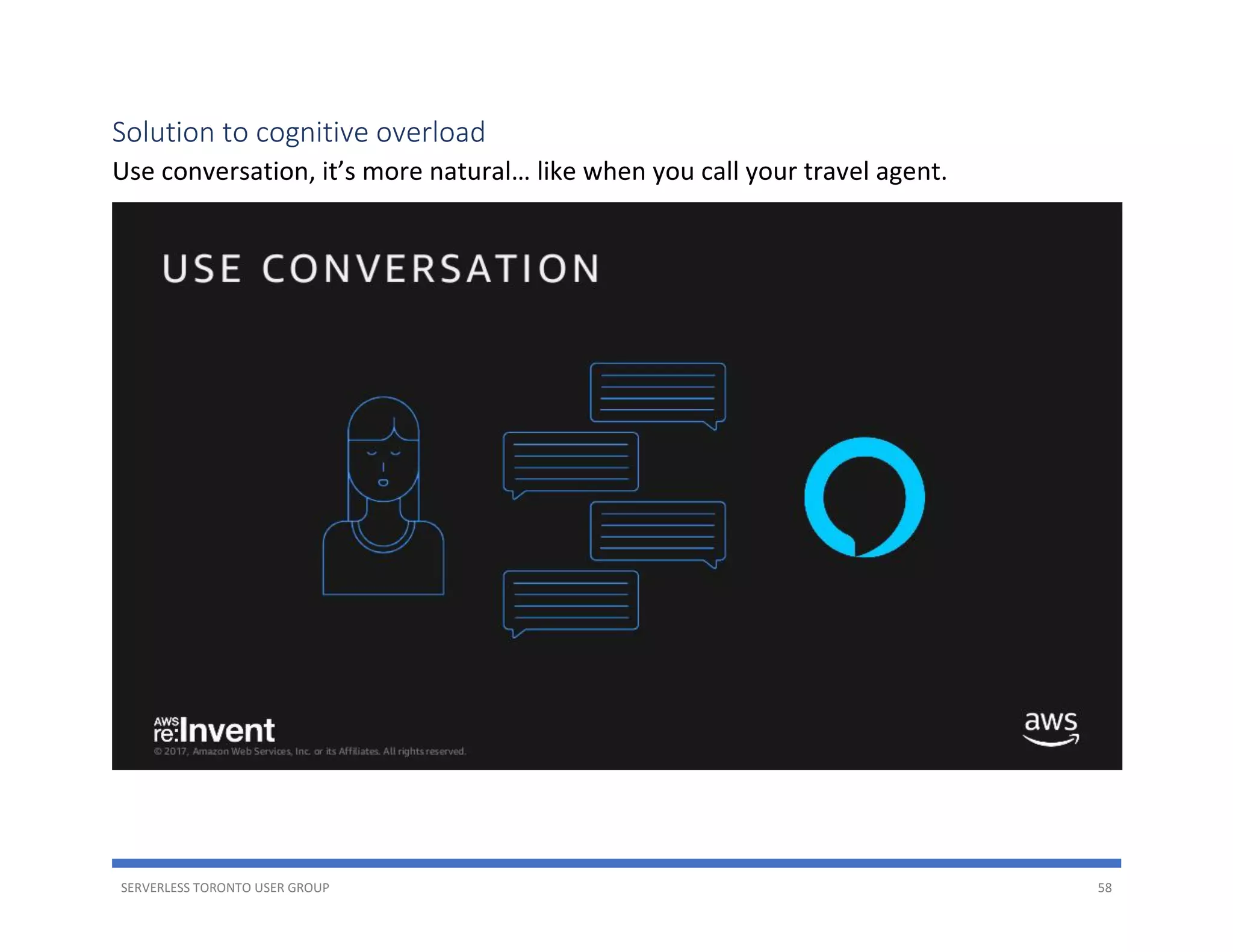

58. SERVERLESS TORONTO USER GROUP 58
Solution to cognitive overload
Use conversation, it’s more natural… like when you call your travel agent.
59. SERVERLESS TORONTO USER GROUP 59

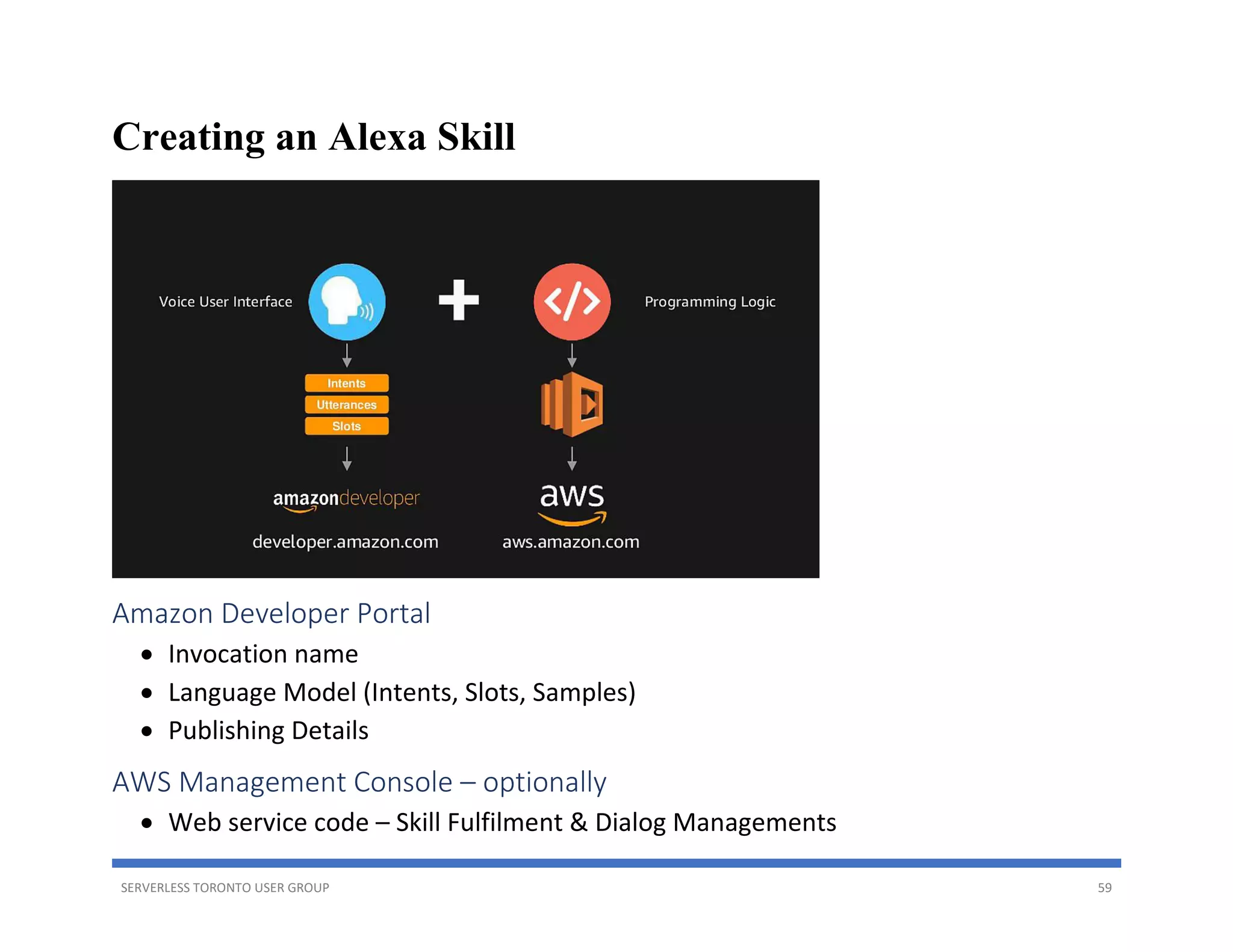

Creating an Alexa Skill
Amazon Developer Portal
• Invocation name
• Language Model (Intents, Slots, Samples)
• Publishing Details
AWS Management Console – optionally
• Web service code – Skill Fulfilment & Dialog Managements

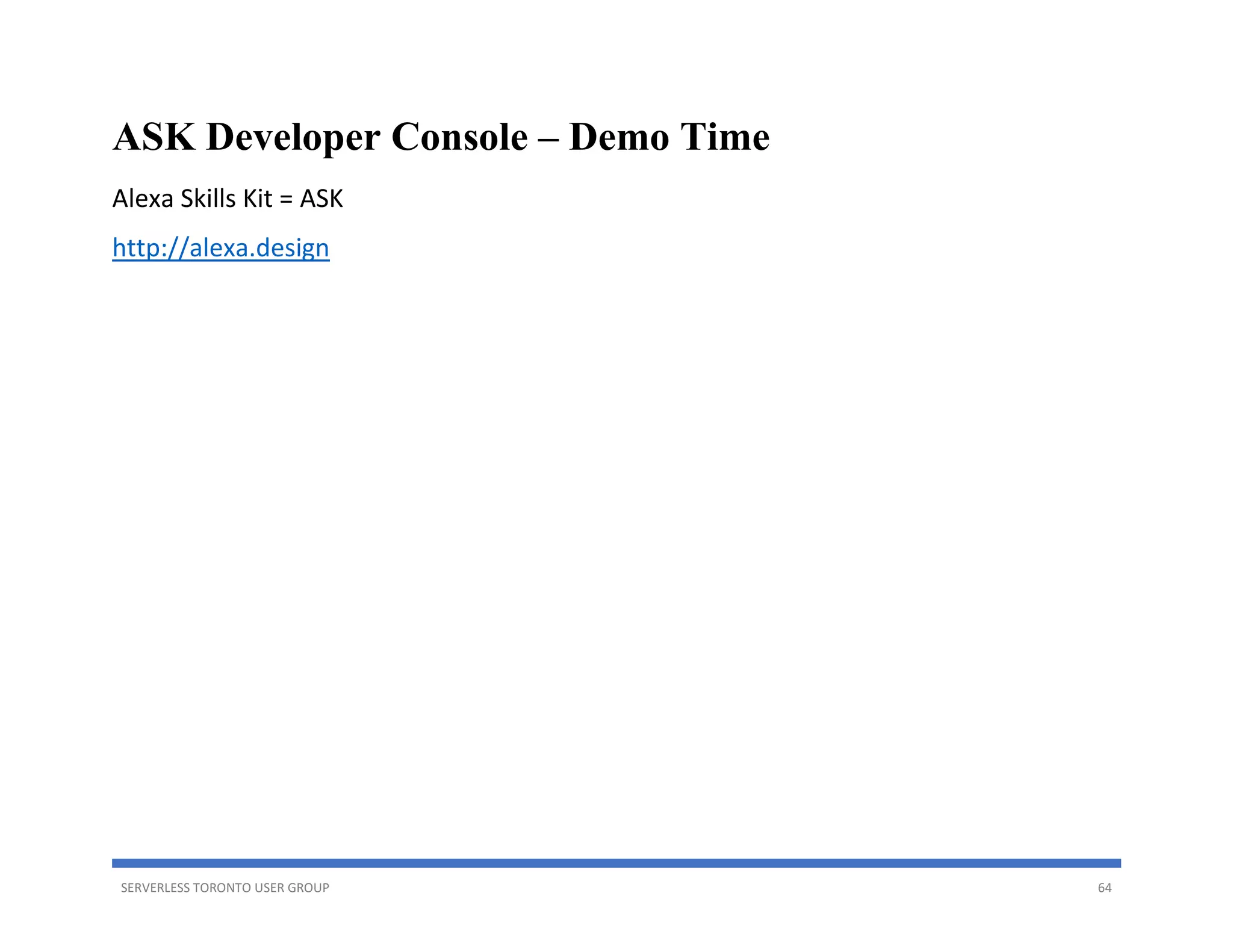

64. SERVERLESS TORONTO USER GROUP 64
ASK Developer Console – Demo Time
Alexa Skills Kit = ASK
http://alexa.design
65. SERVERLESS TORONTO USER GROUP 65

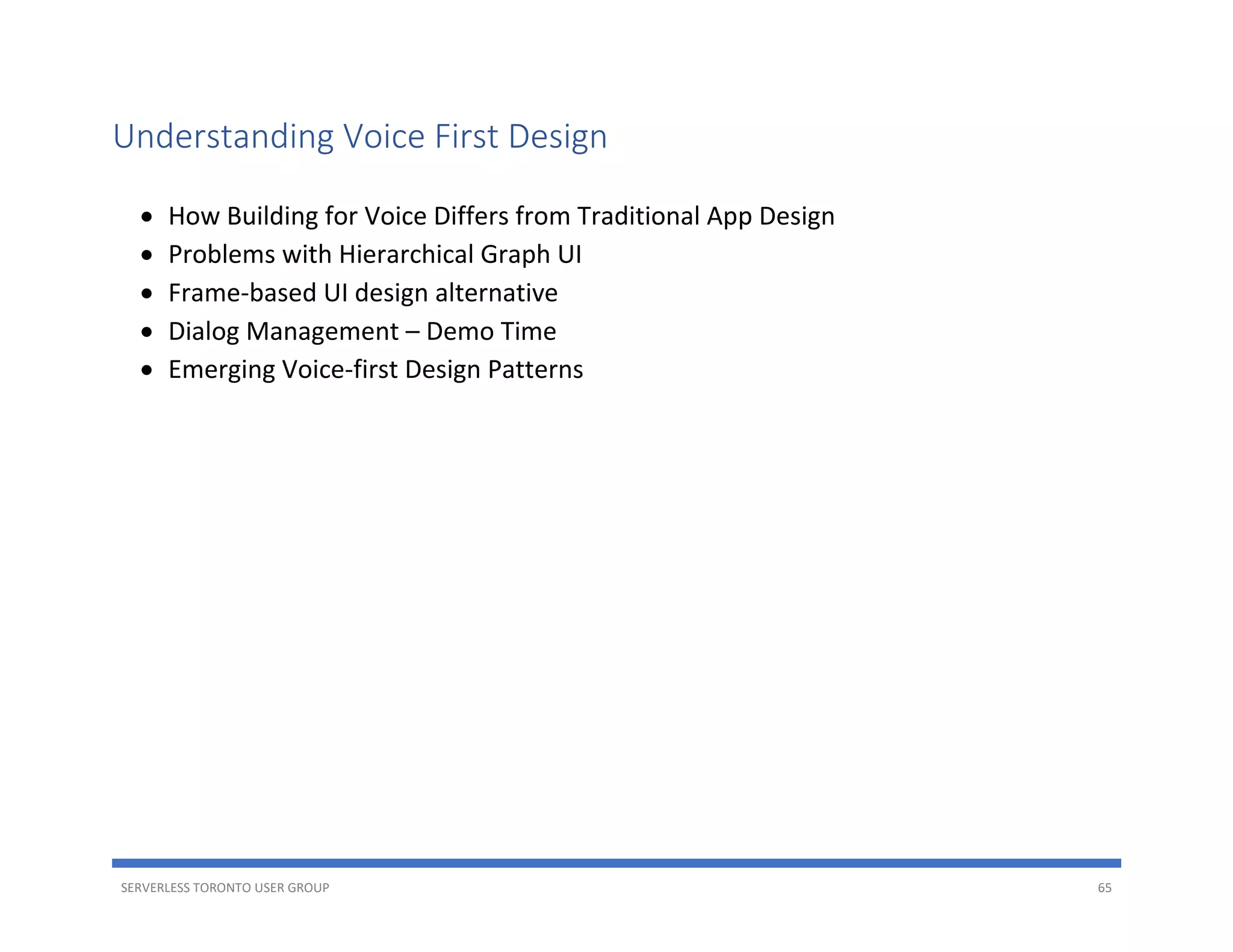

Understanding Voice First Design
• How Building for Voice Differs from Traditional App Design
• Problems with Hierarchical Graph UI
• Frame-based UI design alternative
• Dialog Management – Demo Time
• Emerging Voice-first Design Patterns
66. SERVERLESS TORONTO USER GROUP 66

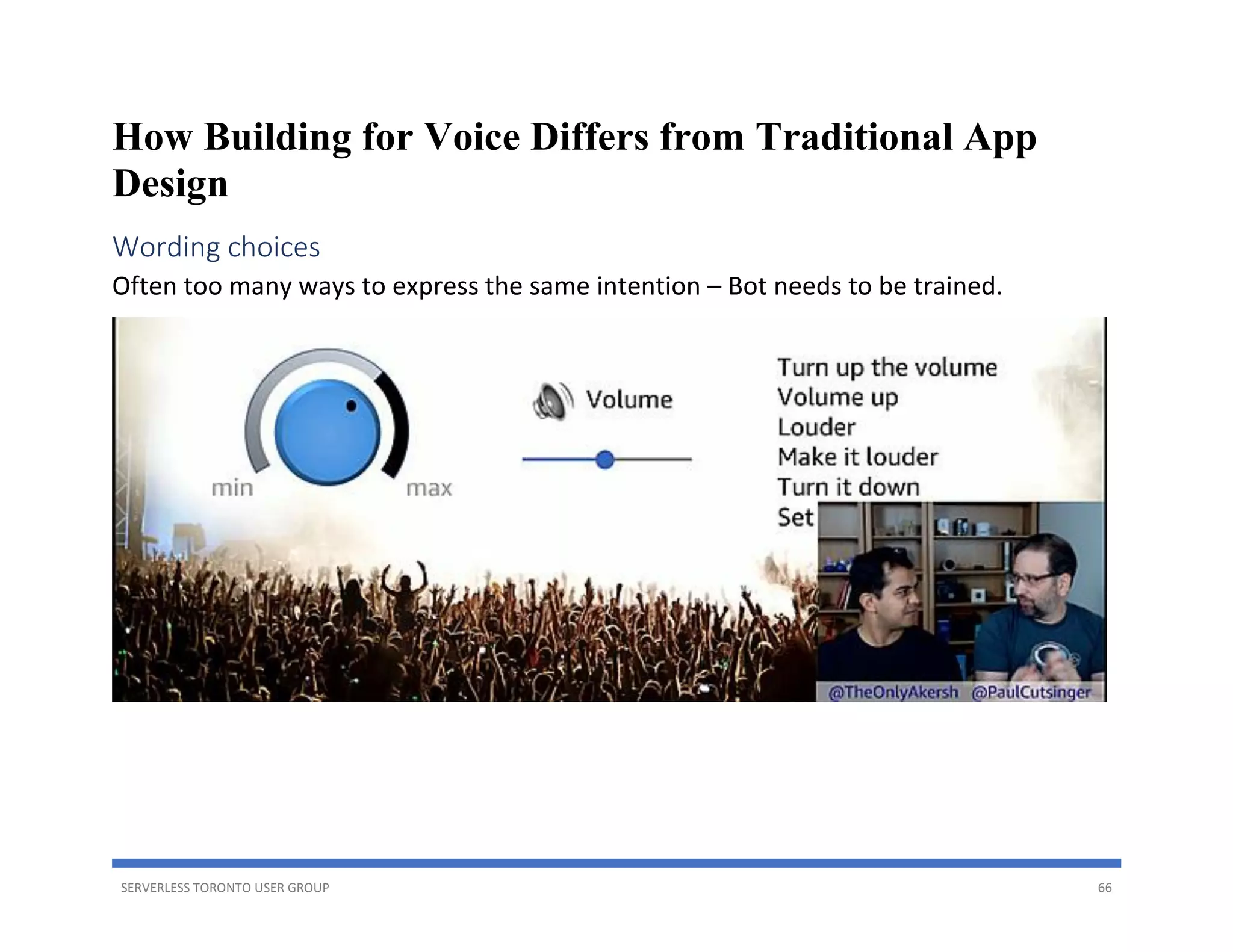

How Building for Voice Differs from Traditional App
Design
Wording choices
Often too many ways to express the same intention – Bot needs to be trained.
67. SERVERLESS TORONTO USER GROUP 67

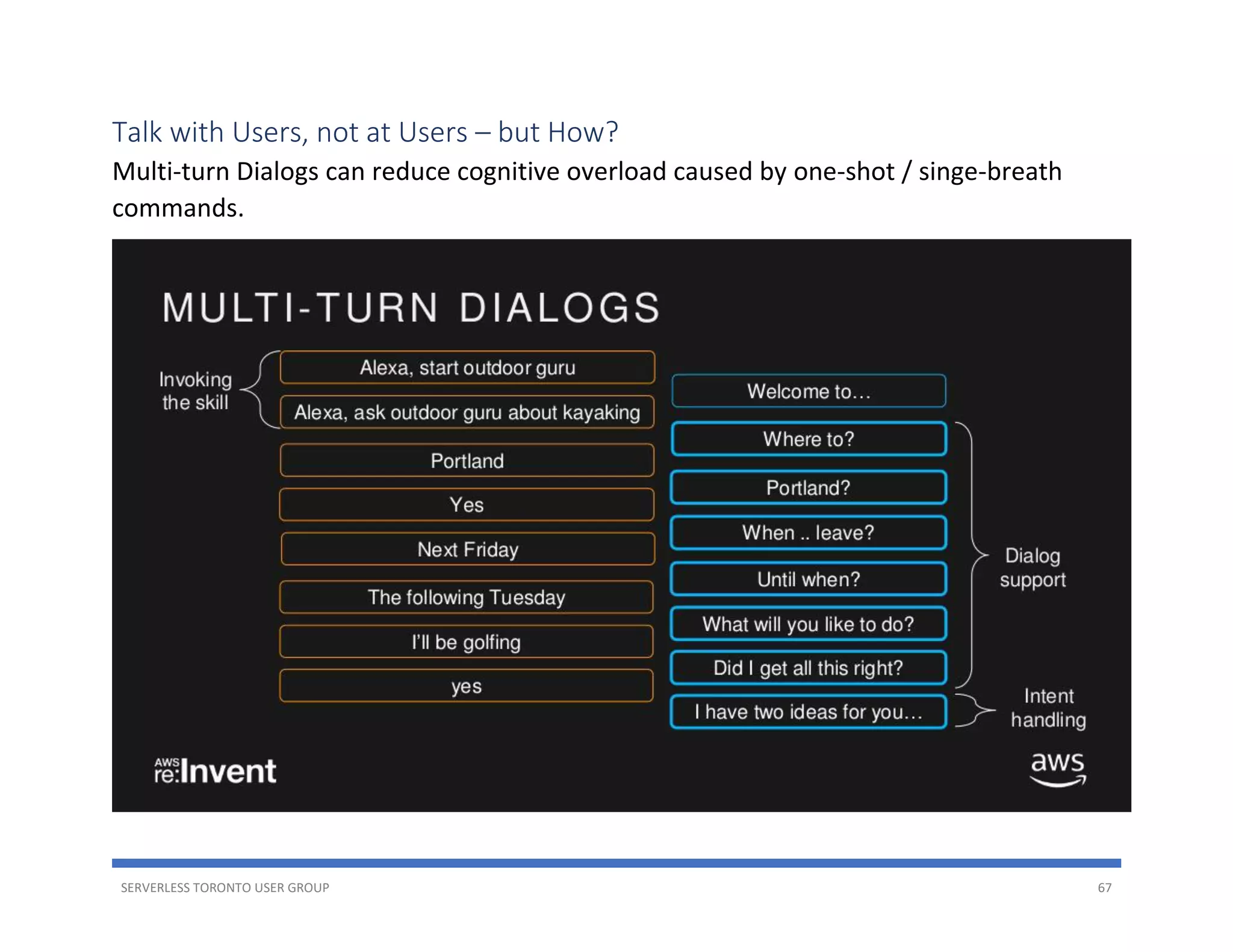

Talk with Users, not at Users – but How?
Multi-turn Dialogs can reduce cognitive overload caused by one-shot / singe-breath
commands.
68. SERVERLESS TORONTO USER GROUP 68

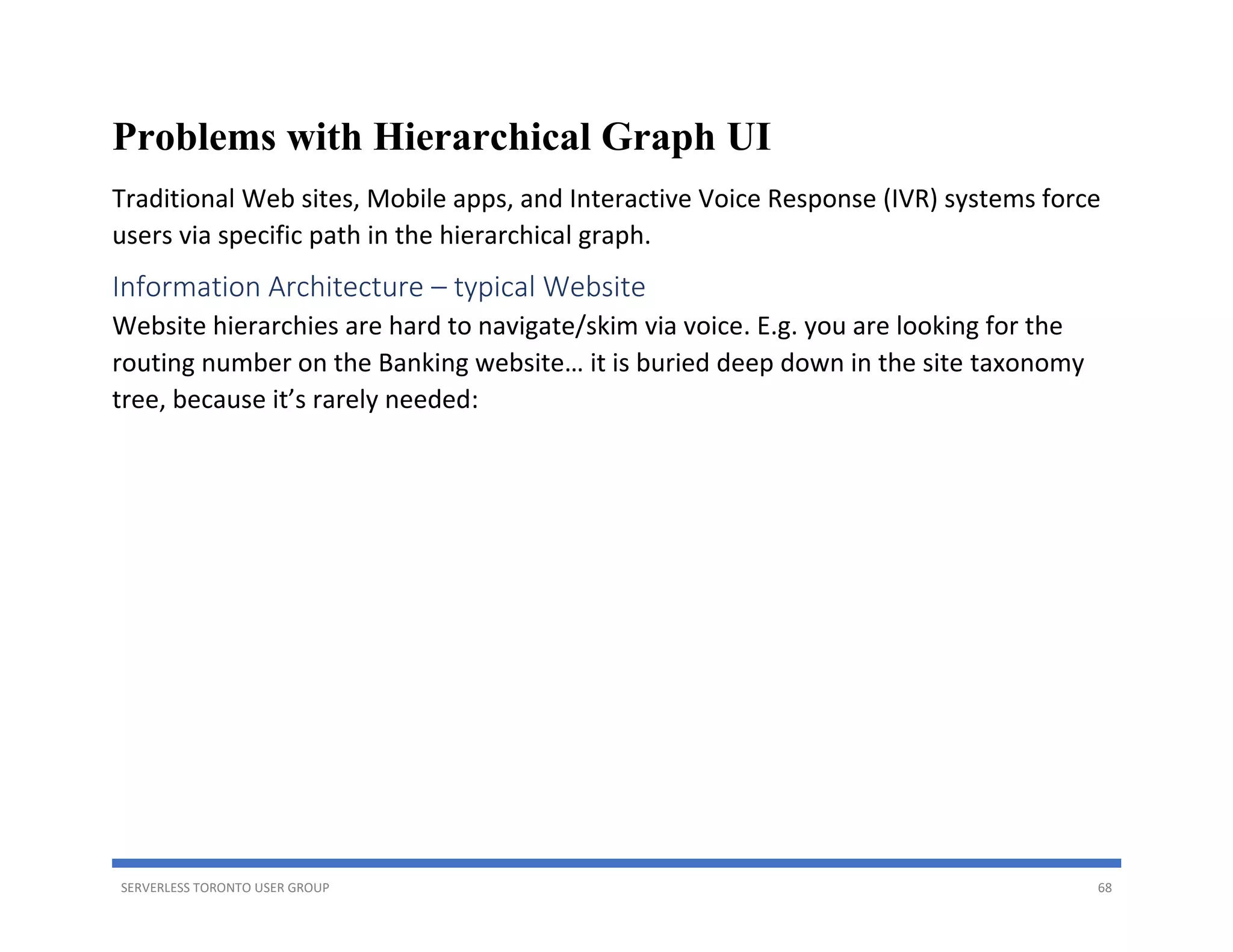

Problems with Hierarchical Graph UI
Traditional Web sites, Mobile apps, and Interactive Voice Response (IVR) systems force
users via specific path in the hierarchical graph.
Information Architecture – typical Website
Website hierarchies are hard to navigate/skim via voice. E.g. you are looking for the
routing number on the Banking website… it is buried deep down in the site taxonomy
tree, because it’s rarely needed:
69. SERVERLESS TORONTO USER GROUP 69

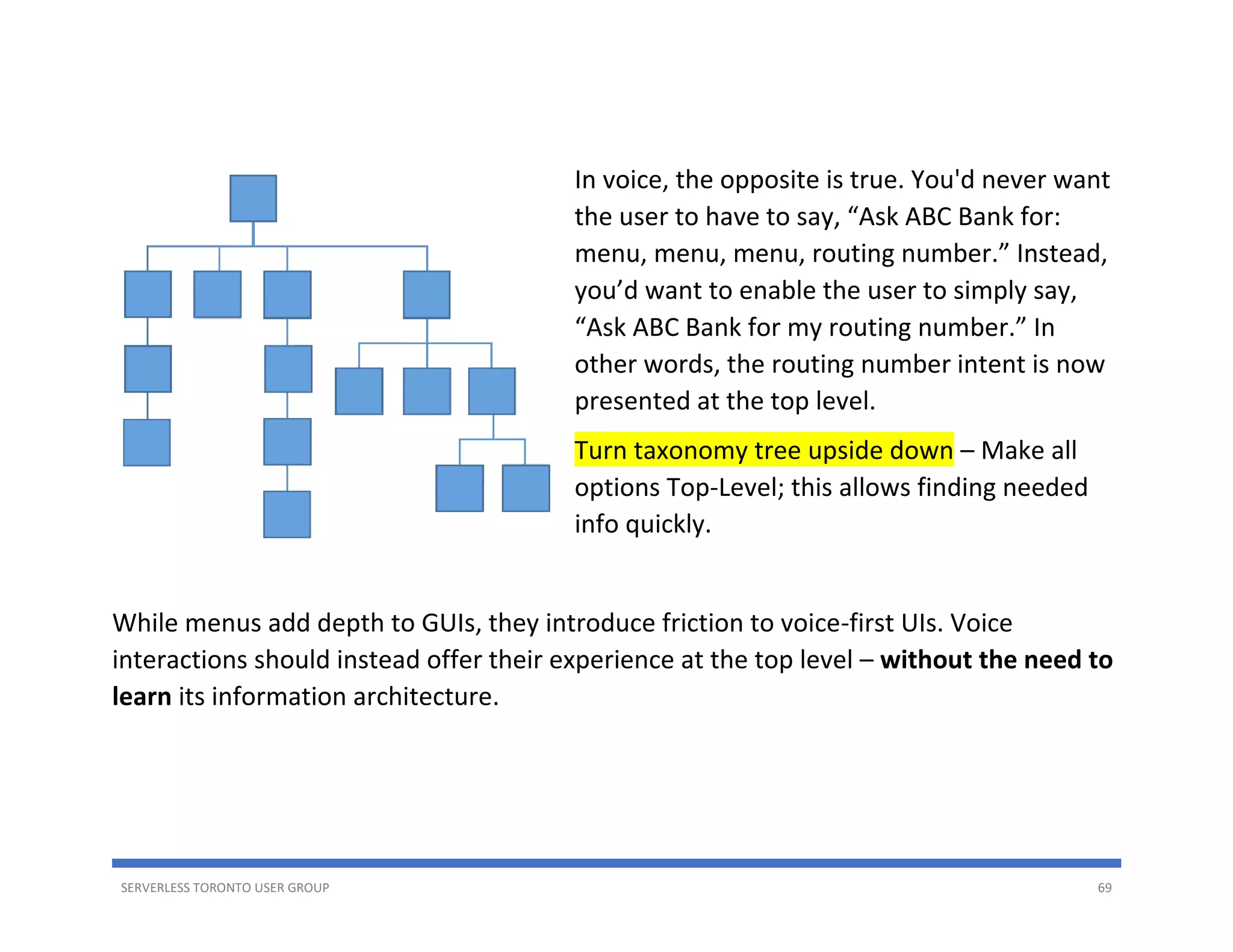

In voice, the opposite is true. You'd never want
the user to have to say, “Ask ABC Bank for:
menu, menu, menu, routing number.” Instead,
you’d want to enable the user to simply say,
“Ask ABC Bank for my routing number.” In
other words, the routing number intent is now
presented at the top level.
Turn taxonomy tree upside down – Make all
options Top-Level; this allows finding needed
info quickly.
While menus add depth to GUIs, they introduce friction to voice-first UIs. Voice
interactions should instead offer their experience at the top level – without the need to
learn its information architecture.
70. SERVERLESS TORONTO USER GROUP 70

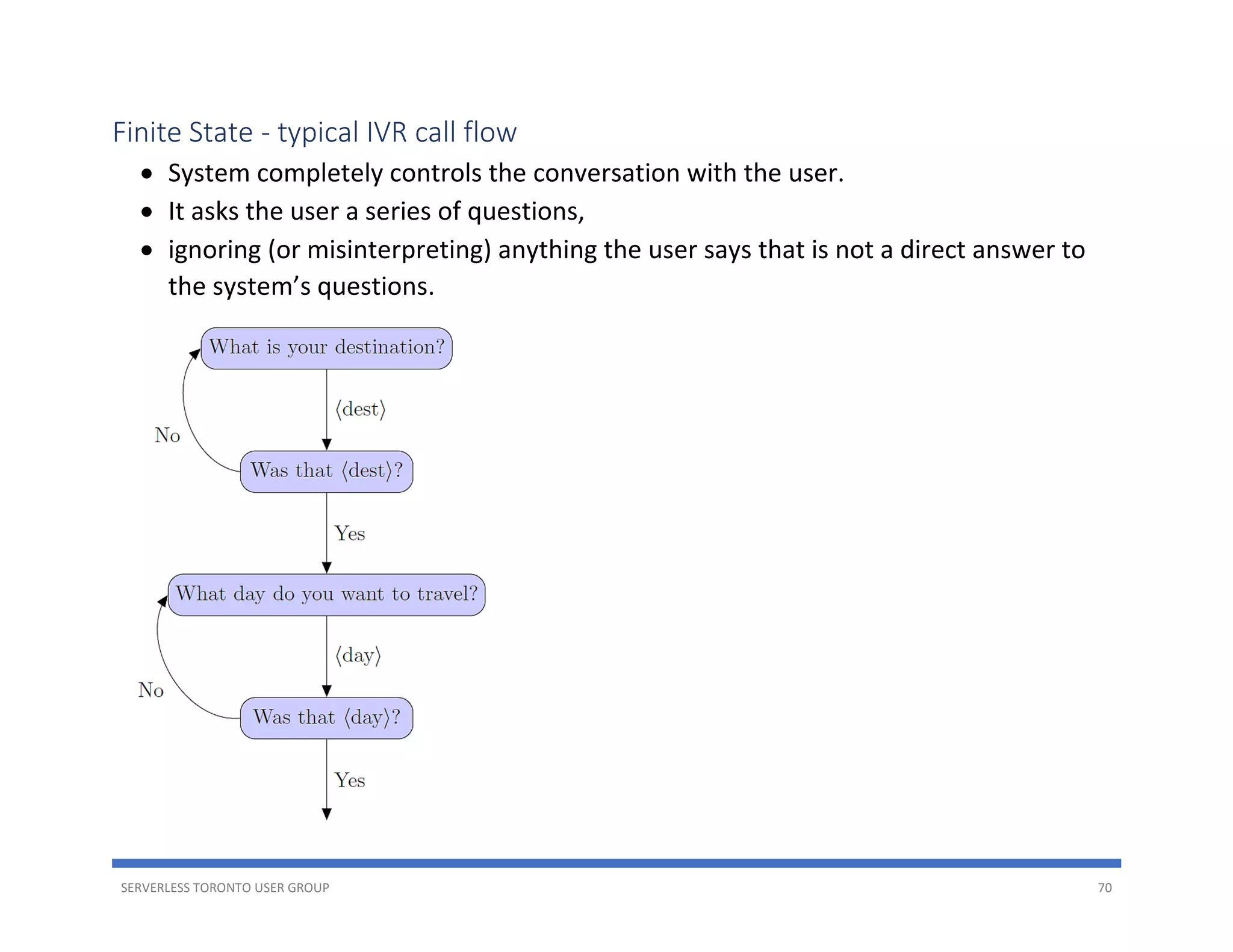

Finite State - typical IVR call flow
• System completely controls the conversation with the user.
• It asks the user a series of questions,
• ignoring (or misinterpreting) anything the user says that is not a direct answer to
the system’s questions.
72. SERVERLESS TORONTO USER GROUP 72

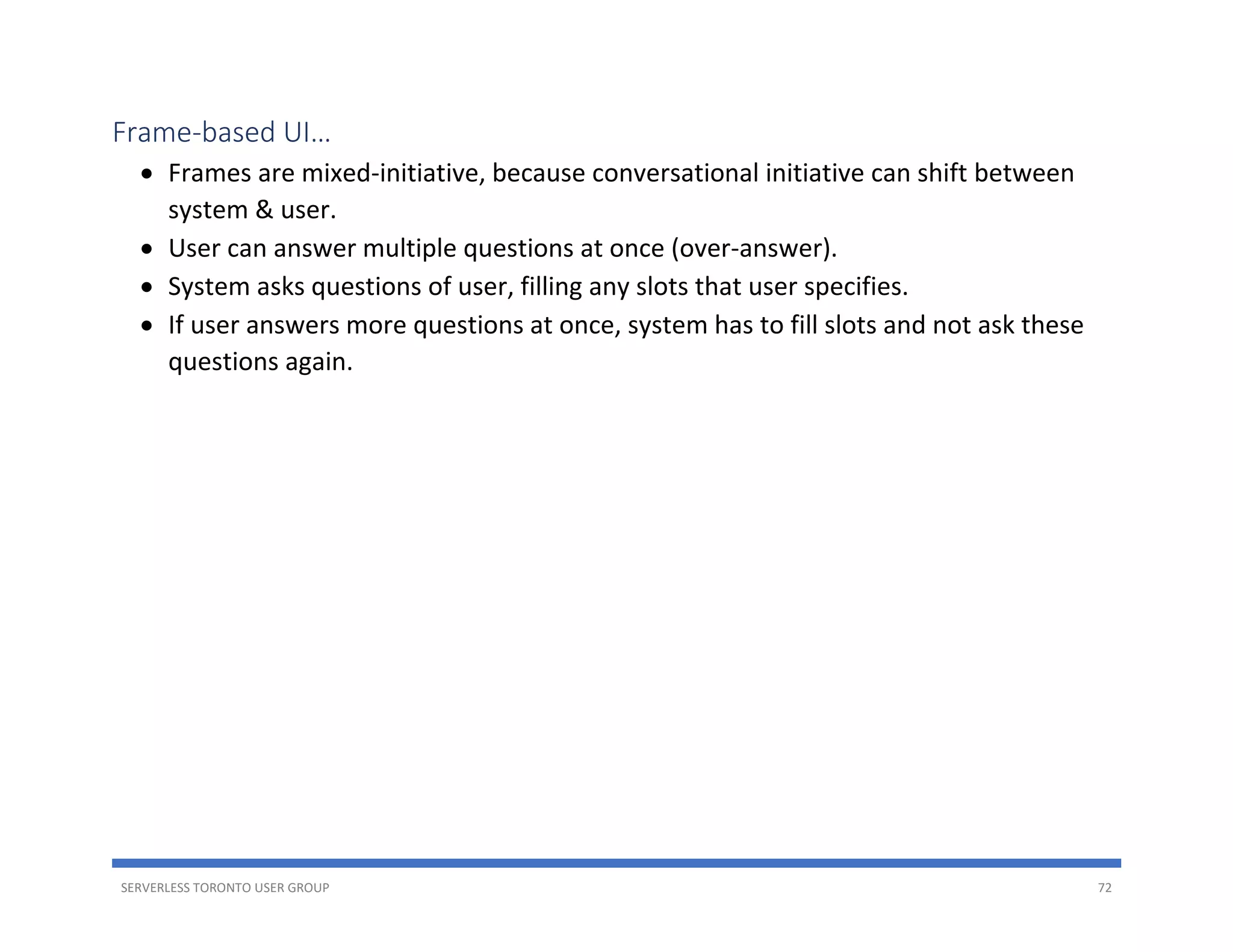

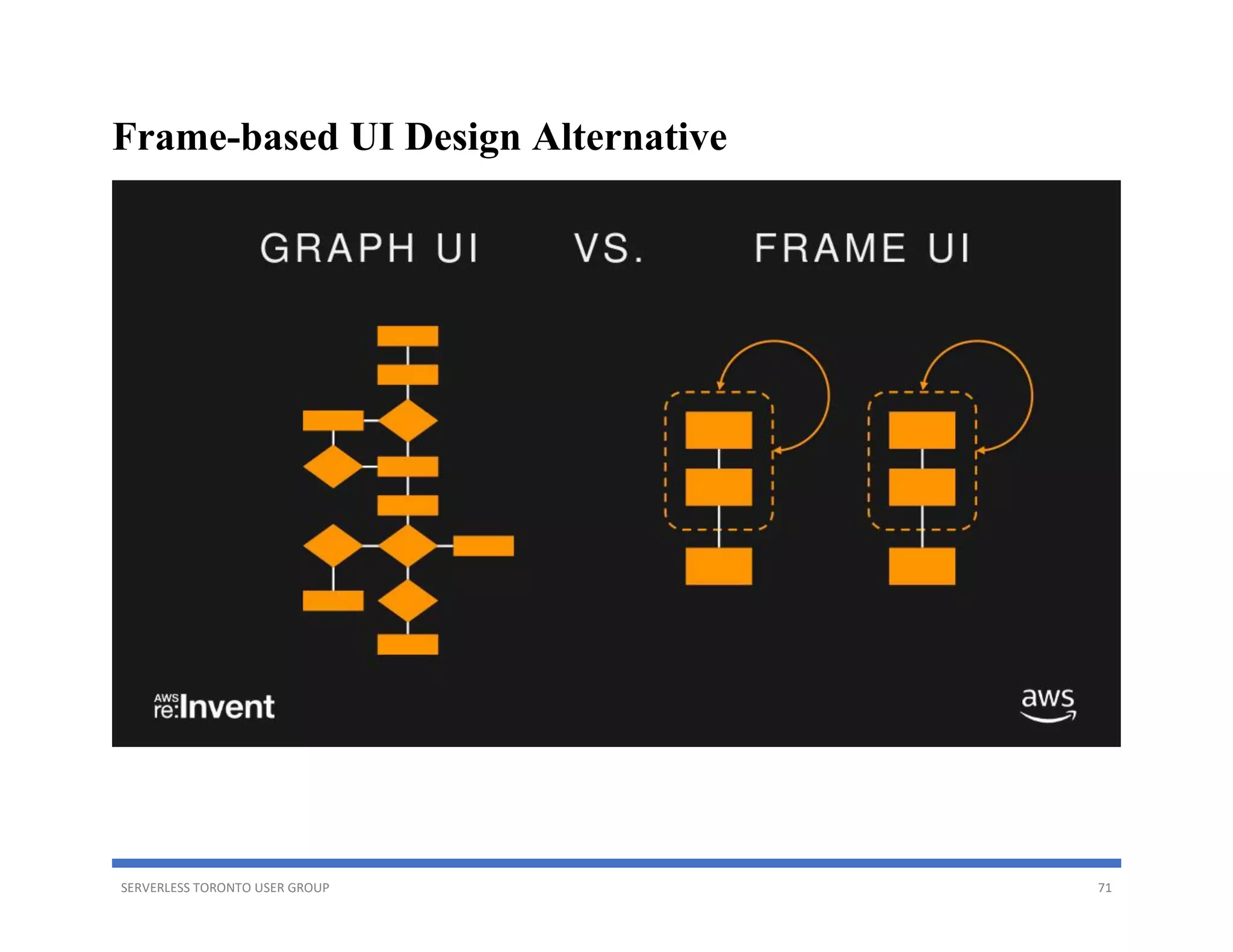

Frame-based UI…
• Frames are mixed-initiative, because conversational initiative can shift between
system & user.
• User can answer multiple questions at once (over-answer).
• System asks questions of user, filling any slots that user specifies.
• If user answers more questions at once, system has to fill slots and not ask these
questions again.
74. SERVERLESS TORONTO USER GROUP 74

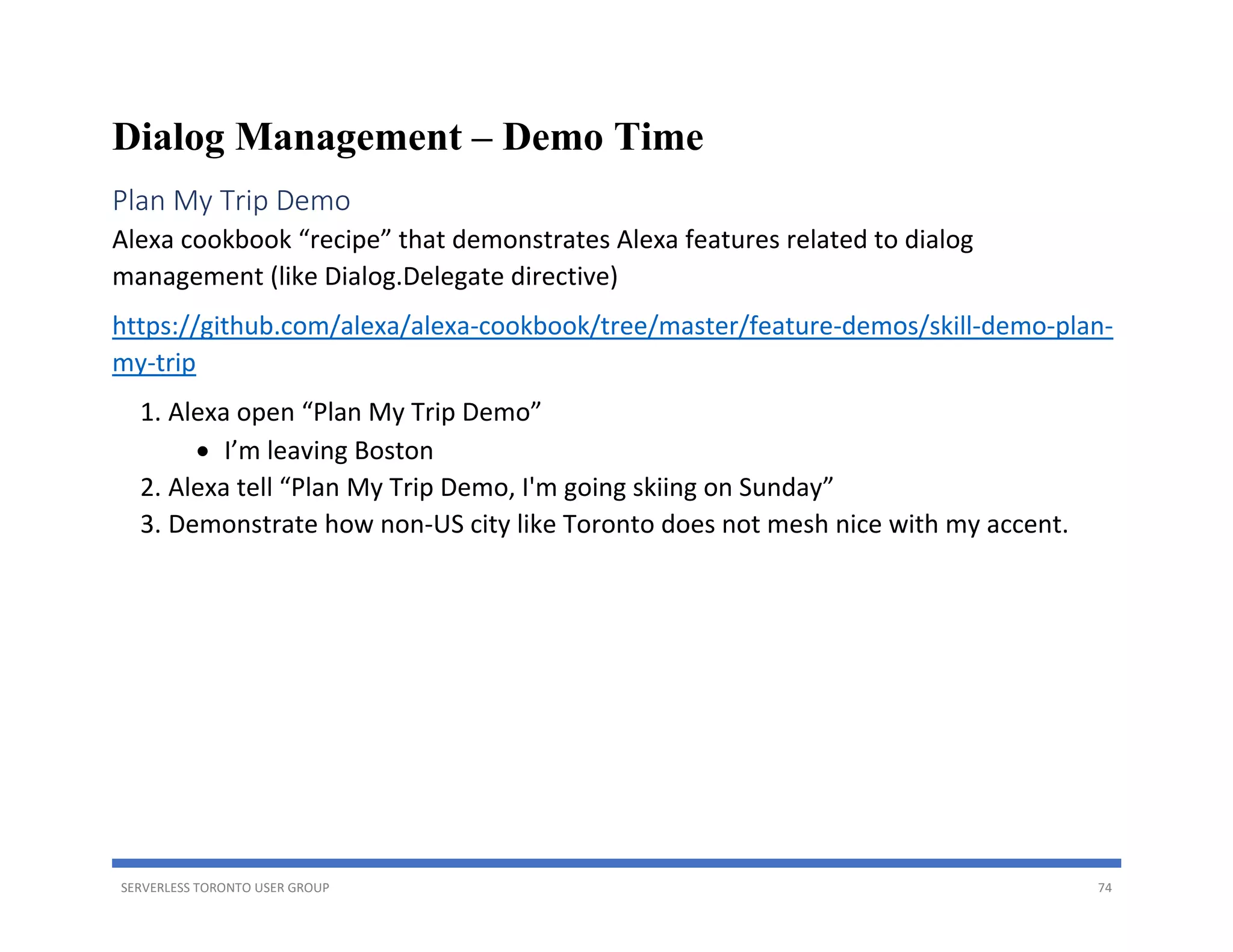

Dialog Management – Demo Time
Plan My Trip Demo
Alexa cookbook “recipe” that demonstrates Alexa features related to dialog
management (like Dialog.Delegate directive)
https://github.com/alexa/alexa-cookbook/tree/master/feature-demos/skill-demo-plan-
my-trip
1. Alexa open “Plan My Trip Demo”
• I’m leaving Boston
2. Alexa tell “Plan My Trip Demo, I'm going skiing on Sunday”
3. Demonstrate how non-US city like Toronto does not mesh nice with my accent.
75. SERVERLESS TORONTO USER GROUP 75

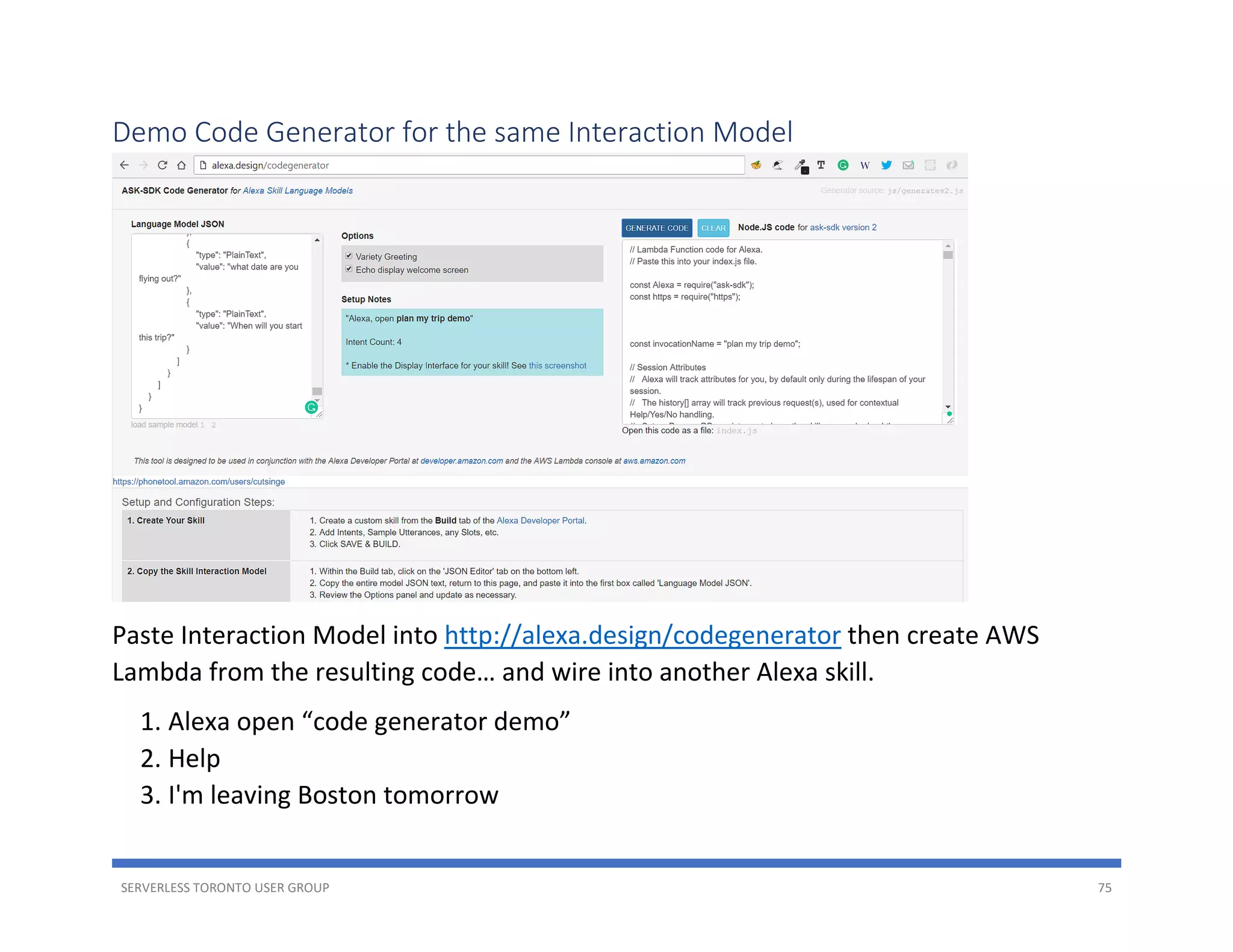

Demo Code Generator for the same Interaction Model
Paste Interaction Model into http://alexa.design/codegenerator then create AWS
Lambda from the resulting code… and wire into another Alexa skill.
1. Alexa open “code generator demo”
2. Help
3. I'm leaving Boston tomorrow

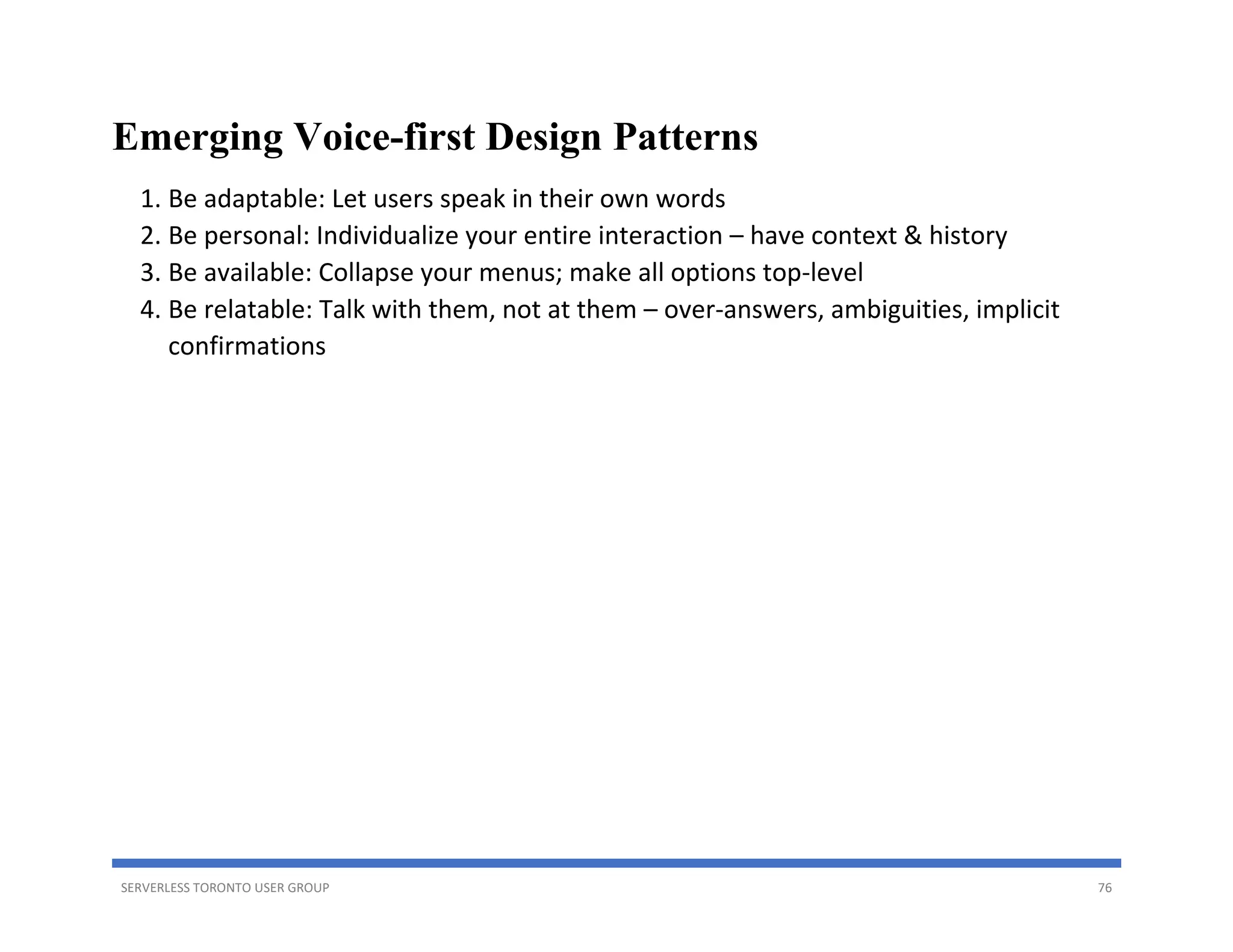

76. SERVERLESS TORONTO USER GROUP 76
Emerging Voice-first Design Patterns
1. Be adaptable: Let users speak in their own words
2. Be personal: Individualize your entire interaction – have context & history
3. Be available: Collapse your menus; make all options top-level
4. Be relatable: Talk with them, not at them – over-answers, ambiguities, implicit
confirmations

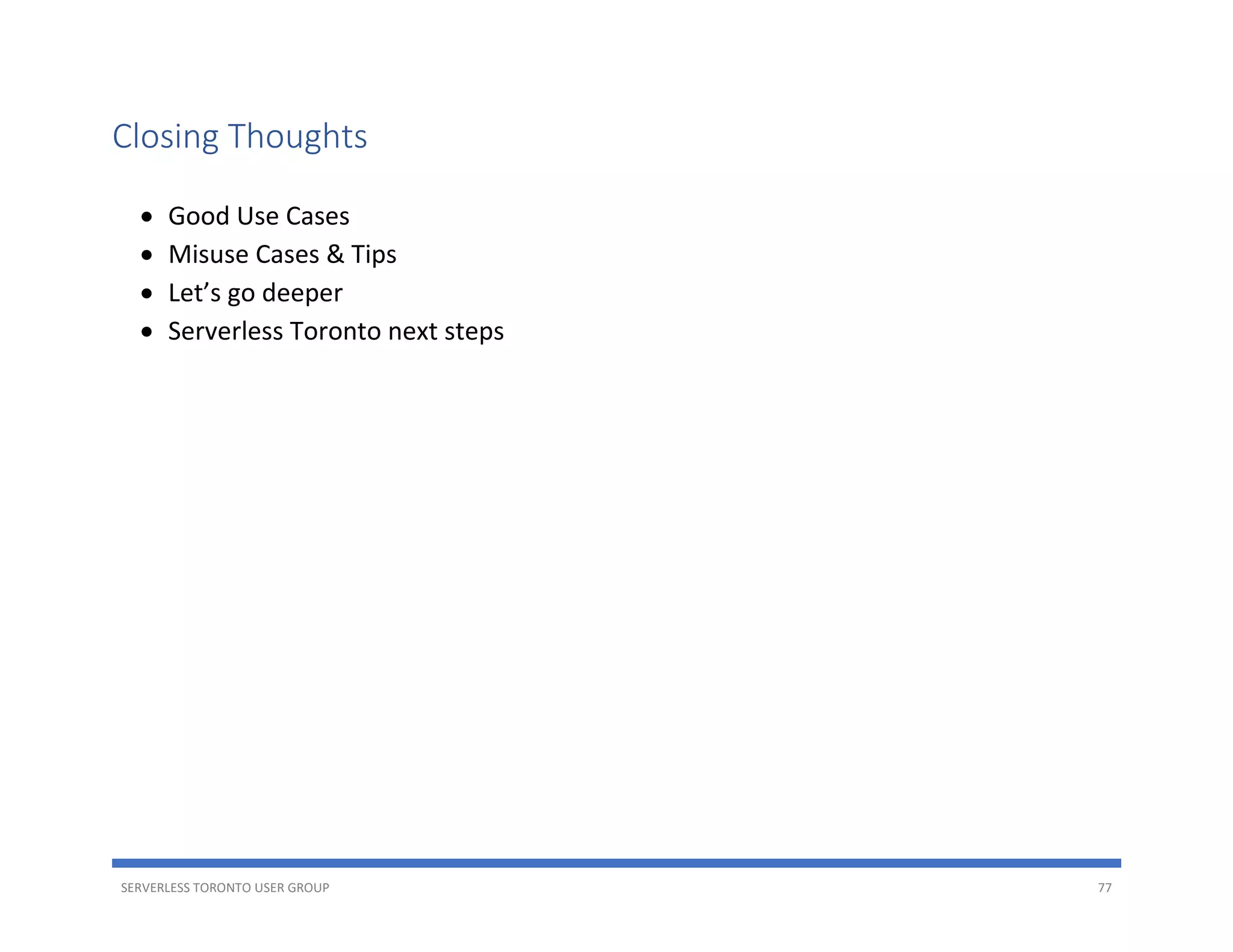

77. SERVERLESS TORONTO USER GROUP 77
Closing Thoughts
• Good Use Cases
• Misuse Cases & Tips
• Let’s go deeper
• Serverless Toronto next steps
78. SERVERLESS TORONTO USER GROUP 78

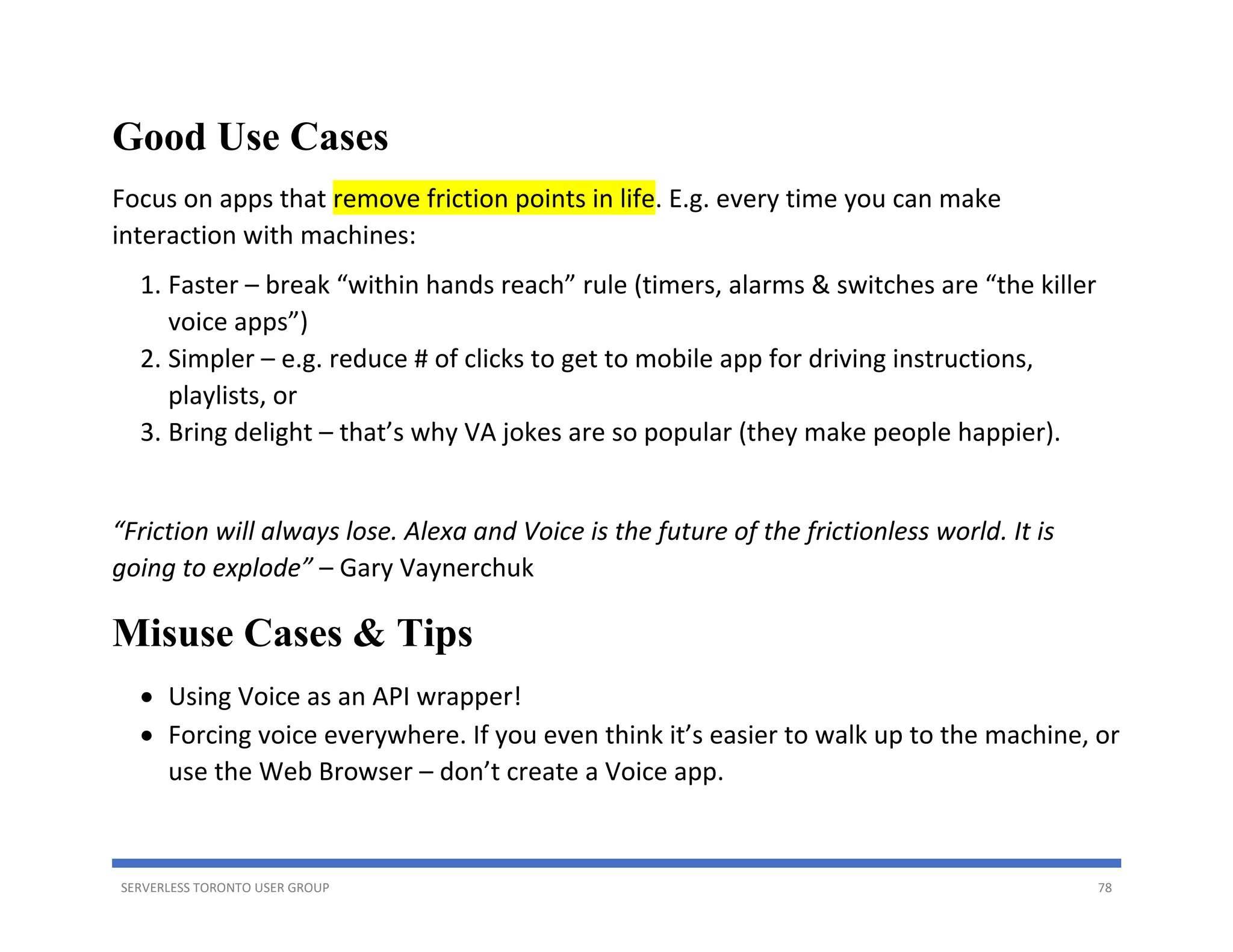

Good Use Cases
Focus on apps that remove friction points in life. E.g. every time you can make
interaction with machines:
1. Faster – break “within hands reach” rule (timers, alarms & switches are “the killer
voice apps”)
2. Simpler – e.g. reduce # of clicks to get to mobile app for driving instructions,
playlists, or
3. Bring delight – that’s why VA jokes are so popular (they make people happier).
“Friction will always lose. Alexa and Voice is the future of the frictionless world. It is
going to explode” – Gary Vaynerchuk
Misuse Cases & Tips
• Using Voice as an API wrapper!
• Forcing voice everywhere. If you even think it’s easier to walk up to the machine, or
use the Web Browser – don’t create a Voice app.
79. SERVERLESS TORONTO USER GROUP 79

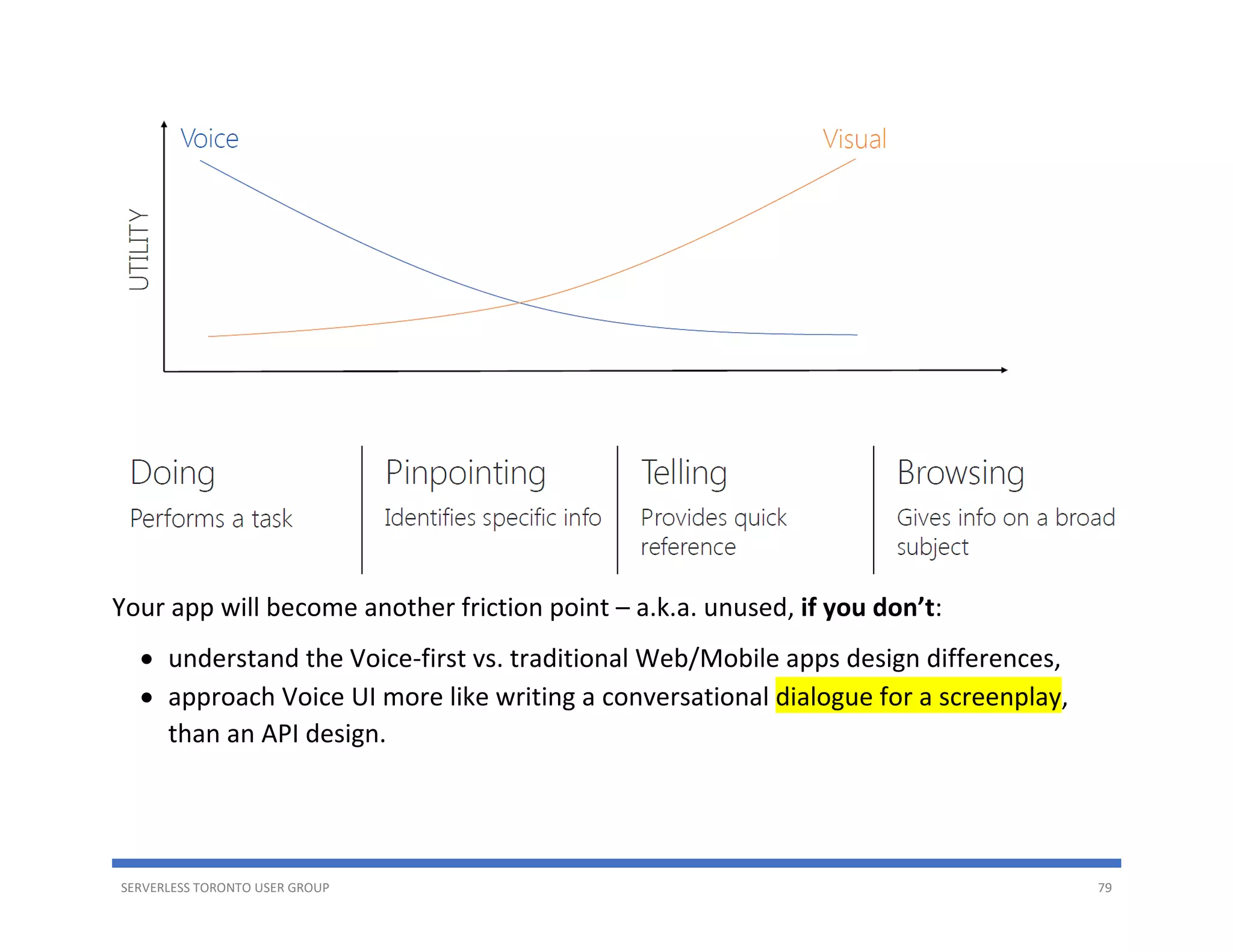

Your app will become another friction point – a.k.a. unused, if you don’t:
• understand the Voice-first vs. traditional Web/Mobile apps design differences,
• approach Voice UI more like writing a conversational dialogue for a screenplay,
than an API design.
80. SERVERLESS TORONTO USER GROUP 80
Voice apps have to be intuitive, because there’s no skimming like through web pages –
so please don’t expect users to learn your API or Taxonomy… no more “Norman Doors”
please 😊
81. SERVERLESS TORONTO USER GROUP 81

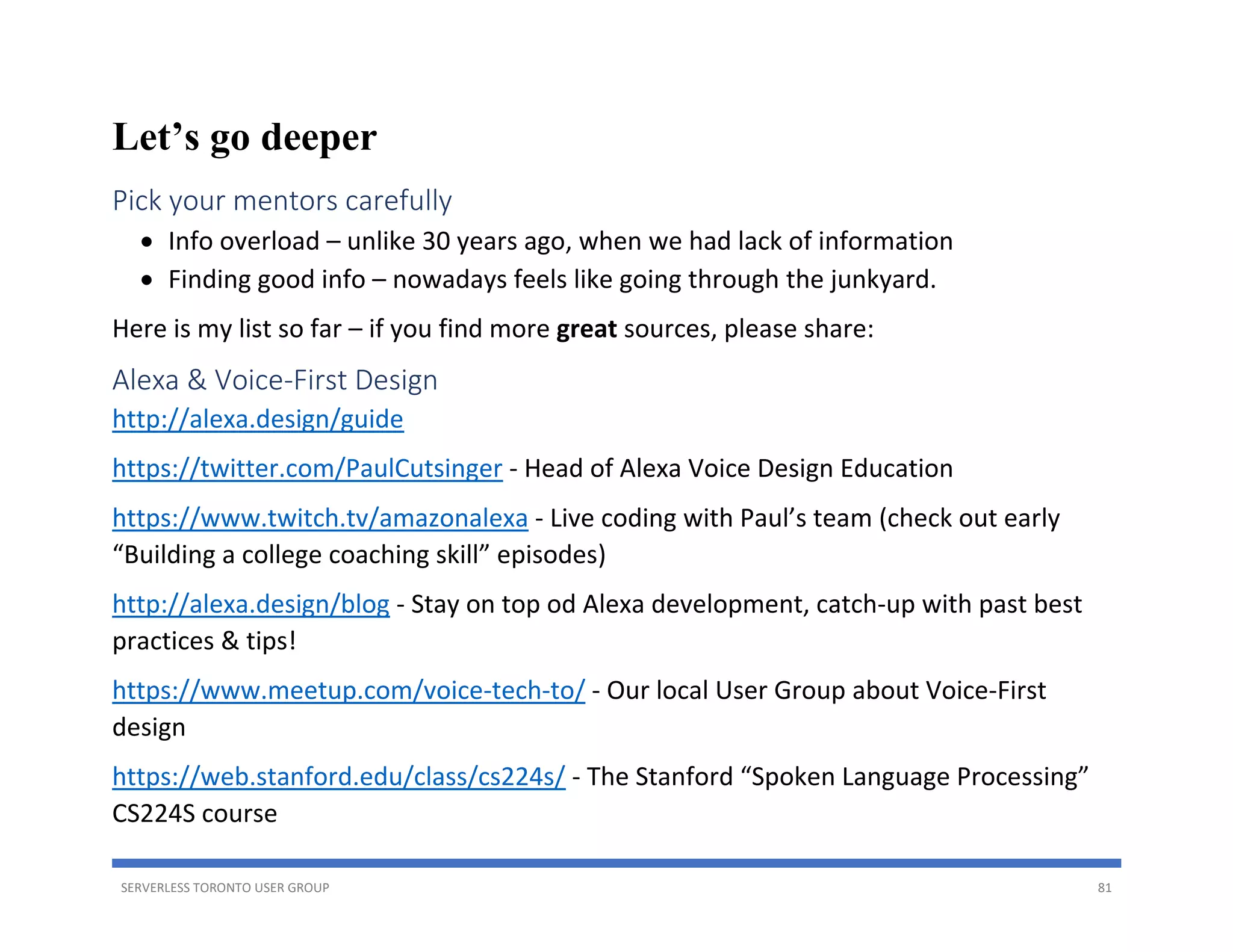

Let’s go deeper
Pick your mentors carefully
• Info overload – unlike 30 years ago, when we had lack of information
• Finding good info – nowadays feels like going through the junkyard.
Here is my list so far – if you find more great sources, please share:
Alexa & Voice-First Design
http://alexa.design/guide
https://twitter.com/PaulCutsinger - Head of Alexa Voice Design Education
https://www.twitch.tv/amazonalexa - Live coding with Paul’s team (check out early
“Building a college coaching skill” episodes)
http://alexa.design/blog - Stay on top od Alexa development, catch-up with past best
practices & tips!
https://www.meetup.com/voice-tech-to/ - Our local User Group about Voice-First
design
https://web.stanford.edu/class/cs224s/ - The Stanford “Spoken Language Processing”
CS224S course
82. SERVERLESS TORONTO USER GROUP 82

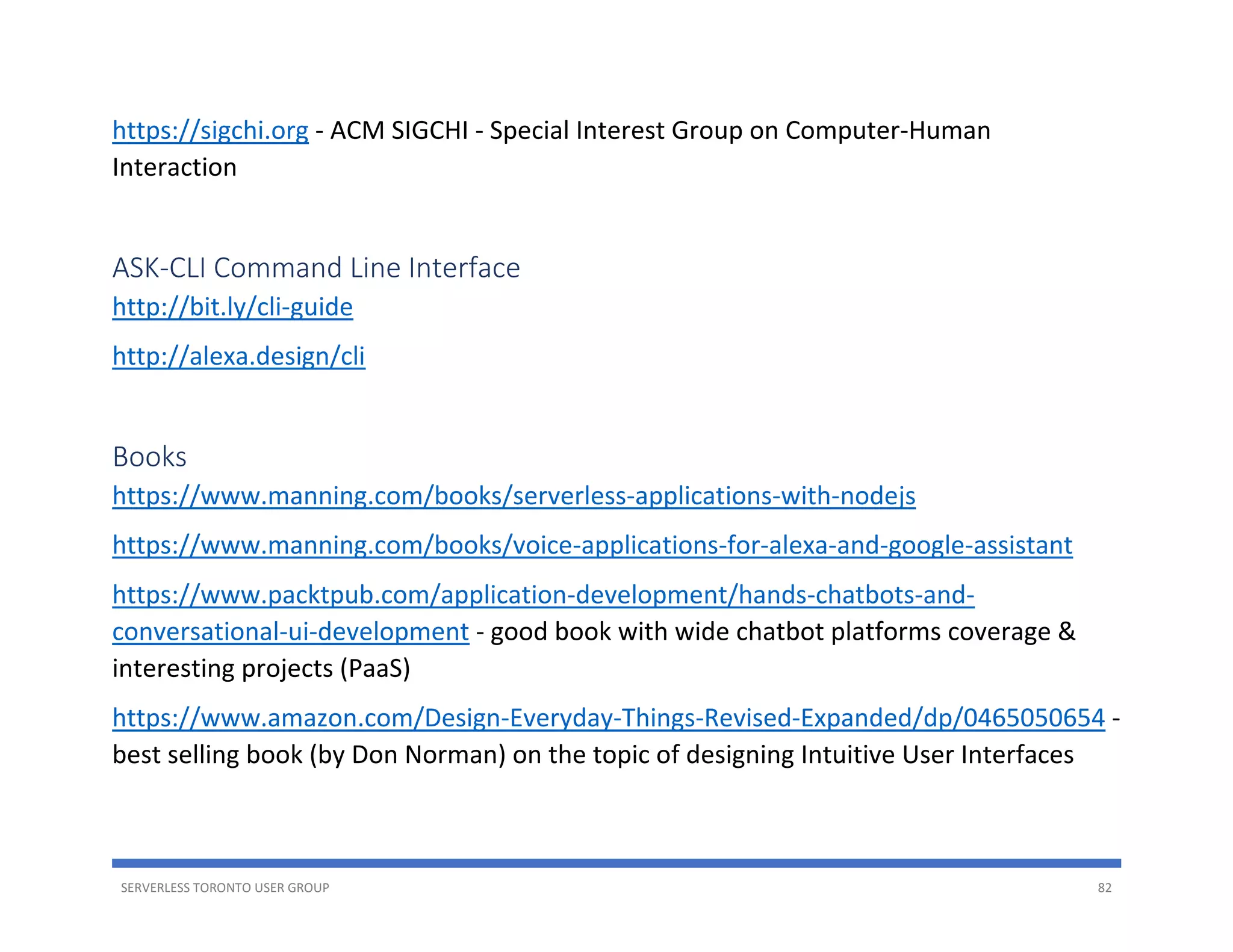

https://sigchi.org - ACM SIGCHI - Special Interest Group on Computer-Human
Interaction
ASK-CLI Command Line Interface
http://bit.ly/cli-guide
http://alexa.design/cli
Books
https://www.manning.com/books/serverless-applications-with-nodejs
https://www.manning.com/books/voice-applications-for-alexa-and-google-assistant
https://www.packtpub.com/application-development/hands-chatbots-and-
conversational-ui-development - good book with wide chatbot platforms coverage &
interesting projects (PaaS)
https://www.amazon.com/Design-Everyday-Things-Revised-Expanded/dp/0465050654 -
best selling book (by Don Norman) on the topic of designing Intuitive User Interfaces
83. SERVERLESS TORONTO USER GROUP 83

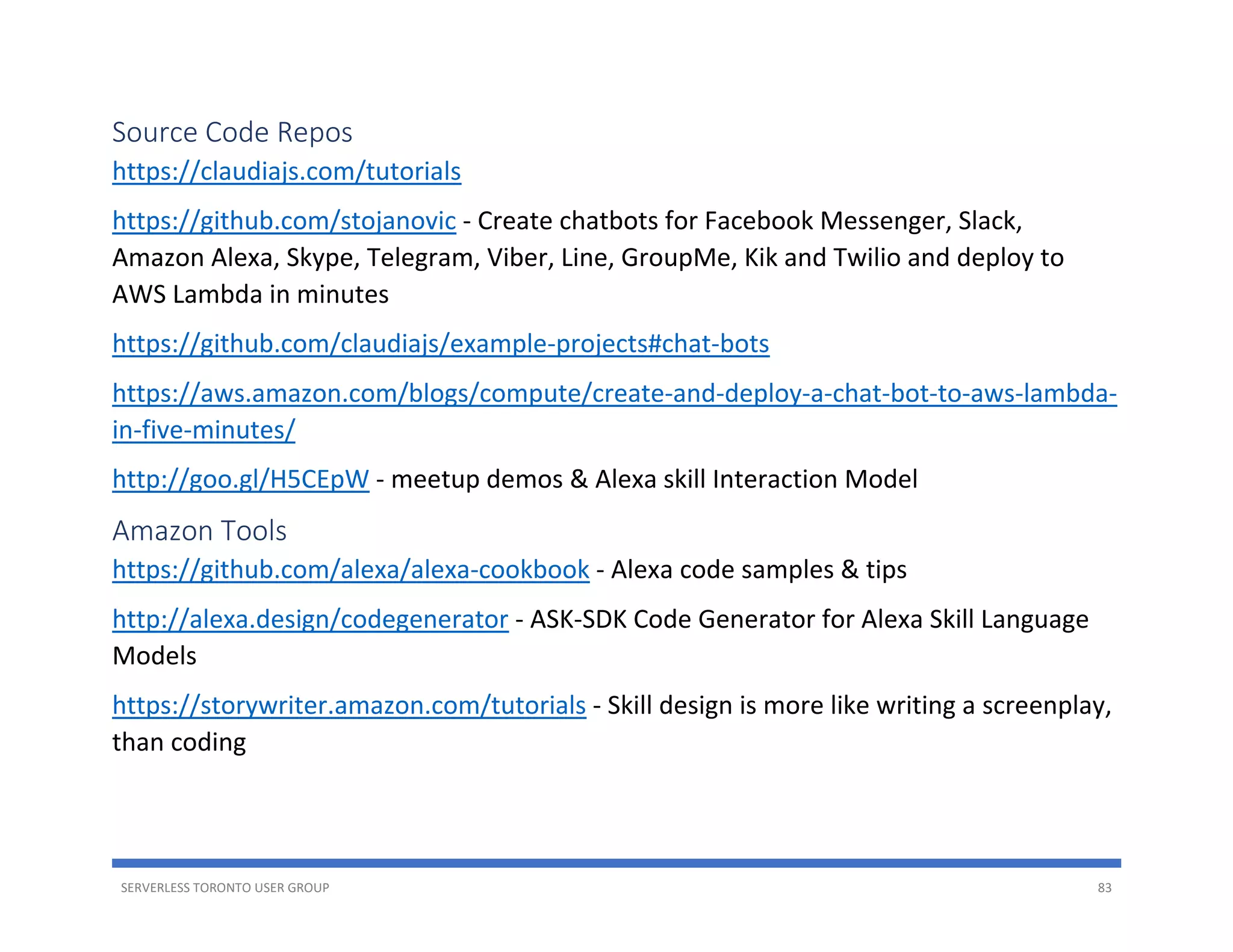

Source Code Repos
https://claudiajs.com/tutorials
https://github.com/stojanovic - Create chatbots for Facebook Messenger, Slack,
Amazon Alexa, Skype, Telegram, Viber, Line, GroupMe, Kik and Twilio and deploy to
AWS Lambda in minutes
https://github.com/claudiajs/example-projects#chat-bots
https://aws.amazon.com/blogs/compute/create-and-deploy-a-chat-bot-to-aws-lambda-
in-five-minutes/
http://goo.gl/H5CEpW - meetup demos & Alexa skill Interaction Model
Amazon Tools
https://github.com/alexa/alexa-cookbook - Alexa code samples & tips
http://alexa.design/codegenerator - ASK-SDK Code Generator for Alexa Skill Language
Models
https://storywriter.amazon.com/tutorials - Skill design is more like writing a screenplay,
than coding
84. SERVERLESS TORONTO USER GROUP 84
Food for Thought – Demo Time
The Good, the Bad and the Ugly of the voice-first experience
Play some of he recordings I ran into while preparing this talk:
1. ACM SIGCHI video – Radar Pace - A Conversational System for Coaching
Good – strive towards this!
2. Mobile Protection IVR recording – 2 minutes of friction while driving
Bad – rewrite this. IVRs can be & should be better nowadays!
3. Connected Lab video about CNN Voice App – #ConversationsWorthHaving
Ugly – don’t do this! You know better now 😊
85. SERVERLESS TORONTO USER GROUP 85

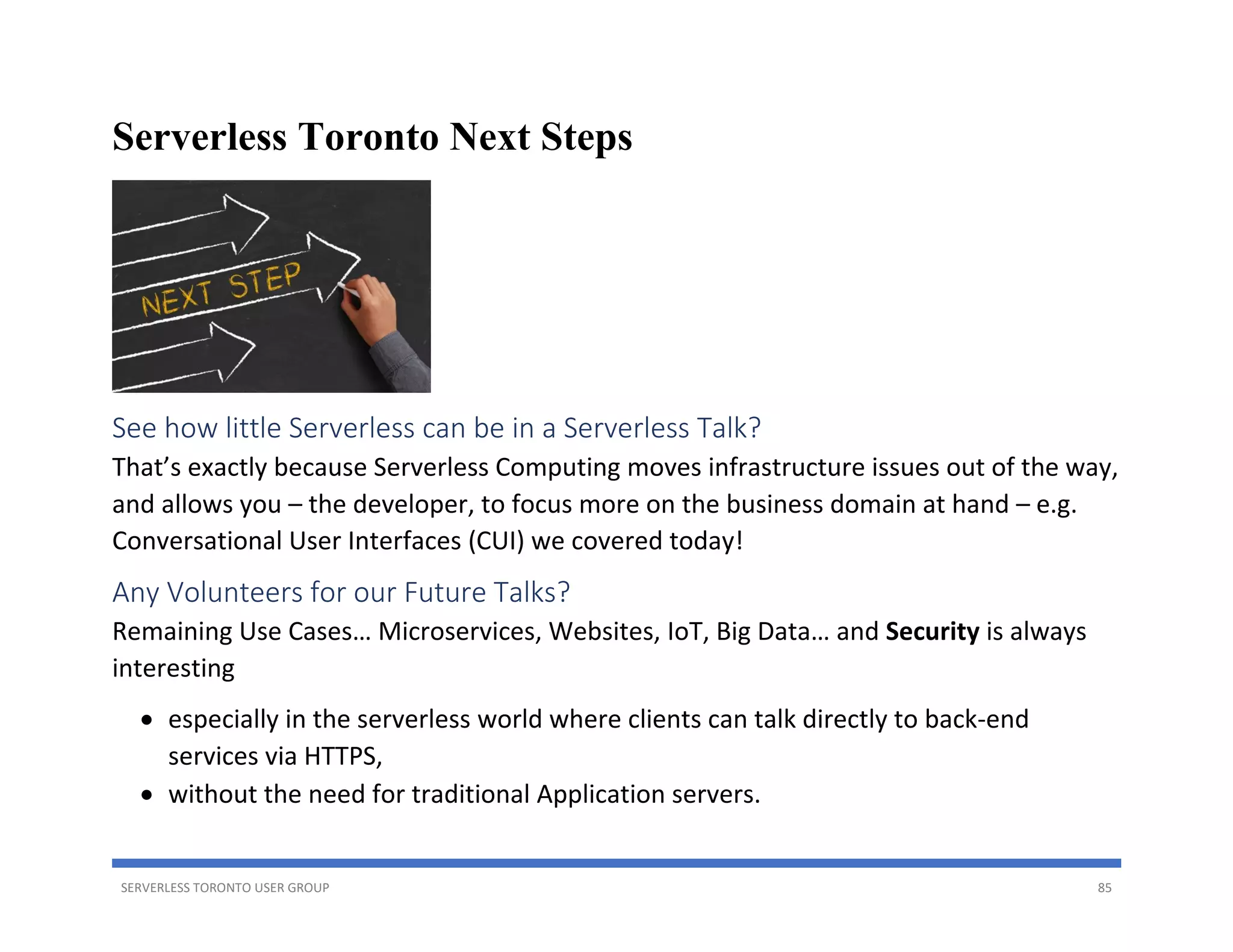

Serverless Toronto Next Steps
See how little Serverless can be in a Serverless Talk?
That’s exactly because Serverless Computing moves infrastructure issues out of the way,
and allows you – the developer, to focus more on the business domain at hand – e.g.
Conversational User Interfaces (CUI) we covered today!
Any Volunteers for our Future Talks?
Remaining Use Cases… Microservices, Websites, IoT, Big Data… and Security is always
interesting
• especially in the serverless world where clients can talk directly to back-end
services via HTTPS,
• without the need for traditional Application servers.
