3D3 Solutions partnered with Rx Orthotic Lab to create a concrete solution to foot casting that combines 3D scanning technology with advance medical theory. The foot scanner uses 3D3 Solutions’ proprietary white-light 3D technology that scans the patient’s foot in seconds to create a digital reproduction in the form a 3D model.

1. 3D Foot Scanning
FOOT CASTING TECHNOLOGY FOR CUSTOM ORTHOTICS
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

2. Rx Orthotic Lab is a leading orthotics
laboratory that specializes in prescription
orthotics for medical practitioners
worldwide.
Previously Rx Orthotic Lab manufactured
custom foot orthotics by receiving the
negative casts or impressions shipped
from the attending practitioner’s office.
Both patients and practitioners have
found that the process of taking negative
impressions can be a very time
consuming and expensive process.
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

3. PHYSICAL CASTING PROCESS
The traditional process includes the following steps and their associated issues:
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

4. “We’re really excited about how 3D3 Solutions
3D scanning technology will change the
manufacturing process of custom orthotics.”
Paul Smith, President of Rx Orthotic Lab
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

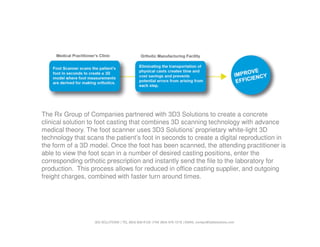

5. The Rx Group of Companies partnered with 3D3 Solutions to create a concrete
clinical solution to foot casting that combines 3D scanning technology with advance
medical theory. The foot scanner uses 3D3 Solutions’ proprietary white-light 3D
technology that scans the patient’s foot in seconds to create a digital reproduction in
the form of a 3D model. Once the foot has been scanned, the attending practitioner is
able to view the foot scan in a number of desired casting positions, enter the
corresponding orthotic prescription and instantly send the file to the laboratory for
production. This process allows for reduced in office casting supplier, and outgoing
freight charges, combined with faster turn around times.
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

6. BENEFITS TO 3D FOOT SCANNING TECHNOLOGY
Quicker Turn Around Time
There is no need to transport physical casts from the clinic to the laboratory as patient information
is transferred electronically.
Capture Foot Measurements in True 3D
While some systems claim to be foot scanners that scan in 3D, they are simply flatbed scanners
that generate 3D models through estimation and not through real 3D capture. 3D3 Solutions offers
3D scanners that provide authentic 3D data with highly accurate measurements.
Consistent Results Time After Time
The foot scanner will generate the repeatable results even when used by different medical
practitioners.
Foot Measurement Produced Instantly
It only takes a few seconds to scan and obtain the patient’s foot measurements which can be
analyzed immediately with the patient. Fast scan speed also prevent patients from moving during
the scanning process.
Scans Patient without Contact
The scanner scans the foot directly without any contact with the patient to ensure there is no
measurement interference.
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

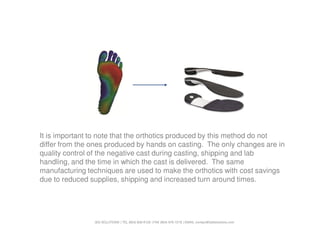

7. It is important to note that the orthotics produced by this method do not
differ from the ones produced by hands on casting. The only changes are in
quality control of the negative cast during casting, shipping and lab
handling, and the time in which the cast is delivered. The same
manufacturing techniques are used to make the orthotics with cost savings
due to reduced supplies, shipping and increased turn around times.
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

8. About Us
3D3 SOLUTIONS | TEL (604) 628-6128 | FAX (604) 676-7218 | EMAIL contact@3d3solutions.com

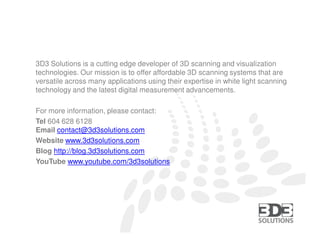

9. 3D3 Solutions is a cutting edge developer of 3D scanning and visualization
technologies. Our mission is to offer affordable 3D scanning systems that are
versatile across many applications using their expertise in white light scanning
technology and the latest digital measurement advancements.
For more information, please contact:
Tel 604 628 6128
Email contact@3d3solutions.com
Website www.3d3solutions.com
Blog http://blog.3d3solutions.com
YouTube www.youtube.com/3d3solutions
