MapReduce is a software framework that allows processing of massive datasets across distributed computers. It uses a simple programming model where a problem is broken down into map and reduce phases. In the map phase, data is converted to key-value pairs and in the reduce phase, all values associated with a key are processed to generate results. As an example, a word frequency count of Wikipedia could be generated using MapReduce by splitting the data, mapping each split to count word frequencies, shuffling by key, and reducing to generate final counts.

1. MapReduce

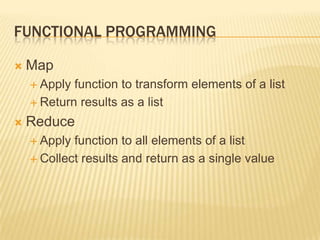

2. Functional ProgrammingMapApply function to transform elements of a list Return results as a listReduceApply function to all elements of a listCollect results and return as a single value

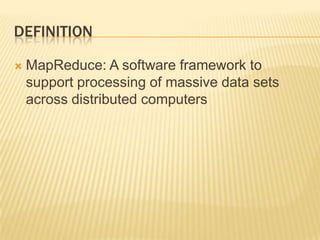

3. DefinitionMapReduce: A software framework to support processing of massive data sets across distributed computers

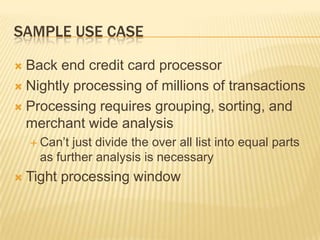

4. SAMPLE USE CASEBack end credit card processorNightly processing of millions of transactionsProcessing requires grouping, sorting, and merchant wide analysisCan’t just divide the over all list into equal parts as further analysis is necessaryTight processing window

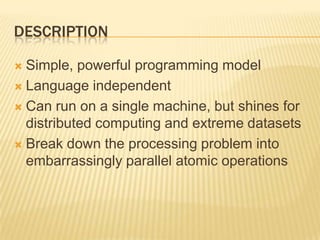

5. DescriptionSimple, powerful programming modelLanguage independentCan run on a single machine, but shines for distributed computing and extreme datasetsBreak down the processing problem into embarrassingly parallel atomic operations

6. AlgorithmMap Phase Raw data analyzed and converted to name/value pairShuffle PhaseAll name/value pairs are sorted and grouped by their keysReduce PhaseAll values associated with a key are processed for results

7. MapReduce Walk ThroughGoal: Construct a word frequency of all the words in Wikipedia

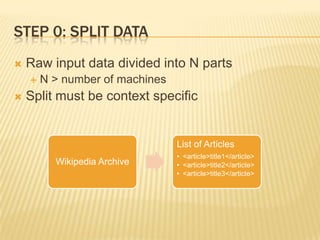

8. Step 0: Split DataRaw input data divided into N partsN > number of machinesSplit must be context specific

9. Step 1: MapEach machine takes/receives a single slice of the raw input for mappingThe map function processes the input file and emits a name/value pair of the relevant data

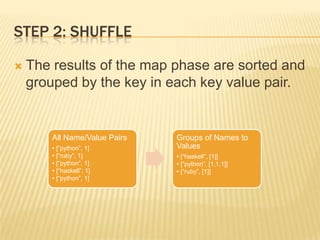

10. STEP 2: ShuffleThe results of the map phase are sorted and grouped by the key in each key value pair.

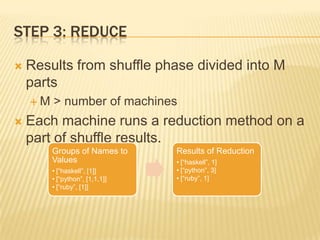

11. STEP 3: ReduceResults from shuffle phase divided into M partsM >number of machinesEach machine runs a reduction method on a part of shuffle results.

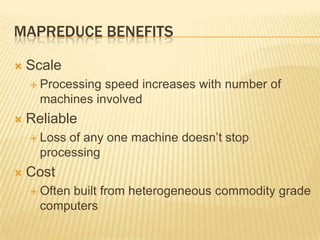

12. MAPREDUCE BENEFITSScaleProcessing speed increases with number of machines involvedReliableLoss of any one machine doesn’t stop processingCostOften built from heterogeneous commodity grade computers

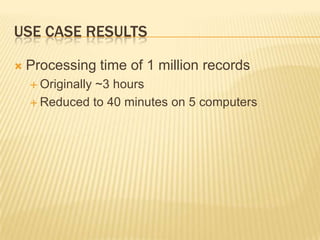

13. Use Case ResultsProcessing time of 1 million records Originally ~3 hoursReduced to 40 minutes on 5 computers

14. Other MapReduce installationsGoogle – Index buildingVisa – Transaction ProcessingFacebook – Facebook LexiconIntelligence CommunityYahoo/Google – Terabyte Sort10 billion, 100 byte recordsYahoo: 910 nodes, 206 secondsGoogle: ~1,000 nodes, 68 seconds

15. Questions
