1. 1

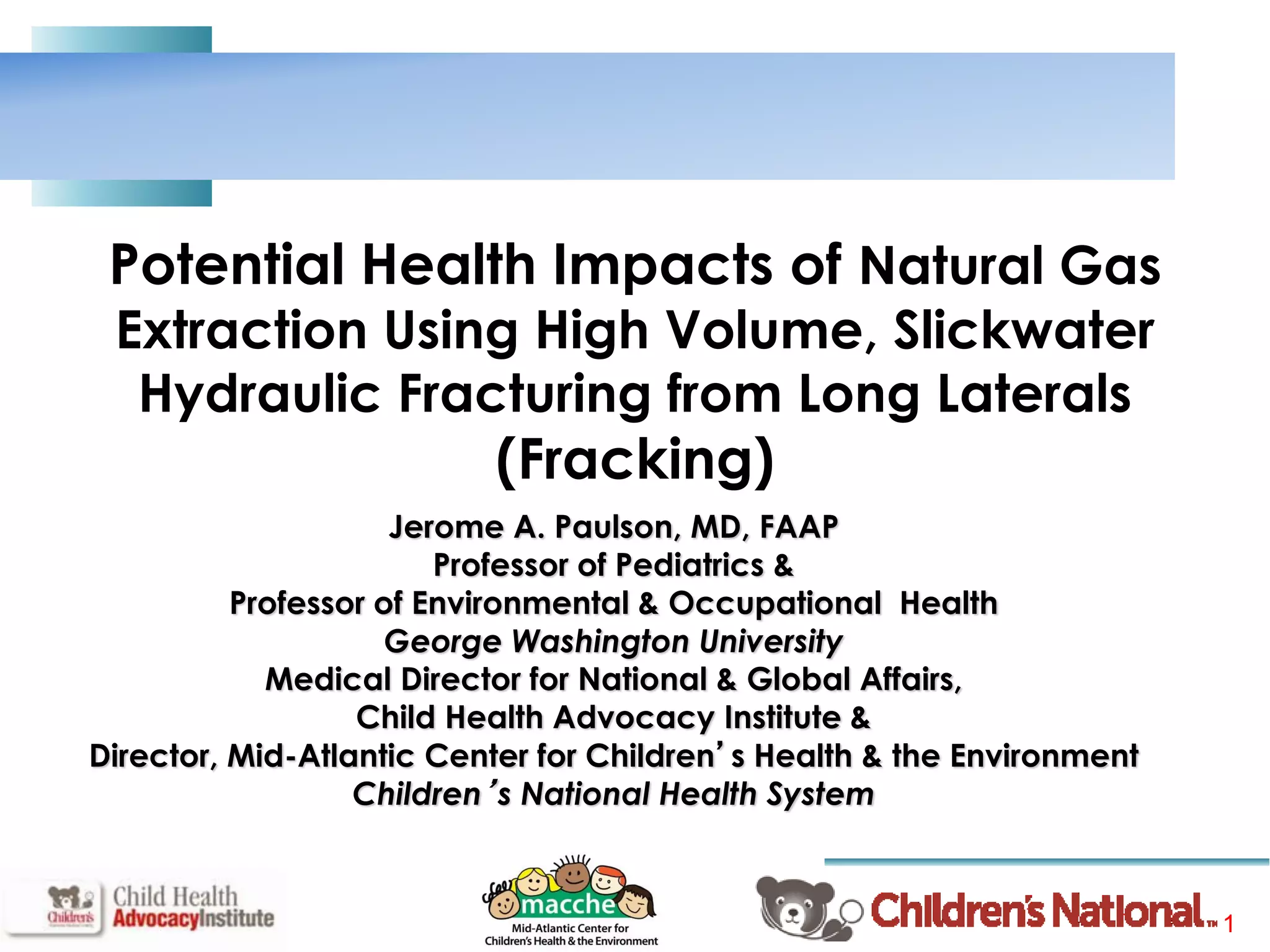

Potential Health Impacts of Natural Gas
Extraction Using High Volume, Slickwater
Hydraulic Fracturing from Long Laterals
(Fracking)
Jerome A. Paulson, MD, FAAP
Professor of Pediatrics &
Professor of Environmental & Occupational Health
George Washington University
Medical Director for National & Global Affairs,
Child Health Advocacy Institute &
Director, Mid-Atlantic Center for Children’s Health & the Environment
Children’s National Health System

2. 2
• This material was developed by the Mid-Atlantic Center
for Children’s Health & the Environment and funded
under the cooperative agreement award number
1U61TS000118-03 from the Agency for Toxic Substances
and Disease Registry (ATSDR).
• Acknowledgement: The U.S. Environmental Protection
Agency (EPA) supports the PEHSU by providing funds to
ATSDR under Inter-Agency Agreement number DW-75-
92301301-0. Neither EPA nor ATSDR endorse the
purchase of any commercial products or services
mentioned in PEHSU publications.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
• Dr Paulson has provided factual information to lawyers
regarding the potential health impact of natural gas
extraction with hydraulic fracturing.
Sources of Funding
Potential Conflict of Interest

3. 3

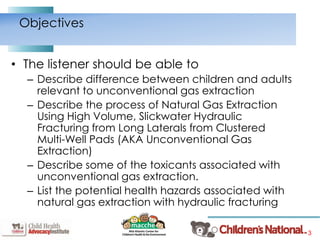

• The listener should be able to
– Describe difference between children and adults
relevant to unconventional gas extraction
– Describe the process of Natural Gas Extraction
Using High Volume, Slickwater Hydraulic
Fracturing from Long Laterals from Clustered
Multi-Well Pads (AKA Unconventional Gas
Extraction)
– Describe some of the toxicants associated with
unconventional gas extraction.
– List the potential health hazards associated with
natural gas extraction with hydraulic fracturing
Objectives

4. 4

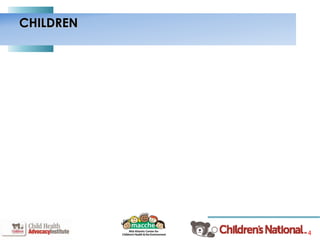

CHILDREN

5. 5
• Have longer “shelf life”
– Vulnerable periods of development
• Eat more, drink more, breath more per unit
body weight than adult
• Different metabolism than adults
Children Are Not Little Adults

6. 6

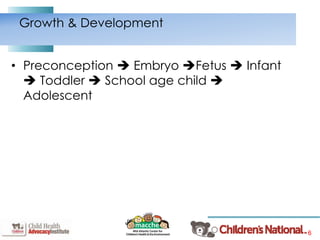

• Preconception  Embryo Fetus  Infant
 Toddler  School age child 
Adolescent
Growth & Development

7. 7
• Exposures preconception and in utero 
birth defects or later problems
• Timing of exposure also important when
occurs after birth
– Lead poisoning – outcome, in part, function of
age at exposure
– Some carcinogens – pesticides, ionizing
radiation, UV light
• Very little research on critical periods during
adolescence in spite of many changes
during that time frame
Growth & Development

8. 8
Differences Between Children & Adults
Lungs
• Continued
branching of the
bronchial tree
• Continued
development of
alveoli

9. 9

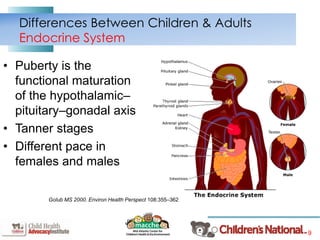

Differences Between Children & Adults
Endocrine System
• Puberty is the
functional maturation
of the hypothalamic–
pituitary–gonadal axis
• Tanner stages
• Different pace in
females and males
Golub MS 2000. Environ Health Perspect 108:355–362

10. 10

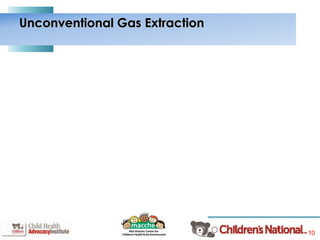

Unconventional Gas Extraction

11. 11

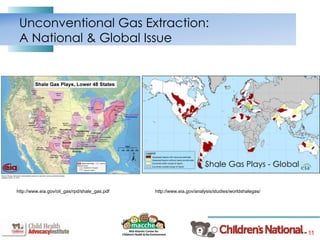

Unconventional Gas Extraction:
A National & Global Issue
Shale Gas Plays - Global
http://www.eia.gov/analysis/studies/worldshalegas/http://www.eia.gov/oil_gas/rpd/shale_gas.pdf

12. 12
Shale Gas/Conventional Gas

13. 13

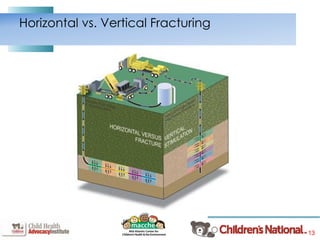

Horizontal vs. Vertical Fracturing

14. 14

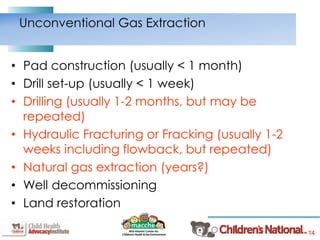

• Pad construction (usually < 1 month)
• Drill set-up (usually < 1 week)
• Drilling (usually 1-2 months, but may be
repeated)
• Hydraulic Fracturing or Fracking (usually 1-2
weeks including flowback, but repeated)
• Natural gas extraction (years?)
• Well decommissioning
• Land restoration
Unconventional Gas Extraction

15. 15

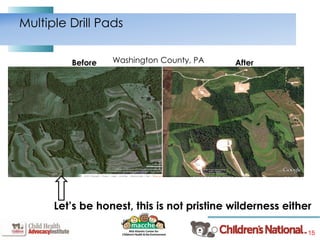

Multiple Drill Pads
Before Washington County, PA After
Let’s be honest, this is not pristine wilderness either

16. 16

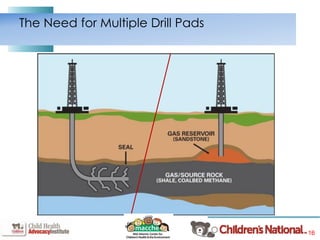

The Need for Multiple Drill Pads

17. 17

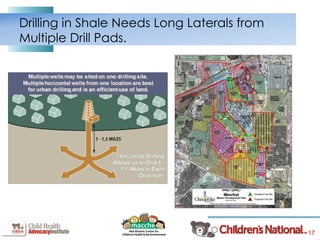

Drilling in Shale Needs Long Laterals from
Multiple Drill Pads.

18. 18
Drill Pad Set-up
Drill Rig
Waste-water
impoundment
Pre-fab
office
trailers
•Diesel generators
•Water-recycle
containers
•Sand/Chemical
storage
http://www.nytimes.com/imagepages/2010/07/24/business/GAS1.html
{

19. 19

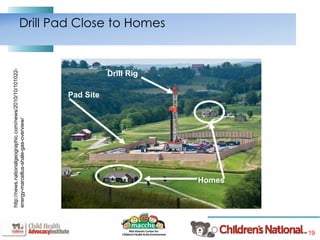

Drill Pad Close to Homes
http://news.nationalgeographic.com/news/2010/10/101022-
energy-marcellus-shale-gas-overview/
Homes
Pad Site
Drill Rig

20. 20
Overall Process

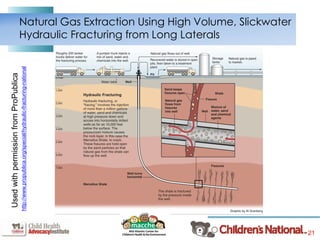

21. 21
Natural Gas Extraction Using High Volume, Slickwater
Hydraulic Fracturing from Long Laterals
UsedwithpermissionfromProPublica
http://www.propublica.org/special/hydraulic-fracturing-national

22. 22
Air pollution

23. 23

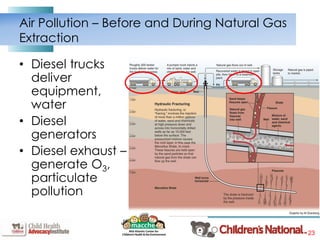

Air Pollution – Before and During Natural Gas
Extraction
• Diesel trucks
deliver
equipment,
water
• Diesel
generators
• Diesel exhaust –
generate O3,
particulate
pollution

24. 24

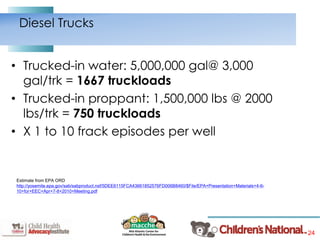

• Trucked-in water: 5,000,000 gal@ 3,000
gal/trk = 1667 truckloads
• Trucked-in proppant: 1,500,000 lbs @ 2000
lbs/trk = 750 truckloads
• X 1 to 10 frack episodes per well
Diesel Trucks
Estimate from EPA ORD
http://yosemite.epa.gov/sab/sabproduct.nsf/5DEE6115FCA43661852576FD006B8460/$File/EPA+Presentation+Materials+4-6-
10+for+EEC+Apr+7-8+2010+Meeting.pdf

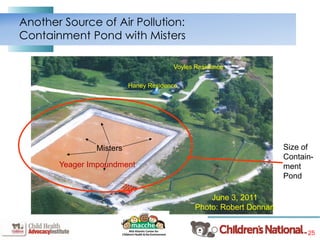

25. 25
Another Source of Air Pollution:
Containment Pond with Misters
Misters Size of
Contain-
ment
Pond
Voyles Residence
Haney Residence
Yeager Impoundment
June 3, 2011
Photo: Robert Donnan

26. 26

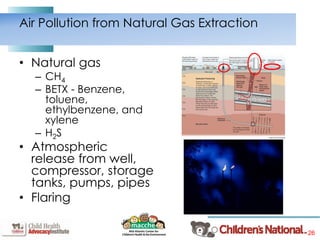

Air Pollution from Natural Gas Extraction
• Natural gas
– CH4
– BETX - Benzene,
toluene,
ethylbenzene, and
xylene
– H2S
• Atmospheric
release from well,
compressor, storage
tanks, pumps, pipes
• Flaring

27. 27

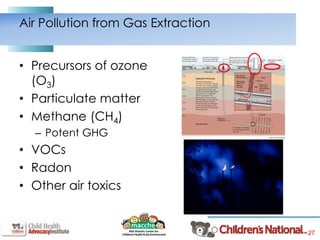

Air Pollution from Gas Extraction
• Precursors of ozone
(O3)
• Particulate matter
• Methane (CH4)
– Potent GHG
• VOCs
• Radon
• Other air toxics

28. 28

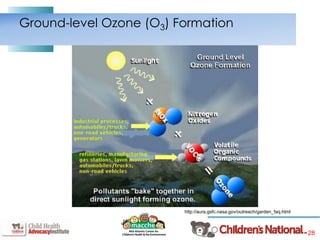

Ground-level Ozone (O3) Formation
http://aura.gsfc.nasa.gov/outreach/garden_faq.html

29. 29

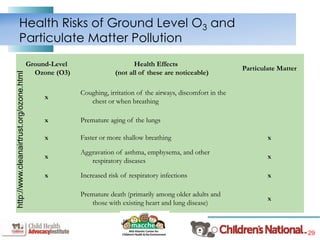

Ground-Level
Ozone (O3)
Health Effects
(not all of these are noticeable)
Particulate Matter
x
Coughing, irritation of the airways, discomfort in the
chest or when breathing
x Premature aging of the lungs
x Faster or more shallow breathing x
x
Aggravation of asthma, emphysema, and other
respiratory diseases
x
x Increased risk of respiratory infections x
Premature death (primarily among older adults and
those with existing heart and lung disease)
x
Health Risks of Ground Level O3 and
Particulate Matter Pollution
http://www.cleanairtrust.org/ozone.html

30. 30
• Neural tube defects
– Lupo et al.. 2011. Maternal Exposure to Ambient
Levels of Benzene and Neural Tube Defects among
Offspring: Texas, 1999–2004. Environ Health Perspect
119:397-402
• Decreased birth parameters
– Slama R, et al. 2009. Maternal Personal Exposure to
Airborne Benzene and Intrauterine Growth. Environ
Health Perspect 117:1313-1321
• Childhood leukemia
– Whitworth KW, et al. 2008. Childhood
Lymphohematopoietic Cancer Incidence and
Hazardous Air Pollutants in Southeast Texas, 1995–
2004. Environ Health Perspect 116:1576-1580.
Associations with Prenatal Exposure to
Airborne Benzene

31. 31

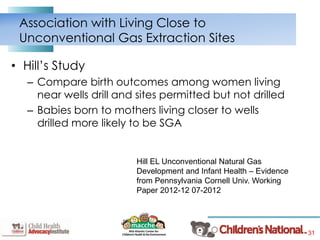

• Hill’s Study
– Compare birth outcomes among women living
near wells drill and sites permitted but not drilled
– Babies born to mothers living closer to wells
drilled more likely to be SGA
Association with Living Close to
Unconventional Gas Extraction Sites
Hill EL Unconventional Natural Gas
Development and Infant Health – Evidence
from Pennsylvania Cornell Univ. Working
Paper 2012-12 07-2012

32. 32

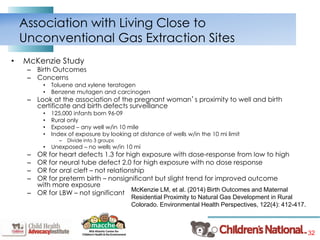

• McKenzie Study
– Birth Outcomes
– Concerns
• Toluene and xylene teratogen
• Benzene mutagen and carcinogen
– Look at the association of the pregnant woman’s proximity to well and birth
certificate and birth defects surveillance
• 125,000 infants born 96-09
• Rural only
• Exposed – any well w/in 10 mile
• Index of exposure by looking at distance of wells w/in the 10 mi limit
– Divide into 3 groups
• Unexposed – no wells w/in 10 mi
– OR for heart defects 1.3 for high exposure with dose-response from low to high
– OR for neural tube defect 2.0 for high exposure with no dose response
– OR for oral cleft – not relationship
– OR for preterm birth – nonsignificant but slight trend for improved outcome
with more exposure
– OR for LBW – not significant
Association with Living Close to
Unconventional Gas Extraction Sites
McKenzie LM, et al. (2014) Birth Outcomes and Maternal
Residential Proximity to Natural Gas Development in Rural
Colorado. Environmental Health Perspectives, 122(4): 412-417.

33. 33

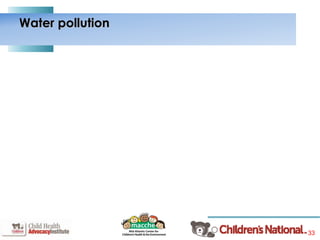

Water pollution

34. 34
Water Pollution
• Materials pumped into
the well – contents of
fracking fluid
• Naturally Occurring
Materials brought back
with fracking fluid
– Naturally Occurring
Radioactive Materials –
NORMS
– Salts
• Pollutants presumed to
migrate to ground water
• Unintended releases –
storm water runoff or
overflow, spills,
accidental release

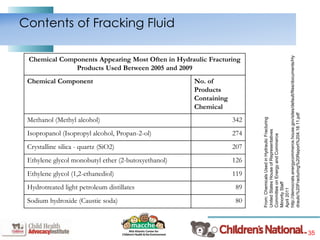

35. 35
Contents of Fracking Fluid
Chemical Components Appearing Most Often in Hydraulic Fracturing
Products Used Between 2005 and 2009
Chemical Component No. of
Products
Containing
Chemical
Methanol (Methyl alcohol) 342
Isopropanol (Isopropyl alcohol, Propan-2-ol) 274
Crystalline silica - quartz (SiO2) 207
Ethylene glycol monobutyl ether (2-butoxyethanol) 126
Ethylene glycol (1,2-ethanediol) 119
Hydrotreated light petroleum distillates 89
Sodium hydroxide (Caustic soda) 80
From:ChemicalsUsedinHydraulicFracturing
UnitedStatesHouseofRepresentatives
CommitteeonEnergyandCommerce
MinorityStaff
April2011
http://democrats.energycommerce.house.gov/sites/default/files/documents/Hy
draulic%20Fracturing%20Report%204.18.11.pdf

36. 36

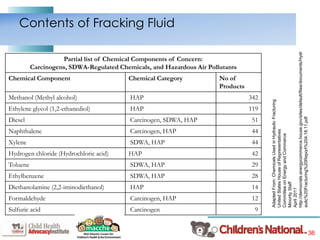

Contents of Fracking Fluid
AdaptedFrom:ChemicalsUsedinHydraulicFracturing
UnitedStatesHouseofRepresentatives
CommitteeonEnergyandCommerce
MinorityStaff
April2011
http://democrats.energycommerce.house.gov/sites/default/files/documents/Hydr
aulic%20Fracturing%20Report%204.18.11.pdf
Partial list of Chemical Components of Concern:
Carcinogens, SDWA-Regulated Chemicals, and Hazardous Air Pollutants
Chemical Component Chemical Category No of
Products
Methanol (Methyl alcohol) HAP 342
Ethylene glycol (1,2-ethanediol) HAP 119
Diesel Carcinogen, SDWA, HAP 51
Naphthalene Carcinogen, HAP 44
Xylene SDWA, HAP 44
Hydrogen chloride (Hydrochloric acid) HAP 42
Toluene SDWA, HAP 29
Ethylbenzene SDWA, HAP 28
Diethanolamine (2,2-iminodiethanol) HAP 14
Formaldehyde Carcinogen, HAP 12
Sulfuric acid Carcinogen 9

37. 37
• Tap water in Dimock, PA documented to
contain methane
• Tap water in Parker County, TX documented
to contain methane
Migration of Pollutants to Groundwater

38. 38

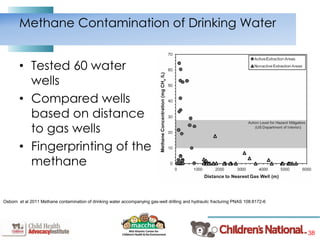

Methane Contamination of Drinking Water
Osborn et al 2011 Methane contamination of drinking water accompanying gas-well drilling and hydraulic fracturing PNAS 108:8172-6
• Tested 60 water
wells
• Compared wells
based on distance
to gas wells
• Fingerprinting of the
methane

39. 39
Potential Source of Ground and Surface Water
Pollution: Containment Pond
Size of
House
Size of
Contain-
ment
Pond
Down Hill
Voyles Residence
Haney Residence
Yeager Impoundment
June 3, 2011
Photo: Robert Donnan

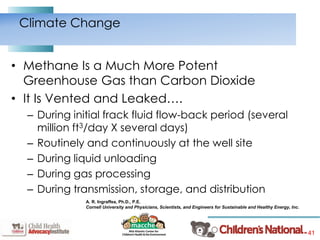

40. 40

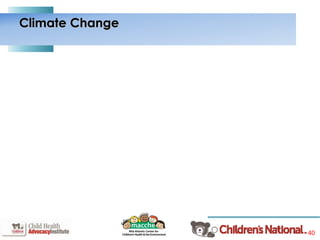

Climate Change

41. 41
• Methane Is a Much More Potent
Greenhouse Gas than Carbon Dioxide
• It Is Vented and Leaked….
– During initial frack fluid flow-back period (several
million ft3/day X several days)
– Routinely and continuously at the well site
– During liquid unloading
– During gas processing
– During transmission, storage, and distribution
Climate Change
A. R. Ingraffea, Ph.D., P.E.
Cornell University and Physicians, Scientists, and Engineers for Sustainable and Healthy Energy, Inc.

42. 42
STRESS

43. 43
• During drilling and fracking – 24/7 industrial
operation with noise and lights
• Noise from trucks and diesel-powered
equipment
• Noise from flaring
• Odors
• Community disruption
Noise & Light Pollution

44. 44

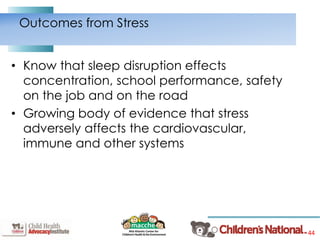

• Know that sleep disruption effects
concentration, school performance, safety
on the job and on the road
• Growing body of evidence that stress
adversely affects the cardiovascular,
immune and other systems
Outcomes from Stress

45. 45
CONCLUSIONS

46. 47
Potential or Documented Exposures
• Diesel exhaust from trucks,
motors and generators
• Chemicals in drilling mud
• Chemicals in the fracturing
fluid
• Chemicals in flow-back
fluid from underground
• Release of gas from well-
head, pipes, condensers,
etc.
Via Air
Via Water

47. 48

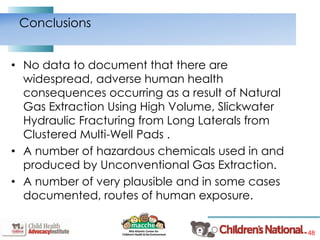

• No data to document that there are
widespread, adverse human health
consequences occurring as a result of Natural
Gas Extraction Using High Volume, Slickwater
Hydraulic Fracturing from Long Laterals from
Clustered Multi-Well Pads .
• A number of hazardous chemicals used in and
produced by Unconventional Gas Extraction.
• A number of very plausible and in some cases
documented, routes of human exposure.
Conclusions

48. 49

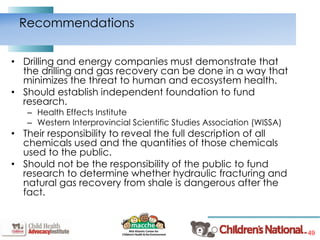

• Drilling and energy companies must demonstrate that
the drilling and gas recovery can be done in a way that
minimizes the threat to human and ecosystem health.
• Should establish independent foundation to fund
research.
– Health Effects Institute
– Western Interprovincial Scientific Studies Association (WISSA)
• Their responsibility to reveal the full description of all
chemicals used and the quantities of those chemicals
used to the public.
• Should not be the responsibility of the public to fund
research to determine whether hydraulic fracturing and
natural gas recovery from shale is dangerous after the
fact.
Recommendations

49. 50

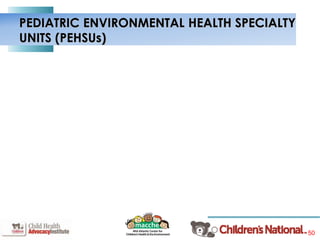

PEDIATRIC ENVIRONMENTAL HEALTH SPECIALTY
UNITS (PEHSUs)

50. 51
• A resource for pediatricians, public health
officials, school personnel, parents and
others to get questions answered about
children’s health and the environment
What is a PEHSU?

51. 52

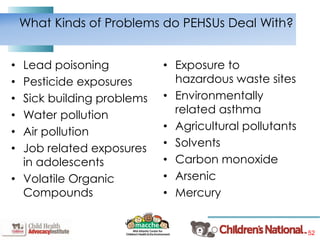

• Lead poisoning
• Pesticide exposures
• Sick building problems
• Water pollution
• Air pollution
• Job related exposures
in adolescents
• Volatile Organic
Compounds
What Kinds of Problems do PEHSUs Deal With?
• Exposure to
hazardous waste sites
• Environmentally
related asthma
• Agricultural pollutants
• Solvents
• Carbon monoxide
• Arsenic
• Mercury

52. 53

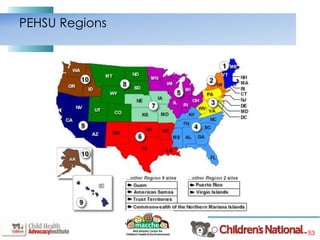

PEHSU Regions

53. 54

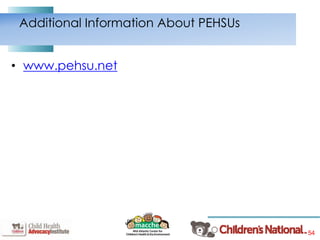

• www.pehsu.net
Additional Information About PEHSUs

54. 55
QUESTIONS?
Mid-Atlantic Center
for Children’s Health & the Environment
202-471-4829
1-866-622-2431
macche@childrensnational.org
