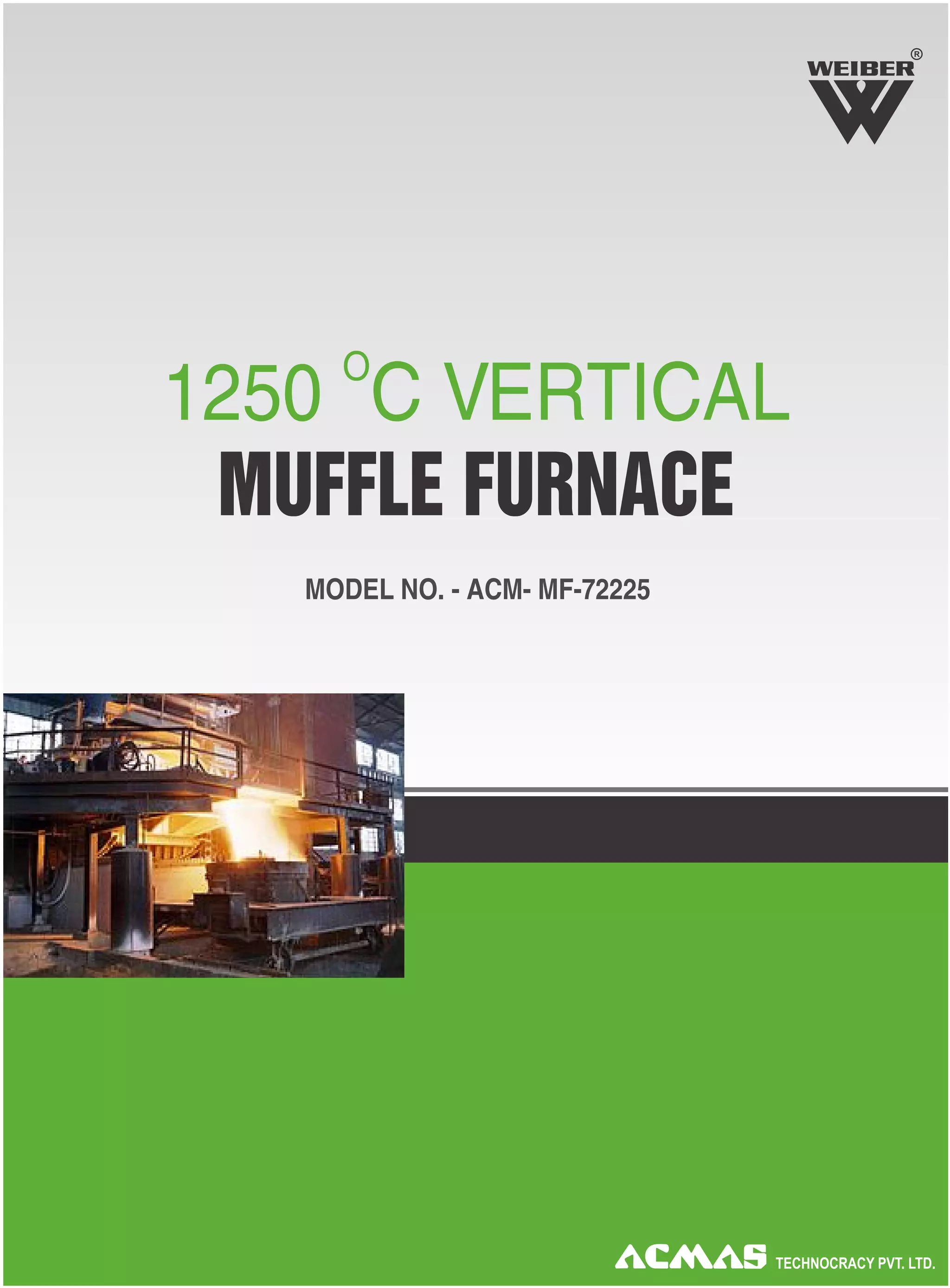

1. O
1250 C VERTICAL
MUFFLE FURNACE
R
MODEL NO. - ACM- MF-72225
TECHNOCRACY PVT. LTD.

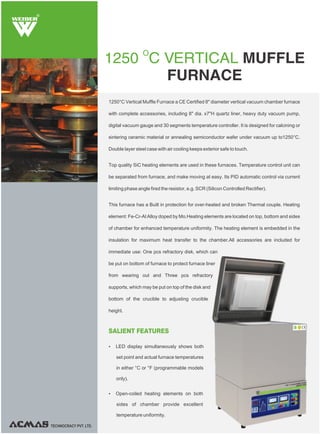

2. 1250°C Vertical Muffle Furnace a CE Certified 8" diameter vertical vacuum chamber furnace
with complete accessories, including 8" dia. x7"H quartz liner, heavy duty vacuum pump,
digital vacuum gauge and 30 segments temperature controller. It is designed for calcining or
sintering ceramic material or annealing semiconductor wafer under vacuum up to1250°C.
Double layer steel case with air cooling keeps exterior safe to touch.
Top quality SiC heating elements are used in these furnaces. Temperature control unit can
be separated from furnace, and make moving at easy. Its PID automatic control via current
limiting phase angle fired the resistor, e.g. SCR (Silicon Controlled Rectifier).
This furnace has a Built in protection for over-heated and broken Thermal couple. Heating
element: Fe-Cr-Al Alloy doped by Mo.Heating elements are located on top, bottom and sides
of chamber for enhanced temperature uniformity. The heating element is embedded in the
insulation for maximum heat transfer to the chamber.All accessories are included for
immediate use: One pcs refractory disk, which can
be put on bottom of furnace to protect furnace liner
from wearing out and Three pcs refractory
supports, which may be put on top of the disk and
bottom of the crucible to adjusting crucible
height.
O
1250 C VERTICAL MUFFLE
FURNACE
R
SALIENT FEATURES
Ÿ LED display simultaneously shows both
set point and actual furnace temperatures
in either °C or °F (programmable models
only).
Ÿ Open-coiled heating elements on both
sides of chamber provide excellent
temperature uniformity.
TECHNOCRACY PVT. LTD.

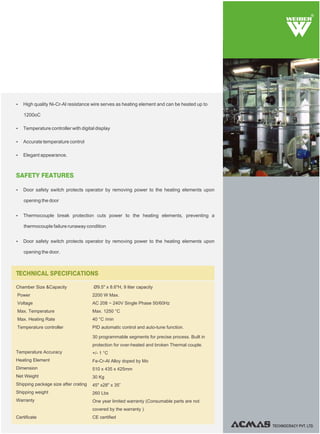

3. SAFETY FEATURES
Ÿ Door safety switch protects operator by removing power to the heating elements upon
opening the door
Ÿ Thermocouple break protection cuts power to the heating elements, preventing a
thermocouple failure runaway condition
Ÿ Door safety switch protects operator by removing power to the heating elements upon
opening the door.
Ÿ High quality Ni-Cr-Al resistance wire serves as heating element and can be heated up to
1200oC
Ÿ Temperature controller with digital display
Ÿ Accurate temperature control
Ÿ Elegant appearance.
TECHNOCRACY PVT. LTD.
Chamber Size &Capacity
Power
Voltage
Max. Temperature
Max. Heating Rate
Temperature controller
Temperature Accuracy
Heating Element
Dimension
Net Weight
Shipping package size after crating
Shipping weight
Warranty
Certificate
Ø9.5" x 8.6"H, 9 liter capacity
2200 W Max.
AC 208 ~ 240V Single Phase 50/60Hz
Max. 1250 °C
40 °C /min
PID automatic control and auto-tune function.
30 programmable segments for precise process. Built in
protection for over-heated and broken Thermal couple.
+/- 1 °C
Fe-Cr-Al Alloy doped by Mo
510 x 435 x 425mm
30 Kg
45" x28" x 35”
260 Lbs
One year limited warranty (Consumable parts are not
covered by the warranty )
CE certified
TECHNICAL SPECIFICATIONS
R

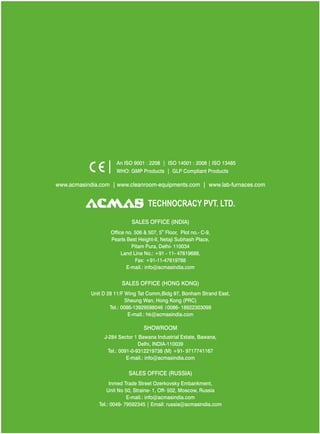

4. SALES OFFICE (HONG KONG)
