This document summarizes a high temperature muffle furnace. It can reach temperatures up to 1500°C and features precise temperature control and uniform heating. The furnace has a double-layer steel casing, ceramic refractory lining, and silicon carbide heating elements. It is an affordable and effective option for laboratories, hospitals, and research centers to treat samples at high temperatures.

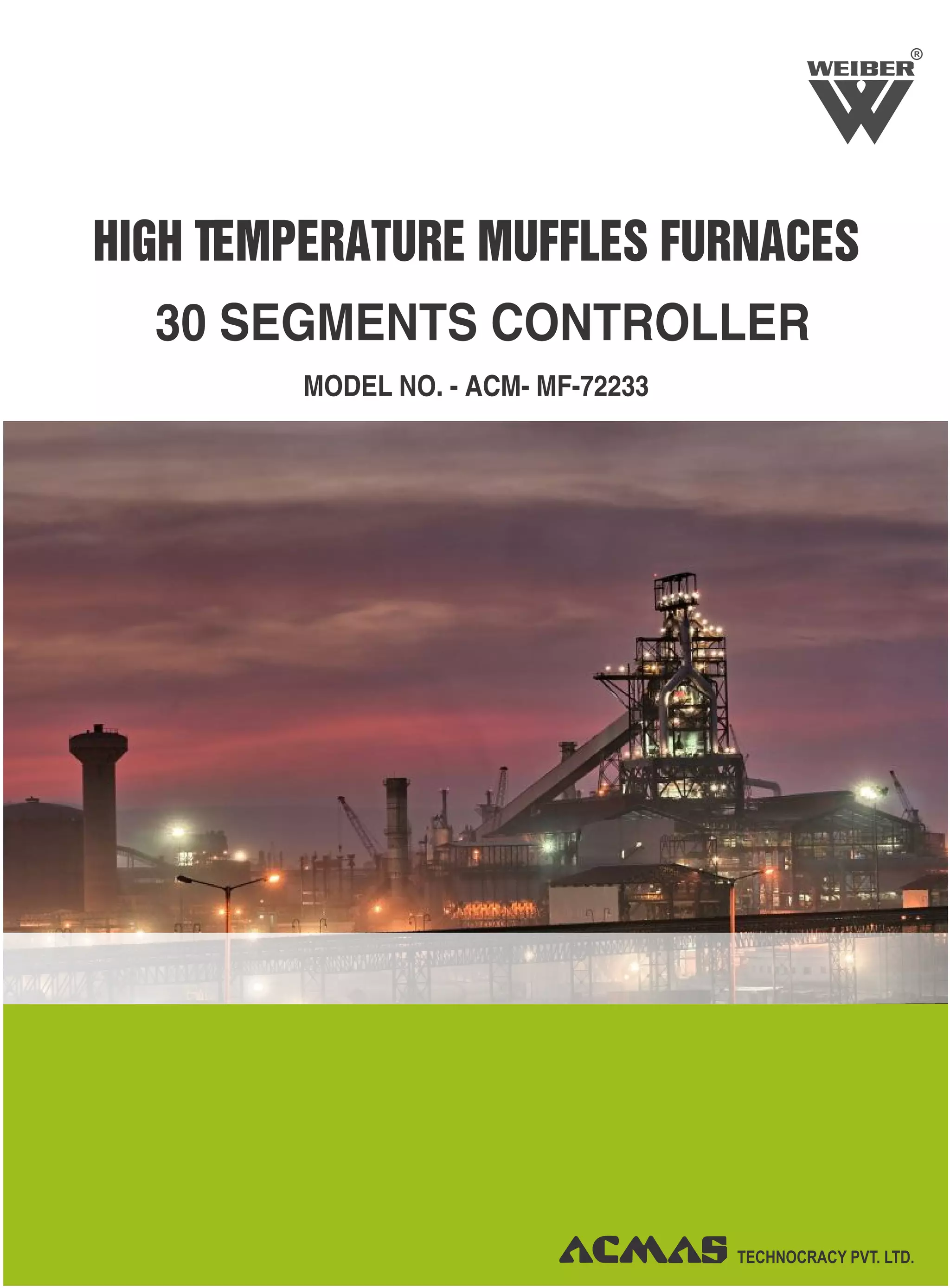

1. MODEL NO. - ACM- MF-72233
HIGH TEMPERATURE MUFFLES FURNACES
30 SEGMENTS CONTROLLER
R

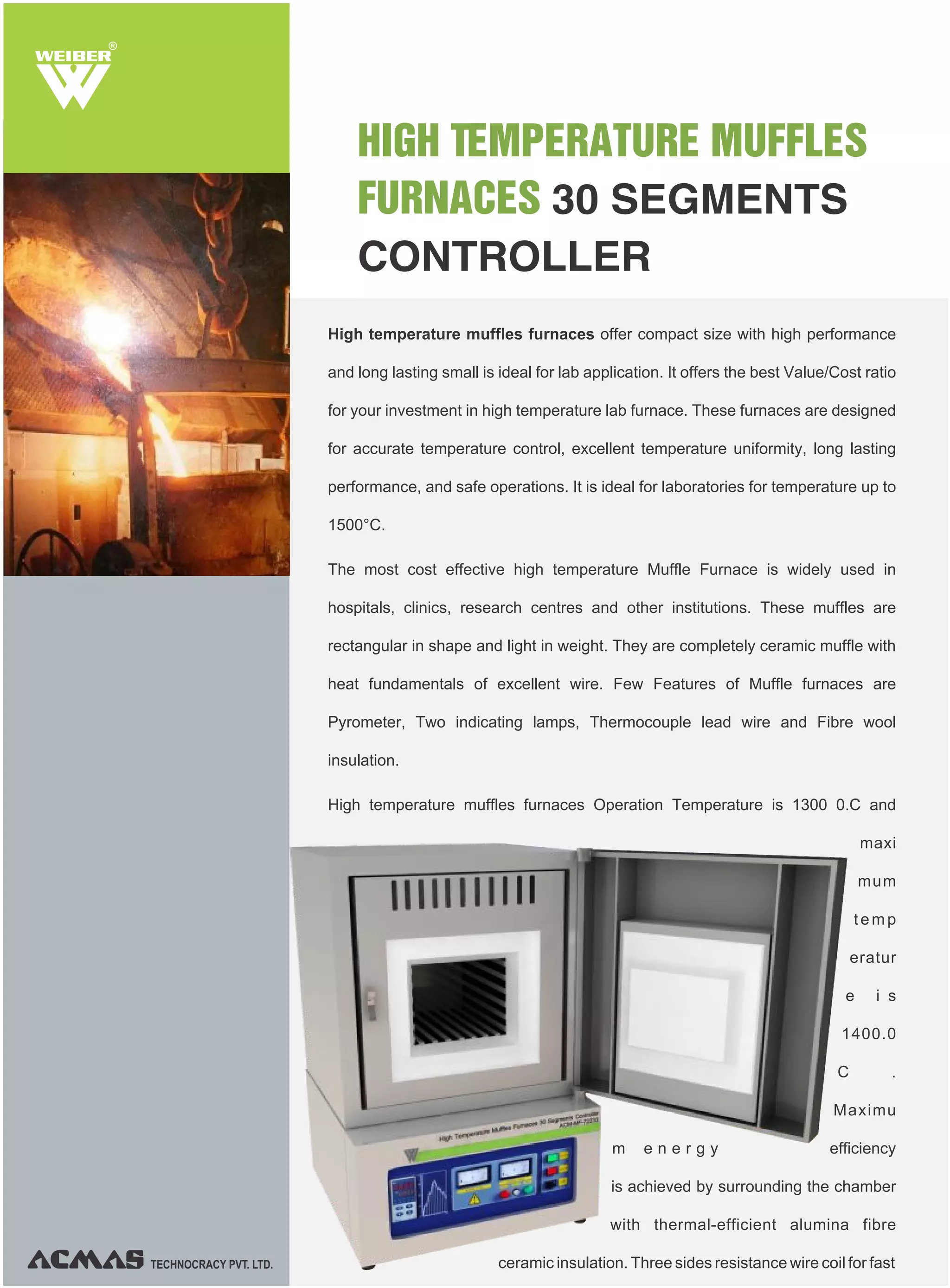

2. High temperature muffles furnaces offer compact size with high performance
and long lasting small is ideal for lab application. It offers the best Value/Cost ratio
for your investment in high temperature lab furnace. These furnaces are designed
for accurate temperature control, excellent temperature uniformity, long lasting
performance, and safe operations. It is ideal for laboratories for temperature up to
1500°C.
The most cost effective high temperature Muffle Furnace is widely used in
hospitals, clinics, research centres and other institutions. These muffles are
rectangular in shape and light in weight. They are completely ceramic muffle with
heat fundamentals of excellent wire. Few Features of Muffle furnaces are
Pyrometer, Two indicating lamps, Thermocouple lead wire and Fibre wool
insulation.
High temperature muffles furnaces Operation Temperature is 1300 0.C and
maxi
mum
temp
eratur
e i s
1400.0
C .
Maximu
m e n e r g y efficiency
is achieved by surrounding the chamber
with thermal-efficient alumina fibre
ceramic insulation. Three sides resistance wire coil for fast
HIGH TEMPERATURE MUFFLES
FURNACES 30 SEGMENTS
CONTROLLER
R
TECHNOCRACY PVT. LTD.

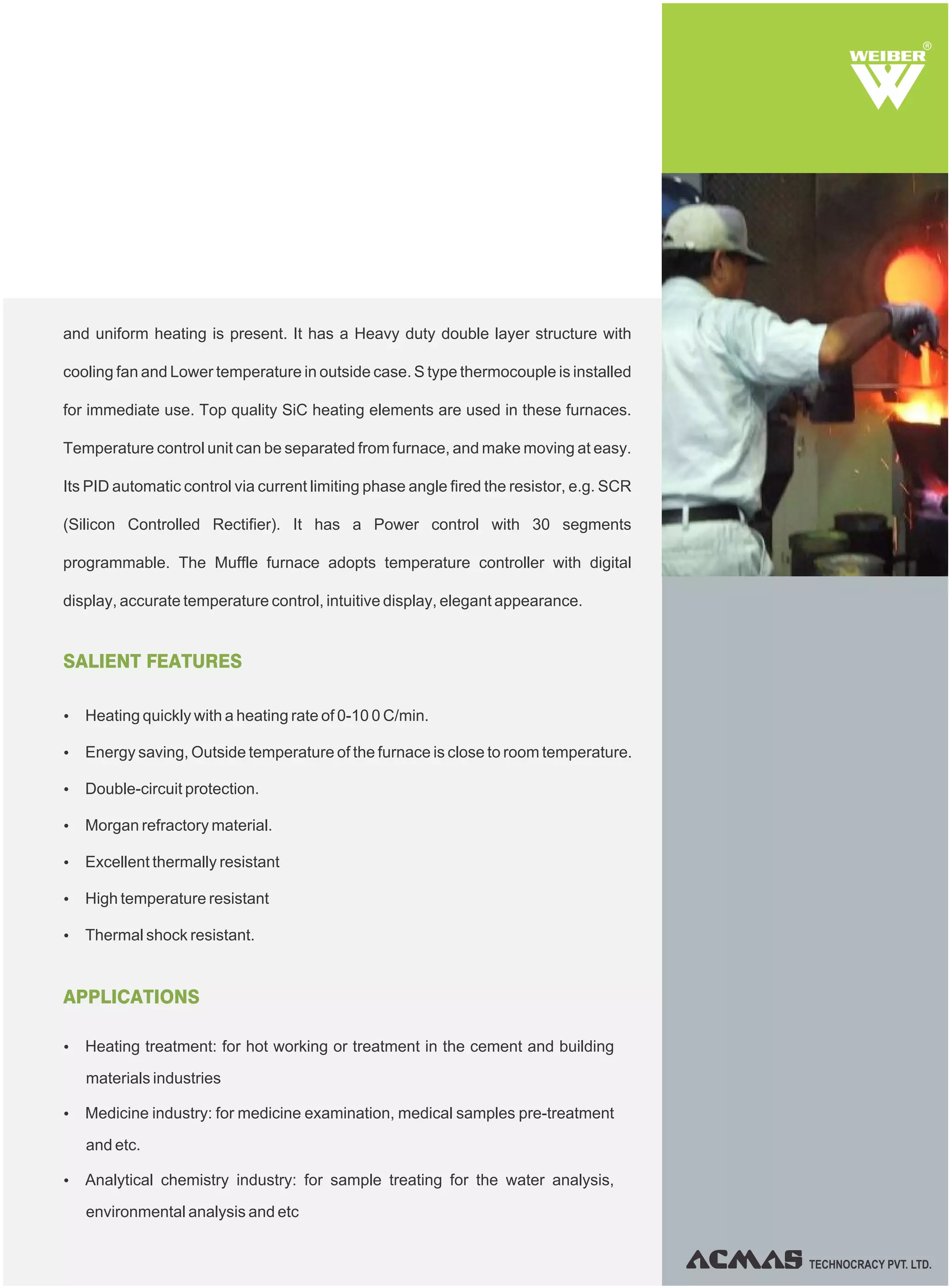

3. TECHNOCRACY PVT. LTD.
R
SALIENT FEATURES
Ÿ Heating quickly with a heating rate of 0-10 0 C/min.
Ÿ Energy saving, Outside temperature of the furnace is close to room temperature.
Ÿ Double-circuit protection.
Ÿ Morgan refractory material.
Ÿ Excellent thermally resistant
Ÿ High temperature resistant
Ÿ Thermal shock resistant.
APPLICATIONS
Ÿ Heating treatment: for hot working or treatment in the cement and building
materials industries
Ÿ Medicine industry: for medicine examination, medical samples pre-treatment
and etc.
Ÿ Analytical chemistry industry: for sample treating for the water analysis,
environmental analysis and etc
and uniform heating is present. It has a Heavy duty double layer structure with
cooling fan and Lower temperature in outside case. S type thermocouple is installed
for immediate use. Top quality SiC heating elements are used in these furnaces.
Temperature control unit can be separated from furnace, and make moving at easy.
Its PID automatic control via current limiting phase angle fired the resistor, e.g. SCR
(Silicon Controlled Rectifier). It has a Power control with 30 segments
programmable. The Muffle furnace adopts temperature controller with digital
display, accurate temperature control, intuitive display, elegant appearance.

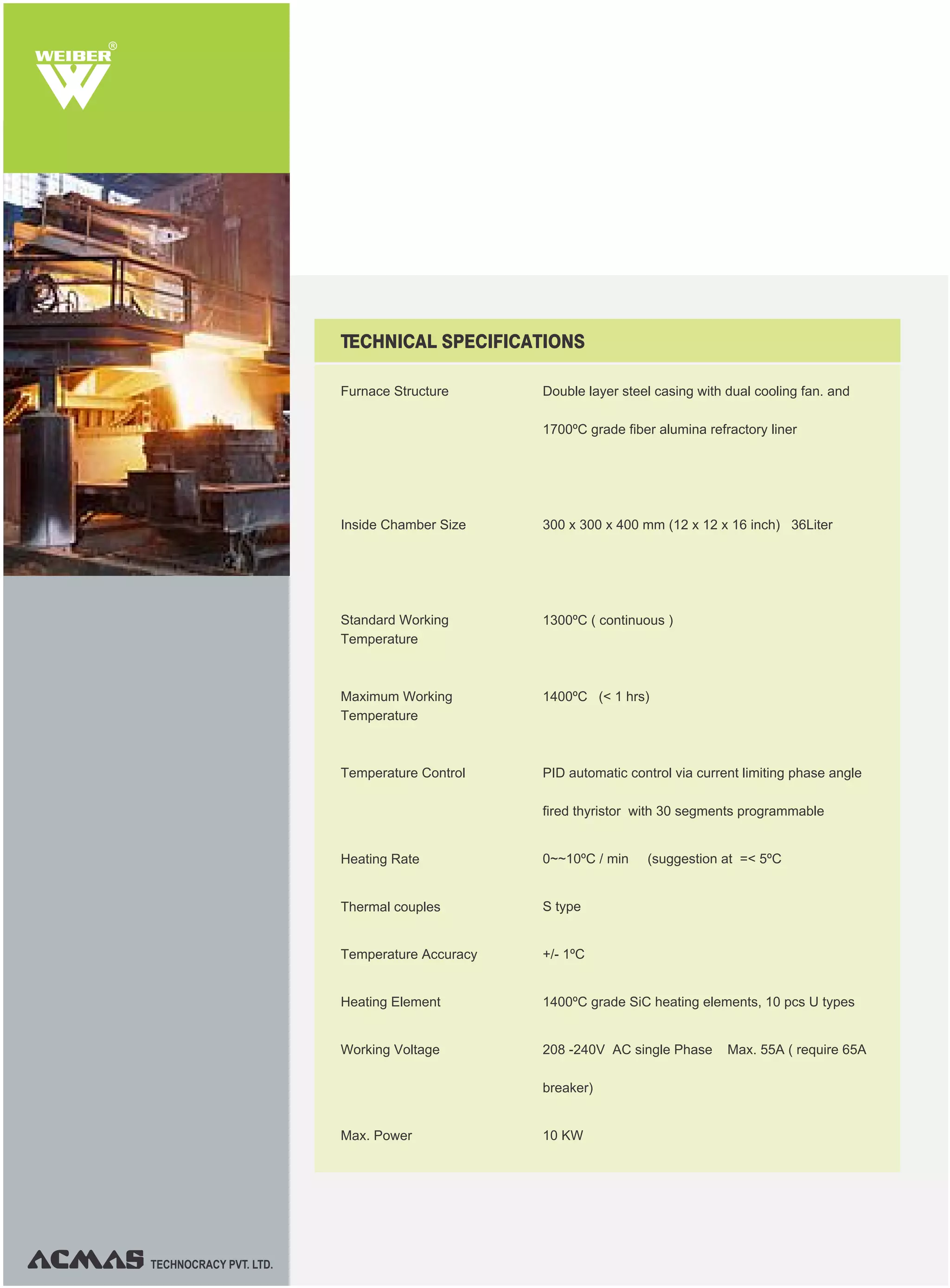

4. R
TECHNOCRACY PVT. LTD.
Furnace Structure Double layer steel casing with dual cooling fan. and
1700ºC grade fiber alumina refractory liner
300 x 300 x 400 mm (12 x 12 x 16 inch) 36Liter
1300ºC ( continuous )
1400ºC (< 1 hrs)
PID automatic control via current limiting phase angle
fired thyristor with 30 segments programmable
0~~10ºC / min (suggestion at =< 5ºC
S type
+/- 1ºC
1400ºC grade SiC heating elements, 10 pcs U types
208 -240V AC single Phase Max. 55A ( require 65A
breaker)
10 KW
TECHNICAL SPECIFICATIONS
Inside Chamber Size
Standard Working
Temperature
Maximum Working
Temperature
Temperature Control
Heating Rate
Thermal couples
Temperature Accuracy
Heating Element
Working Voltage
Max. Power

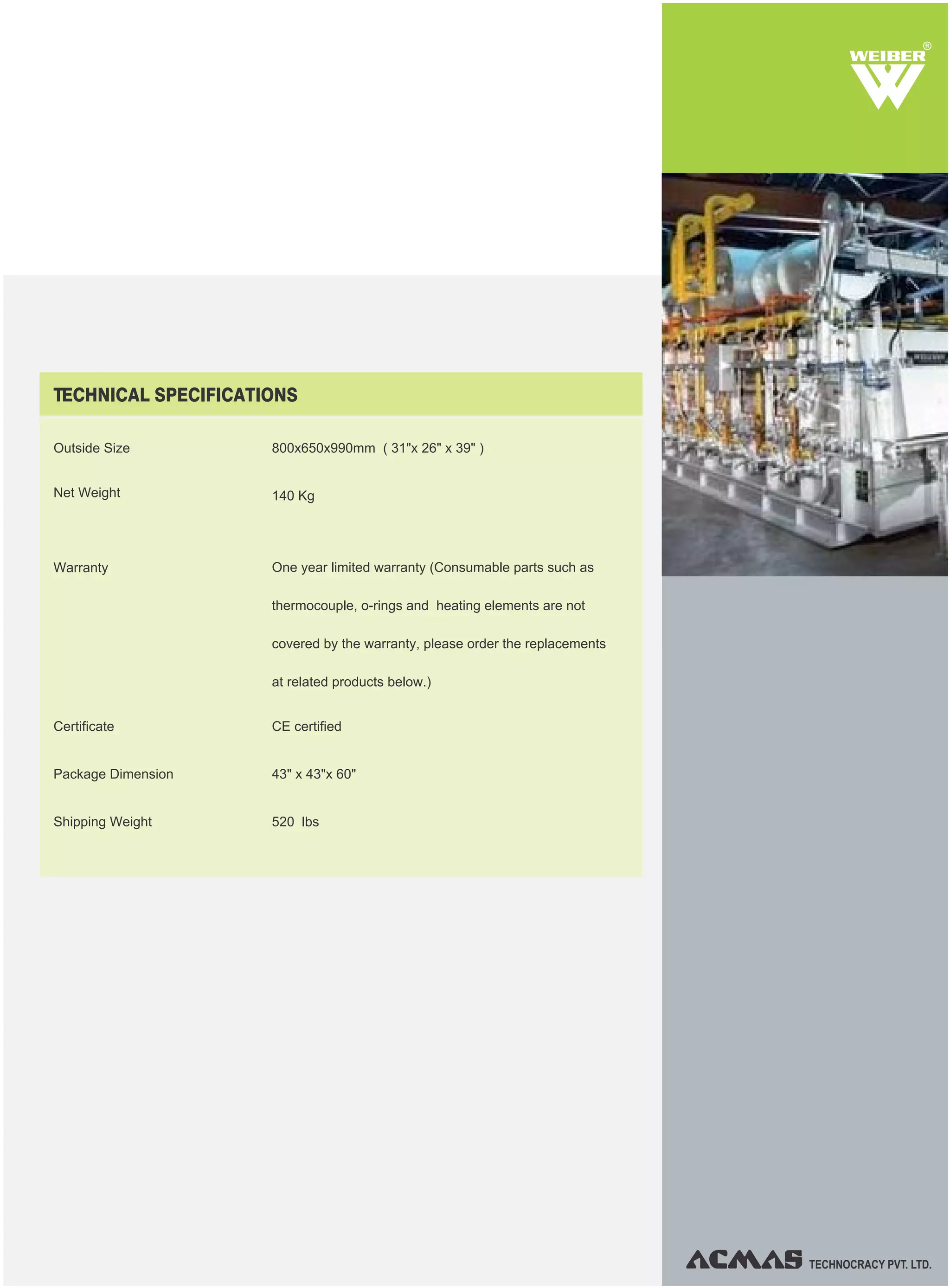

5. TECHNOCRACY PVT. LTD.
R
TECHNICAL SPECIFICATIONS
Outside Size
Net Weight
Warranty
Shipping Weight
Certificate
Package Dimension
800x650x990mm ( 31"x 26" x 39" )
140 Kg
One year limited warranty (Consumable parts such as
thermocouple, o-rings and heating elements are not
covered by the warranty, please order the replacements
at related products below.)
CE certified
43" x 43"x 60"
520 lbs

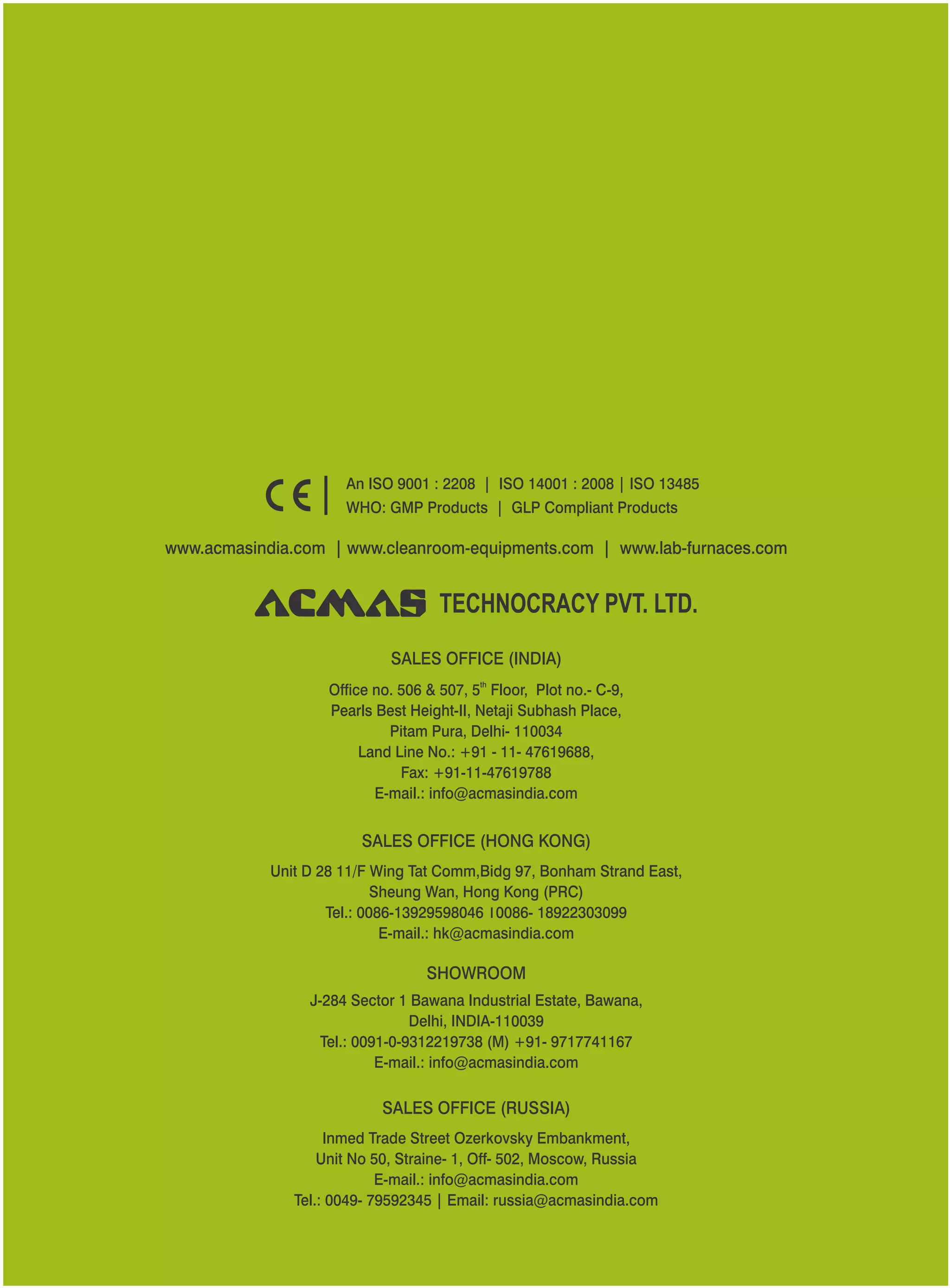

6. SALES OFFICE (HONG KONG)
