1. OPERATING
SYSTEM
MOK WING HANG
12205958
10/23/2012

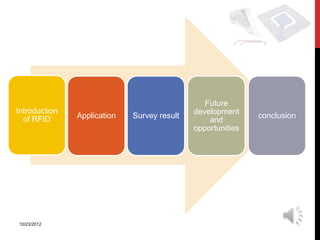

2. Future
Introduction development
of RFID Application Survey result conclusion
and
opportunities
10/23/2012

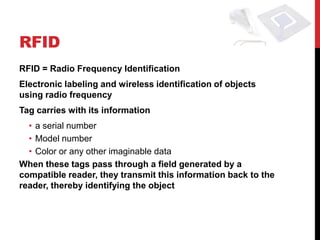

3. RFID
RFID = Radio Frequency Identification
Electronic labeling and wireless identification of objects
using radio frequency
Tag carries with its information
• a serial number
• Model number
• Color or any other imaginable data
When these tags pass through a field generated by a
compatible reader, they transmit this information back to the
reader, thereby identifying the object

4. RFID COMPONENTS
A basic RFID system consists of these components:
• A programmable RFID tag/inlay for storing item data;
• Consisting of an RFID chip for data storage
• an antenna to facilitate communication with the RFID chip
A reader/antenna system to interrogate the RFID inlay
Application software and a host computer system

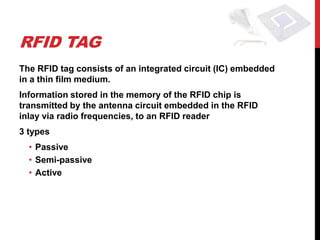

5. RFID TAG
The RFID tag consists of an integrated circuit (IC) embedded
in a thin film medium.
Information stored in the memory of the RFID chip is
transmitted by the antenna circuit embedded in the RFID
inlay via radio frequencies, to an RFID reader
3 types
• Passive
• Semi-passive
• Active

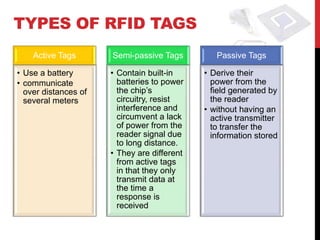

6. TYPES OF RFID TAGS
Active Tags Semi-passive Tags Passive Tags
• Use a battery • Contain built-in • Derive their
• communicate batteries to power power from the
over distances of the chip’s field generated by
several meters circuitry, resist the reader
interference and • without having an
circumvent a lack active transmitter
of power from the to transfer the
reader signal due information stored
to long distance.
• They are different
from active tags
in that they only
transmit data at
the time a
response is
received

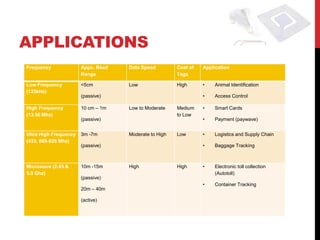

7. APPLICATIONS
Frequency Appx. Read Data Speed Cost of Application
Range Tags
Low Frequency <5cm Low High • Animal Identification
(125kHz)
(passive) • Access Control
High Frequency 10 cm – 1m Low to Moderate Medium • Smart Cards
(13.56 Mhz) to Low
(passive) • Payment (paywave)
Ultra High Frequency 3m -7m Moderate to High Low • Logistics and Supply Chain
(433, 868-928 Mhz)
(passive) • Baggage Tracking
Microwave (2.45 & 10m -15m High High • Electronic toll collection
5.8 Ghz) (Autotoll)
(passive)
• Container Tracking
20m – 40m
(active)

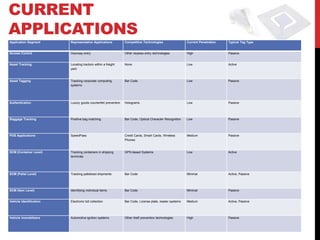

8. CURRENT
APPLICATIONS
Application Segment Representative Applications Competitive Technologies Current Penetration Typical Tag Type
Access Control Doorway entry Other keyless entry technologies High Passive
Asset Tracking Locating tractors within a freight None Low Active
yard
Asset Tagging Tracking corporate computing Bar Code Low Passive
systems
Authentication Luxury goods counterfeit prevention Holograms Low Passive
Baggage Tracking Positive bag matching Bar Code, Optical Character Recognition Low Passive
POS Applications SpeedPass Credit Cards, Smart Cards, Wireless Medium Passive
Phones
SCM (Container Level) Tracking containers in shipping GPS-based Systems Low Active
terminals
SCM (Pallet Level) Tracking palletized shipments Bar Code Minimal Active, Passive
SCM (Item Level) Identifying individual items Bar Code Minimal Passive
Vehicle Identification Electronic toll collection Bar Code, License plate, reader systems Medium Active, Passive
Vehicle Immobilizers Automotive ignition systems Other theft prevention technologies High Passive

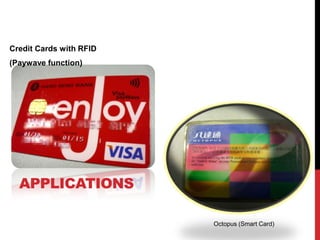

9. Credit Cards with RFID
(Paywave function)
APPLICATIONS
Octopus (Smart Card)

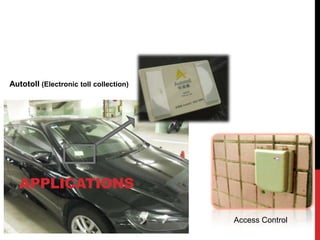

10. Autotoll (Electronic toll collection)
APPLICATIONS
Access Control

11. ONLINE SURVEY
Target: SME
Information: Opinion on RFID and its applications
Site:
• http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

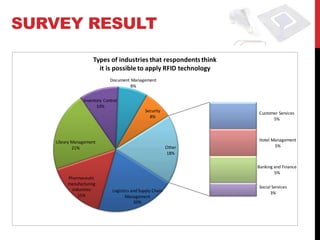

12. SURVEY RESULT
Types of industries that respondents think
it is possible to apply RFID technology
Document Management
8%
Inventory Control
10%
Security Customer Services
8% 5%
Library Management Hotel Management
21% Other 5%
18%
Banking and Finance
5%
Pharmaceutic
manufacturing
Social Services
industries Logistics and Supply Chain 3%
15% Management
20%

13. FURTHER
DEVELOPMENT
In medical uses and library management

14. VIDEO

15. CONCLUSION
Positive
• RFID is a contactless reading technology and can read through
other materials
• Hold more data than barcode does
• RFID tags data can be changed or added
• More effective, bring lots of convenience to us
Negative
• Cost is relatively remain high (compare to barcode)
• RFID signals may have problems with some materials
• RFID standards are still being developed
