This document discusses RFID technology and its applications. It defines RFID and its components, including tags, readers, and antennas. It describes different types of tags and their characteristics. Current and potential applications are outlined across various industries like logistics, retail, vehicle identification, and medical. A survey of SMEs showed most saw potential for RFID in document management, inventory control, and logistics. Further development opportunities in medical and libraries were identified. In conclusion, RFID provides benefits over barcodes but costs remain relatively high and standards are still being developed.

1. RFLD APPLICATION
Name: Sze Ka Wai
No: 12208388

2. Future
Introduction development
Application Survey result Conclusion
of RFID and
opportunities

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of objects using radio frequency
 Tag carries with its information
• a serial number
• Model number
• Color or any other imaginable data
 When these tags pass through a field generated by a compatible reader, they
transmit this information back to the reader, thereby identifying the object

4. RFID COMPONENTS
 A basic RFID system consists of these components:
• A programmable RFID tag/inlay for storing item data;
• Consisting of an RFID chip for data storage
• an antenna to facilitate communication with the RFID chip
 A reader/antenna system to interrogate the RFID inlay
 Application software and a host computer system

5. RFID TAG
 The RFID tag consists of an integrated circuit (IC) embedded in a
thin film medium.
 Information stored in the memory of the RFID chip is transmitted by
the antenna circuit embedded in the RFID inlay via radio frequencies, to
an RFID reader
 3 types
• Passive
• Semi-passive
• Active

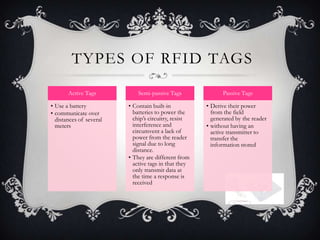

6. TYPES OF RFID TAGS
Active Tags Semi-passive Tags Passive Tags
• Use a battery • Contain built-in • Derive their power
• communicate over batteries to power the from the field
distances of several chip’s circuitry, resist generated by the reader
meters interference and • without having an
circumvent a lack of active transmitter to
power from the reader transfer the
signal due to long information stored
distance.
• They are different from
active tags in that they
only transmit data at
the time a response is
received

7. APPLICATIONS
Frequency Appx. Read Range Data Speed Cost of Application
Tags
Low Frequency <5cm Low High • Animal Identification
(125kHz)
(passive) • Access Control
High Frequency 10 cm – 1m Low to Moderate Medium • Smart Cards
(13.56 Mhz) to Low
(passive) • Payment (paywave)
Ultra High Frequency 3m -7m Moderate to High Low • Logistics and Supply Chain
(433, 868-928 Mhz)
(passive) • Baggage Tracking
Microwave (2.45 & 5.8 10m -15m High High • Electronic toll collection
Ghz) (Autotoll)
(passive)
• Container Tracking
20m – 40m
(active)

8. CURRENT APPLICATIONS
Application Segment Representative Competitive Current Typical Tag Type
Applications Technologies Penetration
Access Control Doorway entry Other keyless entry High Passive
technologies
Asset Tracking Locating tractors None Low Active
within a freight yard
Asset Tagging Tracking corporate Bar Code Low Passive
computing systems
Authentication Luxury goods Holograms Low Passive
counterfeit prevention
Baggage Tracking Positive bag matching Bar Code, Optical Low Passive
Character Recognition
POS Applications SpeedPass Credit Cards, Smart Medium Passive
Cards, Wireless Phones
SCM (Container Level) Tracking containers in GPS-based Systems Low Active
shipping terminals
SCM (Pallet Level) Tracking palletized Bar Code Minimal Active, Passive
shipments
SCM (Item Level) Identifying individual Bar Code Minimal Passive
items
Vehicle Identification Electronic toll Bar Code, License plate, Medium Active, Passive
collection reader systems
Vehicle Immobilizers Automotive ignition Other theft prevention High Passive
systems technologies

9. Credit Cards with RFID
(Paywave function)
APPLICATIONS
Octopus (Smart Card)

10. APPLICATIONS
Autotoll (Electronic toll collection)
Access Control

11. ONLINE SURVEY
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
• http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

12. SURVEY RESULT
Types of industries that respondents think
it is possible to apply RFID technology
Document Management
8%
Inventory Control
10%
Security
Customer Services
8%
5%
Library Management Hotel Management
21% Other 5%
18%
Banking and Finance
5%
Pharmaceutic
manufacturing
Social Services
industries Logistics and Supply Chain 3%
15% Management
20%

13. FURTHER DEVELOPMENT
 In medical uses and library management

14. VIDEO

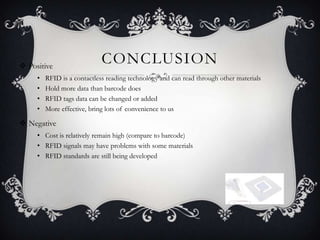

15.  Positive
CONCLUSION
• RFID is a contactless reading technology and can read through other materials
• Hold more data than barcode does
• RFID tags data can be changed or added
• More effective, bring lots of convenience to us
 Negative
• Cost is relatively remain high (compare to barcode)
• RFID signals may have problems with some materials
• RFID standards are still being developed
