1. RFID
CHAN YIK MAN
12206571
10/30/2012

2. Content
Future
Introduction development
Applications Survey Result Conclusion
of RFID and
opportunities
10/30/2012

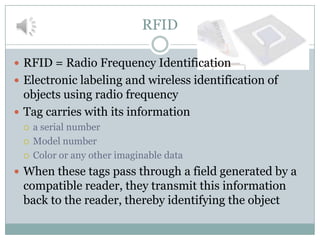

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of
objects using radio frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field generated by a
compatible reader, they transmit this information
back to the reader, thereby identifying the object

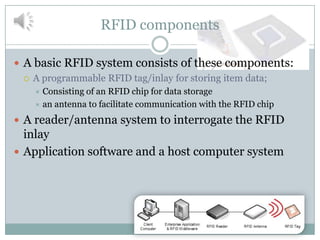

4. RFID components
 A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
 A reader/antenna system to interrogate the RFID
inlay
 Application software and a host computer system

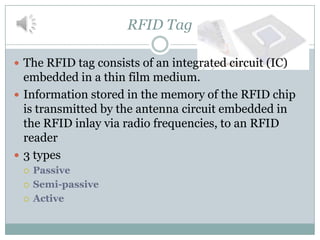

5. RFID Tag
 The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
 Information stored in the memory of the RFID chip
is transmitted by the antenna circuit embedded in
the RFID inlay via radio frequencies, to an RFID
reader
 3 types
 Passive
 Semi-passive
 Active

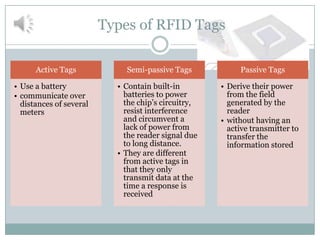

6. Types of RFID Tags
Active Tags Semi-passive Tags Passive Tags
• Use a battery • Contain built-in • Derive their power
• communicate over batteries to power from the field
distances of several the chip’s circuitry, generated by the
meters resist interference reader
and circumvent a • without having an
lack of power from active transmitter to
the reader signal due transfer the
to long distance. information stored
• They are different
from active tags in
that they only
transmit data at the
time a response is
received

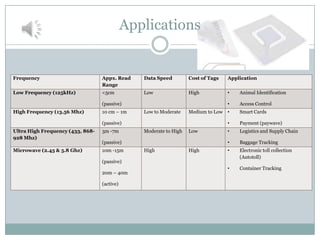

7. Applications
Frequency Appx. Read Data Speed Cost of Tags Application
Range
Low Frequency (125kHz) <5cm Low High • Animal Identification
(passive) • Access Control
High Frequency (13.56 Mhz) 10 cm – 1m Low to Moderate Medium to Low • Smart Cards
(passive) • Payment (paywave)
Ultra High Frequency (433, 868- 3m -7m Moderate to High Low • Logistics and Supply Chain
928 Mhz)
(passive) • Baggage Tracking
Microwave (2.45 & 5.8 Ghz) 10m -15m High High • Electronic toll collection
(Autotoll)
(passive)
• Container Tracking
20m – 40m
(active)

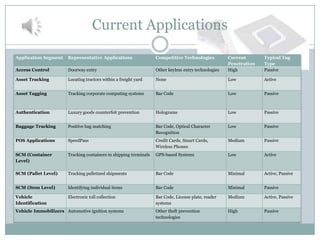

8. Current Applications
Application Segment Representative Applications Competitive Technologies Current Typical Tag
Penetration Type
Access Control Doorway entry Other keyless entry technologies High Passive
Asset Tracking Locating tractors within a freight yard None Low Active
Asset Tagging Tracking corporate computing systems Bar Code Low Passive
Authentication Luxury goods counterfeit prevention Holograms Low Passive
Baggage Tracking Positive bag matching Bar Code, Optical Character Low Passive
Recognition
POS Applications SpeedPass Credit Cards, Smart Cards, Medium Passive
Wireless Phones
SCM (Container Tracking containers in shipping terminals GPS-based Systems Low Active
Level)
SCM (Pallet Level) Tracking palletized shipments Bar Code Minimal Active, Passive
SCM (Item Level) Identifying individual items Bar Code Minimal Passive
Vehicle Electronic toll collection Bar Code, License plate, reader Medium Active, Passive
Identification systems
Vehicle Immobilizers Automotive ignition systems Other theft prevention High Passive
technologies

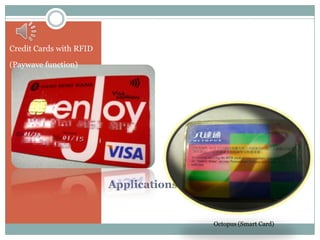

9. Credit Cards with RFID
(Paywave function)
Applications
Octopus (Smart Card)

10. Autotoll (Electronic toll collection)
Applications
Access Control

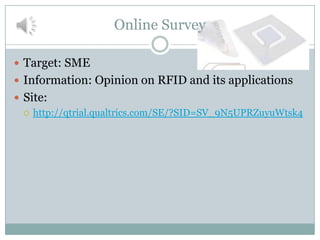

11. Online Survey
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

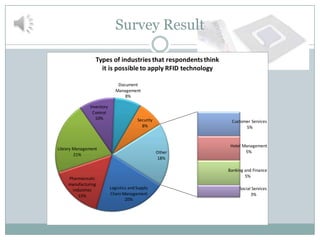

12. Survey Result
Types of industries that respondents think
it is possible to apply RFID technology
Document
Management
8%
Inventory
Control
10% Security Customer Services
8% 5%
Hotel Management
Library Management
Other 5%
21%
18%
Banking and Finance
Pharmaceutic 5%
manufacturing
industries Logistics and Supply Social Services
15% Chain Management 3%
20%

13. Further Development
 In medical uses and library management

14. Video

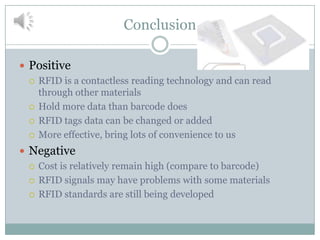

15. Conclusion
 Positive
 RFID is a contactless reading technology and can read
through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
