Project Name: xxx RA Ref No.: xxx RA compilation Date: Review date: Date: Compiled by: Reviewed by: Approved by: Overall Task Details Sheet piling operations using mobile rig within site boundary. To be read, if required, which RA010 – Excavations. Classed as Temporary Works Relevant Applicable MAS: • 01412 – Lifting Operations; • 00941 – Lifting equipment Additional Training required: Noise monitoring; Temporary Works Coordinator NOC’s Required for task: Underground utility provider RISK SCORE CALCULATOR Use the Risk Score Calculator to Determine the Level of Risk of each Hazard What would be the CONSEQUENCE of an occurrence be? What is the LIKELIHOOD of an occurrence? Hierarchy of Controls Frequent/Almost certain (5) Continuous or will happen frequently Often (4) 6 to 12 times a year Likely (3) 1 to 5 times a year Possible (2) Once every 5 years Rarely (1) Less than once every 5 years Can the hazard be Eliminated or removed from the work place? Catastrophic (5) Multiple Fatalities High 25 High 20 High 15 Medium 10 Medium 5 Can the product or process be substituted for a less hazardous alternative? Serious (4) Class 1 single fatality High 20 High 16 High 12 Medium 8 Low 4 Can the hazard be engineered away with guards or barriers? Moderate (3) Class2 (AWI or LTI) or Class 1 Permanently disabling effects High 15 High 12 Medium 9 Medium 6 Low 3 Can Administration Controls be adopted I.e. procedures, job rotation etc. Minor (2) Medical attention needed, no work restrictions. MTI Medium10 Medium 8 Medium 6 Low 4 Low 2 Can Personal Protective Equipment & Clothing be worn to safe guard against hazards? Insignificant (1) FAI Medium10 Medium 4 Low 3 Low 2 Low 1 No Specific Task Step (In sequence of works) Hazard Details Consequence/Risk Initial Risk Rating Control Measures Residual Risks Additional Control Measures RR P S RR 1 Sheet piling Rig checks on arrival to site PRIOR TO USE • Use of Sheet piling Rig • Unauthorized operation of the mobile rig resulting in incident; • Failure due to use of un-certificated rig; 3 4 12 HIGH i. All Sheet piling rigs to be Third Party Certificated by a DM approved inspector, documentation available on arrival to site; ii. Operators to have in-date Third Party certificate by approved body, available for review on arrival to site; iii. Rig load indicator to be installed and functioning correctly; iv. Visual inspection of rig undertaken by competent person; Documentation unavailable for review Rig quarantined until evidence provided Low 2 Access of rig and sheet pile delivery vehicles to work areas • Plant and workers in same working area; • Collision with plant or vehicles and live traffic; • Workers struck by plant, very high risk of fatality; • Uncontrolled rig movements; i. Worker pedestrian routes to be designed and implemented with clear signage to provide segregation; ii. Instruction to workers at induction on access routes around the project; iii. Flagmen to be used t

1. HEALTH SAFETY AND ENVIRONMENT Author: Approved:

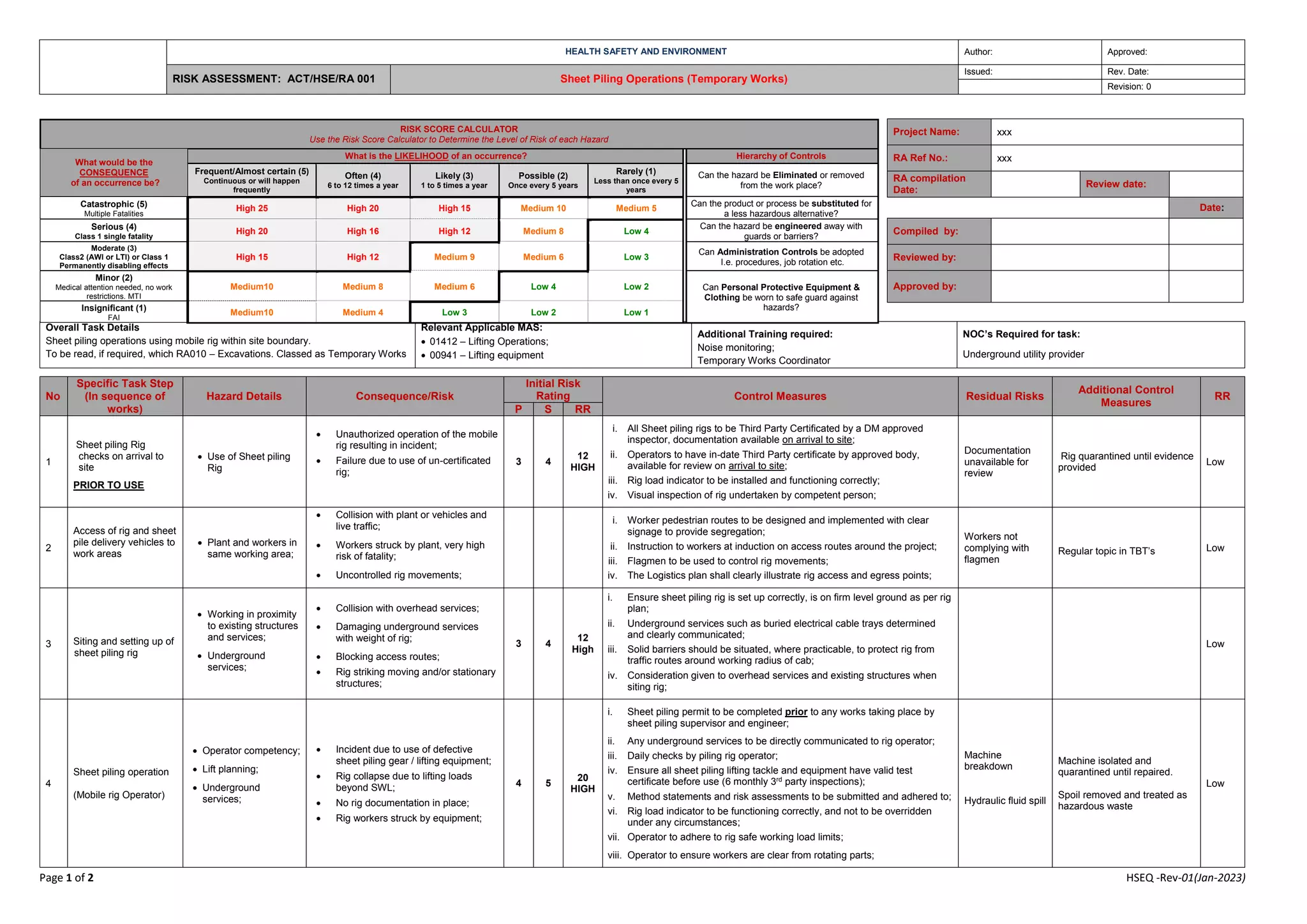

RISK ASSESSMENT: ACT/HSE/RA 001 Sheet Piling Operations (Temporary Works)
Issued: Rev. Date:
Revision: 0
Page 1 of 2 HSEQ -Rev-01(Jan-2023)
No
Specific Task Step
(In sequence of
works)
Hazard Details Consequence/Risk
Initial Risk
Rating Control Measures Residual Risks
Additional Control
Measures
RR
P S RR
1
Sheet piling Rig
checks on arrival to
site
PRIOR TO USE
 Use of Sheet piling
Rig
 Unauthorized operation of the mobile
rig resulting in incident;
 Failure due to use of un-certificated
rig;
3 4
12
HIGH
i. All Sheet piling rigs to be Third Party Certificated by a DM approved
inspector, documentation available on arrival to site;
ii. Operators to have in-date Third Party certificate by approved body,
available for review on arrival to site;
iii. Rig load indicator to be installed and functioning correctly;
iv. Visual inspection of rig undertaken by competent person;
Documentation
unavailable for
review
Rig quarantined until evidence
provided
Low
2
Access of rig and sheet
pile delivery vehicles to
work areas
 Plant and workers in
same working area;
 Collision with plant or vehicles and
live traffic;
 Workers struck by plant, very high
risk of fatality;
 Uncontrolled rig movements;
i. Worker pedestrian routes to be designed and implemented with clear
signage to provide segregation;
ii. Instruction to workers at induction on access routes around the project;
iii. Flagmen to be used to control rig movements;
iv. The Logistics plan shall clearly illustrate rig access and egress points;
Workers not
complying with
flagmen
Regular topic in TBT’s Low
3 Siting and setting up of
sheet piling rig
 Working in proximity
to existing structures
and services;
 Underground
services;
 Collision with overhead services;
 Damaging underground services
with weight of rig;
 Blocking access routes;
 Rig striking moving and/or stationary
structures;
3 4
12
High
i. Ensure sheet piling rig is set up correctly, is on firm level ground as per rig
plan;
ii. Underground services such as buried electrical cable trays determined
and clearly communicated;
iii. Solid barriers should be situated, where practicable, to protect rig from
traffic routes around working radius of cab;
iv. Consideration given to overhead services and existing structures when
siting rig;
Low
4
Sheet piling operation
(Mobile rig Operator)
 Operator competency;
 Lift planning;
 Underground
services;
 Incident due to use of defective
sheet piling gear / lifting equipment;
 Rig collapse due to lifting loads
beyond SWL;
 No rig documentation in place;
 Rig workers struck by equipment;
4 5
20
HIGH
i. Sheet piling permit to be completed prior to any works taking place by
sheet piling supervisor and engineer;
ii. Any underground services to be directly communicated to rig operator;
iii. Daily checks by piling rig operator;
iv. Ensure all sheet piling lifting tackle and equipment have valid test
certificate before use (6 monthly 3rd
party inspections);
v. Method statements and risk assessments to be submitted and adhered to;
vi. Rig load indicator to be functioning correctly, and not to be overridden
under any circumstances;
vii. Operator to adhere to rig safe working load limits;
viii. Operator to ensure workers are clear from rotating parts;
Machine
breakdown
Hydraulic fluid spill
Machine isolated and
quarantined until repaired.
Spoil removed and treated as
hazardous waste
Low
Project Name: xxx
RA Ref No.: xxx
RA compilation
Date:
Review date:
Date:
Compiled by:
Reviewed by:
Approved by:
Overall Task Details
Sheet piling operations using mobile rig within site boundary.
To be read, if required, which RA010 – Excavations. Classed as Temporary Works
Relevant Applicable MAS:
 01412 – Lifting Operations;
 00941 – Lifting equipment
Additional Training required:
Noise monitoring;
Temporary Works Coordinator
NOC’s Required for task:
Underground utility provider
RISK SCORE CALCULATOR
Use the Risk Score Calculator to Determine the Level of Risk of each Hazard
What would be the
CONSEQUENCE
of an occurrence be?
What is the LIKELIHOOD of an occurrence? Hierarchy of Controls
Frequent/Almost certain (5)
Continuous or will happen
frequently
Often (4)
6 to 12 times a year
Likely (3)
1 to 5 times a year
Possible (2)
Once every 5 years
Rarely (1)
Less than once every 5
years
Can the hazard be Eliminated or removed
from the work place?
Catastrophic (5)
Multiple Fatalities
High 25 High 20 High 15 Medium 10 Medium 5
Can the product or process be substituted for
a less hazardous alternative?
Serious (4)
Class 1 single fatality
High 20 High 16 High 12 Medium 8 Low 4
Can the hazard be engineered away with
guards or barriers?
Moderate (3)
Class2 (AWI or LTI) or Class 1
Permanently disabling effects
High 15 High 12 Medium 9 Medium 6 Low 3
Can Administration Controls be adopted
I.e. procedures, job rotation etc.
Minor (2)
Medical attention needed, no work
restrictions. MTI
Medium10 Medium 8 Medium 6 Low 4 Low 2 Can Personal Protective Equipment &
Clothing be worn to safe guard against
hazards?
Insignificant (1)
FAI
Medium10 Medium 4 Low 3 Low 2 Low 1

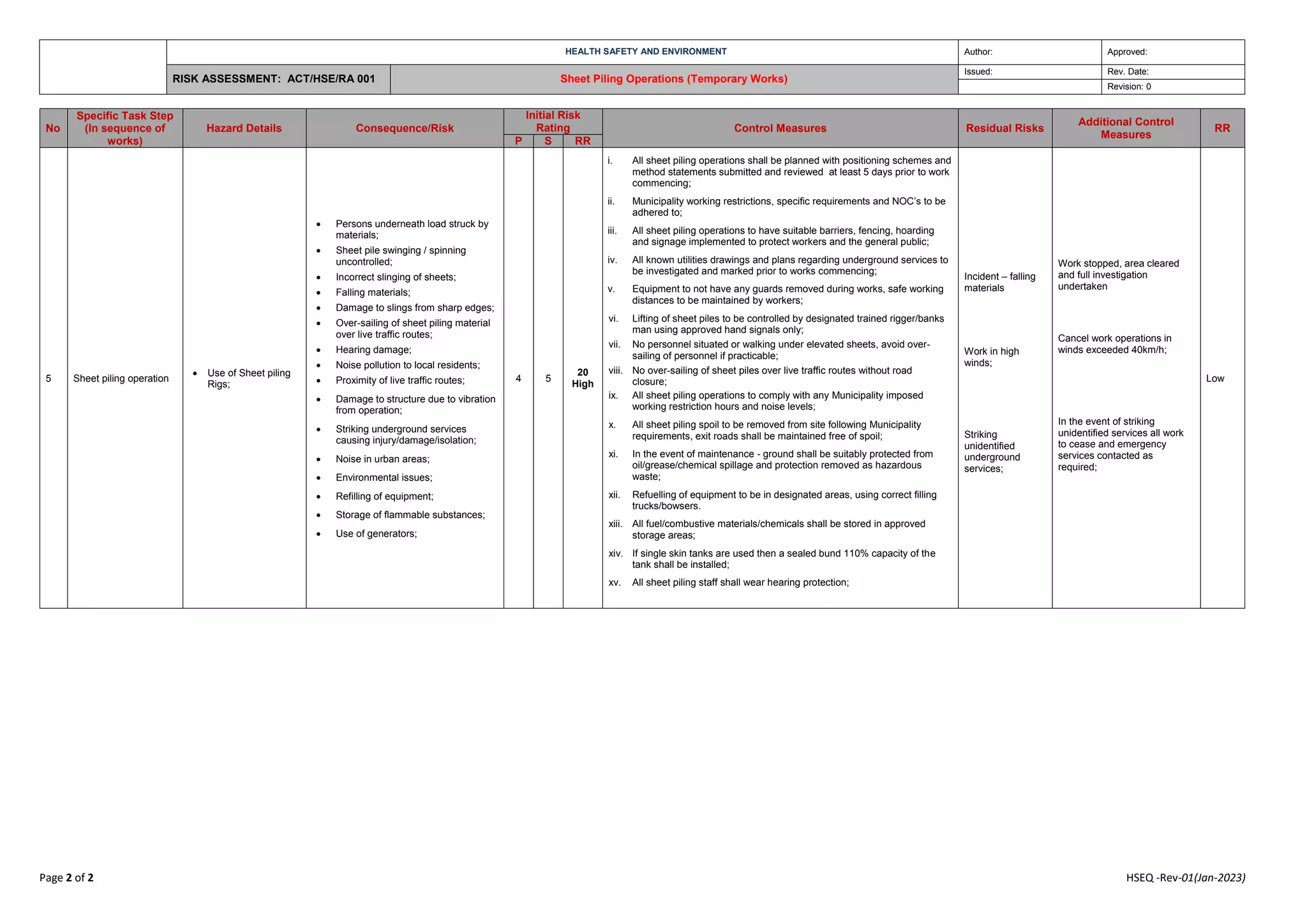

2. HEALTH SAFETY AND ENVIRONMENT Author: Approved:
