1. Arrays
Michael Heron

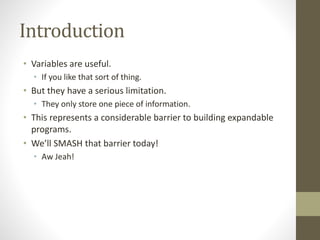

2. Introduction
• Variables are useful.
• If you like that sort of thing.
• But they have a serious limitation.
• They only store one piece of information.
• This represents a considerable barrier to building expandable
programs.
• We’ll SMASH that barrier today!
• Aw Jeah!

3. The Problem of Single
Variables
• Imagine a program that will store the GPA of five students.
• It’s simple, we can do that already.
• We saw the problem with this a little when we talked about
for loops.
• It’s a lot of repetition.
• We got around it with our average example by not storing the
individual numbers.
• Just the totals.

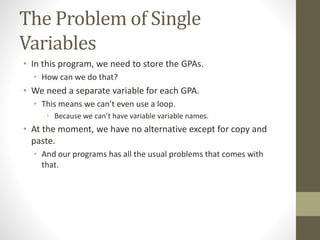

4. The Problem of Single
Variables
• In this program, we need to store the GPAs.
• How can we do that?
• We need a separate variable for each GPA.
• This means we can’t even use a loop.
• Because we can’t have variable variable names.
• At the moment, we have no alternative except for copy and
paste.
• And our programs has all the usual problems that comes with
that.

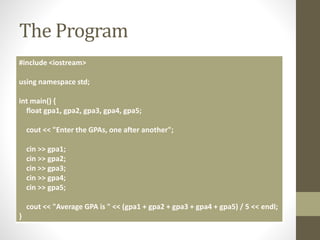

5. The Program
#include <iostream>
using namespace std;
int main() {
float gpa1, gpa2, gpa3, gpa4, gpa5;
cout << "Enter the GPAs, one after another";
cin >> gpa1;
cin >> gpa2;
cin >> gpa3;
cin >> gpa4;
cin >> gpa5;
cout << "Average GPA is " << (gpa1 + gpa2 + gpa3 + gpa4 + gpa5) / 5 << endl;
}

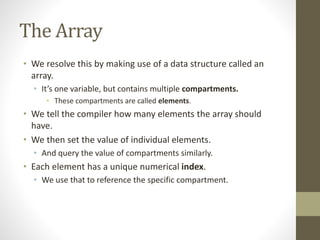

6. The Array
• We resolve this by making use of a data structure called an
array.
• It’s one variable, but contains multiple compartments.
• These compartments are called elements.
• We tell the compiler how many elements the array should
have.
• We then set the value of individual elements.
• And query the value of compartments similarly.
• Each element has a unique numerical index.
• We use that to reference the specific compartment.

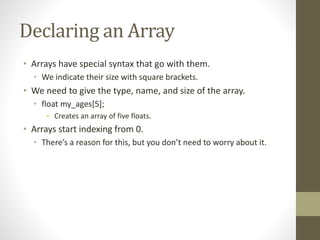

7. Declaring an Array
• Arrays have special syntax that go with them.
• We indicate their size with square brackets.
• We need to give the type, name, and size of the array.
• float my_ages[5];
• Creates an array of five floats.
• Arrays start indexing from 0.
• There’s a reason for this, but you don’t need to worry about it.

8. The Array

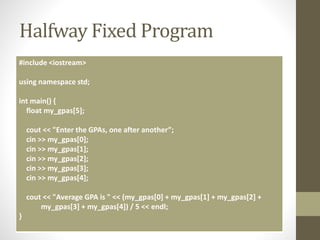

9. Halfway Fixed Program
#include <iostream>
using namespace std;
int main() {
float my_gpas[5];
cout << "Enter the GPAs, one after another”;
cin >> my_gpas[0];
cin >> my_gpas[1];
cin >> my_gpas[2];
cin >> my_gpas[3];
cin >> my_gpas[4];
cout << "Average GPA is " << (my_gpas[0] + my_gpas[1] + my_gpas[2] +
my_gpas[3] + my_gpas[4]) / 5 << endl;
}

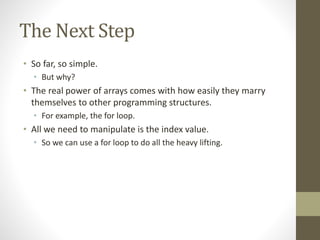

10. The Next Step
• So far, so simple.
• But why?
• The real power of arrays comes with how easily they marry
themselves to other programming structures.
• For example, the for loop.
• All we need to manipulate is the index value.
• So we can use a for loop to do all the heavy lifting.

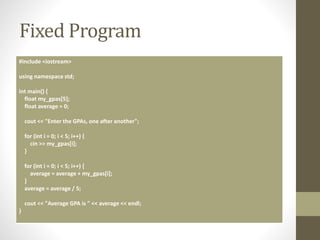

11. Fixed Program
#include <iostream>
using namespace std;
int main() {
float my_gpas[5];
float average = 0;
cout << "Enter the GPAs, one after another";
for (int i = 0; i < 5; i++) {
cin >> my_gpas[i];
}
for (int i = 0; i < 5; i++) {
average = average + my_gpas[i];
}
average = average / 5;
cout << "Average GPA is " << average << endl;
}

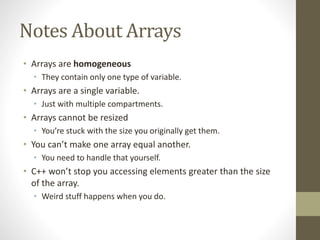

12. Notes About Arrays
• Arrays are homogeneous
• They contain only one type of variable.
• Arrays are a single variable.
• Just with multiple compartments.
• Arrays cannot be resized
• You’re stuck with the size you originally get them.
• You can’t make one array equal another.
• You need to handle that yourself.
• C++ won’t stop you accessing elements greater than the size
of the array.
• Weird stuff happens when you do.

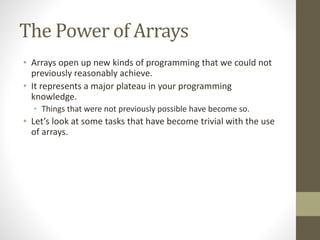

13. The Power of Arrays
• Arrays open up new kinds of programming that we could not
previously reasonably achieve.
• It represents a major plateau in your programming
knowledge.
• Things that were not previously possible have become so.
• Let’s look at some tasks that have become trivial with the use
of arrays.

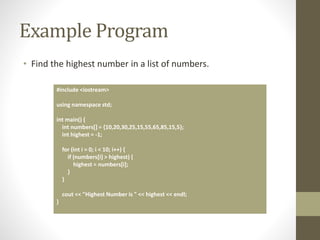

14. Example Program
• Find the highest number in a list of numbers.
#include <iostream>
using namespace std;
int main() {
int numbers[] = {10,20,30,25,15,55,65,85,15,5};
int highest = -1;
for (int i = 0; i < 10; i++) {
if (numbers[i] > highest) {
highest = numbers[i];
}
}
cout << "Highest Number is " << highest << endl;
}

15. 2D Arrays
• If the arrays we have seen so far are a table of data, we can
also create a grid.
• Using two dimensional arrays.
• The principle is identical
• We just provide two sets of square brackets to indicate
dimensionality.
• Grids are immensely useful for certain kinds of programming
tasks.

16. 2D Arrays
• Accessing compartments is done with a pair of indexes.
• Think of it as row and column.
• cout << my_array[0][2];
• my_array[0][2] = 1;

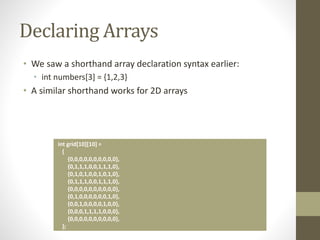

17. Declaring Arrays
• We saw a shorthand array declaration syntax earlier:
• int numbers[3] = {1,2,3}
• A similar shorthand works for 2D arrays
int grid[10][10] =
{
{0,0,0,0,0,0,0,0,0,0},
{0,1,1,1,0,0,1,1,1,0},
{0,1,0,1,0,0,1,0,1,0},
{0,1,1,1,0,0,1,1,1,0},
{0,0,0,0,0,0,0,0,0,0},
{0,1,0,0,0,0,0,0,1,0},
{0,0,1,0,0,0,0,1,0,0},
{0,0,0,1,1,1,1,0,0,0},
{0,0,0,0,0,0,0,0,0,0},
};

18. 2D Arrays
• When declaring 2D arrays in this way, it is perhaps easier to
think of them as an array of arrays.
• Or perhaps not!
• There are many powerful tools that come to bear when we
have 2D arrays available to us.
• We’ll talk about one of these in a later tutorial exercise.

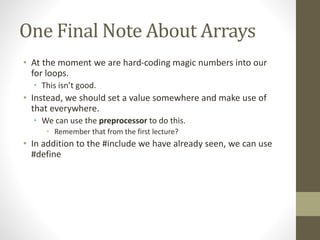

19. One Final Note About Arrays
• At the moment we are hard-coding magic numbers into our
for loops.
• This isn’t good.
• Instead, we should set a value somewhere and make use of
that everywhere.
• We can use the preprocessor to do this.
• Remember that from the first lecture?
• In addition to the #include we have already seen, we can use
#define

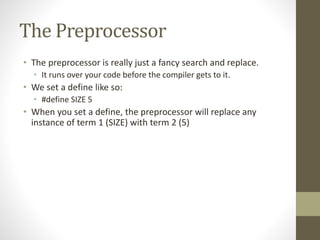

20. The Preprocessor
• The preprocessor is really just a fancy search and replace.
• It runs over your code before the compiler gets to it.
• We set a define like so:
• #define SIZE 5
• When you set a define, the preprocessor will replace any
instance of term 1 (SIZE) with term 2 (5)

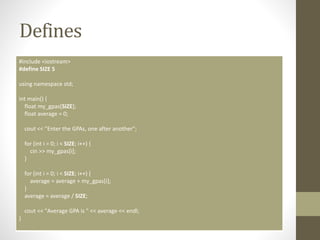

21. Defines
#include <iostream>
#define SIZE 5
using namespace std;
int main() {
float my_gpas[SIZE];
float average = 0;
cout << "Enter the GPAs, one after another";
for (int i = 0; i < SIZE; i++) {
cin >> my_gpas[i];
}
for (int i = 0; i < SIZE; i++) {
average = average + my_gpas[i];
}
average = average / SIZE;
cout << "Average GPA is " << average << endl;
}

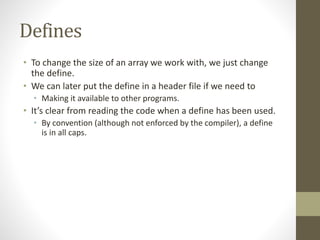

22. Defines
• To change the size of an array we work with, we just change
the define.
• We can later put the define in a header file if we need to
• Making it available to other programs.
• It’s clear from reading the code when a define has been used.
• By convention (although not enforced by the compiler), a define
is in all caps.

23. Summary
• Arrays represent the next plateau of programming ability.
• You can do things you weren’t able to do before now.
• They come in various levels of dimensionality.
• 1 and 2 dimensions are most common.
• Making use of the preprocessor can aid in maintainability of
your program.
• Change a define, update the entire program.
