University Institute of Information Technology, PMAS-AAUR
Lecture 10: Programming Fundamentals:2012
1

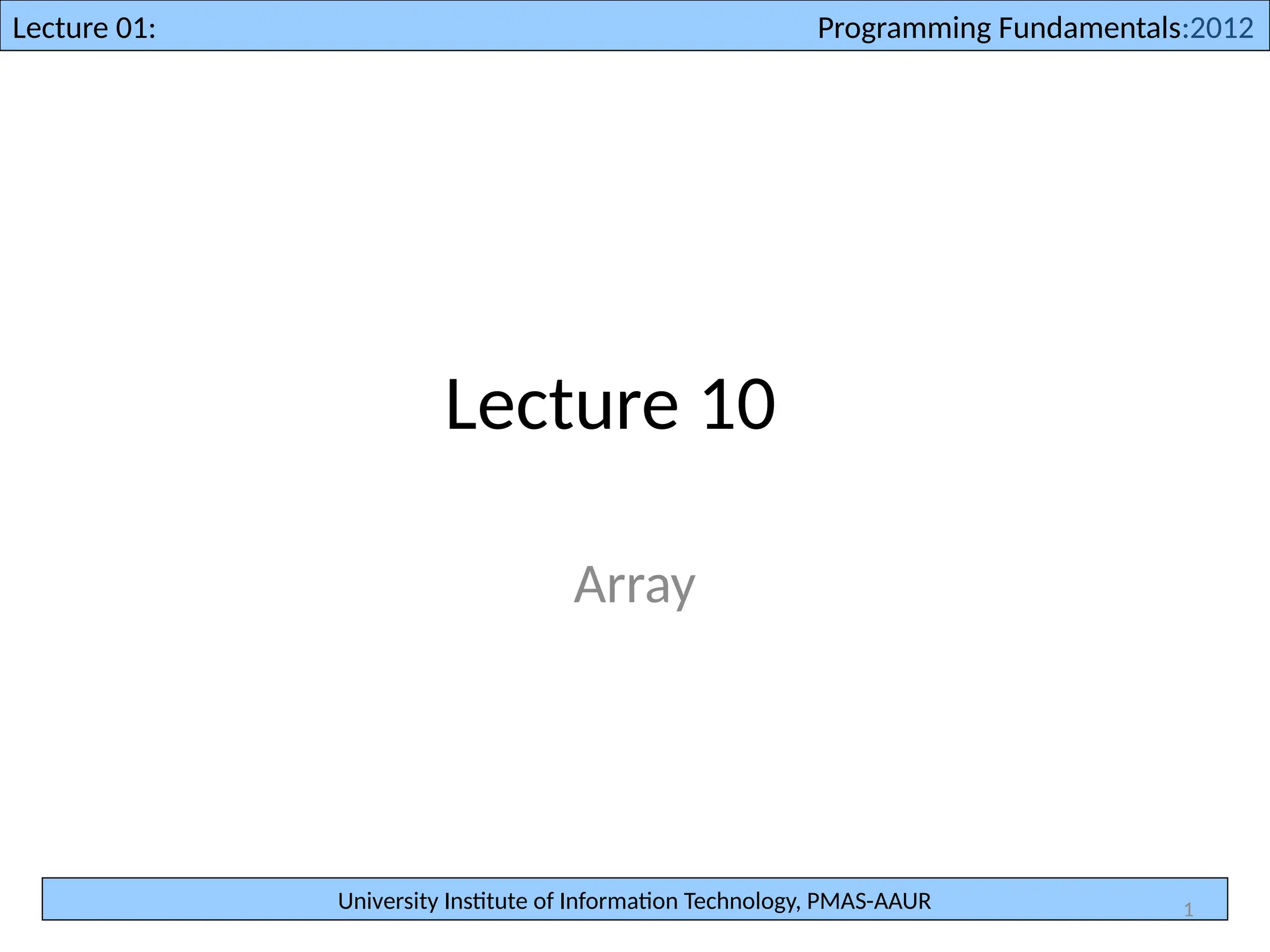

Lecture 10
Array

2

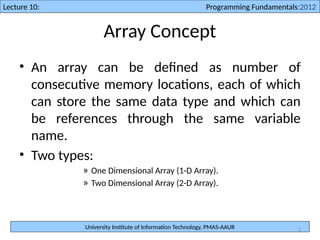

Array Concept
• An array can be defined as number of
consecutive memory locations, each of which
can store the same data type and which can
be references through the same variable
name.
• Two types:
» One Dimensional Array (1-D Array).
» Two Dimensional Array (2-D Array).

3

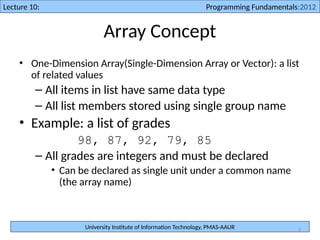

Array Concept
• One-Dimension Array(Single-Dimension Array or Vector): a list
of related values
– All items in list have same data type
– All list members stored using single group name
• Example: a list of grades
98, 87, 92, 79, 85
– All grades are integers and must be declared
• Can be declared as single unit under a common name
(the array name)

4

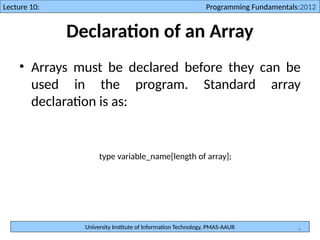

Declaration of an Array
• Arrays must be declared before they can be
used in the program. Standard array
declaration is as:
type variable_name[length of array];

5

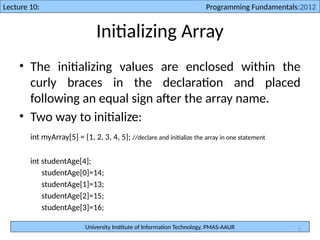

Initializing Array
• The initializing values are enclosed within the
curly braces in the declaration and placed
following an equal sign after the array name.
• Two way to initialize:
int myArray[5] = {1, 2, 3, 4, 5}; //declare and initialize the array in one statement
int studentAge[4];
studentAge[0]=14;
studentAge[1]=13;
studentAge[2]=15;
studentAge[3]=16;

6

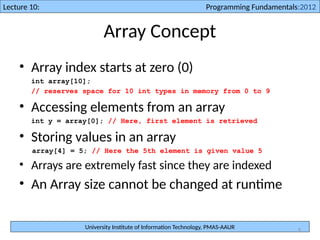

Array Concept
• Array index starts at zero (0)
int array[10];
// reserves space for 10 int types in memory from 0 to 9
• Accessing elements from an array
int y = array[0]; // Here, first element is retrieved
• Storing values in an array
array[4] = 5; // Here the 5th element is given value 5
• Arrays are extremely fast since they are indexed
• An Array size cannot be changed at runtime

7

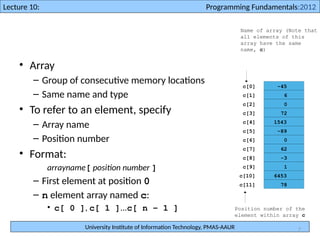

• Array
– Group of consecutive memory locations
– Same name and type
• To refer to an element, specify
– Array name
– Position number
• Format:
arrayname[ position number ]
– First element at position 0
– n element array named c:
• c[ 0 ], c[ 1 ]...c[ n – 1 ]
Name of array (Note that
all elements of this
array have the same
name, c)
Position number of the
element within array c
c[6]
-45
6
0
72
1543
-89
0
62
-3
1
6453
78
c[0]
c[1]
c[2]
c[3]
c[11]
c[10]
c[9]
c[8]
c[7]
c[5]
c[4]

8

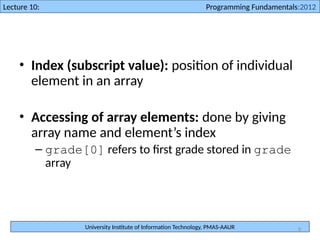

• Index (subscript value): position of individual
element in an array
• Accessing of array elements: done by giving
array name and element’s index
– grade[0] refers to first grade stored in grade
array

9

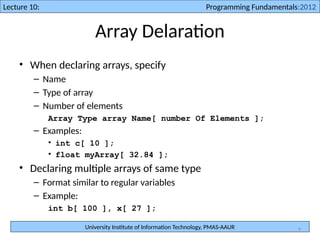

Array Delaration
• When declaring arrays, specify
– Name
– Type of array
– Number of elements
Array Type array Name[ number Of Elements ];
– Examples:
• int c[ 10 ];
• float myArray[ 32.84 ];
• Declaring multiple arrays of same type
– Format similar to regular variables
– Example:
int b[ 100 ], x[ 27 ];

10

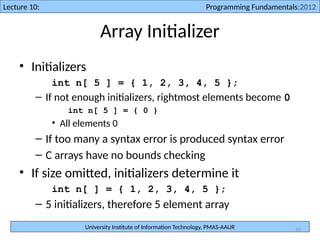

Array Initializer
• Initializers
int n[ 5 ] = { 1, 2, 3, 4, 5 };
– If not enough initializers, rightmost elements become 0
int n[ 5 ] = { 0 }
• All elements 0
– If too many a syntax error is produced syntax error
– C arrays have no bounds checking
• If size omitted, initializers determine it
int n[ ] = { 1, 2, 3, 4, 5 };
– 5 initializers, therefore 5 element array

11

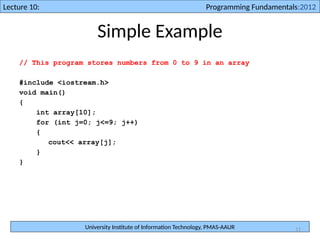

Simple Example
// This program stores numbers from 0 to 9 in an array
#include <iostream.h>
void main()
{
int array[10];
for (int j=0; j<=9; j++)
{
cout<< array[j];
}
}

12

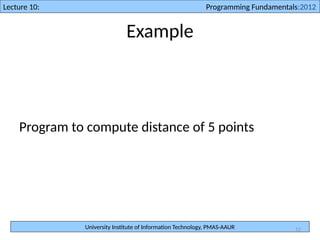

Example

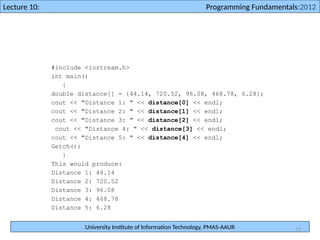

Program to compute distance of 5 points

13
int main()
{
double distance[] = {44.14, 720.52, 96.08, 468.78, 6.28};
cout << "Distance 1: " << distance[0] << endl;
Getch();
}
This would produce:
Distance 1: 44.14
Distance 2: 720.52
Distance 3: 96.08
Distance 4: 468.78
Distance 5: 6.28

14

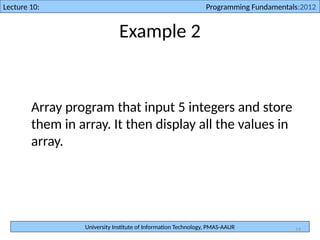

Example 2
Array program that input 5 integers and store
them in array. It then display all the values in
array.

15

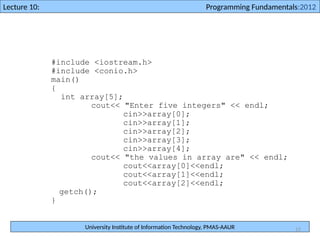

#include <conio.h>
main()
{
int array[5];
cout<< "Enter five integers" << endl;
cin>>array[0];
cin>>array[1];
cin>>array[2];
cin>>array[3];
cin>>array[4];
cout<< "the values in array are" << endl;
cout<<array[0]<<endl;
getch();
}

16
Program that inputs five values from user,
store them in array and displays the sum and
average of these values.

17
#include <conio.h>
main()
{
int array[5], i, sum = 0;
for(i=0; i<5; i++)
{
cin>>array[i];
sum = sum + array[i];
}
float avg = sum/5.0;
cout<< "The sum is" << sum<<endl;
cout<< "The average is" << avg<<endl;
getch();
}

18

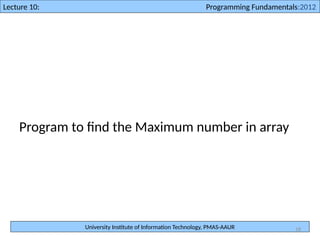

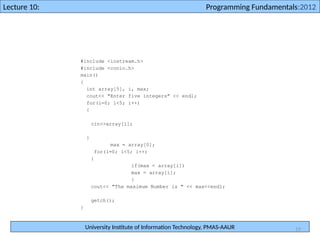

Program to find the Maximum number in array

19
#include <conio.h>
main()
{
int array[5], i, max;
for(i=0; i<5; i++)
{
cin>>array[i];
}
max = array[0];
for(i=0; i<5; i++)
{
if(max < array[i])
max = array[i];
}
cout<< "The maximum Number is " << max<<endl;
getch();
}

20
Write a program that input 5 integers and
display them in actual and in reverse order.

21
#include <conio.h>
main()
{
int array[5], i;
for(i=0; i<5; i++)
{
cin>>array[i];
}
cout<<"The array in Actual Order n"<<endl;
for(i=0; i<5; i++)
{
cout<<array[i]<<" ";
}
cout<<"The array in Reverse Ordern ";
for(i=4; i>=0; i--)
{
}
getch();
}

22

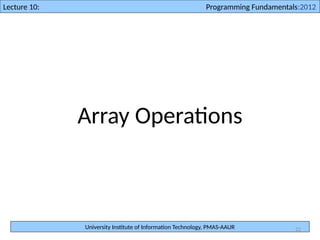

Array Operations

23

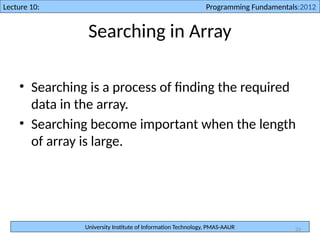

Searching in Array
• Searching is a process of finding the required
data in the array.
• Searching become important when the length
of array is large.

24

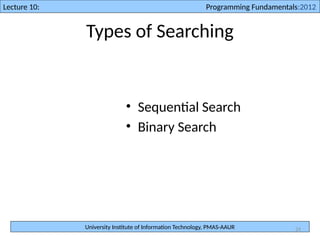

Types of Searching
• Sequential Search
• Binary Search

25

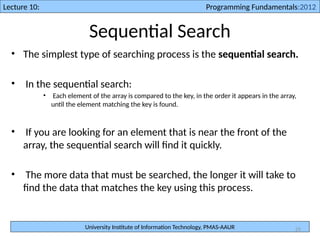

Sequential Search
• The simplest type of searching process is the sequential search.
• In the sequential search:
• Each element of the array is compared to the key, in the order it appears in the array,
until the element matching the key is found.
• If you are looking for an element that is near the front of the
array, the sequential search will find it quickly.
• The more data that must be searched, the longer it will take to
find the data that matches the key using this process.

26

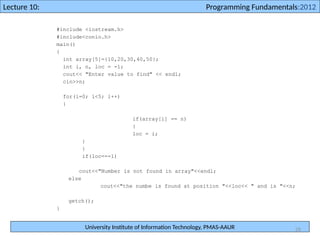

#include<conio.h>
main()
{
int array[5]={10,20,30,40,50};
int i, n, loc = -1;
cout<< "Enter value to find" << endl;
cin>>n;
for(i=0; i<5; i++)
{
if(array[i] == n)
{
loc = i;
}
}
if(loc==-1)
cout<<"Number is not found in array"<<endl;
else
cout<<"the numbe is found at position "<<loc<< " and is "<<n;
getch();
}

27

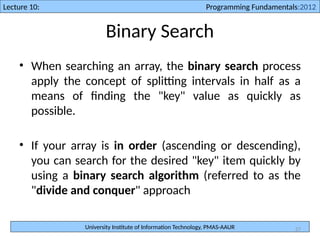

Binary Search
• When searching an array, the binary search process
apply the concept of splitting intervals in half as a
means of finding the "key" value as quickly as
possible.
• If your array is in order (ascending or descending),
you can search for the desired "key" item quickly by
using a binary search algorithm (referred to as the
"divide and conquer" approach

28
• Consider the following array of integers:
• Array of integers, named num, arranged in "ascending order
We will be searching for the key number 64. Here is how the binary search will work:
• First, the middle of the array is located by adding the array subscript of the first value to the subscript of the last value
and dividing by two: (0 + 9) / 2 = 4 Integer division is being used to arrive at the 4th subscript as the middle. (The
actual mathematical middle would be between the subscripts 4 and 5, but we must work with integer subscripts.)
• Subscript 4 holds the number 45, which comes before 64. We now know that 64 would exist in the portion of the array
to the right of 45. We now find the middle of the right portion of the array by using the same approach: (5 + 9) / 2 =
7
• Subscript 7 holds the number 73, which comes after 64, so we now need to find the middle of the portion of the array
to the right of 45, but to the left of 73: (5 + 6) / 2 = 5
• Subscript 5 holds the number 55, which comes before 64, so we now subdivide again
(6 + 6) / 2 = 6 and element 6 holds the number 64.
10 15 24 36 45 55 64 73 90 98
num[0] num[1] num[2] num[3] num[4] num[5] num[6] num[7] num[8] num[9]

29

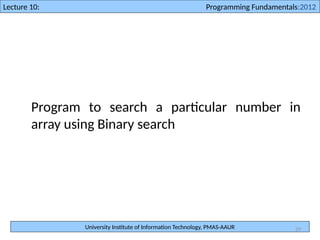

Program to search a particular number in
array using Binary search

30

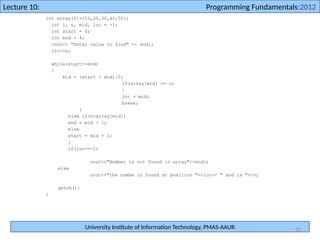

int array[5]={10,20,30,40,50};
int i, n, mid, loc = -1;
int start = 0;
int end = 4;
cout<< "Enter value to find" << endl;
cin>>n;
while(start<=end)
{
mid = (start + end)/2;
if(array[mid] == n)
{
loc = mid;
break;
}
else if(n<array[mid])
end = mid - 1;
else
start = mid + 1;
}
if(loc==-1)
cout<<"Number is not found in array"<<endl;
else
cout<<"the numbe is found at position "<<loc<< " and is "<<n;
getch();
}

31

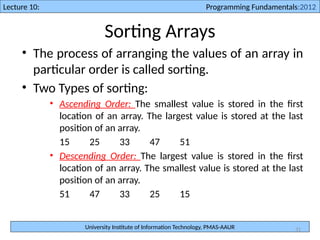

Sorting Arrays
• The process of arranging the values of an array in
particular order is called sorting.
• Two Types of sorting:
• Ascending Order: The smallest value is stored in the first
location of an array. The largest value is stored at the last
position of an array.
15 25 33 47 51
• Descending Order: The largest value is stored in the first
location of an array. The smallest value is stored at the last
position of an array.
51 47 33 25 15

32
Given an array of length n,
– Search elements 0 through n-1 and select the smallest
• Swap it with the element in location 0
– Continue in this fashion until there’s nothing left to search

33
Example and analysis of selection sort
• The selection sort might swap an
array element with itself--this is
harmless, and not worth checking
for
• Analysis:
– The outer loop executes n-1 times
– The inner loop executes about n/2
times on average (from n to 2 times)
– Work done in the inner loop is
constant (swap two array elements)
– Time required is roughly (n-1)*(n/2)
– You should recognize this as O(n2
)
7 2 8 5 4
2 7 8 5 4
2 4 8 5 7
2 4 5 8 7
2 4 5 7 8

34

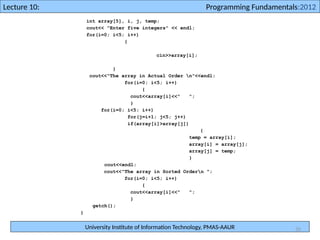

Selection Sort
Program that take 5 random values from user
in an array and sort it in ascending order.

35
int array[5], i, j, temp;
for(i=0; i<5; i++)
{
cin>>array[i];
}
for(i=0; i<5; i++)
{
}
for(i=0; i<5; i++)
for(j=i+1; j<5; j++)
if(array[i]>array[j])
{
temp = array[i];
array[i] = array[j];
array[j] = temp;
}
cout<<endl;
cout<<"The array in Sorted Ordern ";
for(i=0; i<5; i++)
{
}
getch();
}

36

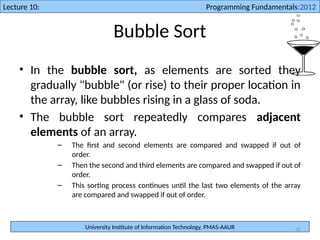

Bubble Sort
• In the bubble sort, as elements are sorted they
gradually "bubble" (or rise) to their proper location in
the array, like bubbles rising in a glass of soda.
• The bubble sort repeatedly compares adjacent
elements of an array.
– The first and second elements are compared and swapped if out of
order.
– Then the second and third elements are compared and swapped if out of
order.
– This sorting process continues until the last two elements of the array
are compared and swapped if out of order.

37

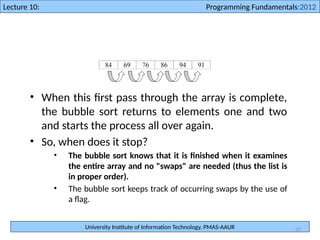

• When this first pass through the array is complete,
the bubble sort returns to elements one and two
and starts the process all over again.
• So, when does it stop?
• The bubble sort knows that it is finished when it examines
the entire array and no "swaps" are needed (thus the list is
in proper order).
• The bubble sort keeps track of occurring swaps by the use of
a flag.

38

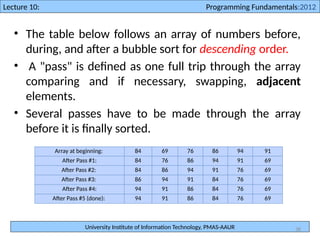

• The table below follows an array of numbers before,
during, and after a bubble sort for descending order.
• A "pass" is defined as one full trip through the array
comparing and if necessary, swapping, adjacent
elements.
• Several passes have to be made through the array
before it is finally sorted.
Array at beginning: 84 69 76 86 94 91
After Pass #1: 84 76 86 94 91 69
After Pass #2: 84 86 94 91 76 69
After Pass #3: 86 94 91 84 76 69
After Pass #4: 94 91 86 84 76 69
After Pass #5 (done): 94 91 86 84 76 69

39

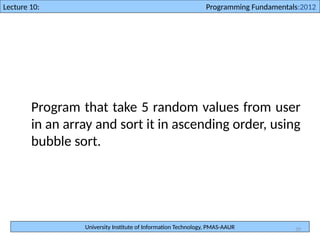

Program that take 5 random values from user
in an array and sort it in ascending order, using
bubble sort.

40
main()
{
int array[5], i, j, temp;
for(i=0; i<5; i++)
{
cin>>array[i];
}
for(i=0; i<5; i++)
{
}
for(i=0; i<5; i++)
for(j=0; j<4; j++)
if(array[j]>array[j+1])
{
temp = array[j];
array[j] = array[j+1];
array[j+1] = temp;
}
cout<<endl;
cout<<"The array in Sorted Ordern ";
for(i=0; i<5; i++)
{
}
getch();
}

Array 1D.................................pptx

More Related Content

Similar to Array 1D.................................pptx

Recently uploaded

Array 1D.................................pptx
