1. Finite State Machine
Mobile Game Programming
jintaeks@gmail.com
Division of Digital Contents, Dongseo Univ.
October 6, 2016

2. Action states
2
 states of the monster
– Idle
– Moving
– Attack
– Hurt
– Dead

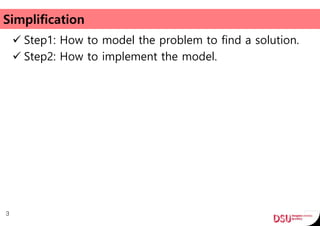

3. Simplification
 Step1: How to model the problem to find a solution.
 Step2: How to implement the model.
3

4. Step1: Model
4

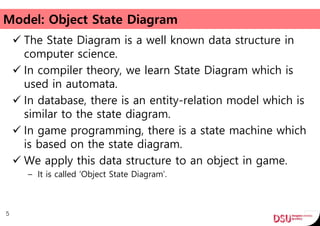

5. Model: Object State Diagram
 The State Diagram is a well known data structure in
computer science.
 In compiler theory, we learn State Diagram which is
used in automata.
 In database, there is an entity-relation model which is
similar to the state diagram.
 In game programming, there is a state machine which
is based on the state diagram.
 We apply this data structure to an object in game.
– It is called ‘Object State Diagram’.
5

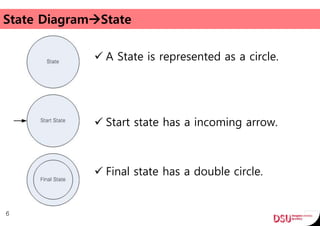

6. State DiagramState
 A State is represented as a circle.
 Start state has a incoming arrow.
 Final state has a double circle.
6

7. State DiagramState Action
 A State can have action(s).
 An action is described in text after slash
symbol.
 An action describes the dynamic
behavior of an object in that state.
 Example:
7
State/Action

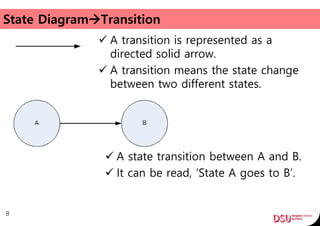

8. State DiagramTransition
 A transition is represented as a
directed solid arrow.
 A transition means the state change
between two different states.
8
 A state transition between A and B.
 It can be read, ‘State A goes to B’.

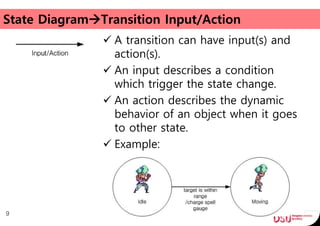

9. State DiagramTransition Input/Action
 A transition can have input(s) and
action(s).
 An input describes a condition
which trigger the state change.
 An action describes the dynamic
behavior of an object when it goes
to other state.
 Example:
9

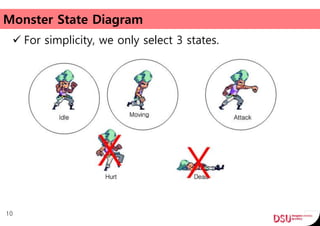

10. Monster State Diagram
 For simplicity, we only select 3 states.
10

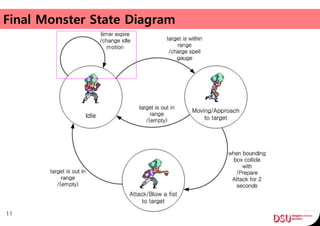

11. Final Monster State Diagram
11

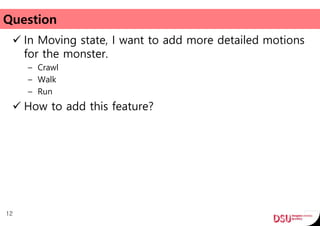

12. Question
 In Moving state, I want to add more detailed motions
for the monster.
– Crawl
– Walk
– Run
 How to add this feature?
12

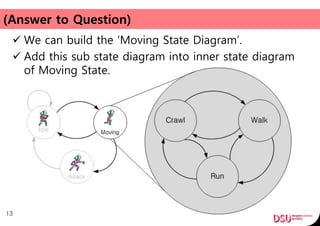

13. (Answer to Question)
 We can build the ‘Moving State Diagram’.
 Add this sub state diagram into inner state diagram
of Moving State.
13

14. Step2: Implementation
 Step1: How to model the problem to find solution.
 Step2: How to implement the model.
14

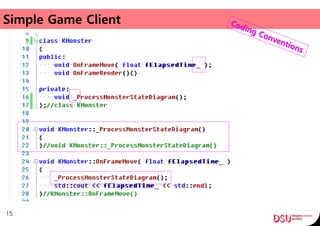

15. Simple Game Client
15

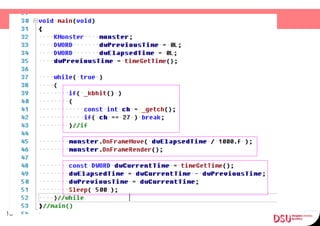

16. 16

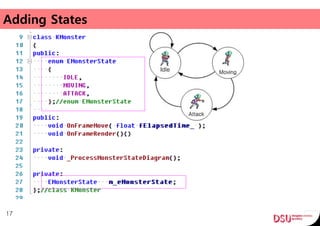

17. Adding States
17

18. Adding Properties
18
m_fIdleTimer
m_dwIdleMotion
m_dwDistanceToTarget
m_fSpellGauge
m_dwAttackMotion
m_dwTargetId
m_dwBboxId
m_fPrepareAttackTimer

19. 19

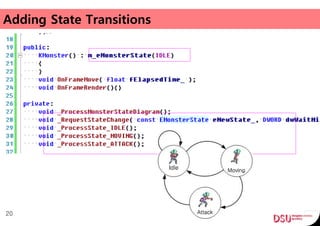

20. Adding State Transitions
20

21. 21

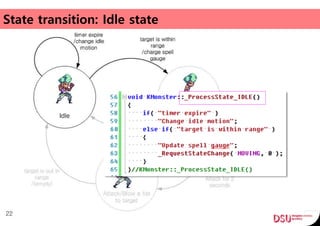

22. State transition: Idle state
22

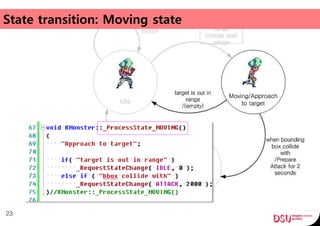

23. State transition: Moving state
23

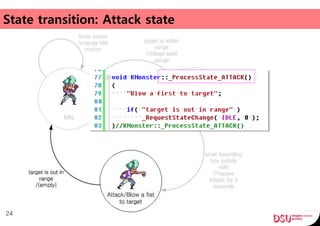

24. State transition: Attack state
24

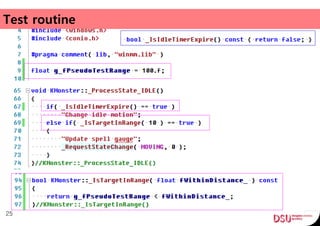

25. Test routine
25

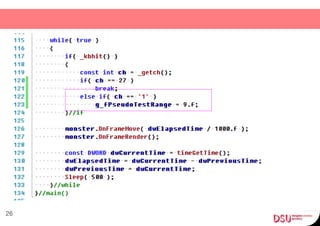

26. 26

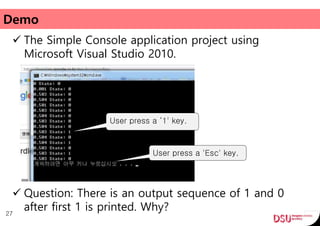

27. Demo
 The Simple Console application project using
Microsoft Visual Studio 2010.
27
User press a ‘1' key.
User press a 'Esc' key.
 Question: There is an output sequence of 1 and 0
after first 1 is printed. Why?

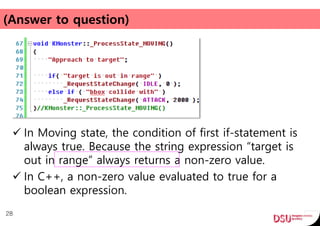

28. (Answer to question)
 In Moving state, the condition of first if-statement is
always true. Because the string expression “target is
out in range” always returns a non-zero value.
 In C++, a non-zero value evaluated to true for a
boolean expression.
28

29. (Implementation Optimization)
 Our C++ implementation can be structured to more
elegant form.
 We can use well-known design patterns.
 Use the pointer to member functions!
– I will show it in the next lecture.
29

30. More Complex Example
 Most programmer are aware of this concept.
 But they cannot use it freely, why?
30

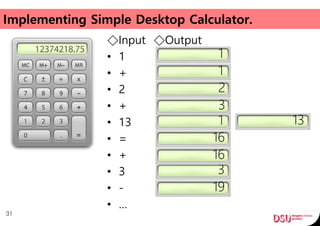

31. Implementing Simple Desktop Calculator.
◇Input ◇Output
• 1
• +
• 2
• +
• 13
• =
• +
• 3
• -
• …
31
1
2
1
16
3
3
16
13
1
19

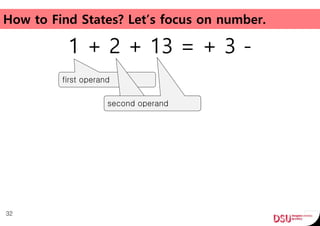

32. How to Find States? Let’s focus on number.
1 + 2 + 13 = + 3 -
32
first operand
second operandsecond operand

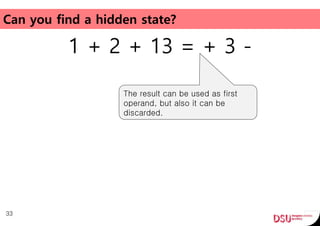

33. Can you find a hidden state?
1 + 2 + 13 = + 3 -
33
The result can be used as first
operand, but also it can be
discarded.

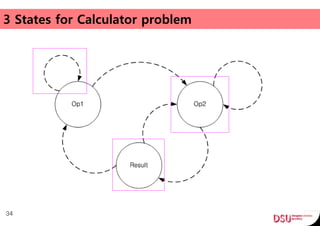

34. 3 States for Calculator problem
34

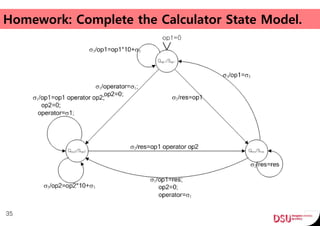

35. Homework: Complete the Calculator State Model.
35
