This document provides an overview of physical quantities and the International System of Units (SI) for measuring them. It defines physical quantities as things that can be measured with a magnitude and unit. The SI is standardized by the General Conference on Weights and Measures and uses seven base units: meter, kilogram, second, ampere, kelvin, candela, and mole. Derived quantities are defined in terms of base units, like speed being meters/second. Prefixes are used to modify units for very small or large numbers. The document gives examples of derived quantities and their units, like area being square meters.

1. Unit 1
Physics IAL
Physical Quantities

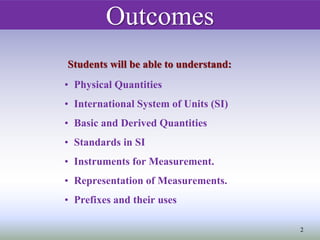

2. Outcomes
• Physical Quantities
• International System of Units (SI)
• Basic and Derived Quantities
• Standards in SI
• Instruments for Measurement.
• Representation of Measurements.
• Prefixes and their uses
Students will be able to understand:
2

3. Physical Quantities
A physical quantity is one that can be measured/observed
and consists of a magnitude and unit.
70
km/h

4.5 m

Quantity : Height(Length)
Magnitude : 4.5
Unit : meter (m)
Quantity : Speed
Magnitude : 70
Unit : kilometer per hour
Quantity : Temperature
Magnitude : 33
Unit : celcius
3

4. More Examples of Physical Quantities
Time
Weight
Energy
Volume
Area
Pressure
4

5. Measurement of Physical Quantities
Physics is all about the observation and
measurement of nature / physical quantities.
Types of Observations: Qualitative and Quantitative
Example: The new iPhone 5s is expensive. Its price
is R.O. 270
Example: Ali is a tall boy. His height is 6 feet.
Example: The land area of Monaco is small and it is
densely populated. It has an area of 1.98 km2 with a
population of 35,986
5

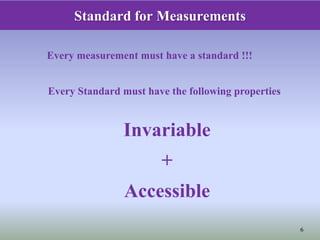

6. Standard for Measurements
Every measurement must have a standard !!!
Every Standard must have the following properties
Invariable
+
Accessible
6

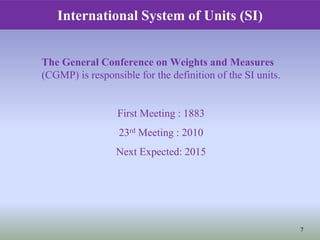

7. The General Conference on Weights and Measures
(CGMP) is responsible for the definition of the SI units.
First Meeting : 1883
23rd Meeting : 2010
Next Expected: 2015
International System of Units (SI)
7

8. Types of SI Units
Basic Quantities are the building blocks but the
Derived Quantities are made from the Basic.
Supplementary Quantities are not still decided-
whether in Basic or Derived
Basic Derived Supplementary
8

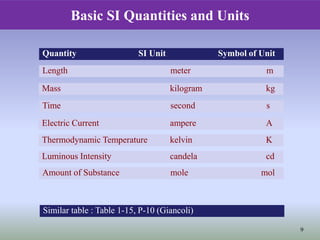

9. Basic SI Quantities and Units
Quantity SI Unit Symbol of Unit
Length meter m
Mass kilogram kg
Time second s
Electric Current ampere A
Thermodynamic Temperature kelvin K
Luminous Intensity candela cd
Amount of Substance mole mol
Similar table : Table 1-15, P-10 (Giancoli)
9

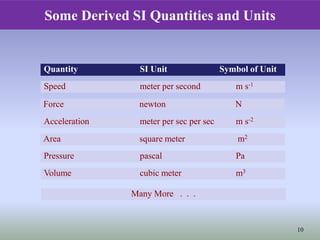

10. Some Derived SI Quantities and Units
Quantity SI Unit Symbol of Unit
Speed meter per second m s-1
Force newton N
Acceleration meter per sec per sec m s-2
Area square meter m2
Pressure pascal Pa
Volume cubic meter m3
Many More . . .
10

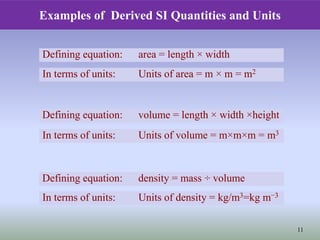

11. Examples of Derived SI Quantities and Units
11
Defining equation: area = length × width
In terms of units: Units of area = m × m = m2
Defining equation: volume = length × width ×height
In terms of units: Units of volume = m×m×m = m3
Defining equation: density = mass ÷ volume
In terms of units: Units of density = kg/m3=kg m−3

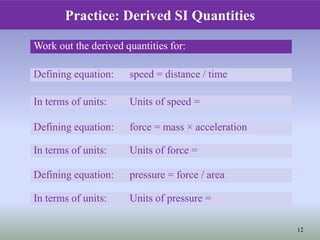

12. 12
Work out the derived quantities for:
Defining equation: speed = distance / time
In terms of units: Units of speed =
Defining equation: pressure = force / area
In terms of units: Units of pressure =
Defining equation: force = mass × acceleration
In terms of units: Units of force =
Practice: Derived SI Quantities

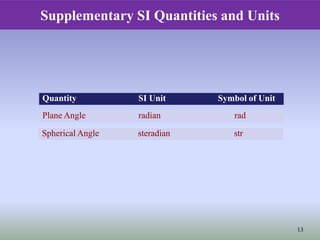

13. Supplementary SI Quantities and Units
Quantity SI Unit Symbol of Unit
Plane Angle radian rad
Spherical Angle steradian str
13

14. Prefixes
To represent very small or very large numbers the prefixes
can be used.
Name Symbol Number Powers of 10
tera T 1 000 000 000 000 1012
giga G 1 000 000 000 109
mega M 1 000 000 106
kilo k 1 000 103
hecto h 1 00 102
micro µ 0.000 001 10-6
nano n 0.000 000 001 10-9
pico p 0.000 000 000 001 10-12
deca da 1 0 101
1 10 0
deci d 0.1 10-1
centi c 0.01 10-2
milli m 0.001 10-3
14

15. Practice Questions
1. Find at least 5 derived quantities and write the SI
units
15
2. Write the following quantities using suitable prefixes.
a. 5 000000 J b. 5000 g c. 0.009 s
3. How many meters in a kilometer?
4. How many second in a microsecond?
