  • INSTRUCTOR NOTES: Summarize what some of the possible improvements that can be made utilizing some of the clamping devices available.
  • Usually moves in a u shape
  • Figure 1 page 27 dec 2005 Best feature (company to company collaboration) Internal collaboration Toyota vs. dell/wal-mart Kanban converting to RFid?
  • Show Figure 2 Toyota still most respected for quality and popularity, inventory results suggest that things are missing from the company's lean tool set Dell has annual improvement
  • Strategies for optimizing asset performance Financial value generated or enabled by physical assets. Physical assets – industrial facilities, manufacturing facilities, and equipment In stead of demanding financial improvements, cut heads and le those figure out, proper way is to find work process improvements to drive improved results and financial
  • Best approach is to focus on lean, maintenance, and reliability improvements simultaneously Stabilize production processes through equipment and process reliability while we challenge WIP , raw material and finished good buffers Process stability - By improving  enable tight alignment btwn takt time and flow times, converted into smaller buffers, smaller overall cycle times and higher machine utilization
  • Visual controls – visible indicators for status, workorder, etc. 5s - Sorting . Refers to the practice of going through all the tools, materials, etc., in the work area and keeping only essential items. Everything else is stored or discarded. Simplifying . Focuses on the need for an orderly workplace. Sweeping , Systematic Cleaning, or Shining Standardizing . This refers to standardized work practices. Sustaining . Refers to maintaining and reviewing standards. Seven Wastes – anything customer won’t pay for is a waste: SMED – Poka-yoke – mistake proofing TPM – preventive maintenance, total QC, employee involvement, task sharing and maintenance
  • Challenged buffers – smaller buffers, fewer defects – process yield will increase creating complementary reduction in mtfg costs. Focus planted in the management of people processes within the maintenance function to eliminate waste and drive process reliability.
  • Unable to maintain the automatic efficiency needed throughout the manufacturing process Inaccuracies in information slowed production time and created inconsistencies for final product Got to a point where couldn’t trust system
  • Lean presentation ppt

    1. 1. Lean Manufacturing

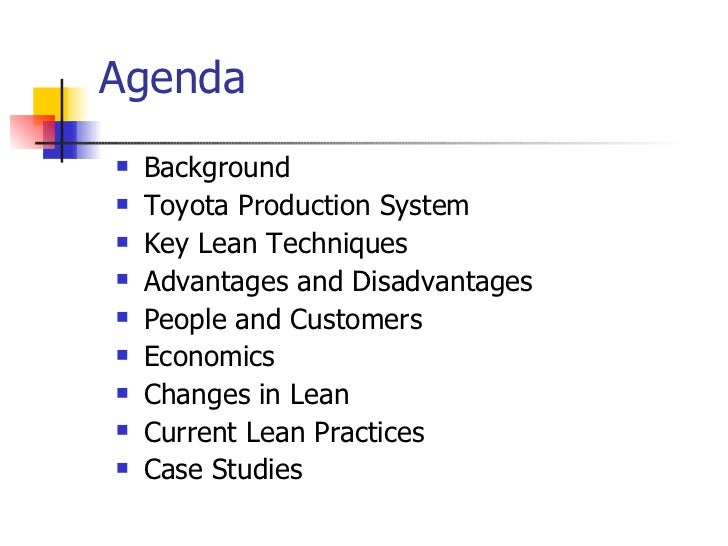

    2. 2. Agenda <ul><li>Background </li></ul><ul><li>Toyota Production System </li></ul><ul><li>Key Lean Techniques </li></ul><ul><li>Advantages and Disadvantages </li></ul><ul><li>People and Customers </li></ul><ul><li>Economics </li></ul><ul><li>Changes in Lean </li></ul><ul><li>Current Lean Practices </li></ul><ul><li>Case Studies </li></ul>
    3. 3. Definition <ul><li>Lean Manufacturing – A way to eliminate waste and improve efficiency in a manufacturing environment </li></ul><ul><li>Lean focuses on flow, the value stream and eliminating muda, the Japanese word for waste </li></ul><ul><li>Lean manufacturing is the production of goods using less of everything compared to traditional mass production: less waste, human effort, manufacturing space, investment in tools, inventory, and engineering time to develop a new product </li></ul>

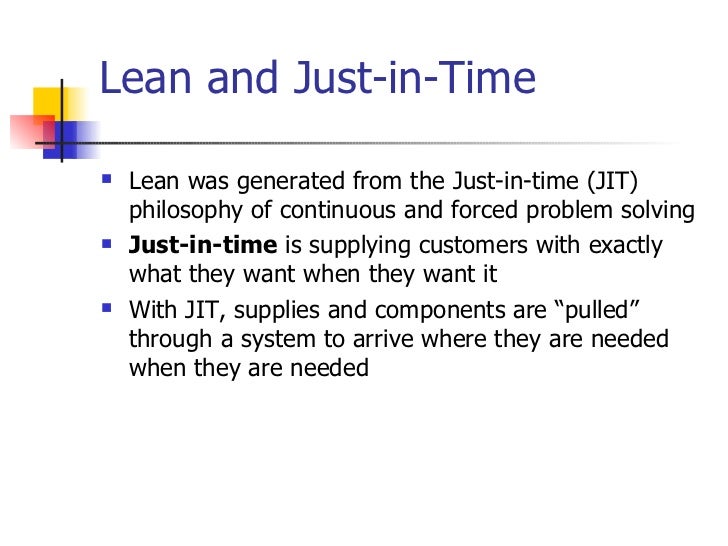

    4. 4. Lean and Just-in-Time <ul><li>Lean was generated from the Just-in-time (JIT) philosophy of continuous and forced problem solving </li></ul><ul><li>Just-in-time is supplying customers with exactly what they want when they want it </li></ul><ul><li>With JIT, supplies and components are “pulled” through a system to arrive where they are needed when they are needed </li></ul>

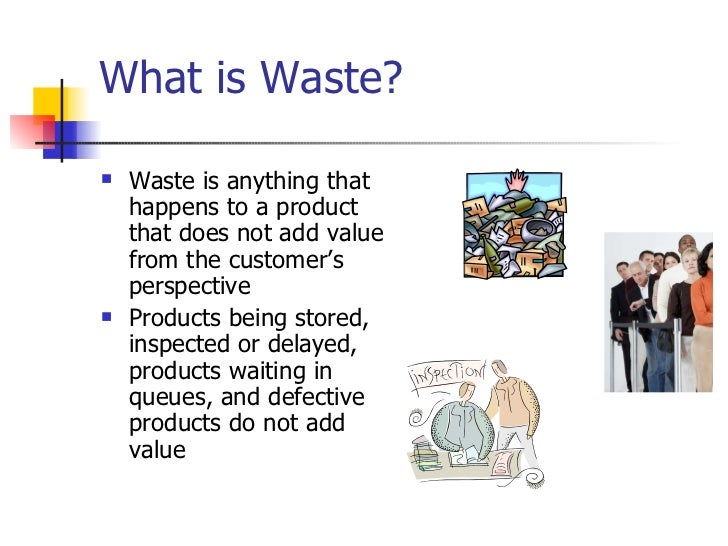

    5. 5. What is Waste? <ul><li>Waste is anything that happens to a product that does not add value from the customer’s perspective </li></ul><ul><li>Products being stored, inspected or delayed, products waiting in queues, and defective products do not add value </li></ul>
    6. 6. Seven Wastes <ul><li>Overproduction – producing more than the customer orders or producing early. Inventory of any kind is usually waste. </li></ul><ul><li>Queues – idle time, storage, and waiting are wastes </li></ul><ul><li>Transportation – moving material between plants, between work centers, and handling more than once is waste </li></ul><ul><li>Inventory – unnecessary raw material, work-in-process (WIP), finished goods, and excess operating supplies </li></ul><ul><li>Motion – movement of equipment or people </li></ul><ul><li>Overprocessing – work performed on product that adds no value </li></ul><ul><li>Defective product – returns, warranty claims, rework and scrap </li></ul>

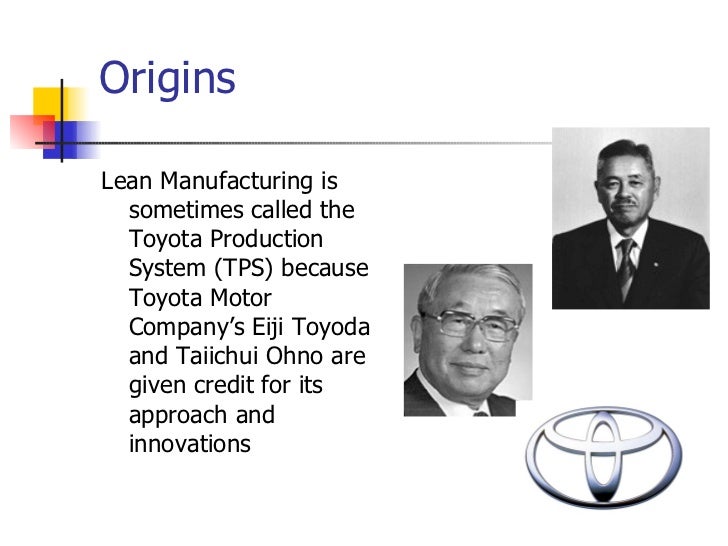

    7. 7. Origins <ul><li>Lean Manufacturing is sometimes called the Toyota Production System (TPS) because Toyota Motor Company’s Eiji Toyoda and Taiichui Ohno are given credit for its approach and innovations </li></ul>
    8. 8. Underlying Principles to TPS <ul><li>Work shall be completely specified as to content, sequence, timing, and outcome </li></ul><ul><li>Every customer-supplier connection, both internal and external, must be direct and specify personnel, methods, timing, and quantity of goods or services provided </li></ul><ul><li>Product and service flows must be simple and direct – goods and services are directed to a specific person or machine </li></ul><ul><li>Any improvement in the system must be made in accordance with the “scientific method” at the lowest possible level in the organization </li></ul>

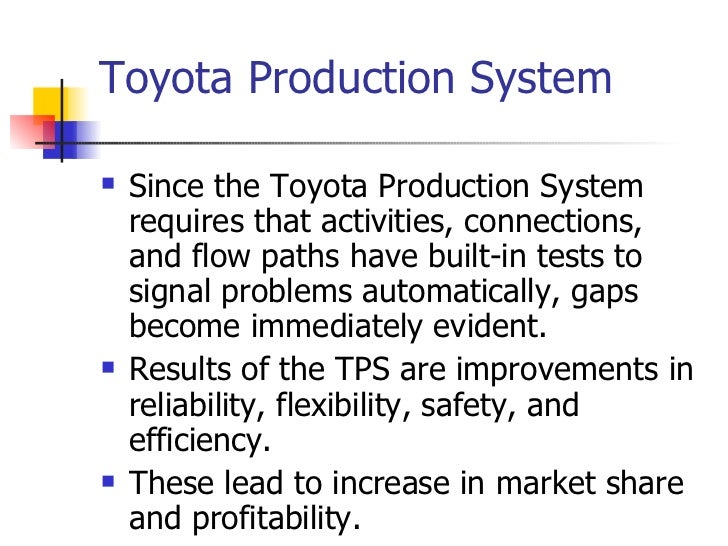

    9. 9. Toyota Production System <ul><li>Since the Toyota Production System requires that activities, connections, and flow paths have built-in tests to signal problems automatically, gaps become immediately evident. </li></ul><ul><li>Results of the TPS are improvements in reliability, flexibility, safety, and efficiency. </li></ul><ul><li>These lead to increase in market share and profitability. </li></ul>
    10. 10. Timeline

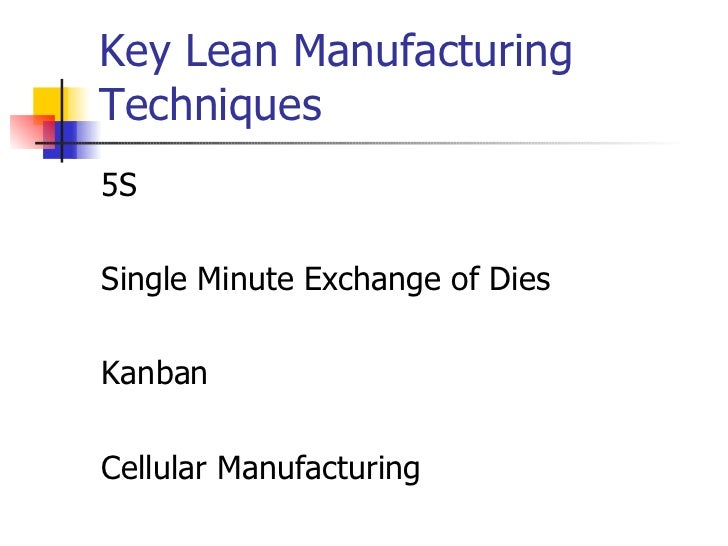

    11. 11. Key Lean Manufacturing Techniques <ul><li>5S </li></ul><ul><li>Single Minute Exchange of Dies </li></ul><ul><li>Kanban </li></ul><ul><li>Cellular Manufacturing </li></ul>

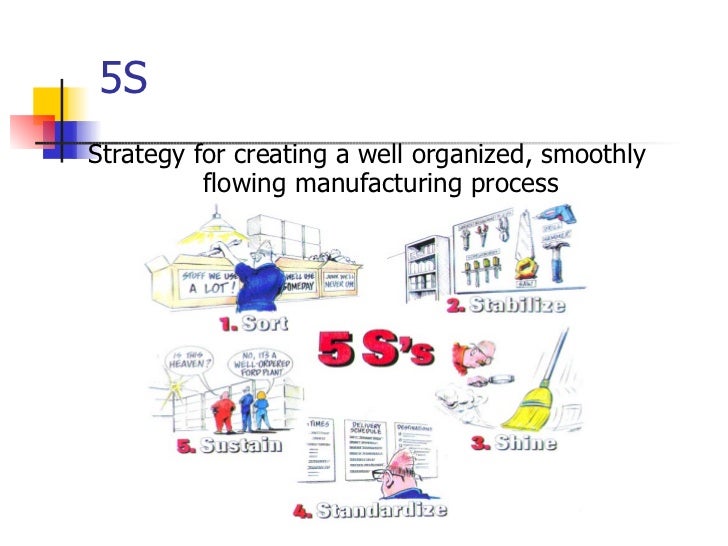

    12. 12. 5S <ul><li>Strategy for creating a well organized, smoothly flowing manufacturing process </li></ul>
    13. 13. 5S Examples <ul><li>Before </li></ul><ul><li>After </li></ul>
    14. 14. Benefits of 5S <ul><li>Increases organization and efficiency </li></ul><ul><li>Avoids wasted motion </li></ul><ul><li>Increases safety </li></ul><ul><li>Eliminates unnecessary inventory </li></ul><ul><li>Offers improvements at an inexpensive cost </li></ul>
    15. 15. 5S Drawbacks <ul><li>If not fully implemented, may result in “Jive S” </li></ul><ul><ul><li>Store things </li></ul></ul><ul><ul><li>Stick to the rules </li></ul></ul><ul><ul><li>Superficially clean </li></ul></ul><ul><ul><li>Switch to new fixtures </li></ul></ul><ul><ul><li>Serve reluctantly </li></ul></ul><ul><li>Can not be considered an end goal – must be part of a continuous improvement movement </li></ul>

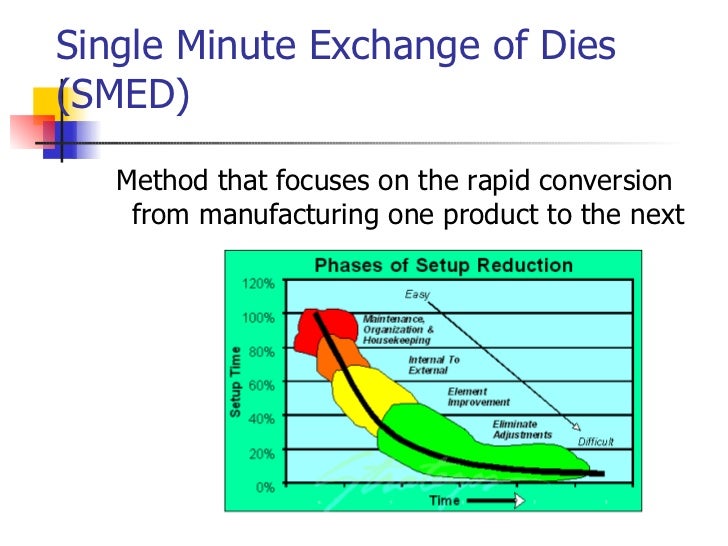

    16. 16. Single Minute Exchange of Dies (SMED) <ul><li>Method that focuses on the rapid conversion from manufacturing one product to the next </li></ul>

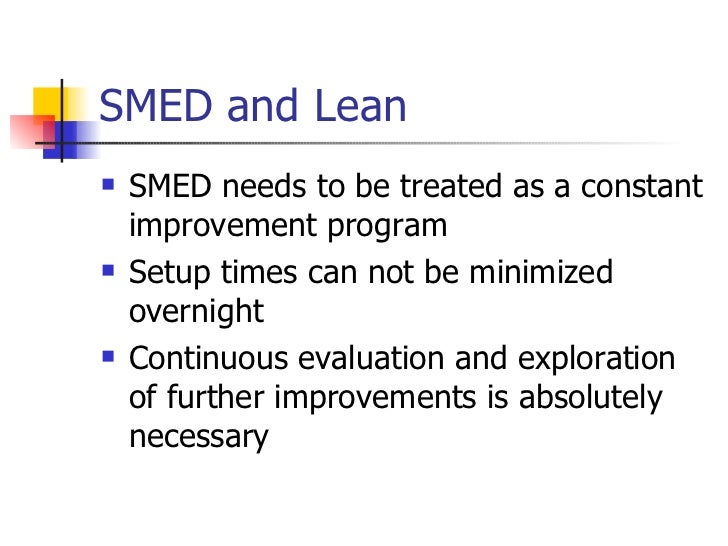

    17. 17. SMED and Lean <ul><li>SMED needs to be treated as a constant improvement program </li></ul><ul><li>Setup times can not be minimized overnight </li></ul><ul><li>Continuous evaluation and exploration of further improvements is absolutely necessary </li></ul>

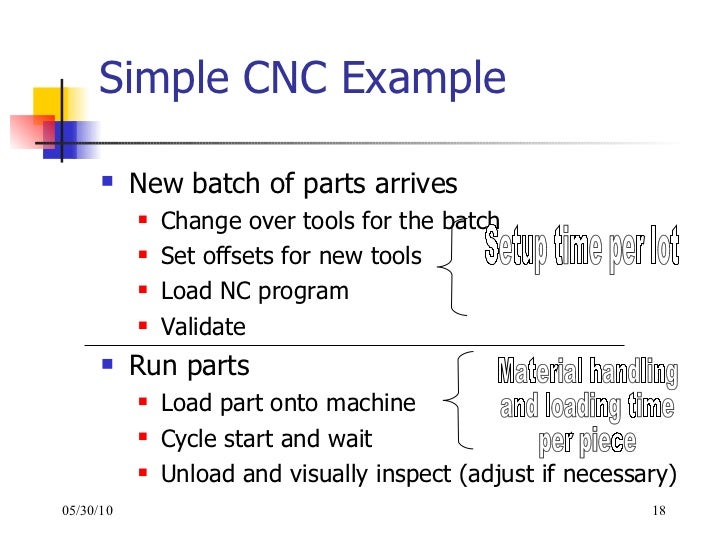

    18. 18. Simple CNC Example <ul><li>New batch of parts arrives </li></ul><ul><ul><li>Change over tools for the batch </li></ul></ul><ul><ul><li>Set offsets for new tools </li></ul></ul><ul><ul><li>Load NC program </li></ul></ul><ul><ul><li>Validate </li></ul></ul><ul><li>Run parts </li></ul><ul><ul><li>Load part onto machine </li></ul></ul><ul><ul><li>Cycle start and wait </li></ul></ul><ul><ul><li>Unload and visually inspect (adjust if necessary) </li></ul></ul>05/30/10 Setup time per lot Material handling and loading time per piece
    19. 19. External elements of work can be completed while the machine is still running e.g. get the next tool, get all your clamps, get lifting equipment in place, put equipment away, etc. Internal elements of work can only be done while the machine is stopped e.g. change the tool, adjust the machine depth, sharpen a tool (which requires the machine to be stopped), etc..

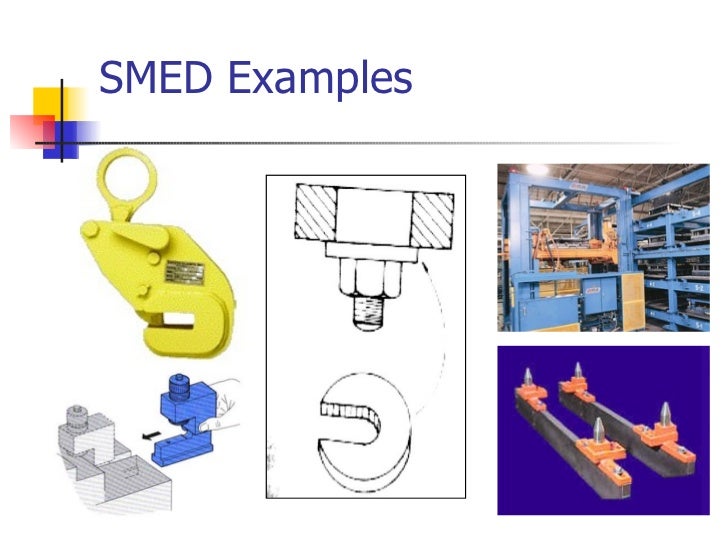

    20. 20. SMED Examples
    21. 21. SMED Examples
    22. 22. SMED Examples

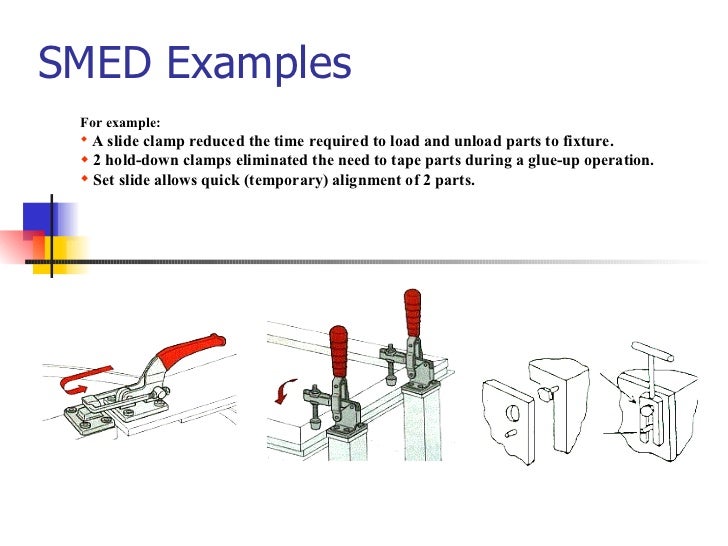

    23. 23. <ul><li>For example: </li></ul><ul><li>A slide clamp reduced the time required to load and unload parts to fixture. </li></ul><ul><li>2 hold-down clamps eliminated the need to tape parts during a glue-up operation. </li></ul><ul><li>Set slide allows quick (temporary) alignment of 2 parts. </li></ul>SMED Examples

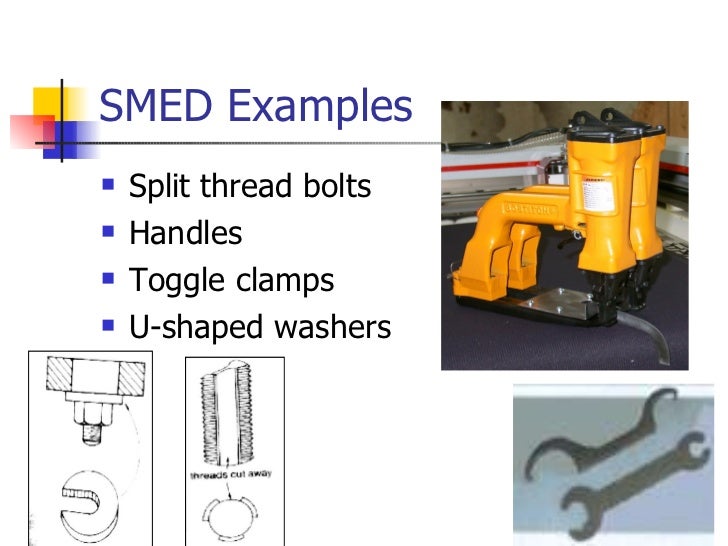

    24. 24. SMED Examples <ul><li>Split thread bolts </li></ul><ul><li>Handles </li></ul><ul><li>Toggle clamps </li></ul><ul><li>U-shaped washers </li></ul>
    25. 25. 05/30/10 Make the tool part of the screw device -- you don’t need a tool, and this will save time in disassembling and reassembling the tooling and fixturing!

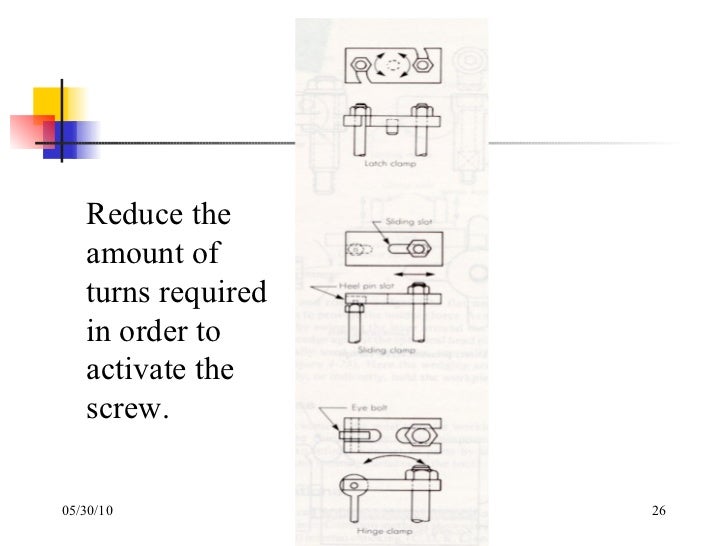

    26. 26. 05/30/10 Reduce the amount of turns required in order to activate the screw.

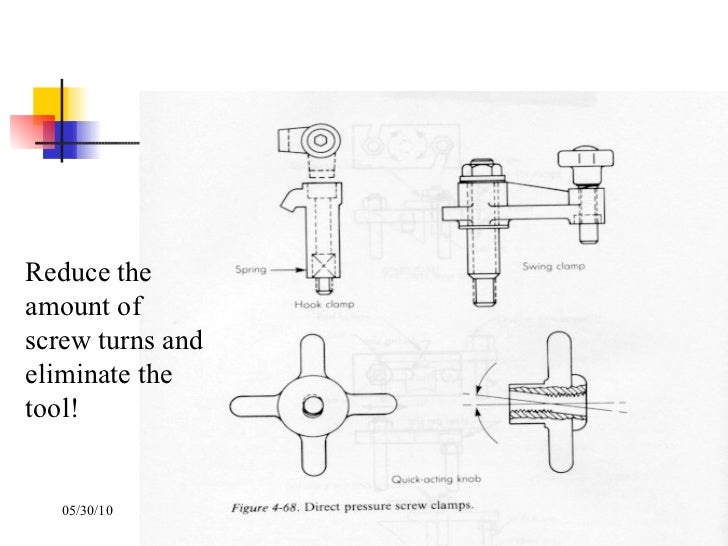

    27. 27. 05/30/10 Reduce the amount of screw turns and eliminate the tool!

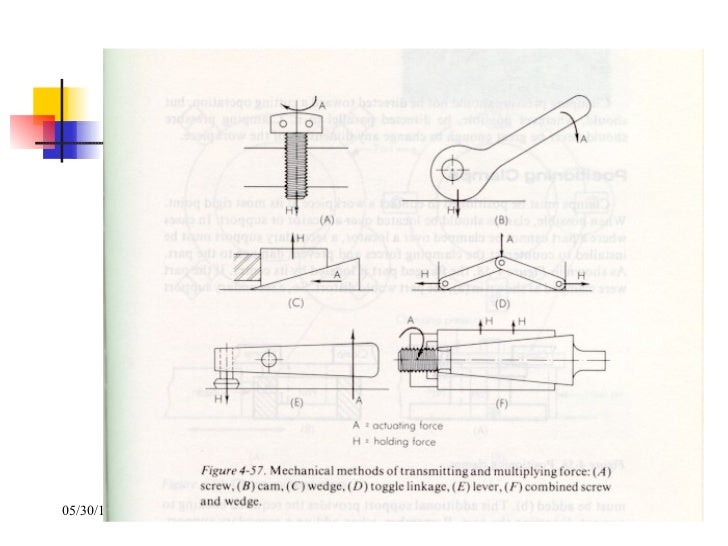

    28. 28. 05/30/10

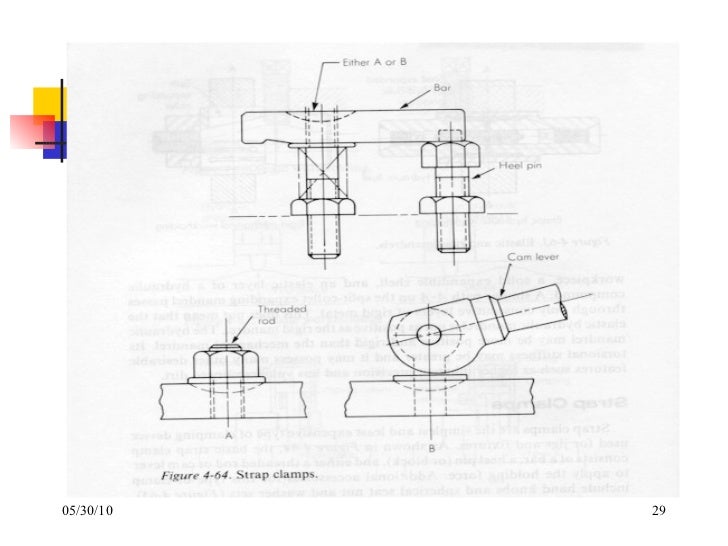

    29. 29. 05/30/10
    30. 30. 05/30/10
    31. 31. Benefits of SMED <ul><li>Increases throughput by reducing setup times </li></ul><ul><li>Eliminates setup errors </li></ul><ul><li>Increases safety </li></ul><ul><li>Reduces the cost of setups </li></ul><ul><li>Reduces waiting times and inventory buildups </li></ul><ul><li>Decreases the required skill level of the operators </li></ul>
    32. 32. Kanban <ul><li>A system that uses replenishment signals to simplify inventory management </li></ul><ul><ul><li>Signals (usually cards) hold product details </li></ul></ul><ul><ul><ul><li>What to make, when to make it, how much to make, and where to send it </li></ul></ul></ul><ul><ul><li>Cards stay attached to a bin that holds the product </li></ul></ul><ul><ul><li>When bin is empty, it is returned to the start of the assembly line for replenishment </li></ul></ul><ul><ul><li>Full bins are returned to the customer, and the cycle continues </li></ul></ul>

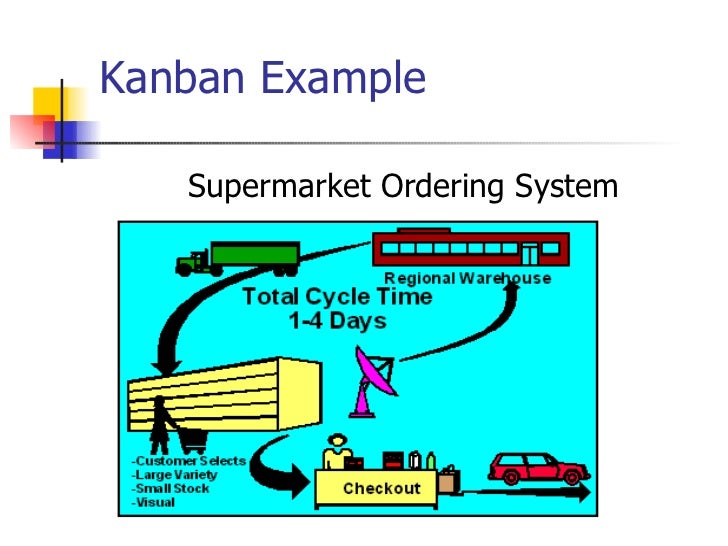

    33. 33. Kanban Example <ul><li>Supermarket Ordering System </li></ul>

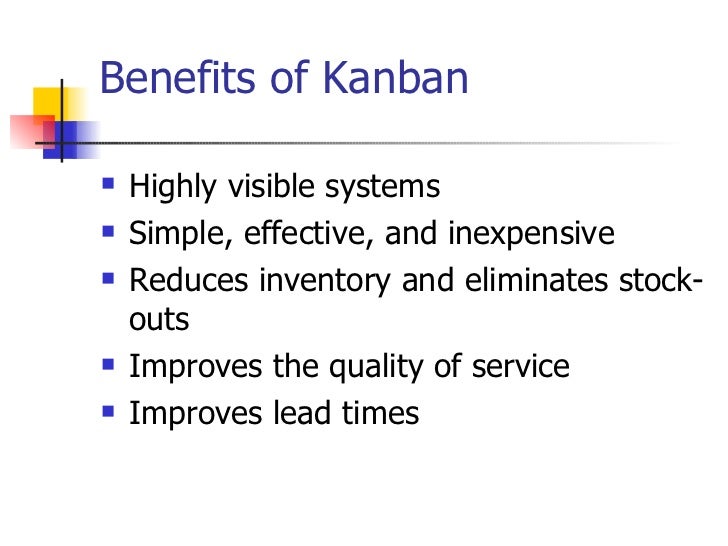

    34. 34. Benefits of Kanban <ul><li>Highly visible systems </li></ul><ul><li>Simple, effective, and inexpensive </li></ul><ul><li>Reduces inventory and eliminates stock-outs </li></ul><ul><li>Improves the quality of service </li></ul><ul><li>Improves lead times </li></ul>

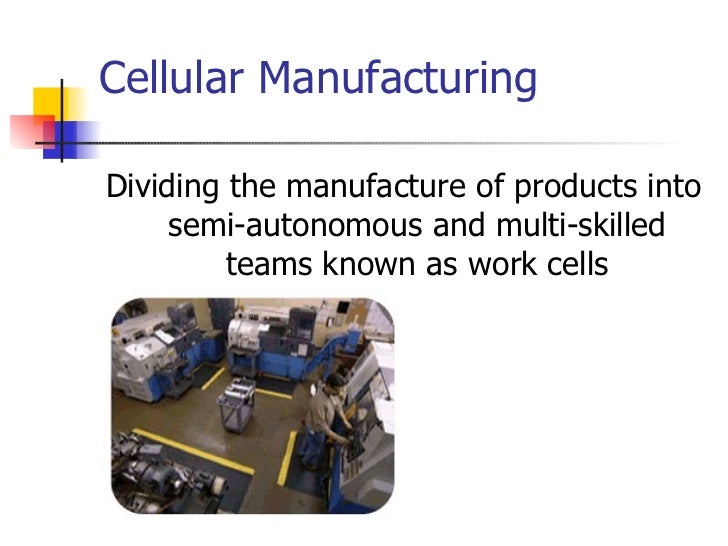

    35. 35. Cellular Manufacturing <ul><li>Dividing the manufacture of products into semi-autonomous and multi-skilled teams known as work cells </li></ul>
    36. 36. Cellular Manufacturing Example <ul><li>Functional Layout </li></ul><ul><li>Cellular Layout </li></ul>

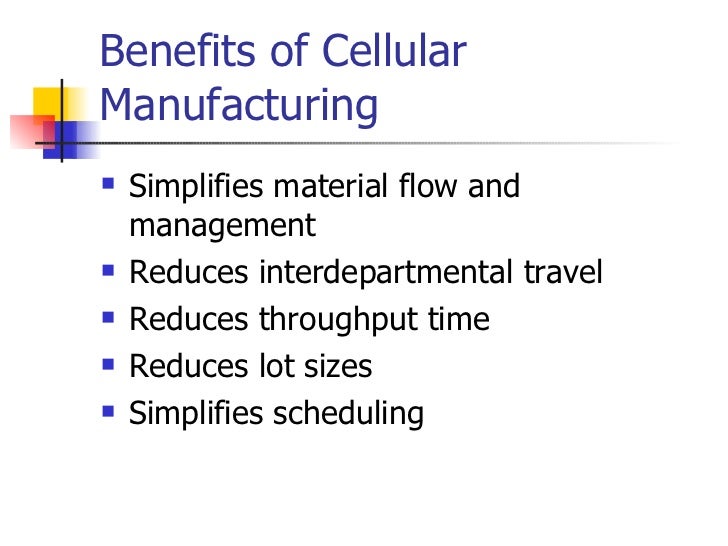

    37. 37. Benefits of Cellular Manufacturing <ul><li>Simplifies material flow and management </li></ul><ul><li>Reduces interdepartmental travel </li></ul><ul><li>Reduces throughput time </li></ul><ul><li>Reduces lot sizes </li></ul><ul><li>Simplifies scheduling </li></ul>
    38. 38. Lean Manufacturing Advantages and Disadvantages <ul><li>Advantages: </li></ul><ul><ul><li>Increased overall productivity </li></ul></ul><ul><ul><li>Reduced amount of floor space required </li></ul></ul><ul><ul><li>Reduced manufacturing lead time </li></ul></ul><ul><ul><li>Improved flexibility to react to changes </li></ul></ul><ul><ul><li>Improved quality </li></ul></ul><ul><li>Disadvantages: </li></ul><ul><ul><li>Difficulty involved with changing processes to implement lean principals </li></ul></ul><ul><ul><li>Long term commitment required </li></ul></ul><ul><ul><li>Very risky process - expect supply chain issues while changing over to lean </li></ul></ul>
    39. 39. People <ul><li>Transition to Lean is difficult since a company must build a culture where learning and continuous improvement are the norm. </li></ul><ul><li>Success of lean requires the full commitment and involvement of all employees and of the company’s suppliers. </li></ul>
    40. 40. How People Benefit from Lean Element Traditional Lean Improvement Communication Slow & Uncertain Fast & Positive Quality & Coordination Teamwork Inhibited Enhanced Effective Teams Motivation Negative, Extrinsic Positive, Intrinsic Strong Motivation Skill Range Narrow Broad Job Enrichment Supervision Difficult and Fragmented Easy & Localized Fewer Supervisors
    41. 41. How Customer’s Benefit from Lean Element Traditional Lean Improvement Response Weeks Hours 70-90% Customization Difficult Easy Competitive Advantage Delivery Speed Weeks-Months Days 70-90% Delivery Reliability Erratic Consistent & High Up to 90% Delivery Quantities Large Shipments JIT as Required Locks in JIT Customers Quality Erratic Consistent & High Delighted Customers
    42. 42. House of Lean
    43. 43. Economics <ul><li>Reduction of Inventory </li></ul><ul><ul><li>Less space necessary to hold inventory </li></ul></ul><ul><li>Reduced Waste </li></ul><ul><ul><li>Decreased Production Cost </li></ul></ul><ul><li>Increased market share </li></ul><ul><ul><li>Able to provide what the customer wants quickly </li></ul></ul><ul><li>Increased competitive advantage </li></ul><ul><ul><li>Faster response to the customer </li></ul></ul><ul><ul><li>Lower Cost </li></ul></ul><ul><ul><li>Higher Quality </li></ul></ul>

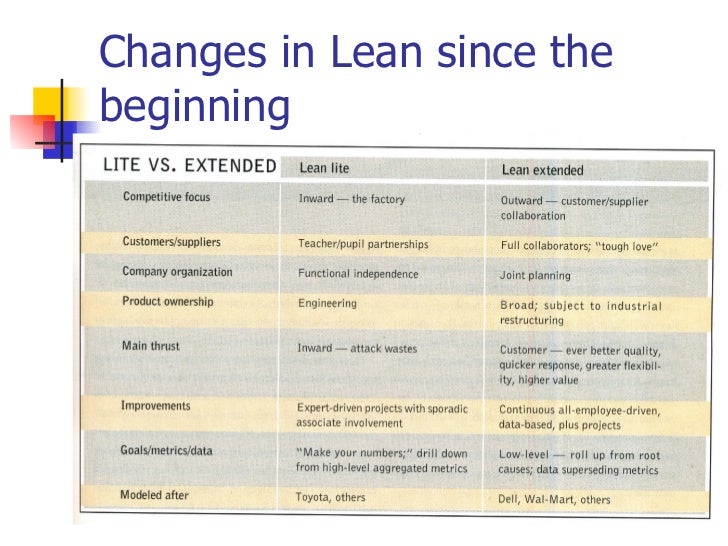

    44. 44. Changes in Lean since the beginning
    45. 45. Inventory Comparison <ul><li>Inventory Turnover – annual cost of goods sold from the income statement divided by the value of inventory from the balance sheet </li></ul>

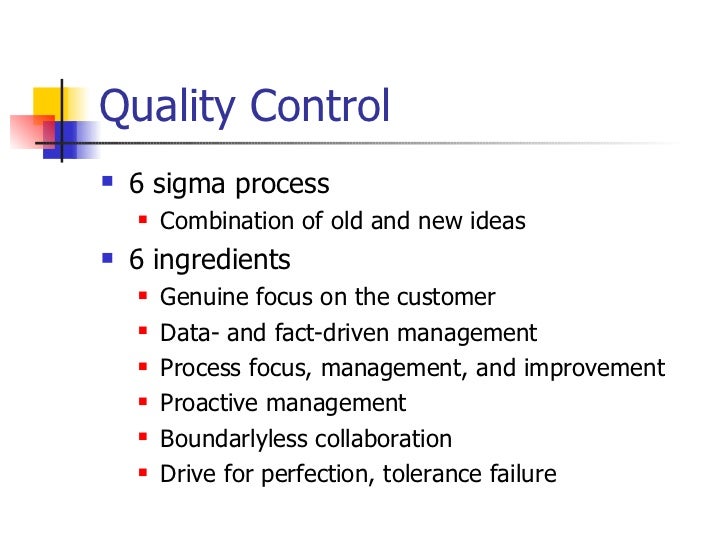

    46. 46. Quality Control <ul><li>6 sigma process </li></ul><ul><ul><li>Combination of old and new ideas </li></ul></ul><ul><li>6 ingredients </li></ul><ul><ul><li>Genuine focus on the customer </li></ul></ul><ul><ul><li>Data- and fact-driven management </li></ul></ul><ul><ul><li>Process focus, management, and improvement </li></ul></ul><ul><ul><li>Proactive management </li></ul></ul><ul><ul><li>Boundarlyless collaboration </li></ul></ul><ul><ul><li>Drive for perfection, tolerance failure </li></ul></ul>
    47. 47. Lean Maintenance
    48. 48. A Simultaneous Approach

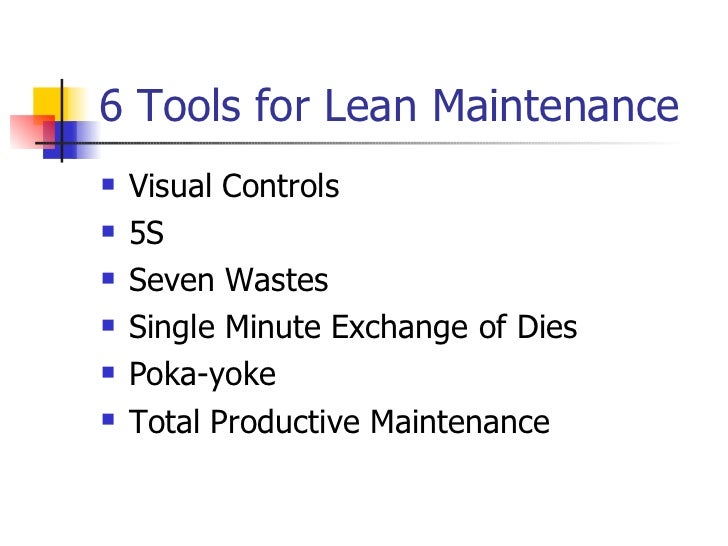

    49. 49. 6 Tools for Lean Maintenance <ul><li>Visual Controls </li></ul><ul><li>5S </li></ul><ul><li>Seven Wastes </li></ul><ul><li>Single Minute Exchange of Dies </li></ul><ul><li>Poka-yoke </li></ul><ul><li>Total Productive Maintenance </li></ul>
    50. 51. Other impacts of Lean <ul><li>Bell South – service industry </li></ul><ul><ul><li>Management system and operations Control </li></ul></ul><ul><ul><ul><li>Process management, work measurement, management control, and people development </li></ul></ul></ul><ul><ul><li>Combines lean and 6 sigma </li></ul></ul><ul><li>Woburn Safari Parks </li></ul><ul><ul><li>Feed logistics </li></ul></ul><ul><ul><li>Animal Resource Planning </li></ul></ul>
    51. 52. Background <ul><li>Poli-film America Inc. a division of a German owned company. </li></ul><ul><li>Manufactures protective masking that prevents abrasion and staining of exposed surfaces during manufacturing and delivery </li></ul><ul><li>Industries Using Material: </li></ul><ul><ul><li>Plastics </li></ul></ul><ul><ul><li>Automotives </li></ul></ul><ul><ul><li>Construction </li></ul></ul><ul><ul><li>Electronics </li></ul></ul><ul><ul><li>Laminates </li></ul></ul><ul><ul><li>Furniture </li></ul></ul><ul><ul><li>Textiles </li></ul></ul><ul><li>High demand product </li></ul><ul><li>24/7 production </li></ul>

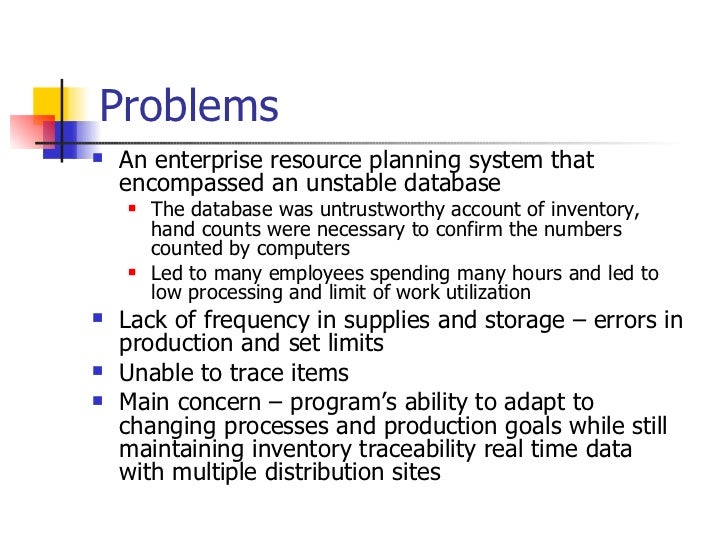

    52. 53. Problems <ul><li>An enterprise resource planning system that encompassed an unstable database </li></ul><ul><ul><li>The database was untrustworthy account of inventory, hand counts were necessary to confirm the numbers counted by computers </li></ul></ul><ul><ul><li>Led to many employees spending many hours and led to low processing and limit of work utilization </li></ul></ul><ul><li>Lack of frequency in supplies and storage – errors in production and set limits </li></ul><ul><li>Unable to trace items </li></ul><ul><li>Main concern – program’s ability to adapt to changing processes and production goals while still maintaining inventory traceability real time data with multiple distribution sites </li></ul>

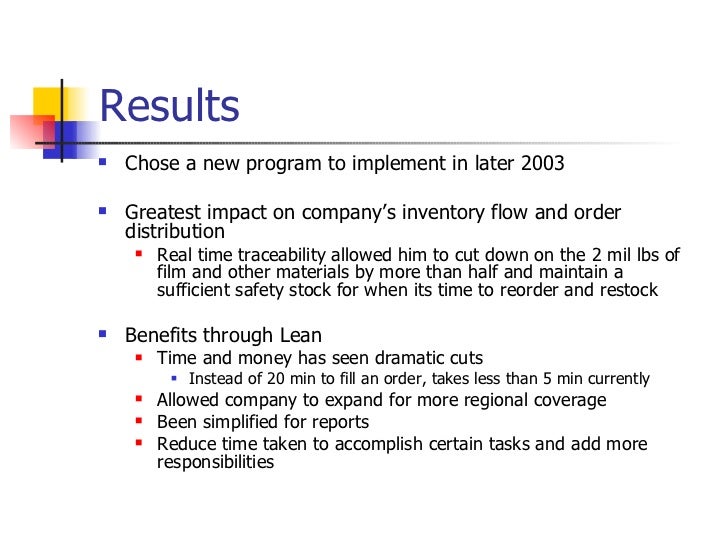

    53. 54. Results <ul><li>Chose a new program to implement in later 2003 </li></ul><ul><li>Greatest impact on company’s inventory flow and order distribution </li></ul><ul><ul><li>Real time traceability allowed him to cut down on the 2 mil lbs of film and other materials by more than half and maintain a sufficient safety stock for when its time to reorder and restock </li></ul></ul><ul><li>Benefits through Lean </li></ul><ul><ul><li>Time and money has seen dramatic cuts </li></ul></ul><ul><ul><ul><li>Instead of 20 min to fill an order, takes less than 5 min currently </li></ul></ul></ul><ul><ul><li>Allowed company to expand for more regional coverage </li></ul></ul><ul><ul><li>Been simplified for reports </li></ul></ul><ul><ul><li>Reduce time taken to accomplish certain tasks and add more responsibilities </li></ul></ul>

    ×
