The Semantic Knowledge Graph:
A compact, auto-generated model for real-time traversal
and ranking of any relationship with...
Trey Grainger
SVP of Engineering
• Previously Director of Engineering @ CareerBuilder
• MBA, Management of Technology – Ge...
Terminology / Background
A Graph
DSAA 2016
Montreal
Quebec Canada
Semantic
Knowledge
Graph Paper
Trey
Grainger
Mohammed
Korayem
Andries
Smith
Khali...
“Solr is the popular, blazing-fast,
open source enterprise search
platform built on Apache Lucene™.”
Key Solr Features:
● Multilingual Keyword search
● Relevancy Ranking of results
● Faceting & Analytics
● Highlighting
● Sp...
Term Documents
a doc1 [2x]
brown doc3 [1x] , doc5 [1x]
cat doc4 [1x]
cow doc2 [1x] , doc5 [1x]
… ...
once doc1 [1x], doc5 ...
/solr/select/?q=apache solr
Term Documents
… …
apache doc1, doc3, doc4,
doc5
…
hadoop doc2, doc4, doc6
… …
solr doc1, doc3...
Related Work
Knowledge
Graph
Related Work
• Primarily related to ontology Learning.
• Recently, large-scale knowledge bases that utiliz...
Problem Description
Knowledge
Graph
Challenges we are solving
Because current knowledge bases / ontology learning systems typically
requires e...
Knowledge
Graph
Semantic Data Encoded into Free Text Content
e en eng engi engineer engineers
engineer engineersNode Type:...
Model
id: 1
job_title: Software Engineer
desc: software engineer at a
great company
skills: .Net, C#, java
id: 2
job_title: Regi...
Knowledge
Graph
Set-theory View
Graph View
How the Graph Traversal Works
skill: Java
skill: Scala
skill:
Hibernate
skill:
...
Knowledge
Graph
Graph Model
Structure:
Single-level Traversal / Scoring:
Multi-level Traversal / Scoring:
Knowledge
Graph
Multi-level Traversal
Data Structure View
Graph View
doc 1
doc 2
doc 3
doc 4
doc 5
doc 6
skill:
Java
skill...
Knowledge
Graph
Scoring nodes in the Graph
Foreground vs. Background Analysis
Every term scored against it’s context. The ...
Source: Trey Grainger,
Khalifeh AlJadda, Mohammed
Korayem, Andries Smith.“The
Semantic Knowledge Graph: A
compact, auto-ge...
Knowledge
Graph
Materialization of new nodes through shared documents
engineer
engineers
software engineer*
(materialized ...
Implementation
Open Sourced!
Knowledge
Graph
Populating the Graph
Knowledge
Graph
Knowledge
Graph
Experiments
Knowledge
Graph
Data Cleansing
{ "type":"keywords”, "values":[
{ "value":"hive", "relatedness": 0.9765, "popularity":369 }...
Knowledge
Graph
Predictive Analytics
Knowledge
Graph
Search Expansion
Experiment: Take an initial query, and expand keyword
phrases to include the most related...
The Semantic Search Problem
User’s Query:
machine learning research and development Portland, OR software
engineer AND had...
machine learning
Keywords:
Search Behavior,
Application Behavior, etc.
Job Title Classifier, Skills Extractor, Job Level C...
Knowledge
Graph
Document Summarization
Experiment: Pass in raw text
(extracting phrases as needed), and
rank their similar...
Document Enrichment – Find / Score Relationships
Document Summarization – Rank / Clean Keywords
Knowledge
Graph
Future Work
• Semantic Search (more experiments)
• Search Engine Relevancy Algorithms
• Trending Topics
• ...
Knowledge
Graph
Conclusion
Applications:
The Semantic Knowledge Graph has numerous applications, including
automatically b...
Knowledge
Graph
References
Contact Info
Trey Grainger
trey.grainger@lucidworks.com
@treygrainger
http://solrinaction.com
Other presentations:
http://...
The Semantic Knowledge Graph
Upcoming SlideShare
Loading in …5
×

The Semantic Knowledge Graph

7,720 views

Published on

Presentation of the Semantic Knowledge Graph research paper at the 2016 IEEE 3rd International Conference on Data Science and Advanced Analytics (Montreal, Canada - October 18th, 2016)

Abstract—This paper describes a new kind of knowledge representation and mining system which we are calling the Semantic Knowledge Graph. At its heart, the Semantic Knowledge Graph leverages an inverted index, along with a complementary uninverted index, to represent nodes (terms) and edges (the documents within intersecting postings lists for multiple terms/nodes). This provides a layer of indirection between each pair of nodes and their corresponding edge, enabling edges to materialize dynamically from underlying corpus statistics. As a result, any combination of nodes can have edges to any other nodes materialize and be scored to reveal latent relationships between the nodes. This provides numerous benefits: the knowledge graph can be built automatically from a real-world corpus of data, new nodes - along with their combined edges - can be instantly materialized from any arbitrary combination of preexisting nodes (using set operations), and a full model of the semantic relationships between all entities within a domain can be represented and dynamically traversed using a highly compact representation of the graph. Such a system has widespread applications in areas as diverse as knowledge modeling and reasoning, natural language processing, anomaly detection, data cleansing, semantic search, analytics, data classification, root cause analysis, and recommendations systems. The main contribution of this paper is the introduction of a novel system - the Semantic Knowledge Graph - which is able to dynamically discover and score interesting relationships between any arbitrary combination of entities (words, phrases, or extracted concepts) through dynamically materializing nodes and edges from a compact graphical representation built automatically from a corpus of data representative of a knowledge domain.

Published in: Technology
  • Be the first to comment

The Semantic Knowledge Graph

  1. 1. The Semantic Knowledge Graph: A compact, auto-generated model for real-time traversal and ranking of any relationship within a domain Trey Grainger SVP of Engineering Lucidworks Khalifeh AlJadda Lead Data Scientist CareerBuilder Mohammed Korayem Data Scientist CareerBuilder Andries Smith Software Engineer CareerBuilder
  2. 2. Trey Grainger SVP of Engineering • Previously Director of Engineering @ CareerBuilder • MBA, Management of Technology – Georgia Tech • BA, Computer Science, Business, & Philosophy – Furman University • Information Retrieval & Web Search - Stanford University Fun outside of CB: • Co-author of Solr in Action, plus a handful of research papers • Frequent conference speaker • Founder of Celiaccess.com, the gluten-free search engine • Lucene/Solr contributor About Me
  3. 3. Terminology / Background
  4. 4. A Graph DSAA 2016 Montreal Quebec Canada Semantic Knowledge Graph Paper Trey Grainger Mohammed Korayem Andries Smith Khalifeh AlJadda in_country Node / Vertex Edge
  5. 5. “Solr is the popular, blazing-fast, open source enterprise search platform built on Apache Lucene™.”
  6. 6. Key Solr Features: ● Multilingual Keyword search ● Relevancy Ranking of results ● Faceting & Analytics ● Highlighting ● Spelling Correction ● Autocomplete/Type-ahead Prediction ● Sorting, Grouping, Deduplication ● Distributed, Fault-tolerant, Scalable ● Geospatial search ● Complex Function queries ● Recommendations (More Like This) ● … many more *source: Solr in Action, chapter 2
  7. 7. Term Documents a doc1 [2x] brown doc3 [1x] , doc5 [1x] cat doc4 [1x] cow doc2 [1x] , doc5 [1x] … ... once doc1 [1x], doc5 [1x] over doc2 [1x], doc3 [1x] the doc2 [2x], doc3 [2x], doc4[2x], doc5 [1x] … … Document Content Field doc1 once upon a time, in a land far, far away doc2 the cow jumped over the moon. doc3 the quick brown fox jumped over the lazy dog. doc4 the cat in the hat doc5 The brown cow said “moo” once. … … What you SEND to Lucene/Solr: How the content is INDEXED into Lucene/Solr (conceptually): The inverted index
  8. 8. /solr/select/?q=apache solr Term Documents … … apache doc1, doc3, doc4, doc5 … hadoop doc2, doc4, doc6 … … solr doc1, doc3, doc4, doc7, doc8 … … doc5 doc7 doc8 doc1 doc3 doc4 solr apache apache solr Matching queries to documents
  9. 9. Related Work

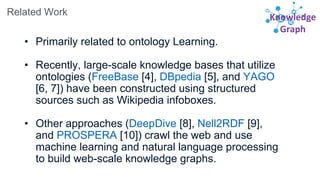

  10. 10. Knowledge Graph Related Work • Primarily related to ontology Learning. • Recently, large-scale knowledge bases that utilize ontologies (FreeBase [4], DBpedia [5], and YAGO [6, 7]) have been constructed using structured sources such as Wikipedia infoboxes. • Other approaches (DeepDive [8], Nell2RDF [9], and PROSPERA [10]) crawl the web and use machine learning and natural language processing to build web-scale knowledge graphs.
