This document describes a wireless human health monitor system that consists of a transmitter and receiver. The transmitter monitors a patient's temperature using an LM35 temperature sensor and heart rate using a heart beat sensor. It transmits this health data via RF modules to the receiver. The receiver, which is placed with the doctor, then displays the patient's condition on an LCD screen allowing the doctor to remotely monitor the patient. The system aims to bridge the gap between patients and doctors especially in rural areas.

1. WIRELESS HUMAN HEALTH
MONITOR
NAME REG NO
G.UMESH CHANDRA REDDY 15BEC0681
P POOJITH KUMAR 15BEC0224
I SAI THARUN VARMA 15BEC0475
G.VAMSI KRISHNA 15BEC0217
P. MADHAV 15BEC0099

2. ABSTRACT
• In this project, a wireless communication system is designed and developed
for remote patient monitoring. The primary function of this system is to
monitor the temperature of a patient’s body, and display the same to the
doctor through RF communication. The specialist at a distance can monitor
the patient condition so that he can check the condition of the patient.

3. COMPONENTS
• 8051MICROCONTROLLER
• ENCODER IC
• DECODER IC
• LCD DISPLAY
• A/D CONVERTER
• TRANSFORMER
• VOLTAGE REGULATOR
• RF MODULE
• LM 35 (TEMPERATURE SENSOR )
• HEART BEAT SENSOR

4. BLOCK DIAGRAM
THE TRANSMITTER TRANSMITS THE HEART BEAT
COUNT AND TEMPERATURE OF PATIENT.
DATA TRANSMITTED VIA GSM MODEM AS SMS.
TRANSMITTER IS PLACED NEAR THE PATIENT.
RECEIVER RECEIVES THE DATA.
 RECEIVER IS PLACED AT THE DOCTOR’S SIDE.

5. WORKING PRINCIPLE
 There are mainly two parts of the system one is transmitter and the other one is
the receiver.
 In the transmitter, we have heartbeat sensor, and the temperature sensor.
 All the sensors are connected to the patient
 The microcontroller monitors the all the system in the transmitter and check the
patient condition then it sends the signal, so that the receiver will capture the
signal and will display the condition of the patient.

6. TRANSMITTER RECEIVER

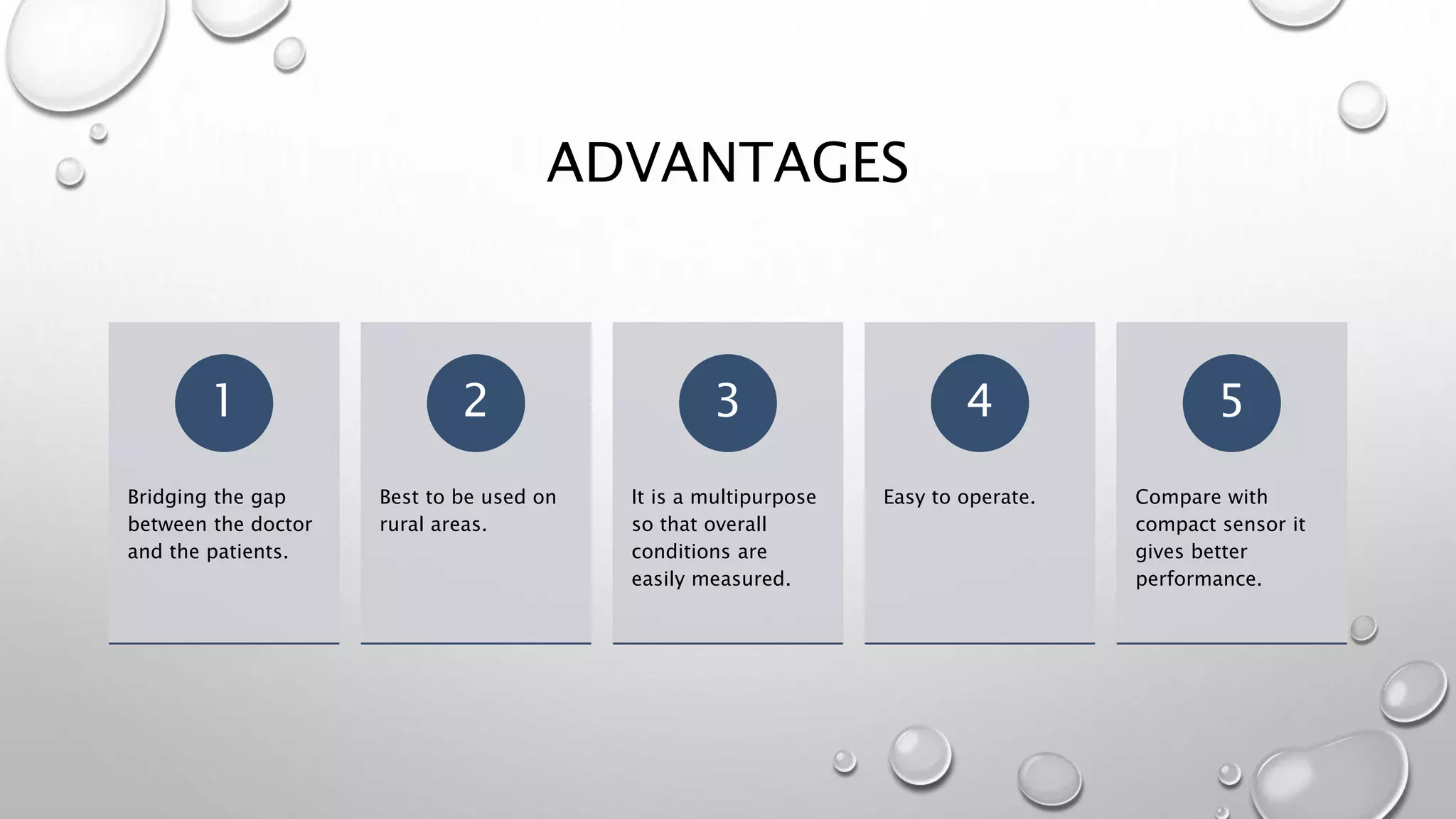

7. ADVANTAGES
Bridging the gap
between the doctor
and the patients.
1
Best to be used on
rural areas.
2
It is a multipurpose
so that overall
conditions are
easily measured.
3
Easy to operate.
4
Compare with
compact sensor it
gives better
performance.
5

8. DISADVANTAGES
• THIS SYSTEM CANNOT PROVIDE IMMEDIATE TREATMENT
.
This system cannot
provide immediate
treatment
1
Due to noise the results
may not be accurate
2 3

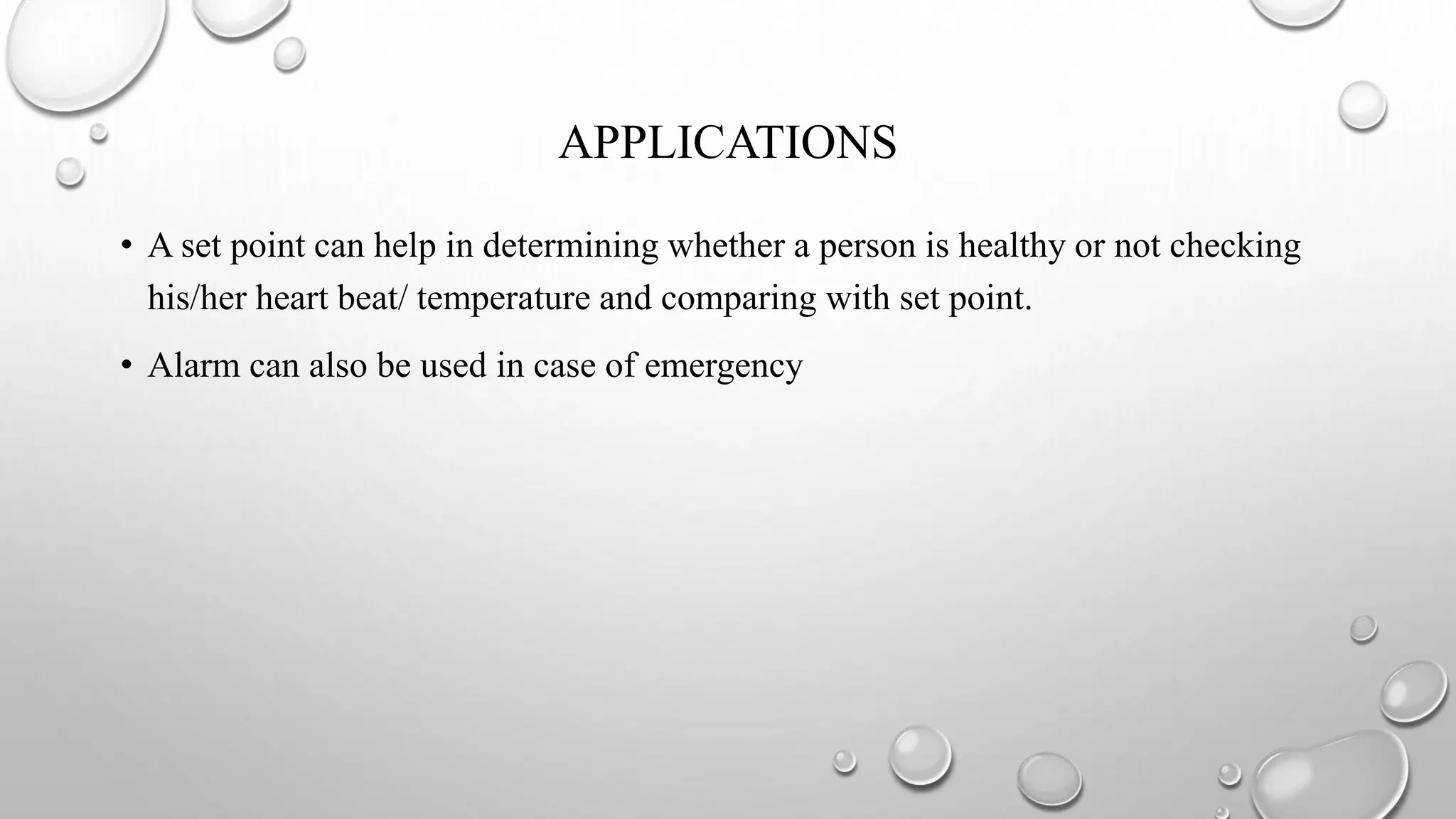

9. APPLICATIONS
• A set point can help in determining whether a person is healthy or not checking
his/her heart beat/ temperature and comparing with set point.
• Alarm can also be used in case of emergency

10. FUTURE SCOPE
Multiple parameters like blood pressure, retinal size, age and weight can be
included as controlling parameters in the future.
This system also developed by using advanced gsm and gprs technology in
future.
