Wireless electronic notice boards have been designed to eliminate the manual work of updating notices across multiple boards. At the transmitter end, a user types messages using a keyboard which are encoded and transmitted via RF to any number of receiver boards. The receiver decodes the RF signals and displays the messages on an electronic screen, providing a faster and more reliable way to share notices throughout a school or college campus.

1. WIRELESS ELECTRONIC NOTICE BOARD
USING RF
Notice boards play a vital role mostly in educational institutions. The
events, occasions or any news, which has to be passed to the students, will be
written on the notice boards present in every floor in the colleges or schools.
The present system is like, a person will be told the news and he has to update
this news on all the notice boards present in the college or school. This will be
seen mostly during the examination seasons.
The time table or the schedule of the exams has to be given to the
students. This will be done by writing the details on the notice boards. But this
process consumes a lot time to update the news on all the notice boards and
there may be chances that the person responsible may commit some mistakes
or he may be absent sometimes. So, this may create disturbances and the entire
schedule may be disturbed. To avoid all these, Wireless Notice Board have
been designed which completely eliminates the manual work.
This project uses the wireless communication, RF. The RF modules used
here are STT-433 MHz Transmitter, STR-433 MHz Receiver, HT640 RF
Encoder and HT648 RF Decoder.
The RF transmitter along with the RF encoder will be present at the
Principal or the person related to the issues to be displayed on the notice board.
PC keyboard is used as the input device here in this project. Whenever the user
wants to send the news updated to the notice board, he types that particular
message using keyboard and the same data will be transmitted through RF
transmitter.
At the receiving end, the RF receiver and the decoder will be fixed to the
display panel. The receiver receives the data coming from the transmitter and
the same data will be received by the microcontroller at the receiver end.
The microcontroller sends this data to the display unit and thus the
message given by the user at the transmitter end will be displayed.

2. This project uses regulated 5V, 500mA power supply. 7805 three
terminal voltage regulator is used for voltage regulation. Bridge type full wave
rectifier is used to rectify the ac output of secondary of 230/12V step down
transformer.

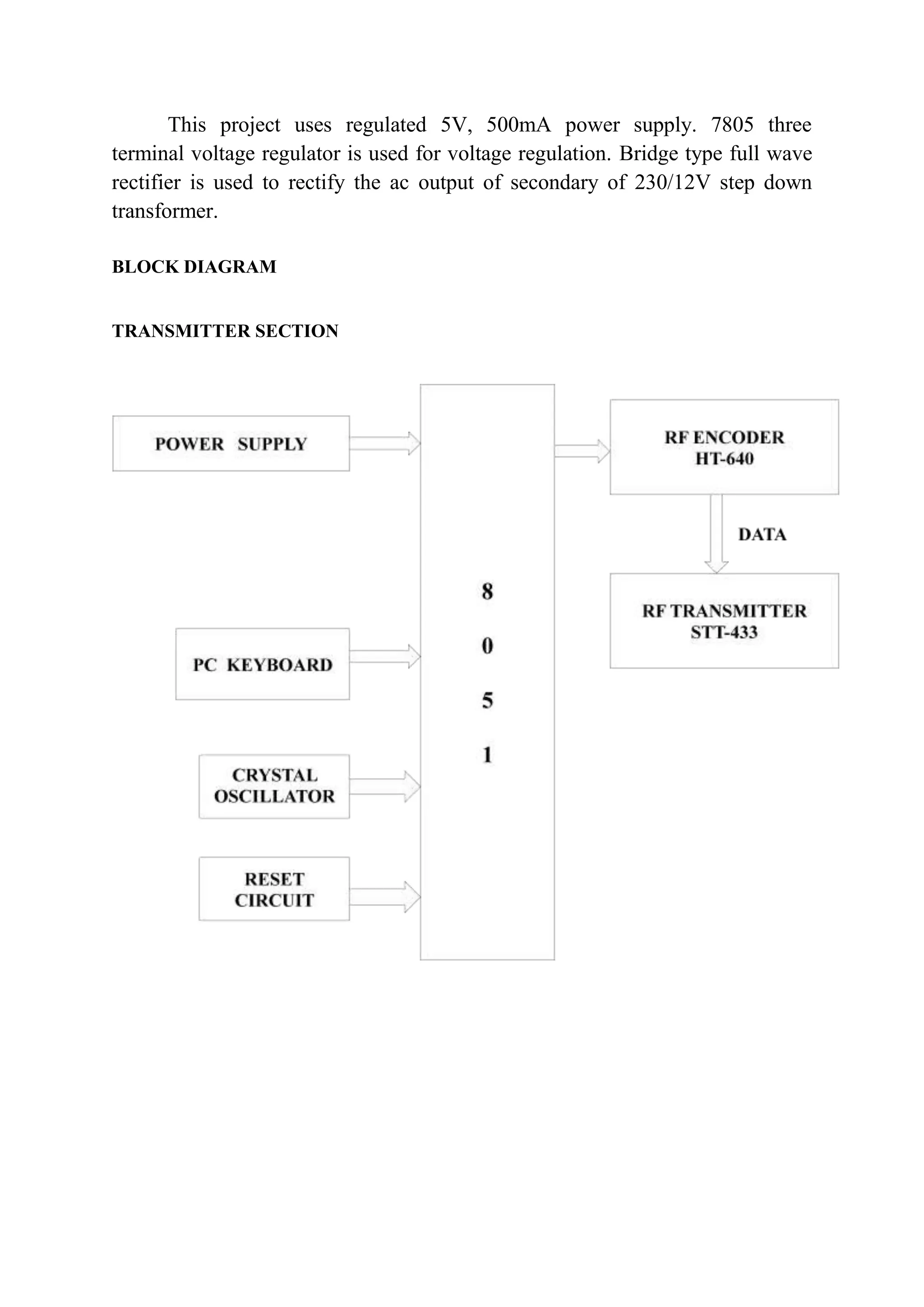

BLOCK DIAGRAM
TRANSMITTER SECTION

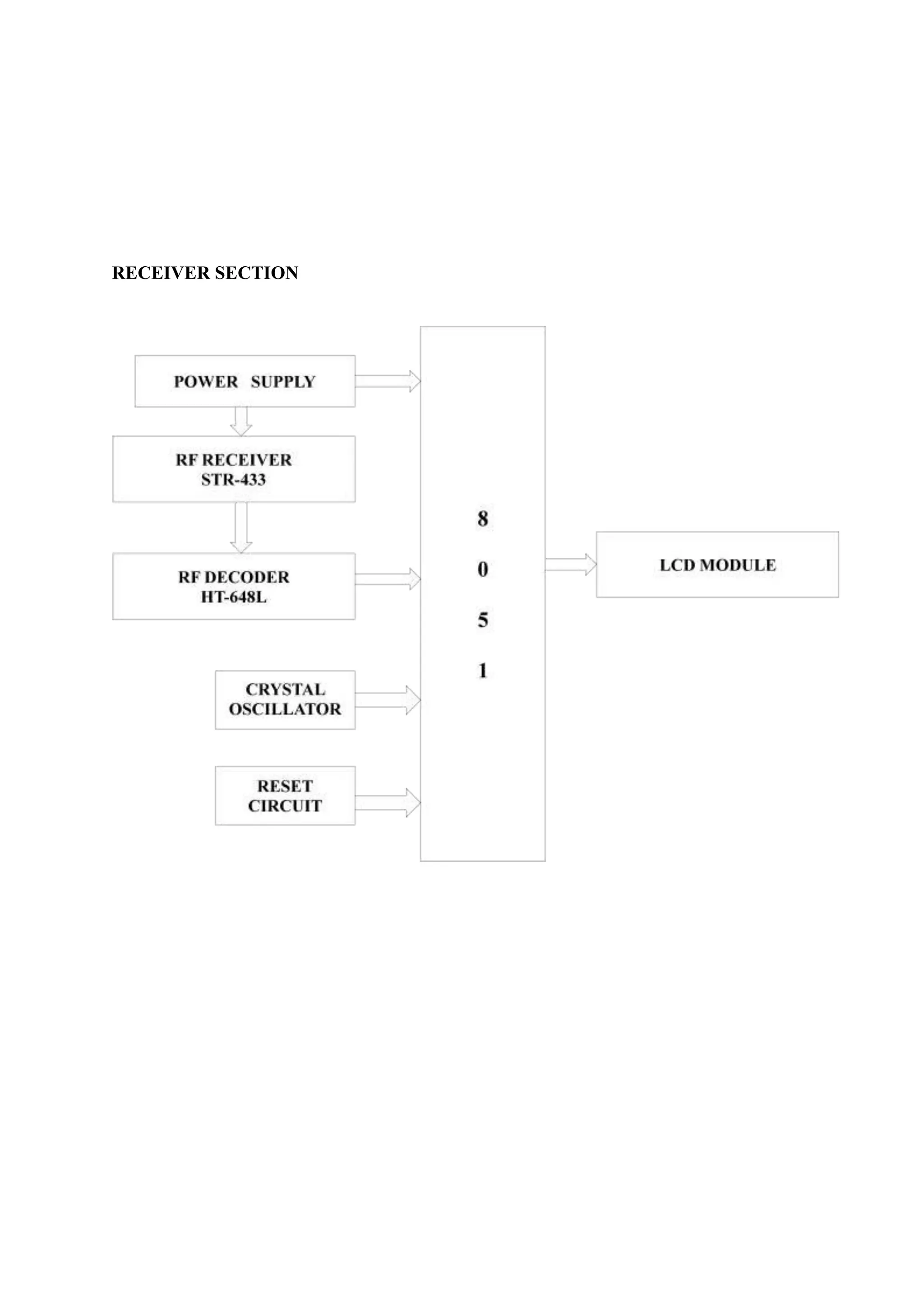

3. RECEIVER SECTION
