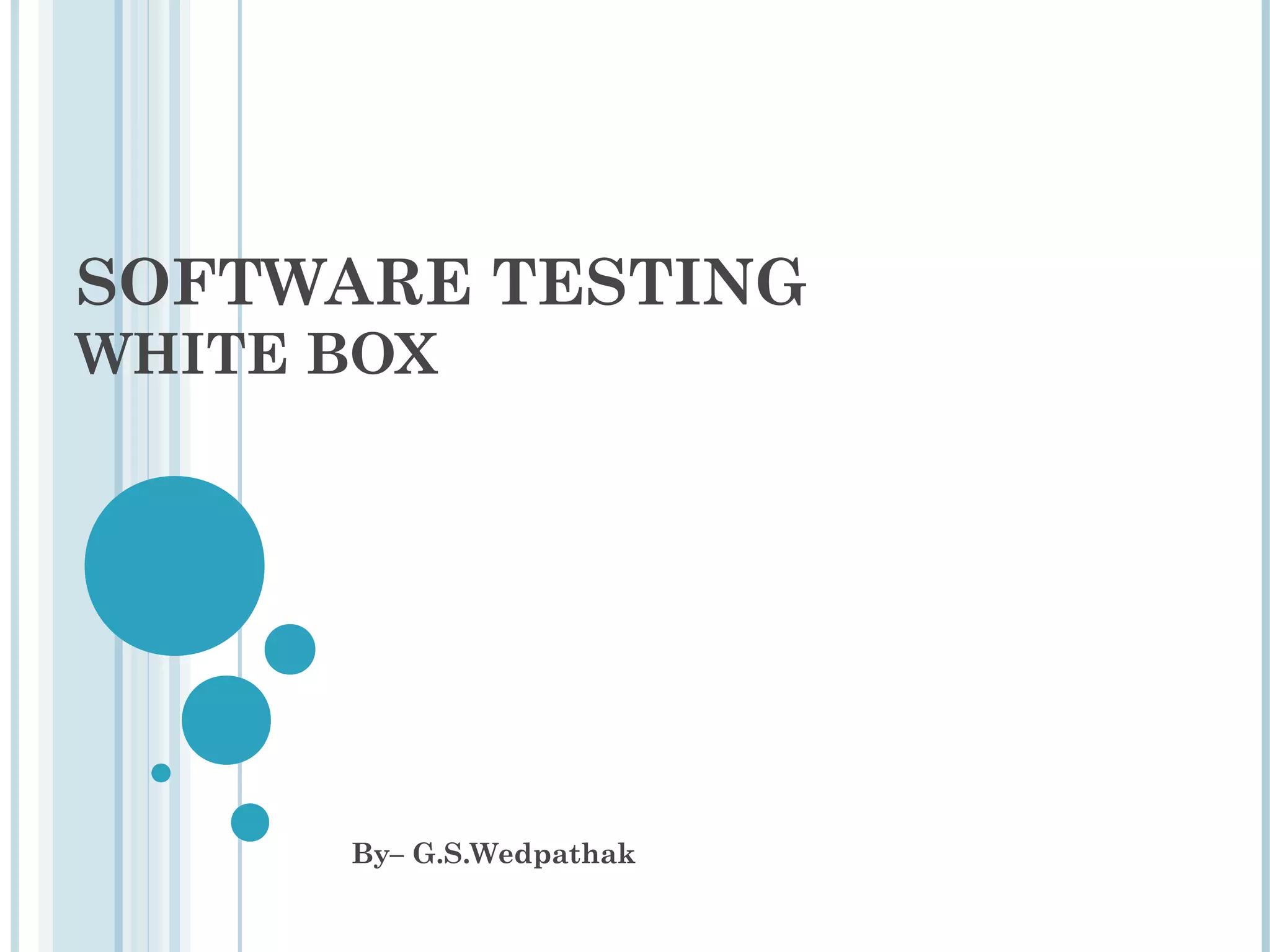

1. SOFTWARE TESTING
WHITE BOX
By– G.S.Wedpathak

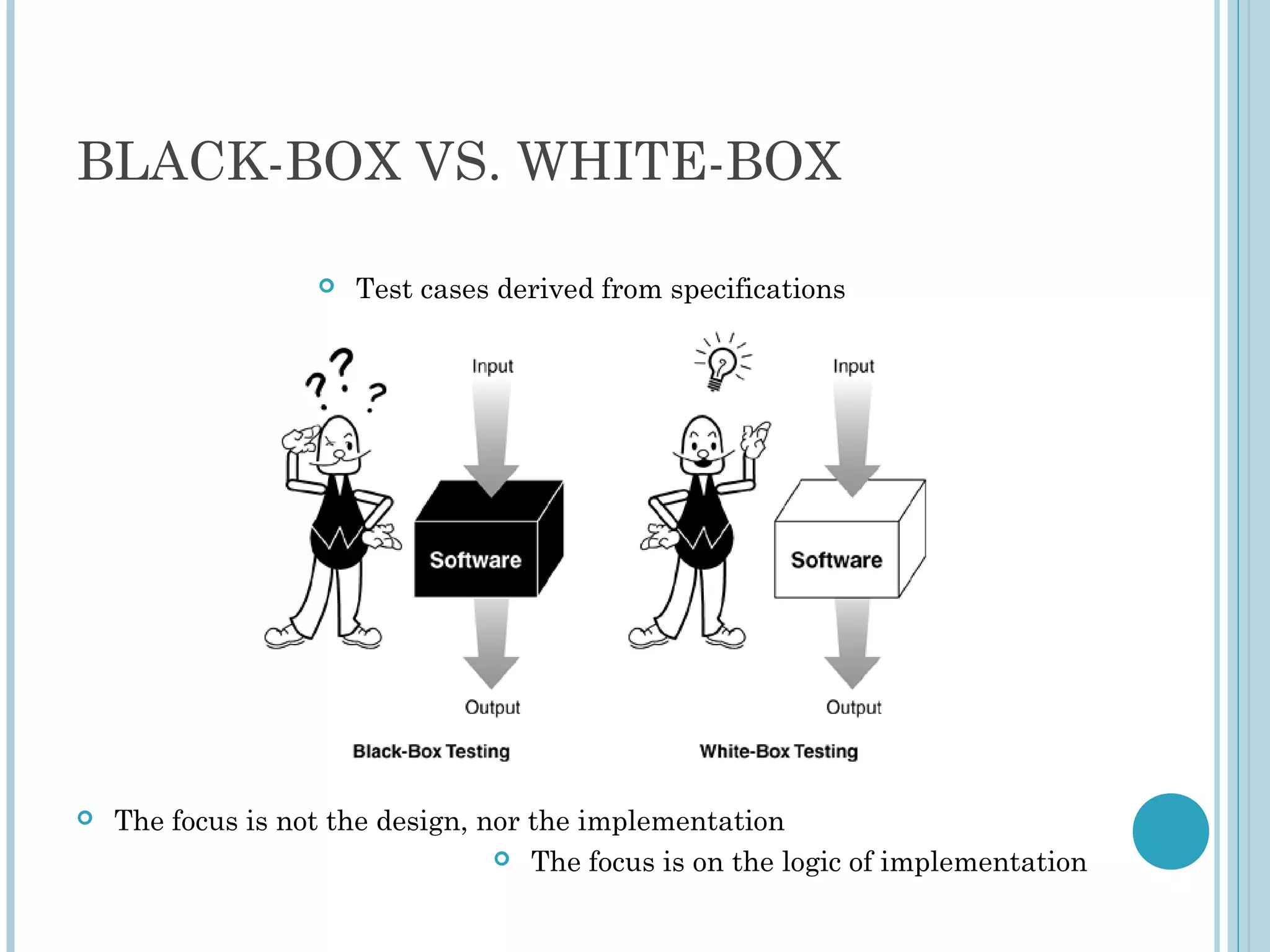

2. BLACK-BOX VS. WHITE-BOX
 Test cases derived from specifications
 The focus is not the design, nor the implementation
 The focus is on the logic of implementation

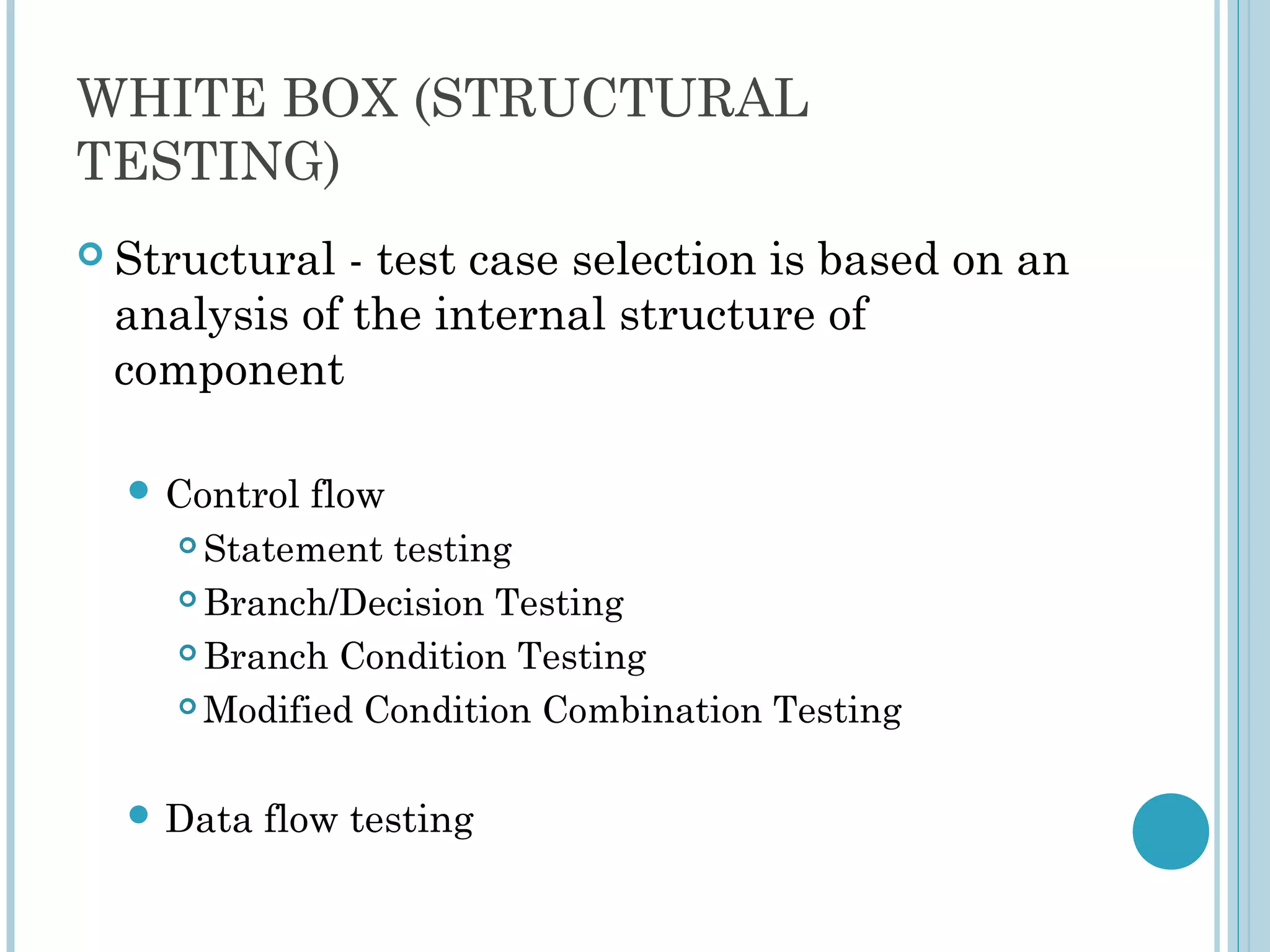

3. WHITE BOX (STRUCTURAL
TESTING)
 Structural - test case selection is based on an
analysis of the internal structure of
component
 Control flow
 Statement testing
 Branch/Decision Testing
 Branch Condition Testing
 Modified Condition Combination Testing
 Data flow testing

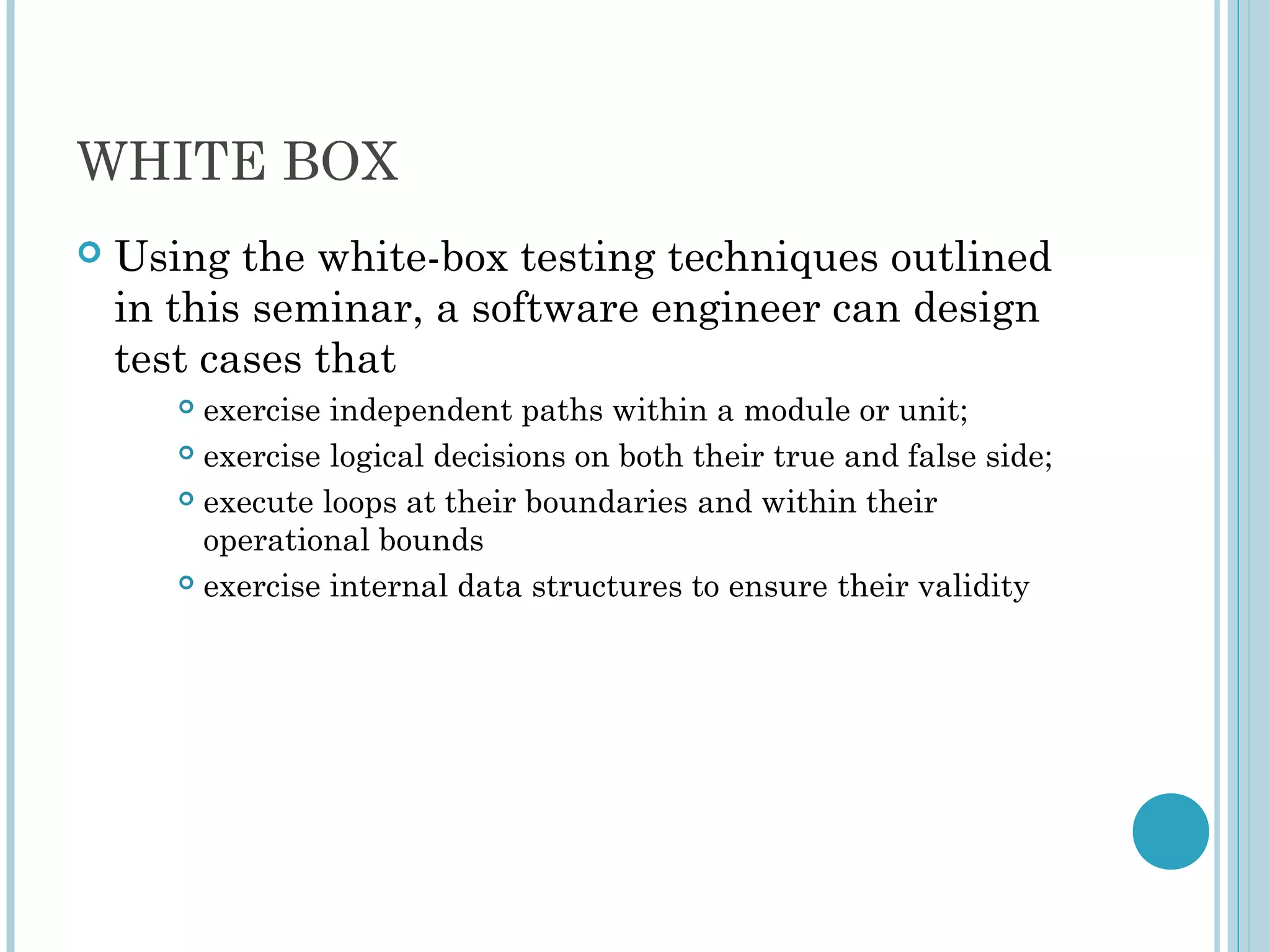

4. WHITE BOX
 Using the white-box testing techniques outlined
in this seminar, a software engineer can design
test cases that
 exercise independent paths within a module or unit;
 exercise logical decisions on both their true and false side;
 execute loops at their boundaries and within their
operational bounds
 exercise internal data structures to ensure their validity

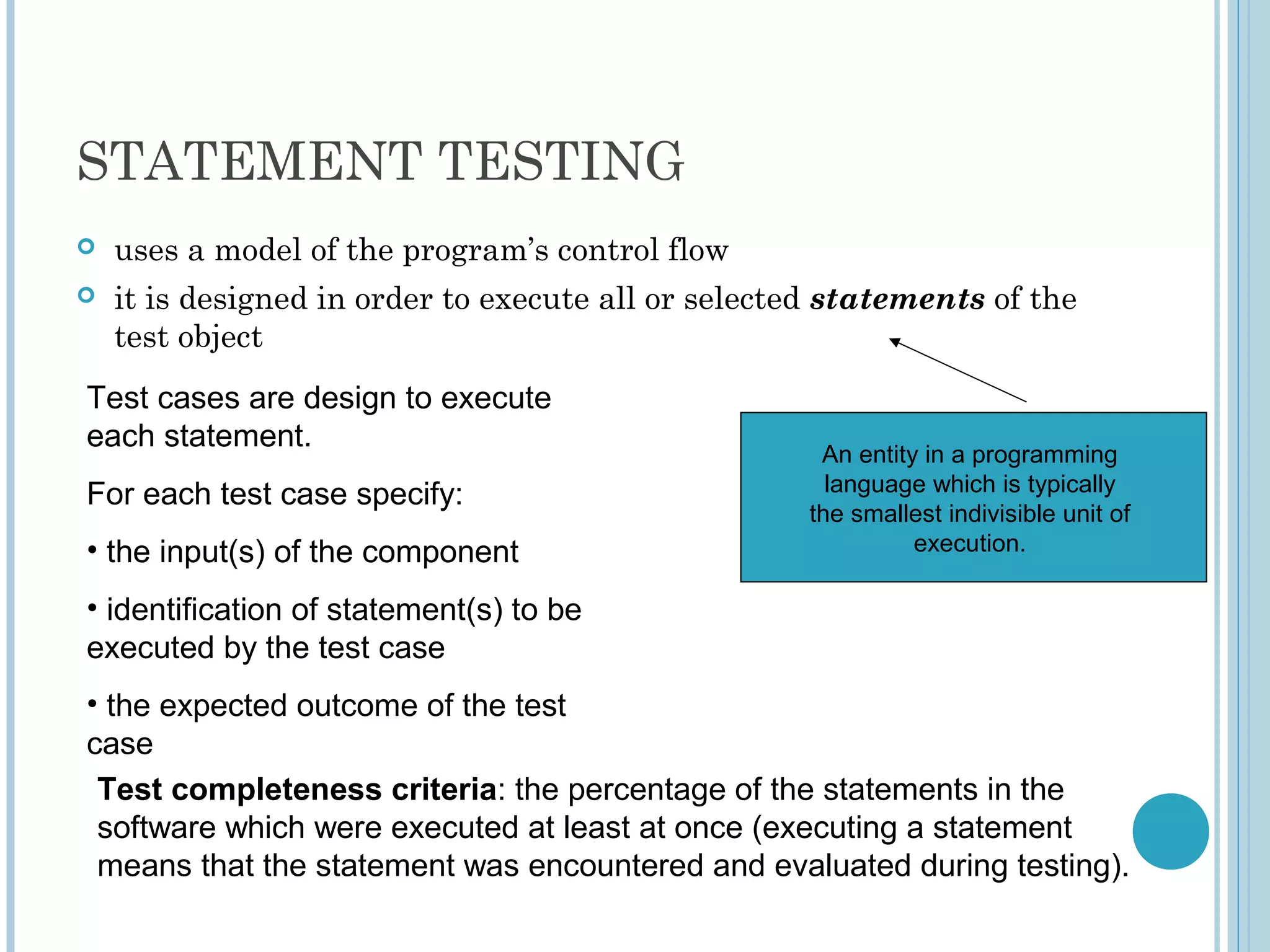

5. STATEMENT TESTING
 uses a model of the program’s control flow
 it is designed in order to execute all or selected statements of the
test object
An entity in a programming
language which is typically
the smallest indivisible unit of
execution.
Test cases are design to execute
each statement.
For each test case specify:
• the input(s) of the component
• identification of statement(s) to be
executed by the test case
• the expected outcome of the test
case
Test completeness criteria: the percentage of the statements in the
software which were executed at least at once (executing a statement
means that the statement was encountered and evaluated during testing).

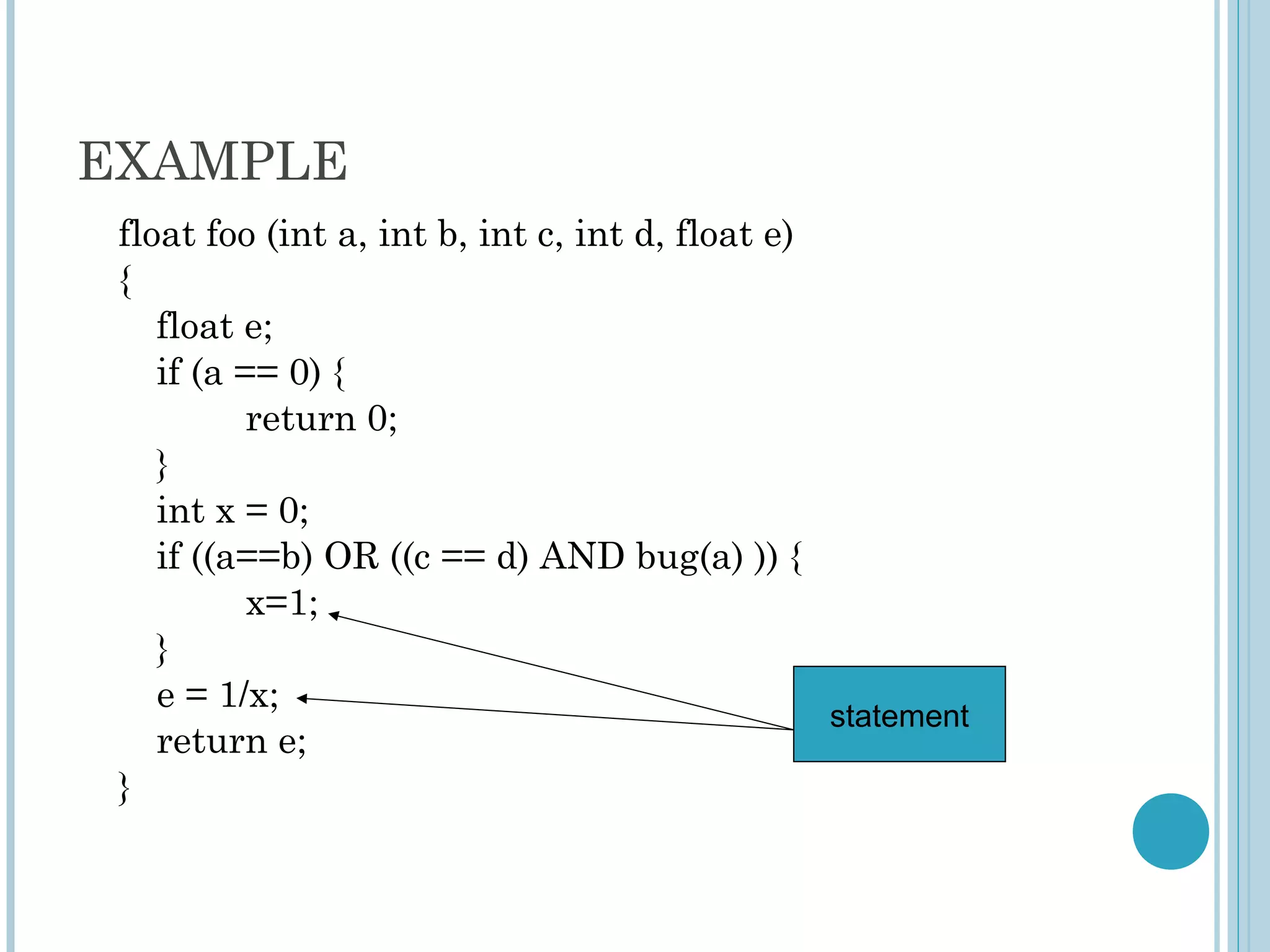

6. EXAMPLE
float foo (int a, int b, int c, int d, float e)
{
float e;
if (a == 0) {
return 0;
}
int x = 0;
if ((a==b) OR ((c == d) AND bug(a) )) {
x=1;
}
e = 1/x;
return e;
}
statement

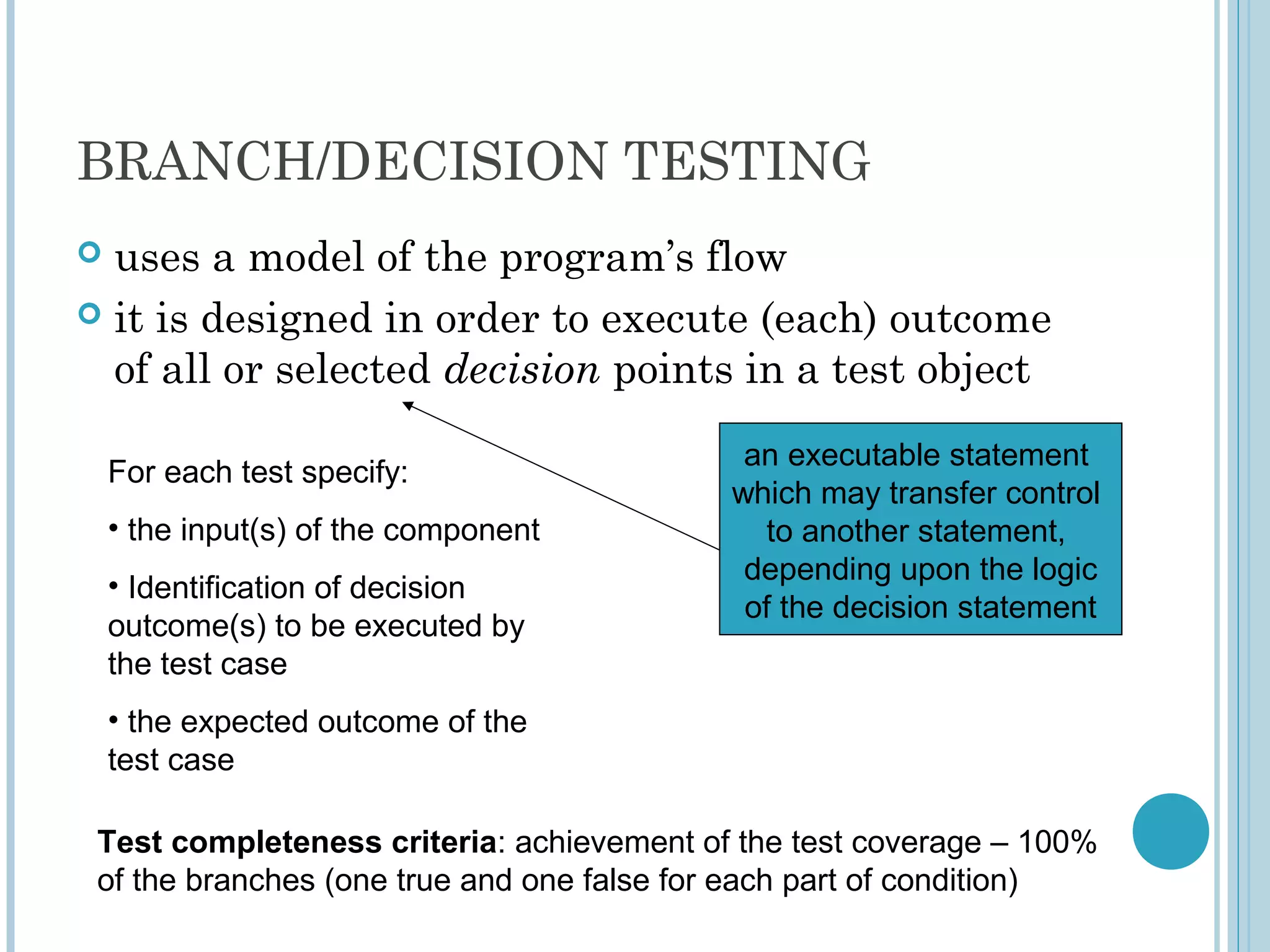

7. BRANCH/DECISION TESTING
 uses a model of the program’s flow
 it is designed in order to execute (each) outcome
of all or selected decision points in a test object
an executable statement
which may transfer control
to another statement,
depending upon the logic
of the decision statement
For each test specify:
• the input(s) of the component
• Identification of decision
outcome(s) to be executed by
the test case
• the expected outcome of the
test case
Test completeness criteria: achievement of the test coverage – 100%
of the branches (one true and one false for each part of condition)

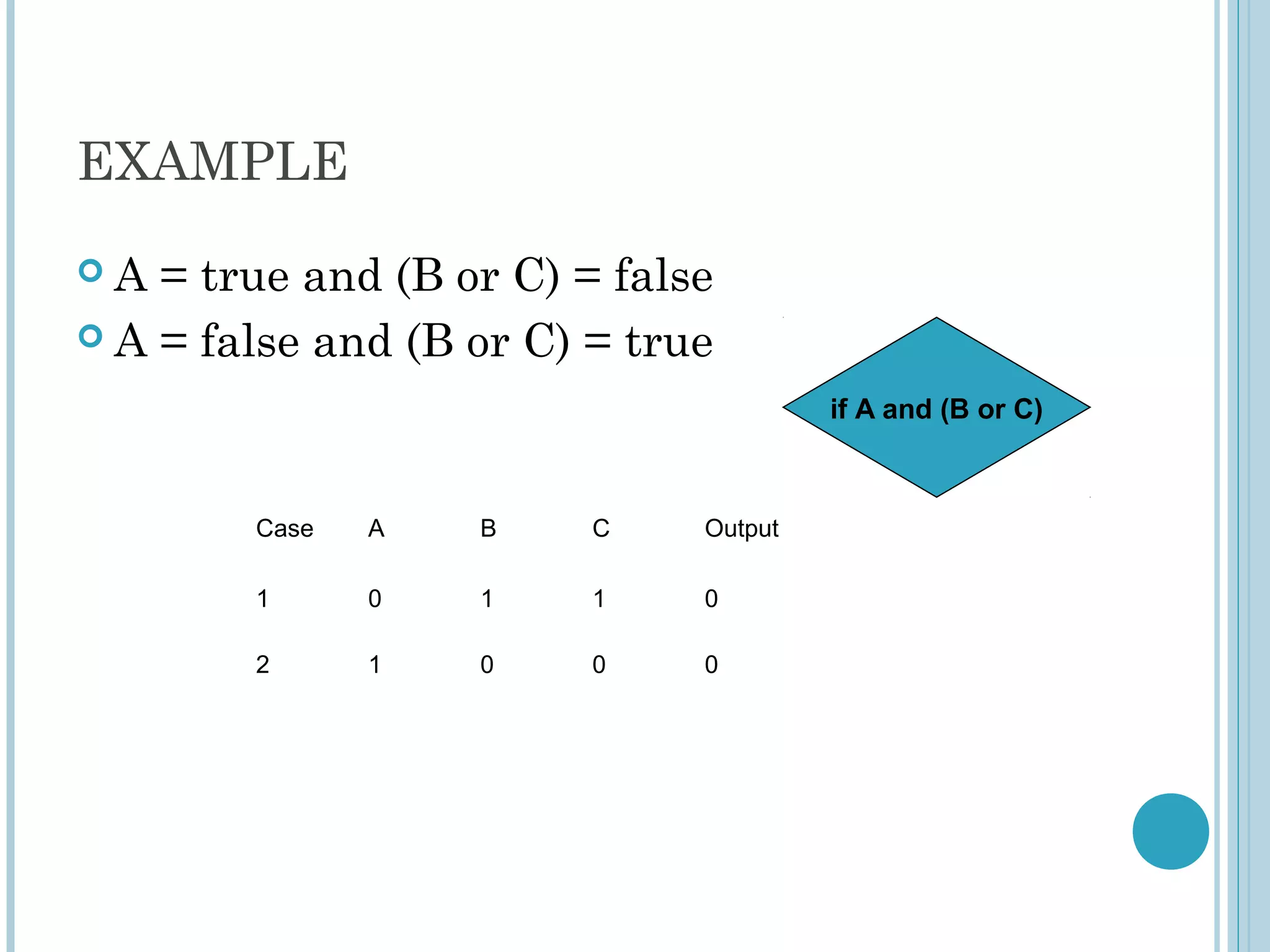

8. EXAMPLE
 A = true and (B or C) = false
 A = false and (B or C) = true
Case A B C Output
1 0 1 1 0
2 1 0 0 0
if A and (B or C)

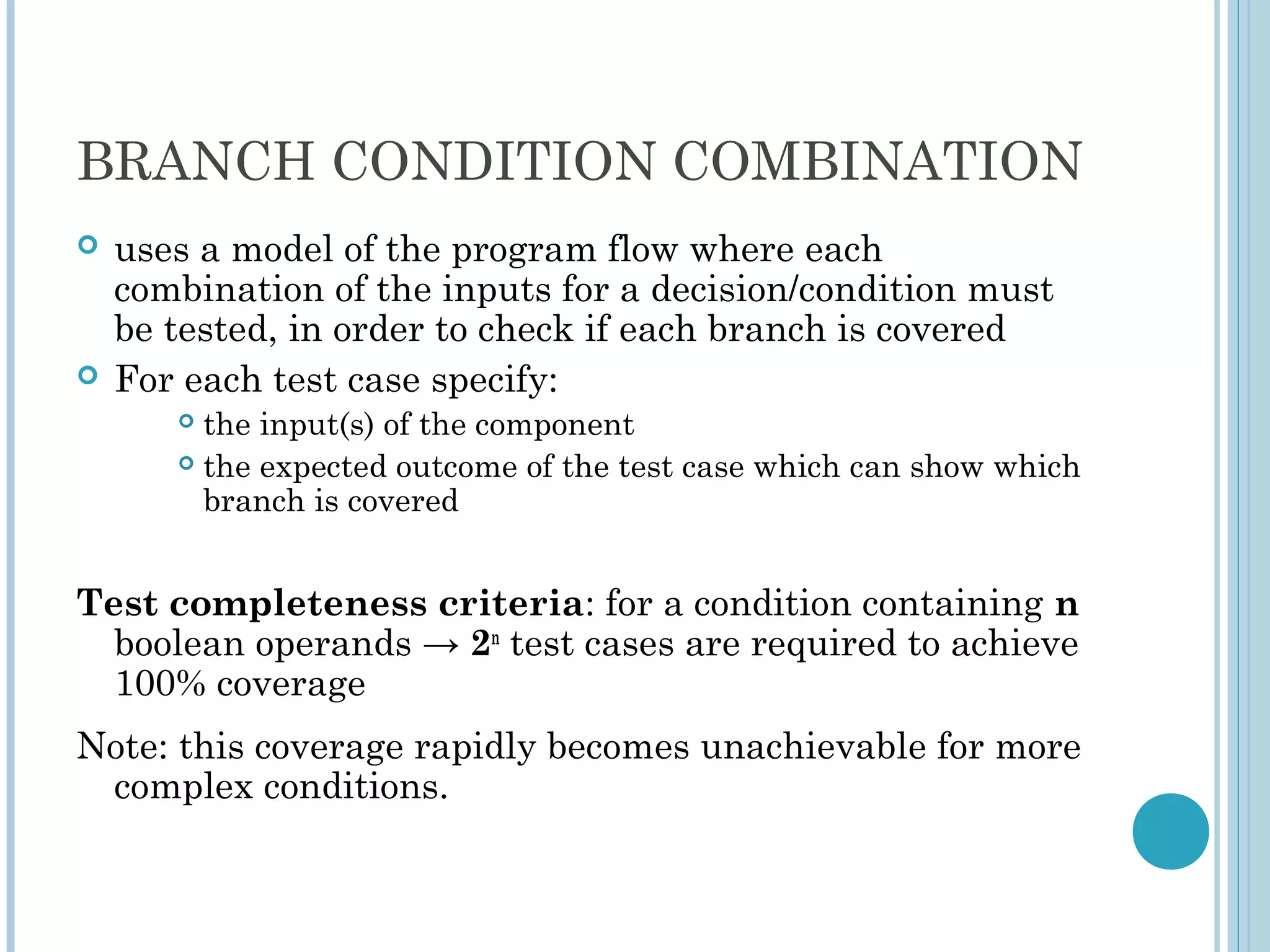

9. BRANCH CONDITION COMBINATION
 uses a model of the program flow where each
combination of the inputs for a decision/condition must
be tested, in order to check if each branch is covered
 For each test case specify:
 the input(s) of the component
 the expected outcome of the test case which can show which
branch is covered
Test completeness criteria: for a condition containing n
boolean operands → 2n
test cases are required to achieve
100% coverage
Note: this coverage rapidly becomes unachievable for more
complex conditions.

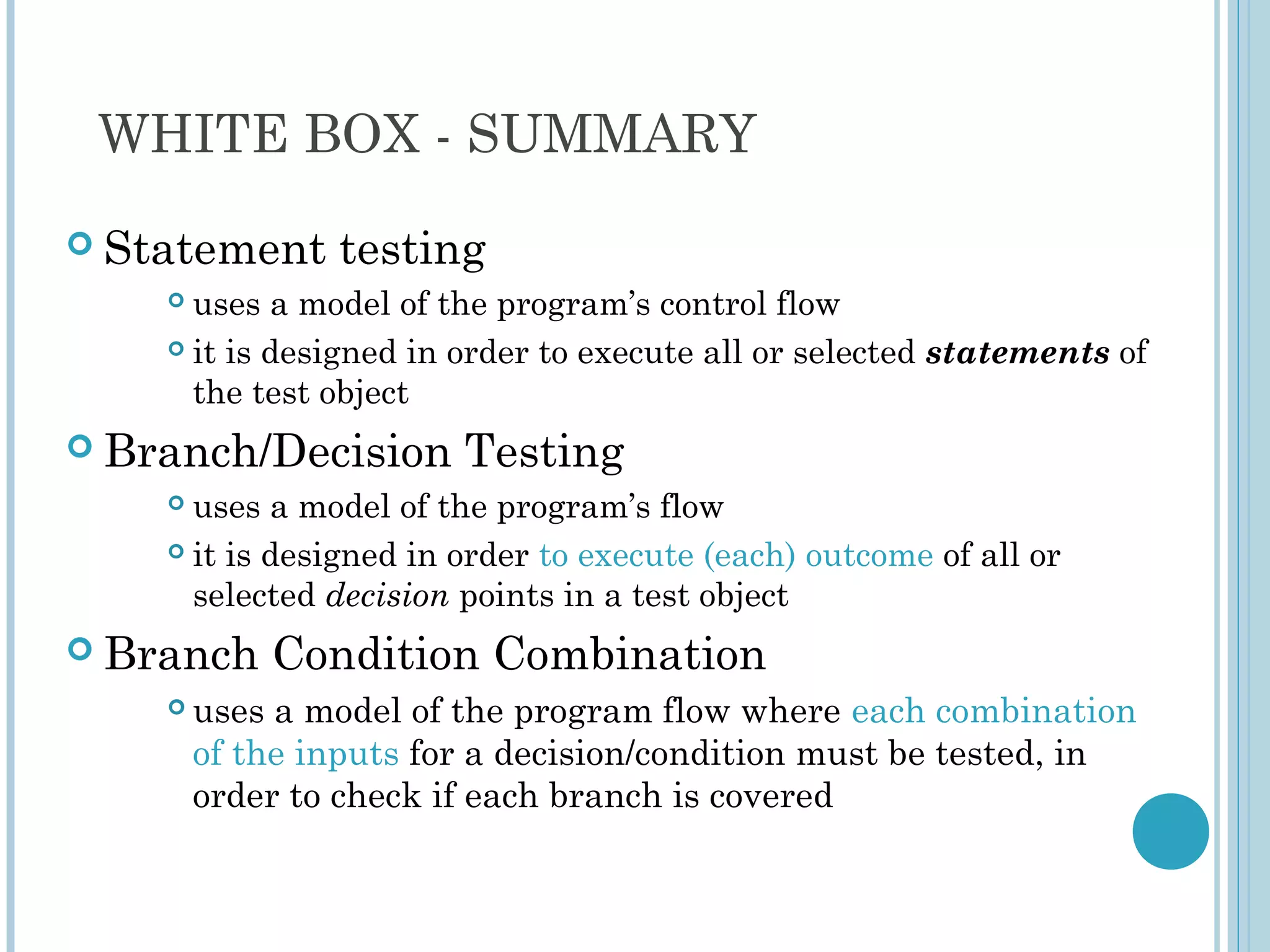

10. WHITE BOX - SUMMARY
 Statement testing
 uses a model of the program’s control flow
 it is designed in order to execute all or selected statements of
the test object
 Branch/Decision Testing
 uses a model of the program’s flow
 it is designed in order to execute (each) outcome of all or
selected decision points in a test object
 Branch Condition Combination
 uses a model of the program flow where each combination
of the inputs for a decision/condition must be tested, in
order to check if each branch is covered

11. MODIFIED CONDITION COMBINATION
TESTING
 uses a model of the program’s flow where each
atomic condition is independently tested, in order
to show how the decision outcome is affected
 test case are designed to show that each condition
independently affects the decision outcome
 For each test case specify:
 the input(s) of the component
 The expected outcome of the test case

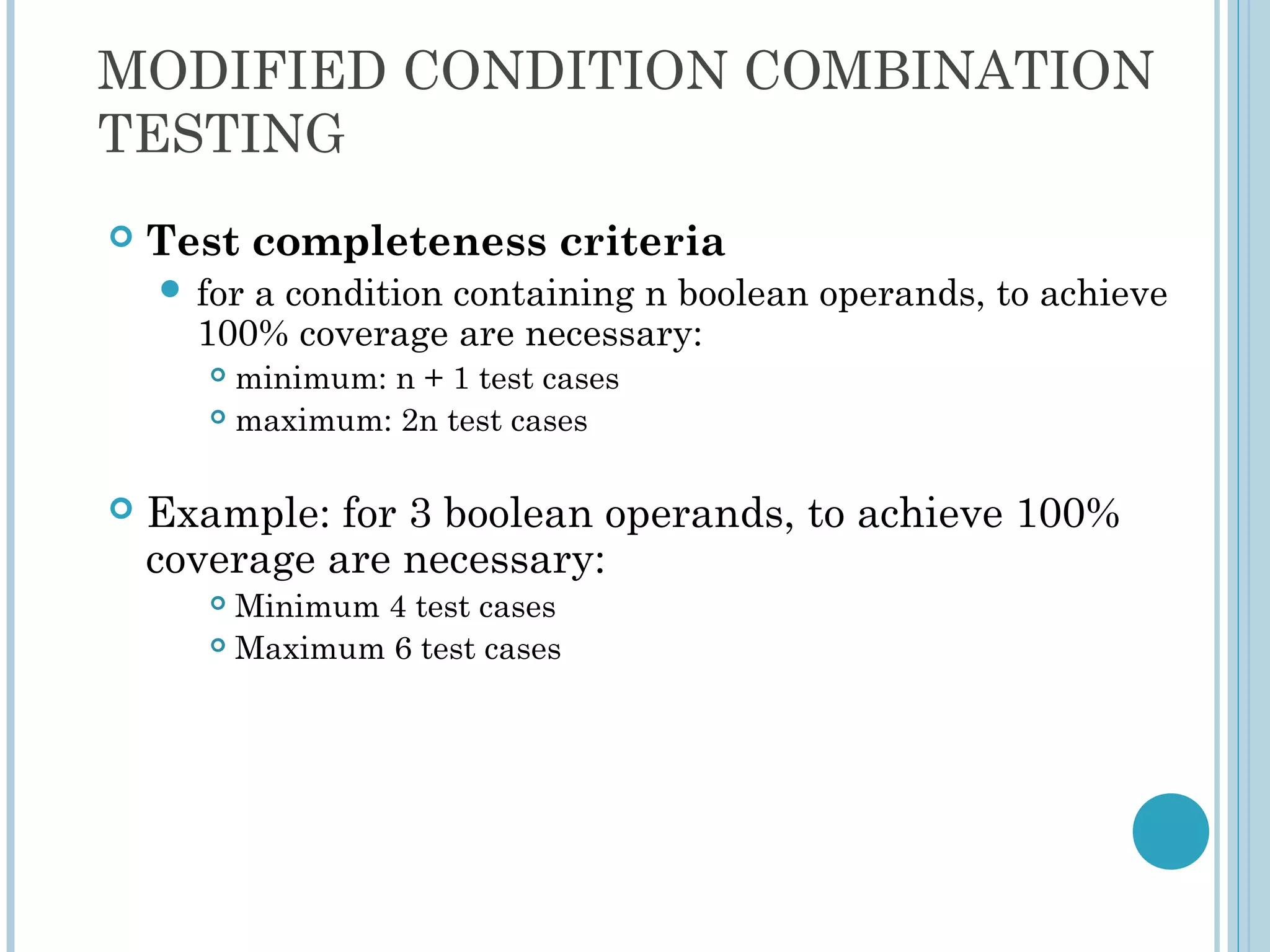

12. MODIFIED CONDITION COMBINATION
TESTING
 Test completeness criteria
 for a condition containing n boolean operands, to achieve
100% coverage are necessary:
 minimum: n + 1 test cases
 maximum: 2n test cases
 Example: for 3 boolean operands, to achieve 100%
coverage are necessary:
 Minimum 4 test cases
 Maximum 6 test cases

13. EXAMPLE
Case A B B or C C Outcome
1 1 1 1 0 1
2 0 0
3 1 1 1 0 1
4 0 0 0
5 1 0 1 1 1
6 0 0 0
if (A and (B or C))
