Un vistazo a las pruebas basadas en cobertura, en este se plantean los objetos de prueba desde el lado del desarrollador y ayudan a poner mayor atención en cubrir unidades funcionales o ejecución.

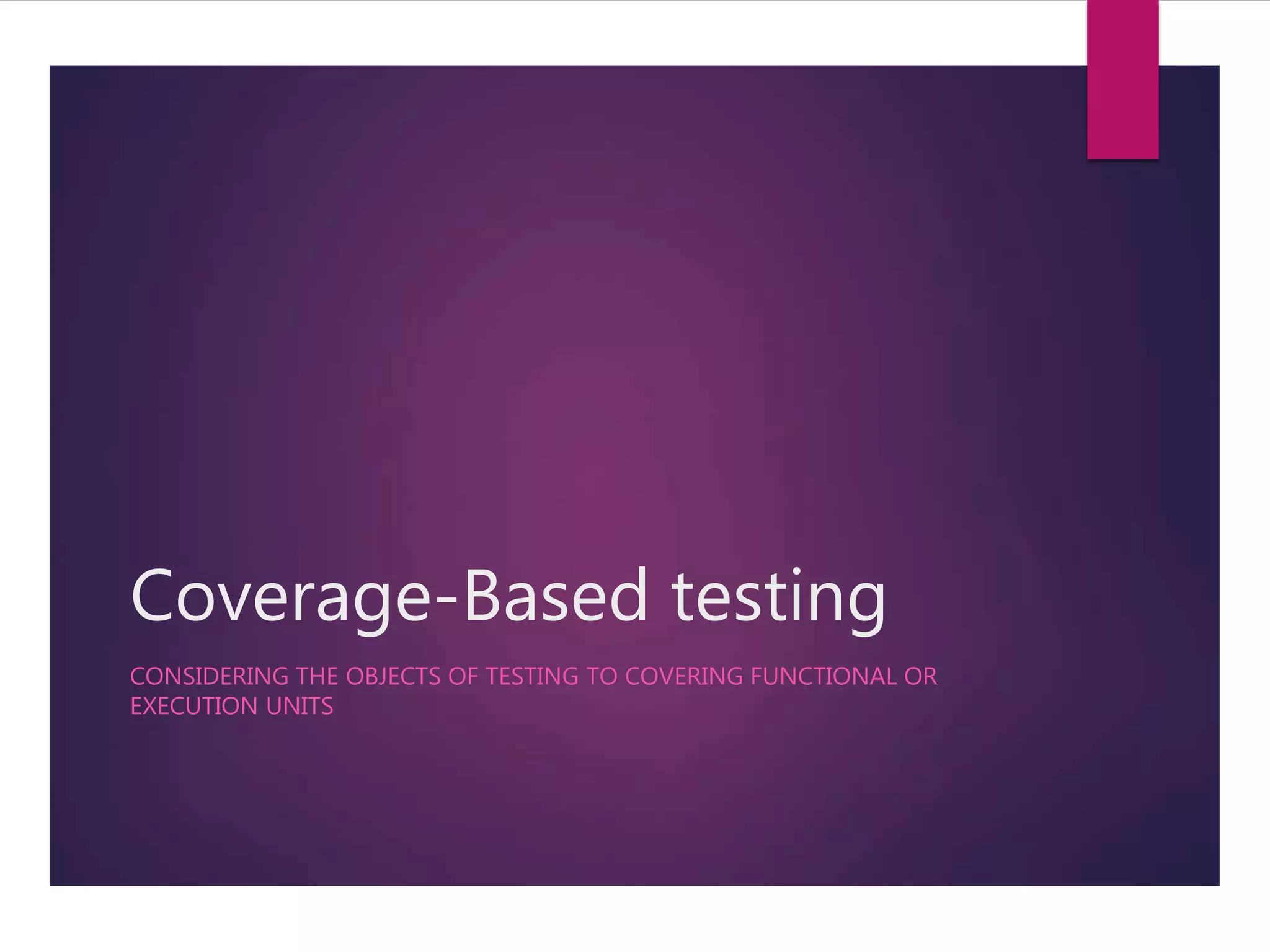

1. Coverage-Based testing
CONSIDERING THE OBJECTS OF TESTING TO COVERING FUNCTIONAL OR
EXECUTION UNITS

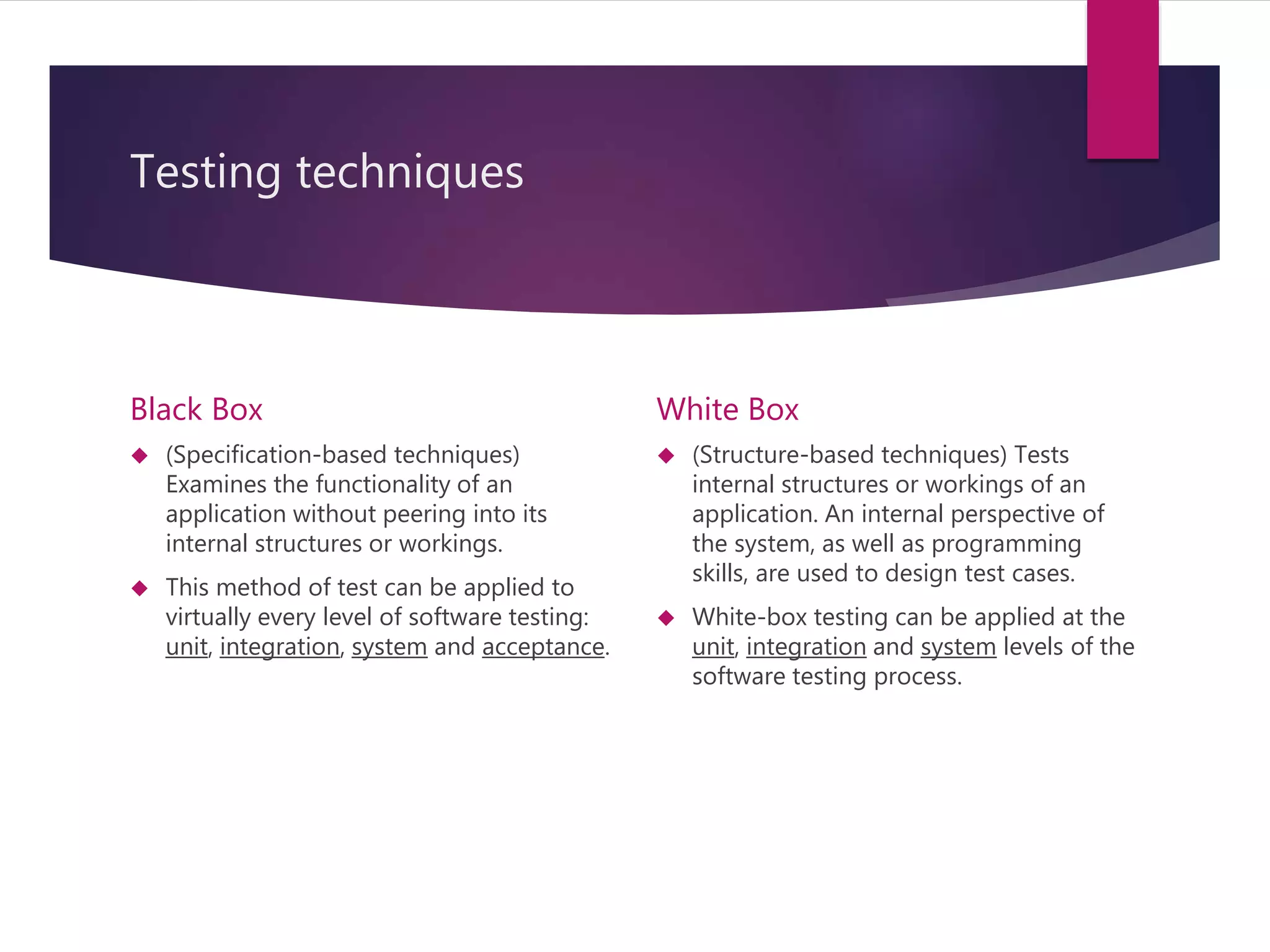

2. Testing techniques
Black Box
 (Specification-based techniques)
Examines the functionality of an
application without peering into its
internal structures or workings.
 This method of test can be applied to
virtually every level of software testing:
unit, integration, system and acceptance.
White Box
 (Structure-based techniques) Tests
internal structures or workings of an
application. An internal perspective of
the system, as well as programming
skills, are used to design test cases.
 White-box testing can be applied at the
unit, integration and system levels of the
software testing process.

3. Perspective
 It is often used in early sub-stages of software testing.
 Bugs are more closely related to objects under test, leading to effectual
software bug removal.
 Uses coverage purposes as the stop criteria.

4. Pros & Cons
Advantages
 Conducted by either professional testers
or by developers themselves
 Testing models are often created
without active client or user input
 It helps in determining a quantitative
measure of code coverage, which
indirectly measure the quality of the
application or product.
Disadvantages
 The efficiency reduces with large objects
(big projects).
 If a specified function has not been
implemented or a function was omitted
from the specification, then structure-based
techniques cannot say anything
about them it only looks at a structure
which is already there.
 100% coverage does not mean 100%
tested.

5. Coverage Criteria
Types
NOT ALL OF THEM, ONLY THE
MOST COMMON

6. Statement Coverage
 The test case is executed in such a way
that every statement of the code is
executed at least once.

7. Branch coverage
 It requires enough test cases such that
each condition in a decision takes on all
possible outcomes at least once, and
each point of entry to a program or
subroutine is invoked at least once.

8. Condition coverage
 It ensures that every possible condition
is executed at least once.

9. Path coverage
 Path Coverage ensures covering of all
the paths from start to end.

10. Practice
 public int returnInput (int input, boolean
condition1, boolean condition2, boolean
condition3) {
int x = input;
int y = 0;
if (condition1)
x++;
if (condition2)
x--;
if (condition3)
y=x;
return y;
}
 Please estimate the number of test cases
required for 100% code covered for:
 Statement Coverage
 Branch Coverage
 Path Coverage

11. Memorize this…
100% Path coverage will imply 100%
Statement coverage
100% Branch coverage will imply 100%
Statement coverage
100% Path coverage will imply 100% Branch
coverage

12. References
 http://www.softwaretestingtimes.com/2010/04/white-box-testing-simplified.
html
 http://en.wikipedia.org/
 http://sce.uhcl.edu/helm/VAV_SENG_WEB/My-Files/Unit6/Unit6P2.htm
