Even with the best intentions in mind, a tool or an automated process can be created and deployed with devastating results to your Perforce server instance. Learn from someone with years of experience dealing with rogue tools, hearts of gold, and hands of destruction on what to do and what to avoid when automating Perforce.

1. #

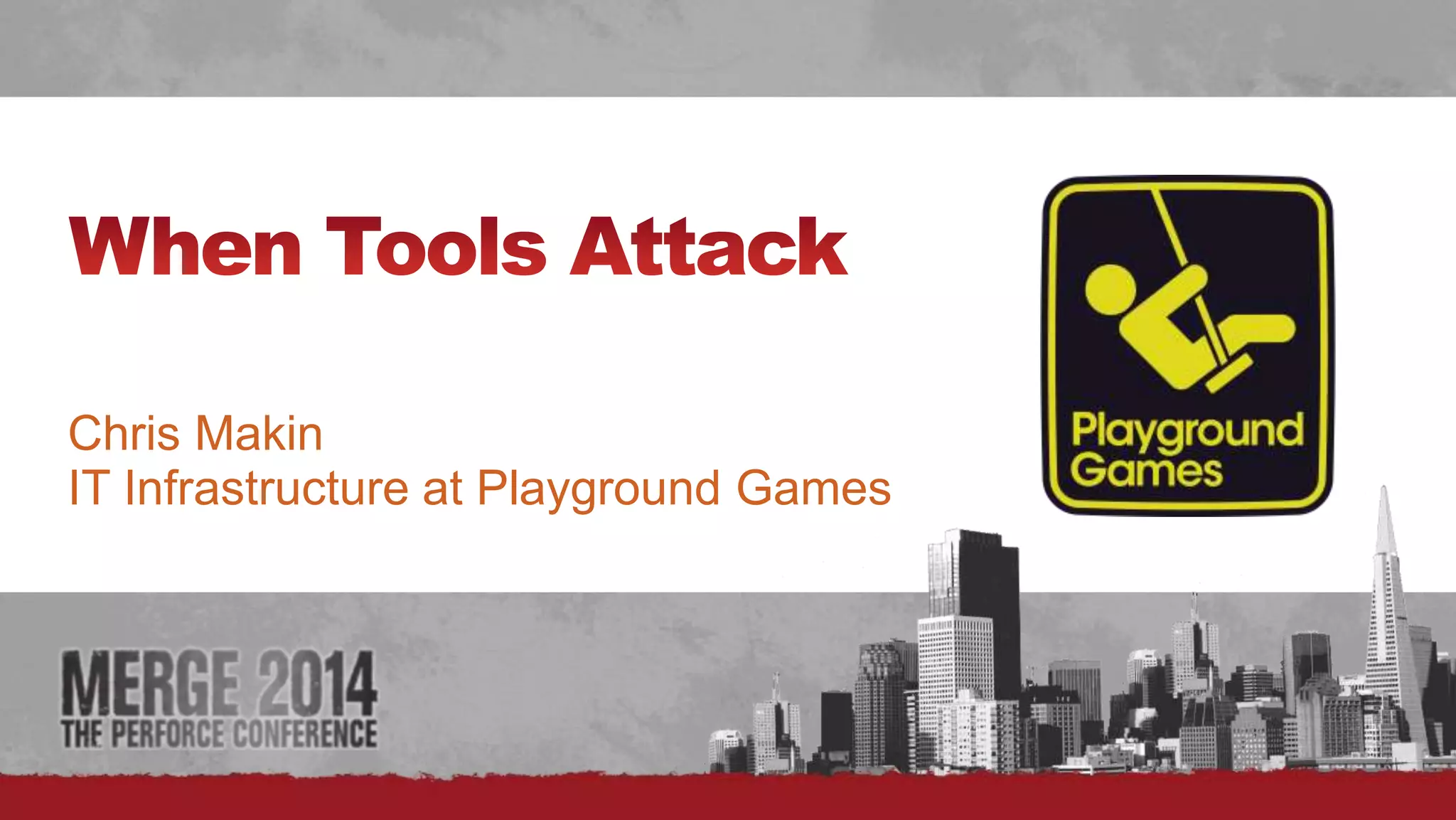

Chris Makin
IT Infrastructure at Playground Games

2. #
Chris Makin is a battle-scarred veteran of Perforce server
planning, implementation and administration. With 11 years of IT
service to the video games industry he proudly serves at
Playground Games as IT Infrastructure Administrator. If not
elbow deep in servers he can be found trying to sample every
craft beer under the sun.

3. #
• Sharing in real world examples of custom tools
with hearts of gold and hands of destruction!
• The Impacts & issues caused
• Fixes, resolutions & preventative actions
• Tips for server setup & tools testing

4. #
• Founded in 2009 with 16 staff
• 20+ years experience in game development
• Turn10 & Microsoft Studios
October 2012 September 30th 2014

5. #
• Over 150 developers at peak
• Outsource teams across the globe
• 17 Perforce Server Instances
– 3 core & 4 supporting P4Ds
– Further 10 replicas for workload balancing, DR & HA
– Linux & Windows, VMWare & Bare metal
– Nimble, EqualLogic & DAS

6. #
• Single P4D server
– 4TB total size
• 100 developers
• 12 build servers
• 13 solid hours lock time
per day for automated
systems
• 3 Core P4D servers
– 10TB total size
– 1TB at peak change
• 24 build servers
• Builds over 150GB
• 485,000 ops completed
• 340,000 automated
• Lock contention – gone

7. #
• Deadliest Catch
– Trawling the depths.
• Tor‘s Hammer
– An internal cyber attack!
• Skynet
– Ignore it for too long and it’s taken over the world.

8. #
Trawling the depths

9. #
• Tool built to create a depot heat map
• “p4 files @=clnumber”
• Started at CL 1
– Worked its way upwards.
– 9 streams
• High latency connection

10. #
• Unresponsive server
• Commands queue
• Human element
– F5, F5, F5, F5…
• Database lock contention

11. #
• Lower tool polling frequency
• Lower thread count
• Forward commands to replica, on or offsite
• Trigger or P4broker limiting number of concurrent
operations per user
• Upgrade to 2013.3 or higher for lockless reads

12. #
Internal cyber attack!

13. #
• Level editor with Perforce integration
– Have my files been updated?
– Query's workspace #have against #head
• Query was being carried out on each file individually
– 25,000 files
– 150 developers
– 3,750,000 queries
– Every second

14. #
• You are now under DDoS attack!
• Perforce server stops responding to all requests
– P4Auth stops responding
• TCP flood
• OS level/network stack issue
– TCP/IP port exhaustion

15. #
• Hang, draw and quarter tools programmer
• Local firewall
– Flood protection rules
• Tune network stack
– Max available ports
– Min keep alive time

16. #
Ignore it for too long and it’s taken over the world

17. #
• World editor
• Designed so every file is self descriptive with a
UID
– gamelevel1wallswall1_walls_level1_123456789.png
• In the backend this turns into
– D:p4depotgamelevel1wallswall1_walls_level1_12345
6789.png,d1.12345.gz

18. #
• In practice
– game1mainlinedatalevel_datalevel1objectstextures
wallswall1_walls_textures_objects_level1_level_data_
– game1mainlinedatalevel_datalevel1objectstextures
wallswall1_walls_textures_objects_level1_level_data_
data_mainline_mainline_data_level_data_level1_object
• 199 chars compared to original 54

19. #
• Project was heavily branched & continuously
integrated with > 100,000 files
• Integrations took longer
• Exponential metadata growth – GB per day
• Higher RAM, swap & CPU utilization
• Windows OS & proxy path length issues

20. #
• Send a cyborg back in time to stop the tools
change submit
• Trigger/P4Broker rule inspecting file & path length
for irregularities/max allowed length

21. #

22. #
• Perforce Support
• P4D > 2013.3
– Lockless reads!
• Replica & Edge servers
– Offload locks, CPU & I/O intensive tools and workloads
• P4Broker & Triggers
– Don’t like a command? Block or re-direct it!
• “Side-track” server instance

23. #

24. #
• Metadata replica
– Offline checkpoints, additional replicas, no live
interruption
• Enable process monitoring
• Monitor server
• Pay attention to your type map

25. #
• Every tool has an impact – TEST!
• Test against real data
– Metadata & full replicas
• Set a high level of logging
– Utilize Perforce Server Log Analyzer
• Monitor system utilization
– CPU, RAM, disk I/O…

26. #
Chris Makin
chris.makin@playground-games.com

27. #
Chris Makin is a battle-scarred veteran of Perforce server
planning, implementation and administration. With 11 years of IT
service to the video games industry he proudly serves at
Playground Games as IT Infrastructure Administrator. If not
elbow deep in servers he can be found trying to sample every
craft beer under the sun.

28. #
• http://answers.perforce.com/articles/KB_Article/Setting-Up-a-Side-track-
Server
• http://answers.perforce.com/articles/KB_Article/How-to-Monitor-a-
Swamped-Perforce-Server
• http://answers.perforce.com/articles/KB_Article/Installing-P4Broker-on-
Windows-and-Unix-systems
• http://answers.perforce.com/articles/KB_Article/Using-P4Broker-With-
Replica-Servers
• https://kb.perforce.com/psla/
• http://www.perforce.com/blog
