Sascha Möllering discusses infrastructure as code and provides an overview of VMware SDKs, Chef, and using Chef to configure JBoss middleware. He explains that VMware has multiple SDKs and that the VI Java SDK simplifies development. Chef is introduced as a tool to automate and standardize server configurations. The presentation then covers using Chef recipes to deploy and configure JBoss application servers and integrating with JBoss Operations Network for monitoring.

1. Sascha Möllering | ZANOX.de AG
Infrastructure as Code

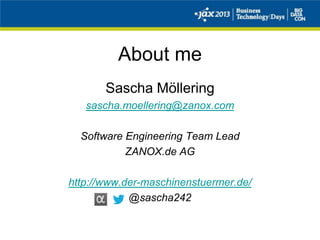

2. About me
Sascha Möllering
sascha.moellering@zanox.com
Software Engineering Team Lead
ZANOX.de AG
http://www.der-maschinenstuermer.de/
@sascha242

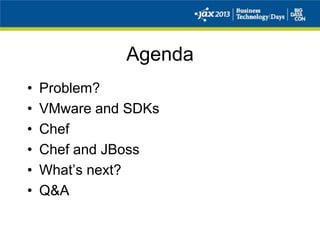

3. Agenda
• Problem?
• VMware and SDKs
• Chef
• Chef and JBoss
• What’s next?
• Q&A

4. Problem?

5. Problem?

6. Problem?

8. VMware and SDKs

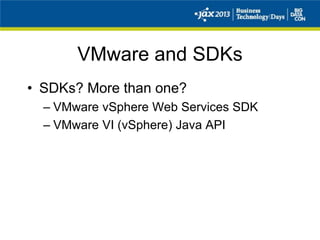

9. VMware and SDKs
• SDKs? More than one?
– VMware vSphere Web Services SDK
– VMware VI (vSphere) Java API

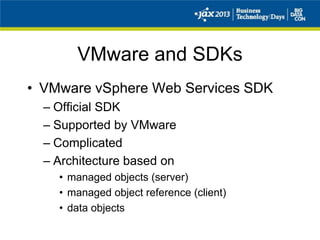

10. VMware and SDKs
• VMware vSphere Web Services SDK
– Official SDK
– Supported by VMware
– Complicated
– Architecture based on
• managed objects (server)
• managed object reference (client)
• data objects

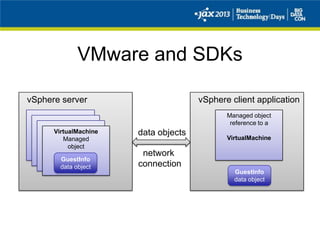

11. vSphere server
VMware and SDKs
VirtualMachine
Managed
object
GuestInfo
data object
vSphere client application
Managed object
reference to a
VirtualMachine
GuestInfo
data object
data objects
network
connection

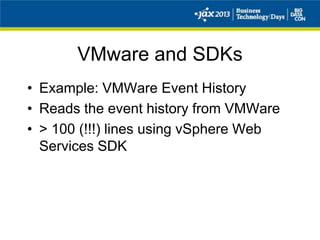

12. VMware and SDKs
• Example: VMWare Event History
• Reads the event history from VMWare
• > 100 (!!!) lines using vSphere Web
Services SDK

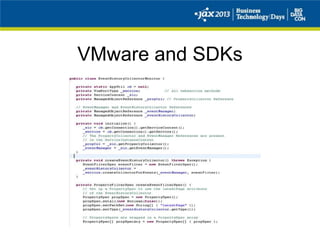

13. VMware and SDKs

14. VMware and SDKs

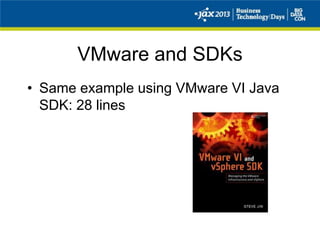

15. VMware and SDKs

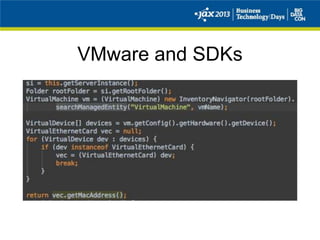

• Same example using VMware VI Java
SDK: 28 lines

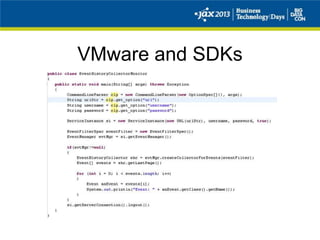

16. VMware and SDKs

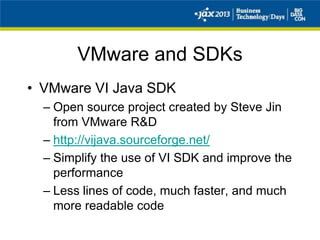

17. VMware and SDKs
• VMware VI Java SDK
– Open source project created by Steve Jin
from VMware R&D
– http://vijava.sourceforge.net/
– Simplify the use of VI SDK and improve the
performance
– Less lines of code, much faster, and much
more readable code

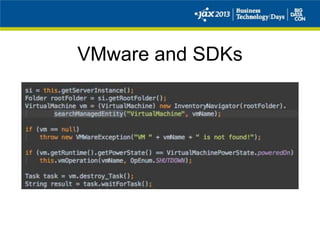

18. VMware and SDKs

19. VMware and SDKs

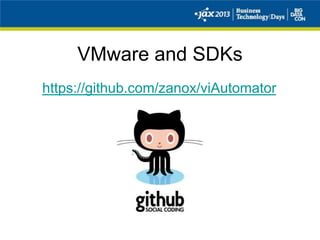

20. VMware and SDKs
https://github.com/zanox/viAutomator

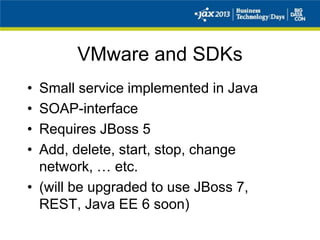

21. VMware and SDKs
• Small service implemented in Java
• SOAP-interface
• Requires JBoss 5
• Add, delete, start, stop, change
network, … etc.
• (will be upgraded to use JBoss 7,
REST, Java EE 6 soon)

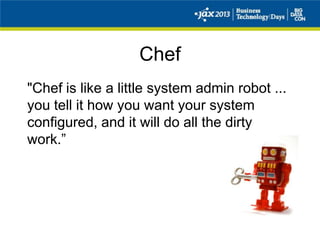

23. Chef
"Chef is like a little system admin robot ...
you tell it how you want your system
configured, and it will do all the dirty
work.”

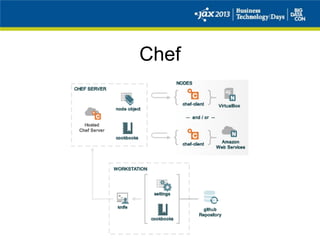

24. Chef

25. Chef
• Node:
– Any (virtual) server configured to be
maintained by a chef-client
– Chef-client runs on each node

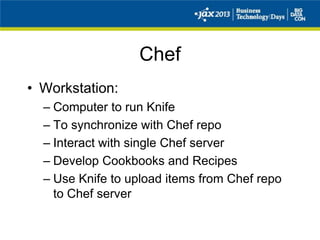

26. Chef
• Workstation:
– Computer to run Knife
– To synchronize with Chef repo
– Interact with single Chef server
– Develop Cookbooks and Recipes
– Use Knife to upload items from Chef repo
to Chef server

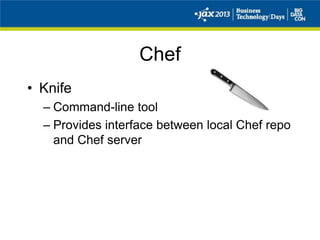

27. Chef
• Knife
– Command-line tool
– Provides interface between local Chef repo
and Chef server

28. Chef

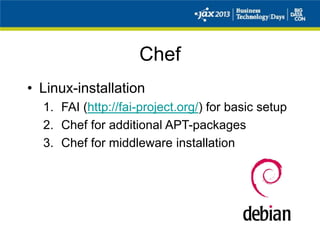

29. Chef
• Linux-installation
1. FAI (http://fai-project.org/) for basic setup
2. Chef for additional APT-packages
3. Chef for middleware installation

30. Chef and JBoss
Java Magazin 11.12:
Automatisierung nach Chef-Rezept
Automatisiertes Deployment von
JBoss Middleware

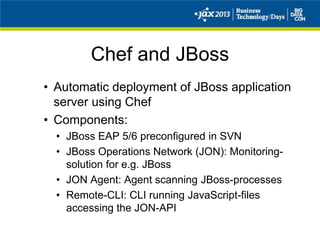

31. Chef and JBoss
• Automatic deployment of JBoss application
server using Chef
• Components:
• JBoss EAP 5/6 preconfigured in SVN
• JBoss Operations Network (JON): Monitoring-
solution for e.g. JBoss
• JON Agent: Agent scanning JBoss-processes
• Remote-CLI: CLI running JavaScript-files
accessing the JON-API

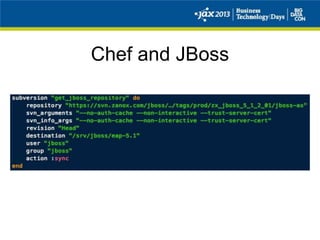

32. Chef and JBoss

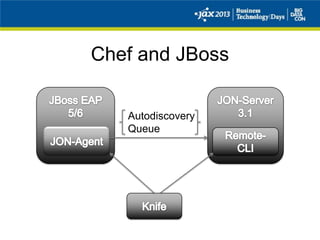

33. Chef and JBoss
Autodiscovery
Queue

34. Chef and JBoss
• JON/RHQ has a remote API
– JON/RHQ-CLI with JavaScript-files
– JON/RHQ-JARs with Java
• Executing JavaScript-files using the
CLI:
– rhq-cli.sh –f import-servers.js
-s ${RHQ_SERVER} –u user –p pwd

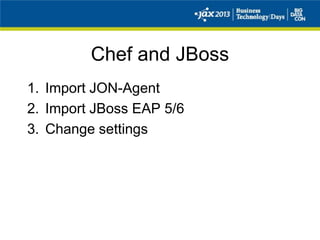

35. Chef and JBoss
1. Import JON-Agent
2. Import JBoss EAP 5/6
3. Change settings

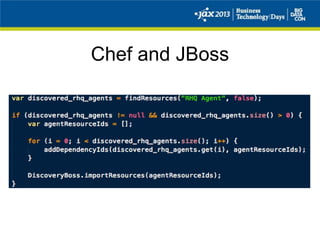

36. Chef and JBoss

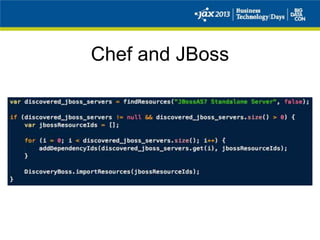

37. Chef and JBoss

38. Chef and JBoss

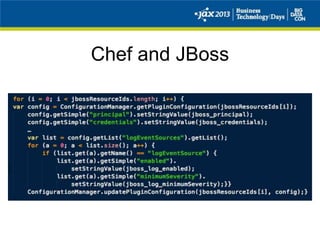

39. Chef and JBoss

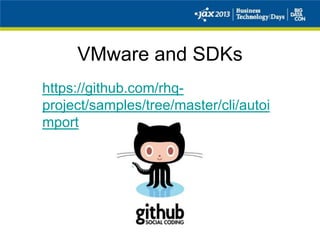

40. VMware and SDKs
https://github.com/rhq-
project/samples/tree/master/cli/autoi
mport

41. Chef and JBoss
And Clustering?

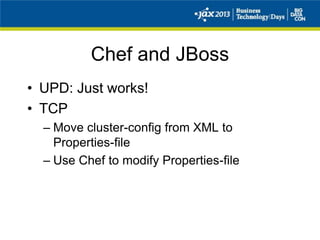

42. Chef and JBoss
• UPD: Just works!
• TCP
– Move cluster-config from XML to
Properties-file
– Use Chef to modify Properties-file
