1. Release Workflow
Diego Muñoz
diego@tuenti.com
http://twitter.com/Kartones

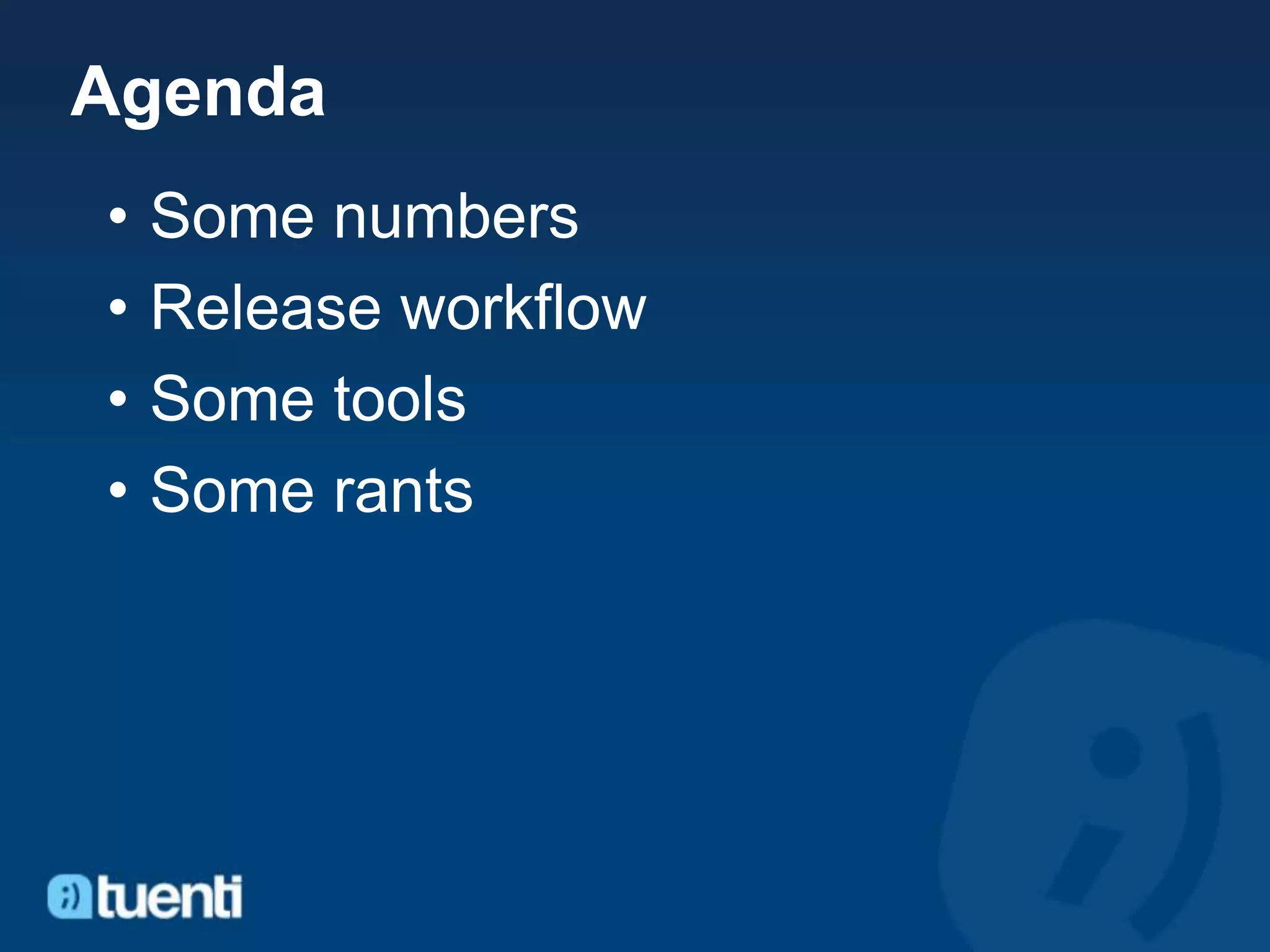

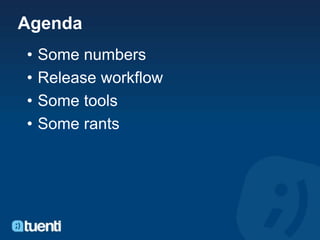

2. Agenda
• Some numbers
• Release workflow
• Some tools
• Some rants

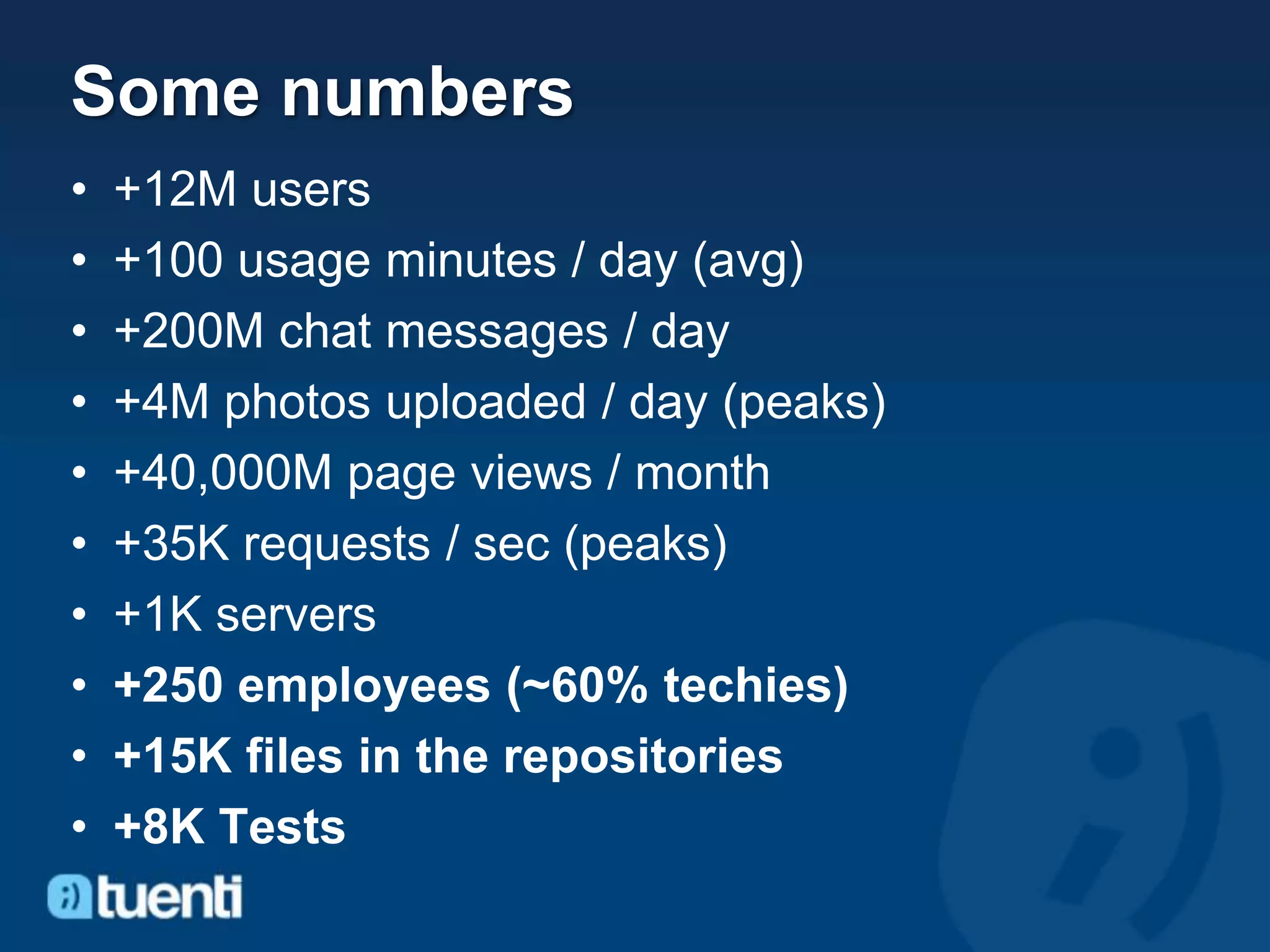

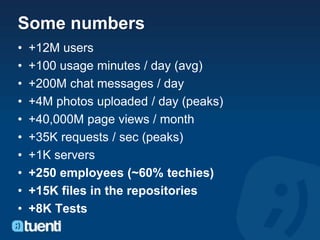

3. Some numbers
• +12M users
• +100 usage minutes / day (avg)
• +200M chat messages / day
• +4M photos uploaded / day (peaks)
• +40,000M page views / month
• +35K requests / sec (peaks)
• +1K servers
• +250 employees (~60% techies)
• +15K files in the repositories
• +8K Tests

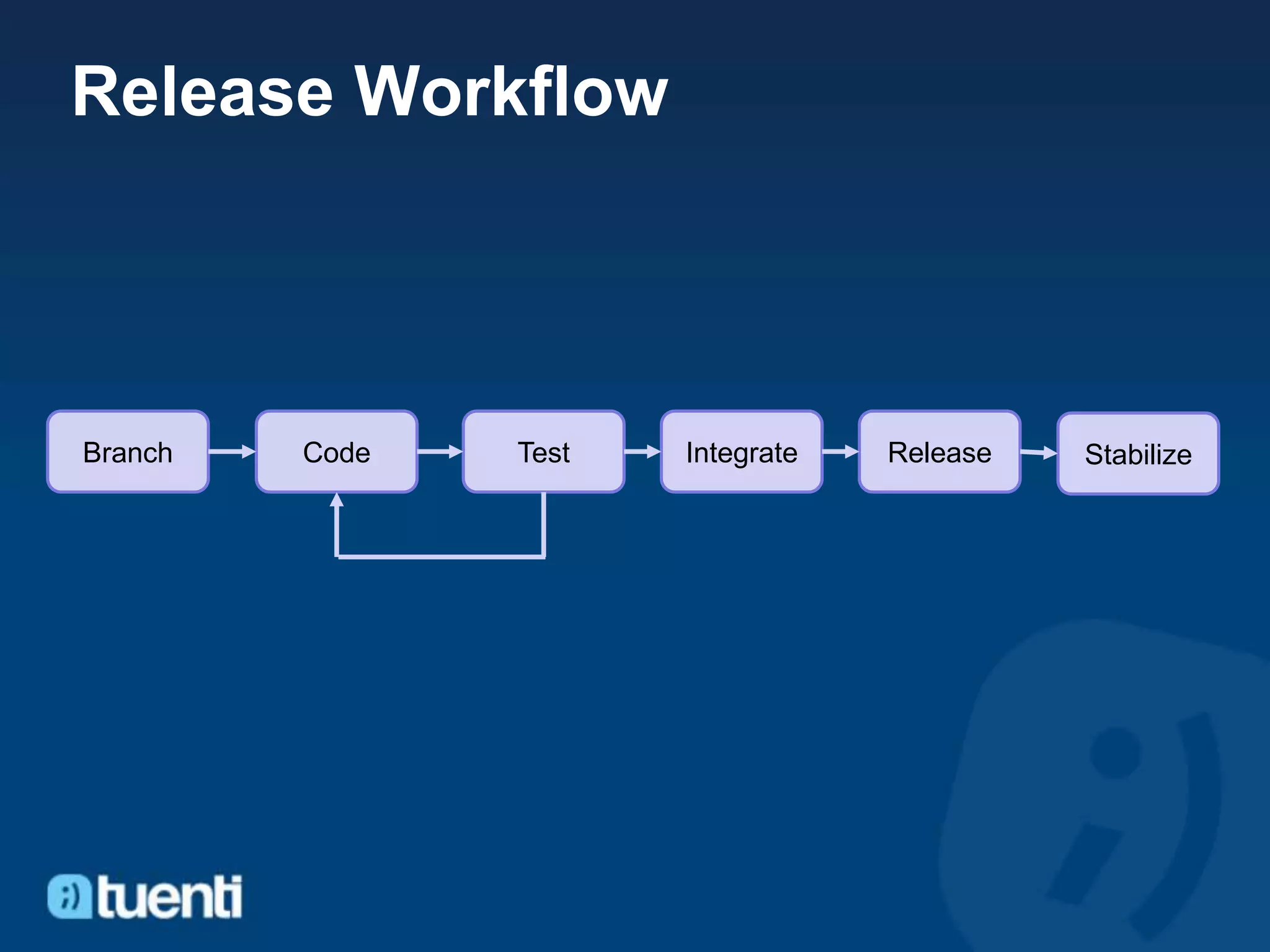

4. Release Workflow
Branch Code Test Integrate Release Stabilize

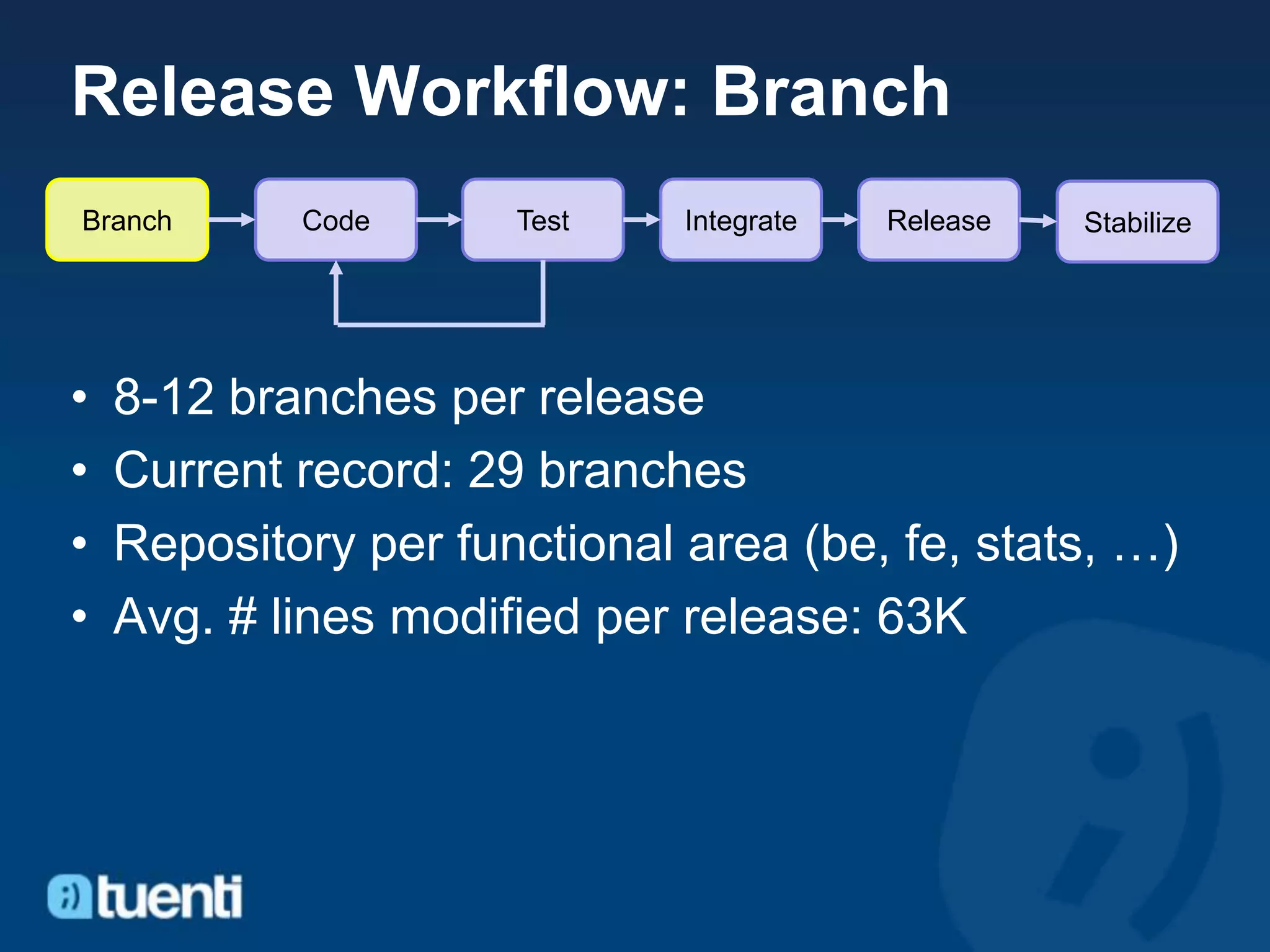

5. Release Workflow: Branch
Branch Code Test Integrate Release Stabilize
• 8-12 branches per release
• Current record: 29 branches
• Repository per functional area (be, fe, stats, …)
• Avg. # lines modified per release: 63K

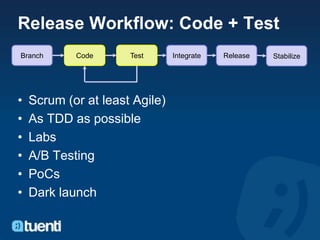

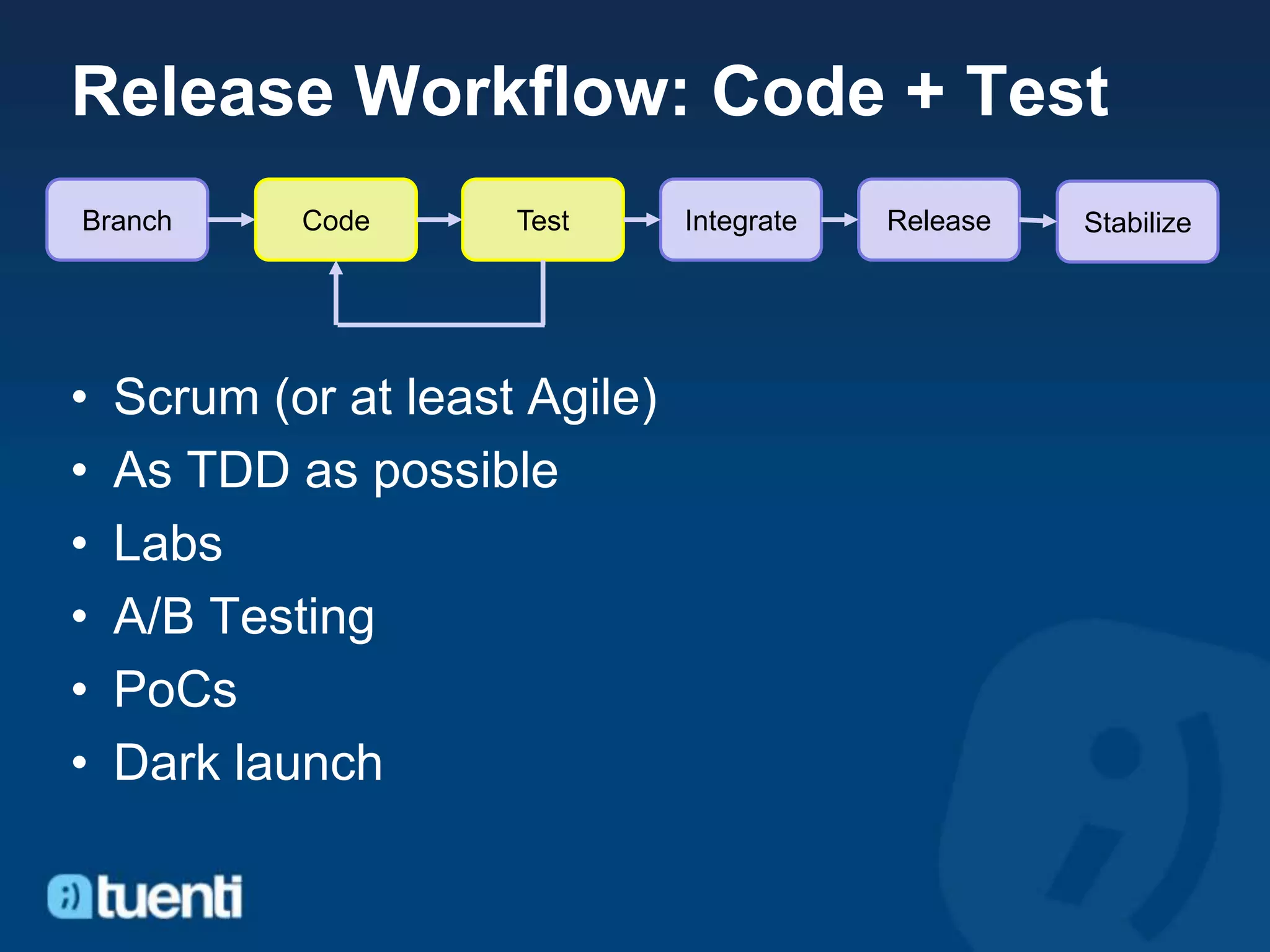

6. Release Workflow: Code + Test
Branch Code Test Integrate Release Stabilize
• Scrum (or at least Agile)
• As TDD as possible
• Labs
• A/B Testing
• PoCs
• Dark launch

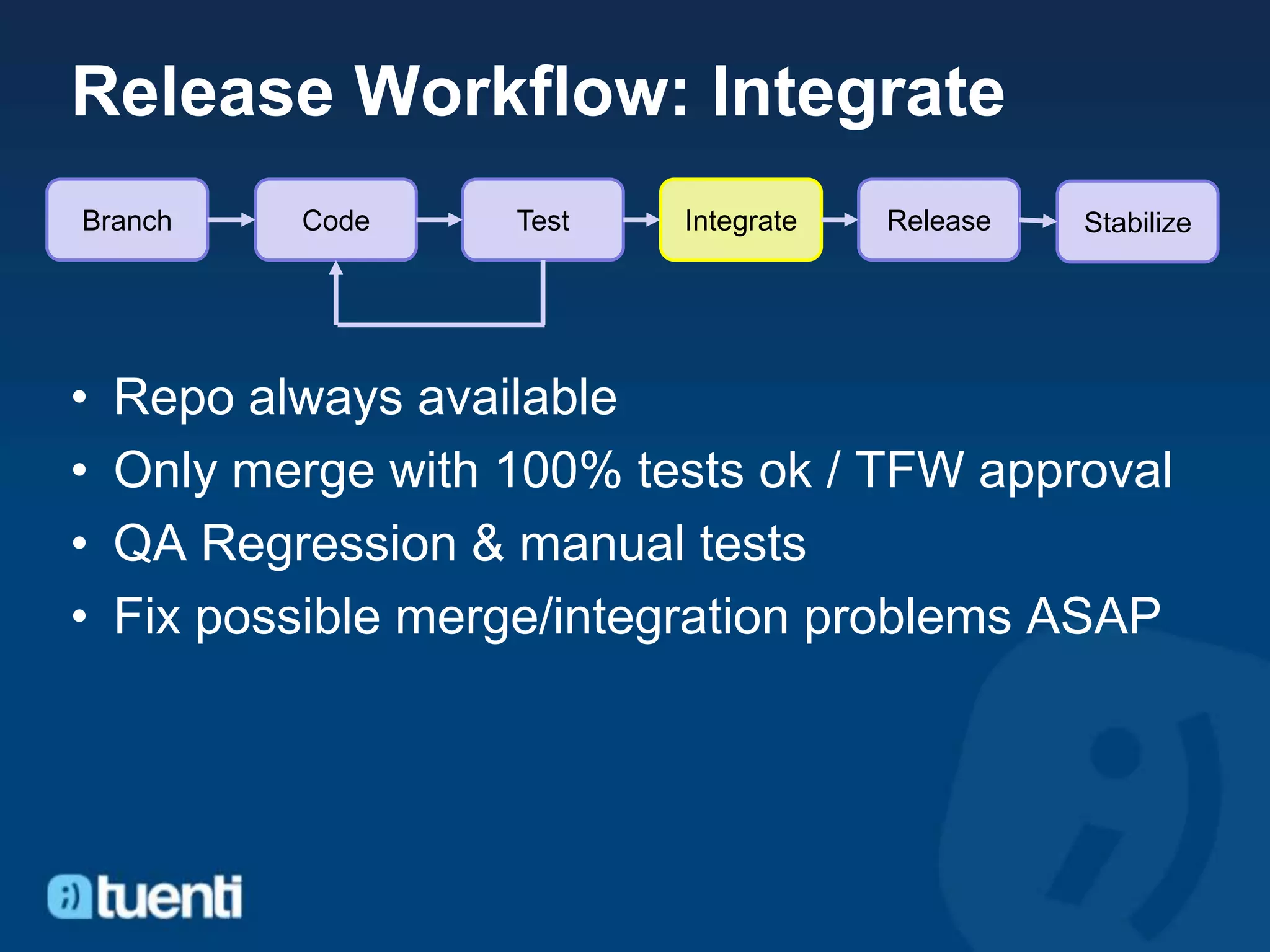

7. Release Workflow: Integrate
Branch Code Test Integrate Release Stabilize
• Repo always available
• Only merge with 100% tests ok / TFW approval
• QA Regression & manual tests
• Fix possible merge/integration problems ASAP

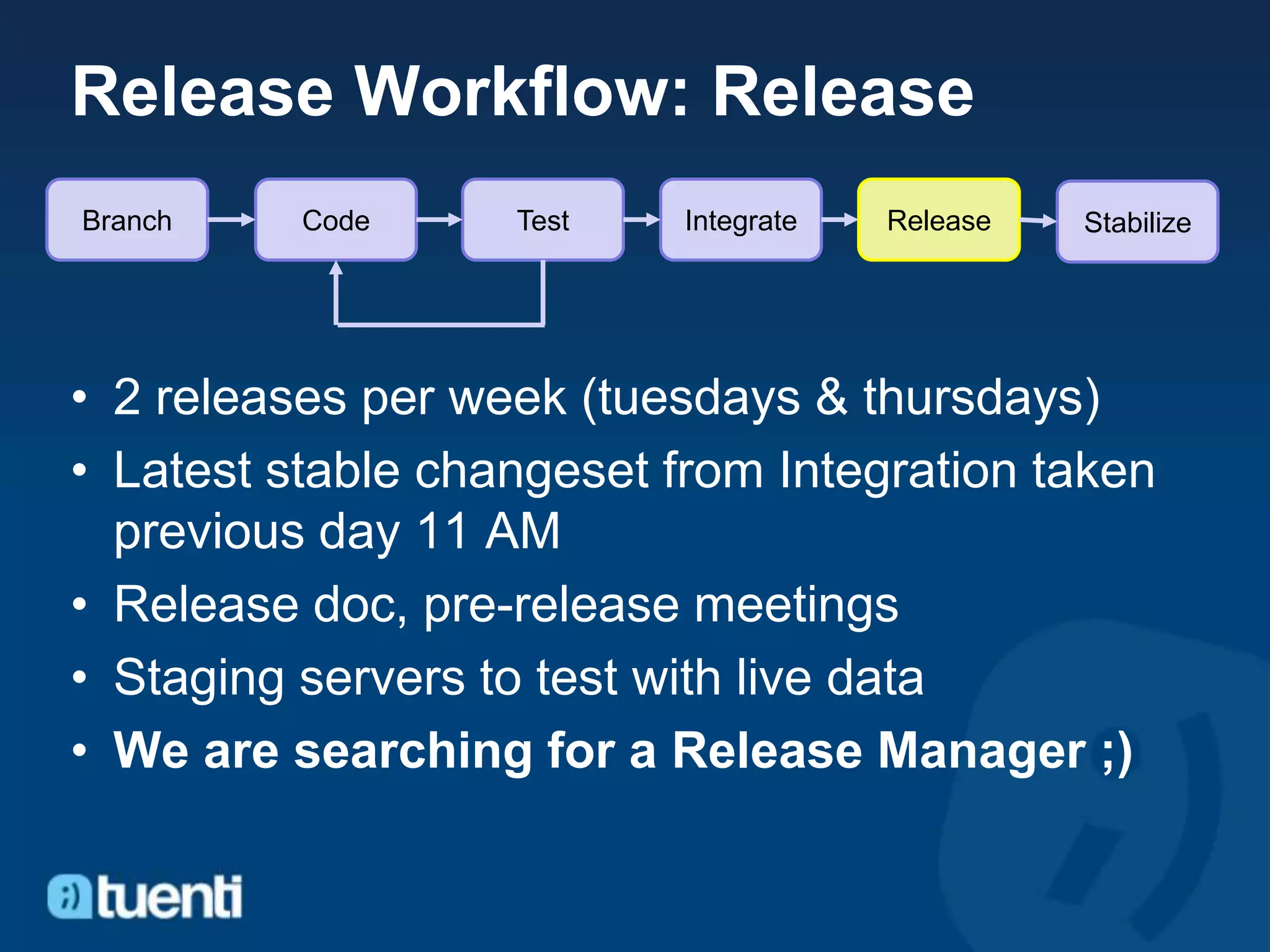

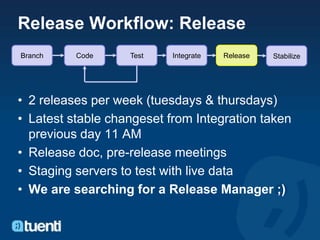

8. Release Workflow: Release
Branch Code Test Integrate Release Stabilize
• 2 releases per week (tuesdays & thursdays)
• Latest stable changeset from Integration taken
previous day 11 AM
• Release doc, pre-release meetings
• Staging servers to test with live data
• We are searching for a Release Manager ;)

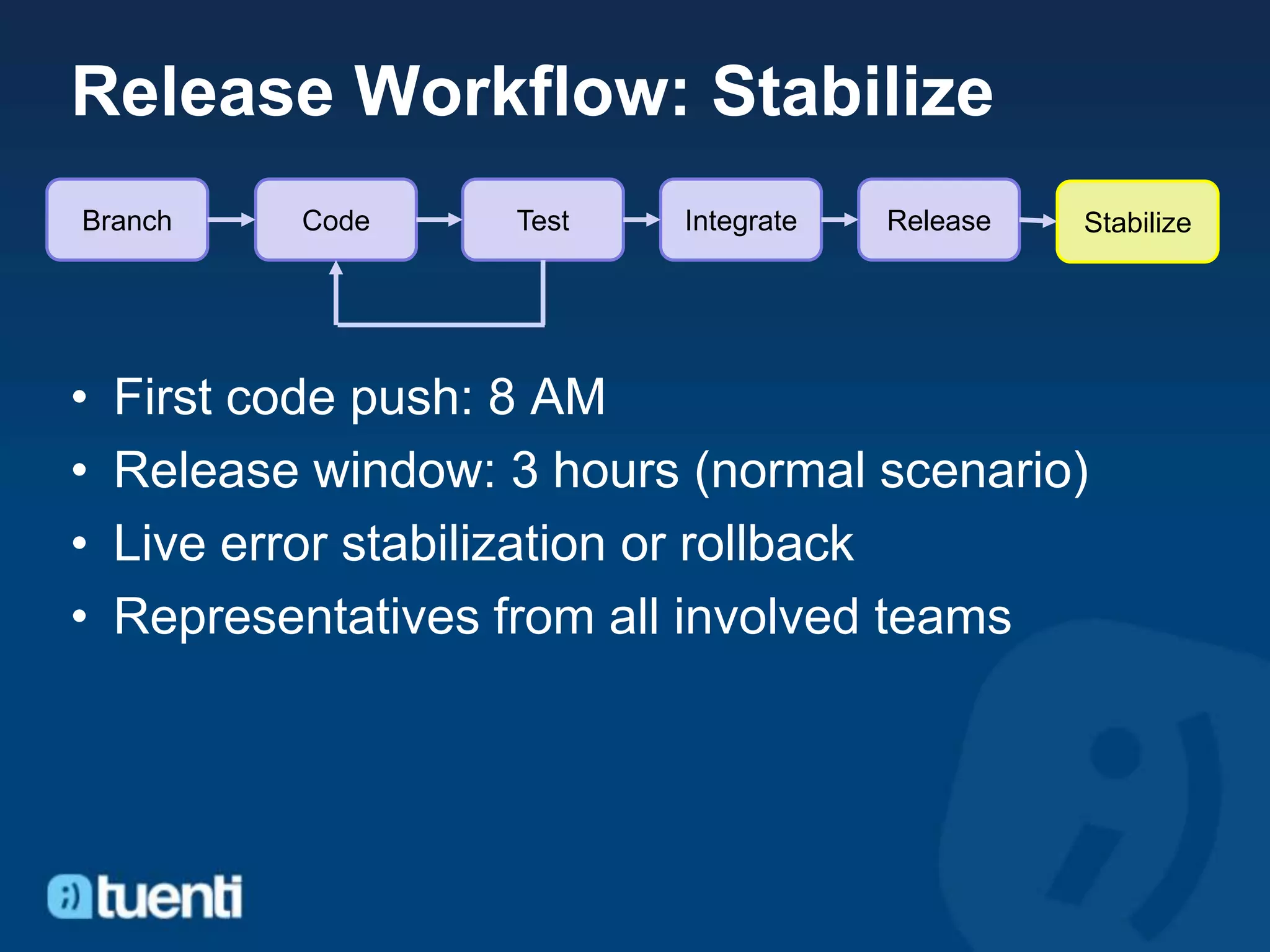

9. Release Workflow: Stabilize
Branch Code Test Integrate Release Stabilize
• First code push: 8 AM
• Release window: 3 hours (normal scenario)
• Live error stabilization or rollback
• Representatives from all involved teams

10. Some tools

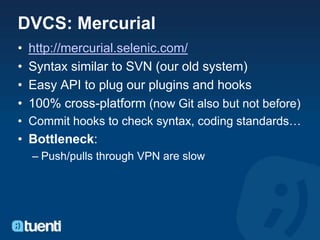

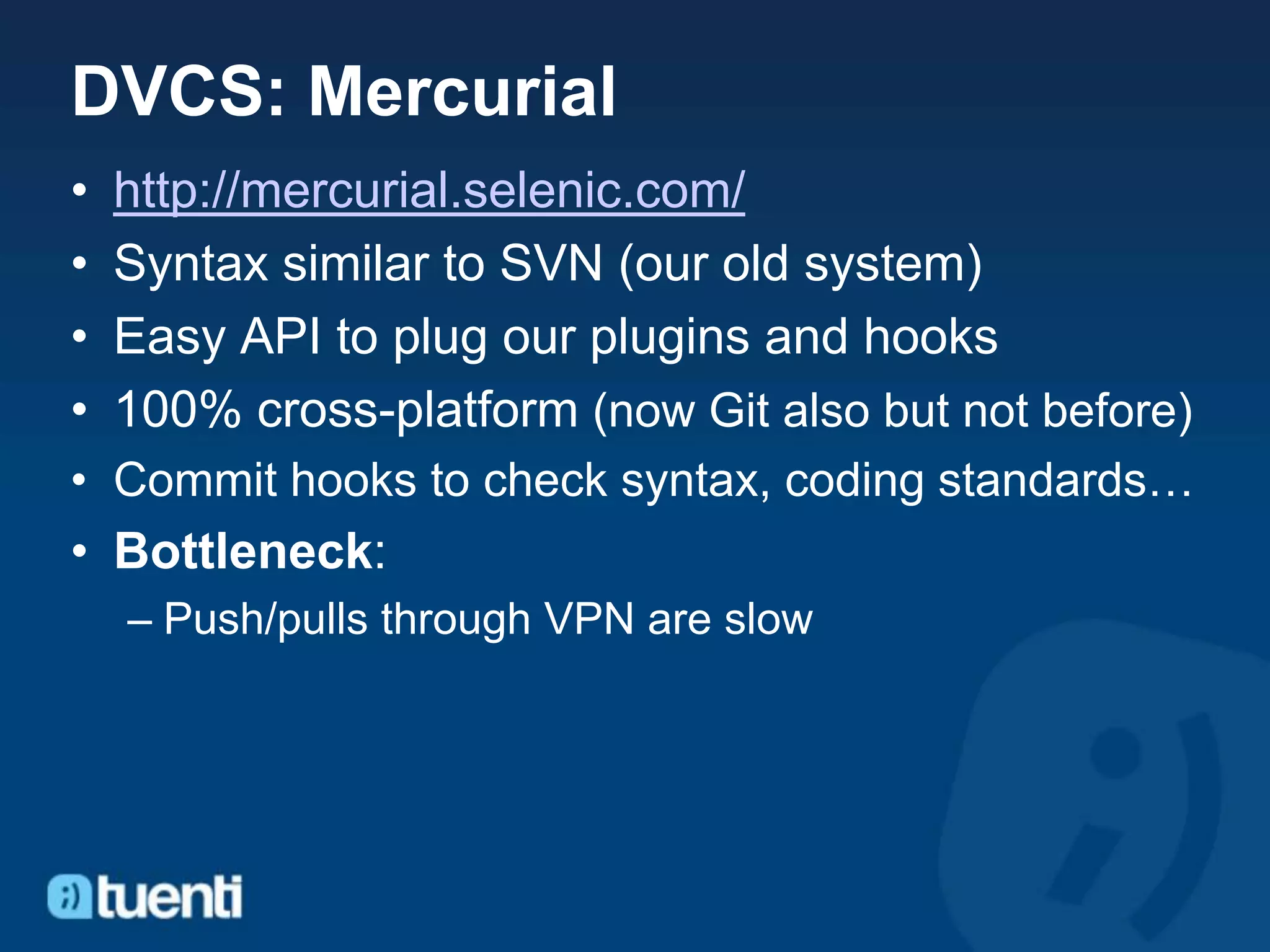

11. DVCS: Mercurial
• http://mercurial.selenic.com/
• Syntax similar to SVN (our old system)
• Easy API to plug our plugins and hooks
• 100% cross-platform (now Git also but not before)
• Commit hooks to check syntax, coding standards…
• Bottleneck:
– Push/pulls through VPN are slow

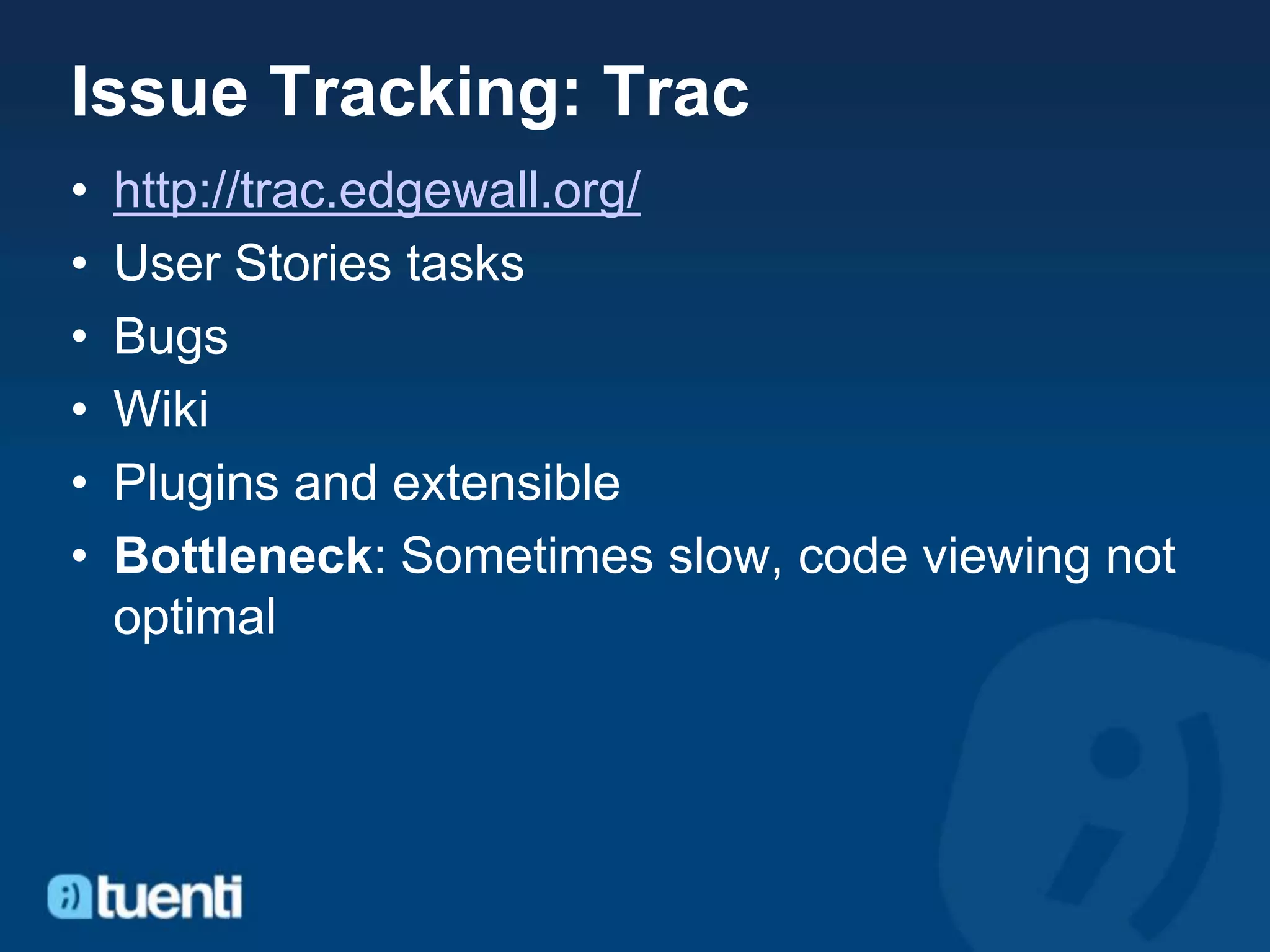

12. Issue Tracking: Trac
• http://trac.edgewall.org/
• User Stories tasks
• Bugs
• Wiki
• Plugins and extensible
• Bottleneck: Sometimes slow, code viewing not
optimal

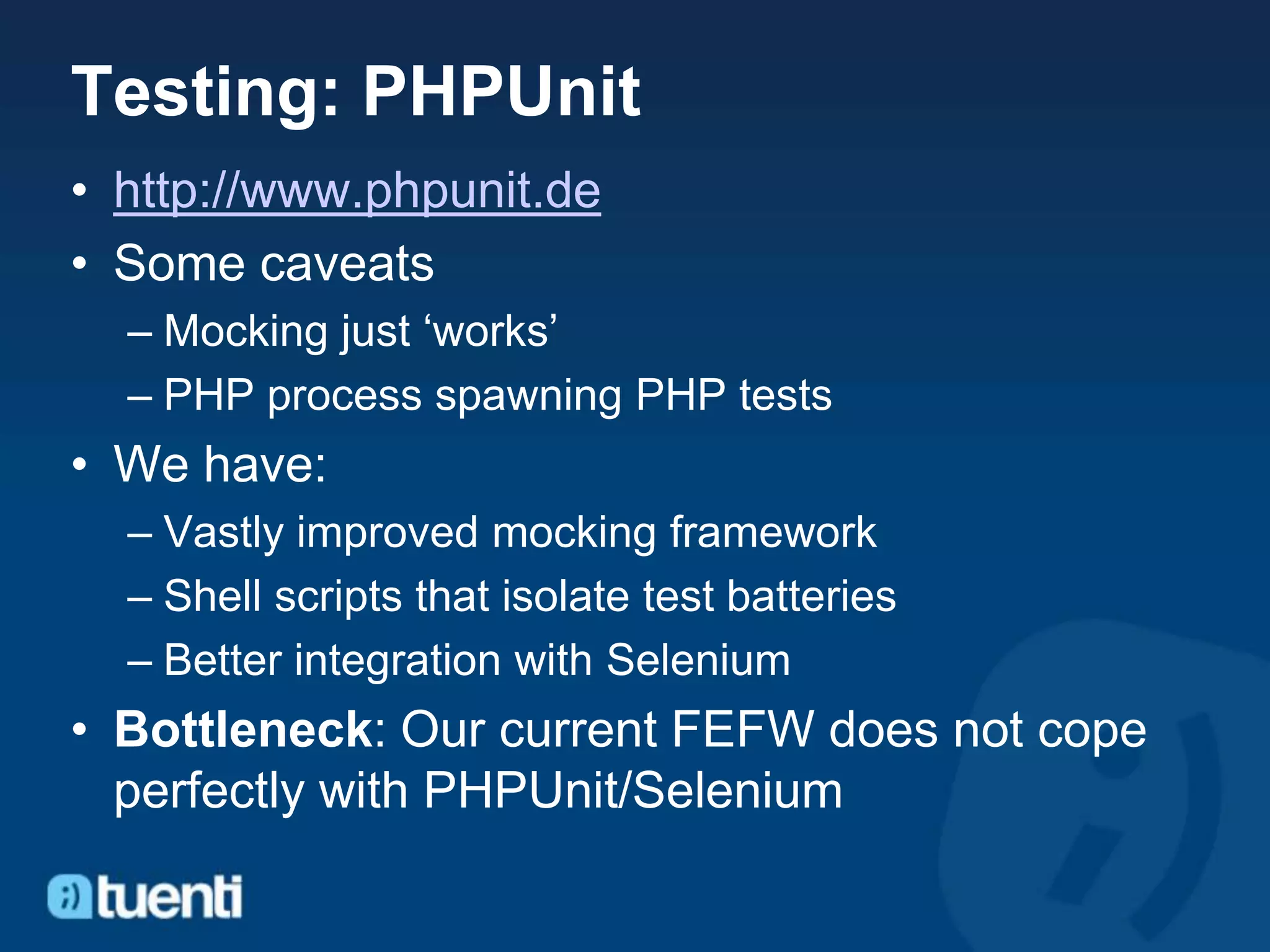

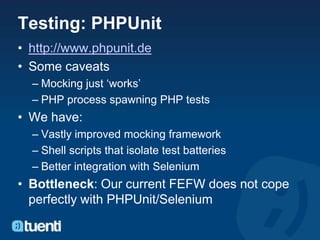

13. Testing: PHPUnit
• http://www.phpunit.de
• Some caveats
– Mocking just ‘works’
– PHP process spawning PHP tests
• We have:
– Vastly improved mocking framework
– Shell scripts that isolate test batteries
– Better integration with Selenium
• Bottleneck: Our current FEFW does not cope
perfectly with PHPUnit/Selenium

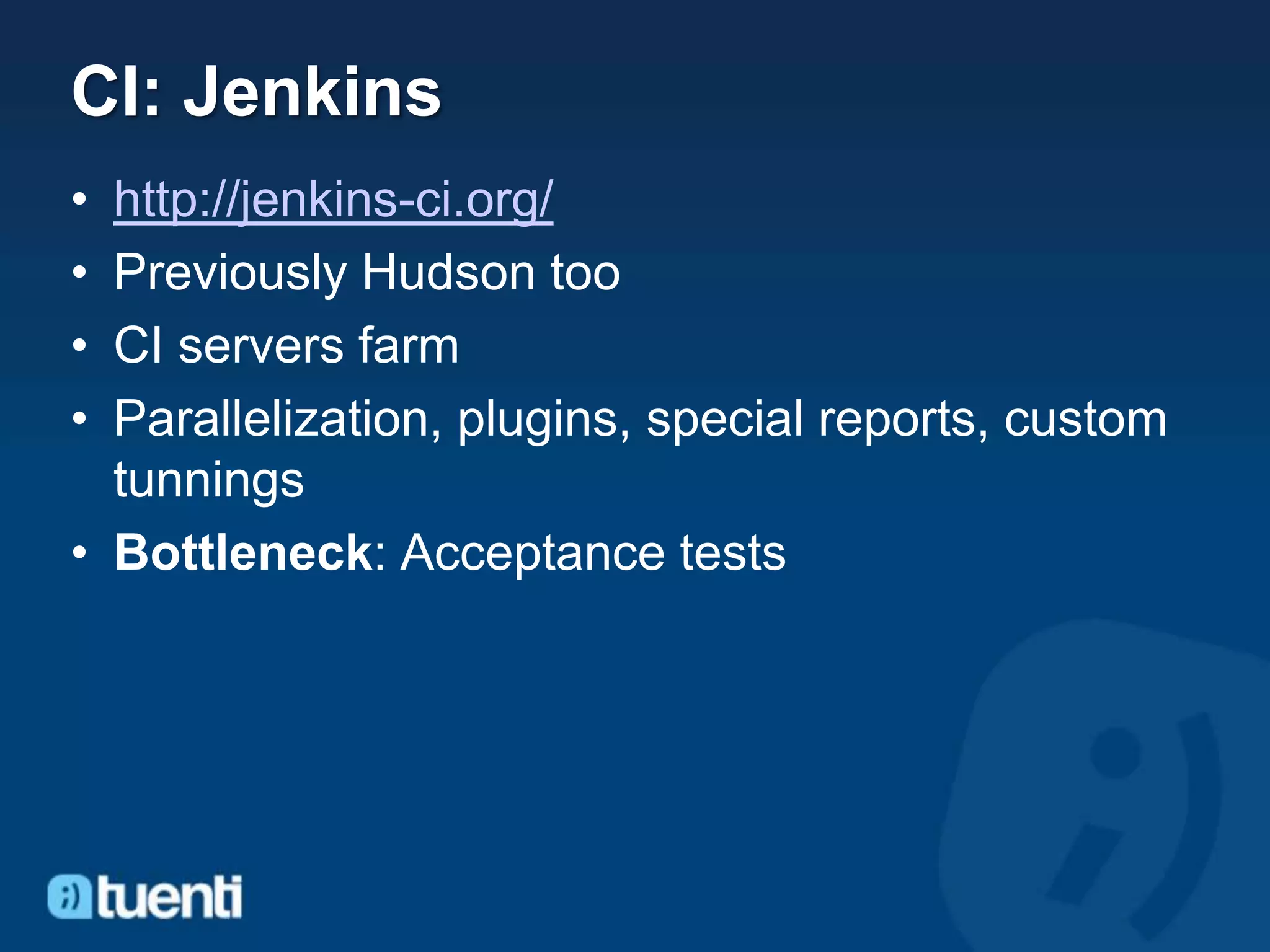

14. CI: Jenkins
• http://jenkins-ci.org/
• Previously Hudson too
• CI servers farm
• Parallelization, plugins, special reports, custom
tunnings
• Bottleneck: Acceptance tests

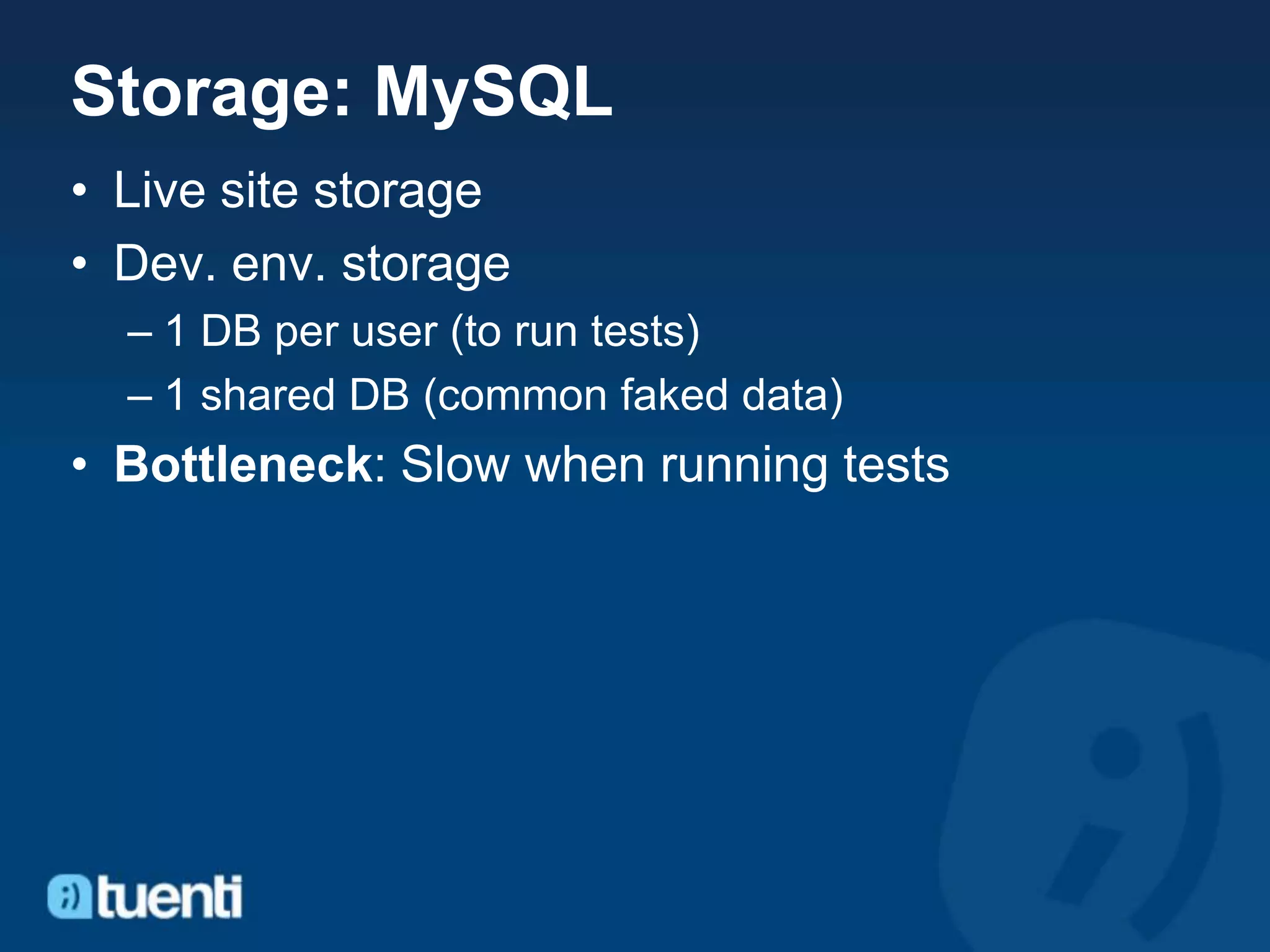

15. Storage: MySQL
• Live site storage
• Dev. env. storage
– 1 DB per user (to run tests)
– 1 shared DB (common faked data)
• Bottleneck: Slow when running tests

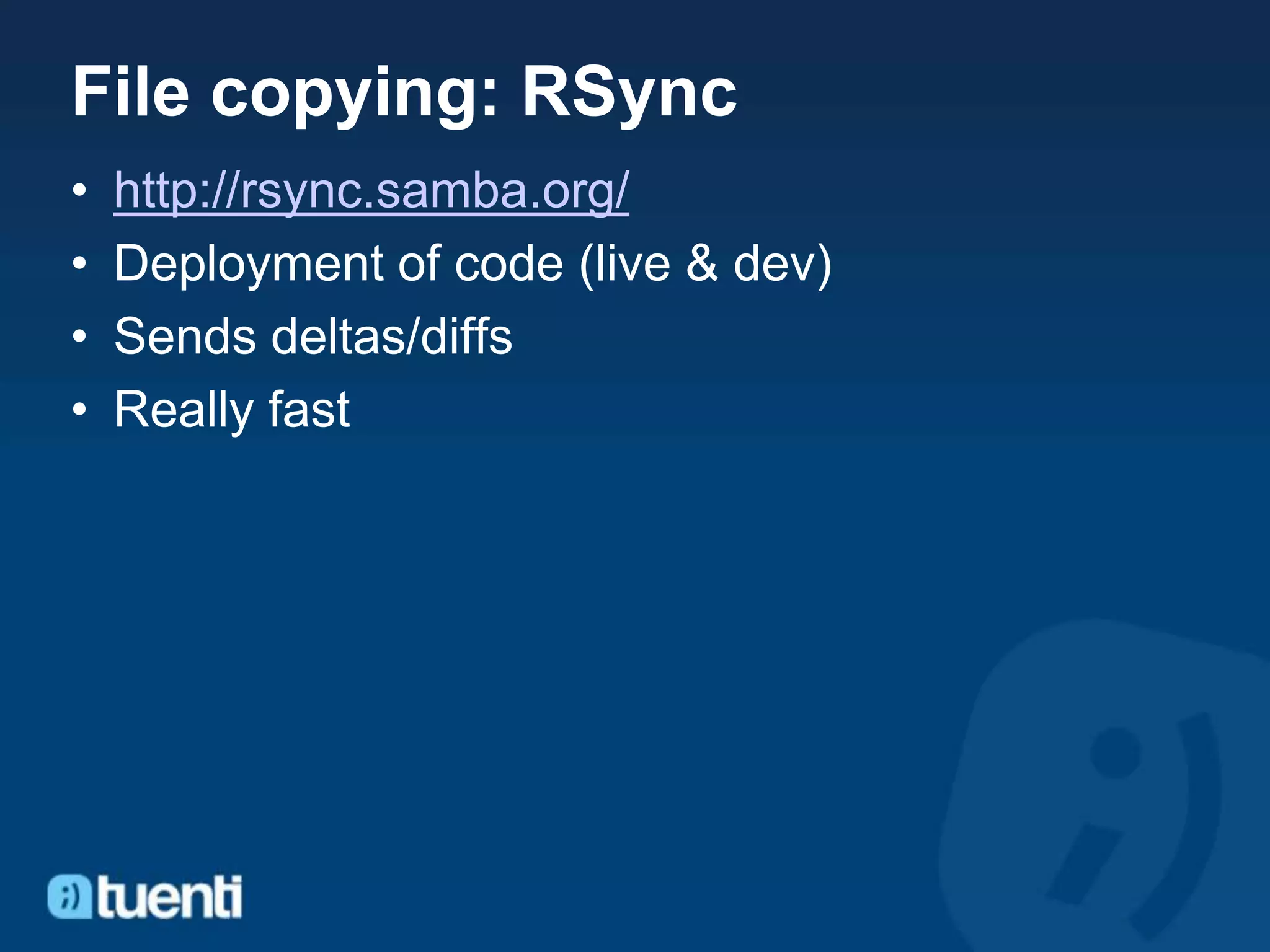

16. File copying: RSync
• http://rsync.samba.org/
• Deployment of code (live & dev)
• Sends deltas/diffs
• Really fast

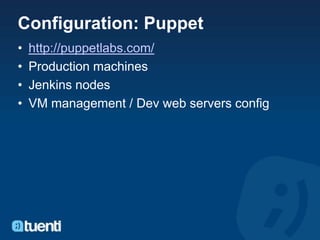

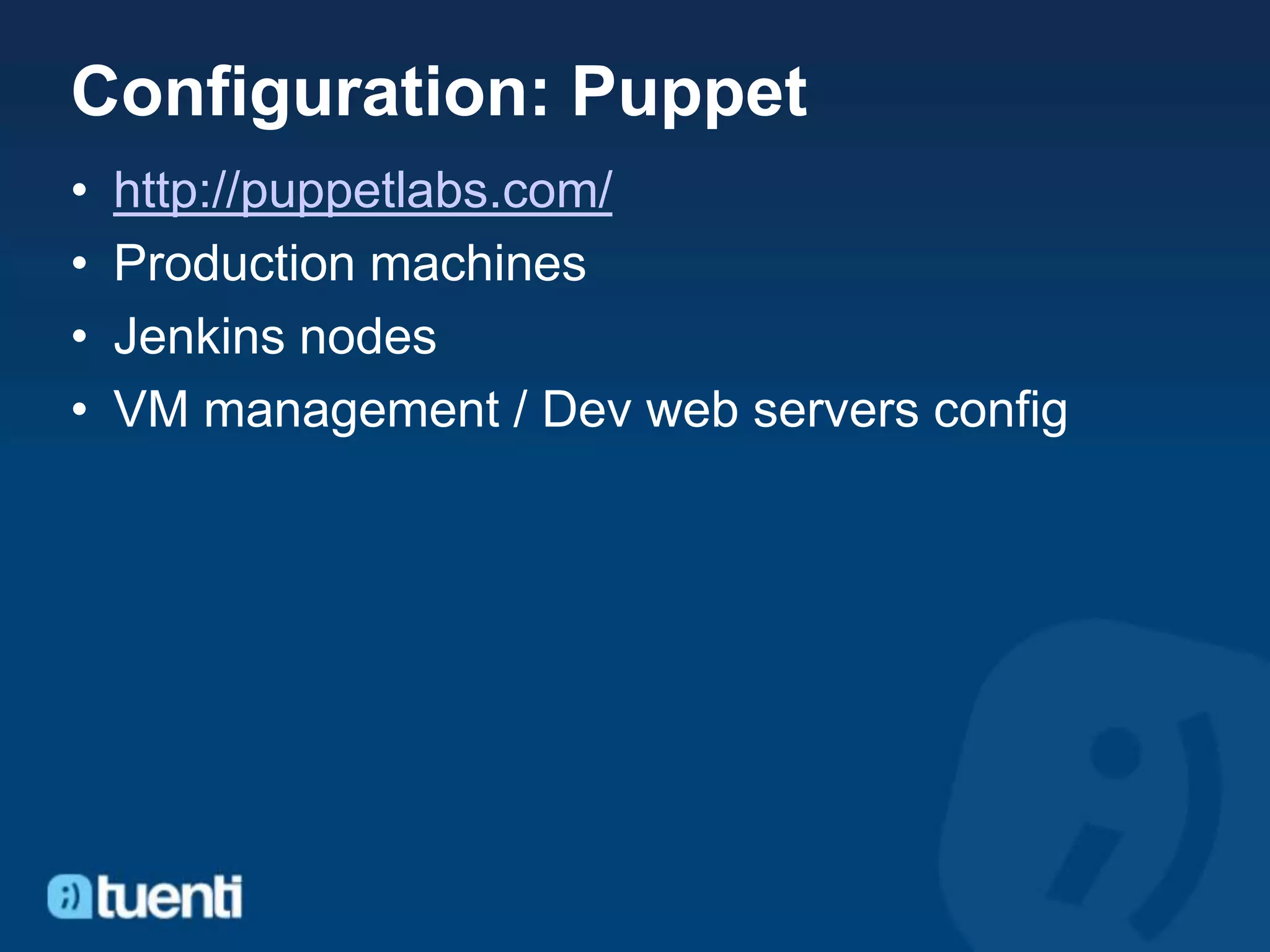

17. Configuration: Puppet
• http://puppetlabs.com/
• Production machines
• Jenkins nodes
• VM management / Dev web servers config

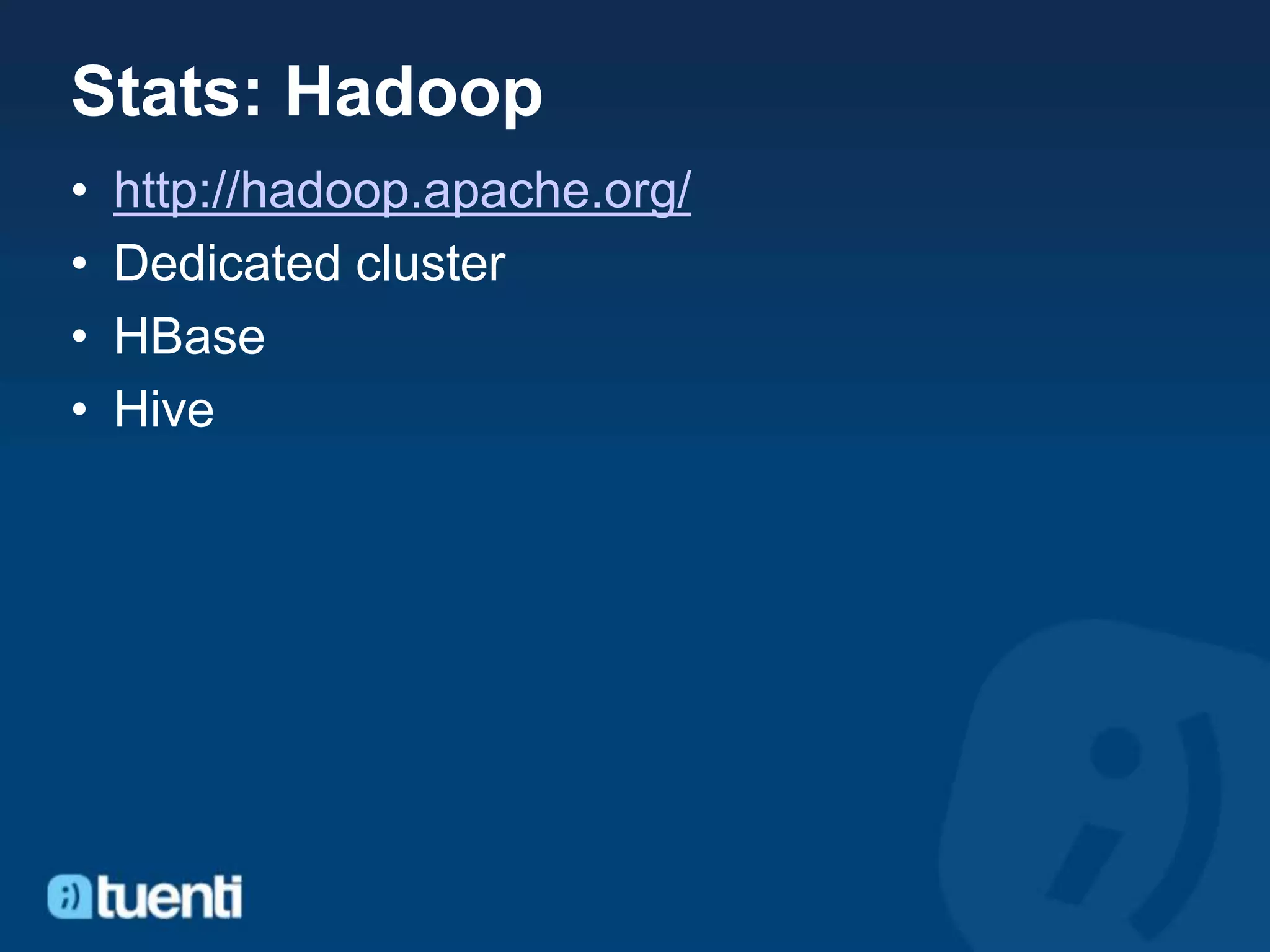

18. Stats: Hadoop
• http://hadoop.apache.org/
• Dedicated cluster
• HBase
• Hive

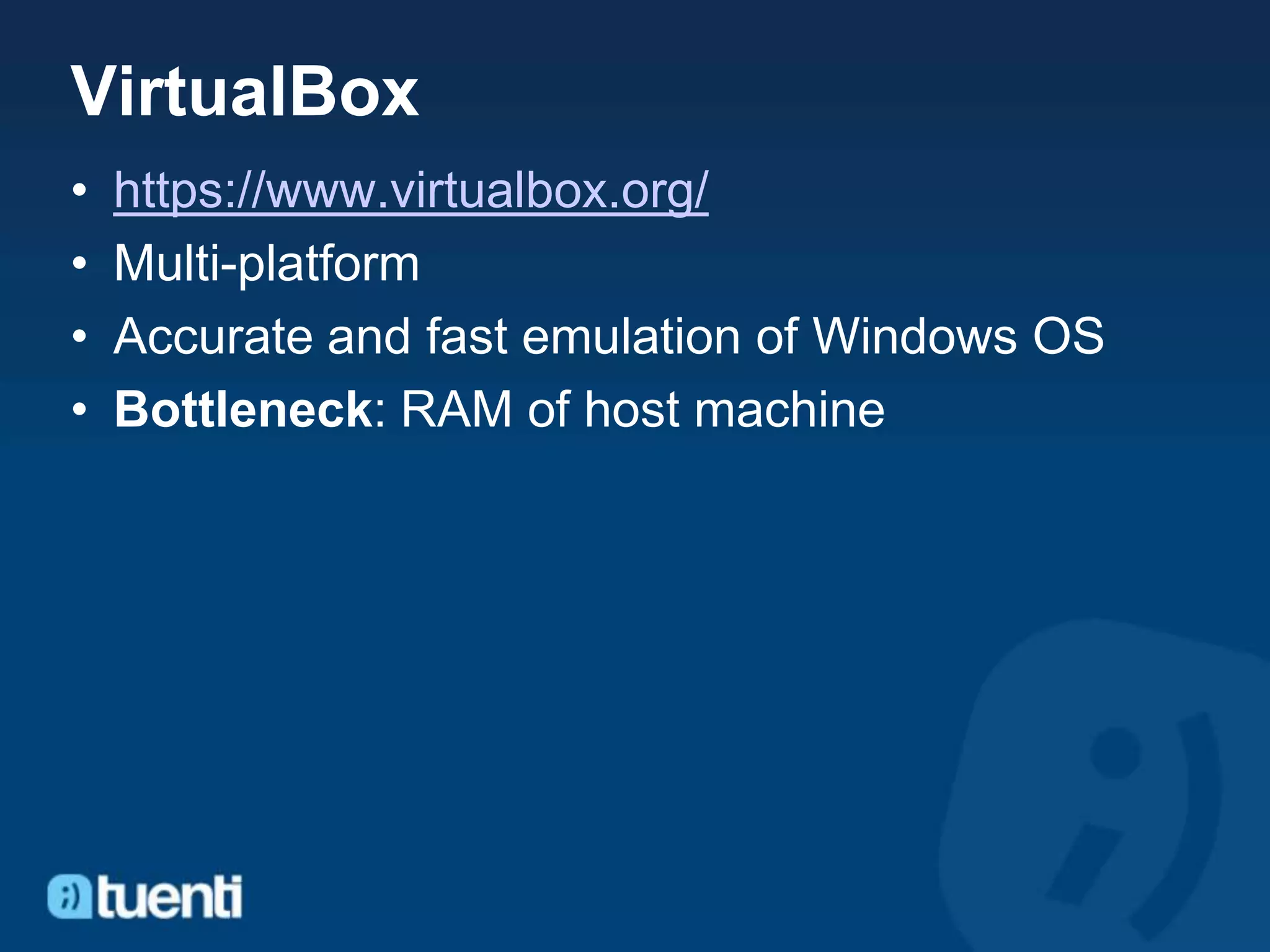

19. VirtualBox
• https://www.virtualbox.org/
• Multi-platform
• Accurate and fast emulation of Windows OS
• Bottleneck: RAM of host machine

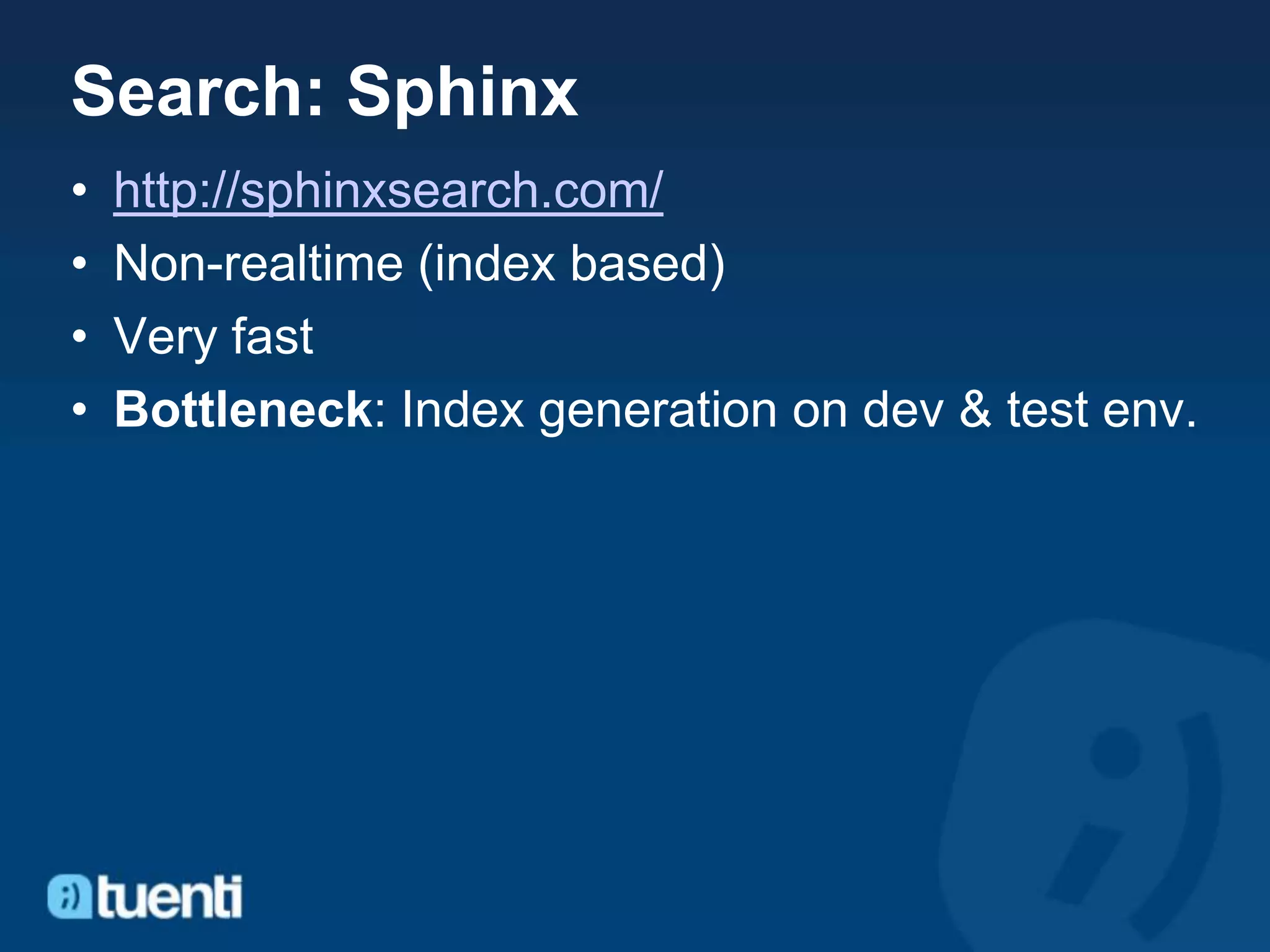

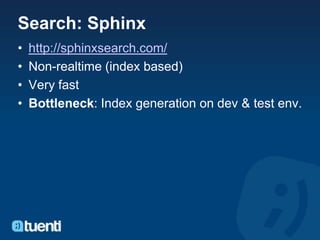

20. Search: Sphinx
• http://sphinxsearch.com/
• Non-realtime (index based)
• Very fast
• Bottleneck: Index generation on dev & test env.

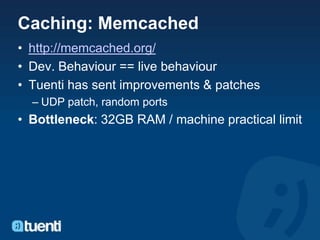

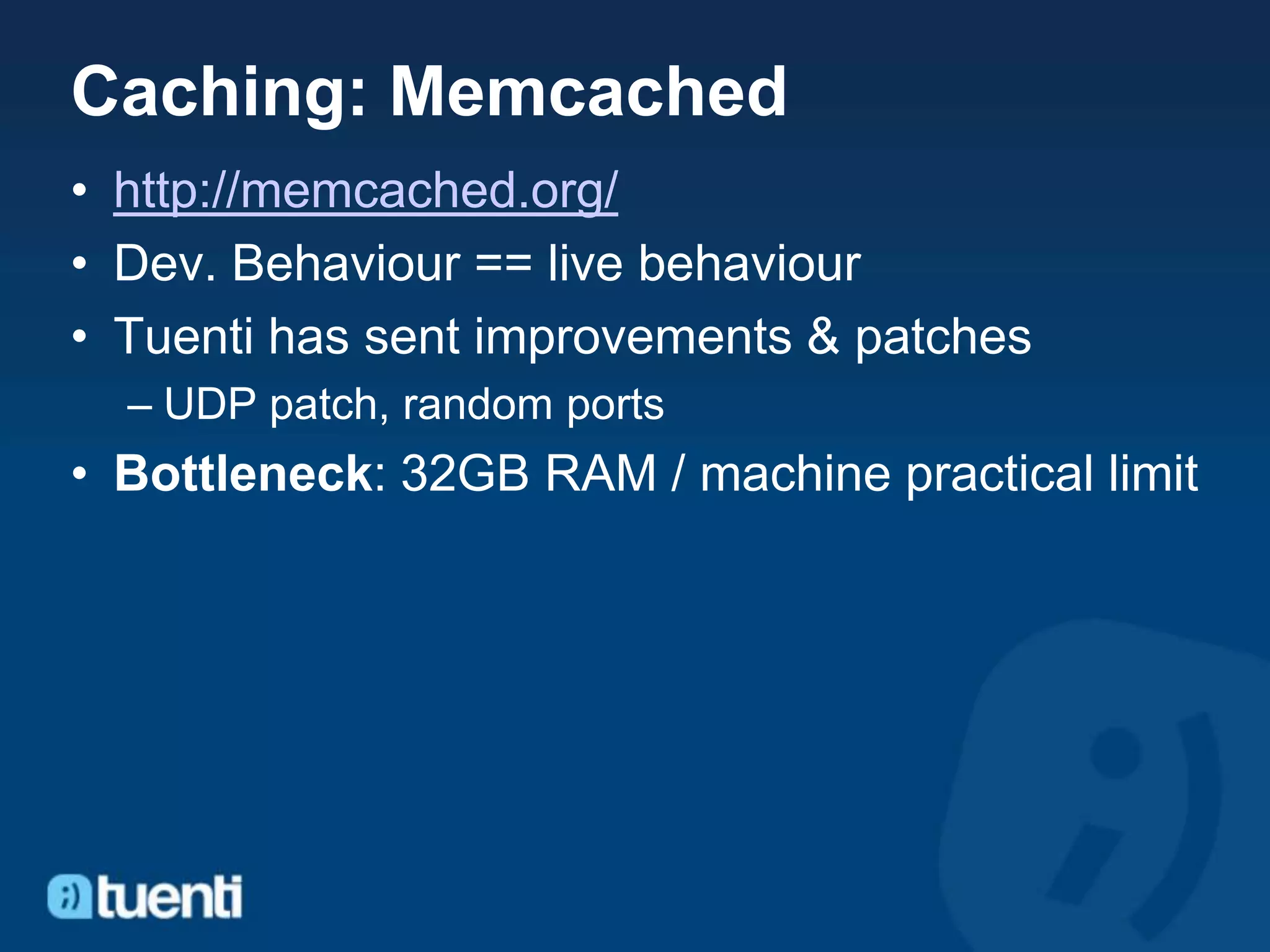

21. Caching: Memcached
• http://memcached.org/
• Dev. Behaviour == live behaviour
• Tuenti has sent improvements & patches
– UDP patch, random ports
• Bottleneck: 32GB RAM / machine practical limit

22. Some rants

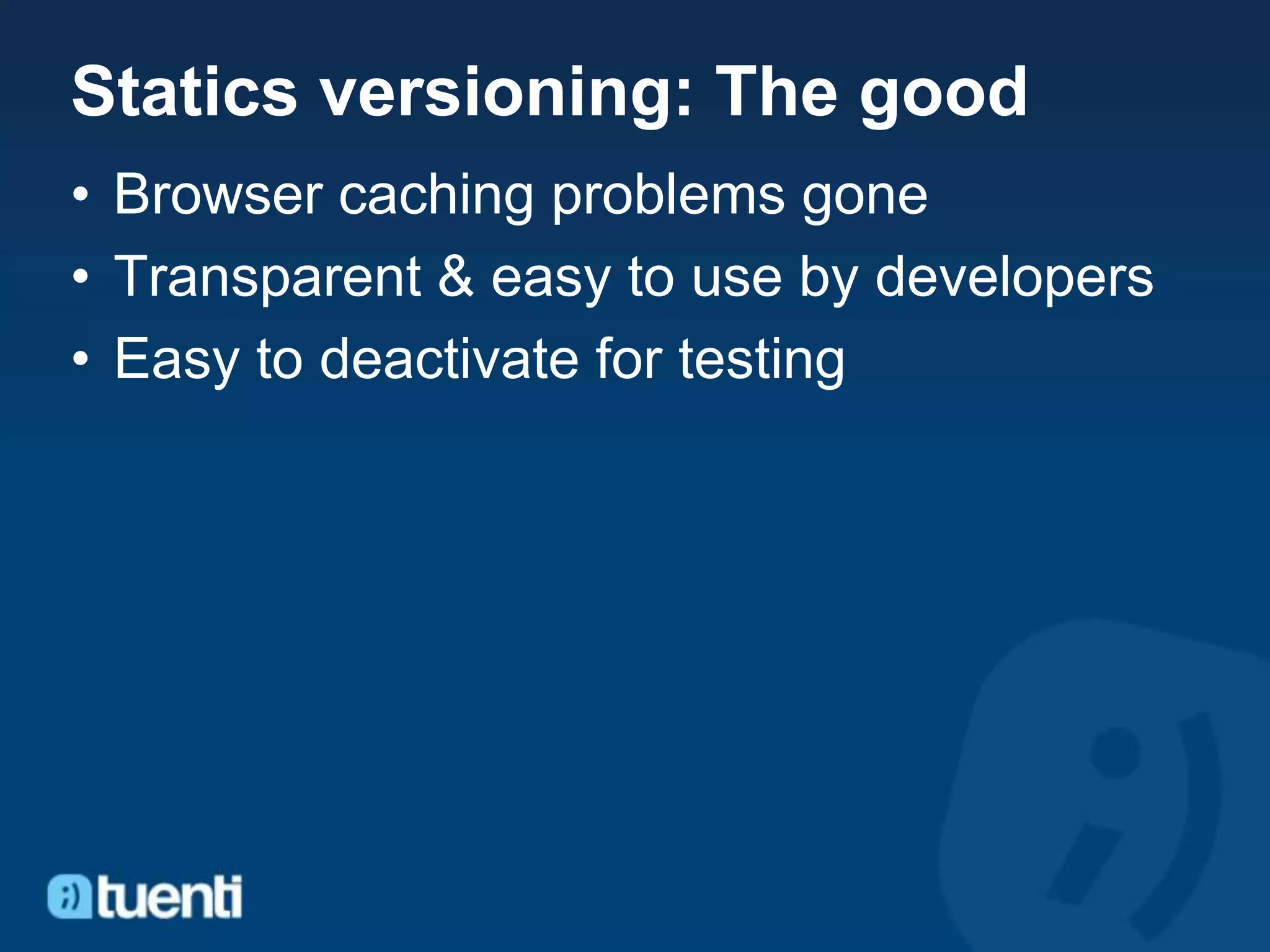

23. Statics versioning: The good
• Browser caching problems gone
• Transparent & easy to use by developers
• Easy to deactivate for testing

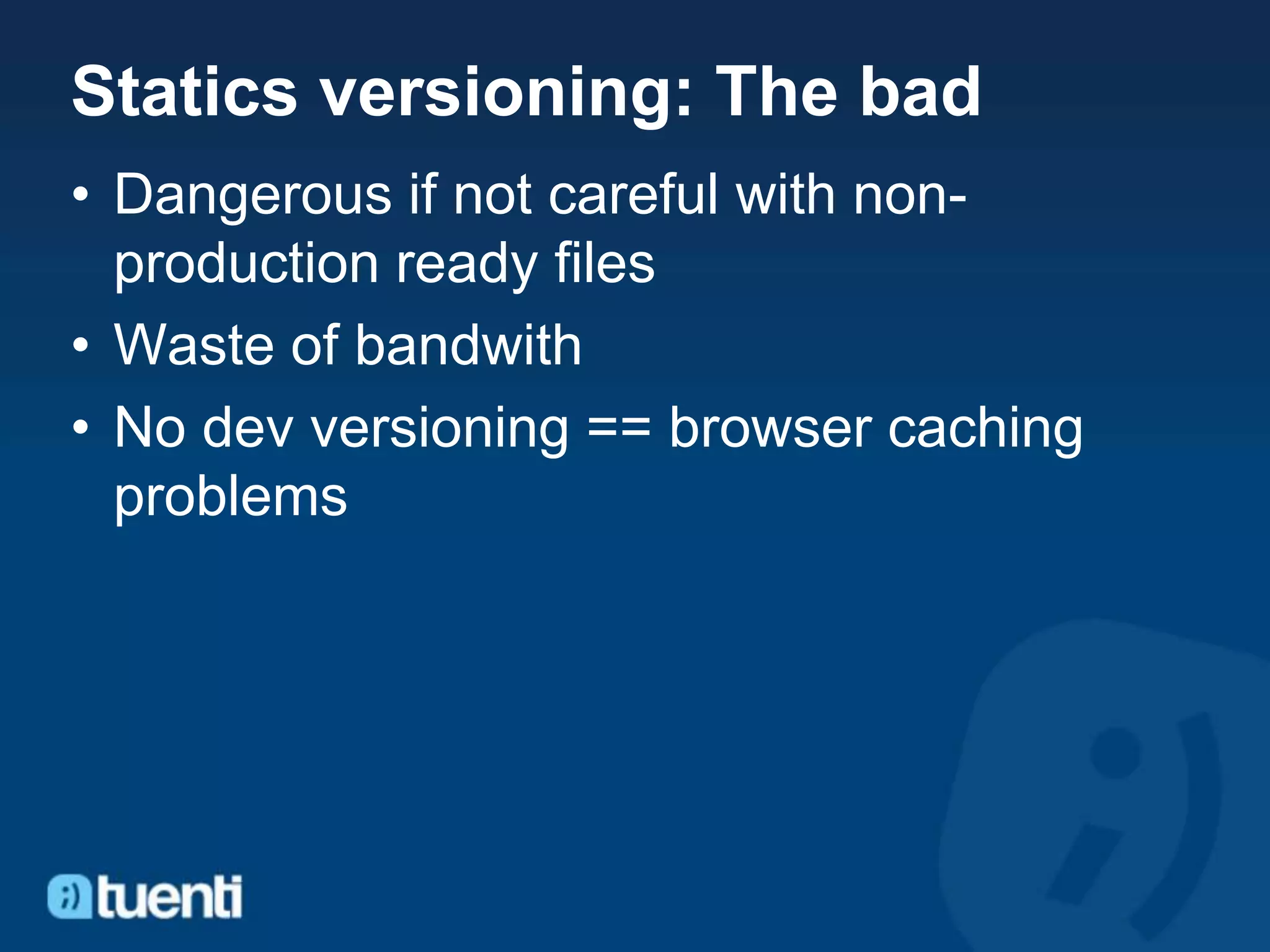

24. Statics versioning: The bad
• Dangerous if not careful with non-
production ready files
• Waste of bandwith
• No dev versioning == browser caching
problems

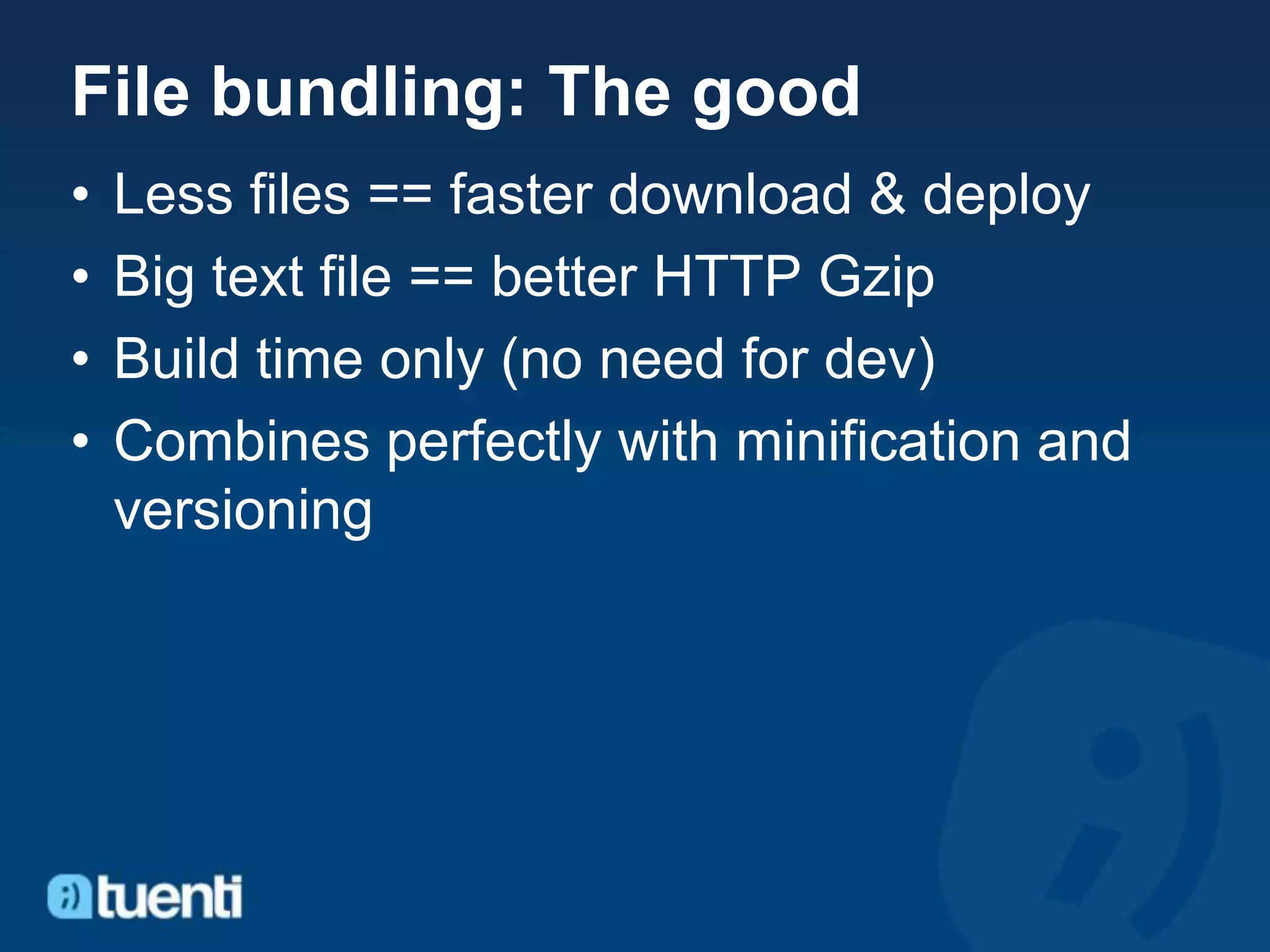

25. File bundling: The good
• Less files == faster download & deploy
• Big text file == better HTTP Gzip
• Build time only (no need for dev)
• Combines perfectly with minification and
versioning

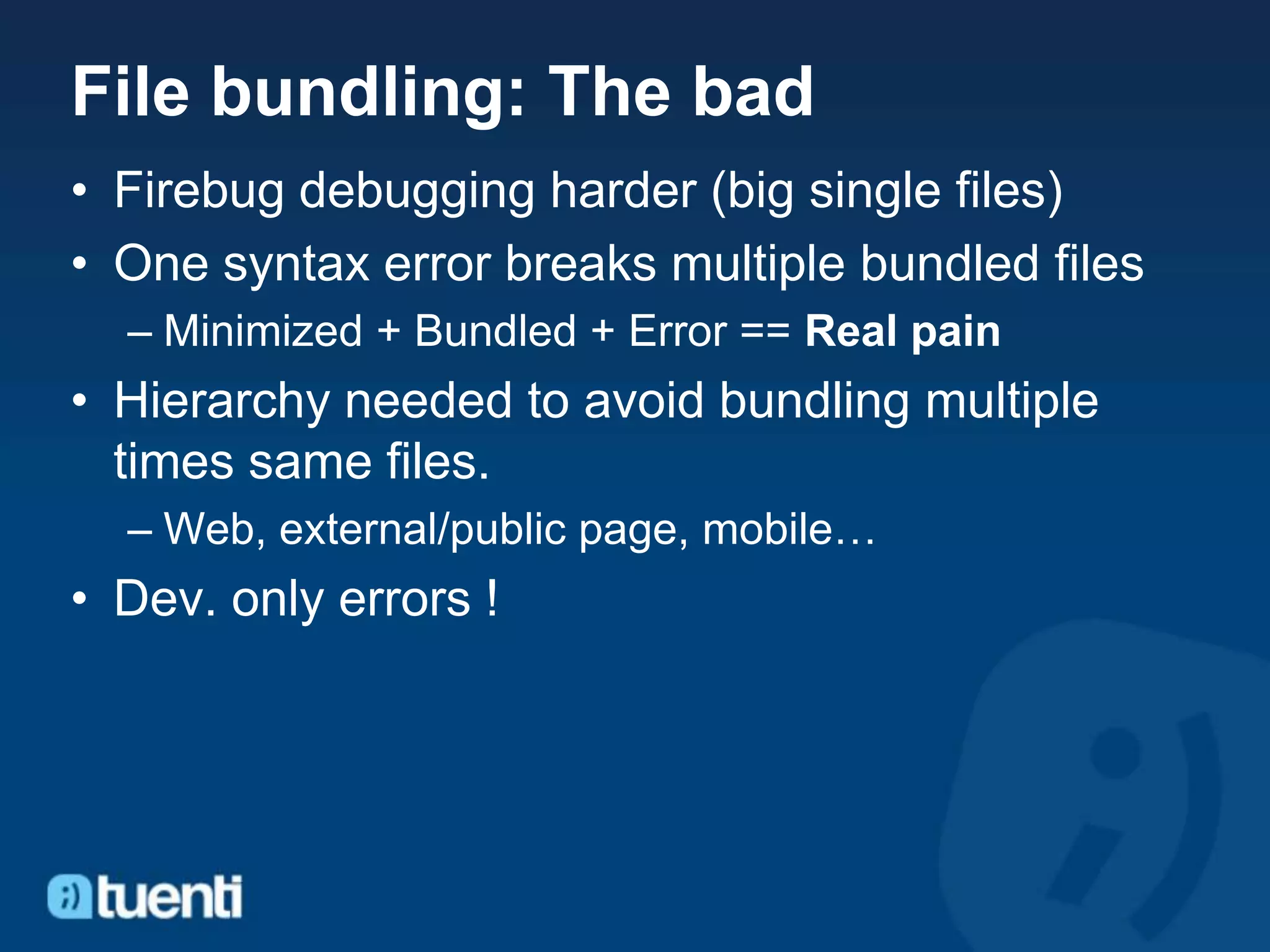

26. File bundling: The bad
• Firebug debugging harder (big single files)
• One syntax error breaks multiple bundled files
– Minimized + Bundled + Error == Real pain
• Hierarchy needed to avoid bundling multiple
times same files.
– Web, external/public page, mobile…
• Dev. only errors !

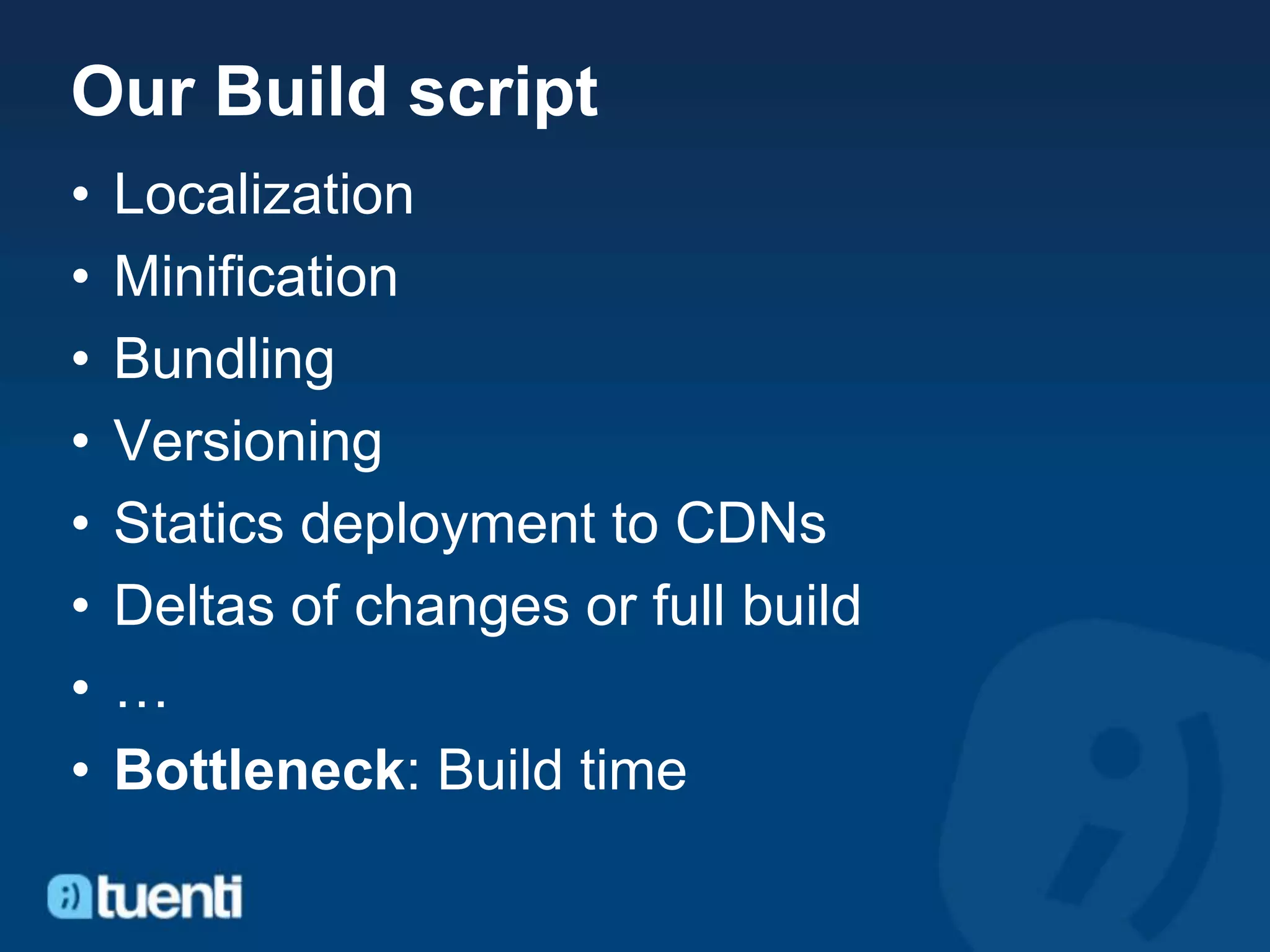

27. Our Build script
• Localization
• Minification
• Bundling
• Versioning
• Statics deployment to CDNs
• Deltas of changes or full build
• …
• Bottleneck: Build time

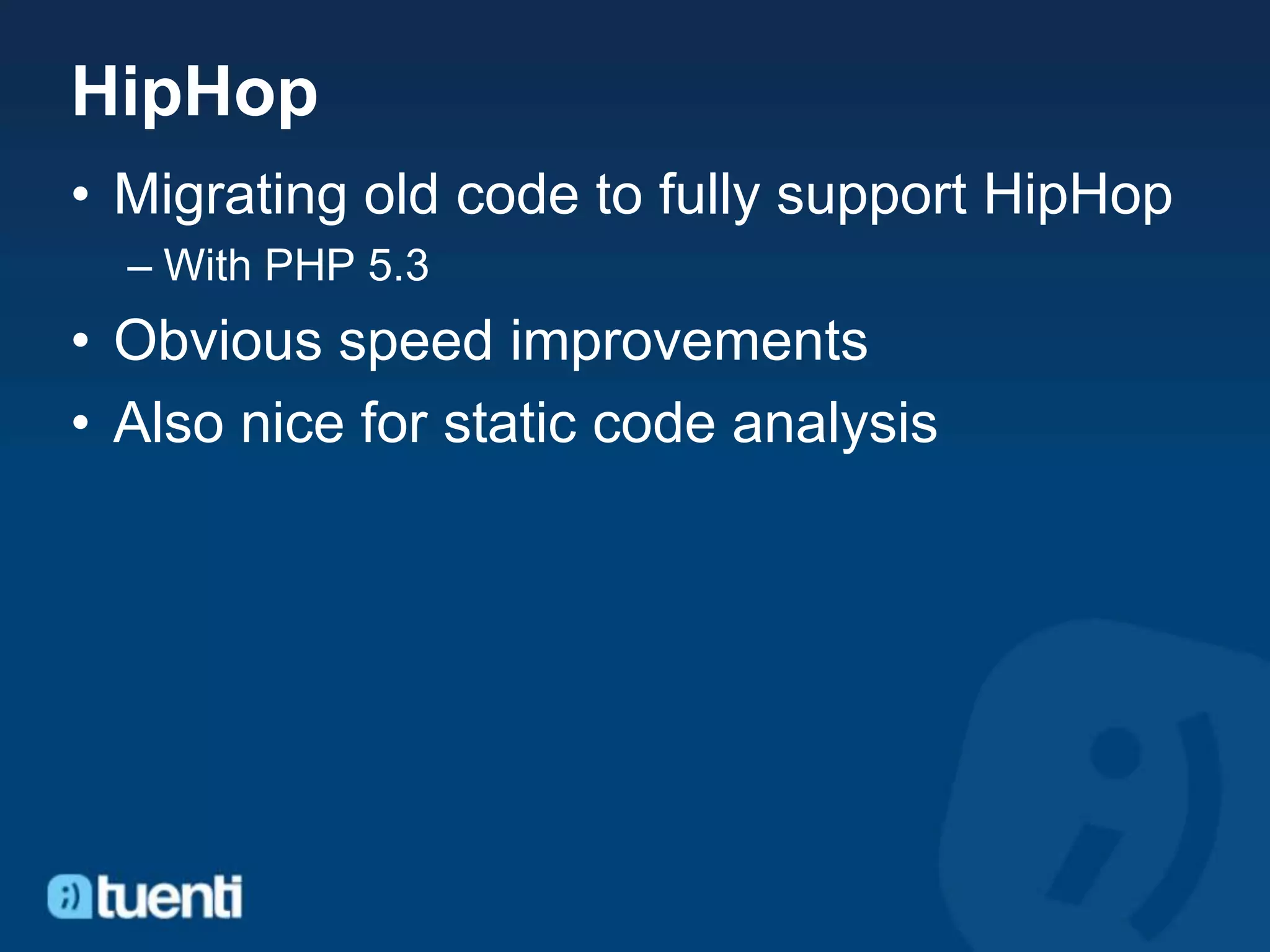

28. HipHop
• Migrating old code to fully support HipHop
– With PHP 5.3
• Obvious speed improvements
• Also nice for static code analysis

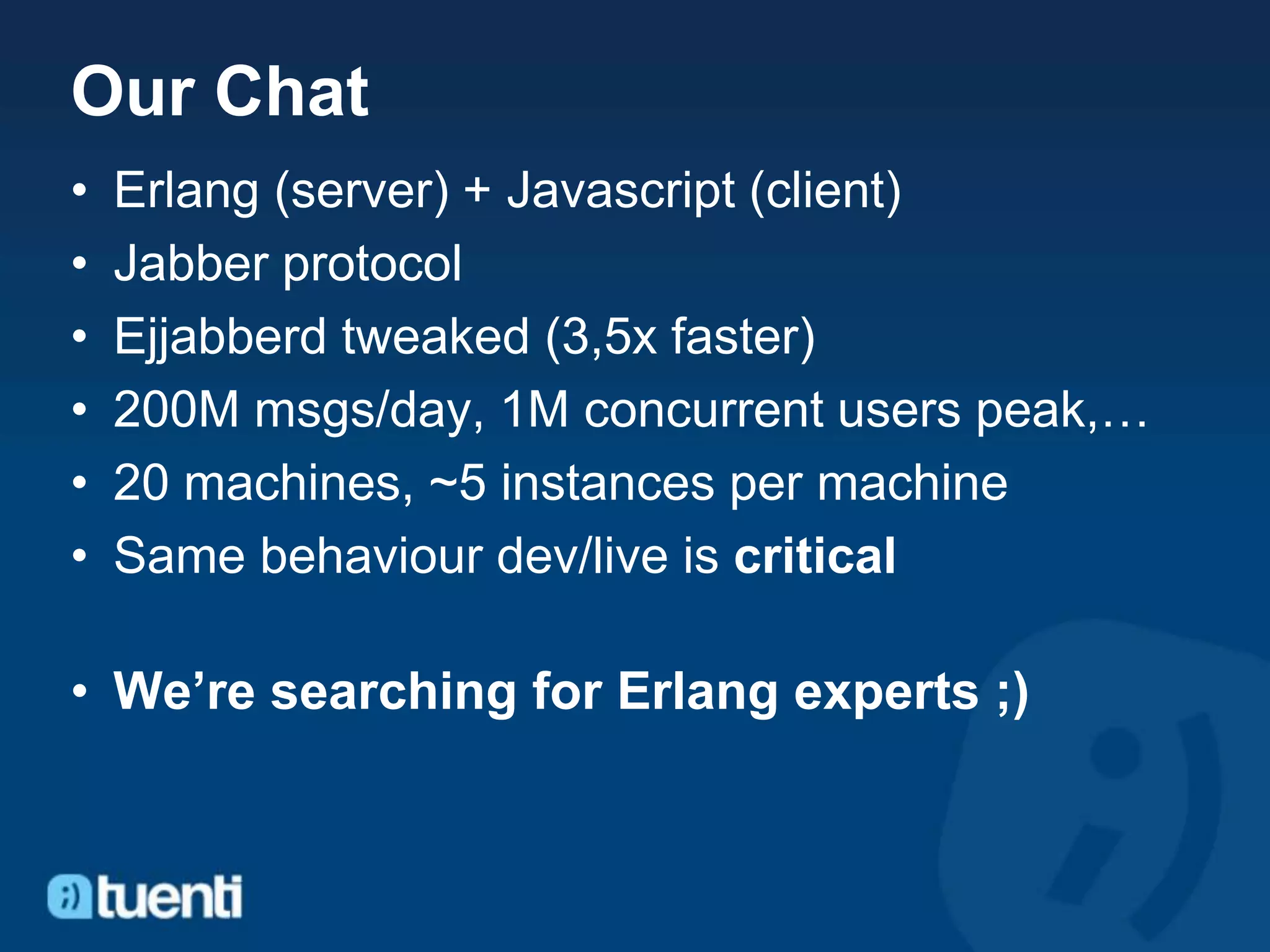

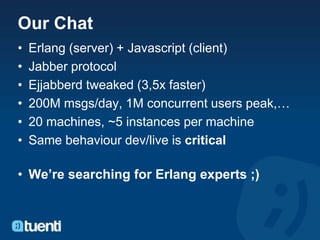

29. Our Chat
• Erlang (server) + Javascript (client)
• Jabber protocol
• Ejjabberd tweaked (3,5x faster)
• 200M msgs/day, 1M concurrent users peak,…
• 20 machines, ~5 instances per machine
• Same behaviour dev/live is critical
• We’re searching for Erlang experts ;)

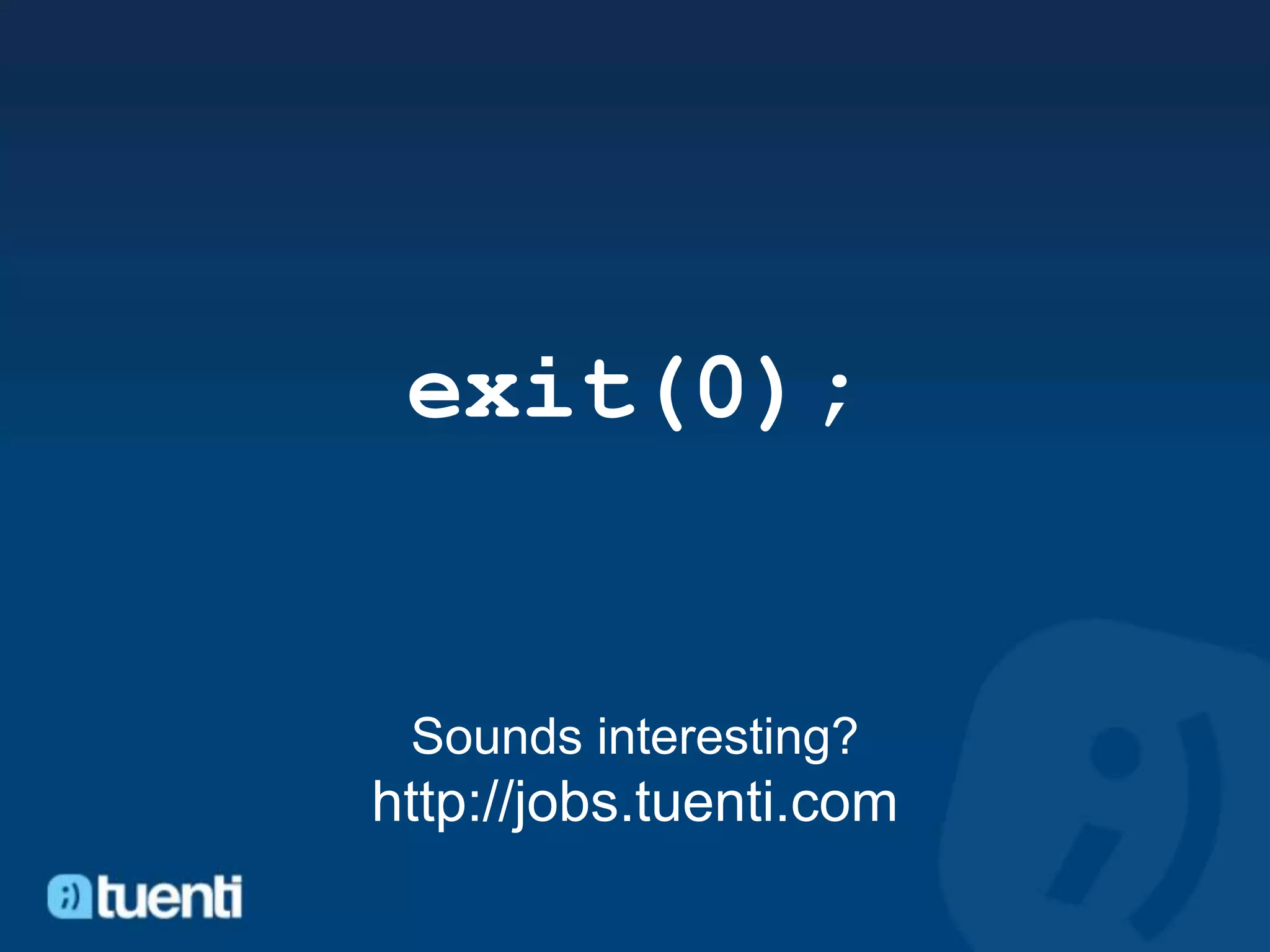

30. exit(0);
Sounds interesting?
http://jobs.tuenti.com
