This document discusses web forms and server-side scripting. It begins by defining different types of servers, including web servers. It then explains that web content can be static HTML or dynamic content generated by user-side programming like JavaScript or server-side programming like PHP, ASP, and JSP. Server-side programming allows for accessibility, manageability, security and scalability. The document reviews the history of dynamic web content and introduces scripting as the third generation approach. It then discusses popular scripting languages and frameworks like PHP, ASP.NET and JSP. Finally, it provides an overview of how to connect PHP to a server through a hosted server, local installation, or using XAMPP.

1. Web forms and Server
Side Scripting
Sawsan Slii Marzouki
Internet Applicatiosn Development

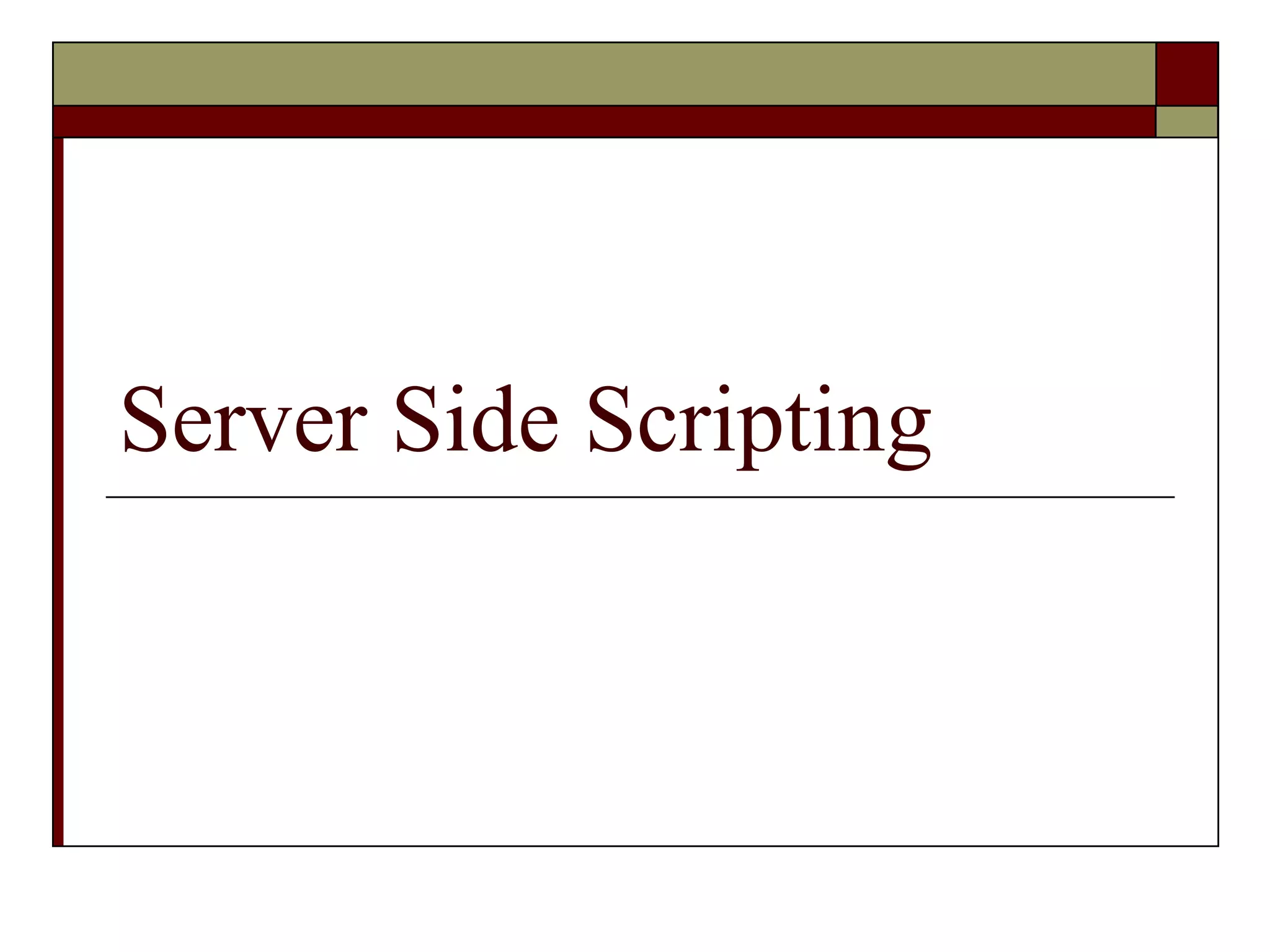

2. Server Side Scripting

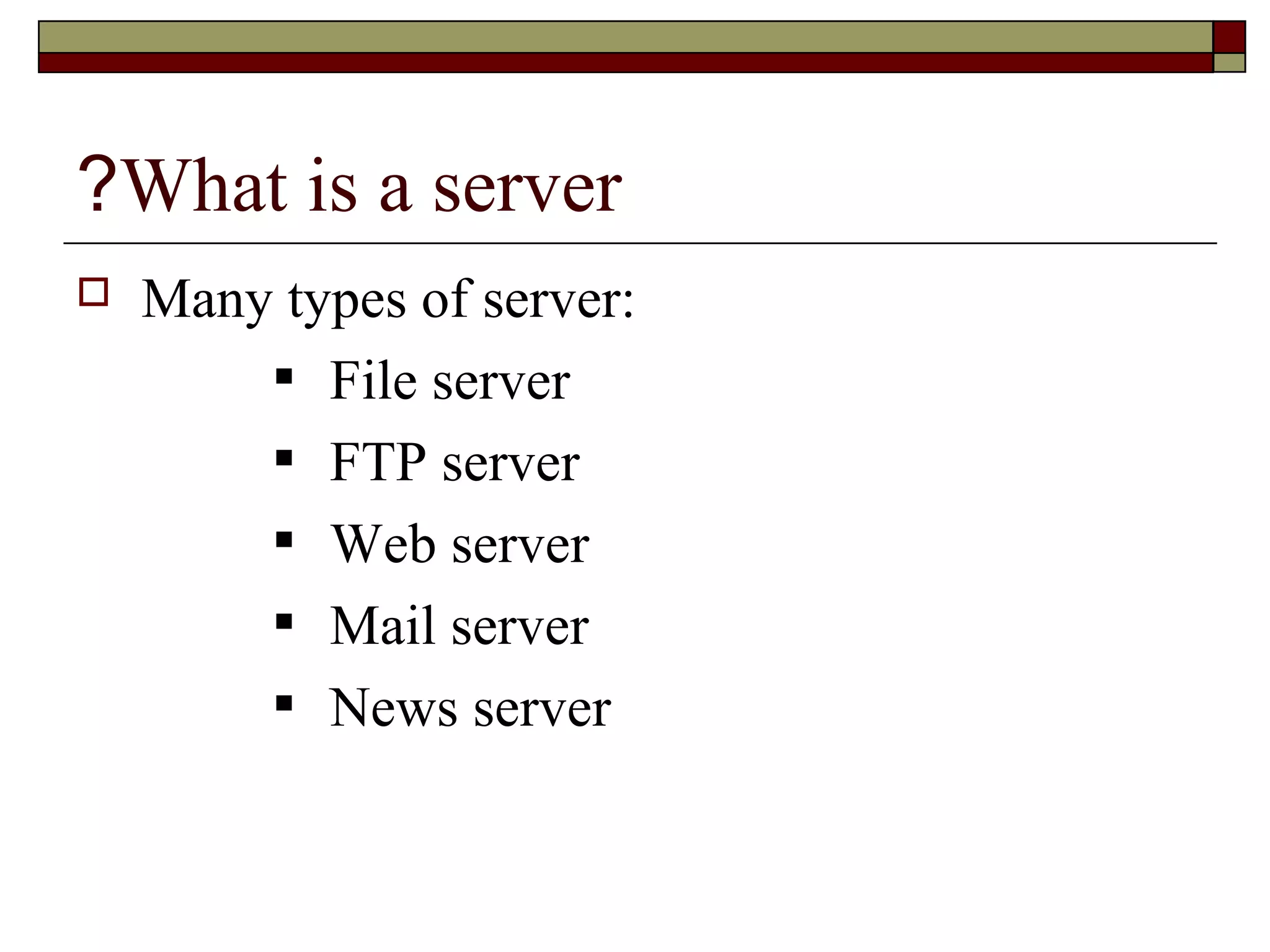

3. What is a server?
 Many types of server:
File server
FTP server
Web server
Mail server
News server

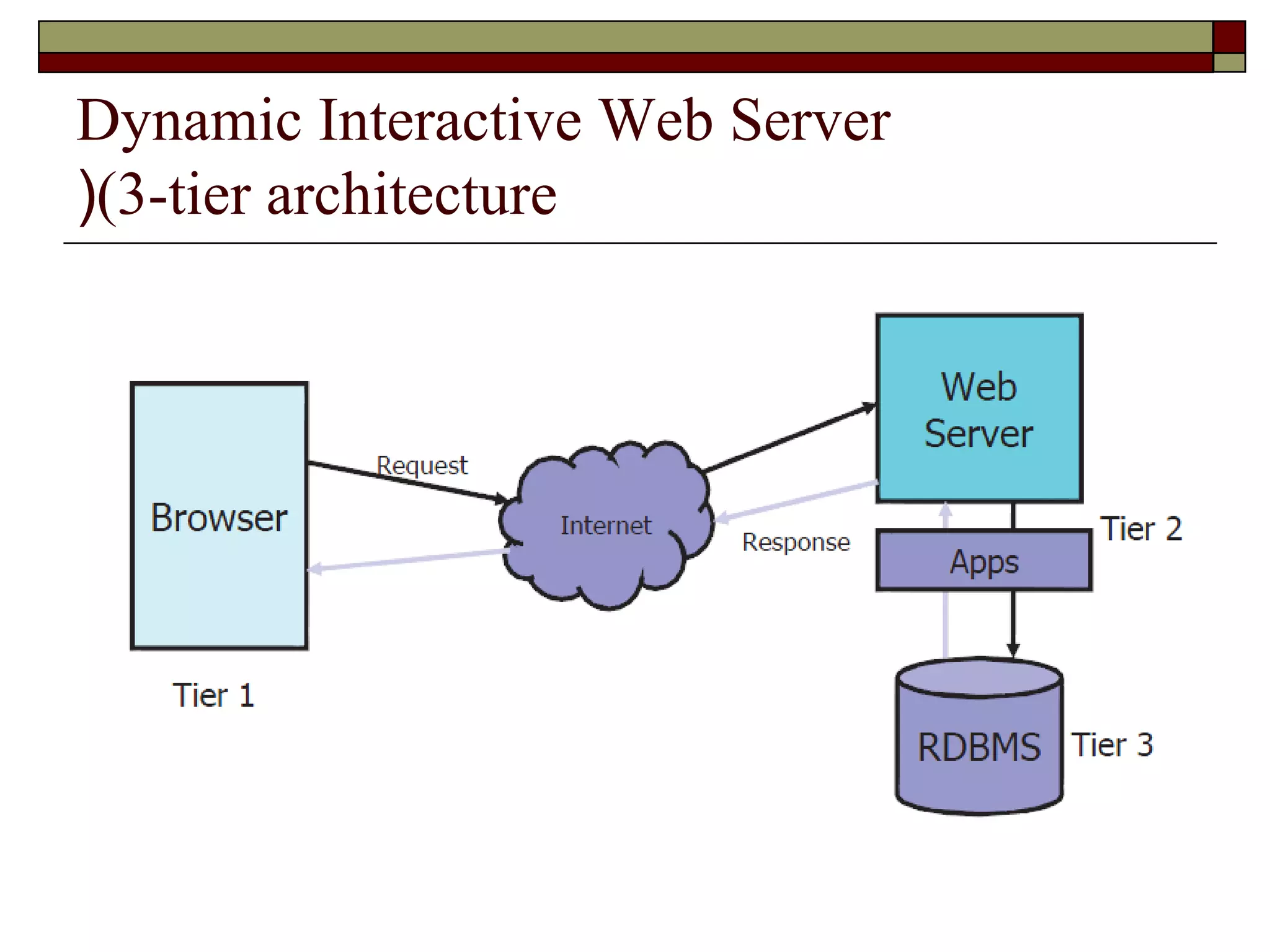

4. Dynamic Interactive Web Server
(3-tier architecture(

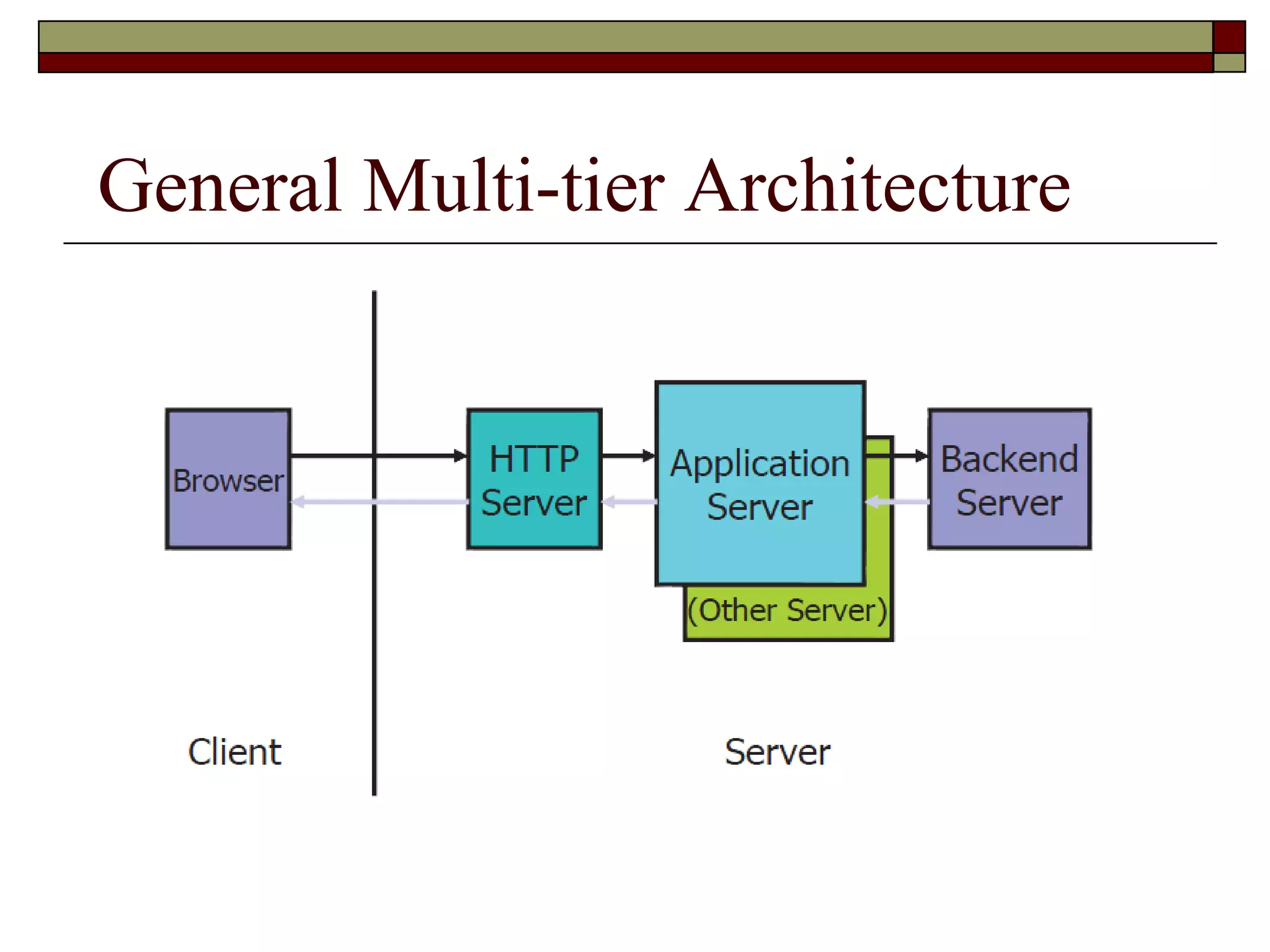

5. General Multi-tier Architecture

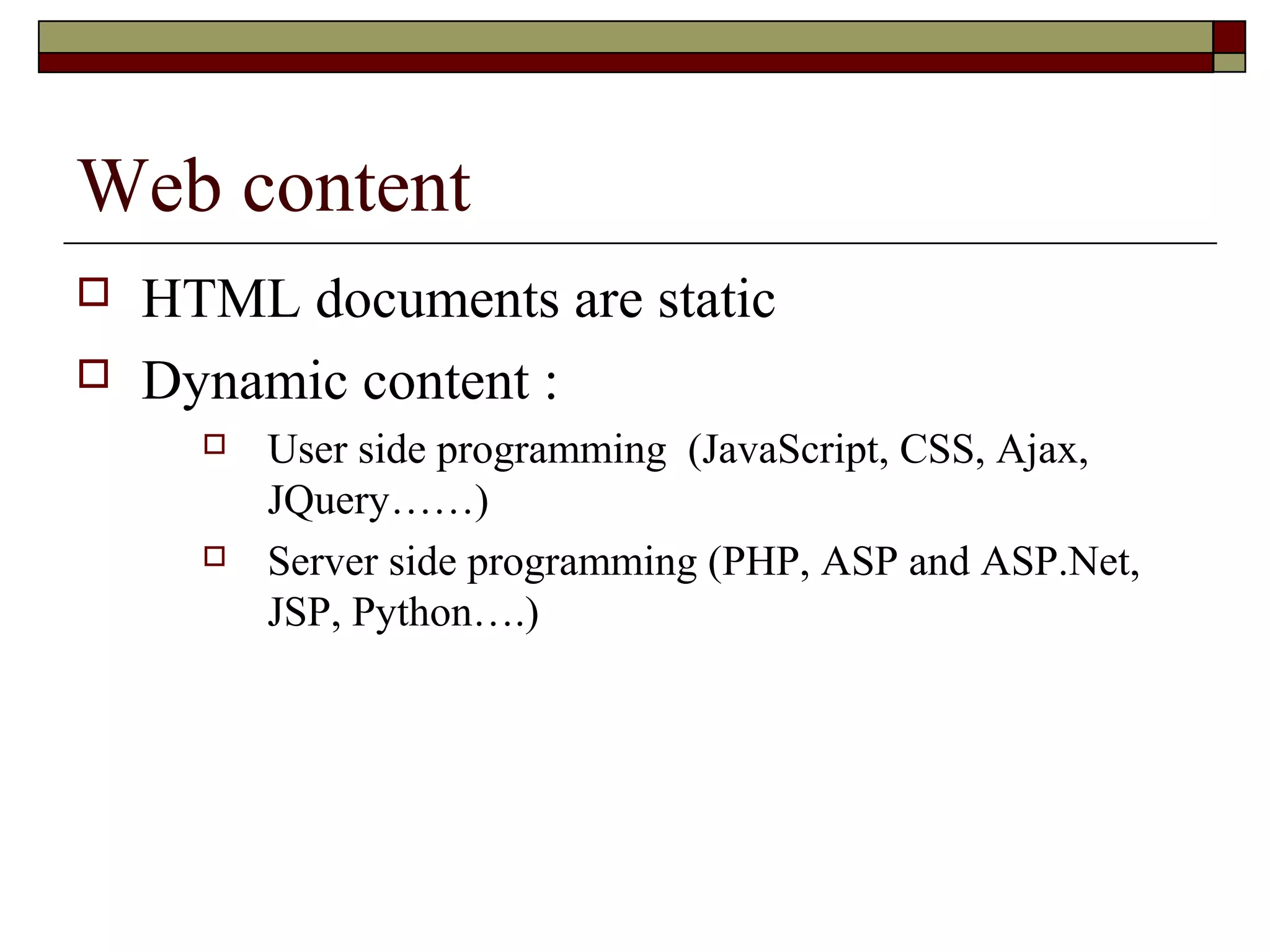

6. Web content
 HTML documents are static
 Dynamic content :
 User side programming (JavaScript, CSS, Ajax,
JQuery……)
 Server side programming (PHP, ASP and ASP.Net,
JSP, Python….)

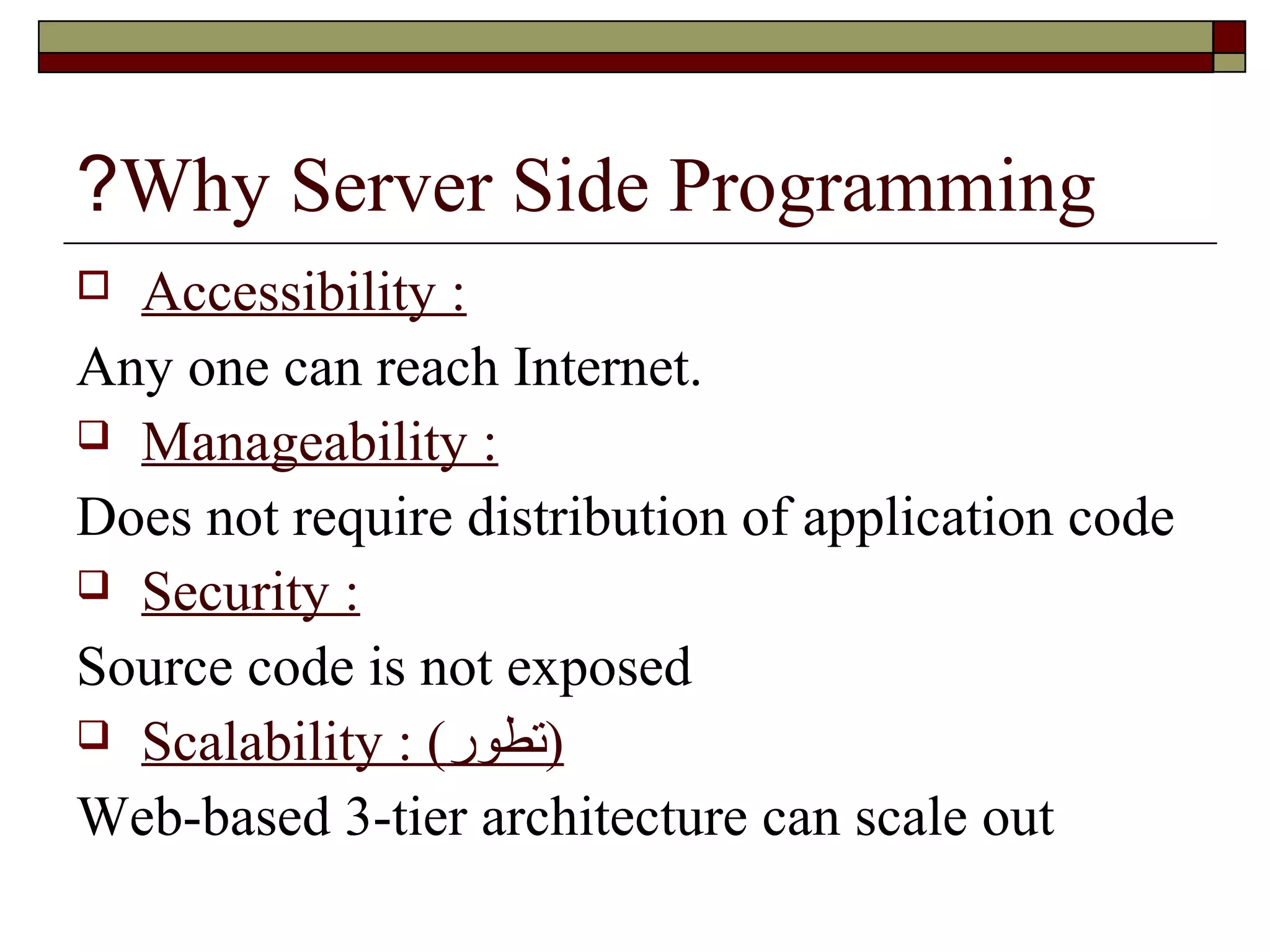

7. Why Server Side Programming?
 Accessibility :
Any one can reach Internet.
 Manageability :
Does not require distribution of application code
 Security :
Source code is not exposed
 Scalability : (‫)تطور‬
Web-based 3-tier architecture can scale out

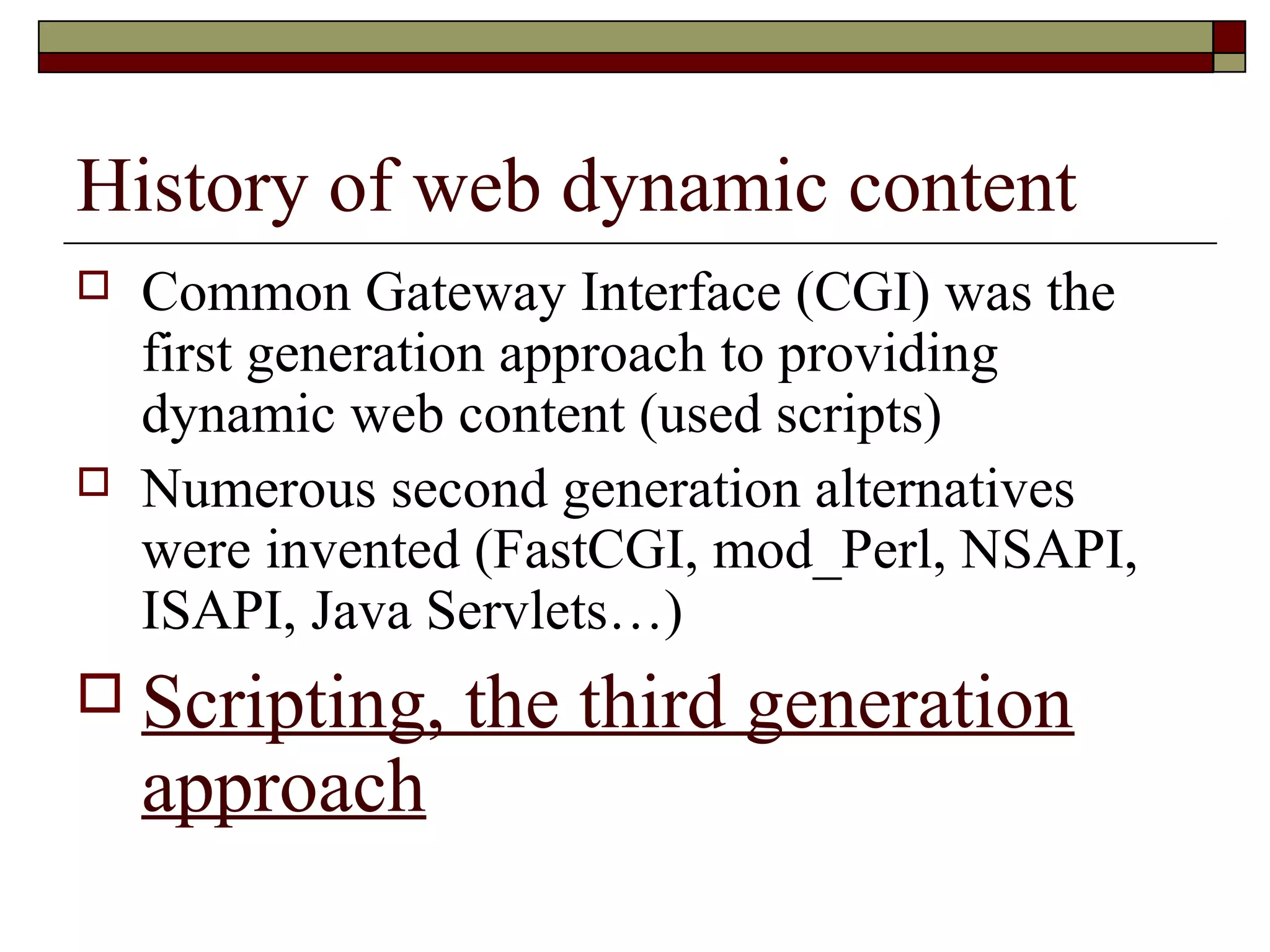

8. History of web dynamic content
 Common Gateway Interface (CGI) was the
first generation approach to providing
dynamic web content (used scripts)
 Numerous second generation alternatives
were invented (FastCGI, mod_Perl, NSAPI,
ISAPI, Java Servlets…)
 Scripting, the third generation
approach

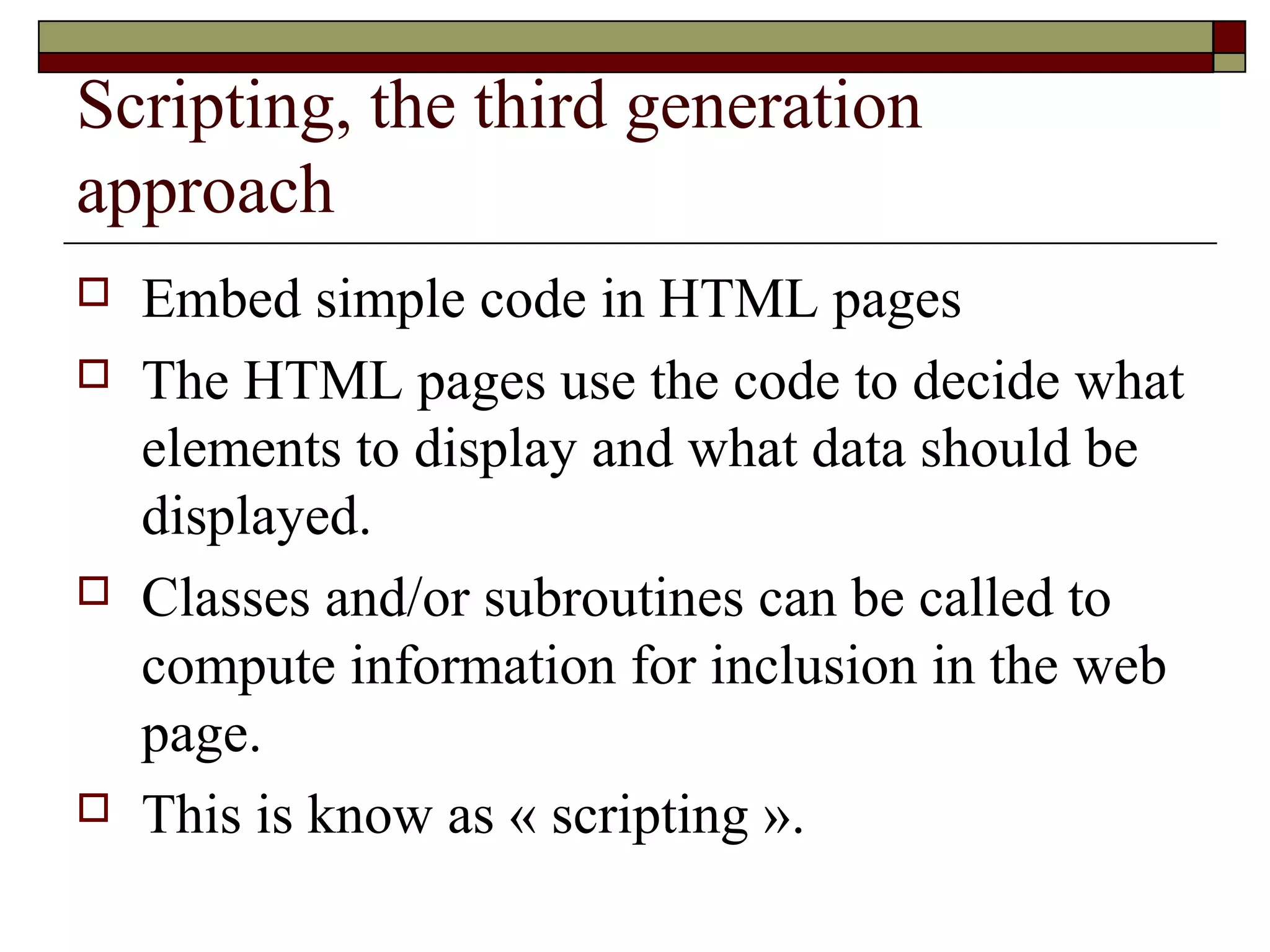

9. Scripting, the third generation
approach
 Embed simple code in HTML pages
 The HTML pages use the code to decide what
elements to display and what data should be
displayed.
 Classes and/or subroutines can be called to
compute information for inclusion in the web
page.
 This is know as « scripting ».

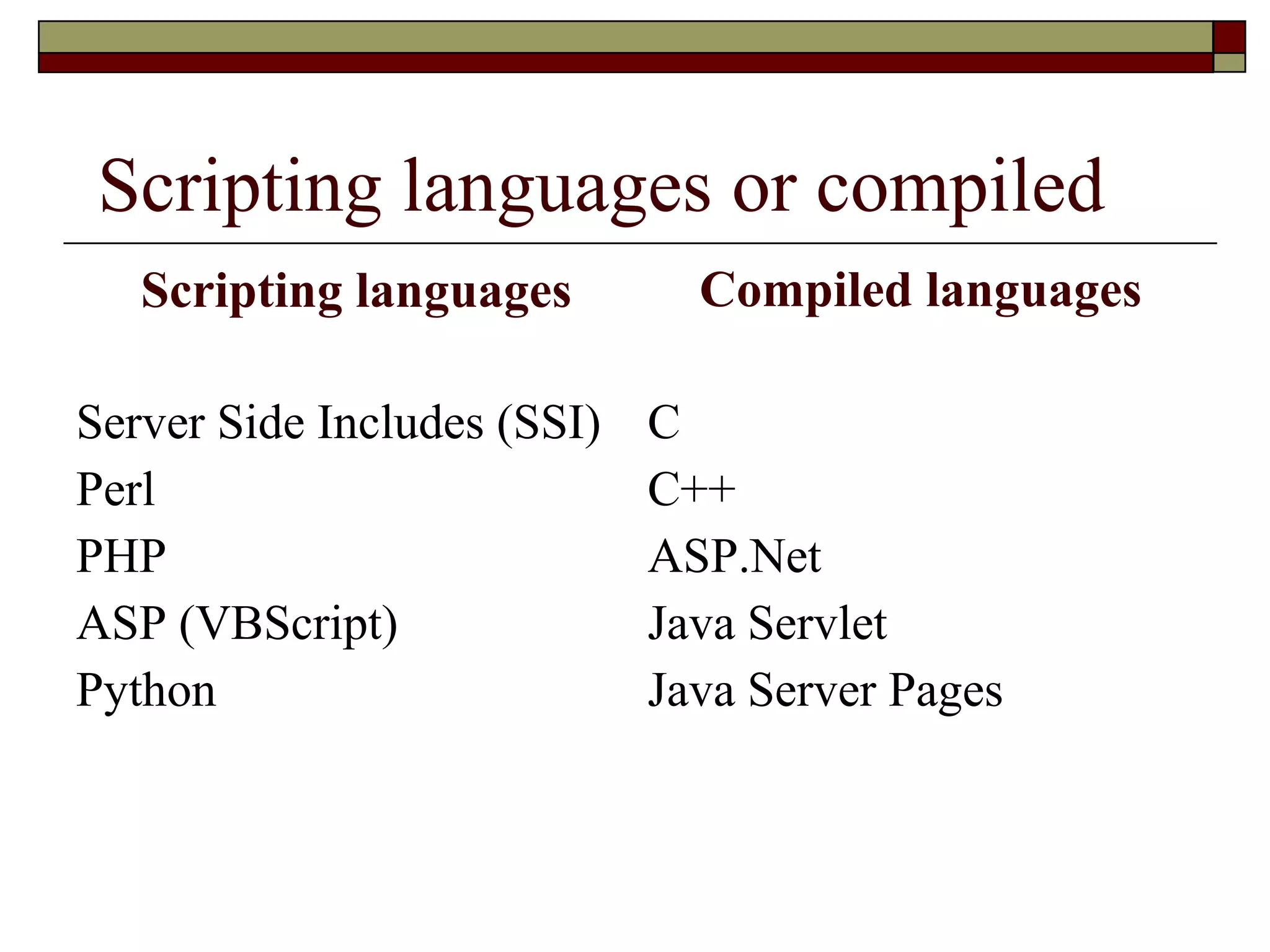

10. Scripting languages or compiled
Scripting languages Compiled languages
Server Side Includes (SSI)
Perl
PHP
ASP (VBScript)
Python
C
C++
ASP.Net
Java Servlet
Java Server Pages

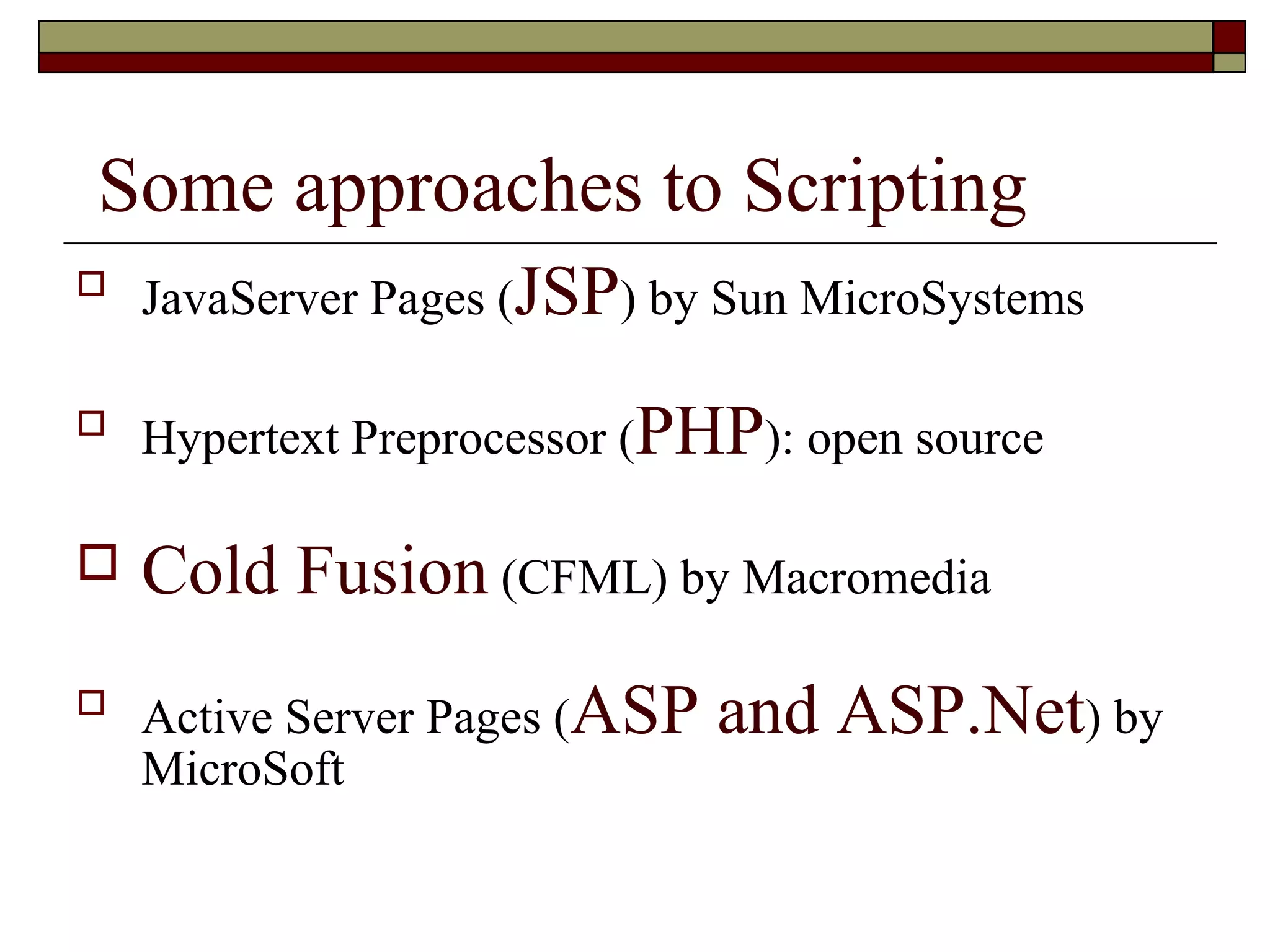

11. Some approaches to Scripting

JavaServer Pages (JSP) by Sun MicroSystems

Hypertext Preprocessor (PHP): open source
 Cold Fusion (CFML) by Macromedia

Active Server Pages (ASP and ASP.Net) by
MicroSoft

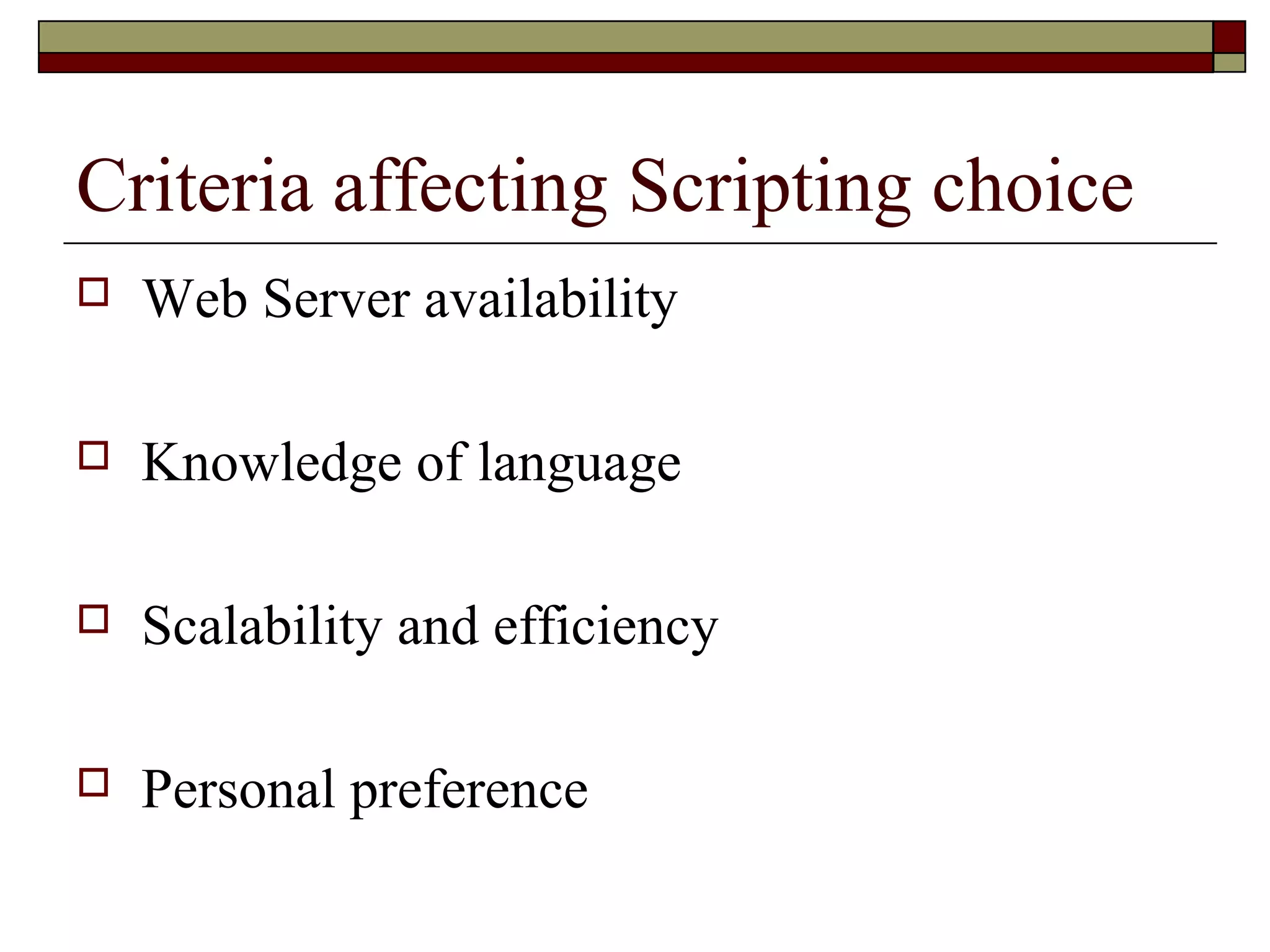

12. Criteria affecting Scripting choice
 Web Server availability
 Knowledge of language
 Scalability and efficiency
 Personal preference

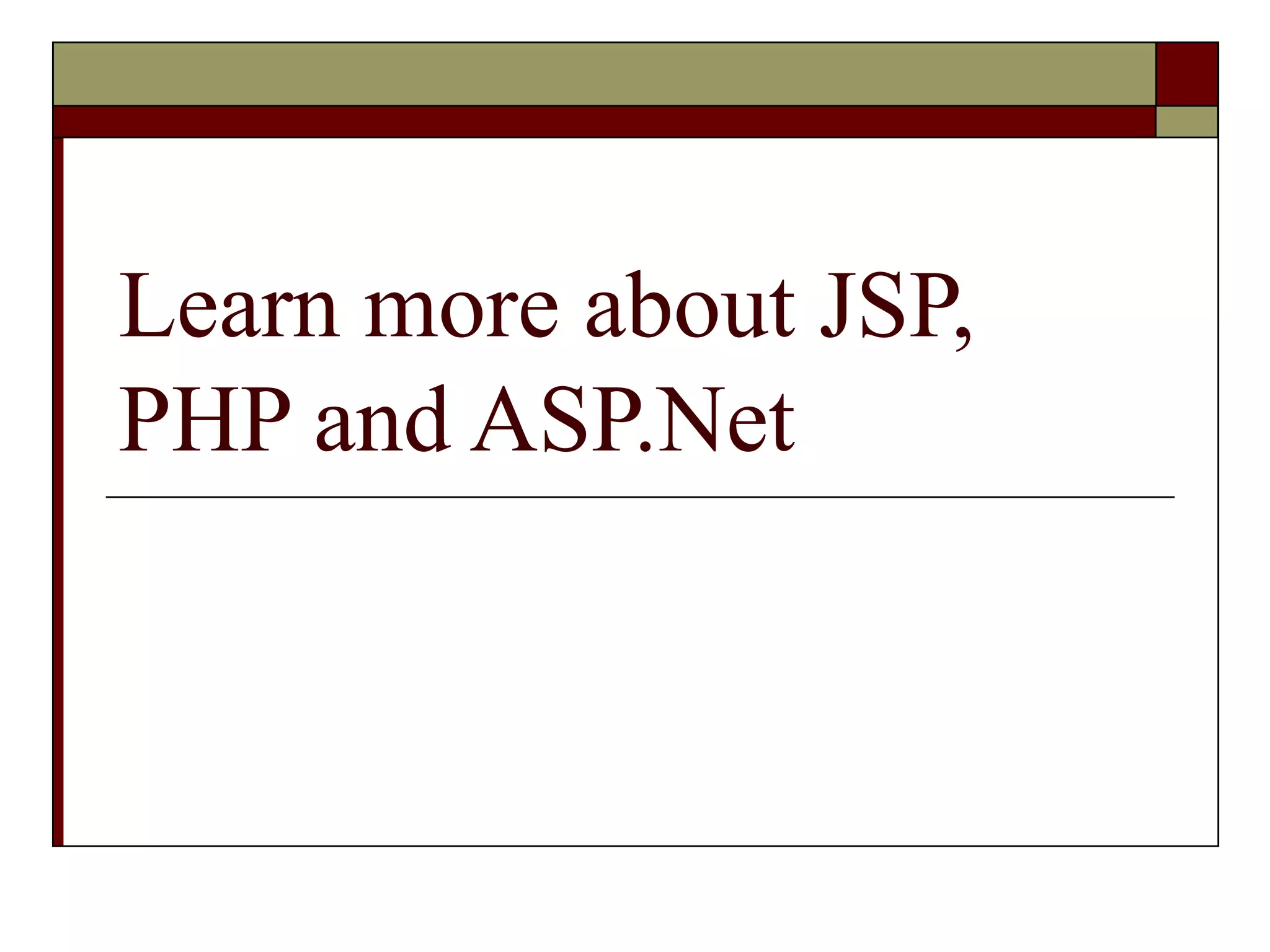

13. Learn more about JSP,
PHP and ASP.Net

14. JSP (Java Server Pages(
 Java-based technology that simplifies the
development of dynamic websites
 Designed around the Java Philosophy
 Packaged with J2EE
 It separates presentation aspects from
programming logic contained in the code.

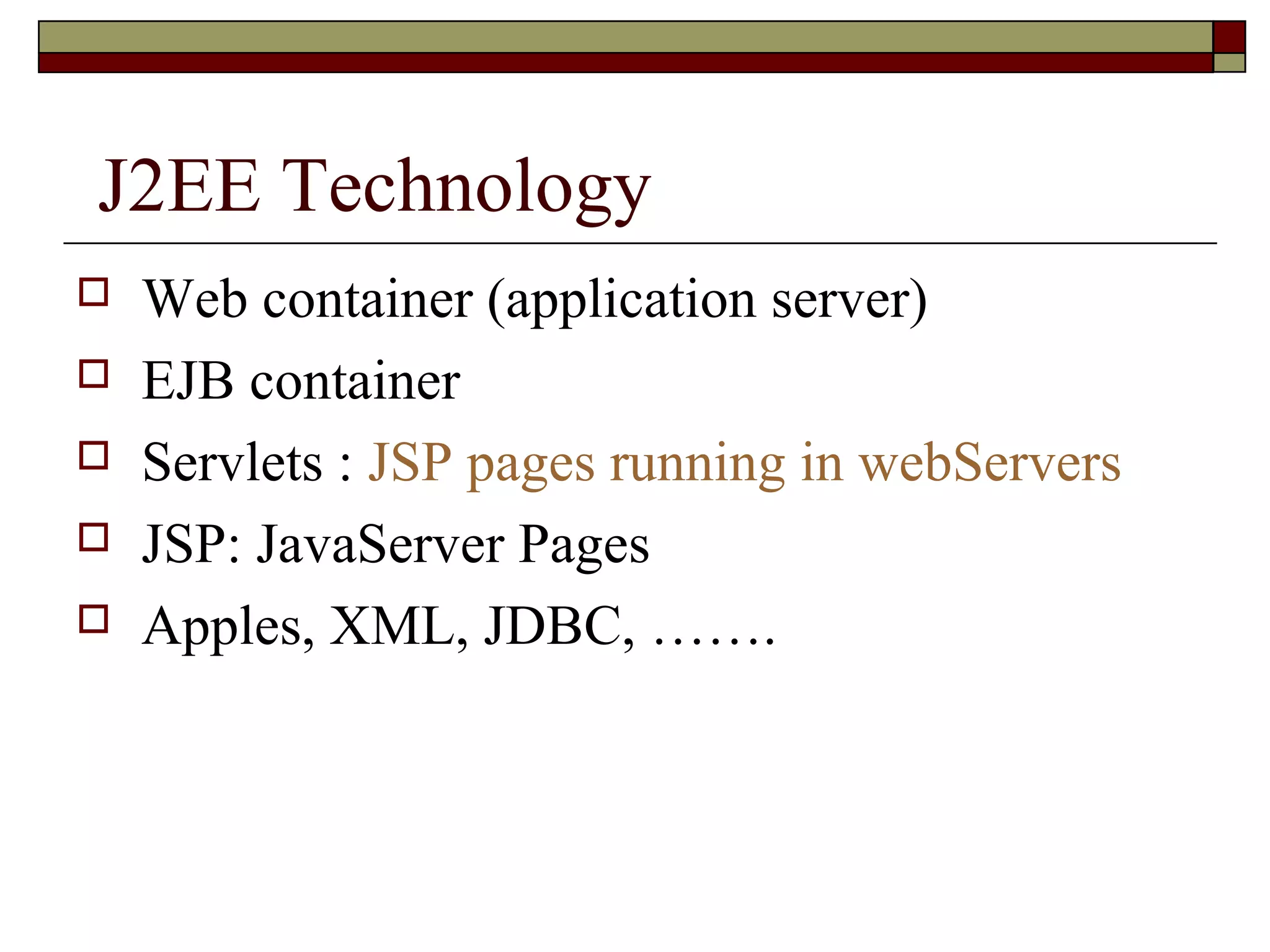

15. J2EE Technology
 Web container (application server)
 EJB container
 Servlets : JSP pages running in webServers
 JSP: JavaServer Pages
 Apples, XML, JDBC, …….

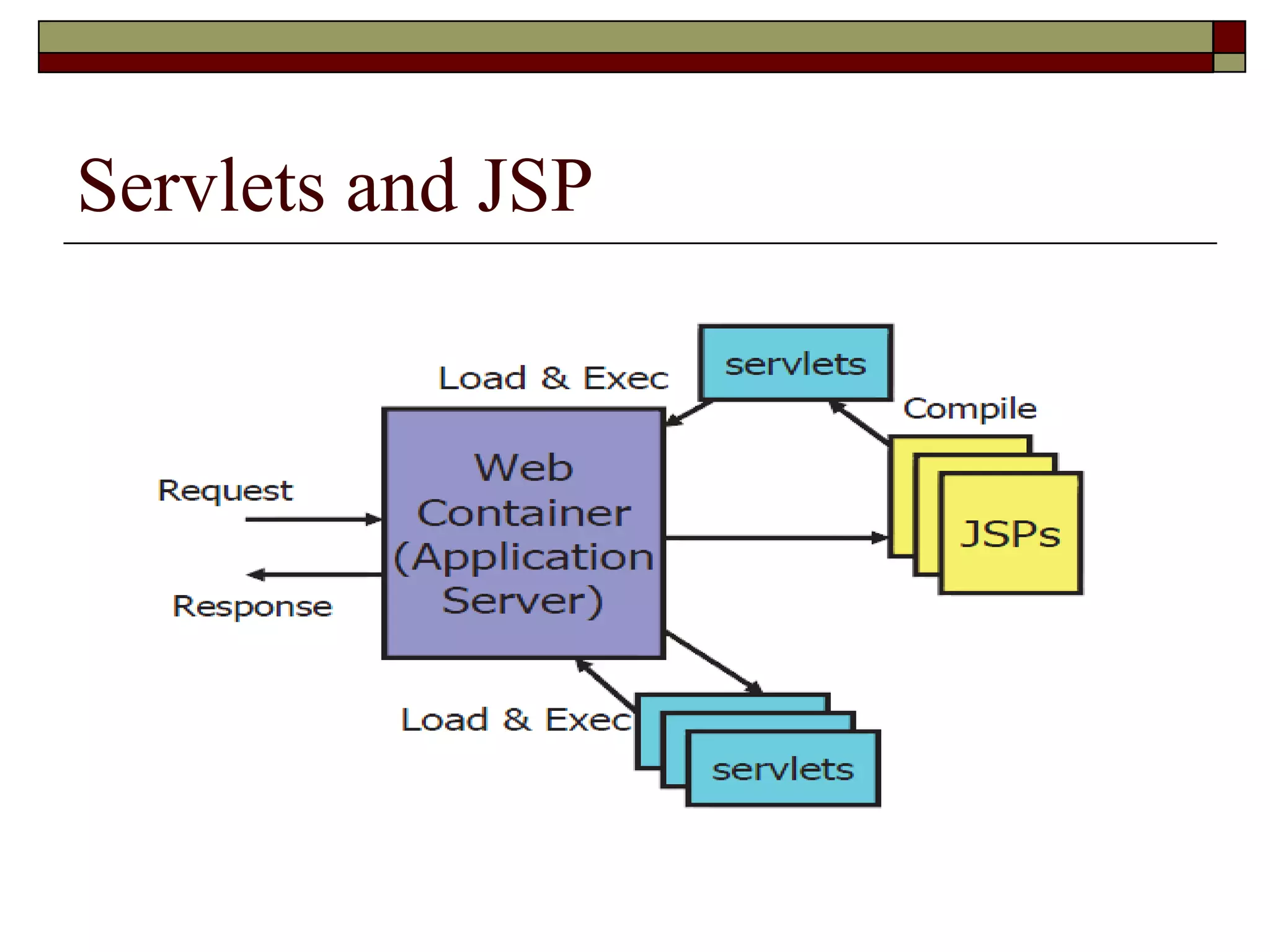

16. Servlets and JSP

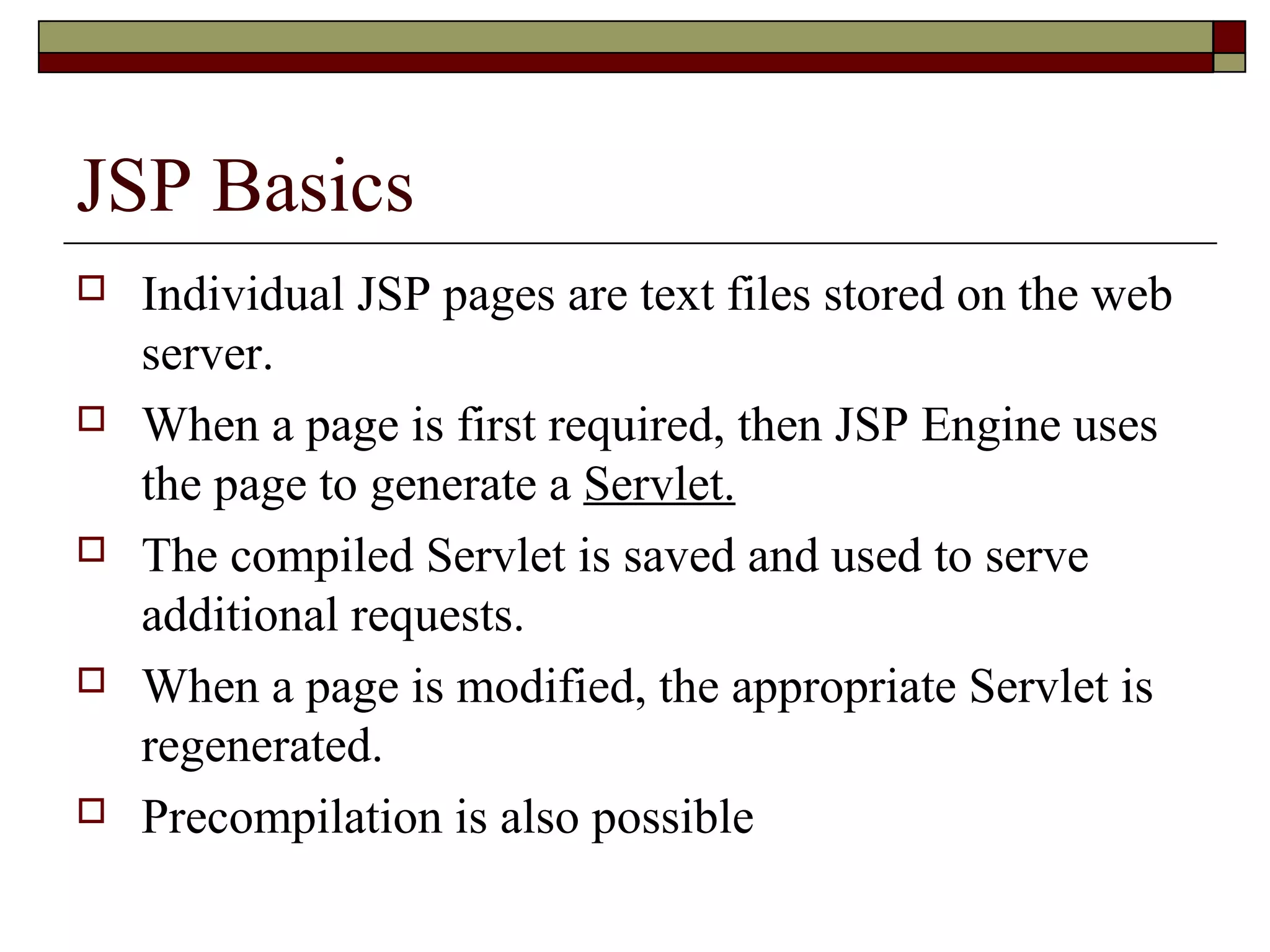

17. JSP Basics
 Individual JSP pages are text files stored on the web
server.
 When a page is first required, then JSP Engine uses
the page to generate a Servlet.
 The compiled Servlet is saved and used to serve
additional requests.
 When a page is modified, the appropriate Servlet is
regenerated.
 Precompilation is also possible

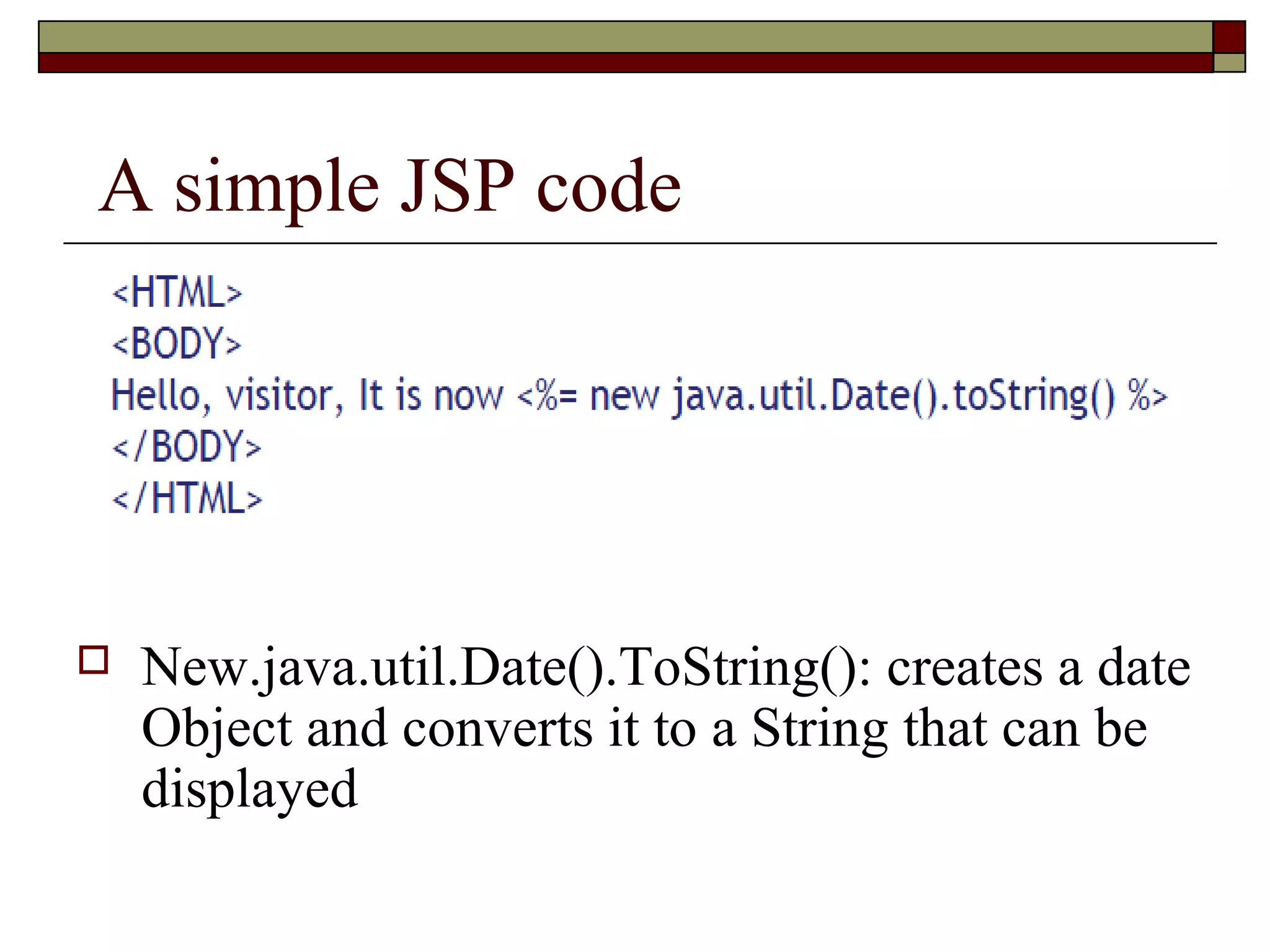

18. A simple JSP code
 New.java.util.Date().ToString(): creates a date
Object and converts it to a String that can be
displayed

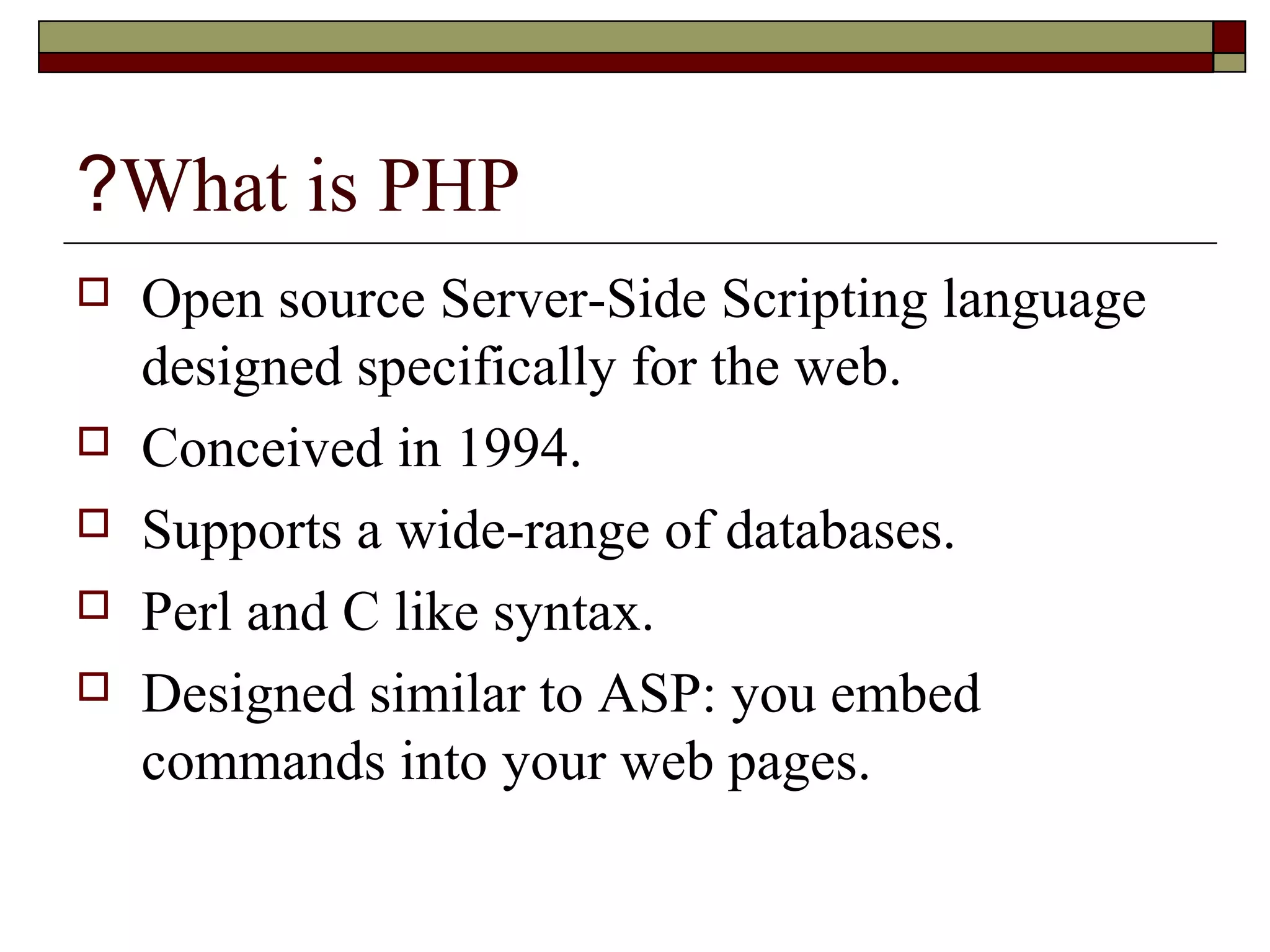

19. What is PHP?
 Open source Server-Side Scripting language
designed specifically for the web.
 Conceived in 1994.
 Supports a wide-range of databases.
 Perl and C like syntax.
 Designed similar to ASP: you embed
commands into your web pages.

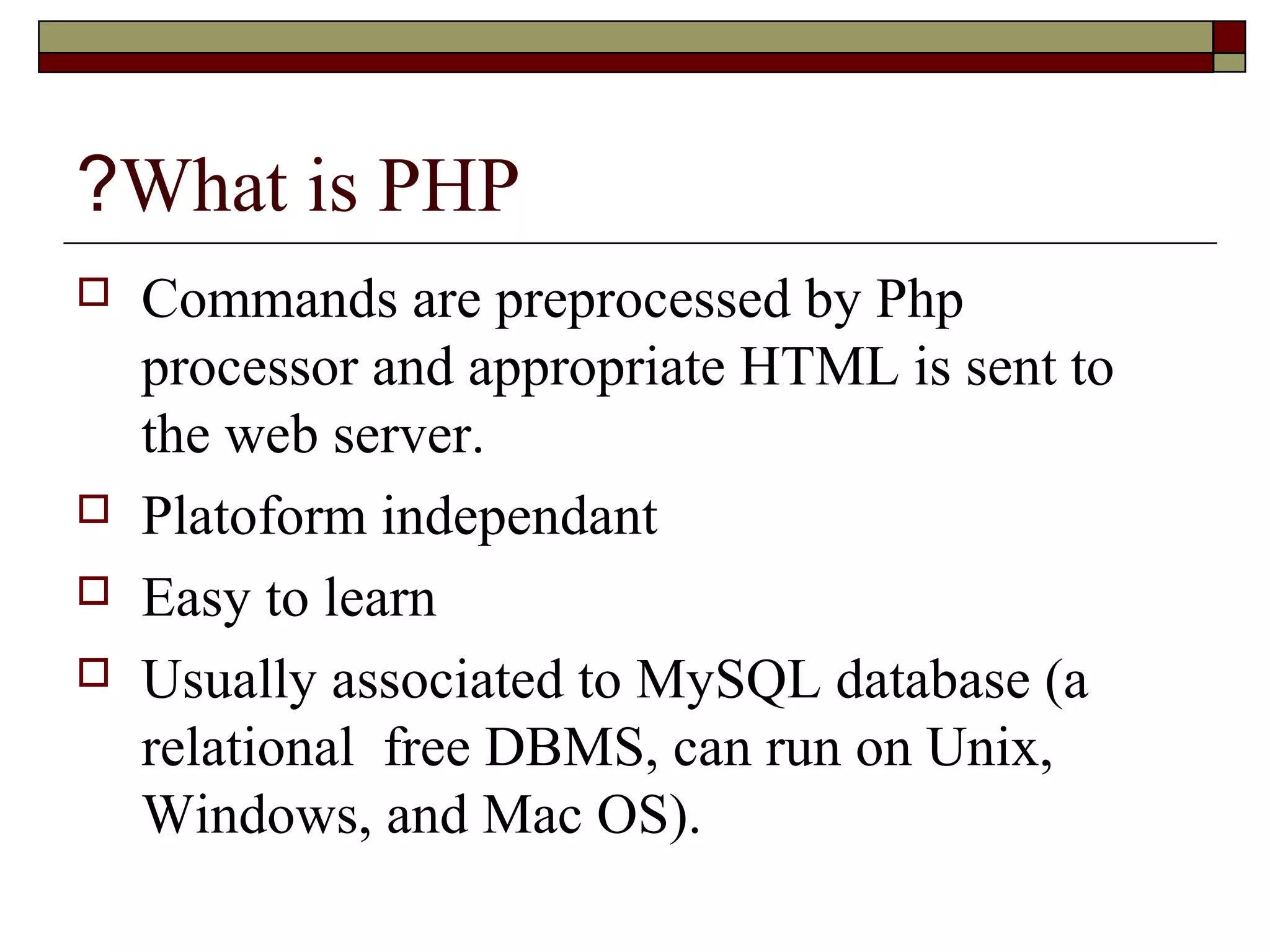

20. What is PHP?
 Commands are preprocessed by Php
processor and appropriate HTML is sent to
the web server.
 Platoform independant
 Easy to learn
 Usually associated to MySQL database (a
relational free DBMS, can run on Unix,
Windows, and Mac OS).

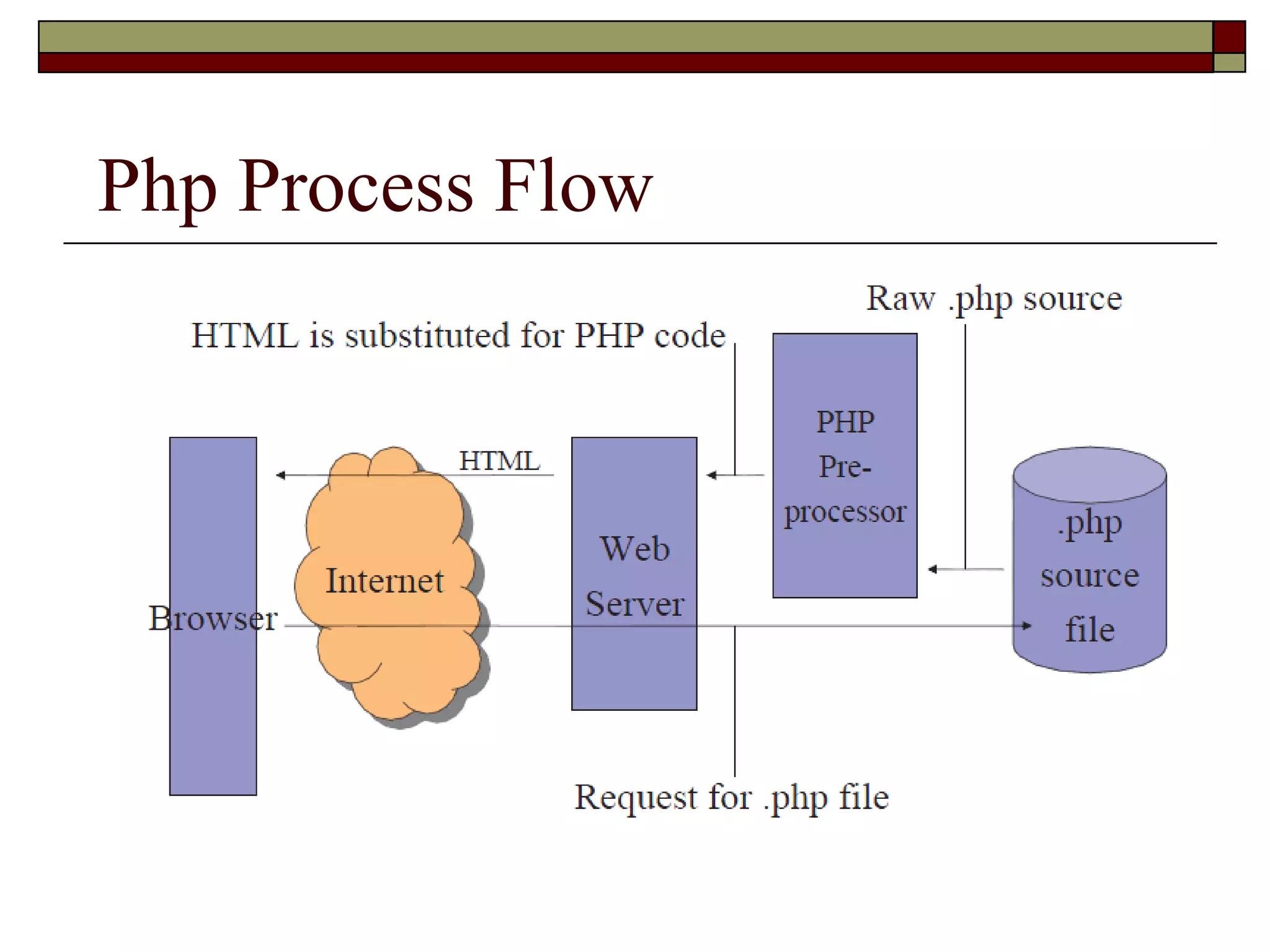

21. Php Process Flow

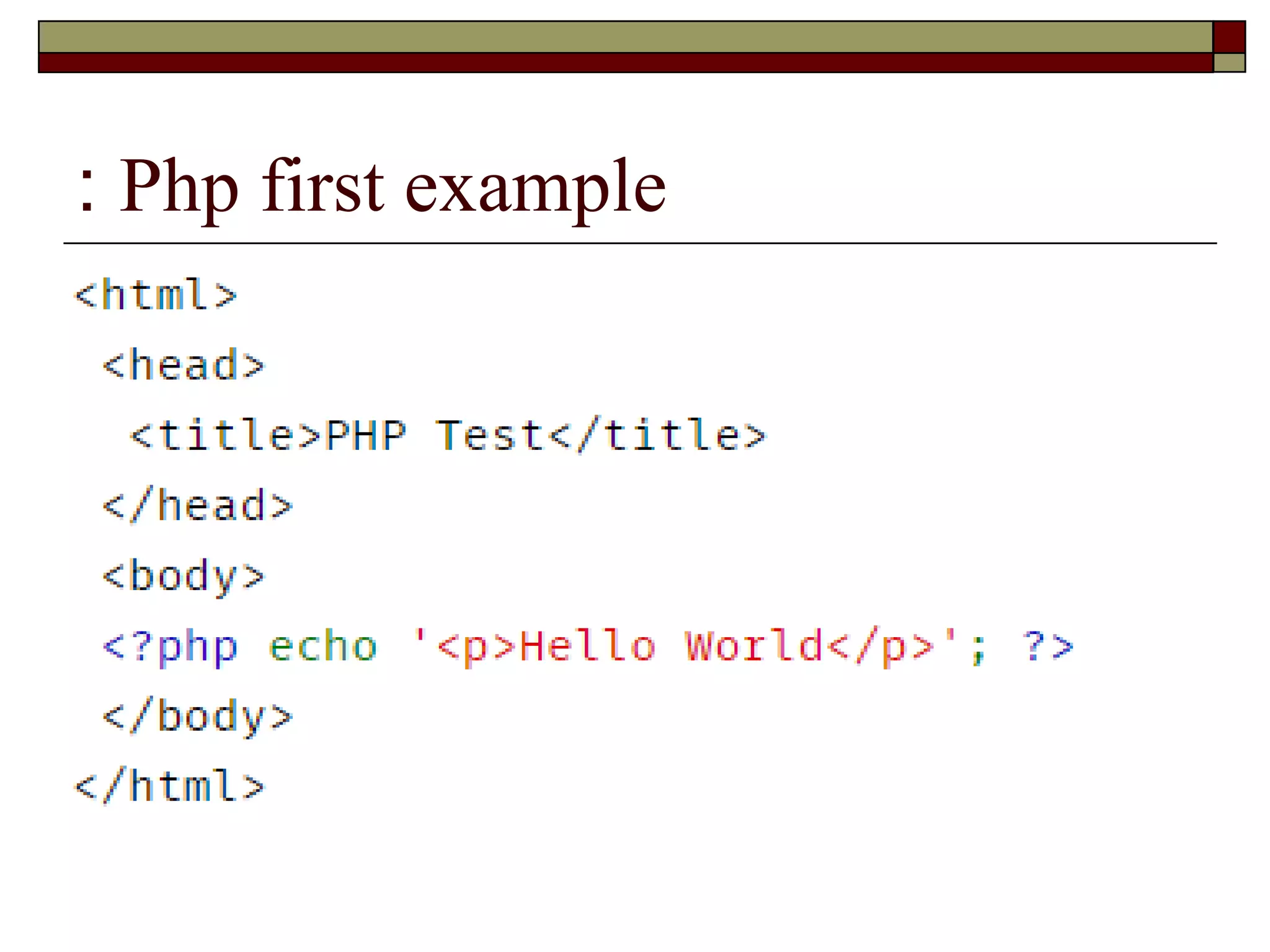

22. Php first example:

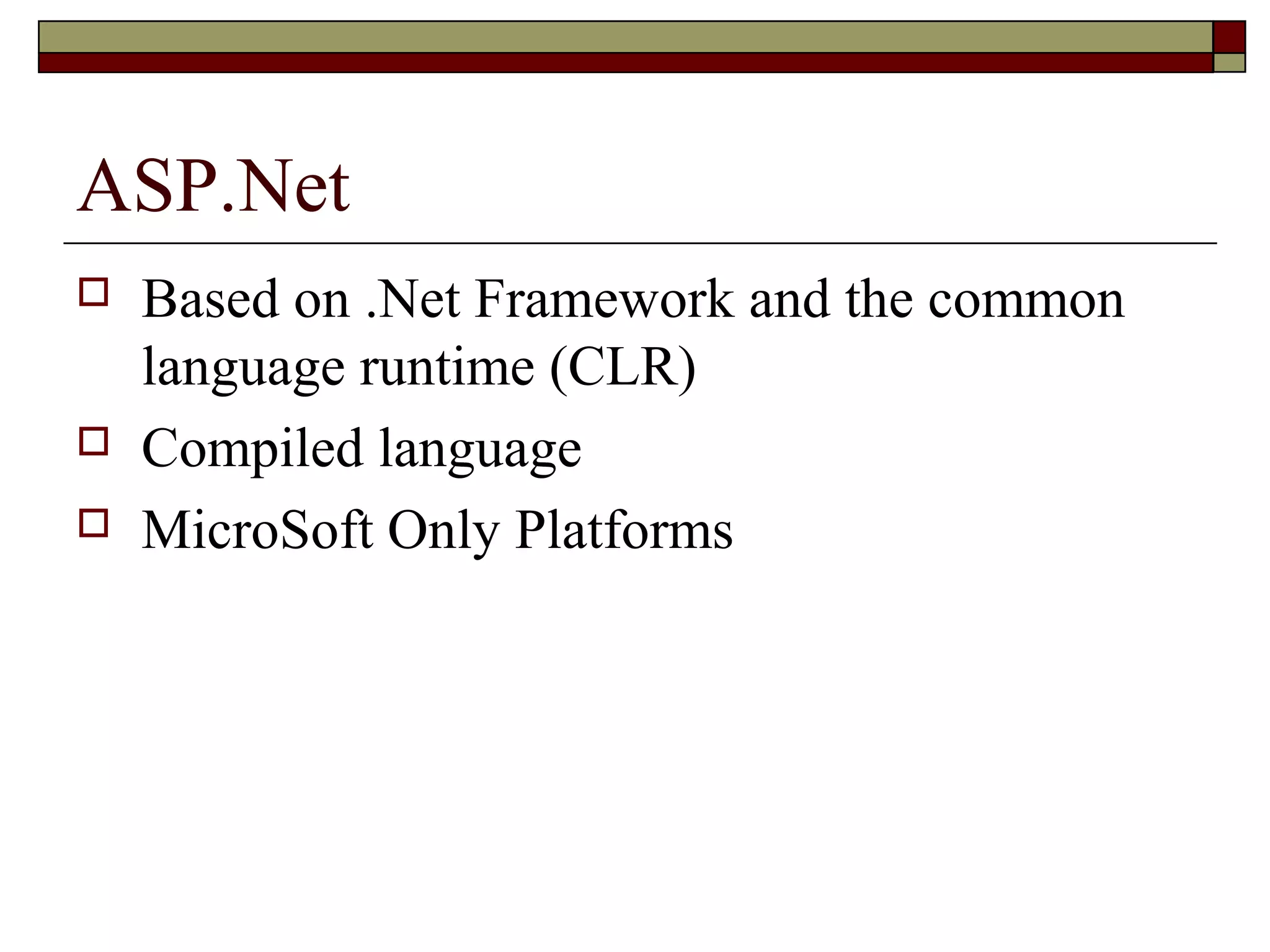

23. ASP.Net
 Based on .Net Framework and the common
language runtime (CLR)
 Compiled language
 MicroSoft Only Platforms

24. web forms and Server
Side Scripting

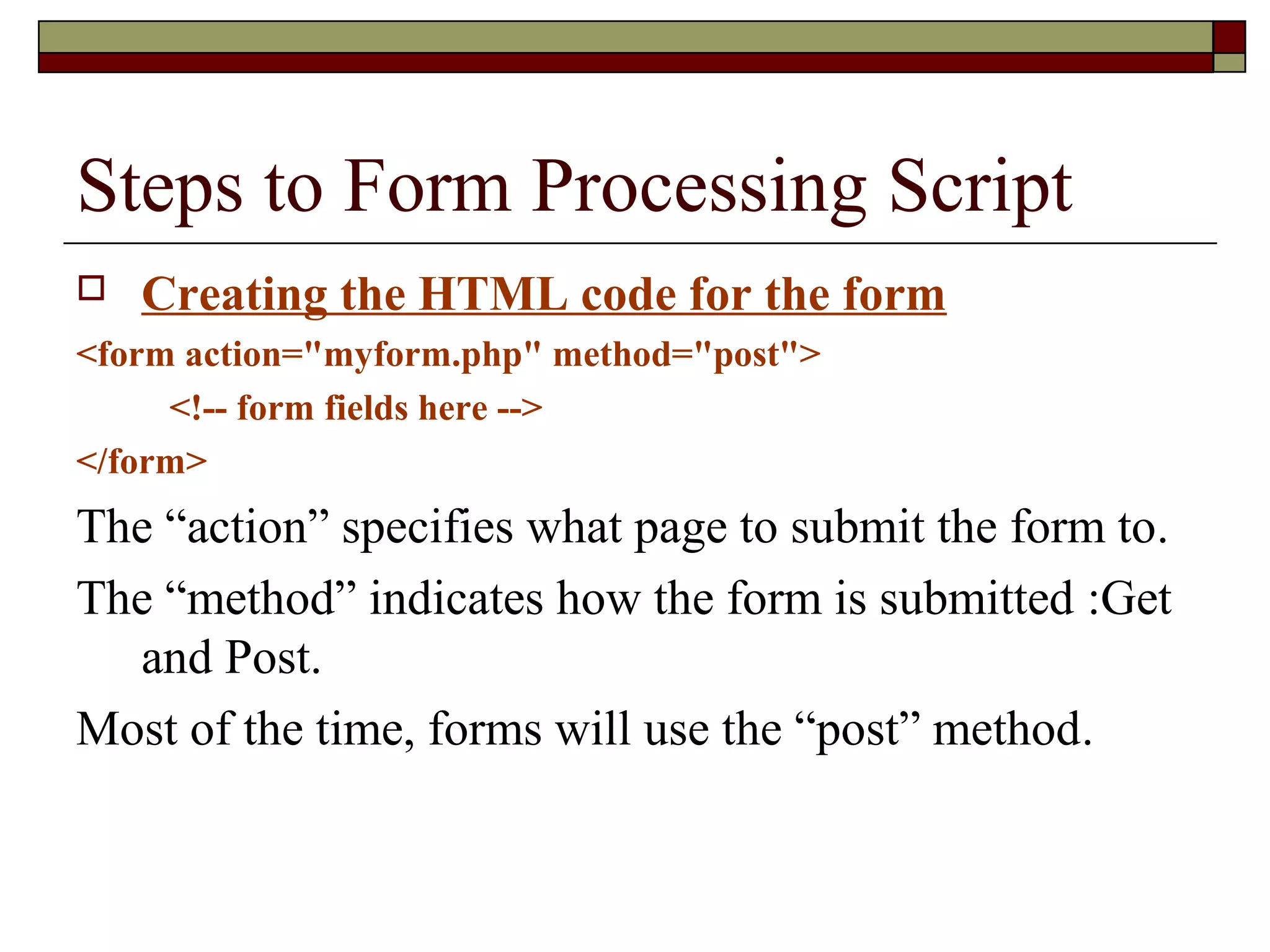

25. Form processing script

26. Steps to Form Processing Script
 Creating the HTML code for the form
<form action="myform.php" method="post">
<!-- form fields here -->
</form>
The “action” specifies what page to submit the form to.
The “method” indicates how the form is submitted :Get
and Post.
Most of the time, forms will use the “post” method.

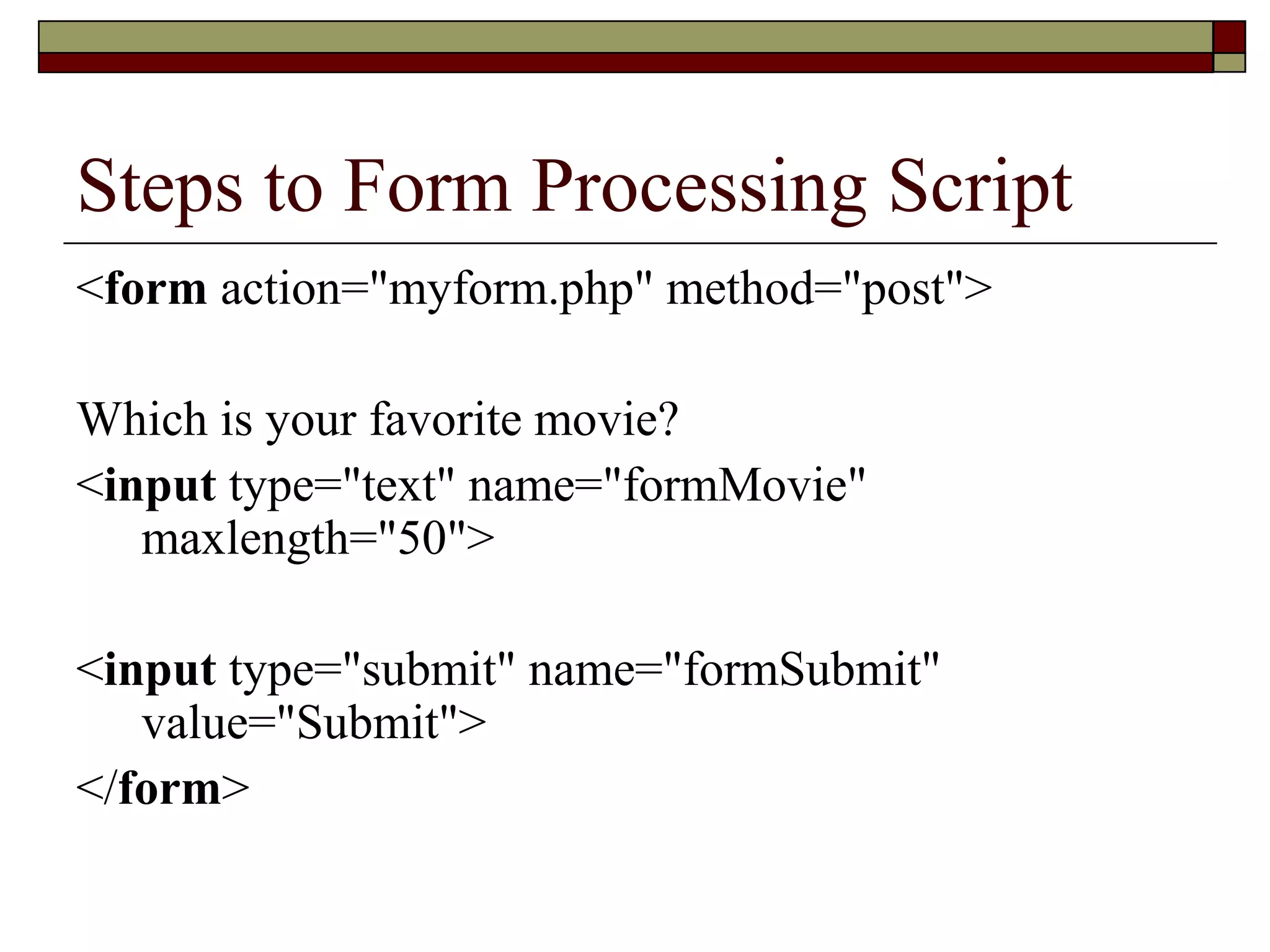

27. Steps to Form Processing Script
<form action="myform.php" method="post">
Which is your favorite movie?
<input type="text" name="formMovie"
maxlength="50">
<input type="submit" name="formSubmit"
value="Submit">
</form>

28. Steps to Form Processing Script
 Getting the form data:
The input of type “text” is just a single line field
to type in some text. We give it a name of
“formMovie” .
You have a button submit that submits the whole
form once clicked on.

29. Steps to Form Processing Script
<?php
if($_POST['formSubmit'] == "Submit")
{
$varMovie = $_POST['formMovie']; }
?>
<form action="myform.php" method="post">
Which is your favorite movie?
<input type="text" name="formMovie" maxlength="50">
<input type="submit" name="formSubmit" value="Submit">
</form>

30. Steps to Form Processing Script
 Validating the input:
Suppose we have a user who forgot to enter one of the fields?
We need to validate the form to make sure it’s complete and
filled out with valid information.

31. Steps to Form Processing Script
<?php
if($_POST['formSubmit'] == "Submit")
{
$errorMessage = "";
if(empty($_POST['formMovie']))
{
$errorMessage .= "<li>You forgot to enter a movie!</li>";
}

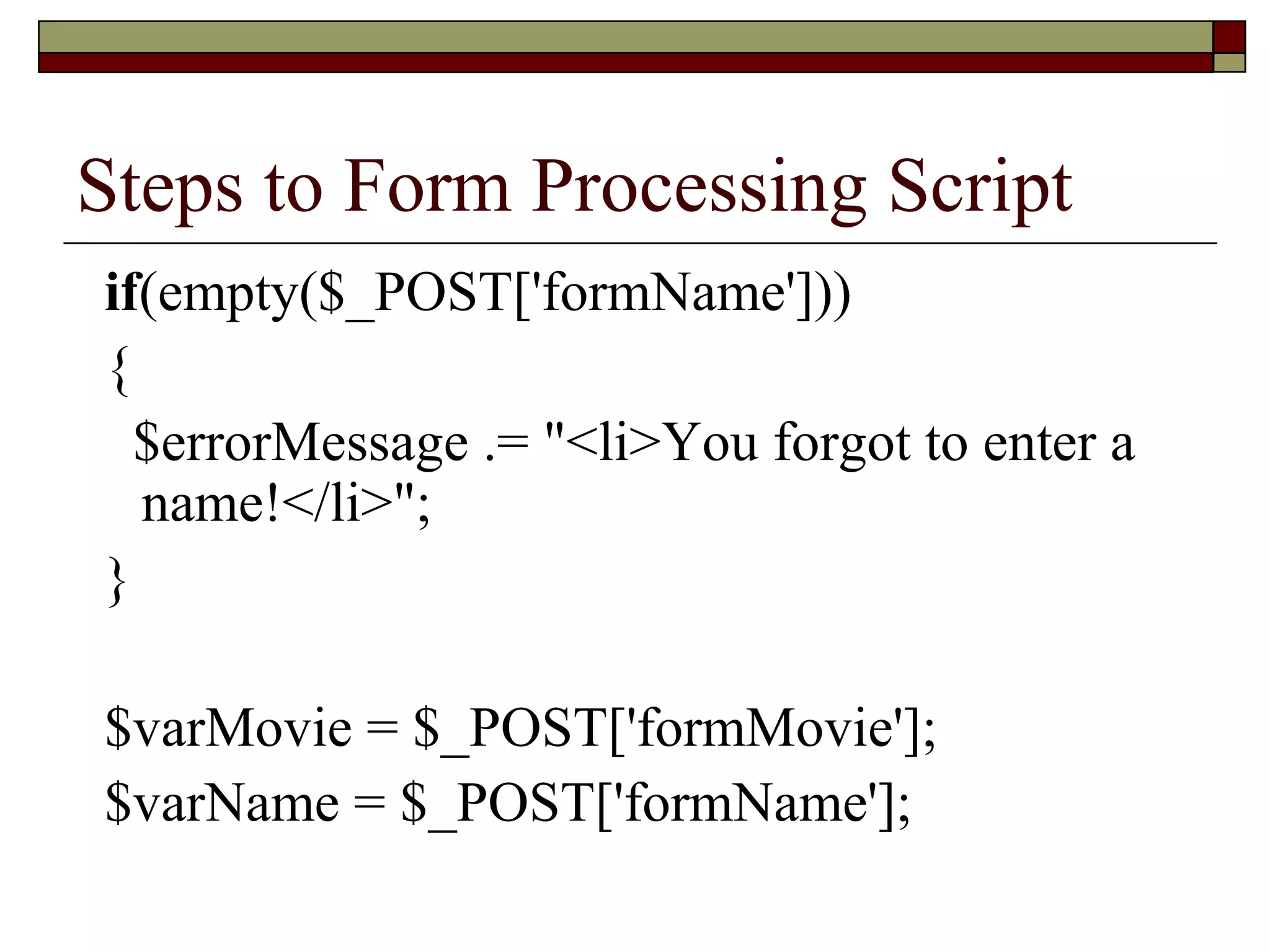

32. Steps to Form Processing Script
if(empty($_POST['formName']))
{
$errorMessage .= "<li>You forgot to enter a
name!</li>";
}
$varMovie = $_POST['formMovie'];
$varName = $_POST['formName'];

33. Steps to Form Processing Script
if(!empty($errorMessage))
{
echo("<p>There was an error with your
form:</p>n");
echo("<ul>" . $errorMessage . "</ul>n");
}
}
?>

34. PHP: how to connect to
the server?

35. PHP: How to connect to the
server?
 Option 1: Website on a hosted server
 Option 2: Install PHP on your computer
 Option 3: XAMPP


36. Website on a hosted server
 Create a file in Notepad (or similar text editor)
named test.php
 Insert the following code in the file:
<?php echo "Hello World!"; ?>
 Upload the file to your web host.
 Open the file in your browser.
 If the browser writes "Hello World!" your web host
supports PHP and you are ready to go. Otherwise
contact your hosting provider for more information.

37. Install PHP on your computer
 We will learn more about this option in
practice using EasyPhp.

38. XAMPP
 Open the program XAMPP Control Panel
 Start the Apache server and the MySql server:
 Create a file in Notepad named test.php .
 Insert the following code in the file:
<?php echo "Hello World!"; ?>
 Save the file in the folder "c:xampphtdocs".
 Open the file in your browser with the address
http://localhost/test.php.
 If the browser writes "Hello World!" the installation is
successful, and you're ready to run PHP on your computer.
