Web server administration involves maintaining servers that provide services to users over a local network and the internet. Key responsibilities of web server administrators include selecting programming languages and databases for websites, managing email servers, and performing common maintenance tasks. Networking fundamentals such as the OSI model and TCP/IP protocols provide the foundation for understanding how web servers communicate and connect to other systems.

1. 1
Web Server
Administration
The Basics of Server and Web Server
Administration

2. 2

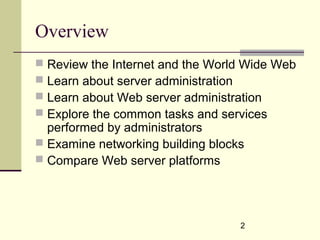

Overview
 Review the Internet and the World Wide Web
 Learn about server administration
 Learn about Web server administration
 Explore the common tasks and services
performed by administrators
 Examine networking building blocks
 Compare Web server platforms

3. 3
Review the Internet and the World
Wide Web
 The Internet is a worldwide network of networks
 Network of networks – carries voice, data, picture, etc.
 Shares WAN used by the international telecommunications network
 Uses TCP/IP
 Computers need a protocol to talk to each other
 The Web is where the Internet uses the HTTP protocol
 HTTP: Hypertext Transfer Protocol
 Web servers use HTTP to communicate
 The Internet is not centrally controlled

4. 4

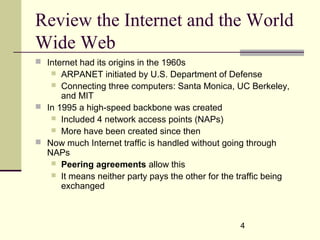

Review the Internet and the World
Wide Web
 Internet had its origins in the 1960s
 ARPANET initiated by U.S. Department of Defense
 Connecting three computers: Santa Monica, UC Berkeley,
and MIT
 In 1995 a high-speed backbone was created
 Included 4 network access points (NAPs)
 More have been created since then
 Now much Internet traffic is handled without going through
NAPs
 Peering agreements allow this
 It means neither party pays the other for the traffic being
exchanged

5. 5
Chapter Overview
Server
Administrator
Protection Access Services
Provide
Services
Setup
Environment
Web
Server
Mail
Server
DNS
(Server
Environment)
FTP
Development
Environment
DBMS
User
Support

6. 6

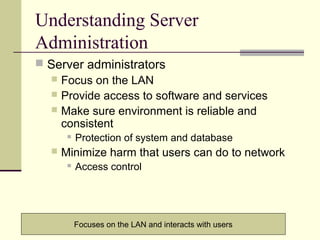

Understanding Server
Administration
 Server administrators
 Focus on the LAN
 Provide access to software and services
 Make sure environment is reliable and
consistent
 Protection of system and database
 Minimize harm that users can do to network
 Access control
Focuses on the LAN and interacts with users

7. 7

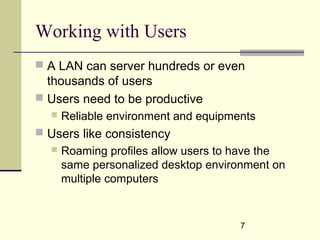

Working with Users
 A LAN can server hundreds or even
thousands of users
 Users need to be productive
 Reliable environment and equipments
 Users like consistency
 Roaming profiles allow users to have the
same personalized desktop environment on
multiple computers

8. 8

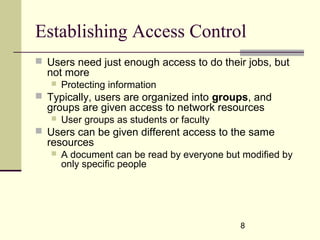

Establishing Access Control
 Users need just enough access to do their jobs, but
not more
 Protecting information
 Typically, users are organized into groups, and
groups are given access to network resources
 User groups as students or faculty
 Users can be given different access to the same
resources
 A document can be read by everyone but modified by
only specific people

9. 9

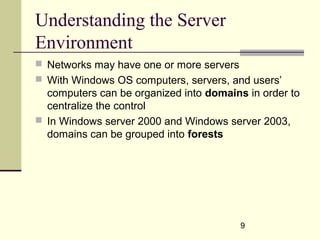

Understanding the Server
Environment
 Networks may have one or more servers
 With Windows OS computers, servers, and users’
computers can be organized into domains in order to
centralize the control
 In Windows server 2000 and Windows server 2003,
domains can be grouped into forests

10. 10
Understanding Web server
Administration
 Web server administrators focus on the Internet
 Need to work with ISPs and Web page developers
(Internet Service Provider)
 Typically, a Web server provides information to
anyone who requests it over the Internet
 Web servers can contain other applications
 FTP and e-mail

11. 11

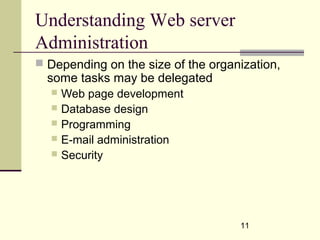

Understanding Web server
Administration
 Depending on the size of the organization,
some tasks may be delegated
 Web page development
 Database design
 Programming
 E-mail administration
 Security

12. 12

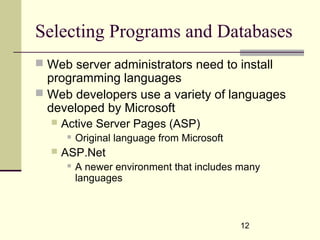

Selecting Programs and Databases
 Web server administrators need to install
programming languages
 Web developers use a variety of languages
developed by Microsoft
 Active Server Pages (ASP)
 Original language from Microsoft
 ASP.Net
 A newer environment that includes many
languages

13. 13
Selecting Programs and Databases
 Non-Microsoft languages are popular, even
on Microsoft Web servers
 Perl – one of the first and still popular
 Text-based
 PHP – easy to use
 Personal Home Page
 Java Server Pages (JSP)
 Uses Java – Dynamic web page design
 Macromedia ColdFusion

14. 14

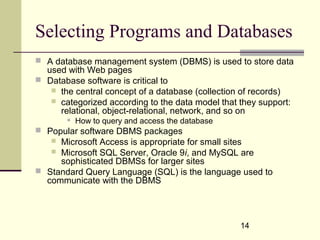

Selecting Programs and Databases
 A database management system (DBMS) is used to store data
used with Web pages
 Database software is critical to
 the central concept of a database (collection of records)
 categorized according to the data model that they support:
relational, object-relational, network, and so on
 How to query and access the database
 Popular software DBMS packages
 Microsoft Access is appropriate for small sites
 Microsoft SQL Server, Oracle 9i, and MySQL are
sophisticated DBMSs for larger sites
 Standard Query Language (SQL) is the language used to
communicate with the DBMS

15. 15

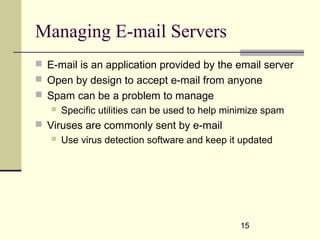

Managing E-mail Servers
 E-mail is an application provided by the email server
 Open by design to accept e-mail from anyone
 Spam can be a problem to manage
 Specific utilities can be used to help minimize spam
 Viruses are commonly sent by e-mail
 Use virus detection software and keep it updated

16. 16
Other Applications
 Firewall
 Helps protect your Web server environment from
attack
 FTP
 File Transfer Protocol
 A service that allows users to download files from and
upload files to a server
 DNS
 Domain Name Service
 Translates host names such as
www.technowidgets.com to an IP address

17. 17

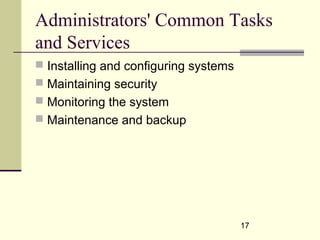

Administrators' Common Tasks
and Services
 Installing and configuring systems
 Maintaining security
 Monitoring the system
 Maintenance and backup

18. 18

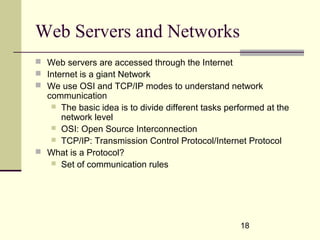

Web Servers and Networks
 Web servers are accessed through the Internet
 Internet is a giant Network
 We use OSI and TCP/IP modes to understand network
communication
 The basic idea is to divide different tasks performed at the
network level
 OSI: Open Source Interconnection
 TCP/IP: Transmission Control Protocol/Internet Protocol
 What is a Protocol?
 Set of communication rules

19. 19

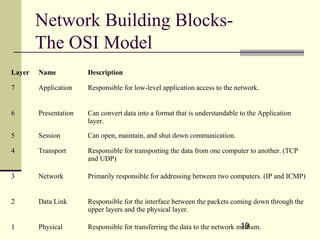

Network Building Blocks-
The OSI Model
Layer Name Description
7 Application Responsible for low-level application access to the network.
6 Presentation Can convert data into a format that is understandable to the Application
layer.
5 Session Can open, maintain, and shut down communication.
4 Transport Responsible for transporting the data from one computer to another. (TCP
and UDP)
3 Network Primarily responsible for addressing between two computers. (IP and ICMP)
2 Data Link Responsible for the interface between the packets coming down through the
upper layers and the physical layer.
1 Physical Responsible for transferring the data to the network medium.

20. 20

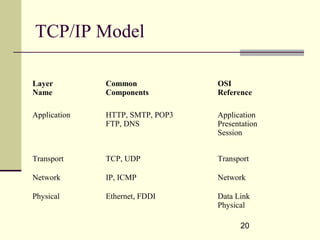

TCP/IP Model
Layer
Name
Common
Components
OSI
Reference
Application HTTP, SMTP, POP3
FTP, DNS
Application
Presentation
Session
Transport TCP, UDP Transport
Network IP, ICMP Network
Physical Ethernet, FDDI Data Link
Physical

21. 21

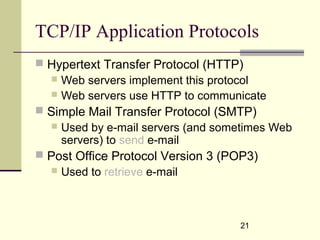

TCP/IP Application Protocols
 Hypertext Transfer Protocol (HTTP)
 Web servers implement this protocol
 Web servers use HTTP to communicate
 Simple Mail Transfer Protocol (SMTP)
 Used by e-mail servers (and sometimes Web
servers) to send e-mail
 Post Office Protocol Version 3 (POP3)
 Used to retrieve e-mail

22. 22

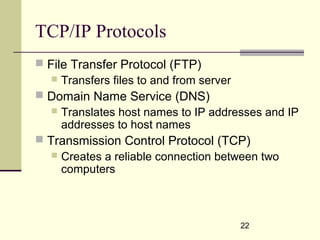

TCP/IP Protocols
 File Transfer Protocol (FTP)
 Transfers files to and from server
 Domain Name Service (DNS)
 Translates host names to IP addresses and IP
addresses to host names
 Transmission Control Protocol (TCP)
 Creates a reliable connection between two
computers

23. 23

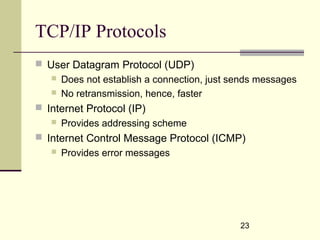

TCP/IP Protocols
 User Datagram Protocol (UDP)
 Does not establish a connection, just sends messages
 No retransmission, hence, faster
 Internet Protocol (IP)
 Provides addressing scheme
 Internet Control Message Protocol (ICMP)
 Provides error messages

24. 24

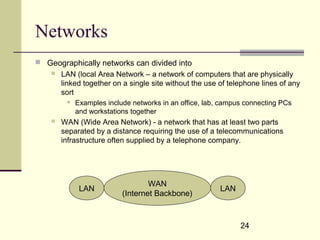

Networks
 Geographically networks can divided into
 LAN (local Area Network – a network of computers that are physically
linked together on a single site without the use of telephone lines of any
sort
 Examples include networks in an office, lab, campus connecting PCs
and workstations together
 WAN (Wide Area Network) - a network that has at least two parts
separated by a distance requiring the use of a telecommunications
infrastructure often supplied by a telephone company.
WAN
(Internet Backbone)
LAN LAN

25. 25

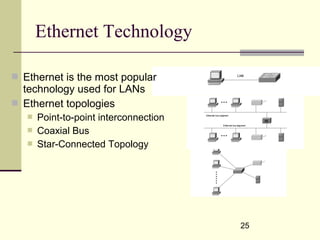

Ethernet Technology
 Ethernet is the most popular
technology used for LANs
 Ethernet topologies
 Point-to-point interconnection
 Coaxial Bus
 Star-Connected Topology

26. 26

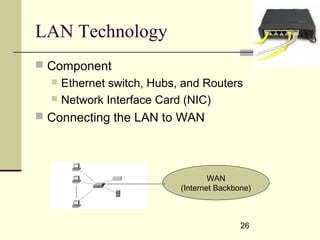

LAN Technology
 Component
 Ethernet switch, Hubs, and Routers
 Network Interface Card (NIC)
 Connecting the LAN to WAN
WAN
(Internet Backbone)

27. 27
Connecting Your LAN to the
Internet
 Your ISP connects to the Internet
 A WAN connection is used between your
building and the ISP
 A T-Carrier connection is often used
 A digital connection for voice and data

28. 28

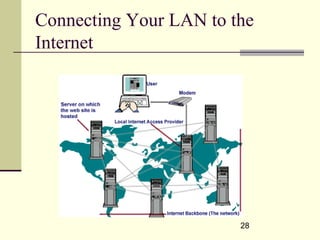

Connecting Your LAN to the
Internet

29. 29

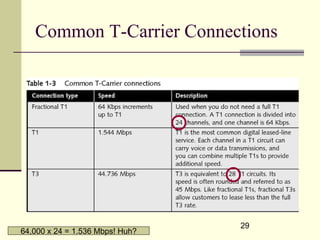

Common T-Carrier Connections
64,000 x 24 = 1.536 Mbps! Huh?

30. 30

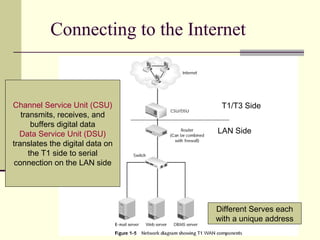

Connecting to the Internet
Channel Service Unit (CSU)
transmits, receives, and
buffers digital data
Data Service Unit (DSU)
translates the digital data on
the T1 side to serial
connection on the LAN side
LAN Side
T1/T3 Side
Different Serves each
with a unique address

31. 31

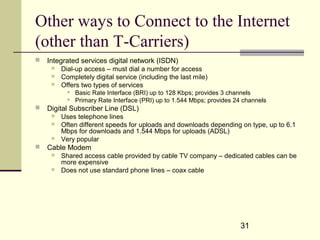

Other ways to Connect to the Internet
(other than T-Carriers)
 Integrated services digital network (ISDN)
 Dial-up access – must dial a number for access
 Completely digital service (including the last mile)
 Offers two types of services
 Basic Rate Interface (BRI) up to 128 Kbps; provides 3 channels
 Primary Rate Interface (PRI) up to 1.544 Mbps; provides 24 channels
 Digital Subscriber Line (DSL)
 Uses telephone lines
 Often different speeds for uploads and downloads depending on type, up to 6.1
Mbps for downloads and 1.544 Mbps for uploads (ADSL)
 Very popular
 Cable Modem
 Shared access cable provided by cable TV company – dedicated cables can be
more expensive
 Does not use standard phone lines – coax cable

32. 32
Bandwidth and Throughput
 Bandwidth (BW): Maximum
amount of bits that can be sent
in one second
 Throughput (TH): Amount of
data that can be moved from
one point to another in bits per
second
 It tell us how fast the data is
actually being transferred
 T1 BW is 1.544 Mbps but the
actual TH is typically 760 Kbps
 TH can be reduced due to
overhead
THBW ≥

33. 33
Bandwidth and Throughput
EXAMPLE: A common set-up of an asynchronous serial
connection would be 9600-8-N-1 (9,600 bit/s, 8 bits per
character, no parity, and 1 stop bit) - this adds up to 10 bits
transmitted to send one 8 bit character (one start bit, the 8 bits
making up the data byte transmitted, no parity bit, and one
stop bit). This is an overhead of 25%, so a 9,600 bit/s
asynchronous serial link will not transmit data at 9600/8 bytes
per second (1200 byte/s) but actually, in this case 9600/10
bytes per second (960 byte/s), which is considerably slower
than expected.
8 data bits + 1 stop bit + 1 start bits = 10 bits transmitted
Overhead % = [(Data + Number of Overhead Bits)/Data – 1 ]x 100= 0.25 Percent
TH (Bps) = Transmission rate / (8 + Number of Overhead Bits) = 9600 / 10 = 960

34. 34

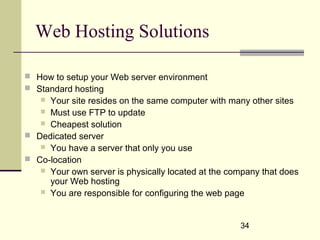

Web Hosting Solutions
 How to setup your Web server environment
 Standard hosting
 Your site resides on the same computer with many other sites
 Must use FTP to update
 Cheapest solution
 Dedicated server
 You have a server that only you use
 Co-location
 Your own server is physically located at the company that does
your Web hosting
 You are responsible for configuring the web page

35. 35

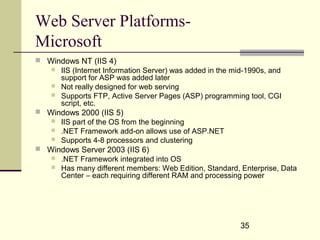

Web Server Platforms-
Microsoft
 Windows NT (IIS 4)
 IIS (Internet Information Server) was added in the mid-1990s, and
support for ASP was added later
 Not really designed for web serving
 Supports FTP, Active Server Pages (ASP) programming tool, CGI
script, etc.
 Windows 2000 (IIS 5)
 IIS part of the OS from the beginning
 .NET Framework add-on allows use of ASP.NET
 Supports 4-8 processors and clustering
 Windows Server 2003 (IIS 6)
 .NET Framework integrated into OS
 Has many different members: Web Edition, Standard, Enterprise, Data
Center – each requiring different RAM and processing power

36. 36

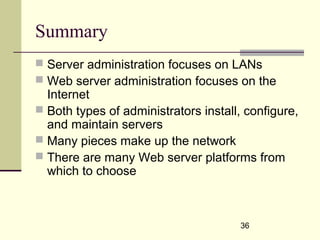

Summary
 Server administration focuses on LANs
 Web server administration focuses on the
Internet
 Both types of administrators install, configure,
and maintain servers
 Many pieces make up the network
 There are many Web server platforms from
which to choose
