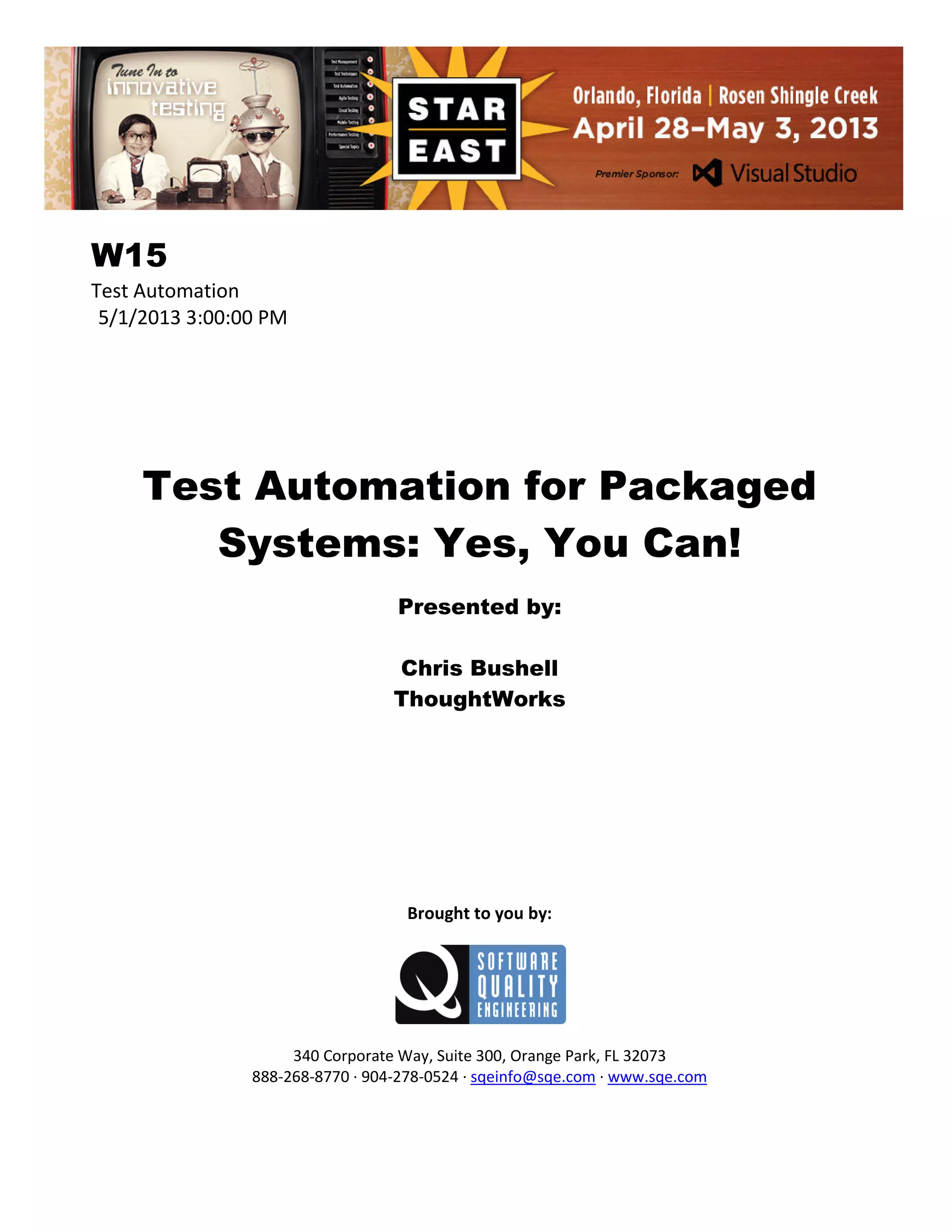

- 1. W15 Test Automation 5/1/2013 3:00:00PM Test Automation for Packaged Systems: Yes, You Can! Presented by: Chris Bushell ThoughtWorks Brought to you by: 340 Corporate Way, Suite 300, Orange Park, FL 32073 888-268-8770 ∙ 904-278-0524 ∙ sqeinfo@sqe.com ∙ www.sqe.com

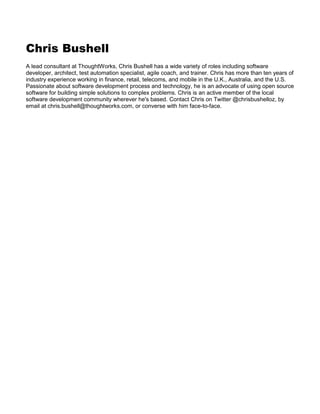

- 2. Chris Bushell A leadconsultant at ThoughtWorks, Chris Bushell has a wide variety of roles including software developer, architect, test automation specialist, agile coach, and trainer. Chris has more than ten years of industry experience working in finance, retail, telecoms, and mobile in the U.K., Australia, and the U.S. Passionate about software development process and technology, he is an advocate of using open source software for building simple solutions to complex problems. Chris is an active member of the local software development community wherever he's based. Contact Chris on Twitter @chrisbushelloz, by email at chris.bushell@thoughtworks.com, or converse with him face-to-face.
- 3. Test Automa+on For Packaged Systems: Yes You Can! Chris Bushell Lead Consultant, ThoughtWorks
- 6. What I do •Developer/Tech Lead/Architect/ Agile coach • Custom so8ware development • Focus on building the right thing • Focus on high quality • Test driven
- 7. How I do it – TDD/BDD
- 8. How I do it – Revision Control
- 9. How I do it – Con+nuous Integra+on

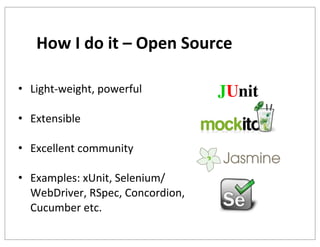

- 10. How I do it – Open Source • Light-‐weight, powerful • Extensible • Excellent community • Examples: xUnit, Selenium/ WebDriver, RSpec, Concordion, Cucumber etc. JUnit
- 11.
- 12.

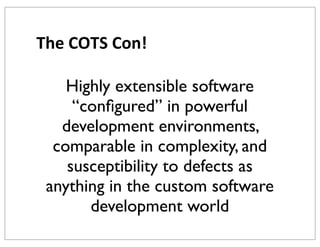

- 13. The COTS Con! Highlyextensible software “configured” in powerful development environments, comparable in complexity, and susceptibility to defects as anything in the custom software development world
- 14. The land that +me forgot
- 15. Complete lack of test automa+on “Computers are designed to do simple repeKKve tasks. The second you have humans doing repeKKve tasks, all the computers get together late at night and laugh at you” “Every Kme you do something for the third Kme, automate it. You’ll be doing it a million Kmes” -‐ Neal Ford

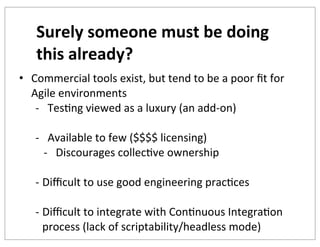

- 16. Surely someone must be doing this already? • Commercial tools exist, but tend to be a poor fit for Agile environments -‐ TesKng viewed as a luxury (an add-‐on) -‐ Available to few ($$$$ licensing) -‐ Discourages collecKve ownership -‐ Difficult to use good engineering pracKces -‐ Difficult to integrate with ConKnuous IntegraKon process (lack of scriptability/headless mode)

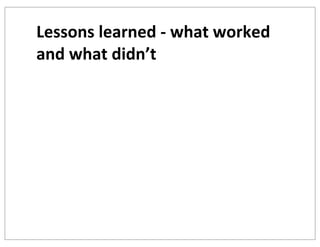

- 17. Lessons learned -‐ what worked and what didn’t
- 18.

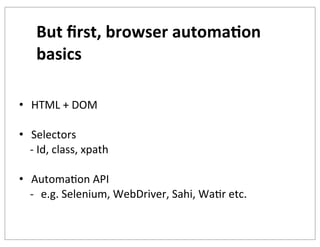

- 19. But first, browser automa+on basics • HTML + DOM • Selectors -‐ Id, class, xpath • AutomaKon API -‐ e.g. Selenium, WebDriver, Sahi, WaKr etc.

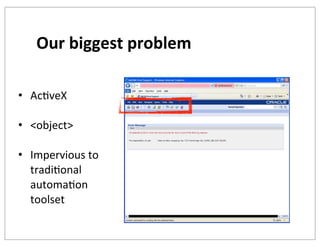

- 20. Our biggest problem •AcKveX • <object> • Impervious to tradiKonal automaKon toolset

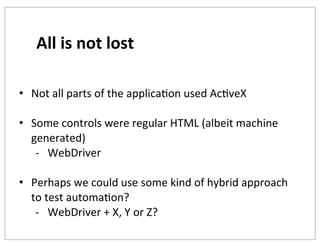

- 21. All is not lost • Not all parts of the applicaKon used AcKveX • Some controls were regular HTML (albeit machine generated) -‐ WebDriver • Perhaps we could use some kind of hybrid approach to test automaKon? -‐ WebDriver + X, Y or Z?

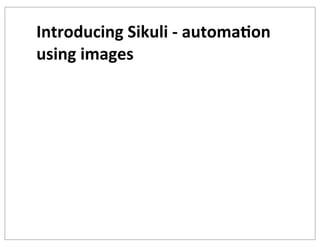

- 22. Introducing Sikuli -‐ automa+on using images

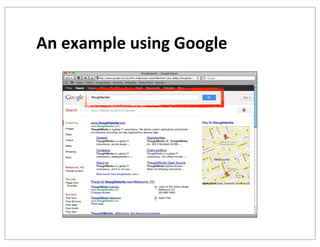

- 23. An example using Google
- 24. package com.tw.xconf; import org.sikuli.script.FindFailed; importorg.sikuli.script.Screen; import org.sikuli.script.Settings; public class Demo { } public static void main(String[] args) { Screen screen = new Screen(); try { screen.click("images/criteria.png"); screen.type("ThoughtWorks"); screen.click("images/search.png"); } catch (FindFailed e) { e.printStackTrace(); } }

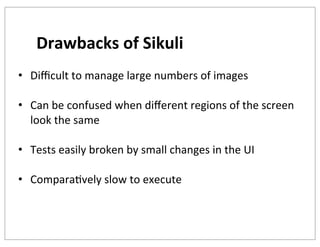

- 25. Drawbacks of Sikuli •Difficult to manage large numbers of images • Can be confused when different regions of the screen look the same • Tests easily broken by small changes in the UI • ComparaKvely slow to execute

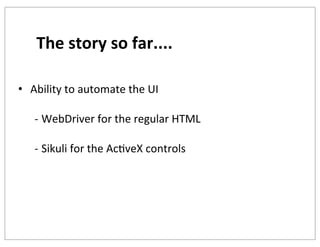

- 26. The story so far.... • Ability to automate the UI -‐ WebDriver for the regular HTML -‐ Sikuli for the AcKveX controls

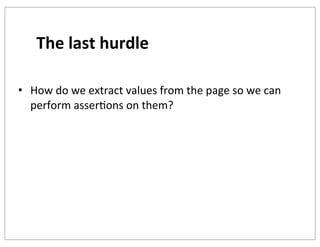

- 27. The last hurdle •How do we extract values from the page so we can perform asserKons on them?

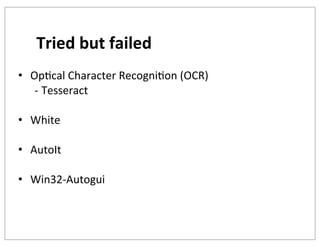

- 28. Tried but failed •OpKcal Character RecogniKon (OCR) -‐ Tesseract • White • AutoIt • Win32-‐Autogui

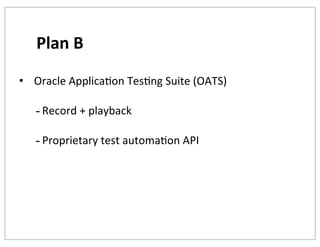

- 29. Plan B • Oracle ApplicaKon TesKng Suite (OATS) -‐ Record + playback -‐ Proprietary test automaKon API
- 30. Test automa+on is soYware development • Code duplicaKon is bad, resulKng in fragile test suites -‐ Small changes can break many tests which requires significant maintenance -‐ Frequently see test automaKon abandoned as a result of this • Record + playback tools make it difficult to introduce abstracKons to remove duplicaKon

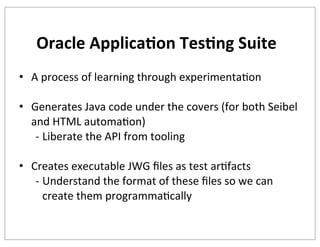

- 31. Oracle Applica+on Tes+ng Suite • A process of learning through experimentaKon • Generates Java code under the covers (for both Seibel and HTML automaKon) -‐ Liberate the API from tooling • Creates executable JWG files as test arKfacts -‐ Understand the format of these files so we can create them programmaKcally

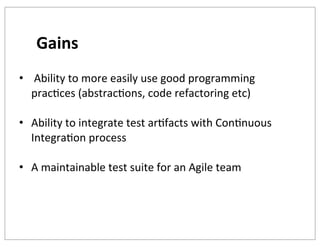

- 32. Gains • Ability to more easily use good programming pracKces (abstracKons, code refactoring etc) • Ability to integrate test arKfacts with ConKnuous IntegraKon process • A maintainable test suite for an Agile team
- 34. Remedy +cket management system

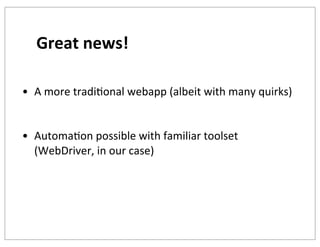

- 35. Great news! • A more tradiKonal webapp (albeit with many quirks) • AutomaKon possible with familiar toolset (WebDriver, in our case)
- 36. Example quirk #1: windows

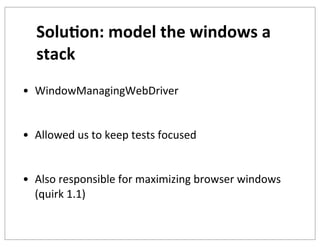

- 37. Solu+on: model the windows a stack • WindowManagingWebDriver • Allowed us to keep tests focused • Also responsible for maximizing browser windows (quirk 1.1)

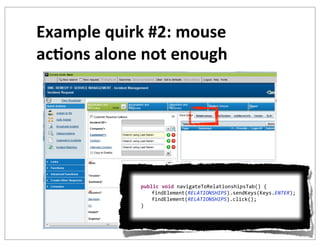

- 38. Example quirk #2: mouse ac+ons alone not enough public void navigateToRelationshipsTab() { findElement(RELATIONSHIPS).sendKeys(Keys.ENTER); findElement(RELATIONSHIPS).click(); }

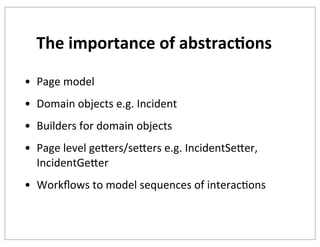

- 39. The importance of abstrac+ons • Page model • Domain objects e.g. Incident • Builders for domain objects • Page level gekers/sekers e.g. IncidentSeker, IncidentGeker • Workflows to model sequences of interacKons
- 40.
- 41.

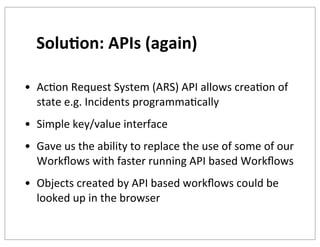

- 42. Solu+on: APIs (again) •AcKon Request System (ARS) API allows creaKon of state e.g. Incidents programmaKcally • Simple key/value interface • Gave us the ability to replace the use of some of our Workflows with faster running API based Workflows • Objects created by API based workflows could be looked up in the browser

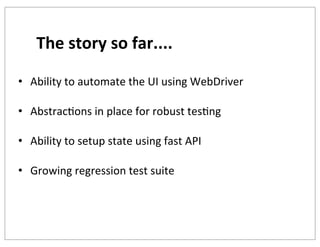

- 43. The story so far.... • Ability to automate the UI using WebDriver • AbstracKons in place for robust tesKng • Ability to setup state using fast API • Growing regression test suite
- 44.

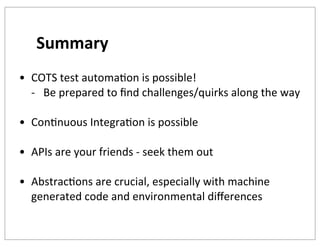

- 45. Summary • COTS test automaKon is possible! -‐ Be prepared to find challenges/quirks along the way • ConKnuous IntegraKon is possible • APIs are your friends -‐ seek them out • AbstracKons are crucial, especially with machine generated code and environmental differences
- 46.
- 47. ancisco, California 94104 6F: +1 415 986 2964 ancisco, California 94104 6 F: +1 415 986 2964 Chris Bushell Chris Bushell 315 Montgomery Street, 16th Floor San Francisco, California 94104 T: +1 415 273 1389 C: +1 415 568 8186 F: +1 415 986 2964 E: chris.bushell@thoughtworks.com 315 Montgomery Street, 16th Floo T: +1 415 273 1389 C: +1 415 E: chris.bushell@thoughtworks.com Chris Bushell Chris Bushell 315 Montgomery Street, 16th Floor San Francisco, California 94104 T: +1 415 273 1389 C: +1 415 568 8186 F: +1 415 986 2964 E: chris.bushell@thoughtworks.com 315 Montgomery Street, 16th Floo T: +1 415 273 1389 C: +1 415 E: chris.bushell@thoughtworks.com Chris Bushell Chris Bushell Lead Consultant Email: chris.bushell@thoughtworks.com Lead Consultant Twi`er: @chrisbushelloz Github: www.github.com/cbushell My talks: www.speakerdeck.com/cbushell LinkedIn: www.linkedin.com/in/chrisbushell Lead Consultant Lead Consultant

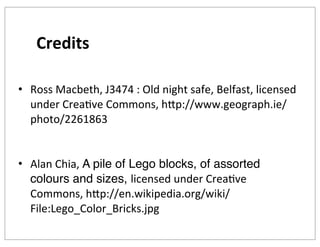

- 48. Credits • Ross Macbeth, J3474 : Old night safe, Belfast, licensed under CreaKve Commons, hkp://www.geograph.ie/ photo/2261863 • Alan Chia, A pile of Lego blocks, of assorted colours and sizes, licensed under CreaKve Commons, hkp://en.wikipedia.org/wiki/ File:Lego_Color_Bricks.jpg
