1. Operating a High Velocity Large Organization
with Spring Cloud Microservices
Noriaki (Nori) Tatsumi
Capital One

2. Who we are
2

3. Data Lake
Powered by C1 Data Intelligence Team
CC Image by Stanislav Sedov on Flickr

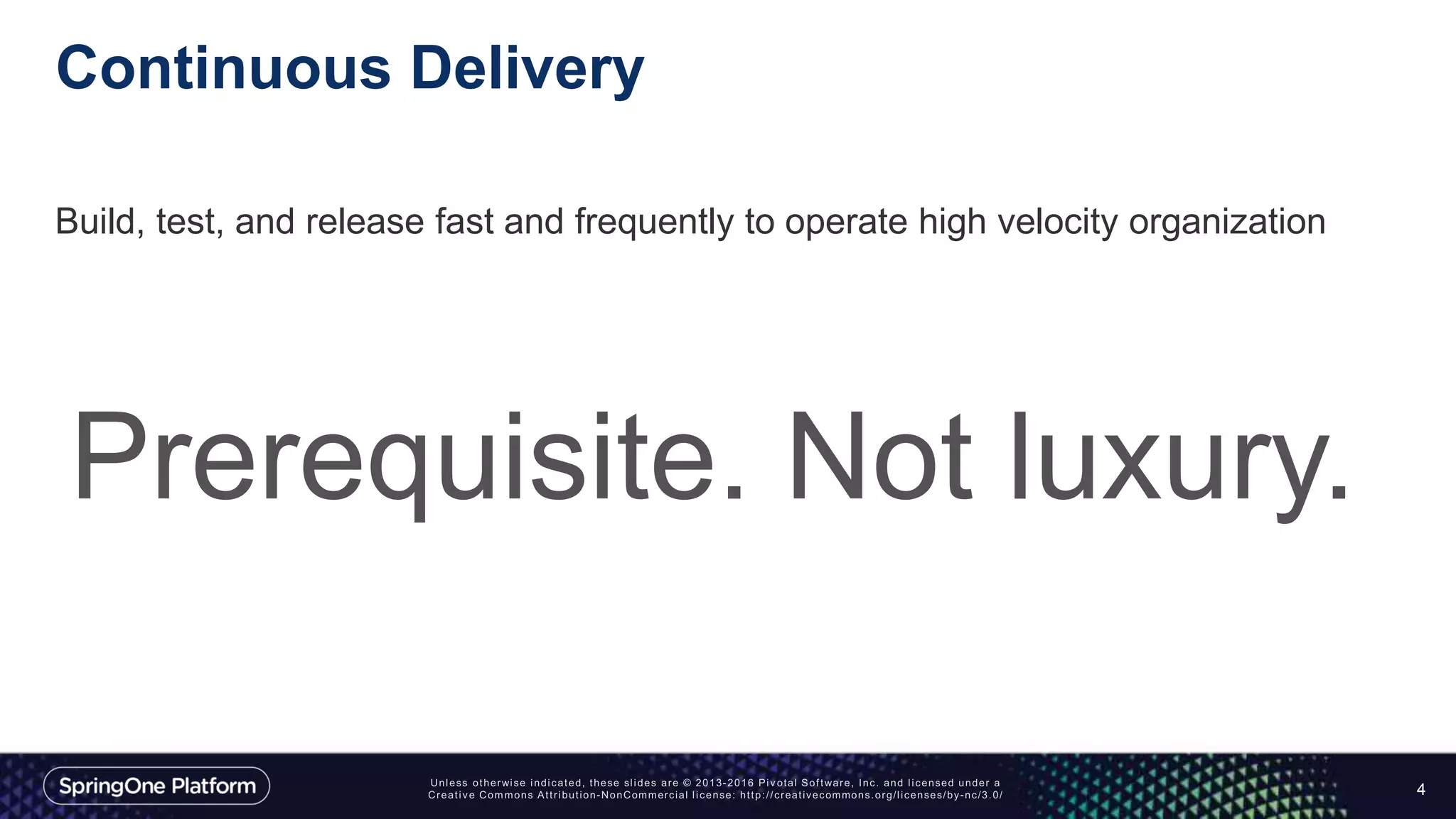

4. Continuous Delivery
Build, test, and release fast and frequently to operate high velocity organization
4
Prerequisite. Not luxury.

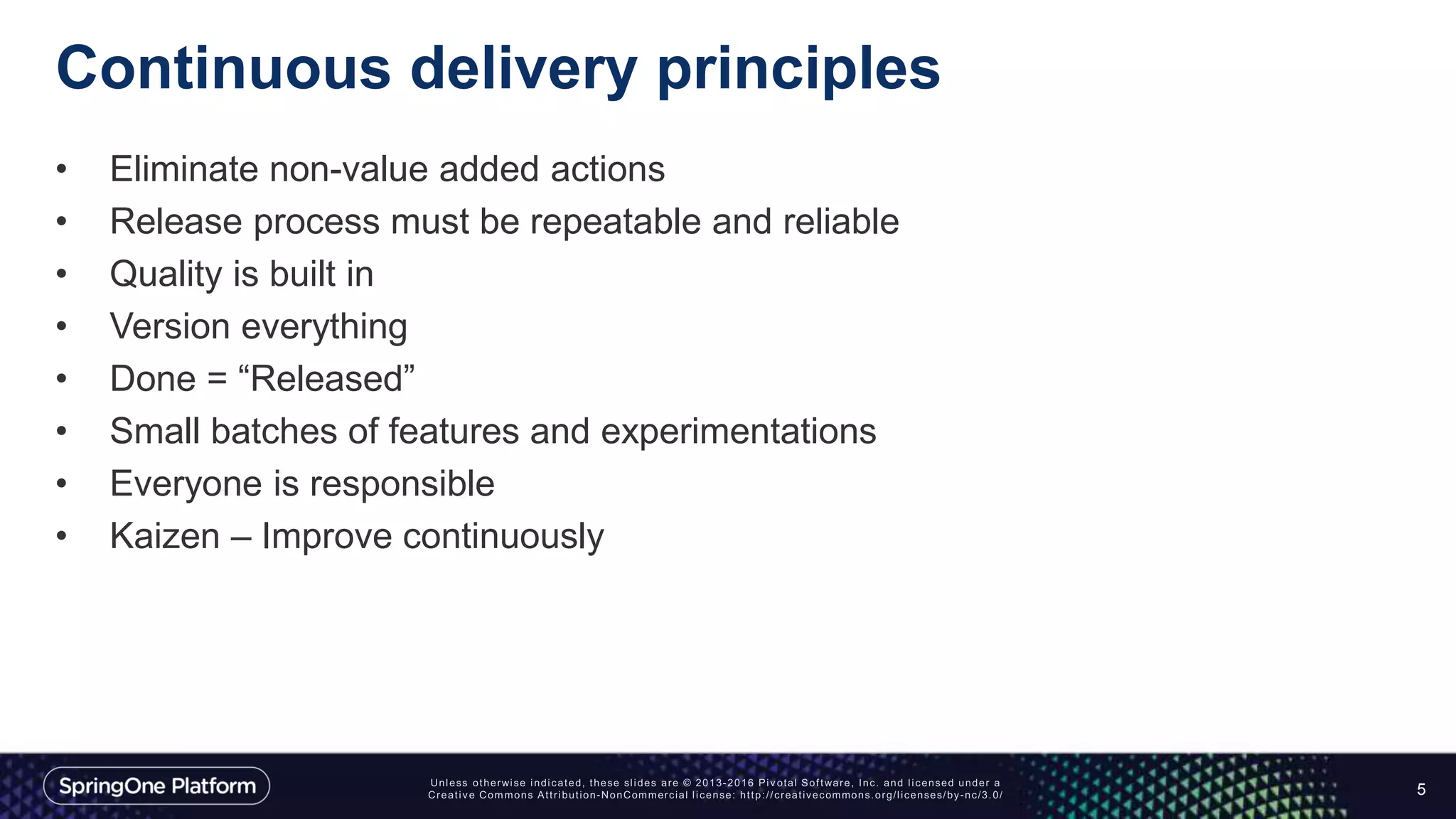

5. Continuous delivery principles
• Eliminate non-value added actions
• Release process must be repeatable and reliable
• Quality is built in
• Version everything
• Done = “Released”
• Small batches of features and experimentations
• Everyone is responsible
• Kaizen – Improve continuously
5

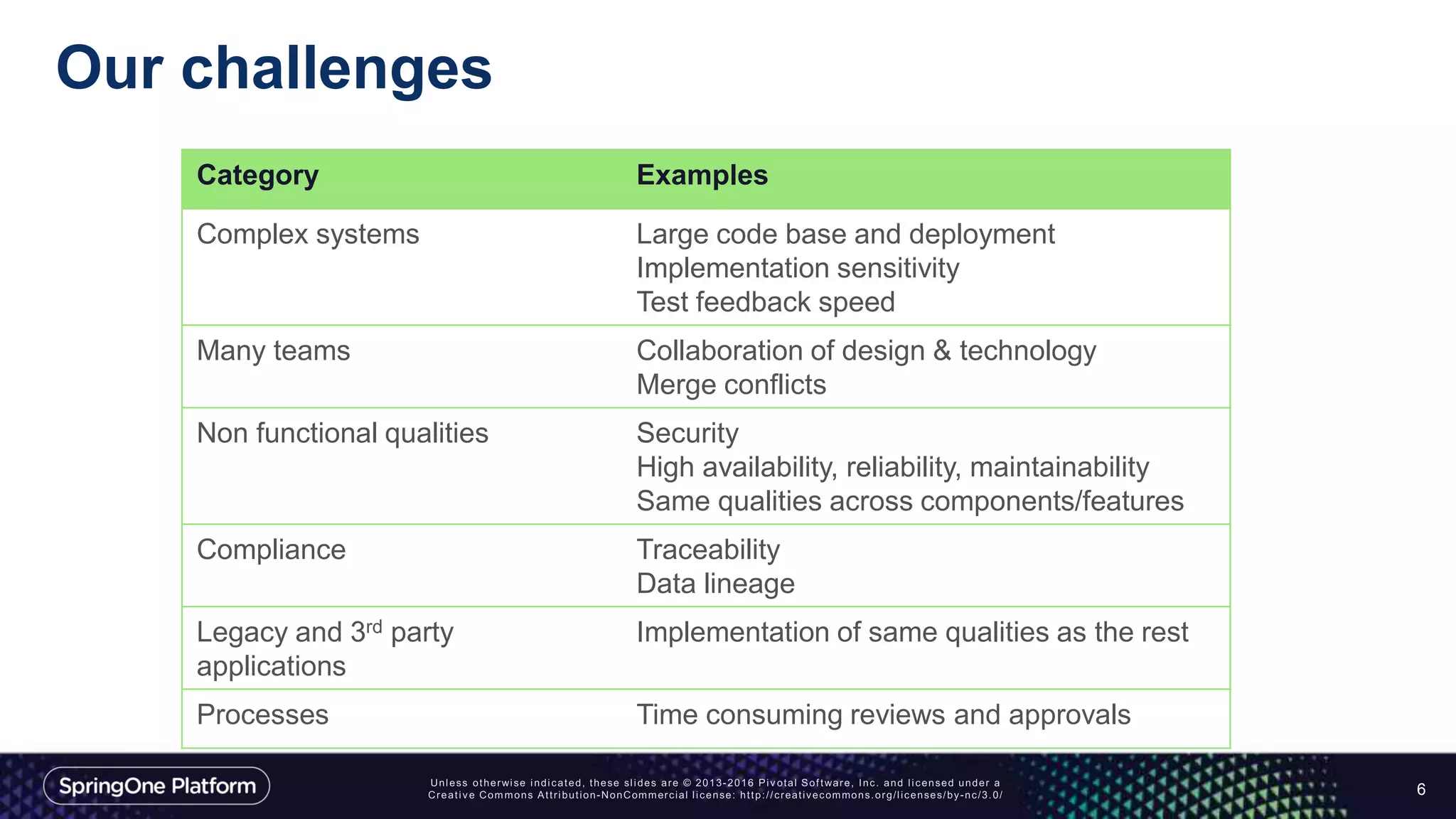

6. Our challenges
Category Examples
Complex systems Large code base and deployment
Implementation sensitivity
Test feedback speed
Many teams Collaboration of design & technology
Merge conflicts
Non functional qualities Security
High availability, reliability, maintainability
Same qualities across components/features
Compliance Traceability
Data lineage
Legacy and 3rd party
applications
Implementation of same qualities as the rest
Processes Time consuming reviews and approvals
6

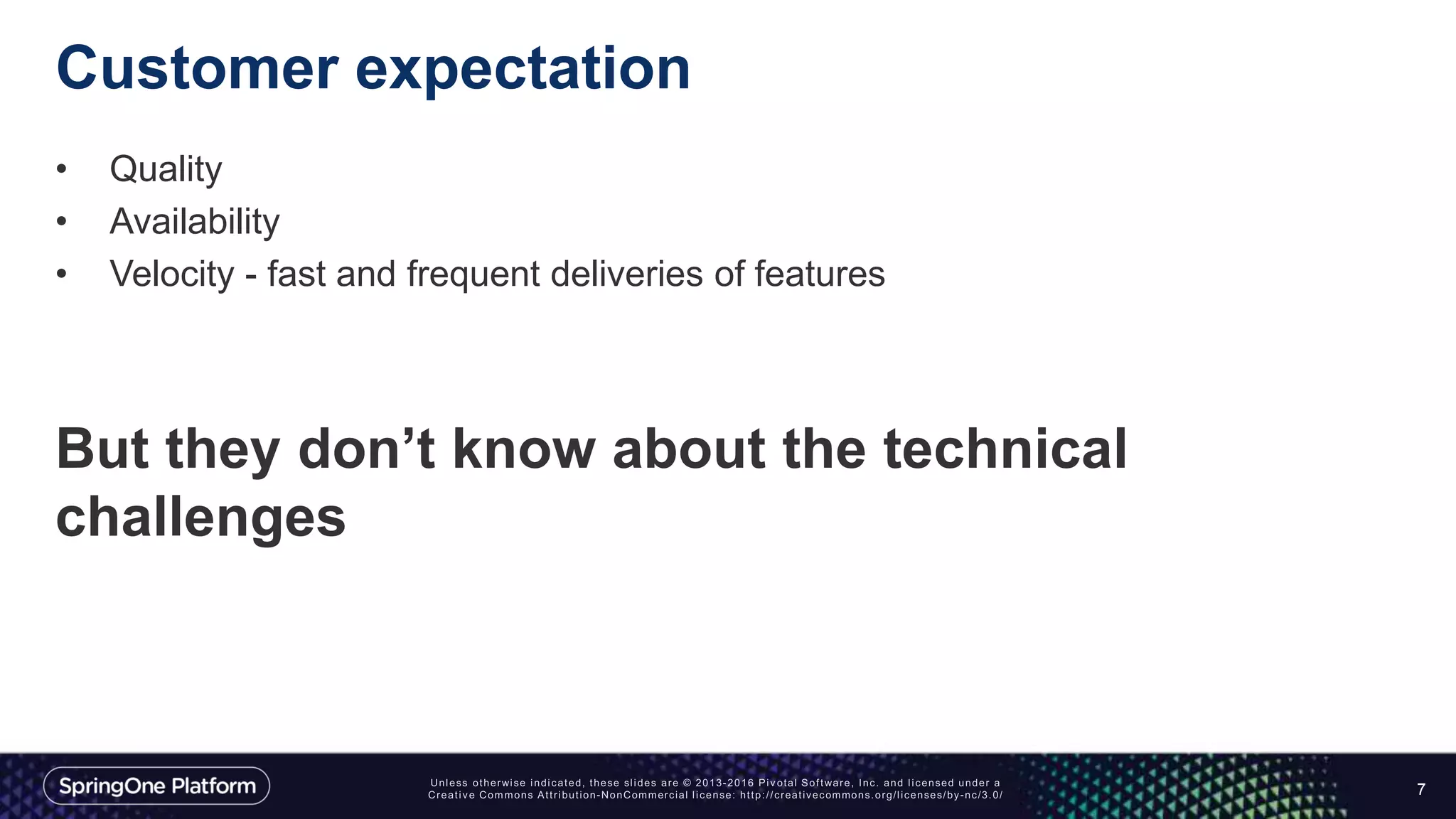

7. Customer expectation
• Quality
• Availability
• Velocity - fast and frequent deliveries of features
But they don’t know about the technical
challenges
7

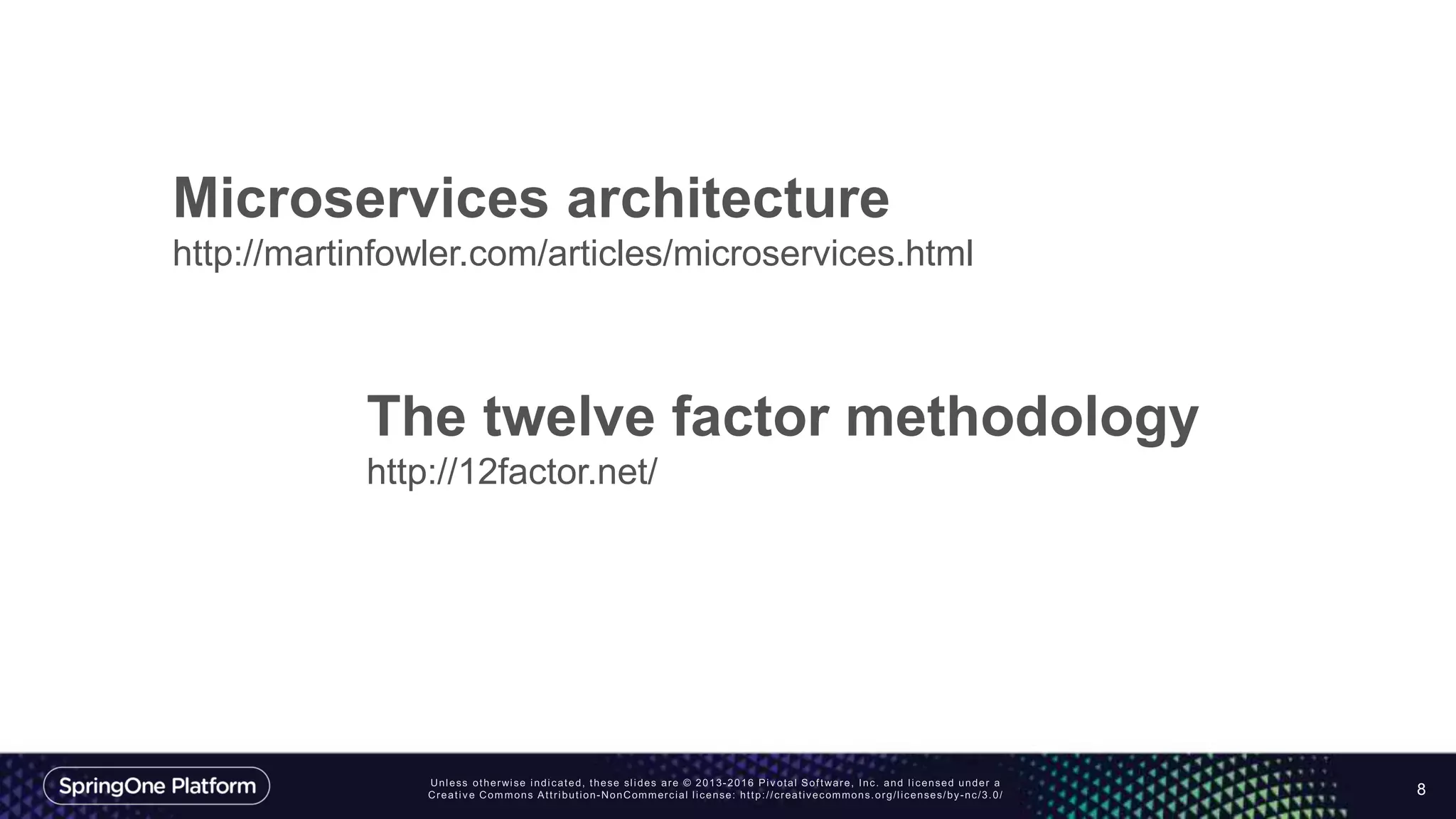

8. 8
Microservices architecture
http://martinfowler.com/articles/microservices.html
The twelve factor methodology
http://12factor.net/

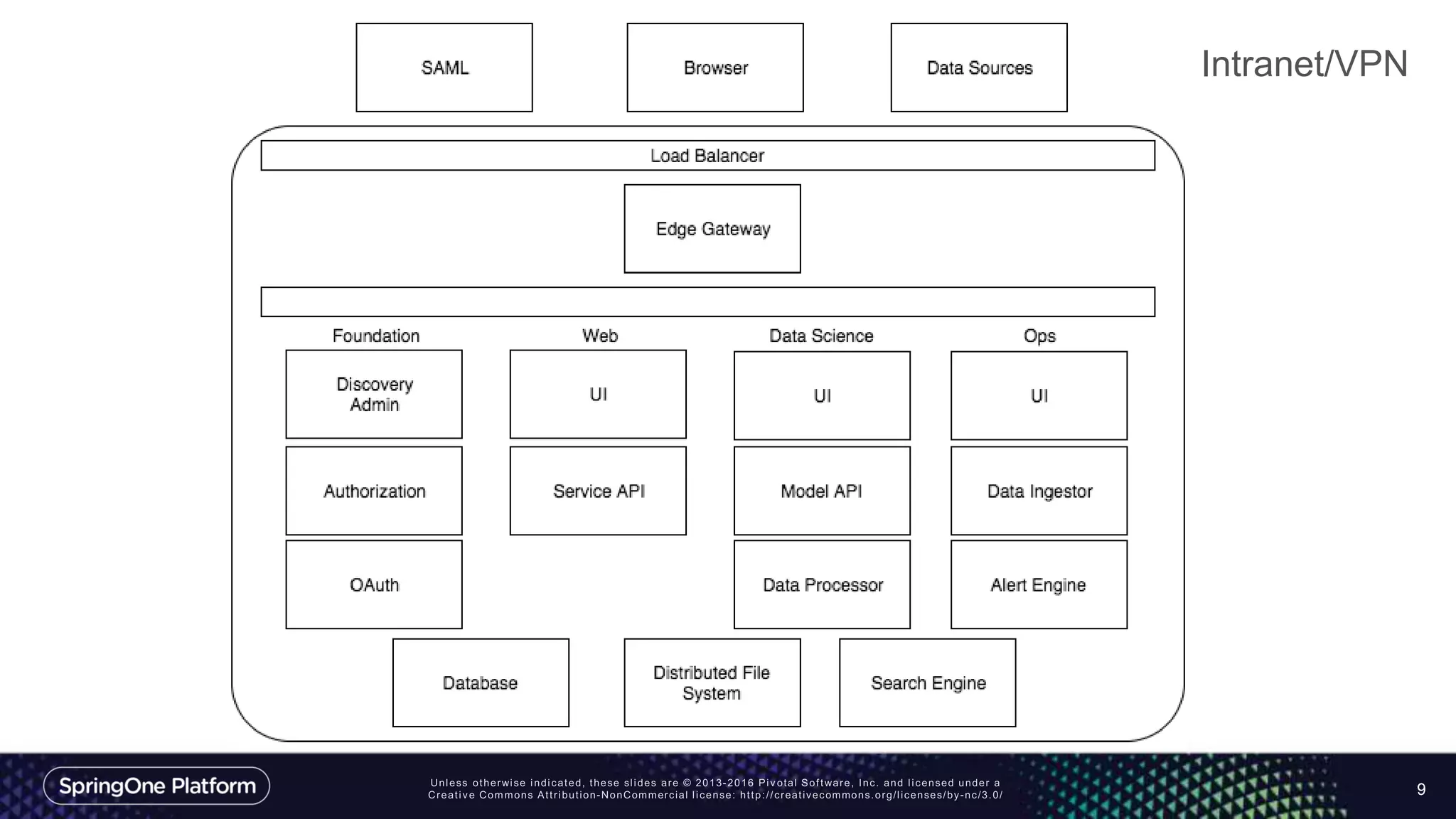

9. 9
Intranet/VPN

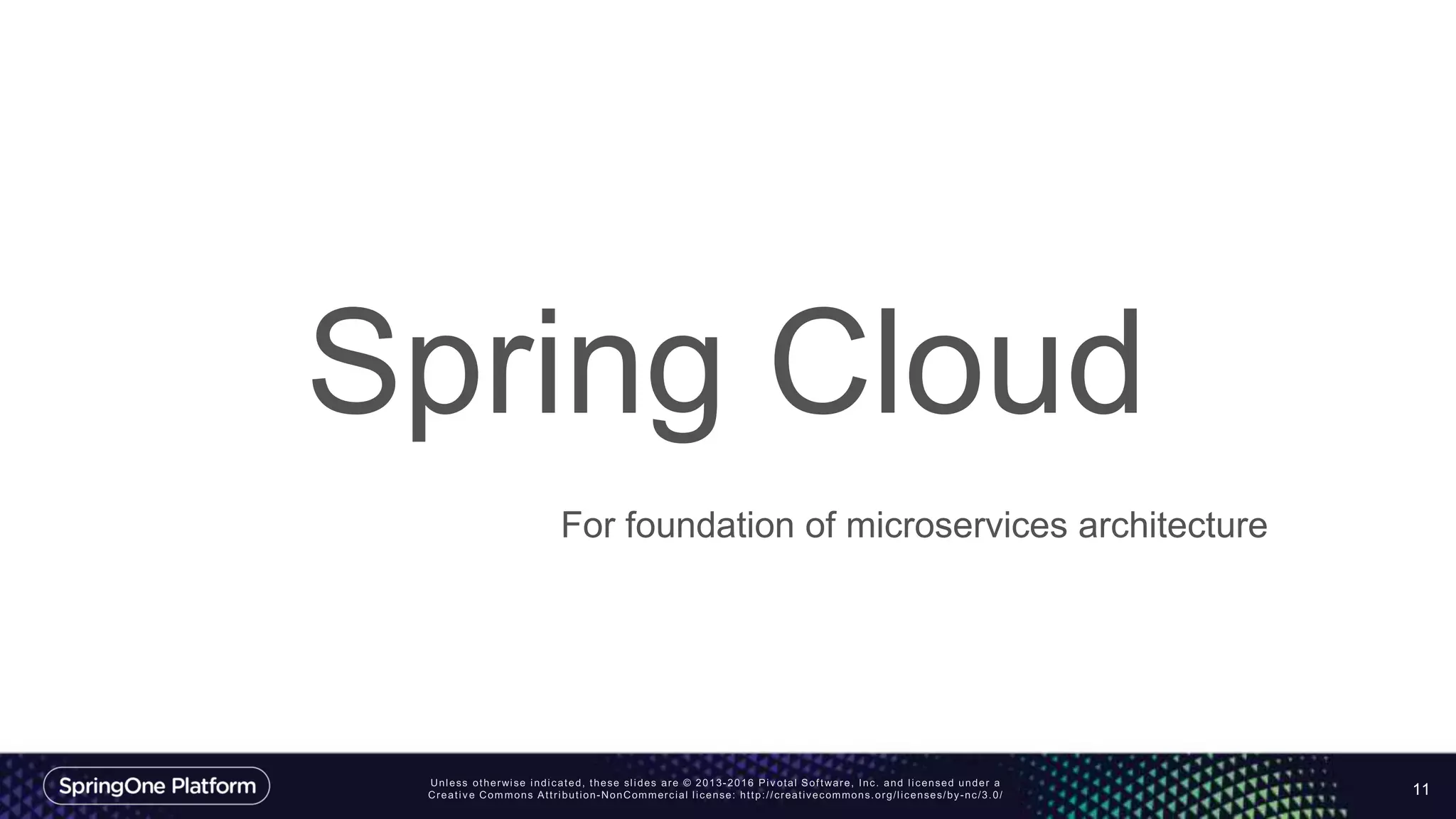

10. 10

11. 11
Spring Cloud
For foundation of microservices architecture

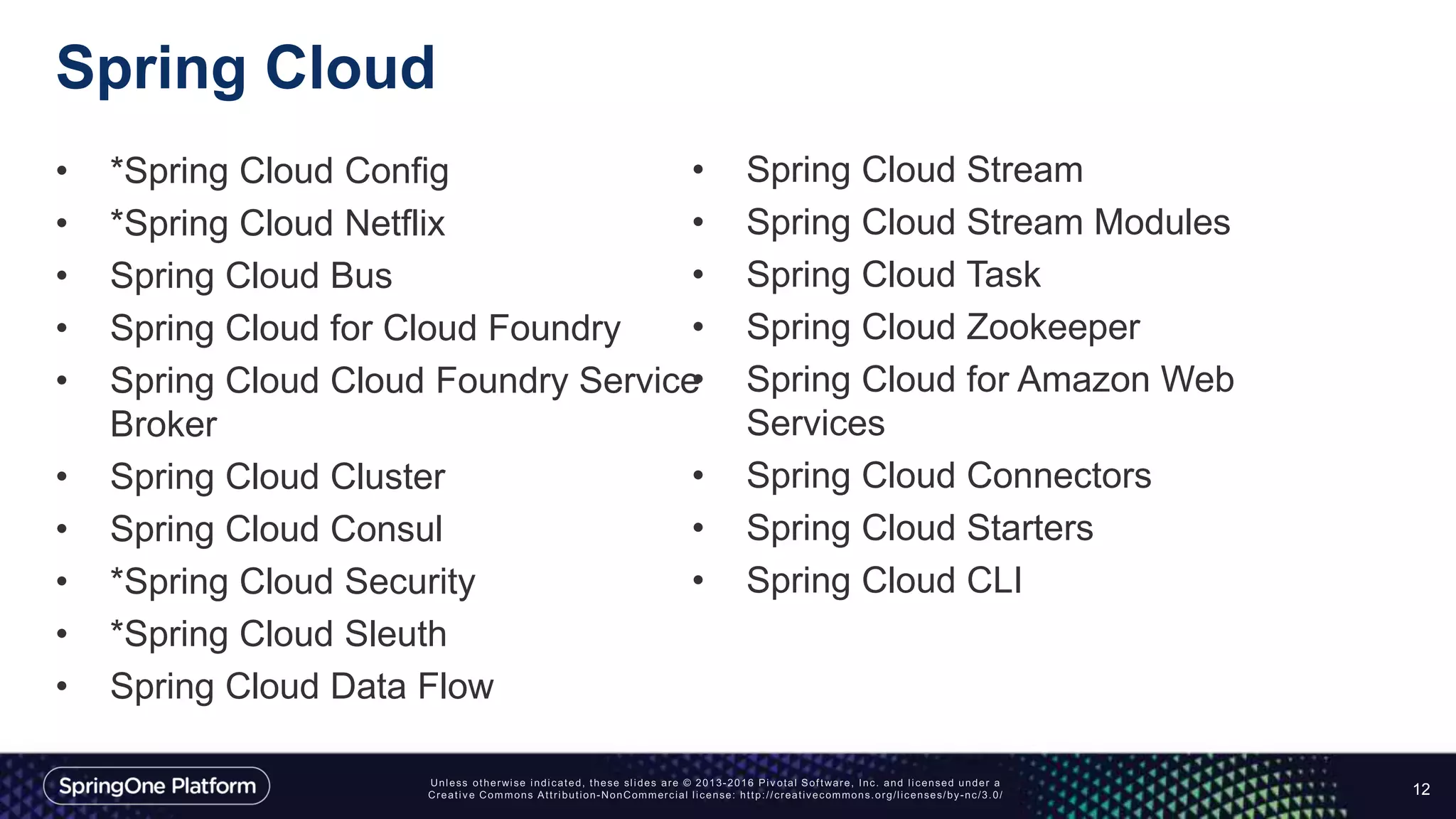

12. Spring Cloud
• *Spring Cloud Config
• *Spring Cloud Netflix
• Spring Cloud Bus
• Spring Cloud for Cloud Foundry
• Spring Cloud Cloud Foundry Service
Broker
• Spring Cloud Cluster
• Spring Cloud Consul
• *Spring Cloud Security
• *Spring Cloud Sleuth
• Spring Cloud Data Flow
12
• Spring Cloud Stream
• Spring Cloud Stream Modules
• Spring Cloud Task
• Spring Cloud Zookeeper
• Spring Cloud for Amazon Web
Services
• Spring Cloud Connectors
• Spring Cloud Starters
• Spring Cloud CLI

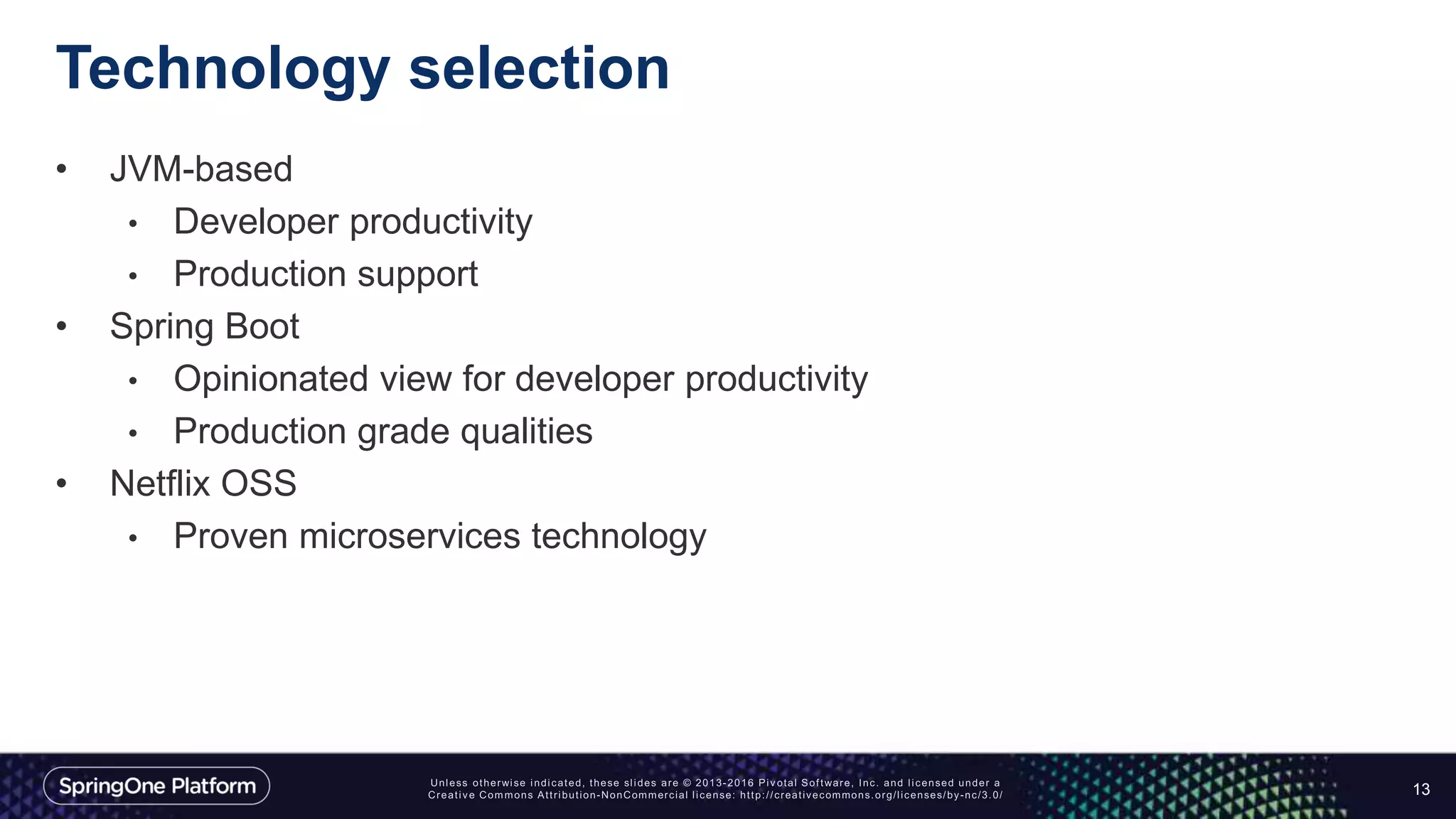

13. Technology selection
• JVM-based
• Developer productivity
• Production support
• Spring Boot
• Opinionated view for developer productivity
• Production grade qualities
• Netflix OSS
• Proven microservices technology
13

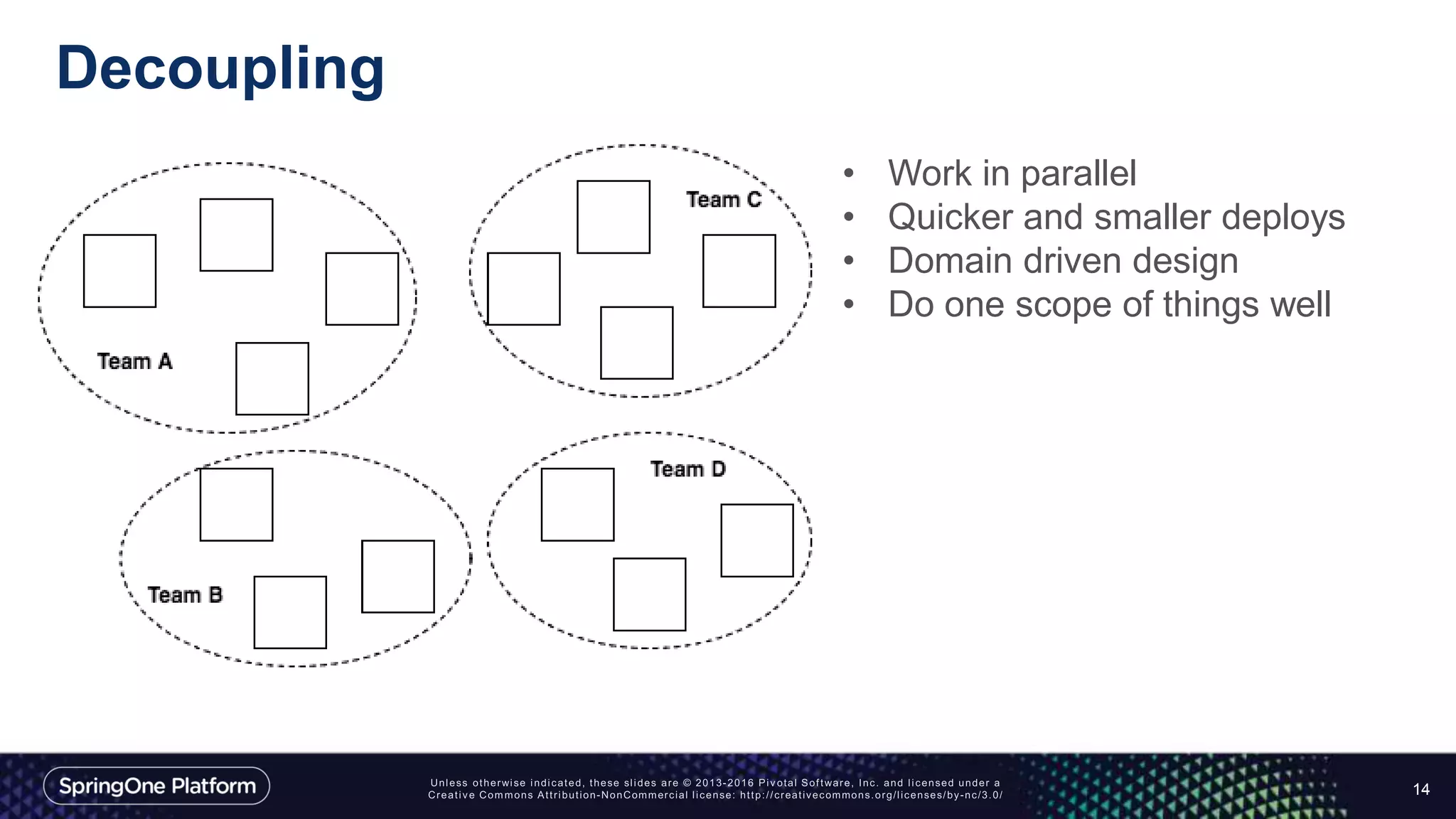

14. Decoupling
14
• Work in parallel
• Quicker and smaller deploys
• Domain driven design
• Do one scope of things well

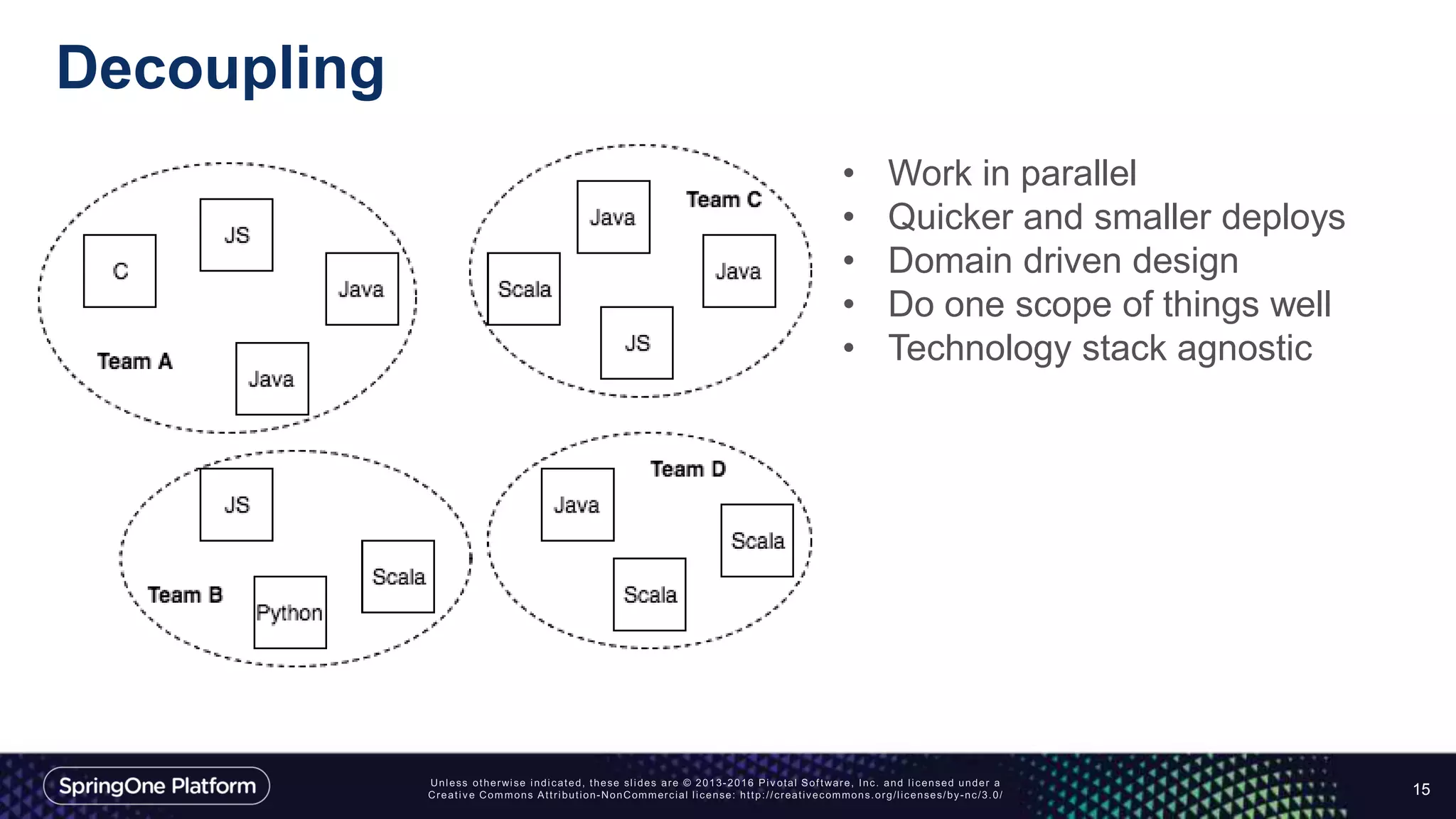

15. Decoupling
15
• Work in parallel
• Quicker and smaller deploys
• Domain driven design
• Do one scope of things well
• Technology stack agnostic

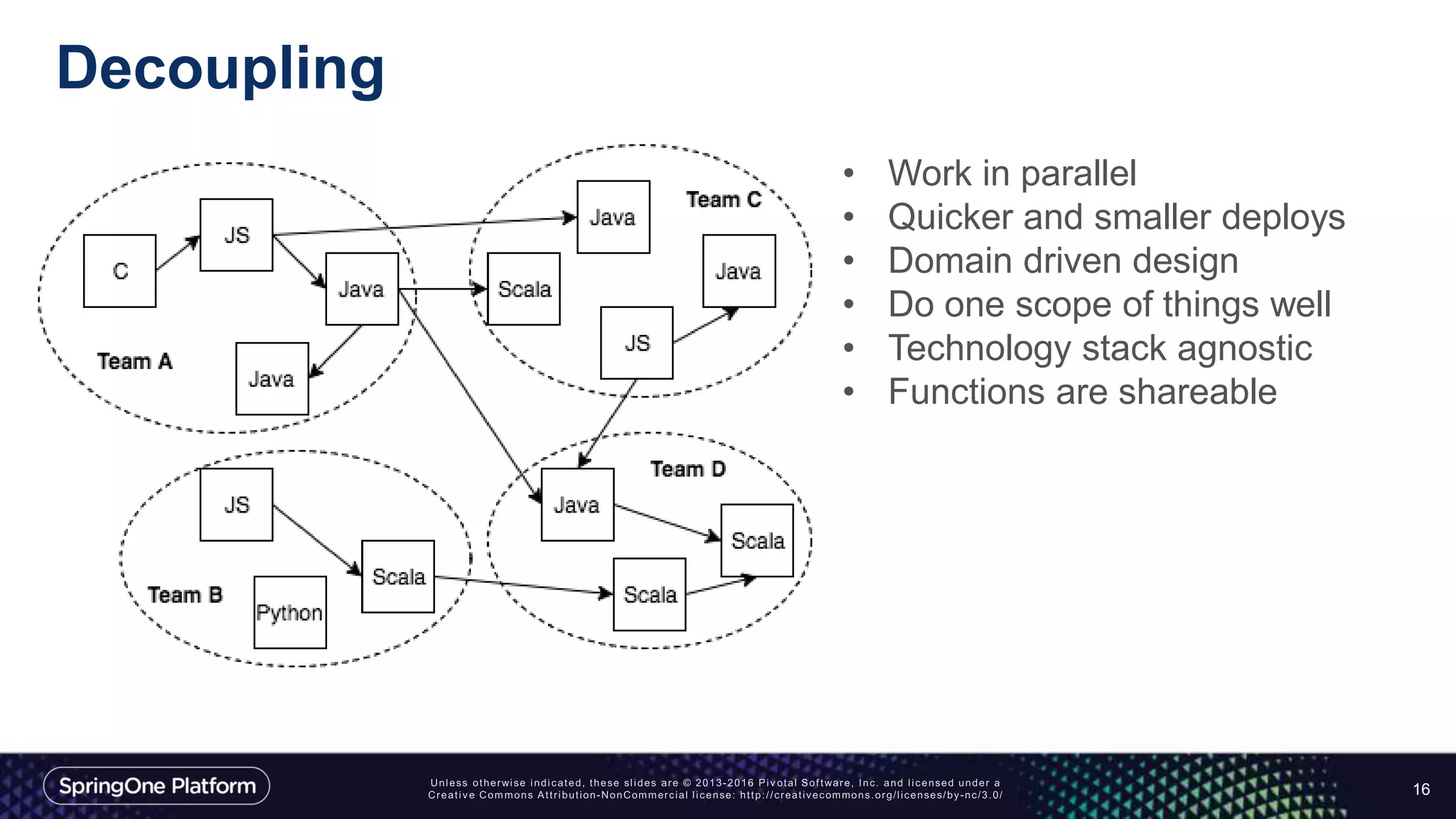

16. Decoupling
16
• Work in parallel
• Quicker and smaller deploys
• Domain driven design
• Do one scope of things well
• Technology stack agnostic
• Functions are shareable

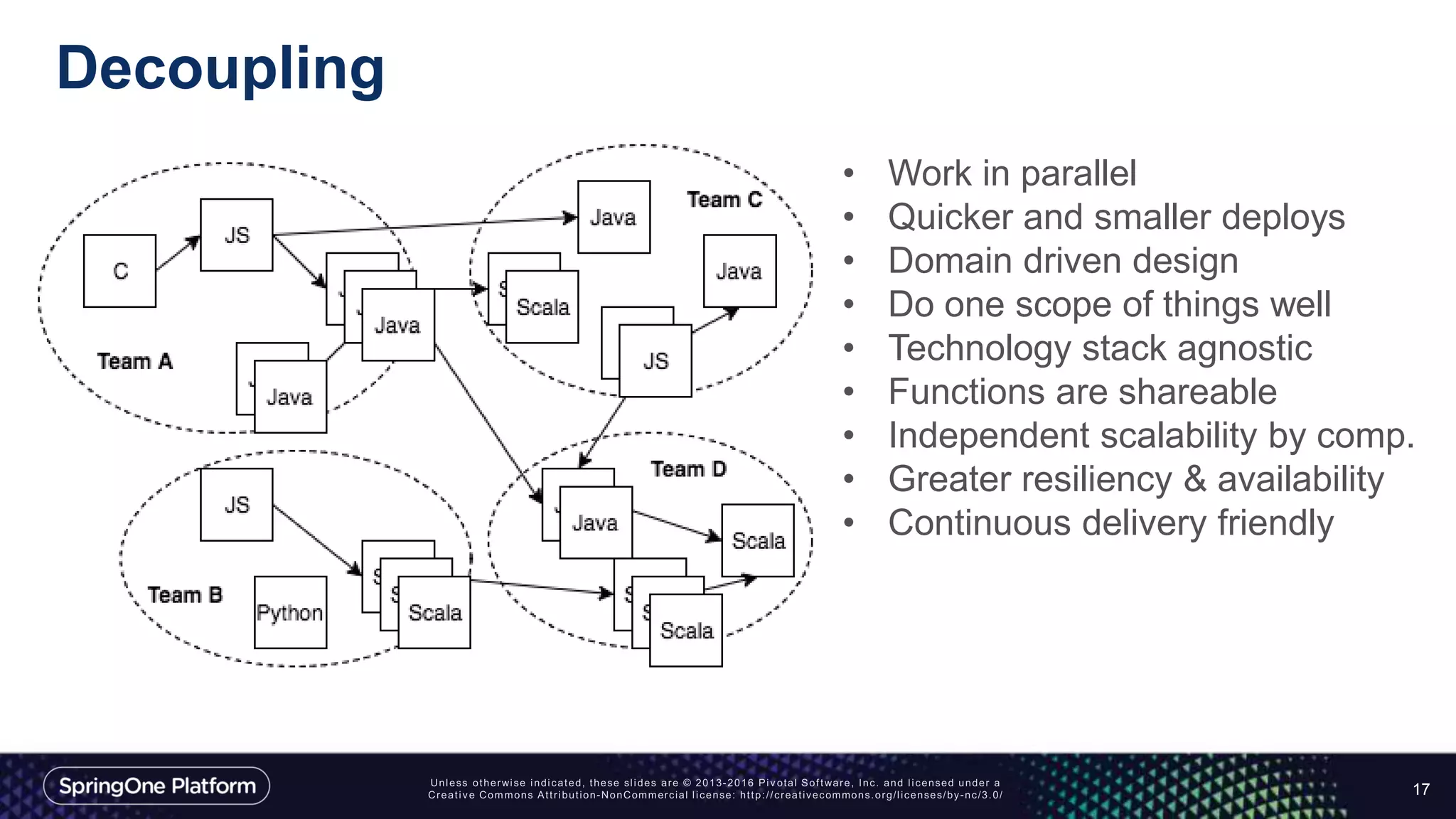

17. Decoupling
17
• Work in parallel
• Quicker and smaller deploys
• Domain driven design
• Do one scope of things well
• Technology stack agnostic
• Functions are shareable
• Independent scalability by comp.
• Greater resiliency & availability
• Continuous delivery friendly

18. This looks hard to orchestrate
18

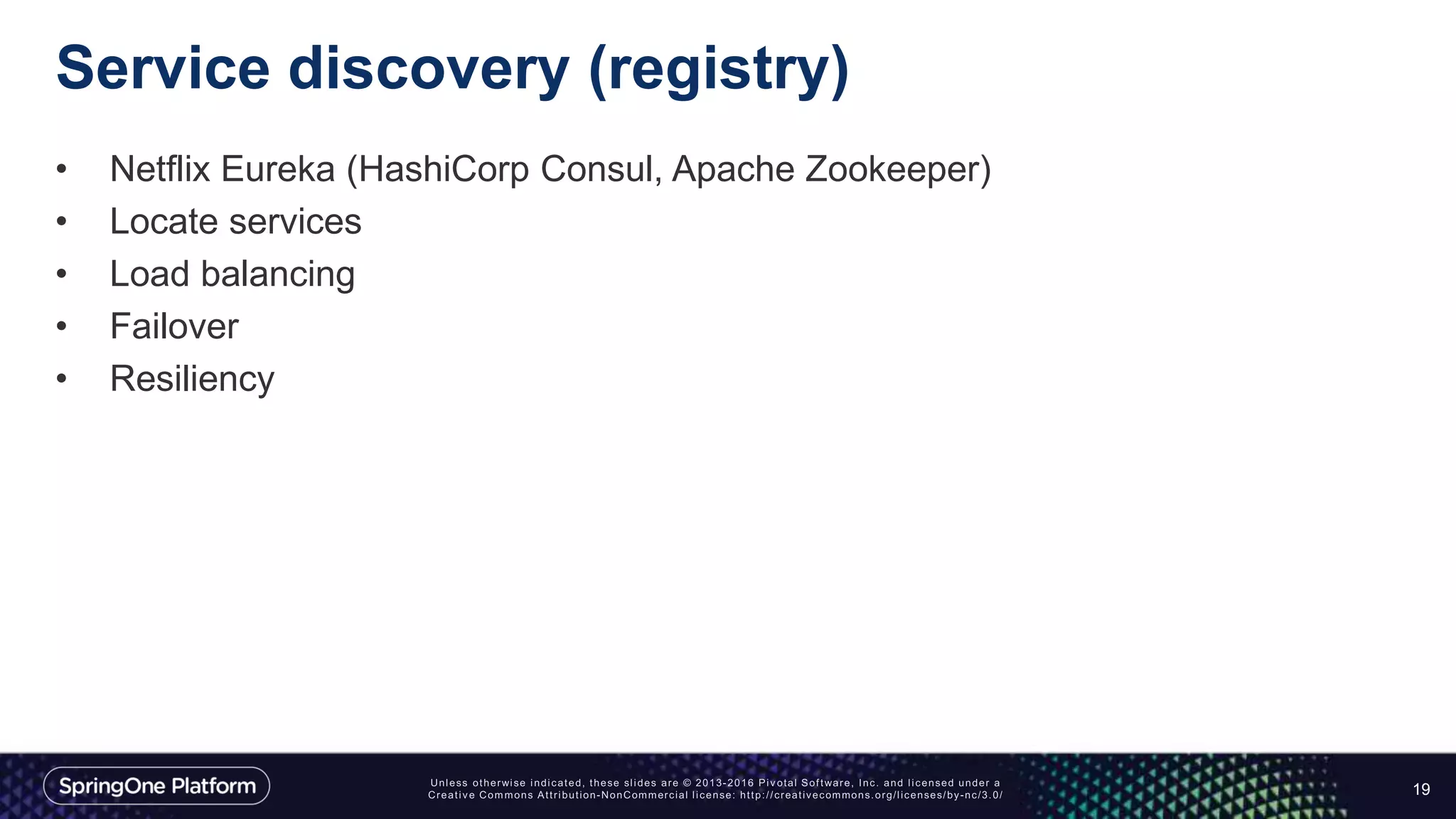

19. Service discovery (registry)
• Netflix Eureka (HashiCorp Consul, Apache Zookeeper)
• Locate services
• Load balancing
• Failover
• Resiliency
19

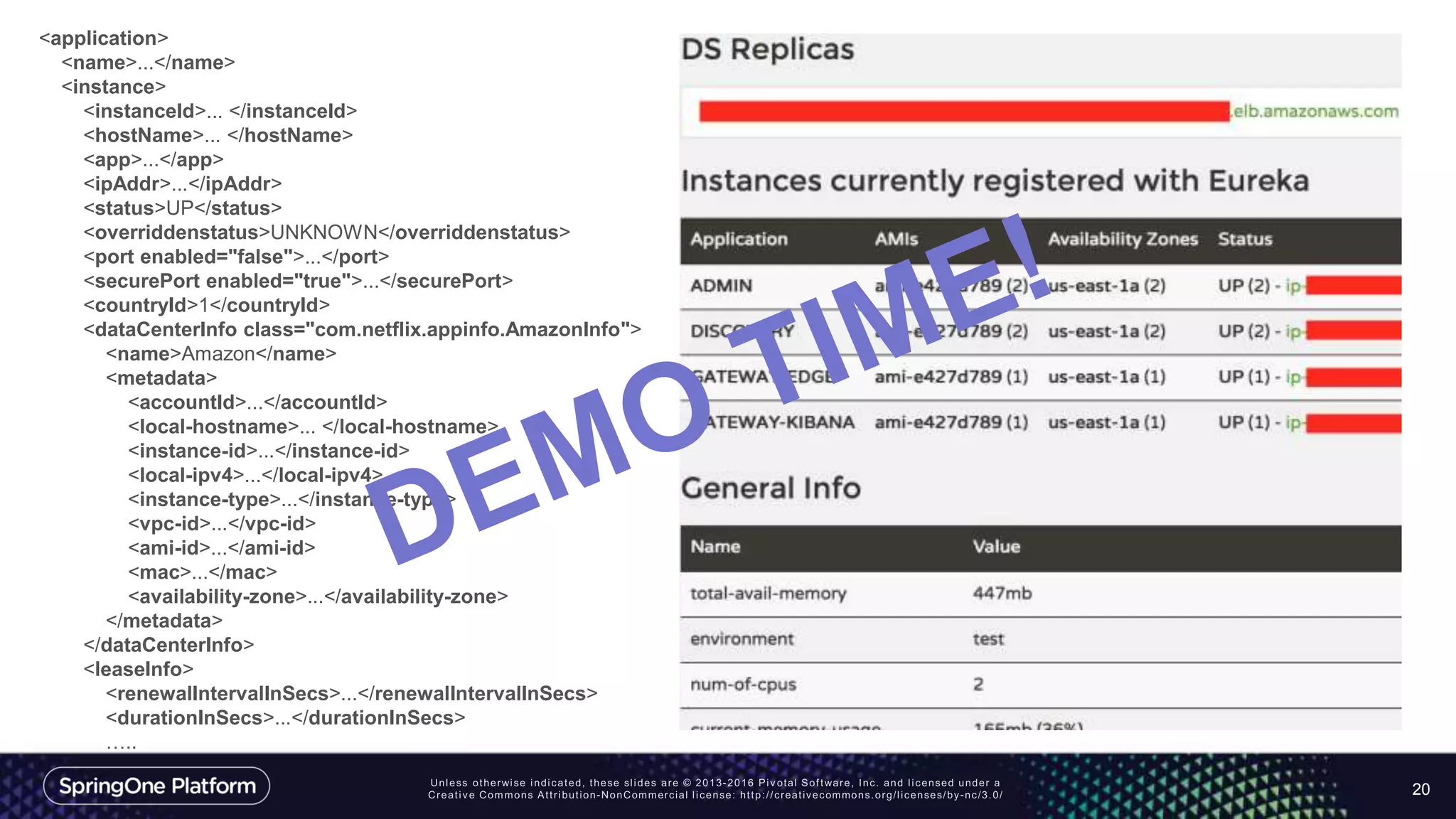

20. 20
<application>
<name>...</name>
<instance>
<instanceId>... </instanceId>
<hostName>... </hostName>
<app>...</app>
<ipAddr>...</ipAddr>
<status>UP</status>
<overriddenstatus>UNKNOWN</overriddenstatus>
<port enabled="false">...</port>
<securePort enabled="true">...</securePort>
<countryId>1</countryId>
<dataCenterInfo class="com.netflix.appinfo.AmazonInfo">
<name>Amazon</name>
<metadata>
<accountId>...</accountId>
<local-hostname>... </local-hostname>
<instance-id>...</instance-id>
<local-ipv4>...</local-ipv4>
<instance-type>...</instance-type>
<vpc-id>...</vpc-id>
<ami-id>...</ami-id>
<mac>...</mac>
<availability-zone>...</availability-zone>
</metadata>
</dataCenterInfo>
<leaseInfo>
<renewalIntervalInSecs>...</renewalIntervalInSecs>
<durationInSecs>...</durationInSecs>
…..

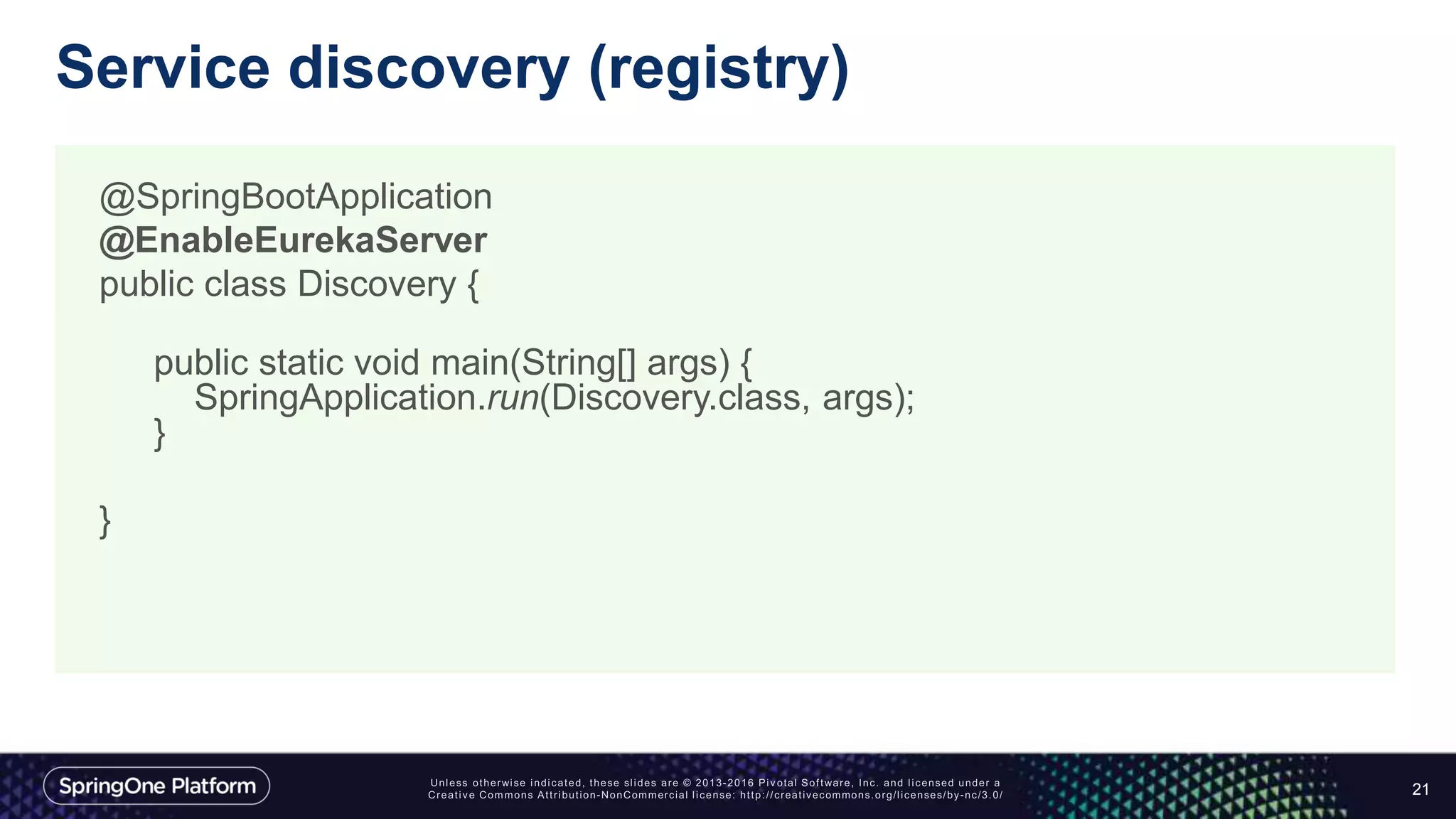

21. Service discovery (registry)
21
@SpringBootApplication
@EnableEurekaServer
public class Discovery {
public static void main(String[] args) {
SpringApplication.run(Discovery.class, args);
}
}

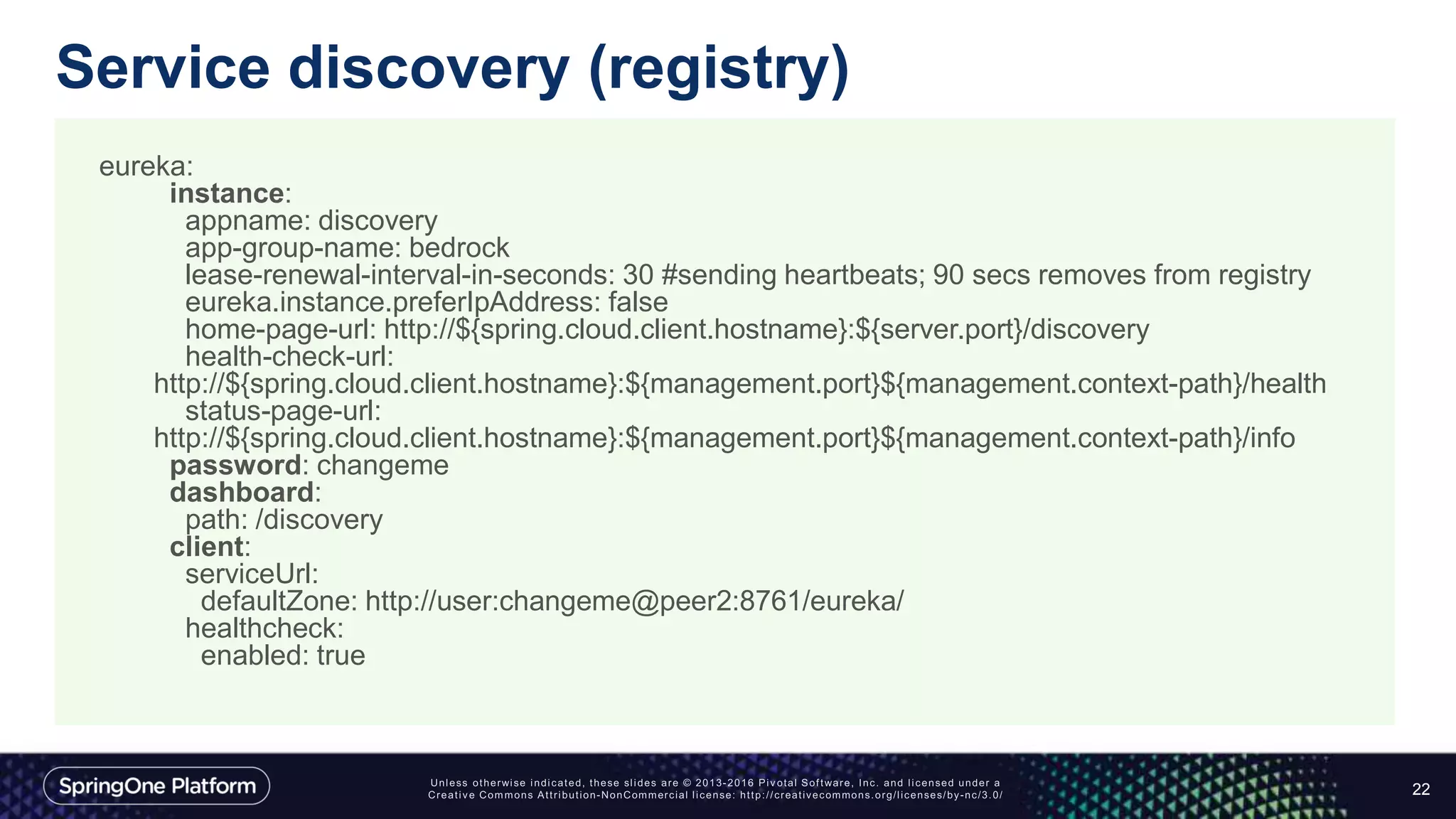

22. Service discovery (registry)
22
eureka:
instance:
appname: discovery
app-group-name: bedrock
lease-renewal-interval-in-seconds: 30 #sending heartbeats; 90 secs removes from registry
eureka.instance.preferIpAddress: false
home-page-url: http://${spring.cloud.client.hostname}:${server.port}/discovery
health-check-url:
http://${spring.cloud.client.hostname}:${management.port}${management.context-path}/health
status-page-url:
http://${spring.cloud.client.hostname}:${management.port}${management.context-path}/info
password: changeme
dashboard:
path: /discovery
client:
serviceUrl:
defaultZone: http://user:changeme@peer2:8761/eureka/
healthcheck:
enabled: true

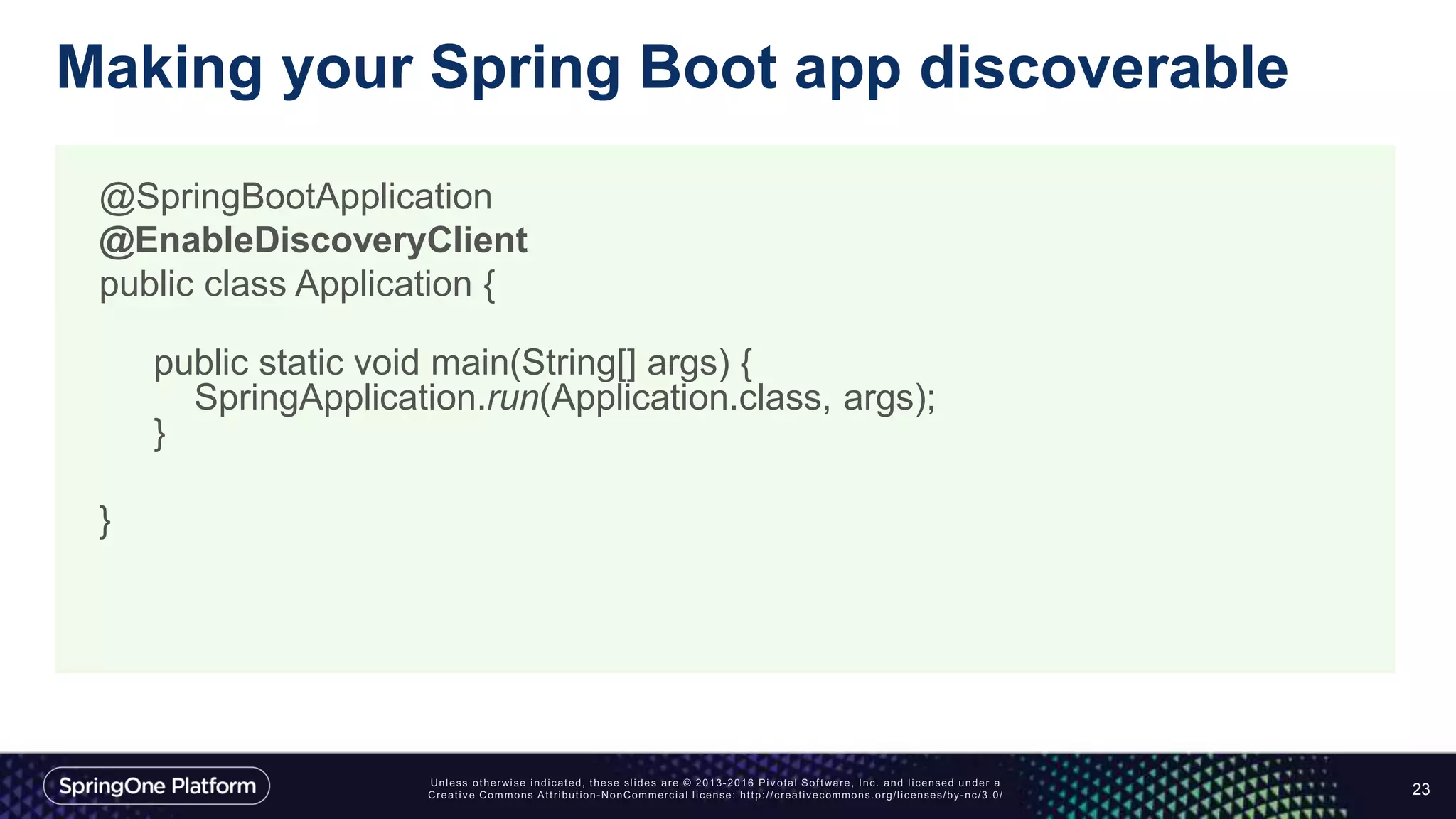

23. Making your Spring Boot app discoverable
23
@SpringBootApplication
@EnableDiscoveryClient
public class Application {
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}

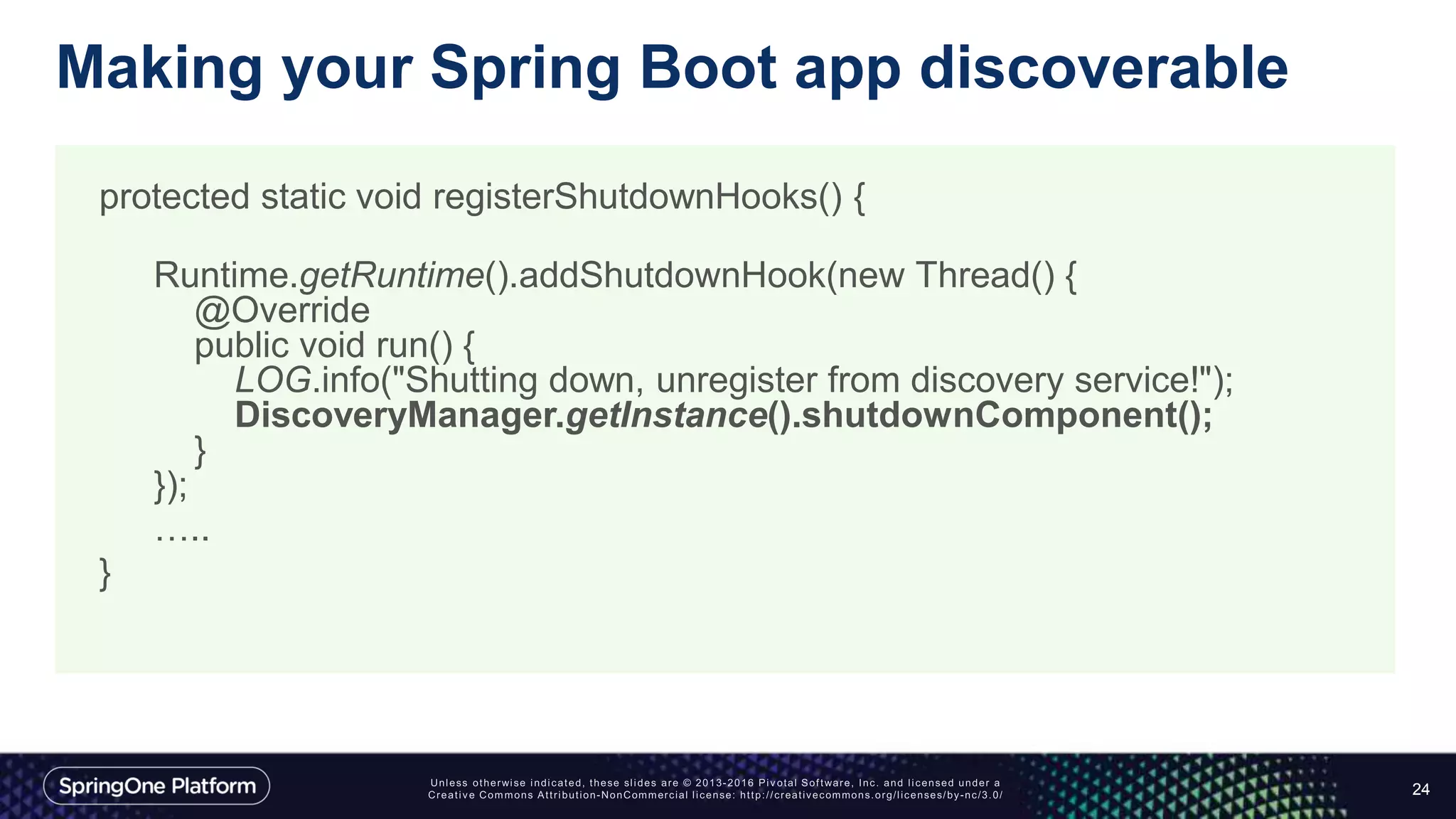

24. Making your Spring Boot app discoverable
24
protected static void registerShutdownHooks() {
Runtime.getRuntime().addShutdownHook(new Thread() {
@Override
public void run() {
LOG.info("Shutting down, unregister from discovery service!");
DiscoveryManager.getInstance().shutdownComponent();
}
});
…..
}

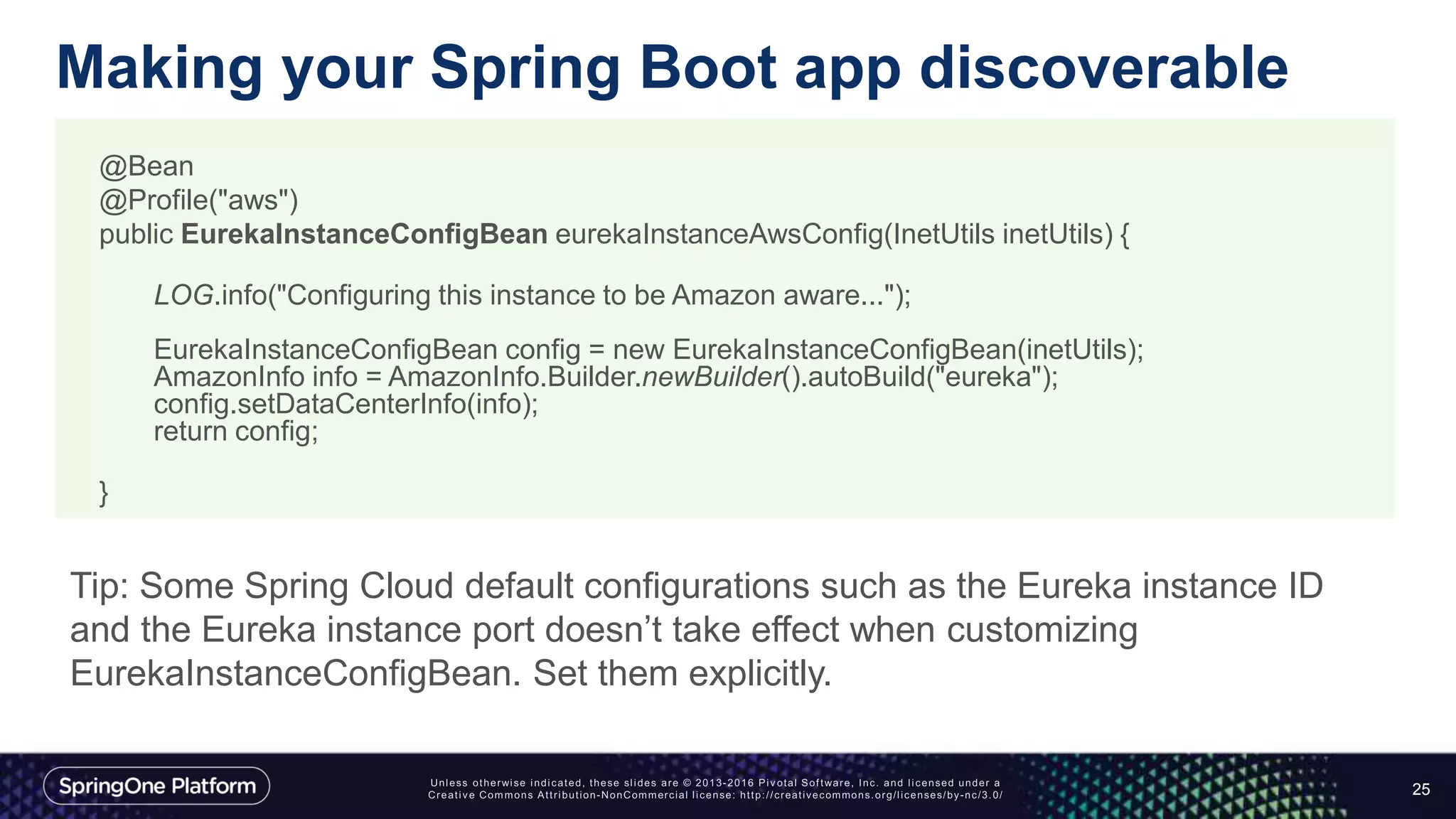

25. Making your Spring Boot app discoverable
25
@Bean
@Profile("aws")
public EurekaInstanceConfigBean eurekaInstanceAwsConfig(InetUtils inetUtils) {
LOG.info("Configuring this instance to be Amazon aware...");
EurekaInstanceConfigBean config = new EurekaInstanceConfigBean(inetUtils);
AmazonInfo info = AmazonInfo.Builder.newBuilder().autoBuild("eureka");
config.setDataCenterInfo(info);
return config;
}
Tip: Some Spring Cloud default configurations such as the Eureka instance ID
and the Eureka instance port doesn’t take effect when customizing
EurekaInstanceConfigBean. Set them explicitly.

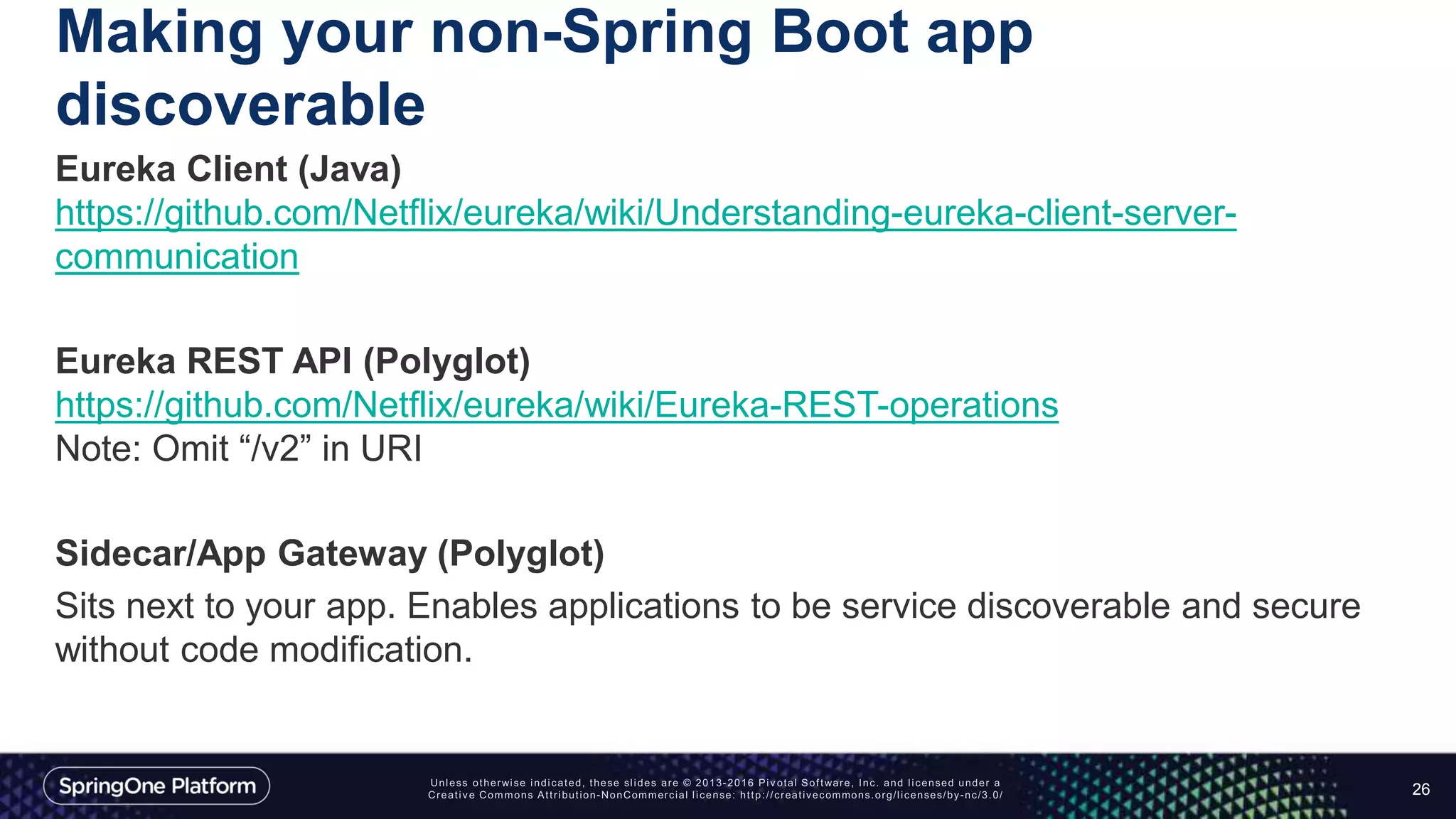

26. Making your non-Spring Boot app
discoverable
Eureka Client (Java)
https://github.com/Netflix/eureka/wiki/Understanding-eureka-client-server-
communication
Eureka REST API (Polyglot)
https://github.com/Netflix/eureka/wiki/Eureka-REST-operations
Note: Omit “/v2” in URI
Sidecar/App Gateway (Polyglot)
Sits next to your app. Enables applications to be service discoverable and secure
without code modification.
26

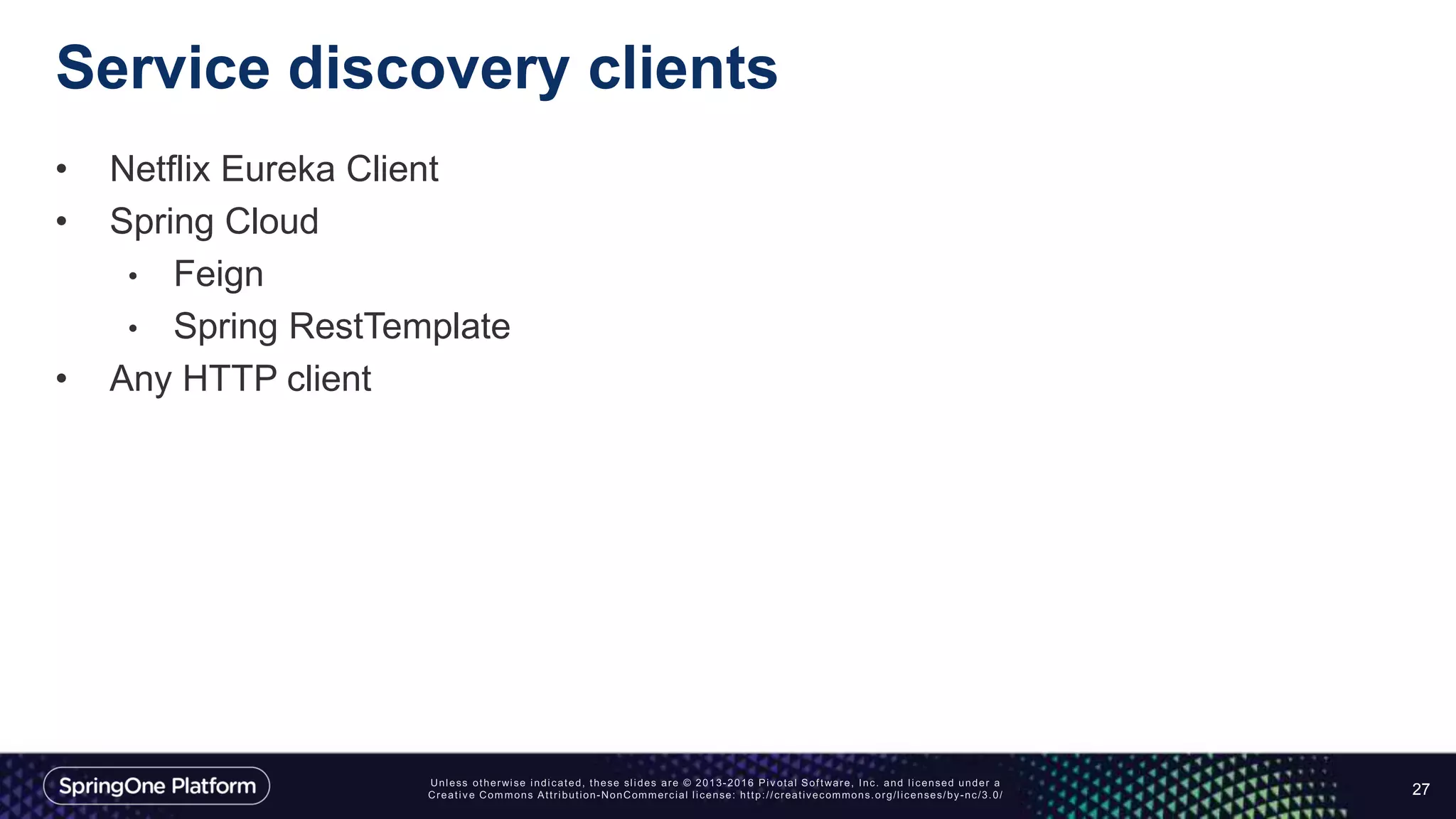

27. Service discovery clients
• Netflix Eureka Client
• Spring Cloud
• Feign
• Spring RestTemplate
• Any HTTP client
27

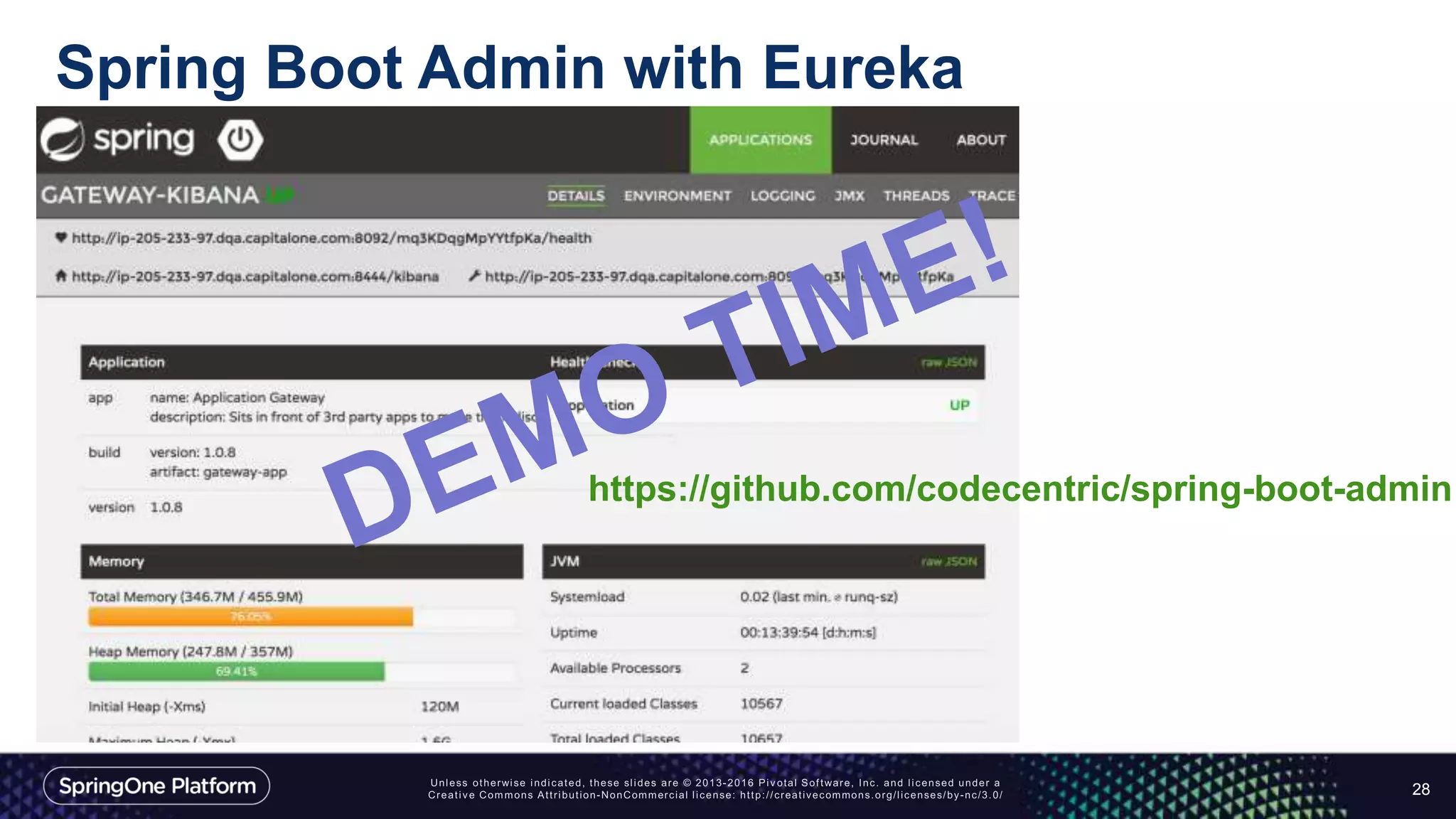

28. Spring Boot Admin with Eureka
28
https://github.com/codecentric/spring-boot-admin

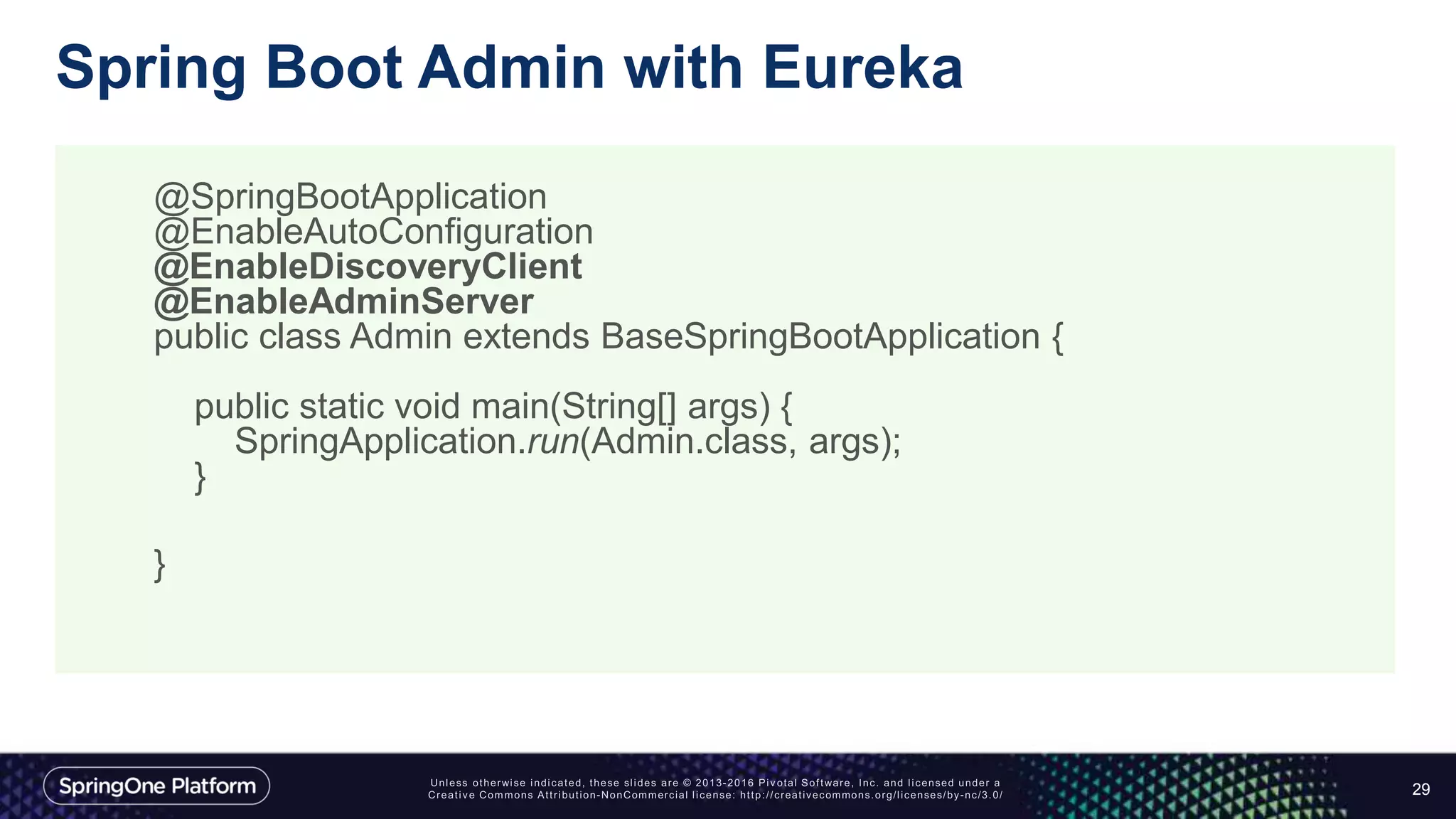

29. Spring Boot Admin with Eureka
29
@SpringBootApplication
@EnableAutoConfiguration
@EnableDiscoveryClient
@EnableAdminServer
public class Admin extends BaseSpringBootApplication {
public static void main(String[] args) {
SpringApplication.run(Admin.class, args);
}
}

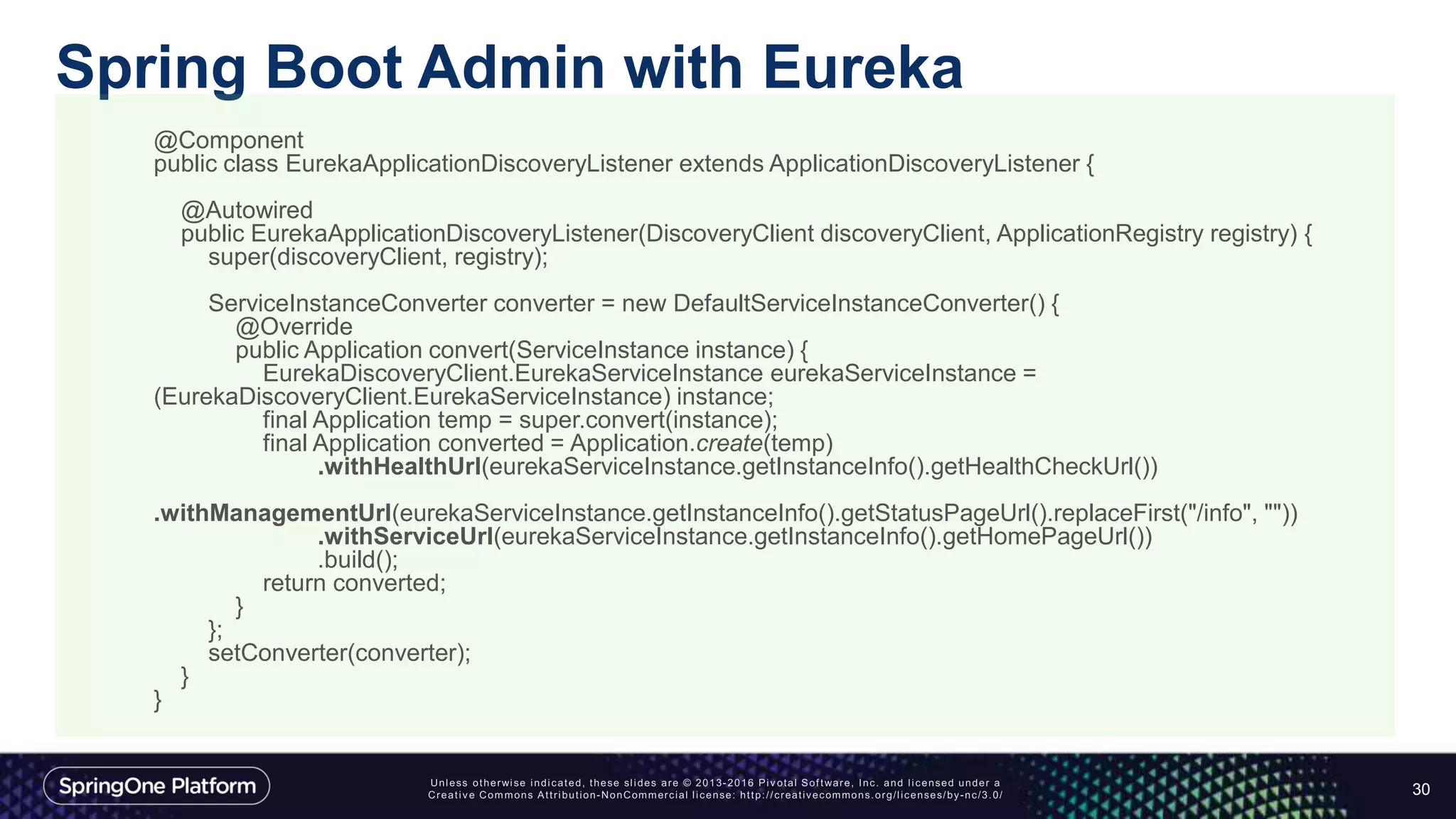

30. Spring Boot Admin with Eureka
30
@Component
public class EurekaApplicationDiscoveryListener extends ApplicationDiscoveryListener {
@Autowired
public EurekaApplicationDiscoveryListener(DiscoveryClient discoveryClient, ApplicationRegistry registry) {
super(discoveryClient, registry);
ServiceInstanceConverter converter = new DefaultServiceInstanceConverter() {
@Override
public Application convert(ServiceInstance instance) {
EurekaDiscoveryClient.EurekaServiceInstance eurekaServiceInstance =
(EurekaDiscoveryClient.EurekaServiceInstance) instance;
final Application temp = super.convert(instance);
final Application converted = Application.create(temp)
.withHealthUrl(eurekaServiceInstance.getInstanceInfo().getHealthCheckUrl())
.withManagementUrl(eurekaServiceInstance.getInstanceInfo().getStatusPageUrl().replaceFirst("/info", ""))
.withServiceUrl(eurekaServiceInstance.getInstanceInfo().getHomePageUrl())
.build();
return converted;
}
};
setConverter(converter);
}
}

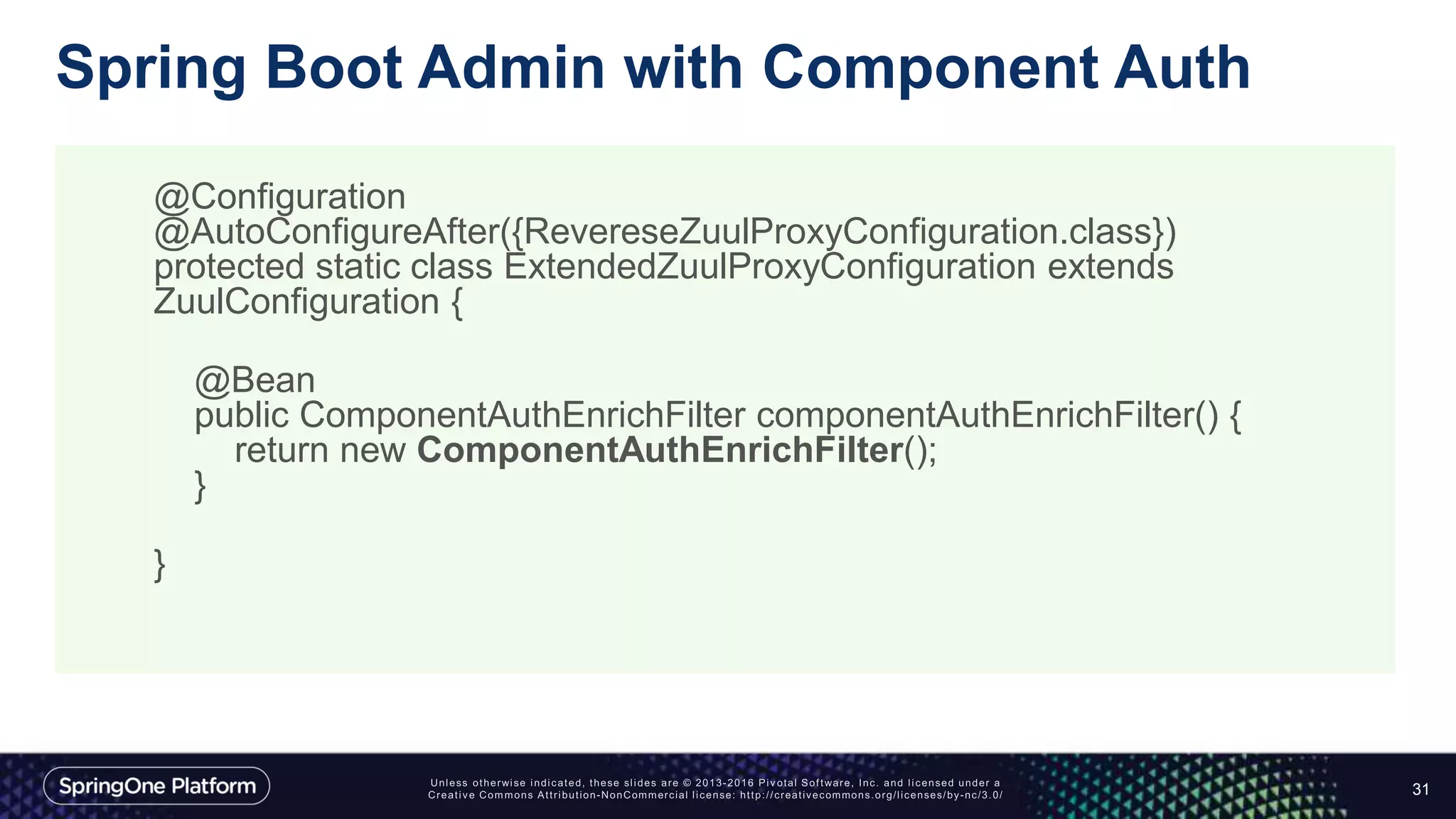

31. Spring Boot Admin with Component Auth
31
@Configuration
@AutoConfigureAfter({RevereseZuulProxyConfiguration.class})
protected static class ExtendedZuulProxyConfiguration extends
ZuulConfiguration {
@Bean
public ComponentAuthEnrichFilter componentAuthEnrichFilter() {
return new ComponentAuthEnrichFilter();
}
}

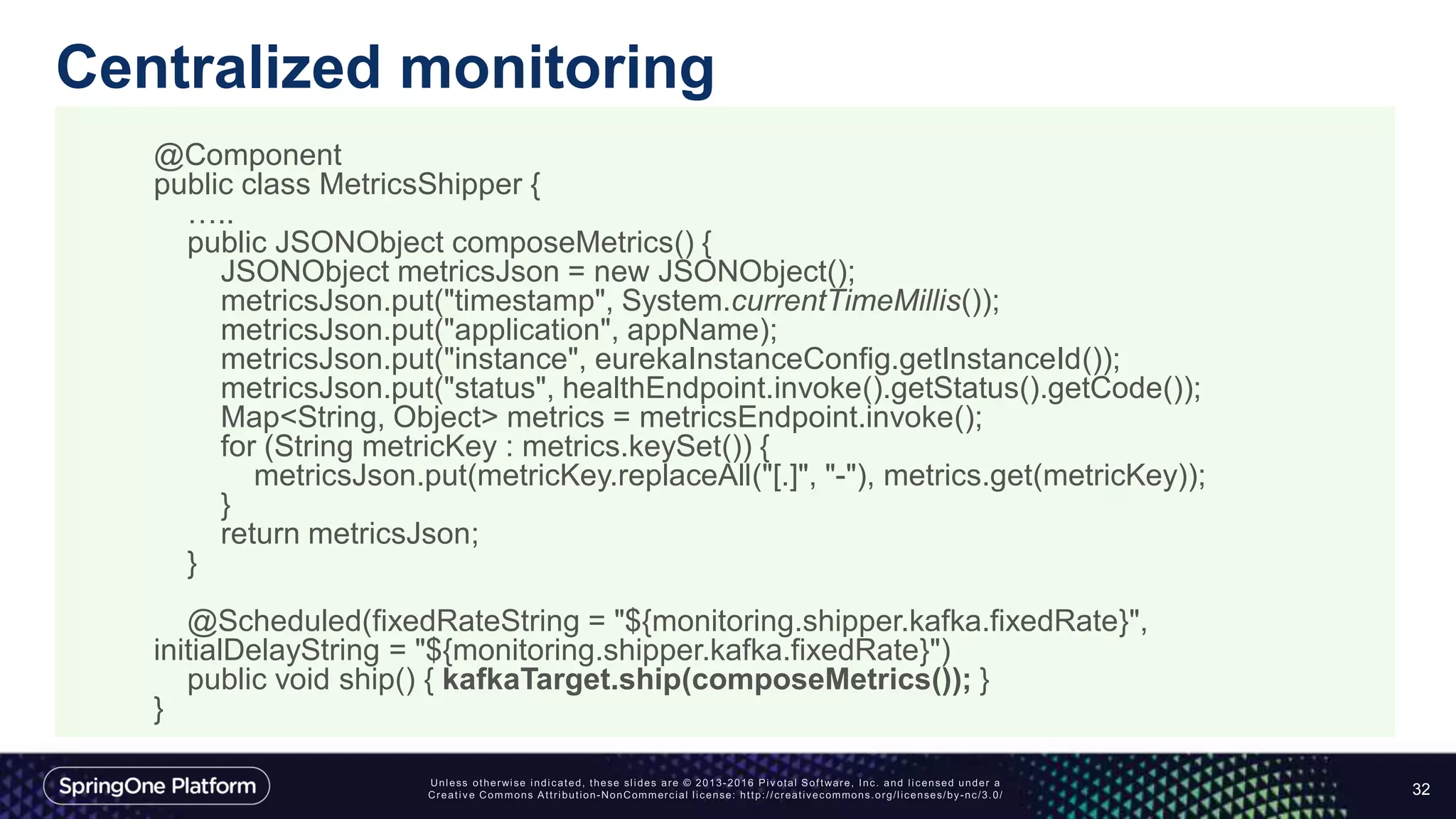

32. Centralized monitoring
32
@Component
public class MetricsShipper {
…..
public JSONObject composeMetrics() {
JSONObject metricsJson = new JSONObject();
metricsJson.put("timestamp", System.currentTimeMillis());
metricsJson.put("application", appName);
metricsJson.put("instance", eurekaInstanceConfig.getInstanceId());
metricsJson.put("status", healthEndpoint.invoke().getStatus().getCode());
Map<String, Object> metrics = metricsEndpoint.invoke();
for (String metricKey : metrics.keySet()) {
metricsJson.put(metricKey.replaceAll("[.]", "-"), metrics.get(metricKey));
}
return metricsJson;
}
@Scheduled(fixedRateString = "${monitoring.shipper.kafka.fixedRate}",
initialDelayString = "${monitoring.shipper.kafka.fixedRate}")
public void ship() { kafkaTarget.ship(composeMetrics()); }
}

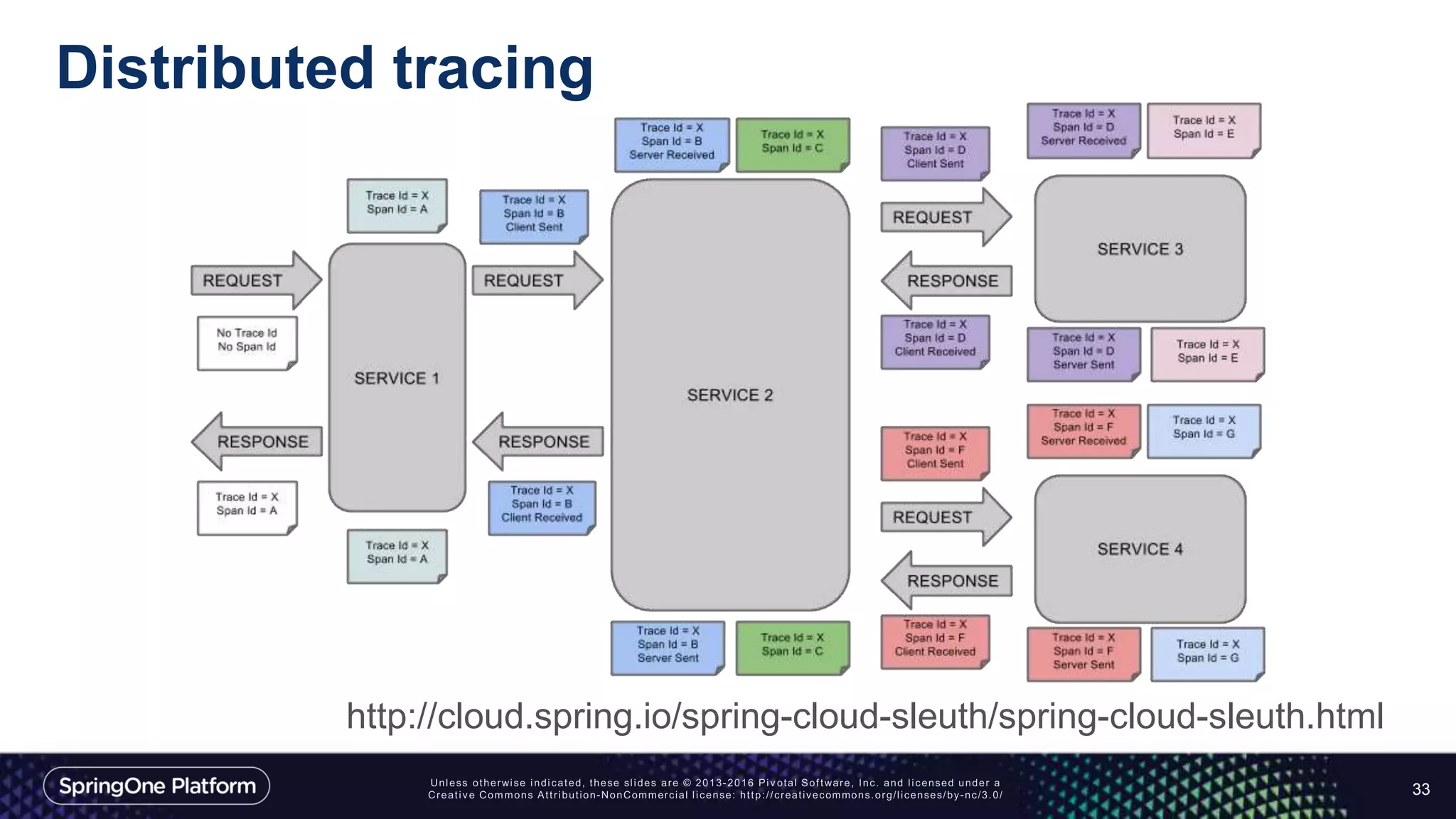

33. Distributed tracing
33
http://cloud.spring.io/spring-cloud-sleuth/spring-cloud-sleuth.html

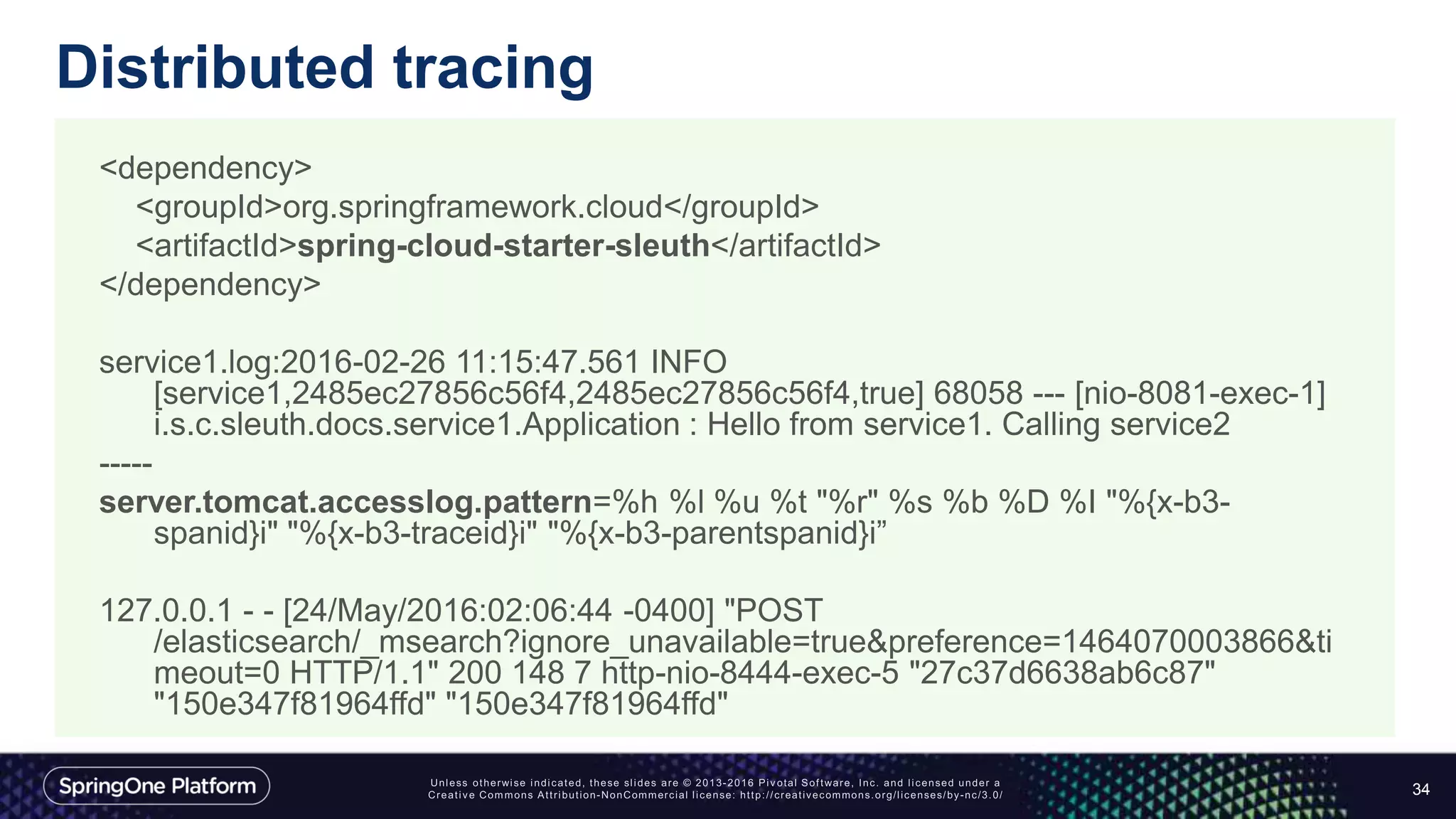

34. Distributed tracing
34
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-sleuth</artifactId>
</dependency>
service1.log:2016-02-26 11:15:47.561 INFO
[service1,2485ec27856c56f4,2485ec27856c56f4,true] 68058 --- [nio-8081-exec-1]
i.s.c.sleuth.docs.service1.Application : Hello from service1. Calling service2
-----
server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %I "%{x-b3-
spanid}i" "%{x-b3-traceid}i" "%{x-b3-parentspanid}i”
127.0.0.1 - - [24/May/2016:02:06:44 -0400] "POST
/elasticsearch/_msearch?ignore_unavailable=true&preference=1464070003866&ti
meout=0 HTTP/1.1" 200 148 7 http-nio-8444-exec-5 "27c37d6638ab6c87"
"150e347f81964ffd" "150e347f81964ffd"

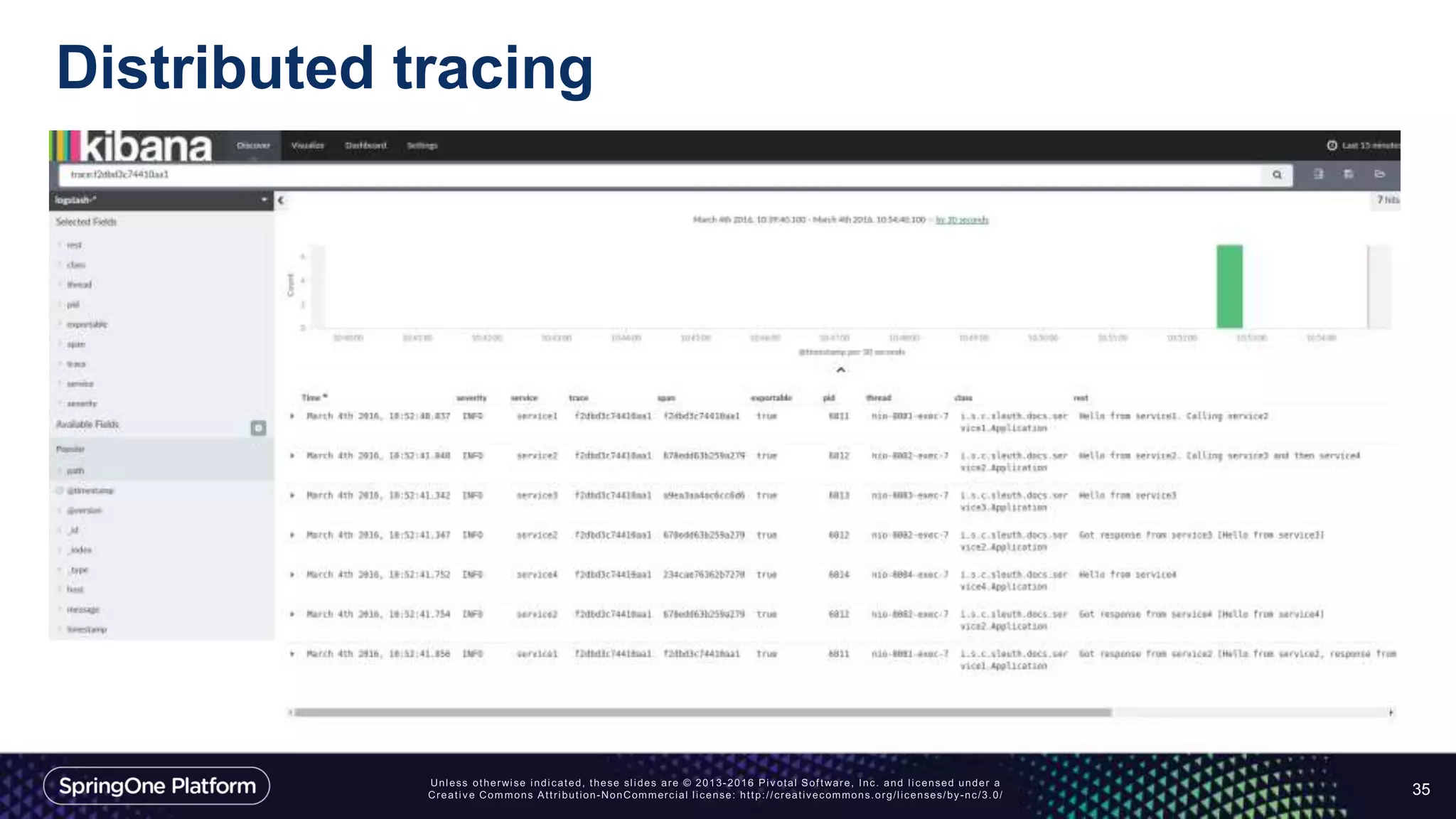

35. Distributed tracing
35

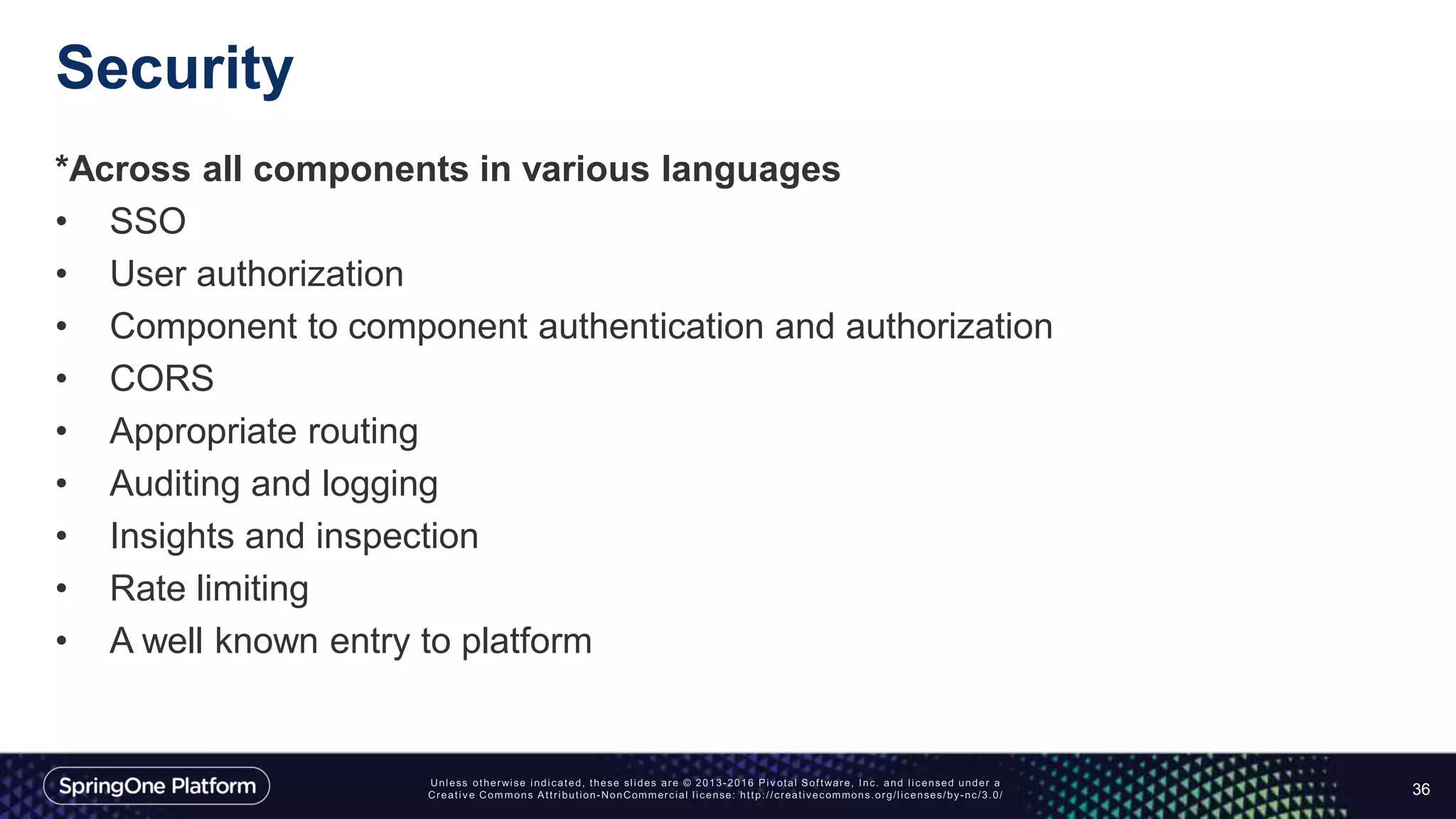

36. Security
*Across all components in various languages
• SSO
• User authorization
• Component to component authentication and authorization
• CORS
• Appropriate routing
• Auditing and logging
• Insights and inspection
• Rate limiting
• A well known entry to platform
36

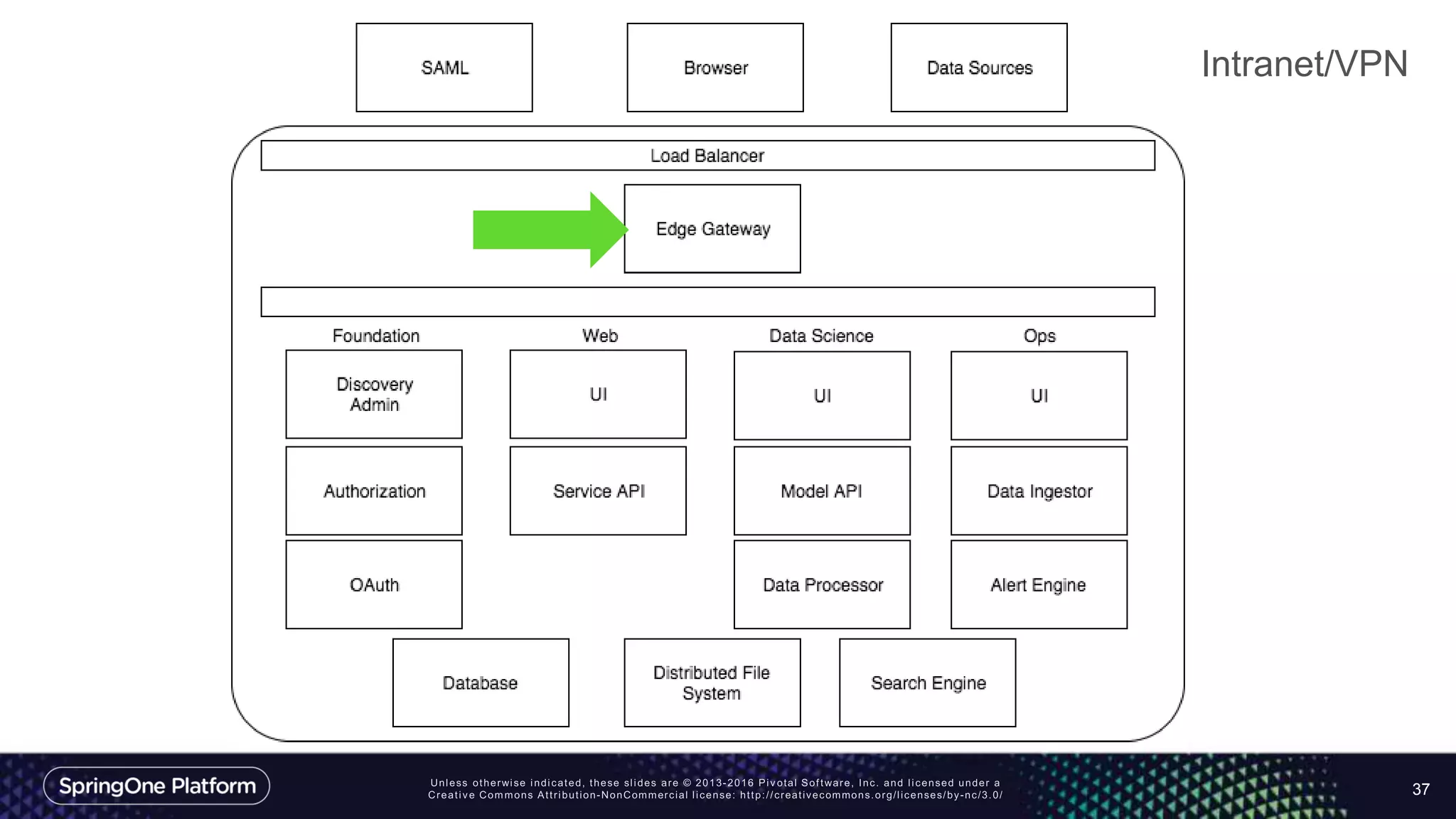

37. 37
Intranet/VPN

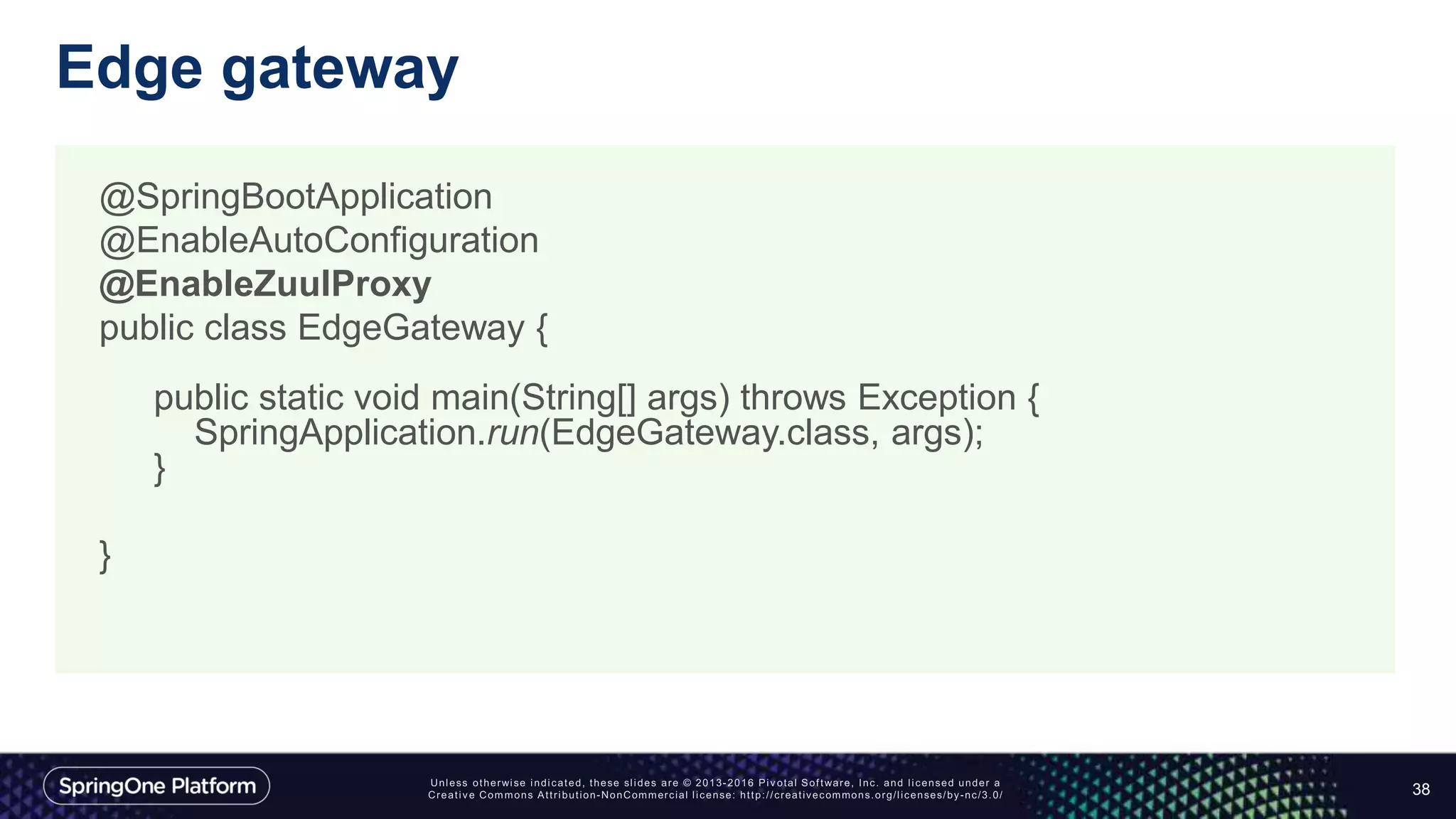

38. Edge gateway
38
@SpringBootApplication
@EnableAutoConfiguration
@EnableZuulProxy
public class EdgeGateway {
public static void main(String[] args) throws Exception {
SpringApplication.run(EdgeGateway.class, args);
}
}

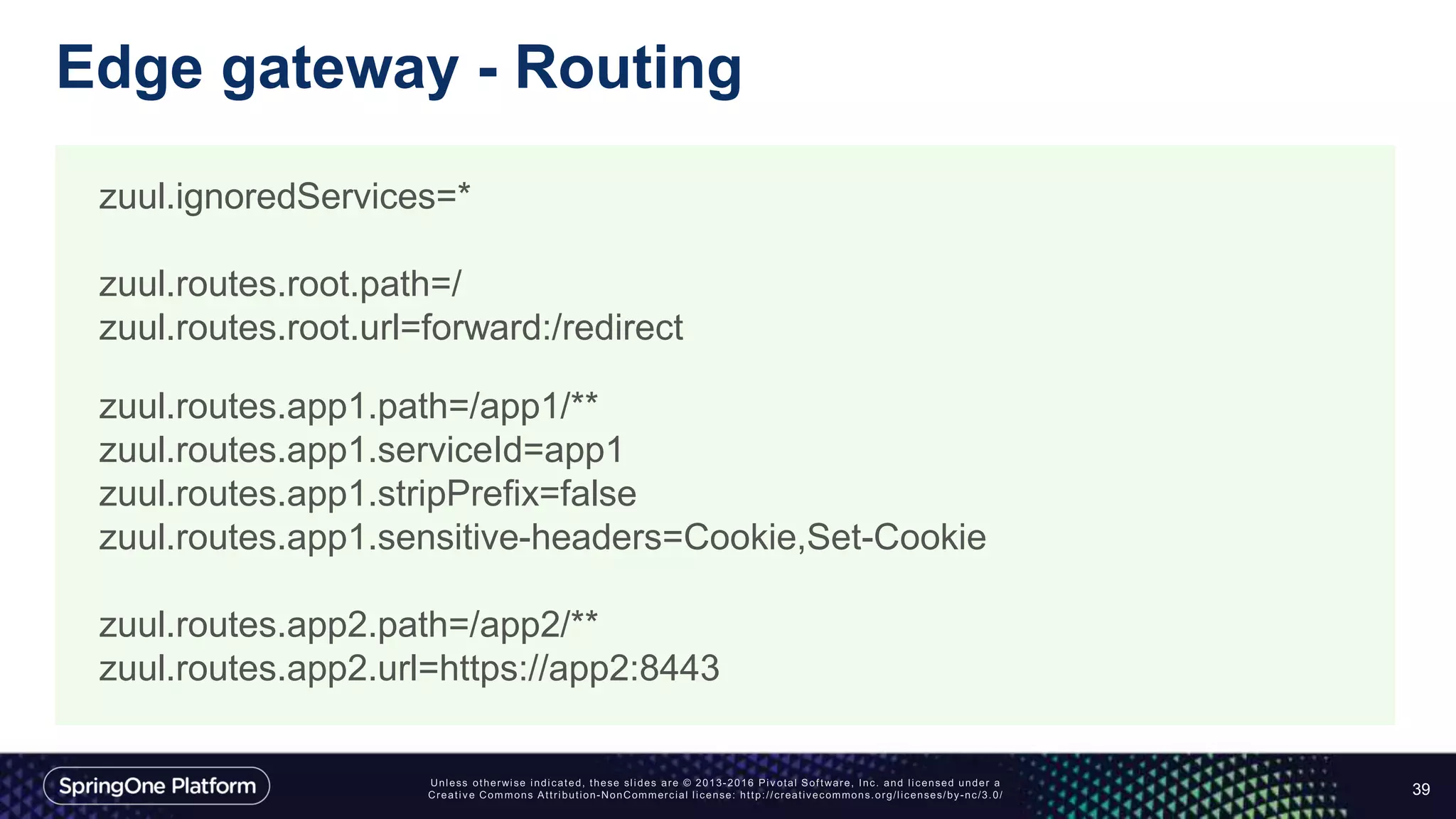

39. Edge gateway - Routing
39
zuul.ignoredServices=*
zuul.routes.root.path=/
zuul.routes.root.url=forward:/redirect
zuul.routes.app1.path=/app1/**
zuul.routes.app1.serviceId=app1
zuul.routes.app1.stripPrefix=false
zuul.routes.app1.sensitive-headers=Cookie,Set-Cookie
zuul.routes.app2.path=/app2/**
zuul.routes.app2.url=https://app2:8443

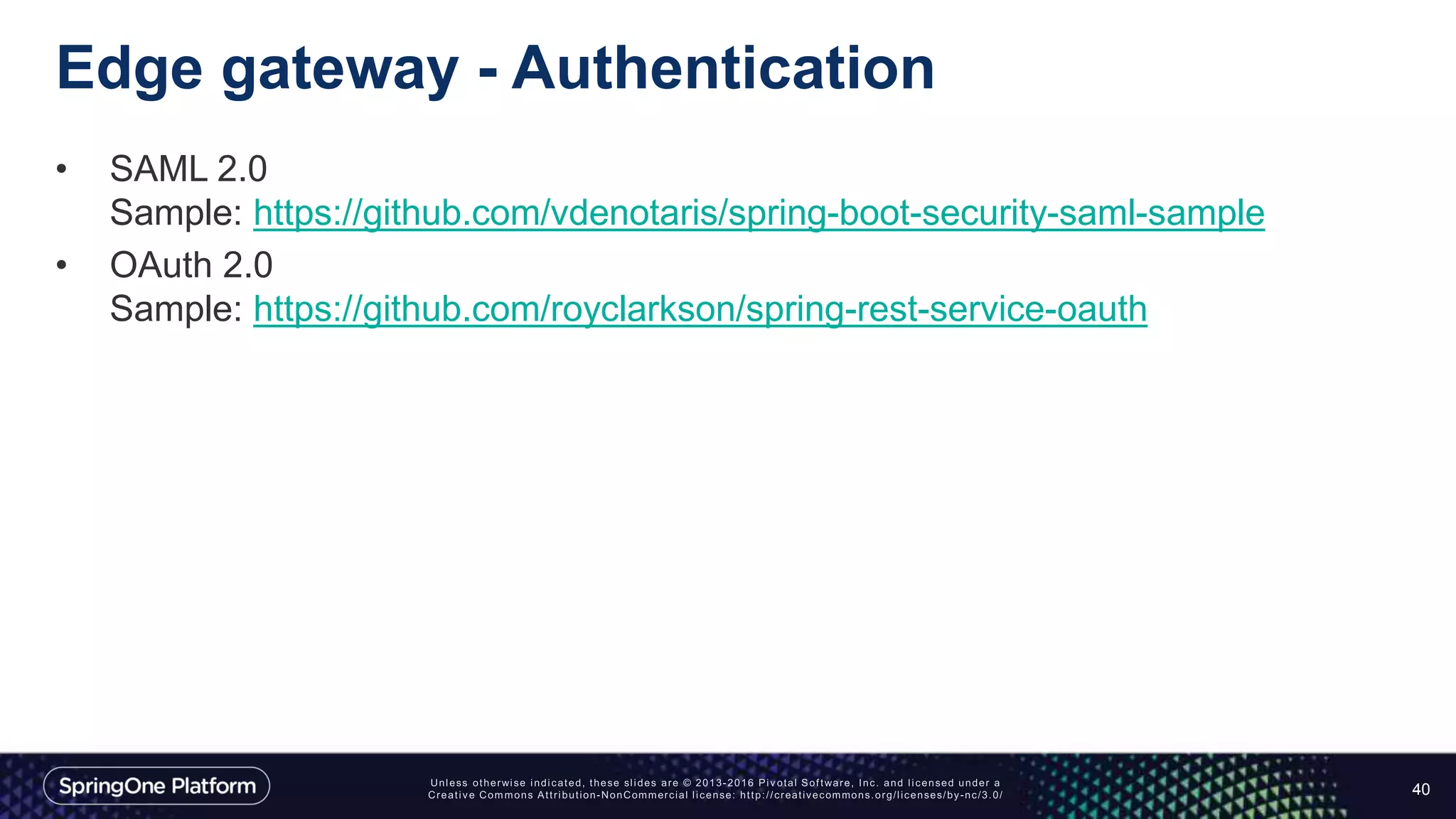

40. Edge gateway - Authentication
• SAML 2.0
Sample: https://github.com/vdenotaris/spring-boot-security-saml-sample
• OAuth 2.0
Sample: https://github.com/royclarkson/spring-rest-service-oauth
40

41. Edge gateway - Filter
41
@Component
public class ComponentAuthEnrichFilter extends ZuulFilter {
….
@Override
public String filterType() {
return FilterType.pre.name();
}
@Override
public int filterOrder() {
return FilterOrder.BASIC_AUTH_ENRICH_PRE_FILTER.getOrder();
}
@Override
public boolean shouldFilter() {
return isFilterEnabled;
}
@Override
public Object run() {
RequestContext ctx = RequestContext.getCurrentContext();
ctx.addZuulRequestHeader("Authorization", authorizationHeaderValue);
return null;
}
}
• Enrich requests
• Inspect requests
• Collect stats
• Redirect
• Etc.

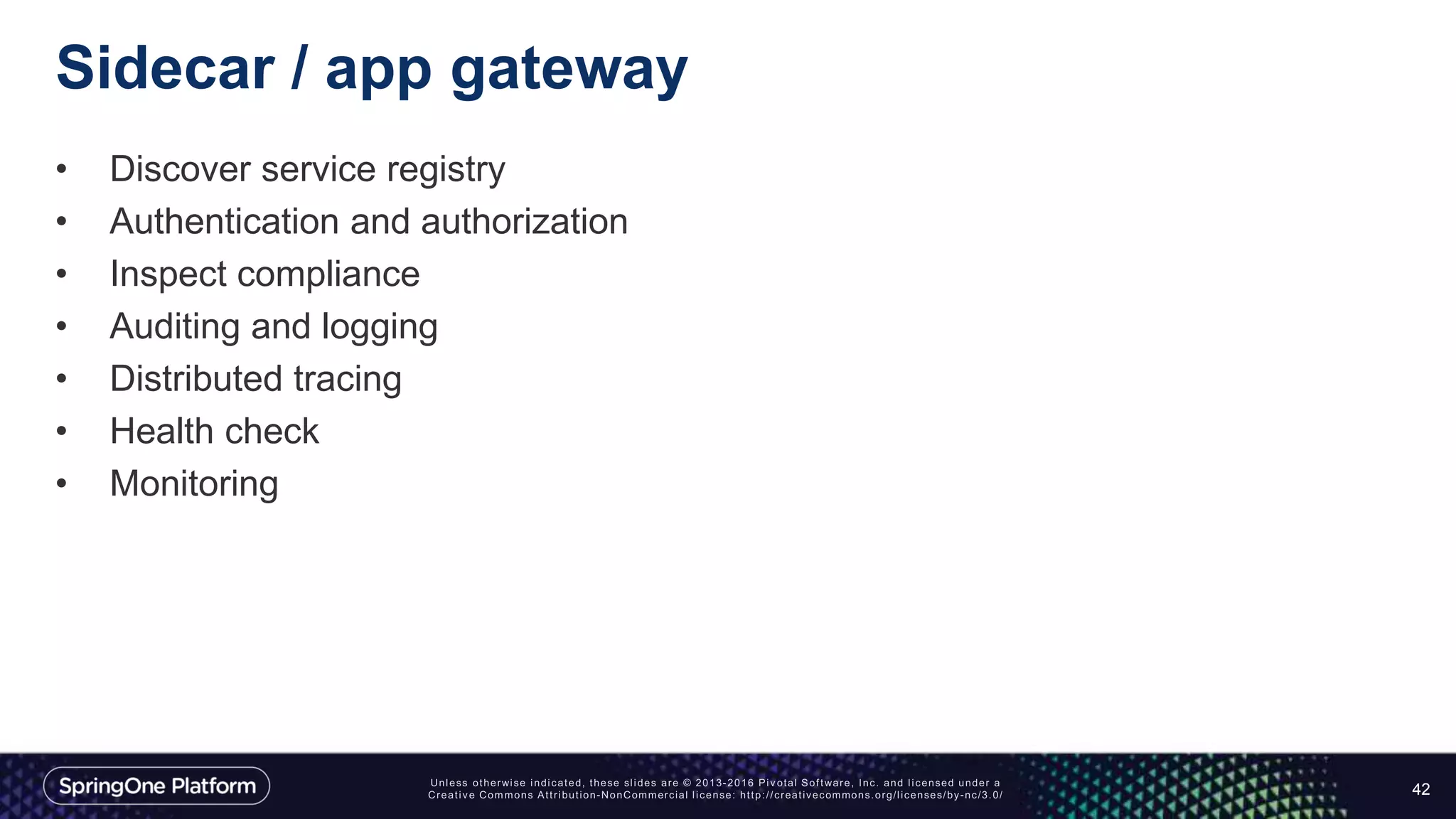

42. Sidecar / app gateway
• Discover service registry
• Authentication and authorization
• Inspect compliance
• Auditing and logging
• Distributed tracing
• Health check
• Monitoring
42

43. Sidecar / app gateway
43
DEMO TIME!

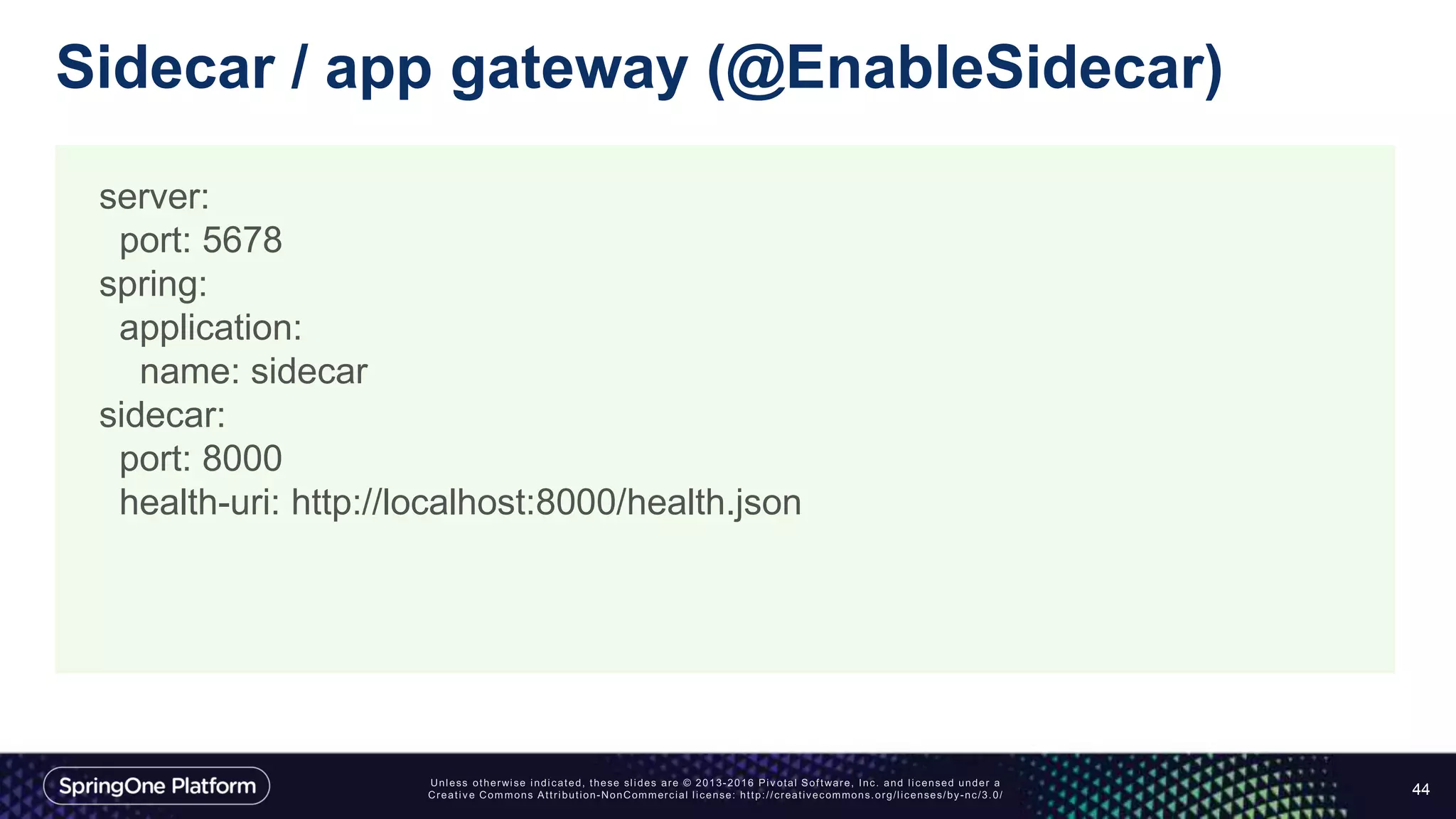

44. Sidecar / app gateway (@EnableSidecar)
44
server:
port: 5678
spring:
application:
name: sidecar
sidecar:
port: 8000
health-uri: http://localhost:8000/health.json

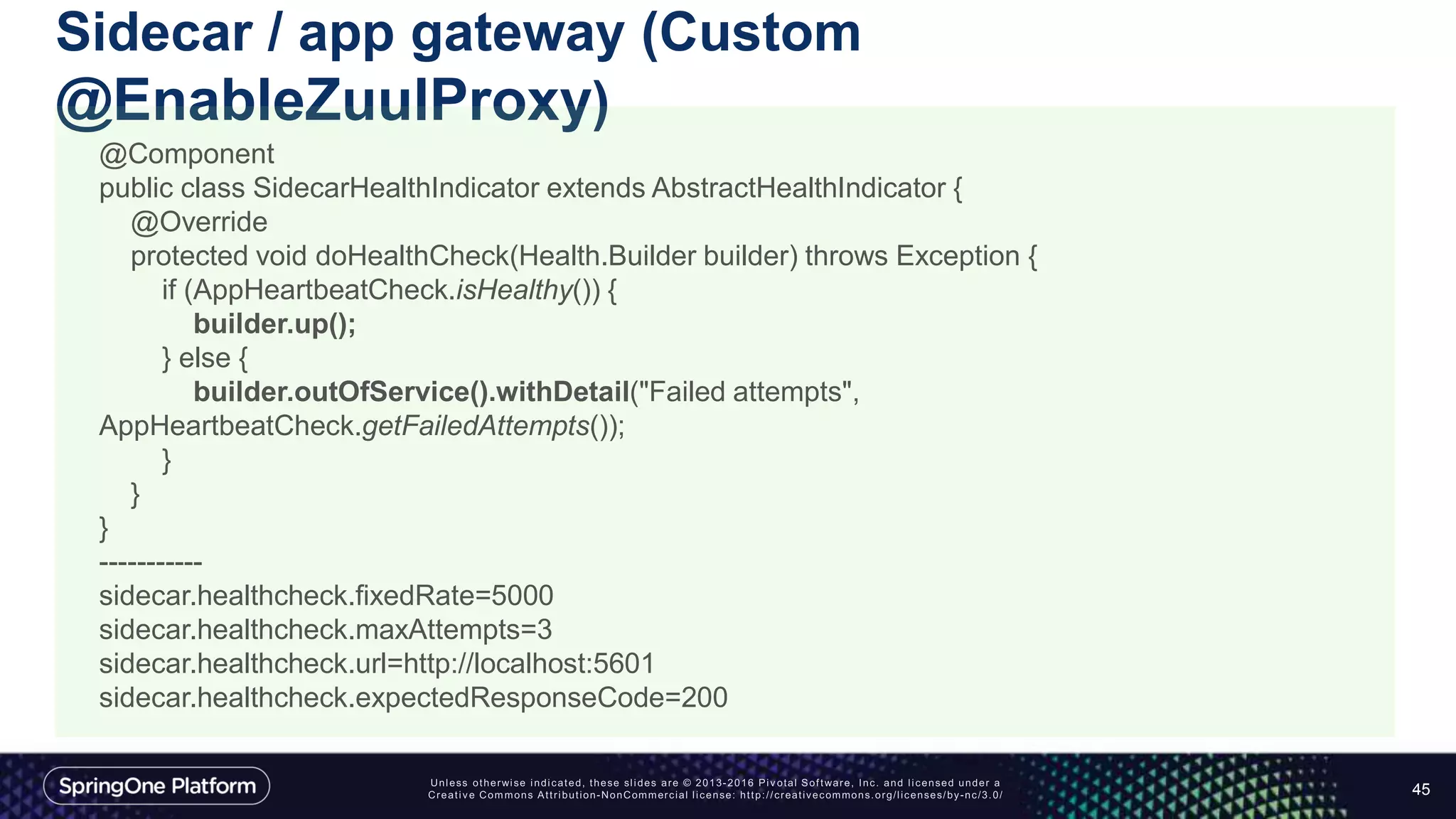

45. Sidecar / app gateway (Custom
@EnableZuulProxy)
45
@Component
public class SidecarHealthIndicator extends AbstractHealthIndicator {
@Override
protected void doHealthCheck(Health.Builder builder) throws Exception {
if (AppHeartbeatCheck.isHealthy()) {
builder.up();
} else {
builder.outOfService().withDetail("Failed attempts",
AppHeartbeatCheck.getFailedAttempts());
}
}
}
-----------
sidecar.healthcheck.fixedRate=5000
sidecar.healthcheck.maxAttempts=3
sidecar.healthcheck.url=http://localhost:5601
sidecar.healthcheck.expectedResponseCode=200

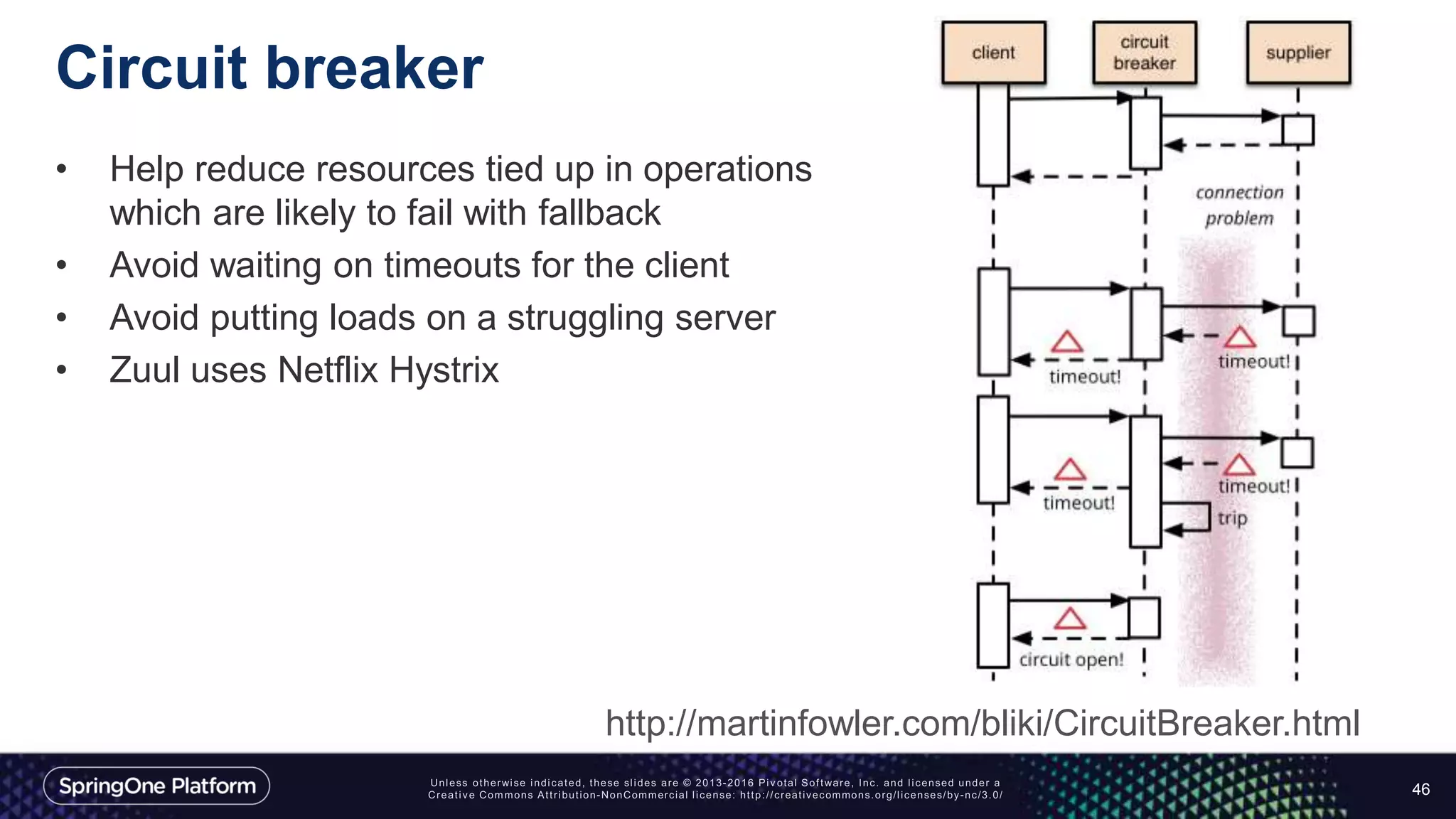

46. Circuit breaker
• Help reduce resources tied up in operations
which are likely to fail with fallback
• Avoid waiting on timeouts for the client
• Avoid putting loads on a struggling server
• Zuul uses Netflix Hystrix
46
http://martinfowler.com/bliki/CircuitBreaker.html

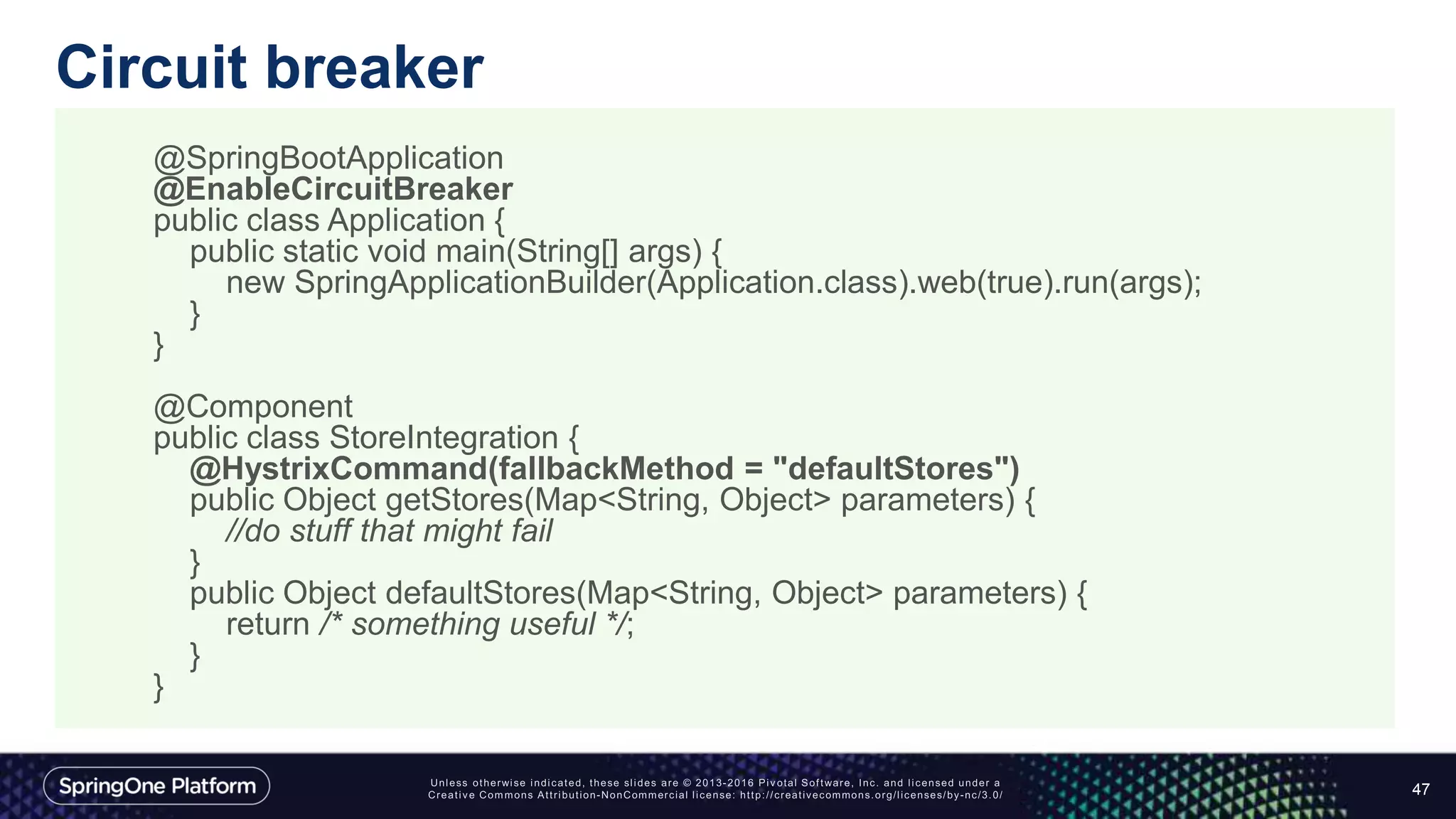

47. Circuit breaker
47
@SpringBootApplication
@EnableCircuitBreaker
public class Application {
public static void main(String[] args) {
new SpringApplicationBuilder(Application.class).web(true).run(args);
}
}
@Component
public class StoreIntegration {
@HystrixCommand(fallbackMethod = "defaultStores")
public Object getStores(Map<String, Object> parameters) {
//do stuff that might fail
}
public Object defaultStores(Map<String, Object> parameters) {
return /* something useful */;
}
}

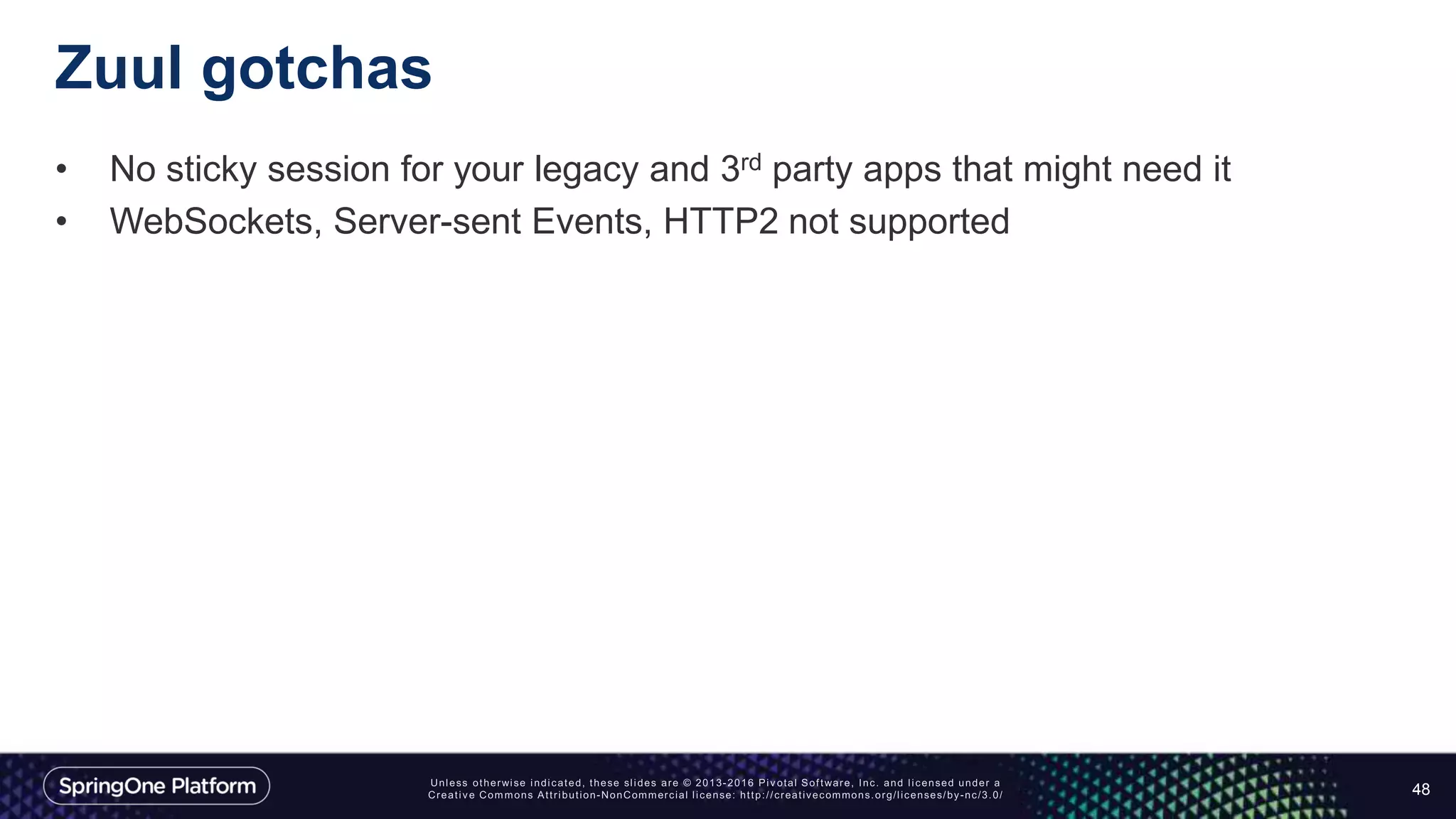

48. Zuul gotchas
• No sticky session for your legacy and 3rd party apps that might need it
• WebSockets, Server-sent Events, HTTP2 not supported
48

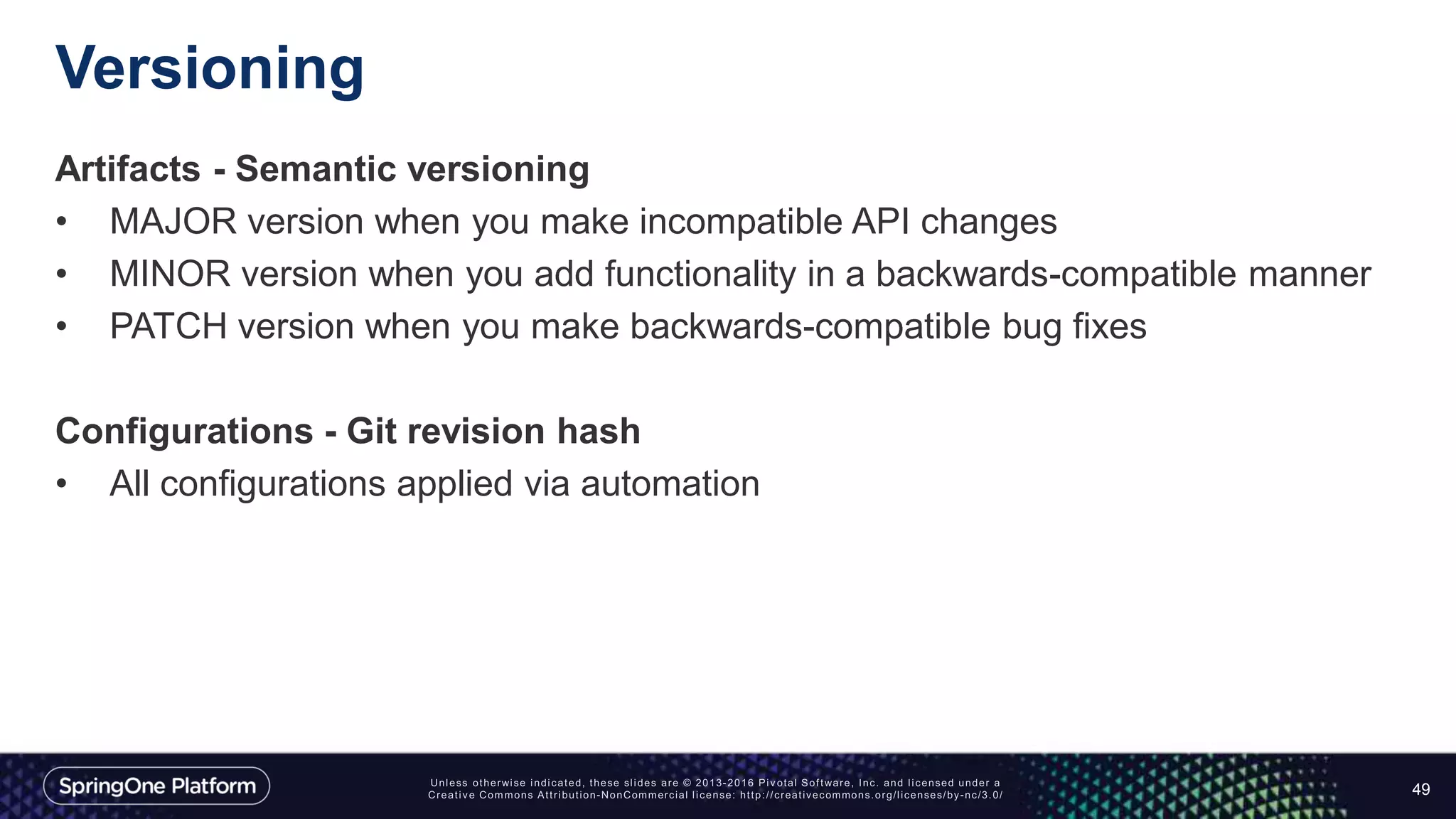

49. Versioning
Artifacts - Semantic versioning
• MAJOR version when you make incompatible API changes
• MINOR version when you add functionality in a backwards-compatible manner
• PATCH version when you make backwards-compatible bug fixes
Configurations - Git revision hash
• All configurations applied via automation
49

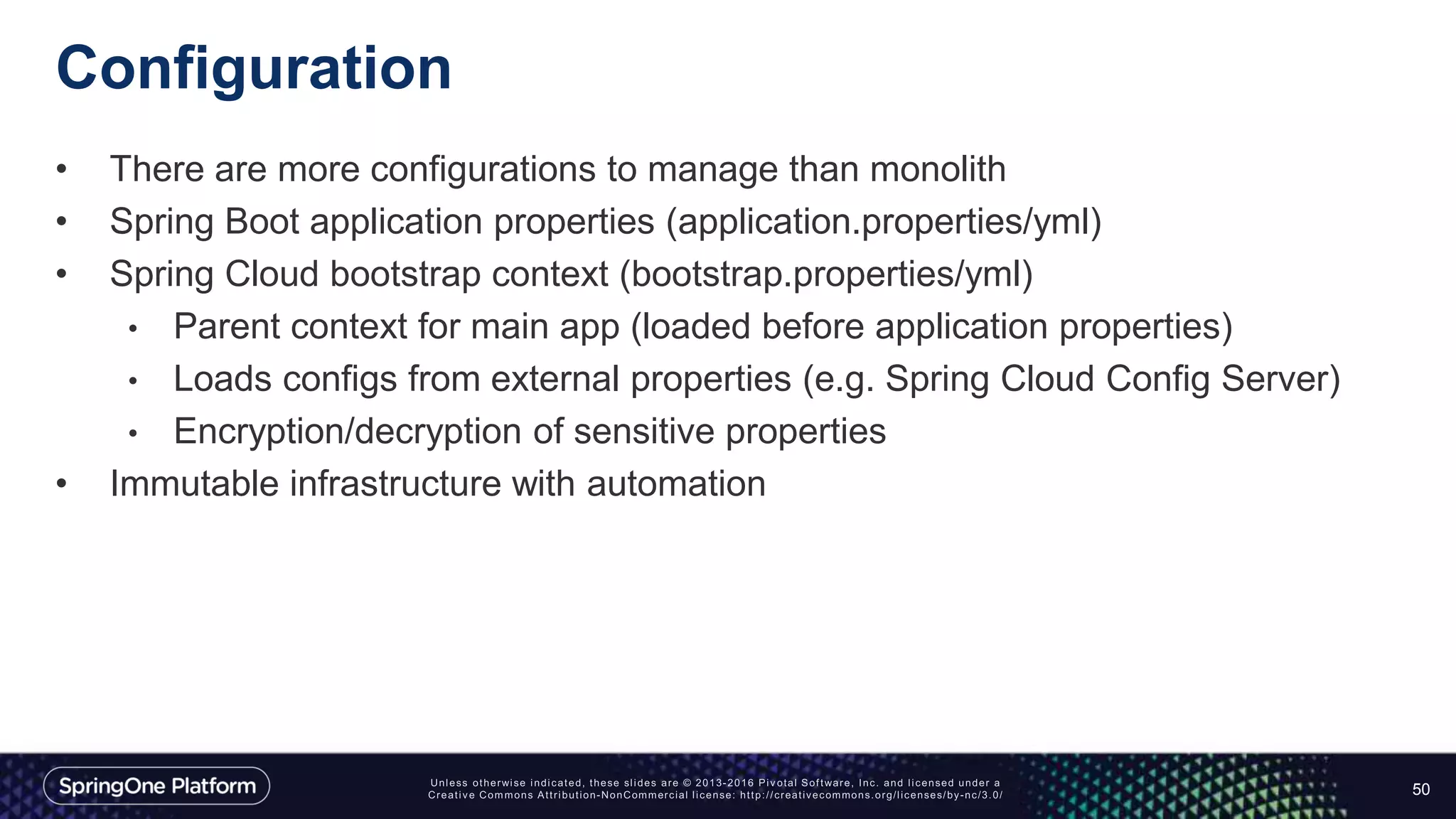

50. Configuration
• There are more configurations to manage than monolith
• Spring Boot application properties (application.properties/yml)
• Spring Cloud bootstrap context (bootstrap.properties/yml)
• Parent context for main app (loaded before application properties)
• Loads configs from external properties (e.g. Spring Cloud Config Server)
• Encryption/decryption of sensitive properties
• Immutable infrastructure with automation
50

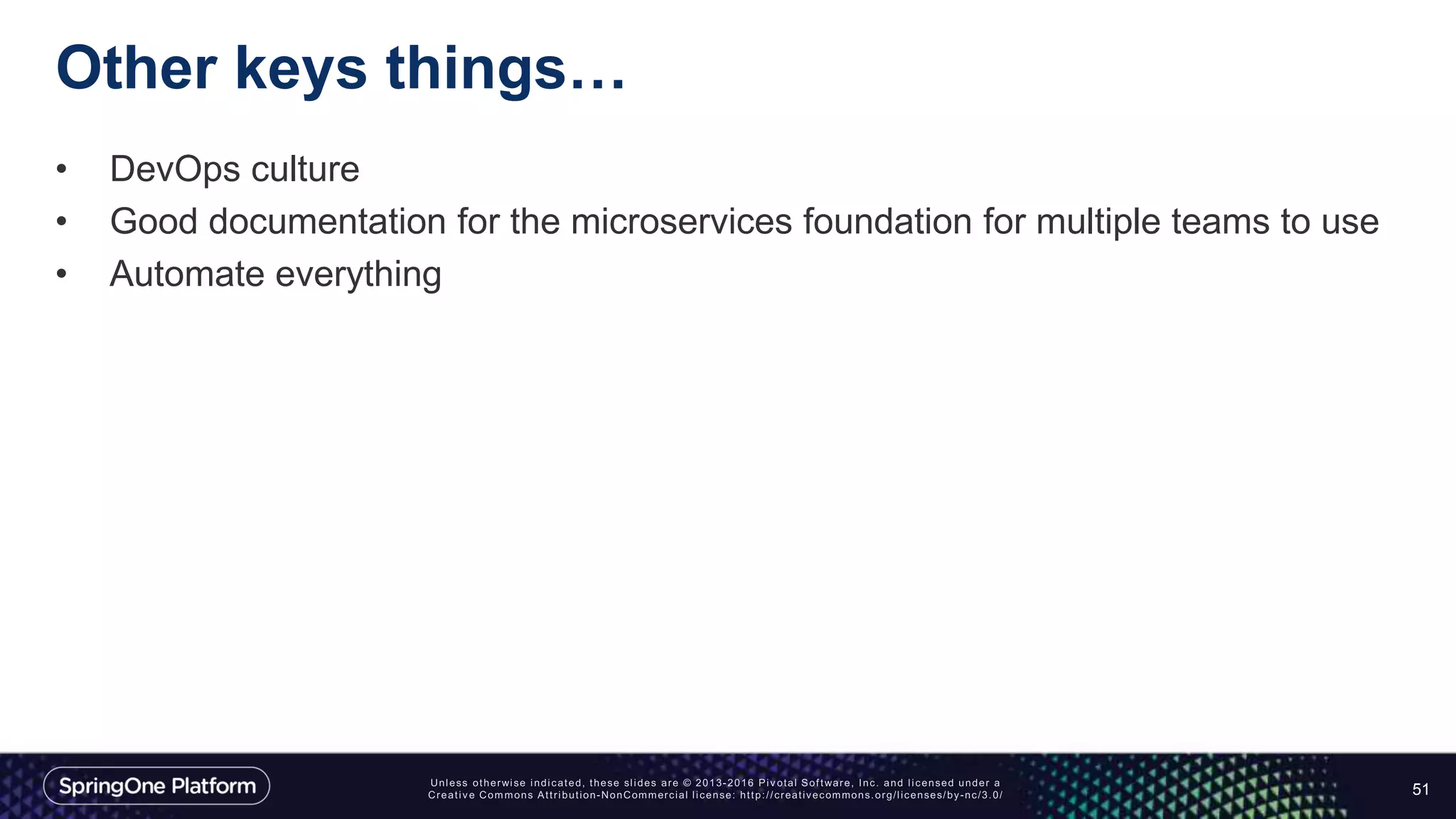

51. Other keys things…
• DevOps culture
• Good documentation for the microservices foundation for multiple teams to use
• Automate everything
51

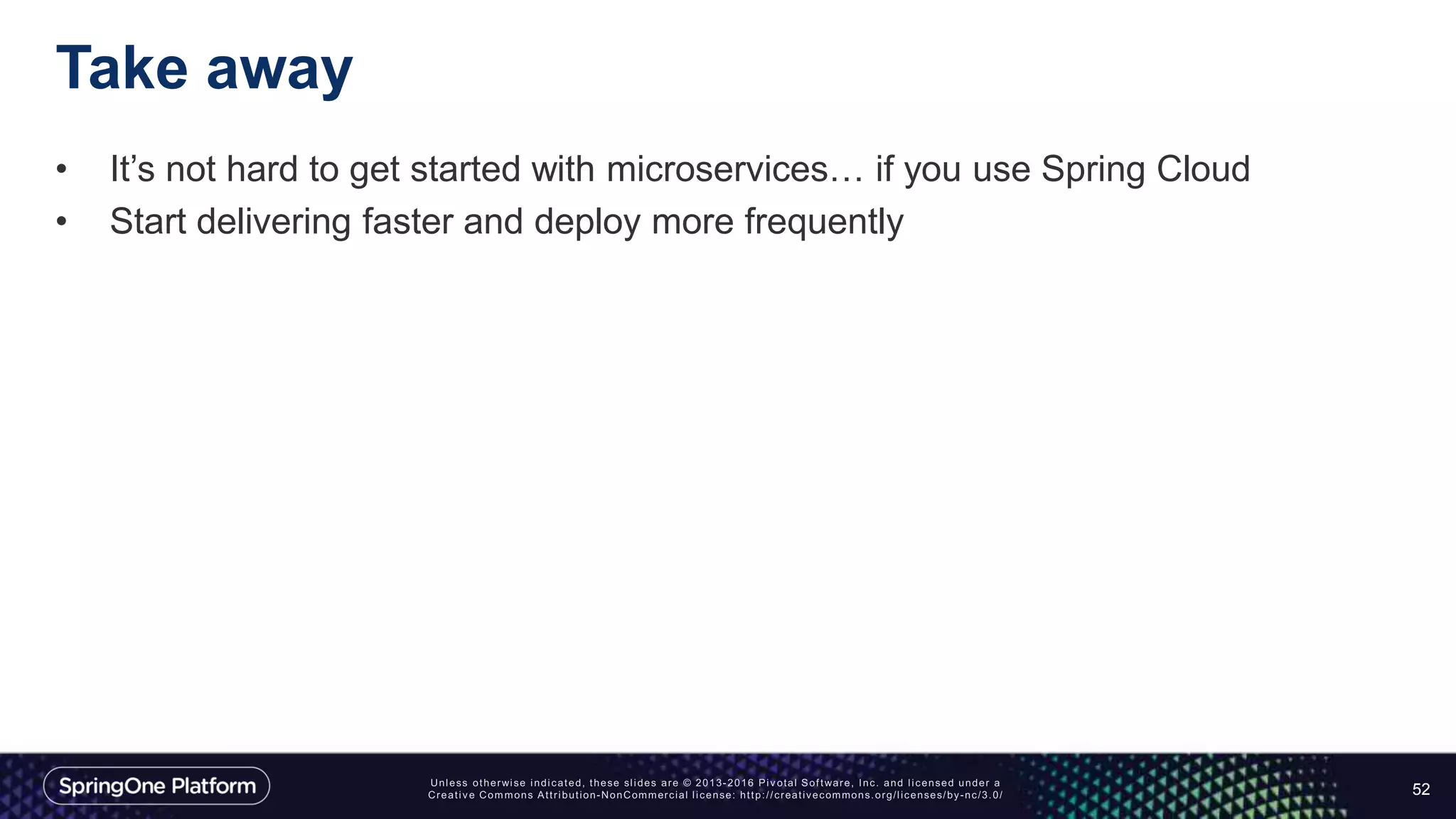

52. Take away
• It’s not hard to get started with microservices… if you use Spring Cloud
• Start delivering faster and deploy more frequently
52

53. Learn More. Stay Connected.
Noriaki Tatsumi
noriaki.tatsumi@capitalone.com
https://www.linkedin.com
/company/capital-one
https://twitter.com
/capitalonejobs
https://github.com
/capitalone
