1. VOLUME OF THREE-DIMENSIONAL
FIGURES

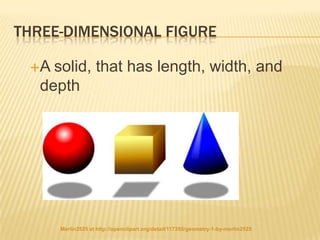

2. THREE-DIMENSIONAL FIGURE
A solid, that has length, width, and
depth
Merlin2525 at http://openclipart.org/detail/117355/geometry-1-by-merlin2525

3. PRISMS
A 3-D figure that has two parallel, identical
bases
 The shape of the base tells the name of the prism
Square Prism Triangular
Prism
By: Rfc1394 at http://openclipart.org/detail/28855/yellow-transparent-cube-by-rfc1394

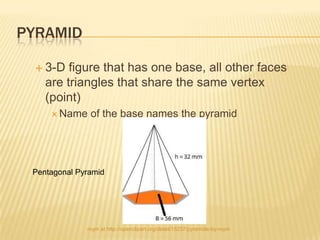

4. PYRAMID
 3-D figure that has one base, all other faces
are triangles that share the same vertex
(point)
 Name of the base names the pyramid
Pentagonal Pyramid
roym at http://openclipart.org/detail/15237/pyramide-by-roym

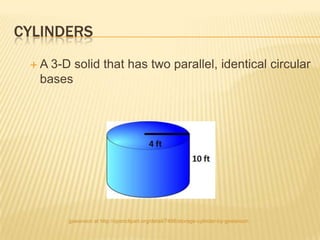

5. CYLINDERS
A 3-D solid that has two parallel, identical circular
bases
gswanson at http://openclipart.org/detail/7498/storage-cylinder-by-gswanson

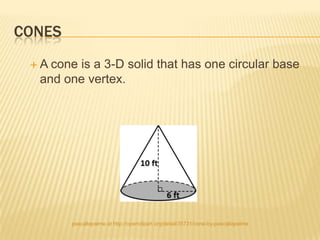

6. CONES
A cone is a 3-D solid that has one circular base
and one vertex.
pascallapalme at http://openclipart.org/detail/35731/cone-by-pascallapalme

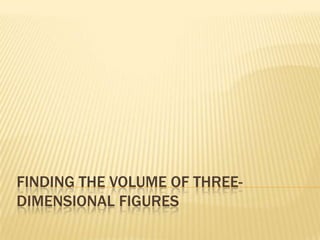

7. FINDING THE VOLUME OF THREE-
DIMENSIONAL FIGURES

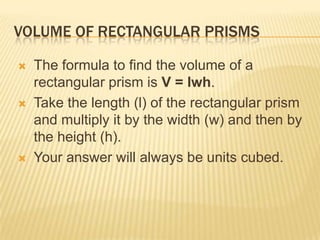

8. VOLUME OF RECTANGULAR PRISMS
 The formula to find the volume of a
rectangular prism is V = lwh.
 Take the length (l) of the rectangular prism
and multiply it by the width (w) and then by
the height (h).
 Your answer will always be units cubed.

9. EXAMPLE
 To find the volume of the rectangular
prism use the formula V =lwh.
 You multiply 8 x 8 x 12.
 Your final answer is 768 feet cubed.
By: Rfc1394 at http://openclipart.org/detail/28855/yellow-transparent-cube-by-rfc1394

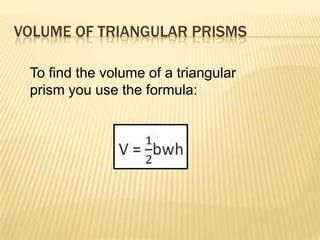

10. VOLUME OF TRIANGULAR PRISMS
To find the volume of a triangular
prism you use the formula:

11. EXAMPLE
To find the volume of the triangular prism you
the formula V = (1/2)bwh.
V = (1/2)bwh
V = (1/2) (6) (12) (4)
V = (1/2) (288)
V = 144 inches cubed

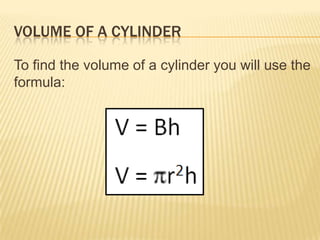

12. VOLUME OF A CYLINDER
To find the volume of a cylinder you will use the
formula:

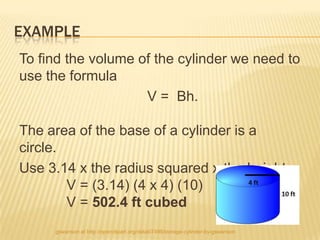

13. EXAMPLE
To find the volume of the cylinder we need to
use the formula
V = Bh.
The area of the base of a cylinder is a
circle.
Use 3.14 x the radius squared x the height.
V = (3.14) (4 x 4) (10)
V = 502.4 ft cubed
gswanson at http://openclipart.org/detail/7498/storage-cylinder-by-gswanson

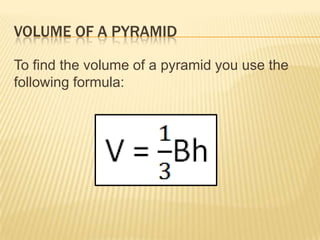

14. VOLUME OF A PYRAMID
To find the volume of a pyramid you use the
following formula:

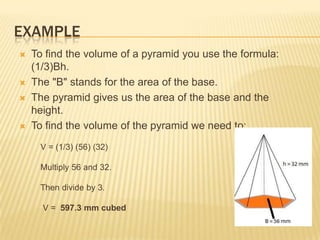

15. EXAMPLE
 To find the volume of a pyramid you use the formula:
(1/3)Bh.
 The "B" stands for the area of the base.
 The pyramid gives us the area of the base and the
height.
 To find the volume of the pyramid we need to:
V = (1/3) (56) (32)
Multiply 56 and 32.
Then divide by 3.
V = 597.3 mm cubed

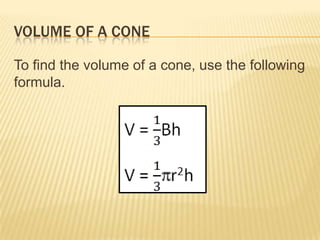

16. VOLUME OF A CONE
To find the volume of a cone, use the following
formula.

17. EXAMPLE
To find the volume of the cone we will use the formula
V = (1/3)Bh
V = (1/3) (3.14) (r x r) (h)
V = (1/3) (3.14) (6) (6) (10)
V = (1/3) (3.14) (360)
V = (1/3) (1130.4)
V = 376.8 ft cubed
pascallapalme at http://openclipart.org/detail/35731/cone-by-pascallapalme

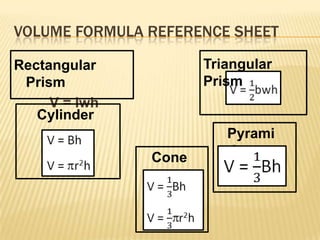

18. VOLUME FORMULA REFERENCE SHEET
Rectangular Triangular
Prism Prism
V = lwh
Cylinder
Pyrami
Cone d

19. REFERENCES
Clip art from openclipart.org
 Merlin2525 at
http://openclipart.org/detail/117355/geometry-1-by-
merlin2525
 Rfc1394 at http://openclipart.org/detail/28855/yellow-
transparent-cube-by-rfc1394
 Roym at http://openclipart.org/detail/15237/pyramide-by-
roym
 Gswanson at http://openclipart.org/detail/7498/storage-
cylinder-by-gswanson
 Pascallapalme at http://openclipart.org/detail/35731/cone-
by-pascallapalme
All Clipart not cited in a footnote and on this reference page I
created using Paint.
